High-precision high-speed meter meter meter all-in-one tachymeter tachymeter line speedometer length measurement roller encoder

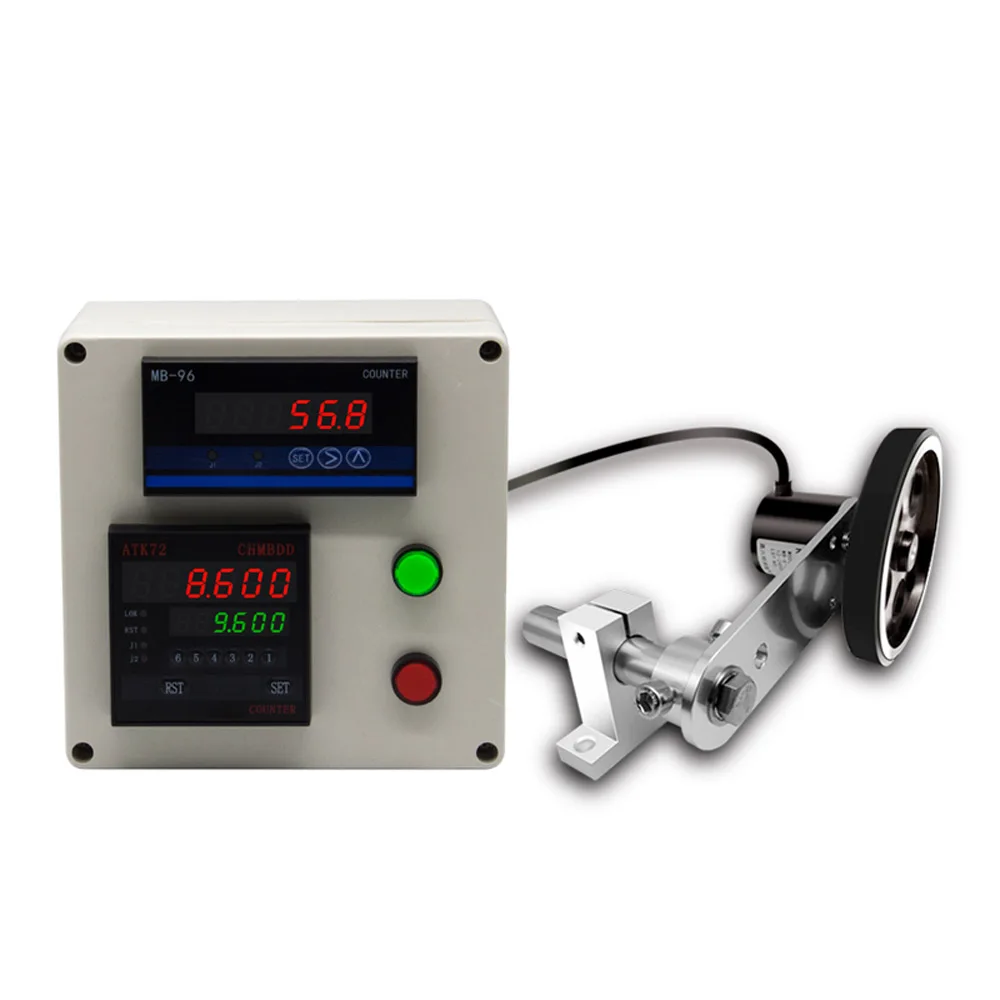

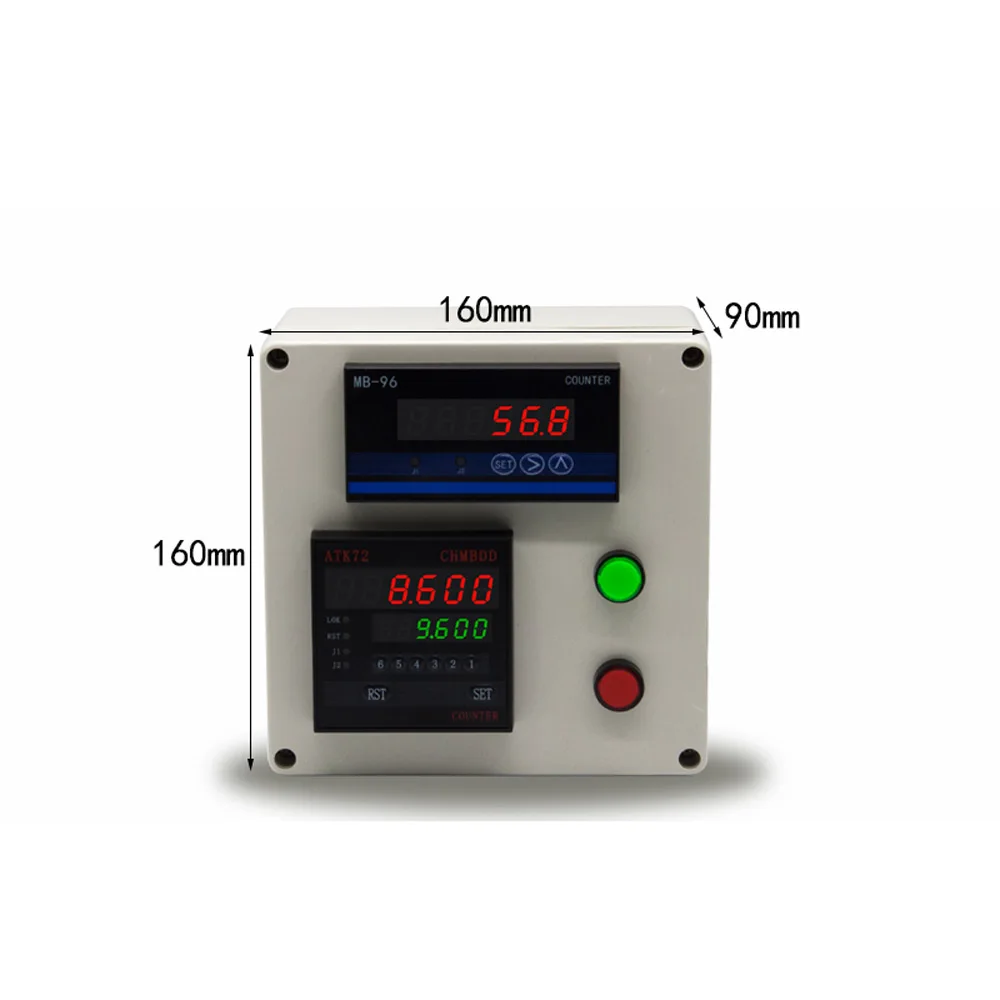

Meter and speed display at the same time, you can set the speed over the range or below the range to stop or start the machine, you can also control the fixed length meters!
I. Usage
Used for cloth inspection machine, rolling machine, sizing machine and cable machinery need to measure the length of the equipment is mainly used for textile, cable, paper and other silk, wire, tube and strip production process of automatic length measurement, counting circle and control. As the sensor adopts reversible photoelectric sensor, overcoming the mechanical measuring device due to mechanical wear and tear or slippage brought about by the low life, low-precision drawbacks, the accuracy than the mechanical counter has significantly improved to plus or minus 0.2%, and stable performance, strong anti-interference ability, the operation of the display is simple and intuitive. The product internal design of high-performance positive and negative direction discrimination circuit, and photoelectric encoder with the realization of two directions of the length measurement, that is, both iterative addition of meters, but also can be reversed to reduce the meter counting!
By changing the setting coefficients, the measurement results can be arbitrarily trimmed so that the measured display value is consistent with the actual value. It does not require the manufacture of precise encoder sensing wheels or user sampling wheels of almost any diameter. This makes installation easy and also reduces errors caused by installation. It can be applied to meter counting under any model and any occasion.
Structure characteristics and main technical specifications
1. Length measurement and length control range: 00000.0-99999.9m,0000.00-9999.99m,000000-999999m Display unit millimeters centimeters, decimeters, meters, can be switched to a key code display!
2. Reversible two-way meter counting
3. Pulse equivalent: 0.00001-99.9999 adjustable

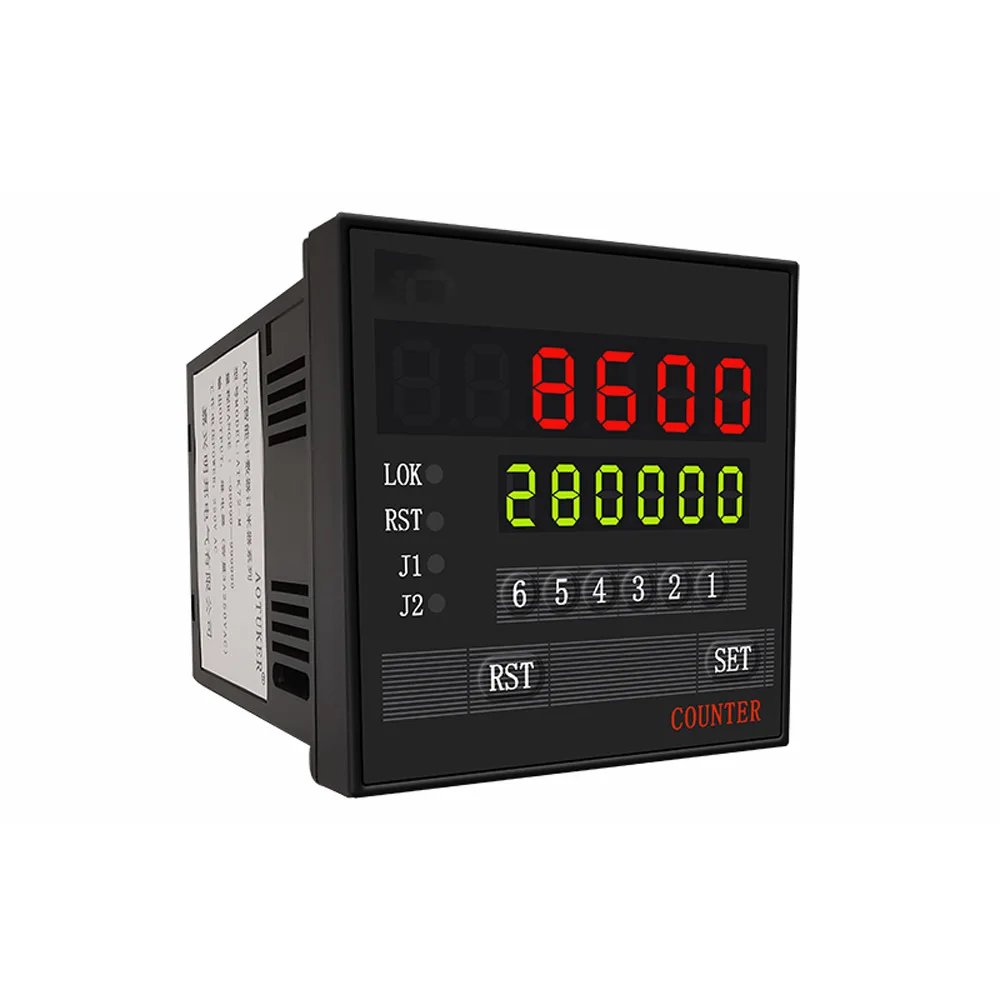

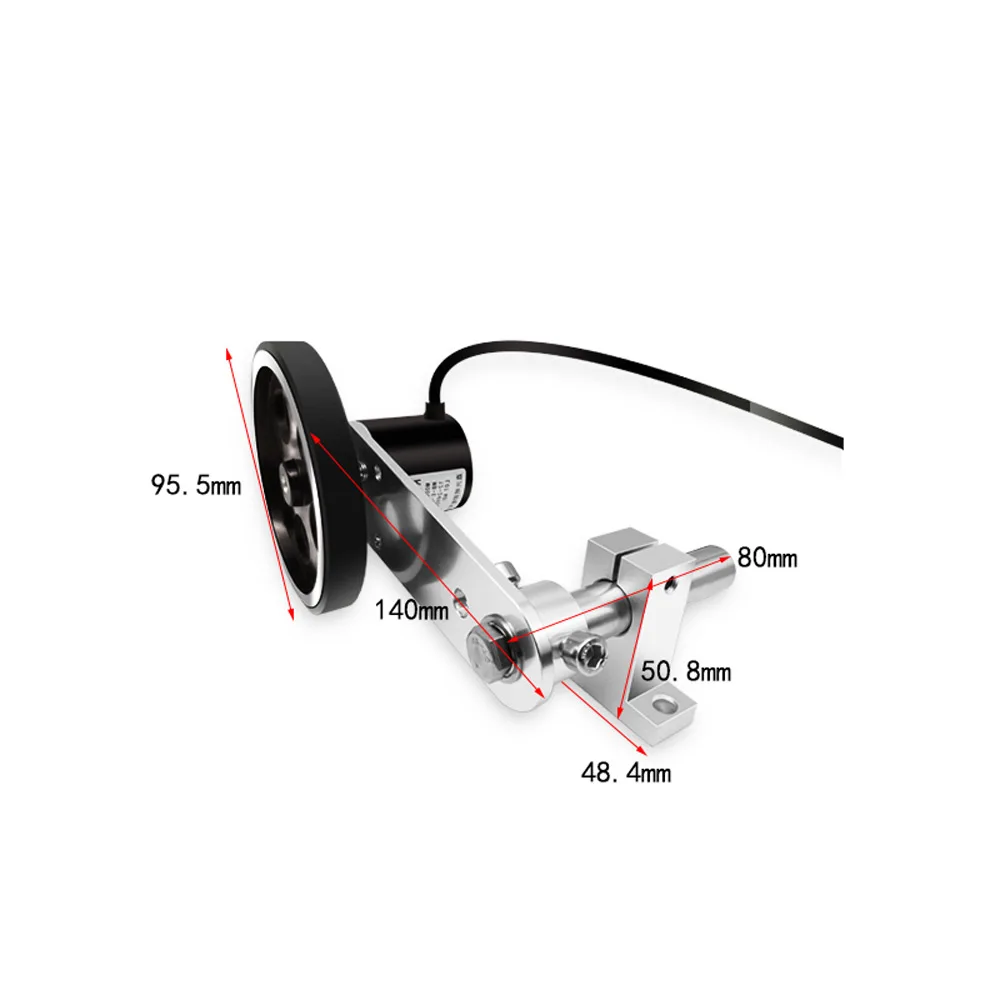

4. External dimensions (W×H×D): 72×72×85mm Press to install the opening size (W×H): 68×68mm meter wheel circumference 200mm
5: Error adjustment function
6: Initial value setting
Main functions
1、Reversible counting: add when the measured object is moving in the forward direction and subtract when it is moving in the reverse direction, without commutation error.
2、With power failure information protection function. After power failure, the original setting number and current counting value keep the state before power failure, and after power supply is restored, the instrument will continue to work in the state before power failure.
3, fixed-length output: when the meter count to the set count value (can be set to two different values), the instrument output contact signals (normally closed, normally closed), connected to the normally closed contact can directly control the equipment to stop or cut off other actuators, alarms, etc., connected to the normally open contact can control the machine to start or energize the alarm is connected to a normally open contact to reach the set number of meters of the alarm, the alarm time is set arbitrarily from 0.1 to 9.9 seconds. The alarm time is 0.1-9.9 seconds, and the combination of two relay output action modes can be set arbitrarily!
4, through the setting of the alarm alarm to achieve the early alarm function, such as 9 meters alarm, alarm 5 seconds after reaching 10 meters meter automatically cleared to re-meter!
5、External zero terminal, through the external switch operation to make the counting display zero!
6、External code table button, can be switched through the external switch everything code table
7, counting value, the value of the system can be set flexibly, in the case of production parameters remain unchanged, a set number of long-term work.
