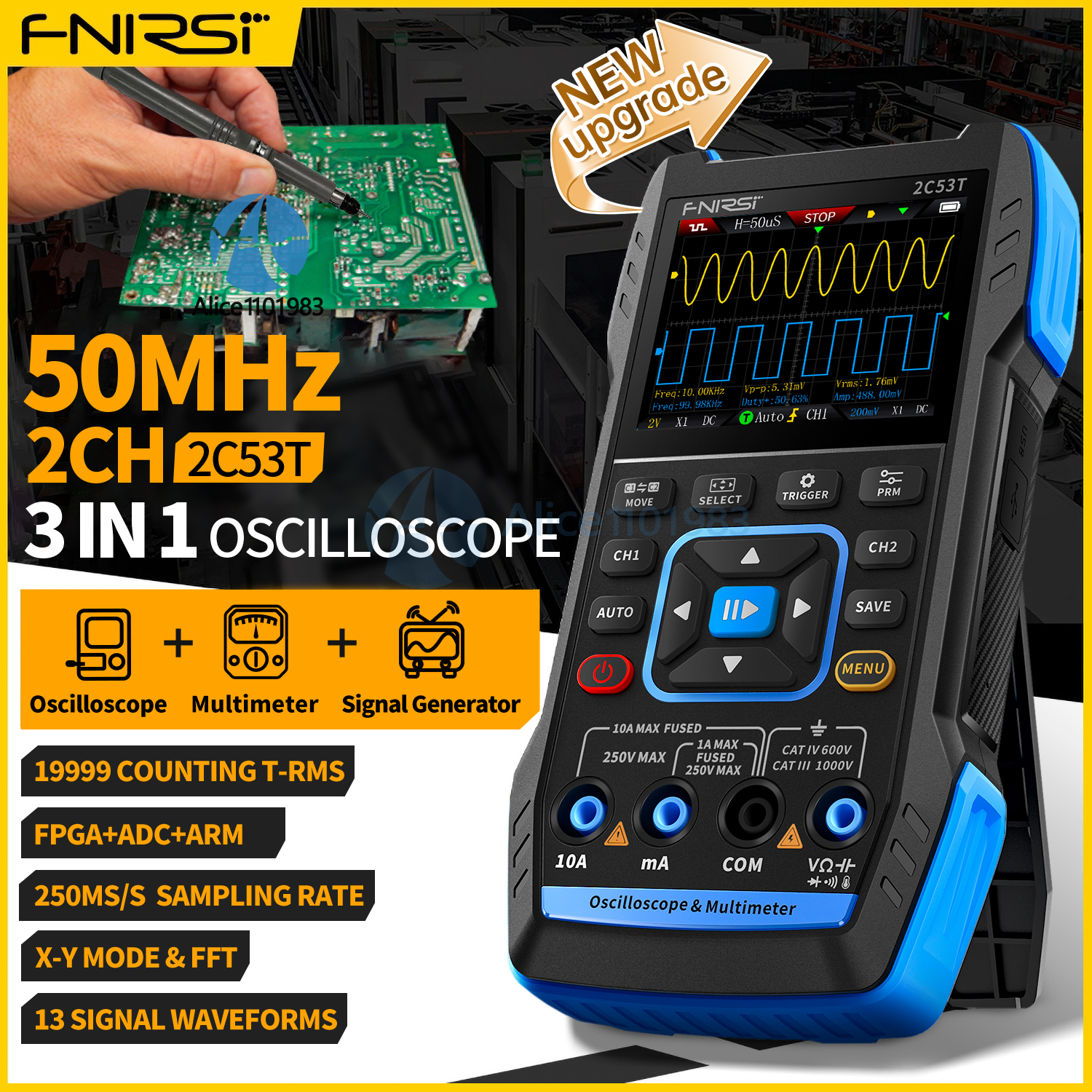

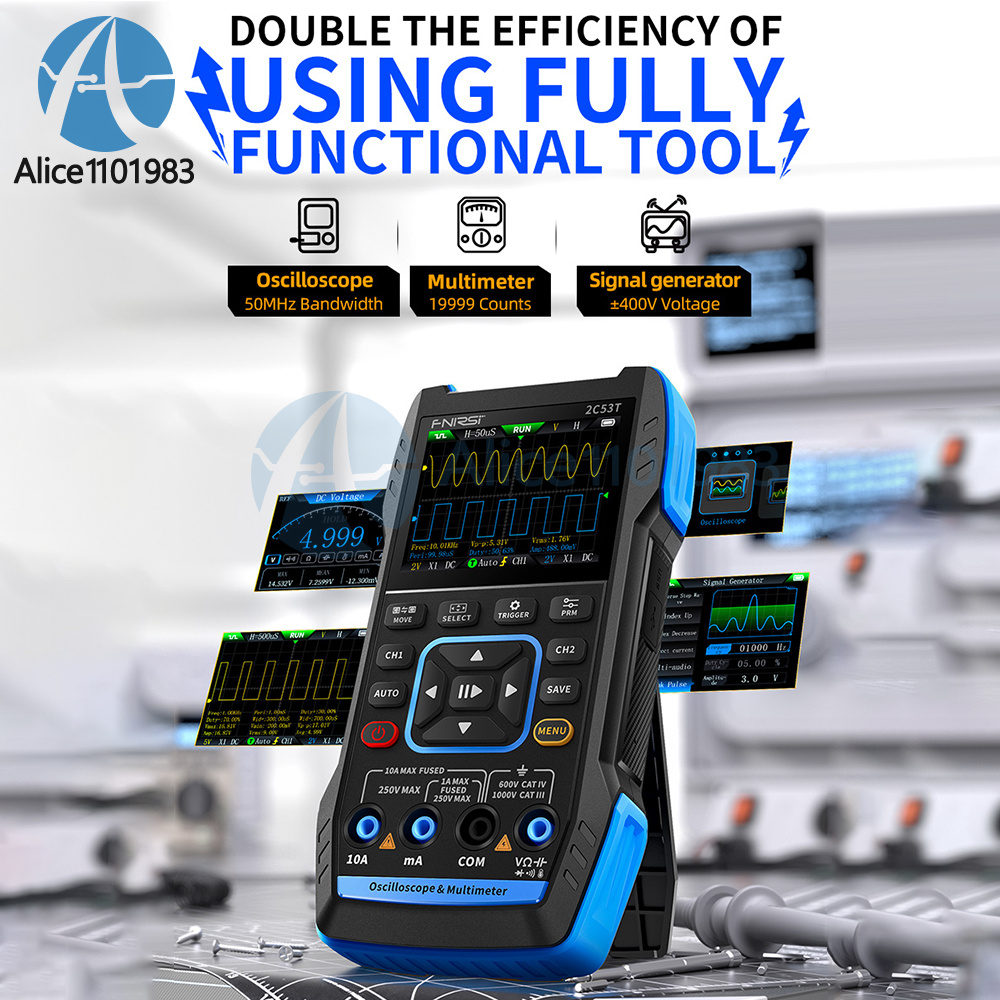

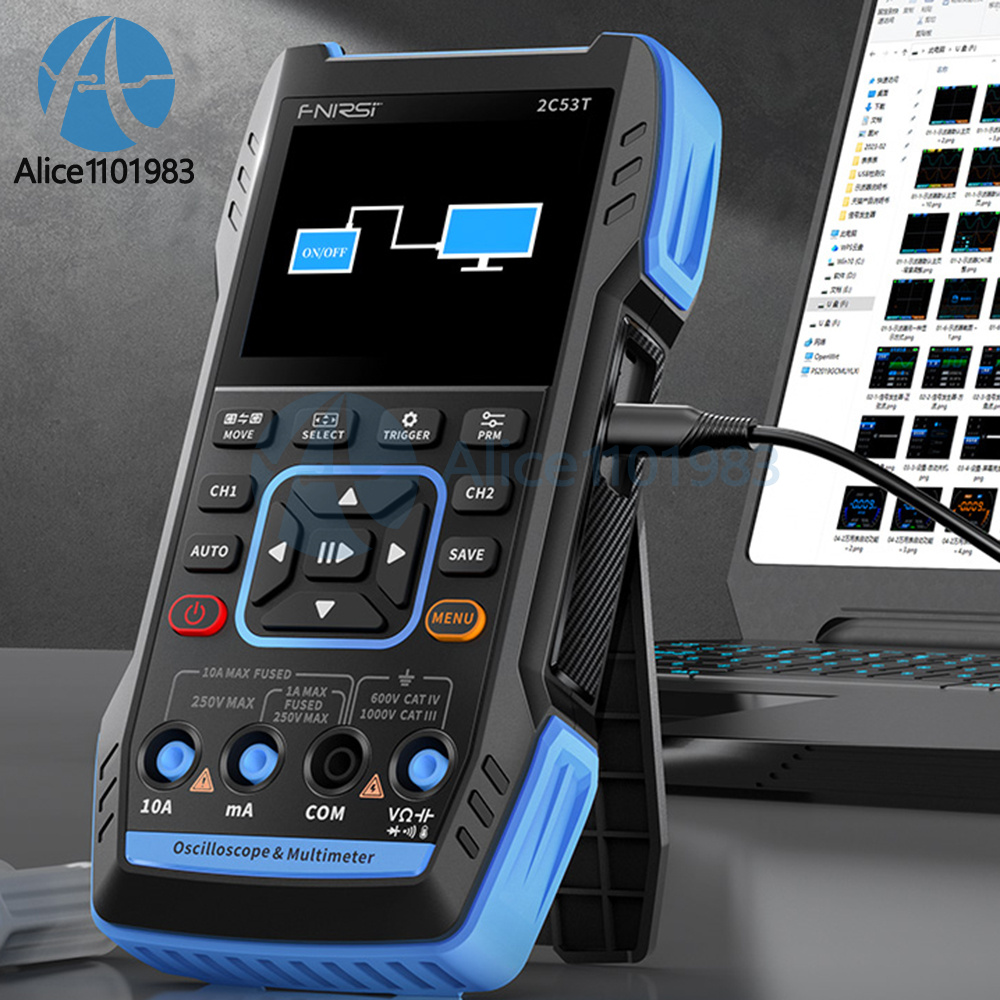

Model: 2C53T

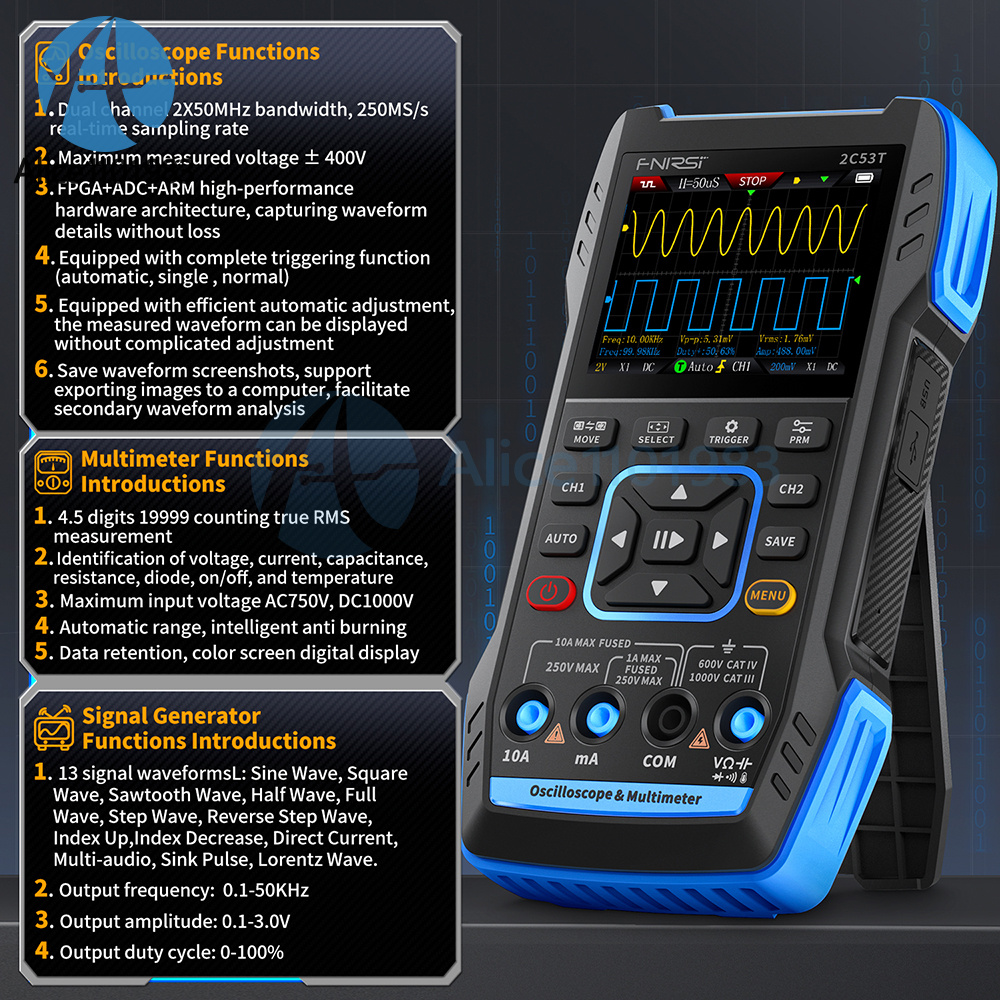

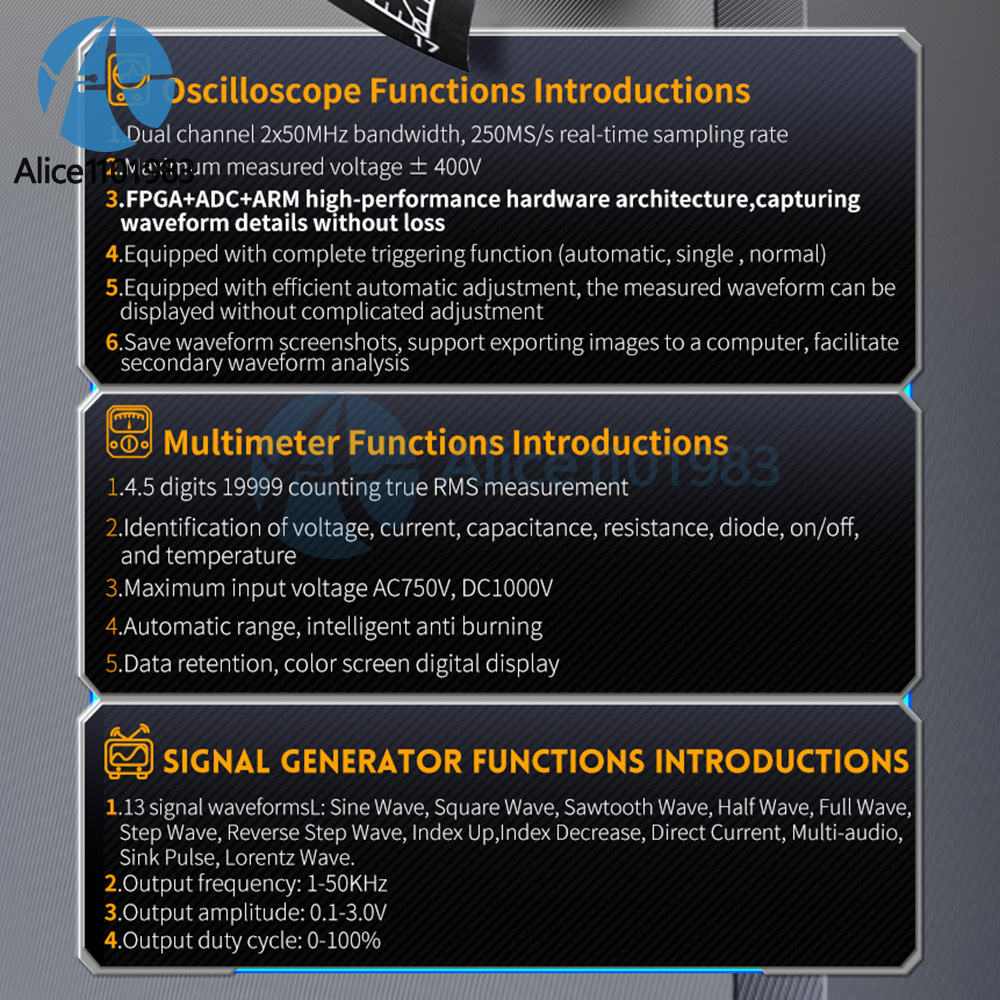

Features
1.4 half-true rms: 4 half-true rms voltage measurement, accurate measurement and fast response speed
2.Intelligent anti-burning wrong file without burning the table: intelligent anti-burning with overload protection internal resistance double fuse, anti-burning table is safer.
3. Function signal generator: can output sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, anti-step wave, exponential rise, exponential fall, DC signals, multi-audio, Sink pulse, Lorentz wave 13 kinds of signals, stable and reliable, high output accuracy.
4. Automatic shutdown, high efficiency and long battery life: built-in 3000mAh high-capacity rechargeable lithium battery with automatic shutdown time setting 6 hours of long battery life, accompanied by your work all day!
5. Wide range of accurate measurements: PWM pulse measurement, power supply ripple measurement, crystal measurement, utility measurement.
2.Intelligent anti-burning wrong file without burning the table: intelligent anti-burning with overload protection internal resistance double fuse, anti-burning table is safer.
3. Function signal generator: can output sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, anti-step wave, exponential rise, exponential fall, DC signals, multi-audio, Sink pulse, Lorentz wave 13 kinds of signals, stable and reliable, high output accuracy.
4. Automatic shutdown, high efficiency and long battery life: built-in 3000mAh high-capacity rechargeable lithium battery with automatic shutdown time setting 6 hours of long battery life, accompanied by your work all day!
5. Wide range of accurate measurements: PWM pulse measurement, power supply ripple measurement, crystal measurement, utility measurement.
Basic Parameters
Screen: 2.8 inch true color screen
Resolution: 320 * 240
Charging: Type-C (5V/1A)
Battery: 3000mAh lithium battery
Support functions: oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 6 hours (laboratory theory maximum)
Screen: 2.8 inch true color screen
Resolution: 320 * 240
Charging: Type-C (5V/1A)
Battery: 3000mAh lithium battery
Support functions: oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 6 hours (laboratory theory maximum)
Oscilloscope Parameters

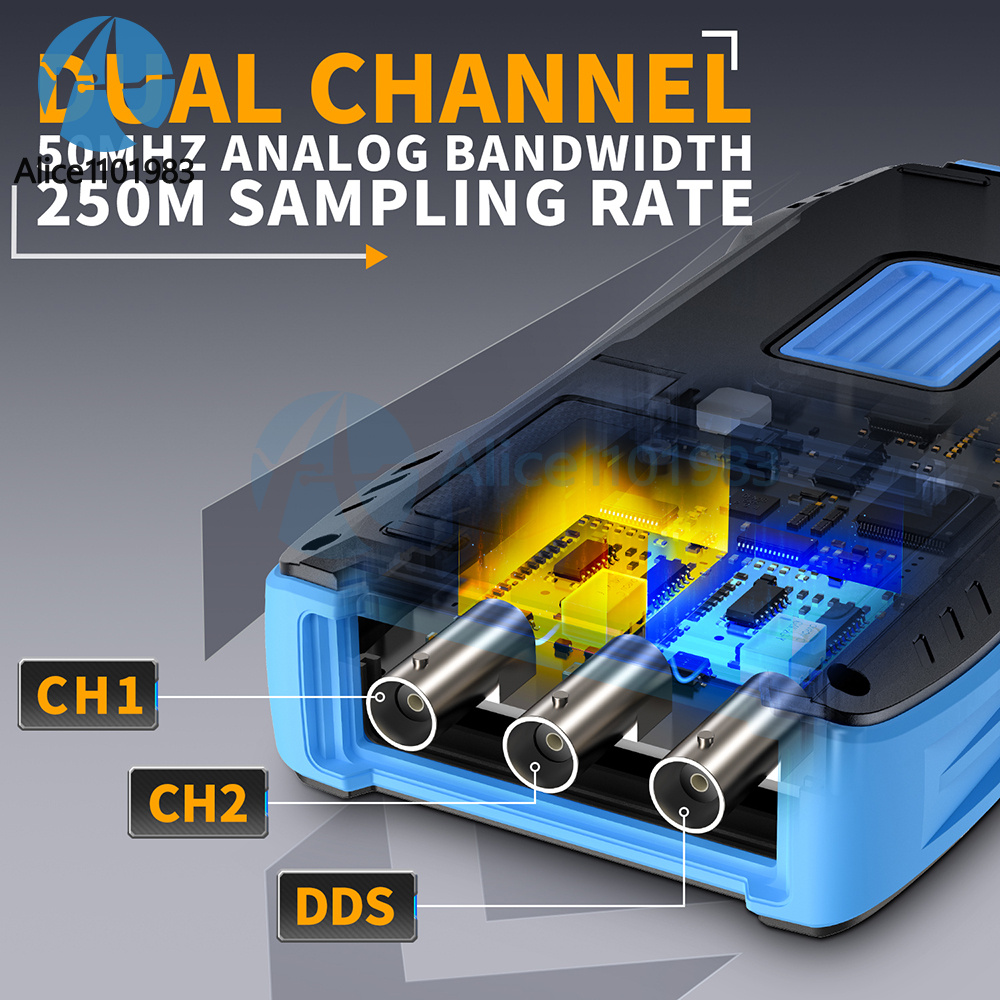

Channel: dual-channel
Sampling rate: 250MS / s
Analog bandwidth: 50M (dual-channel independent 50M)
Input impedance: 1MΩ
Time base range: 10ns-20s
Vertical sensitivity: 10mV/div-10V/div (X1 gear)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge

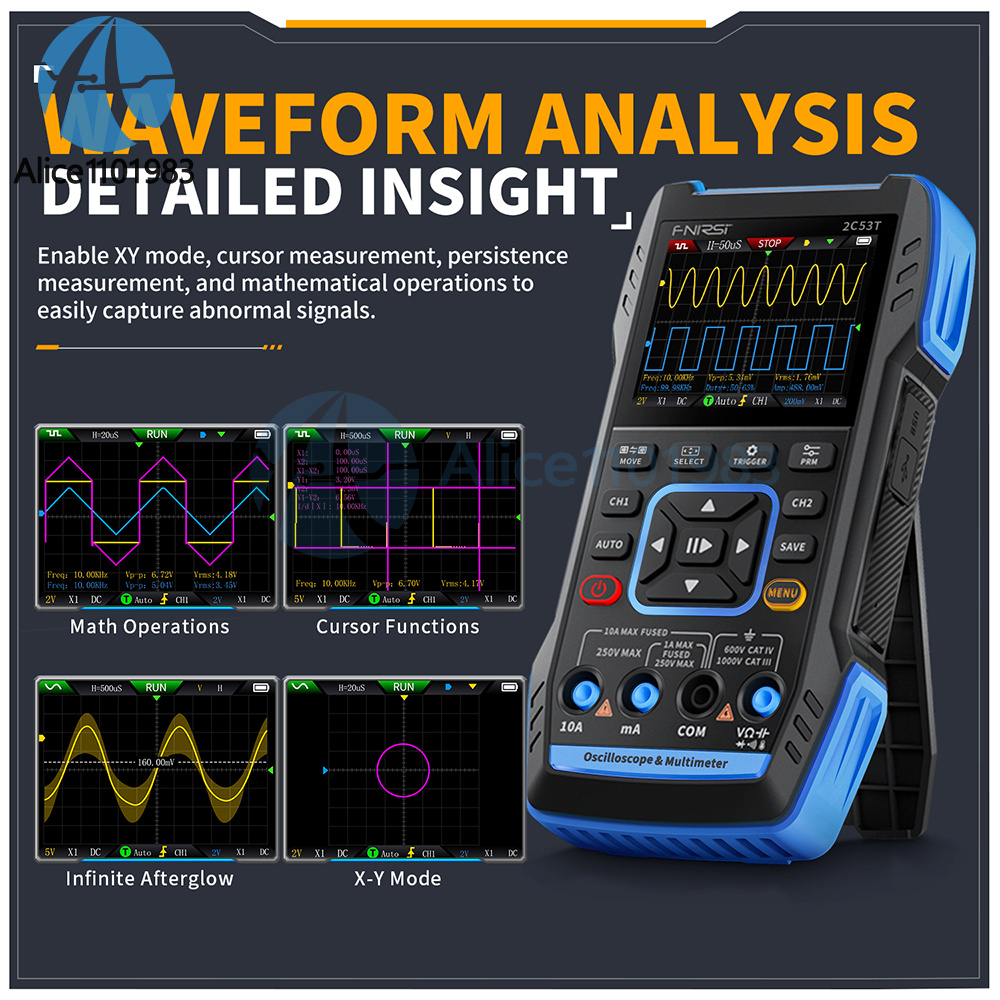

Display Mode: Y-T/Scroll/X-Y
Coupling: AC/DC
Afterglow: OFF, 500ms, 1s, ∞
Arithmetic: 8 kinds of basic arithmetic + FFT arithmetic
Waveform Screenshot Saving: √
Export waveform image: √
Cursor Measurement: √
Channel: dual-channel
Sampling rate: 250MS / s
Analog bandwidth: 50M (dual-channel independent 50M)
Input impedance: 1MΩ
Time base range: 10ns-20s
Vertical sensitivity: 10mV/div-10V/div (X1 gear)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge
Display Mode: Y-T/Scroll/X-Y
Coupling: AC/DC
Afterglow: OFF, 500ms, 1s, ∞
Arithmetic: 8 kinds of basic arithmetic + FFT arithmetic
Waveform Screenshot Saving: √
Export waveform image: √
Cursor Measurement: √
Function Signal Generator Parameters
Channel: single channel
Frequency: 1Hz-50KHz
Amplitude: 0.1-3V
Channel: single channel
Frequency: 1Hz-50KHz
Amplitude: 0.1-3V

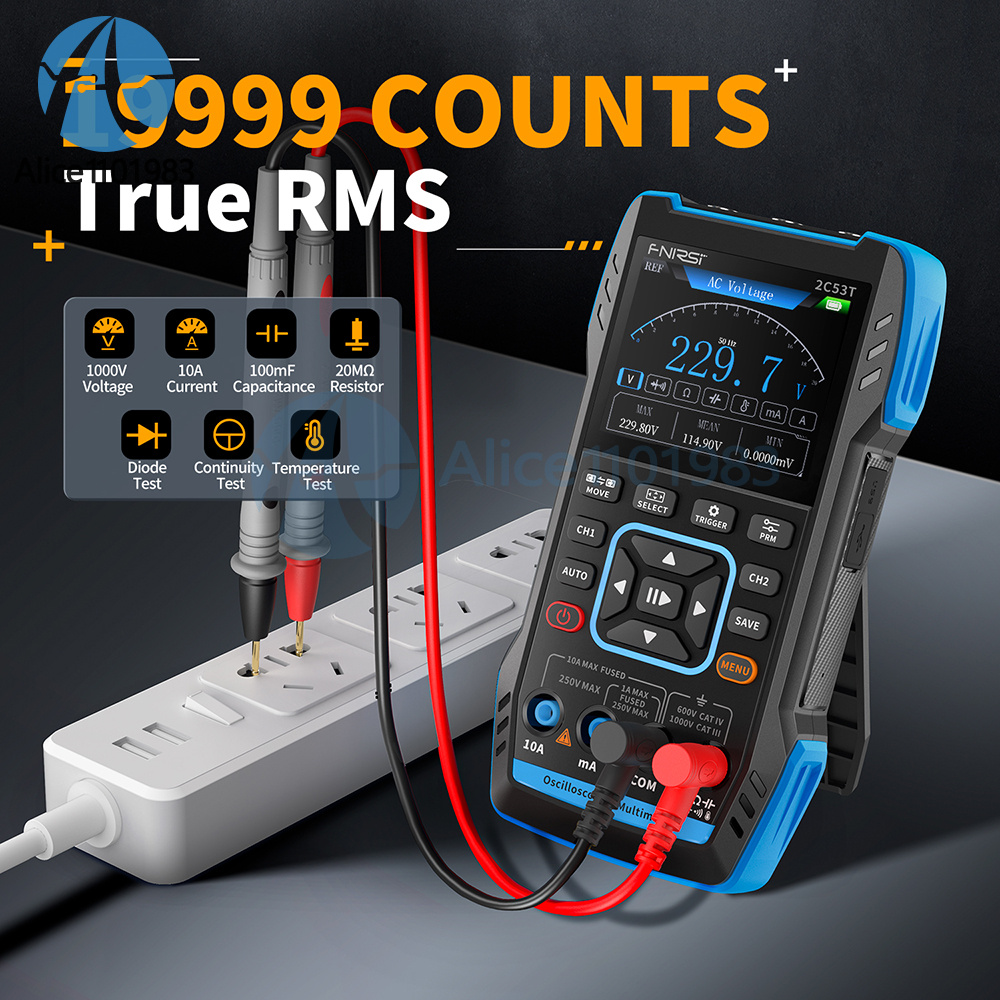

Multimeter Parameters
DC voltage: range 1.9999V/19.999V/199.99V/1000V, accuracy ± (0.5%+3)
AC voltage: range 1.9999V/19.999V/199.99V/750.0V, accuracy ± (1% +3)
DC current: range 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)
AC Current: Range 19.999mA/199.99mA/1.9999A/9.999A, Accuracy ±(1.5%+3)
Resistance: Range 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, accuracy ±(0.5%+3)
Range 1.9999K2/199.990, accuracy ±(2.0%+3)
Capacitance: Range 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, Accuracy ±(2.0%+5)
Range 9.999mF/99.99mF, accuracy ±(5.0%+20)
Temperature: Range (-55~1300℃)/(-67~2372℉), Accuracy ±(2.5%+5)
Diode: √
On-off: √
DC voltage: range 1.9999V/19.999V/199.99V/1000V, accuracy ± (0.5%+3)
AC voltage: range 1.9999V/19.999V/199.99V/750.0V, accuracy ± (1% +3)
DC current: range 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)
AC Current: Range 19.999mA/199.99mA/1.9999A/9.999A, Accuracy ±(1.5%+3)
Resistance: Range 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, accuracy ±(0.5%+3)
Range 1.9999K2/199.990, accuracy ±(2.0%+3)
Capacitance: Range 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, Accuracy ±(2.0%+5)
Range 9.999mF/99.99mF, accuracy ±(5.0%+20)
Temperature: Range (-55~1300℃)/(-67~2372℉), Accuracy ±(2.5%+5)
Diode: √
On-off: √
Package Includes
View images according to your choice.
View images according to your choice.

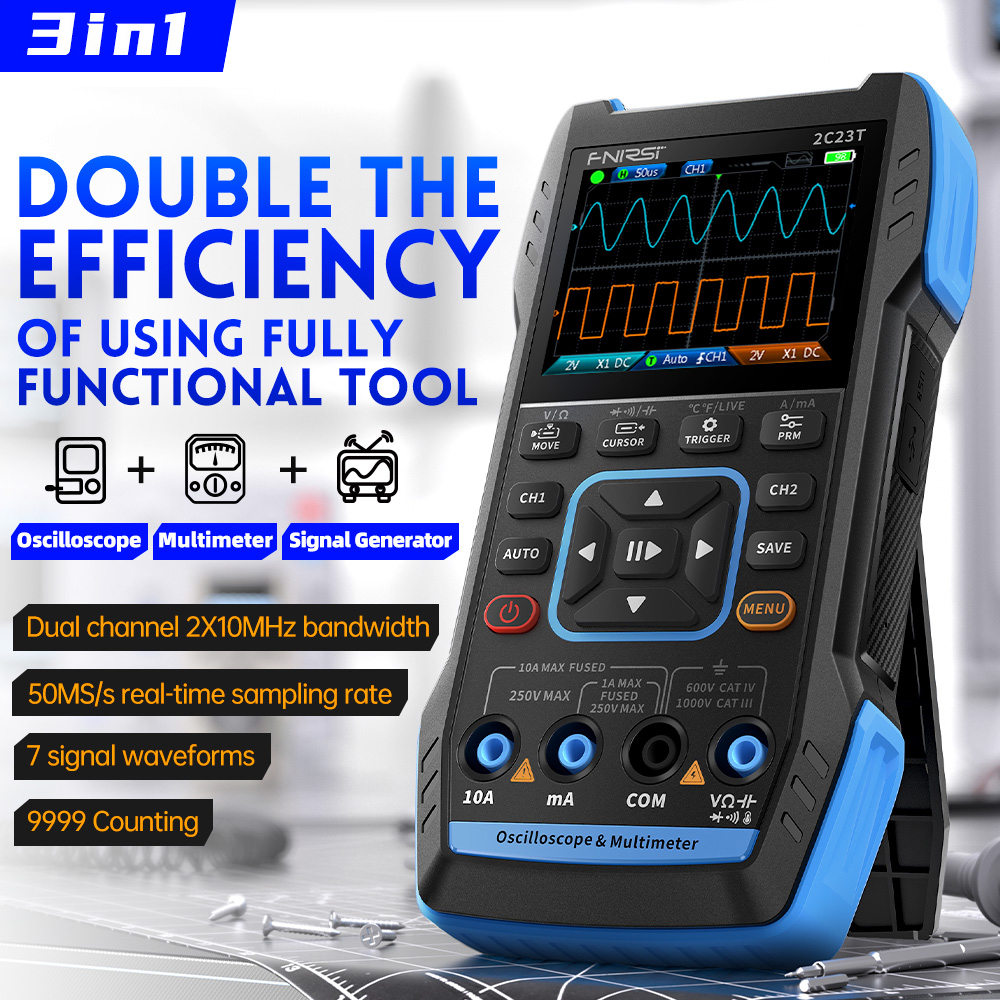

Model: 2C23T
Features
1. Dual-channel 3-in-1 digital oscilloscope: multimeter + oscilloscope + signal generator
2.Dual-channel 2X10MHz bandwidth, isolated channels are independent of each other to avoid interference between them, more accurate signal detection
3. Oscilloscope performance: hardware architecture and desktop computer with the same ARM + FPGA + high-speed ADC program, high cost, non-general CPU direct mining program, trigger system is powerful, with super waveform capture capability, waveform details are not lost
4. One-key measurement: with a complete range of trigger modes: automatic, single, conventional equipped with efficient one-key automatic adjustment, without the need for cumbersome adjustment can display the measured signal waveforms
5. Built-in double insurance tube intelligent anti-burn overload does not burn the table: intelligent anti-burn power measurement is safer, novice can also easily measure!
1. Dual-channel 3-in-1 digital oscilloscope: multimeter + oscilloscope + signal generator
2.Dual-channel 2X10MHz bandwidth, isolated channels are independent of each other to avoid interference between them, more accurate signal detection
3. Oscilloscope performance: hardware architecture and desktop computer with the same ARM + FPGA + high-speed ADC program, high cost, non-general CPU direct mining program, trigger system is powerful, with super waveform capture capability, waveform details are not lost
4. One-key measurement: with a complete range of trigger modes: automatic, single, conventional equipped with efficient one-key automatic adjustment, without the need for cumbersome adjustment can display the measured signal waveforms
5. Built-in double insurance tube intelligent anti-burn overload does not burn the table: intelligent anti-burn power measurement is safer, novice can also easily measure!
Overview
Screen: 2.8-inch true color screen
Resolution: 320 * 240
Charging: TYPE-C (5V/1A)
Battery: 3000mAh lithium battery
Support function: Oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 8 hours (laboratory theory maximum)
Screen: 2.8-inch true color screen
Resolution: 320 * 240
Charging: TYPE-C (5V/1A)
Battery: 3000mAh lithium battery
Support function: Oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 8 hours (laboratory theory maximum)
Multimeter specifications
DC voltage: 9.999V/99.99V/999.9V, accuracy: ±(0.5%+3)
AC voltage: 9.999V/99.99V/750.0V, accuracy: ±(1%+3)
DC current: 9999uA/99.99mA/999.9mA/9.999A, accuracy: ±(1.2%+3)
AC Current: 9999uA/99.99mA/999.9mA/9.999A, Accuracy: ±(1.5%+3)
Resistance: 9.999MΩ/999.9KΩ199.99KΩ19.999KΩ/999.9Ω, accuracy: ±(0.5%+3)
99.99MΩ, Accuracy: ±(1.5%+3)
Capacitance: 999.9uF199.99uF/9.999uF/999.9nF/99.99nF9.999nF, Accuracy: ±(2.0%+5)
9.999mF/99.99mF, accuracy: ±(5.0%+20)
Temperature: (-55~1300℃/(-67~2372℉), Accuracy: ±(2.5%+5)
Diode: √
On-off: √
Firewire detection: √
DC voltage: 9.999V/99.99V/999.9V, accuracy: ±(0.5%+3)
AC voltage: 9.999V/99.99V/750.0V, accuracy: ±(1%+3)
DC current: 9999uA/99.99mA/999.9mA/9.999A, accuracy: ±(1.2%+3)
AC Current: 9999uA/99.99mA/999.9mA/9.999A, Accuracy: ±(1.5%+3)
Resistance: 9.999MΩ/999.9KΩ199.99KΩ19.999KΩ/999.9Ω, accuracy: ±(0.5%+3)
99.99MΩ, Accuracy: ±(1.5%+3)
Capacitance: 999.9uF199.99uF/9.999uF/999.9nF/99.99nF9.999nF, Accuracy: ±(2.0%+5)
9.999mF/99.99mF, accuracy: ±(5.0%+20)
Temperature: (-55~1300℃/(-67~2372℉), Accuracy: ±(2.5%+5)
Diode: √
On-off: √
Firewire detection: √
Oscilloscope Specifications
Channel: Dual Channel
Sampling rate: 50M
Analog bandwidth: 10M (dual-channel independent 10M)
Memory depth: 32kb
Input impedance: 1MΩ
Time base range: 50ns-10s
Vertical sensitivity: 20mV/div-10V/div (X1 step)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge
Display Mode: YT/Scrolling
Coupling: AC/DC
Waveform Screenshot Saving: Support
View waveforms on computer: Support
Channel: Dual Channel
Sampling rate: 50M
Analog bandwidth: 10M (dual-channel independent 10M)
Memory depth: 32kb
Input impedance: 1MΩ
Time base range: 50ns-10s
Vertical sensitivity: 20mV/div-10V/div (X1 step)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge
Display Mode: YT/Scrolling
Coupling: AC/DC
Waveform Screenshot Saving: Support
View waveforms on computer: Support
Function Signal Generator Specifications
Channel: single channel
Frequency: 1Hz-2MHz
Amplitude: 0.1-3
Channel: single channel
Frequency: 1Hz-2MHz
Amplitude: 0.1-3

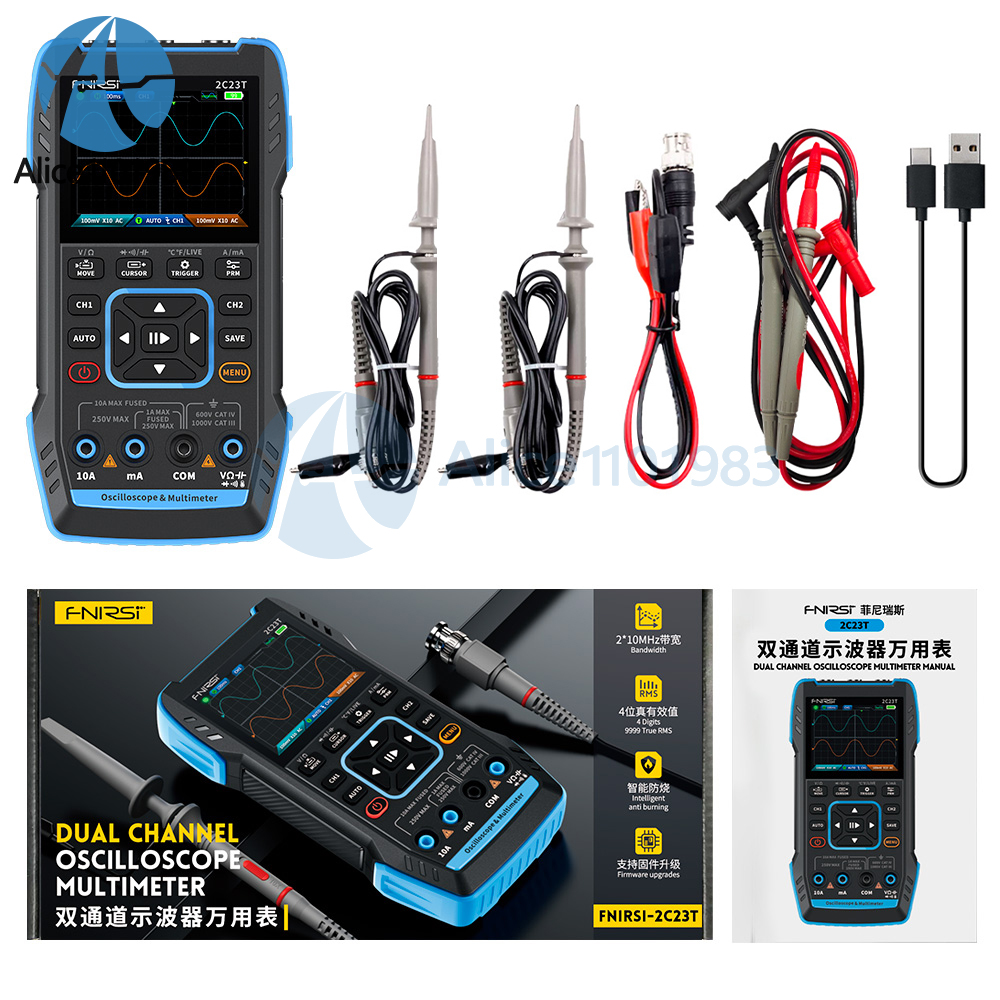

List
1 x Main unit
1 x Instruction Manual
1 x Probe
2 x Alligator Clip Probes
1 x Multimeter Pen Cable
1 x Type-C Charging Cable
1 x Main unit
1 x Instruction Manual
1 x Probe
2 x Alligator Clip Probes
1 x Multimeter Pen Cable
1 x Type-C Charging Cable

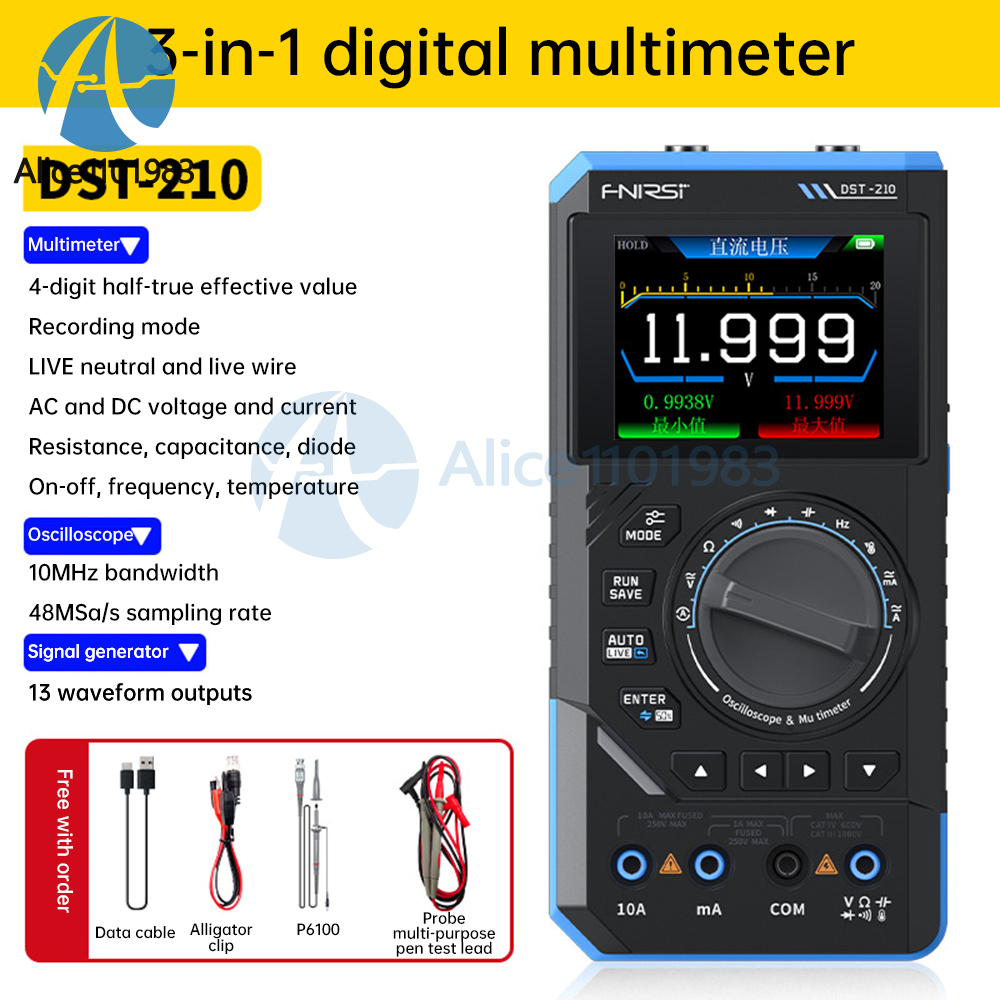

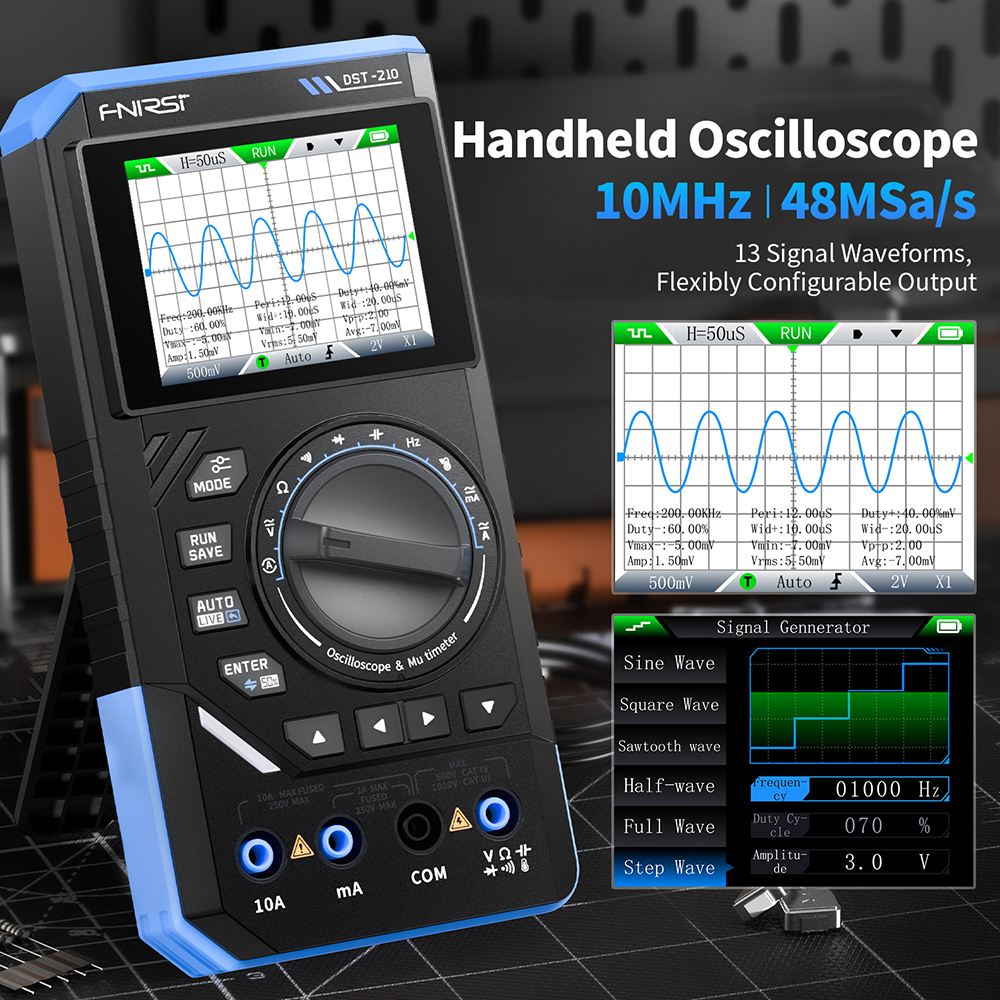

Model: DST-210
Features:
1. Multi-functional 3-in-1: Oscilloscope + Multimeter + Signal Generator in one versatile unit.2. Equipped with a 2.8-inch TFT colour screen for clear, intuitive display.3. Incorporates a high-capacity rechargeable battery (3000mAh), supporting extended standby operation for up to 10 hours.4. Waveform storage: Enables screenshot saving and viewing for convenient data analysis.5. Signal generator function: Supports 13 waveform outputs with a frequency range of 0-50kHz. Adjustable output voltage up to 3V, with configurable output parameters including frequency, amplitude, and duty cycle for versatile adaptation to diverse requirements.6. Multimeter function: Features recording mode, auto-measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold, and LIVE neutral/live wire detection. Includes overload protection and low-battery indicator.Specifications:
Product Model: DST-210
Screen Material: 2.8-inch TFT colour display
Backlight: Adjustable backlight brightness
Power Supply: Type-C (5V/1A)
Battery: 3000mAh
Selectable Languages: Chinese, English
Product Dimensions: 177.43 × 87.47 × 34.5mm
Multimeter Specifications:
DC Voltage: 1.9999V/19.999V/199.99V/1000V Accuracy: ±0.5%+3
AC Voltage: 1.9999V/19.999V/199.99V/750V Accuracy: ±1%+3
DC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.2%+3
AC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.5%+3
Resistance: 19.999MΩ/1.9999MΩ/199.99MΩ/19.999KΩ Accuracy: ±0.5%+3
Resistance: 1.9999KΩ/199.99Ω Accuracy: ±2.0%+3
Capacitance: 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF Accuracy: ±2.0%+5
Capacitance: 9.999mF/99.99mF Accuracy: ±5.0%+20
Frequency: 9.999 MHz / 999.9 kHz / 99.99 kHz / 9.999 kHz / 999.99 Hz / 99.99 Hz / 9.999 Hz Accuracy: ±0.1% + 2
Temperature: -55 to +1300°C / -67 to 2372°F Accuracy: ±2.5% + 5
Oscilloscope Parameters:
Real-time sampling rate: 48 MSa/s (DST-210)
Analogue bandwidth: 10 MHz (DST-210)
Horizontal time base range: 50 ns to 20 s (DST-210)

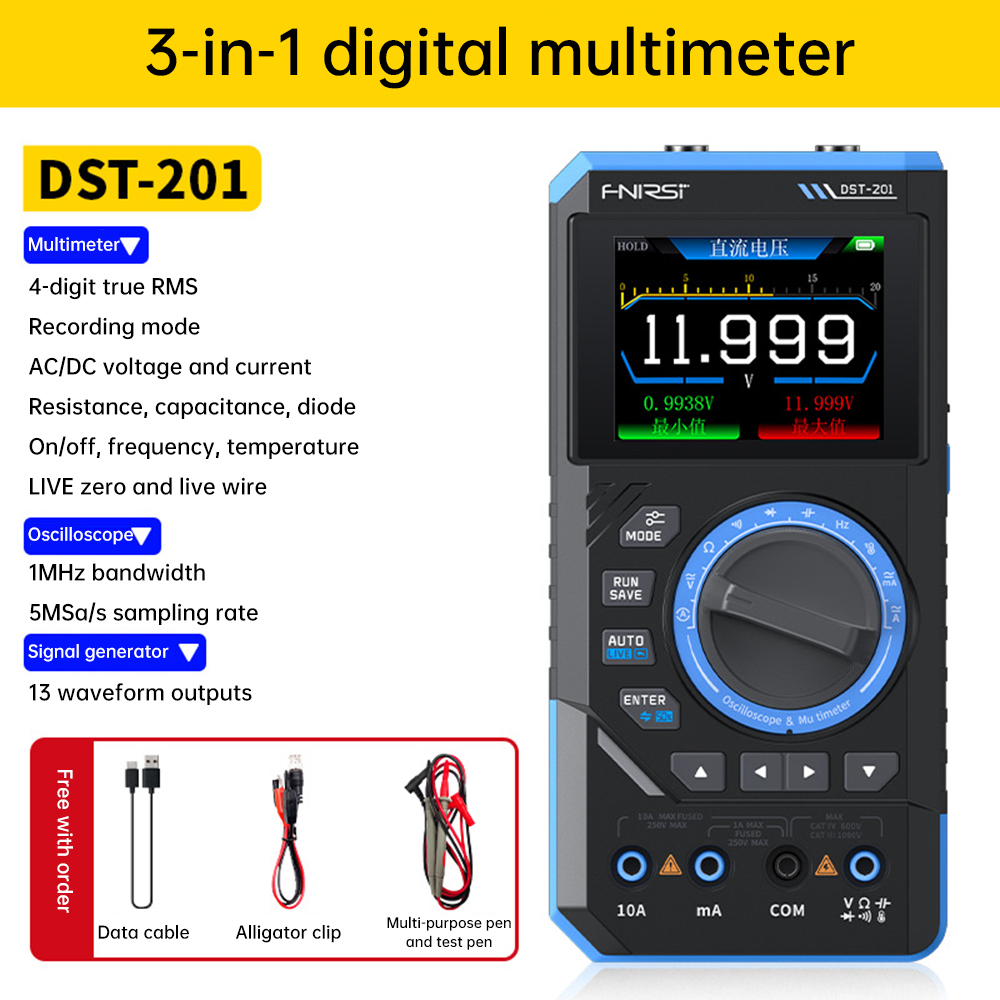

Real-time sampling rate: 5 MSa/s (DST-201)
Analogue bandwidth: 1 MHz (DST-201)
Horizontal time base range: 500 ns to 20 s (DST-201)
Coupling mode: AC/DC
Test voltage range: 1:1 probe: 80 Vpp (+40 V), 10:1 probe: 800 Vpp (+400 V)
Vertical sensitivity: 10 mV/div to 10 V/div (x1 range)
Vertical displacement: Adjustable with indication
Trigger modes: Auto, Normal, Single
Trigger types: Rising edge, falling edge
Trigger level: Adjustable with indication
Waveform freeze: Yes (HOLD function)
Automatic measurements: Maximum, minimum, average, RMS, peak-to-peak, frequency, period, duty cycle
Signal generator parameters:
Output waveforms: Supports 13 waveform outputs
Waveform frequency: 0-50kHz
Square wave duty cycle: 0-100% (adjustable for square and sawtooth waves)
Waveform amplitude: 0.1V-3.0V
Product Model: DST-210
Screen Material: 2.8-inch TFT colour display
Backlight: Adjustable backlight brightness
Power Supply: Type-C (5V/1A)
Battery: 3000mAh
Selectable Languages: Chinese, English
Product Dimensions: 177.43 × 87.47 × 34.5mm
Multimeter Specifications:
DC Voltage: 1.9999V/19.999V/199.99V/1000V Accuracy: ±0.5%+3
AC Voltage: 1.9999V/19.999V/199.99V/750V Accuracy: ±1%+3
DC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.2%+3
AC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.5%+3
Resistance: 19.999MΩ/1.9999MΩ/199.99MΩ/19.999KΩ Accuracy: ±0.5%+3
Resistance: 1.9999KΩ/199.99Ω Accuracy: ±2.0%+3
Capacitance: 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF Accuracy: ±2.0%+5
Capacitance: 9.999mF/99.99mF Accuracy: ±5.0%+20
Frequency: 9.999 MHz / 999.9 kHz / 99.99 kHz / 9.999 kHz / 999.99 Hz / 99.99 Hz / 9.999 Hz Accuracy: ±0.1% + 2
Temperature: -55 to +1300°C / -67 to 2372°F Accuracy: ±2.5% + 5
Oscilloscope Parameters:
Real-time sampling rate: 48 MSa/s (DST-210)
Analogue bandwidth: 10 MHz (DST-210)
Horizontal time base range: 50 ns to 20 s (DST-210)
Real-time sampling rate: 5 MSa/s (DST-201)
Analogue bandwidth: 1 MHz (DST-201)
Horizontal time base range: 500 ns to 20 s (DST-201)
Coupling mode: AC/DC
Test voltage range: 1:1 probe: 80 Vpp (+40 V), 10:1 probe: 800 Vpp (+400 V)
Vertical sensitivity: 10 mV/div to 10 V/div (x1 range)
Vertical displacement: Adjustable with indication
Trigger modes: Auto, Normal, Single
Trigger types: Rising edge, falling edge
Trigger level: Adjustable with indication
Waveform freeze: Yes (HOLD function)
Automatic measurements: Maximum, minimum, average, RMS, peak-to-peak, frequency, period, duty cycle
Signal generator parameters:
Output waveforms: Supports 13 waveform outputs
Waveform frequency: 0-50kHz
Square wave duty cycle: 0-100% (adjustable for square and sawtooth waves)
Waveform amplitude: 0.1V-3.0V
Package includes:
Main unit ×1
P1600 oscilloscope probe ×1
USB-C charging cable ×1
Test pen ×1
Alligator clip probe ×1
Main unit ×1
P1600 oscilloscope probe ×1
USB-C charging cable ×1
Test pen ×1
Alligator clip probe ×1
