----SET1- 4D 16Lines----
Features:
16 lines for finer positioning, with self-leveling system, flexibility and stability.
Self-leveling function can conquer small rugged place such as 3°, over 3° the laser light will keep blinking to remind you to put it on a flat place.
Alarm function beyond the safe range.
The magnetic-damping compensation system ensures quick levelling time.
1/4" screw size for easy connection, it can be used with tripod to adjust the working height of the machine.

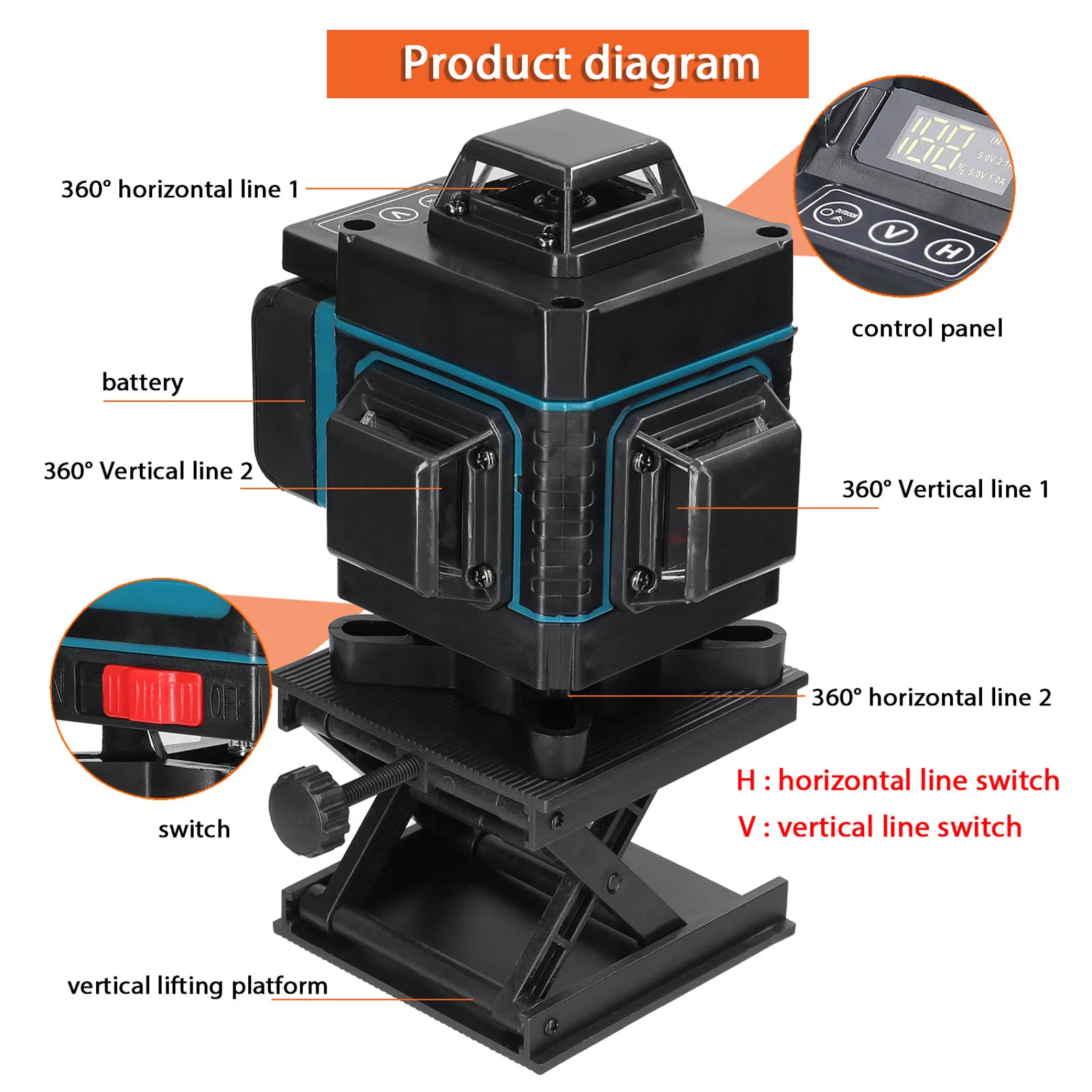

A 360° horizontal line can be drawn on the wall.
Two vertical lines can be drawn on the wall.
Leaning function, it can be applied in a leaning position like upstairs building.
Comes with one T-type wall mounting bracket, 7mm wall mounted distance, general for indoor and outdoor use.
Three touching buttons design, one OUTDOOR/Open button, one V button, and one H button, the oblique line, horizontal line and vertical line with a clear division.
The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
Comes with one remote control, A=vertical line, B=horizontal line.
Scaning QR code on the back of remote control to download phone APP, convenient to control the level machine.
The laser level is controlled by the APP through BT connection, also has electric quantity display, laser light brightness adjustable and voice control function.
Easy to carry with the case, providing quick and convenient mobility and storage.
Note: Please do not let the laser line shoot to your eyes directly.
Specifications:
Name: Laser Level
Main material: plastics metal
Battery: 1 * 3.7V, 3000mAh battery(included, you will find there are two 18650 batteries inside if disassemble it)
Laser ray: 360°* 4, 16 lines(40)
Wavelength: Green light 532nm
Horizontal/vertical accuracy: ±0.2mm/10m
Self-levelling-range: ±3°
Waterproof grade: IP54
Working-range: about 25m in diameter
Working time: about 5 hours
Green light working temperature: -5℃ to 50℃
Level machine size(assemble with battery): 135 * 105 * 126mm / 5.31 * 4.13 * 4.96in
Bag size: 220 * 250 * 145mm / 8.66 * 9.84 * 5.71in
Item weight: 1373g / 3.03lb
Package size: 215 * 165 * 255mm / 8.46 * 6.50 * 10.04in
Package weight: 1550g / 3.42lb

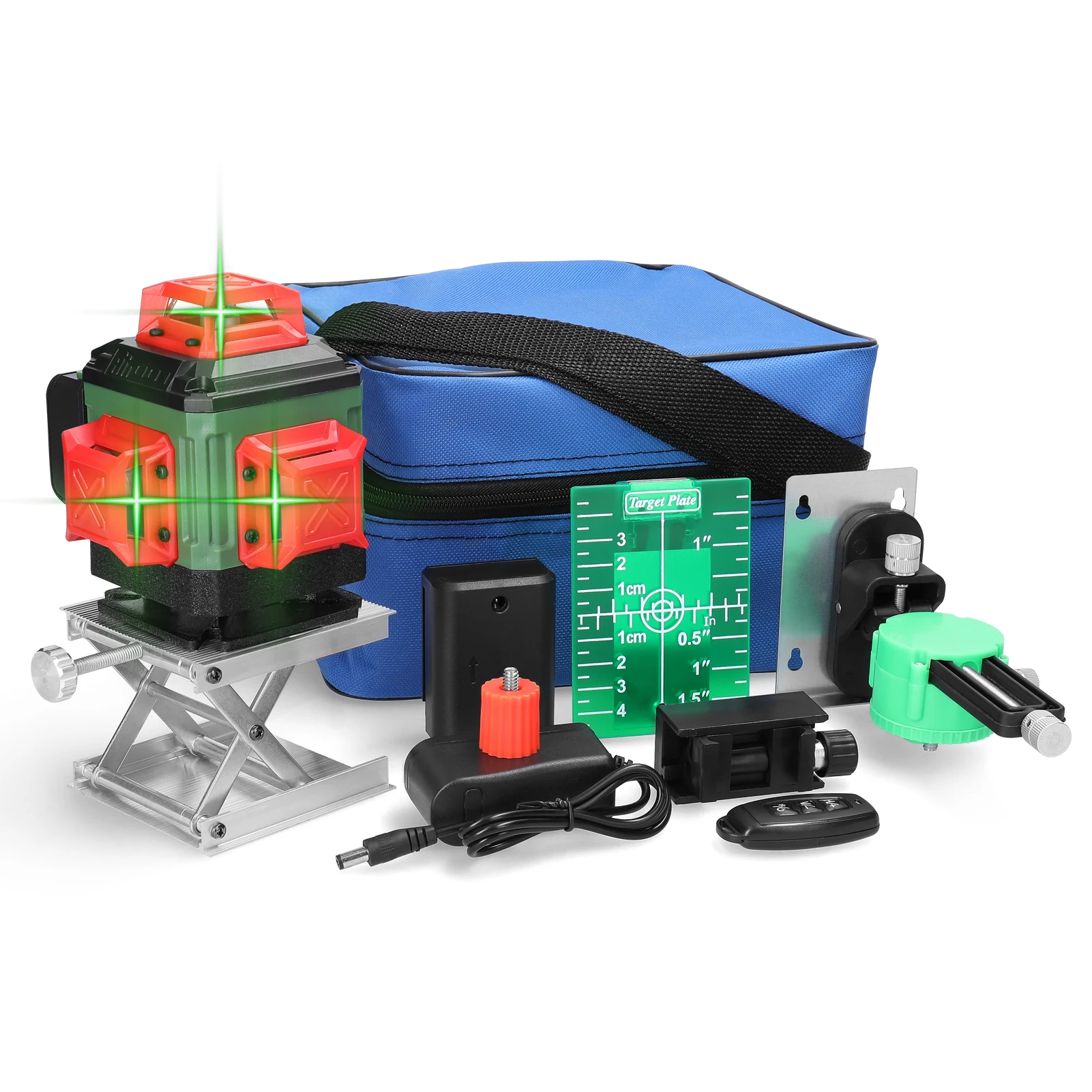

Packing List:
1 * Level Machine
1 * Lifting Platform
1 * Mini Remote Control
1 * Wall Mounted Bracket
1 * Clip
1* Iron Board
1 * 1/4" to 5/8" Adapter
1 * Power Cable
1 * Carrying Bag
1 * Manual
----SET2- 4D 16Lines----
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 2 * rechargeable battery, 3.7V, 3000mAh (included)
Laser ray: 360*4, 16lines (40)
Laser wavelength: green light 532nm
Laser lines accuracy: ±0.2mm/10m
Self-levelling-range: ≤3°
Working temperature: -5℃ to 50℃
Working time: about 5 hours
Item size:
Level machine: 138 * 105 * 132mm / 5.43 * 4.13 * 5.20in
Wall-mounted bracket size: 135 * 105 * 120mm / 5.31 * 4.13 * 4.72in
Lifting platform size: 108 * 91 * 32mm / 4.25 * 3.58 * 1.26in
Carrying bag: 225 * 195 * 140mm / 8.86 * 7.68 * 5.51in
Item weight: 1239g / 2.73lb
Package size: 220 * 170 * 250mm / 8.66 * 6.69 * 9.84in
Package weight: 1411g / 3.11lb
Packing List:
1 * Level Machine
1 * Lifting Platform
1 * Iron Board
1 * Wall-mounted Bracket
1 * Holder
1 * Remote Controller
2 * Battery
1 * Power Adapter (EU/AU/UK/US-Plug Optional)
1 * 1/4" to 5/8" Adapter
1 * Carrying Bag
1 * Guideline
----SET3- 4D 16Lines----
Specifications:
Name: Laser Level
Main material: plastics metal
Battery: 1 * rechargeable battery, 3.7V, 3000mAh (included)
Laser ray: 360°*4, 16lines(40)
Angle direction: 4 surface, 8 lines
Display: LED display
Wavelength: Green light 532nm, 10m both sides, 5m each side
Laser lines accuracy: ±1mm/8m
Self-levelling-range: ±3°
Alarm angle: 3°
Waterproof grade: IP54
Working-range: about 25m in diameter
Working time: about 5 hours
Green light working temperature: -5℃ to 50℃
Level machine size: 125 * 103 * 132mm / 4.92 * 4.06 * 5.20in
Bag size: 235 * 210 * 160mm / 9.25 * 8.27 * 6.30in
Package size: 220 * 165 * 250mm / 8.66 * 6.50 * 9.84in
Package weight: 1574g / 3.47lb
Packing List:
1 * Level Machine
1 * Lifting Platform
1 * Mini Remote Control
1 * Wall Mounted Bracket
1 * Holder
1* Iron Board
1 * 1/4" to 5/8" Adapter
1 * Power Cable
1 * Carrying Bag
1 * Manual
----SET4- 4D 16Lines----
Specifications:
Name: Laser Level
Main material: plastics+metal
Type: blue-EU Plug, blue-US Plug, blue-UK Plug, green-EU Plug, green-US Plug, green-UK Plug (optional)
Laser class: class 2, output power ＜1mW
Line type: 4 * 360°
Wavelength: 532nm (Green)
Battery: 2 * rechargeable lithium battery, 3.7V, 2400mAh (included)
Horizontal/vertical: ±2mm/10m
Automatic leveling-range: ±3°
Working temperature: -5℃ to 50℃
Waterproof grade: IP54
Working distance: 25m
Level machine: 130 * 102 * 134mm / 5.12 * 4.02 * 5.28in
Tripod base size: 96 * 82 * 72mm / 3.78 * 3.23 * 2.83in
Wall-mounted bracket size: 161 * 71 * 89mm / 6.34 * 2.80 * 3.50in
Iron-board: 100 * 60 * 12mm / 3.94 * 2.36 * 1.47in
Lifting platform size: 127 * 90 * 30mm / 5.00 * 3.54 * 1.18in
Carrying bag size: 220 * 233 * 150mm / 8.66 * 9.17 * 5.91in
Item weight: 1485g / 3.27lb
Package size: 220 * 165 * 255mm / 8.66 * 6.50 * 10.04in
Package weight: 1649g / 3.64lb
Packing List:
1 * Level Machine
2 * Battery
1 * Battery Recharger
1 * Tripod Base
1 * Wall-mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * Remote Controller
1 * 1/4inch to 5/8inch Thread Adapter
1 * Carrying Bag
1 * Guideline
----SET5- 4D 16Lines----
Specifications:
Name: Laser Level
Main material: plastics+metal
Type: blue-EU Plug, blue-US Plug, blue-UK Plug, green-EU Plug, green-US Plug, green-UK Plug (optional)
Laser class: class 2, output power ＜1mW
Line type: 4 * 360°
Wavelength: 532nm (Green)
Battery: 2 * rechargeable lithium battery, 3.7V, 2400mAh (included)
Horizontal/vertical: ±2mm/10m
Automatic leveling-range: ±3°
Working temperature: -5℃ to 50℃
Waterproof grade: IP54
Working distance: 25m
Level machine: 130 * 102 * 134mm / 5.12 * 4.02 * 5.28in
Tripod base size: 96 * 82 * 72mm / 3.78 * 3.23 * 2.83in
Wall-mounted bracket size: 161 * 71 * 89mm / 6.34 * 2.80 * 3.50in
Iron-board: 100 * 60 * 12mm / 3.94 * 2.36 * 1.47in
Lifting platform size: 127 * 90 * 30mm / 5.00 * 3.54 * 1.18in
Carrying bag size: 220 * 233 * 150mm / 8.66 * 9.17 * 5.91in
Item weight: 1485g / 3.27lb
Package size: 220 * 165 * 255mm / 8.66 * 6.50 * 10.04in
Package weight: 1649g / 3.64lb
Packing List:
1 * Level Machine
2 * Battery
1 * Battery Recharger
1 * Tripod Base
1 * Wall-mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * Remote Controller
1 * 1/4inch to 5/8inch Thread Adapter
1 * Carrying Bag
1 * Guideline
----SET6- 4D 16Lines----
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 2 * rechargeable lithium battery, 3.7V, 1200mAh (included, you will find there are two batteries inside if disassemble it)
Laser ray: 360°* 4, 16 lines(4D)
Wavelength: green light 520nm
Horizontal/vertical accuracy: ±1mm/7m
Self-levelling-range: ±3°
Waterproof grade: IP54
Working distance: 10m
Green light working temperature: -5℃ to 50℃
Level machine size(assemble with battery): 116 * 73 * 110mm / 4.57 * 2.87 * 4.33in
Rotation base size: 97 * 82 * 73mm / 3.82 * 3.23 * 2.87in
Wall mounted bracket size: 127 * 75 * 55mm / 5.00 * 2.95 * 2.17in
Platform size: 112 * 92 * 32mm / 4.41 * 3.62 * 1.26in
Target plate size: 117 * 75 * 14mm / 4.61 * 2.95 * 0.55in
1/4inch to 5/8inch adapter size: 23 * 23 * 32mm / 0.91 * 0.91 * 1.26in
Carrying bag size: 220 * 195 * 130mm / 8.66 * 7.68 * 5.12in
Item weight: 1140g / 2.51lb
Package size: 250 * 220 * 150mm / 9.84 * 8.66 * 5.91in
Package weight: 1300g / 2.87lb
Packing List:
1 * Level Machine
2 * Battery
1 * Battery Adapter
1 * Rotation Base
1 * Wall Mounted Bracket
1 * Lifting Platform
1 * Remote Controller
1 * 1/4inch to 5/8inch Adapter
1 * Guideline
1 * Carrying Bag
----SET7- 4D 16Lines----
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 2 * rechargeable lithium battery, 3.7V, 1200mAh (included, you will find there are two batteries inside if disassemble it)
Laser ray: 360°* 4, 16 lines(4D)
Wavelength: green light 520nm
Horizontal/vertical accuracy: ±1mm/7m
Self-levelling-range: ±3°
Waterproof grade: IP54
Working distance: 10m
Green light working temperature: -5℃ to 50℃
Level machine size(assemble with battery): 130 * 103 * 132mm / 5.12 * 4.06 * 5.20in
Rotation base size: 97 * 83 * 70mm / 3.82 * 3.27 * 2.76in
Wall mounted bracket size: 85 * 72 * 160mm / 3.35 * 2.83 * 6.30in
Iron board size: 100 * 60 * 12mm / 3.94 * 2.36 * 0.47in
Platform size: 114 * 91 * 30mm / 4.49 * 3.58 * 1.18in
Clip holder size: 62 * 25 * 23mm / 2.44 * 0.98 * 0.91in
1/4inch to 5/8inch adapter size: 23 * 23 * 30mm / 0.91 * 0.91 * 1.18in
Carrying bag size: 235 * 216 * 150mm / 9.25 * 8.50 * 5.91in
Item weight: 1328g / 2.93lb
Package size: 225 * 165 * 255mm / 8.66 * 6.50 * 10.04in
Package weight: 1490g / 3.28lb

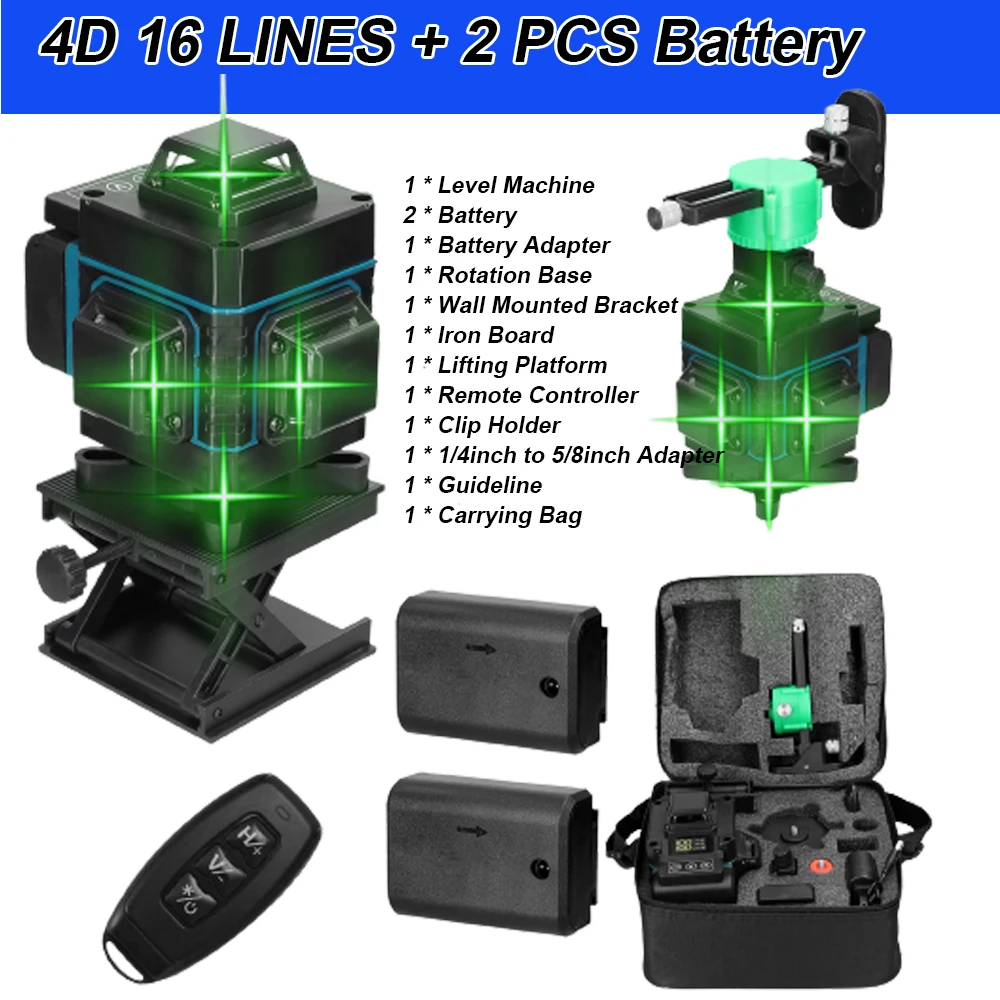

Packing List:
1 * Level Machine
2 * Battery
1 * Battery Adapter
1 * Rotation Base
1 * Wall Mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * Remote Controller
1 * Clip Holder
1 * 1/4inch to 5/8inch Adapter
1 * Guideline
1 * Carrying Bag
----SET8- 4D 16Lines----
Specifications:
Name: Laser Level
Main material: plastics+metal
Color: red+green+black
Plug: EU/USA Plug (optional)
Battery: 2 * rechargeable lithium battery, 3.7V, 1200mAh (included, you will find there are two batteries inside if disassemble one)
Laser ray: 360°* 4, 16 lines(4D)
Wavelength: green light 532nm
Horizontal/vertical accuracy: ±2mm/10m
Self-levelling-range: ±3°
Wall distance: 7mm
Working distance: about 25m in diameter
Waterproof: IP54
Level machine size(assemble with battery): 130 * 104 * 126mm / 5.12 * 4.09 * 4.96in
Wall mounted bracket size: 160 * 85 * 70mm / 6.30 * 3.35 * 2.76in
Iron board size: 101 * 60 * 12mm / 3.98 * 2.36 * 0.47in
Platform size: 115 * 90 * 27mm / 4.53 * 3.54 * 1.06in
Target plate size: 117 * 75 * 14mm / 4.61 * 2.95 * 0.55in
1/4inch to 5/8inch adapter size: 23 * 23 * 32mm / 0.91 * 0.91 * 1.26in
Carrying bag size: 216 * 230 * 150mm / 8.50 * 9.06 * 5.91in
Item weight: 1502g / 3.31lb
Package size: 220 * 255 * 165mm / 8.66 * 10.04 * 6.50in
Package weight: 1676g / 3.69lb

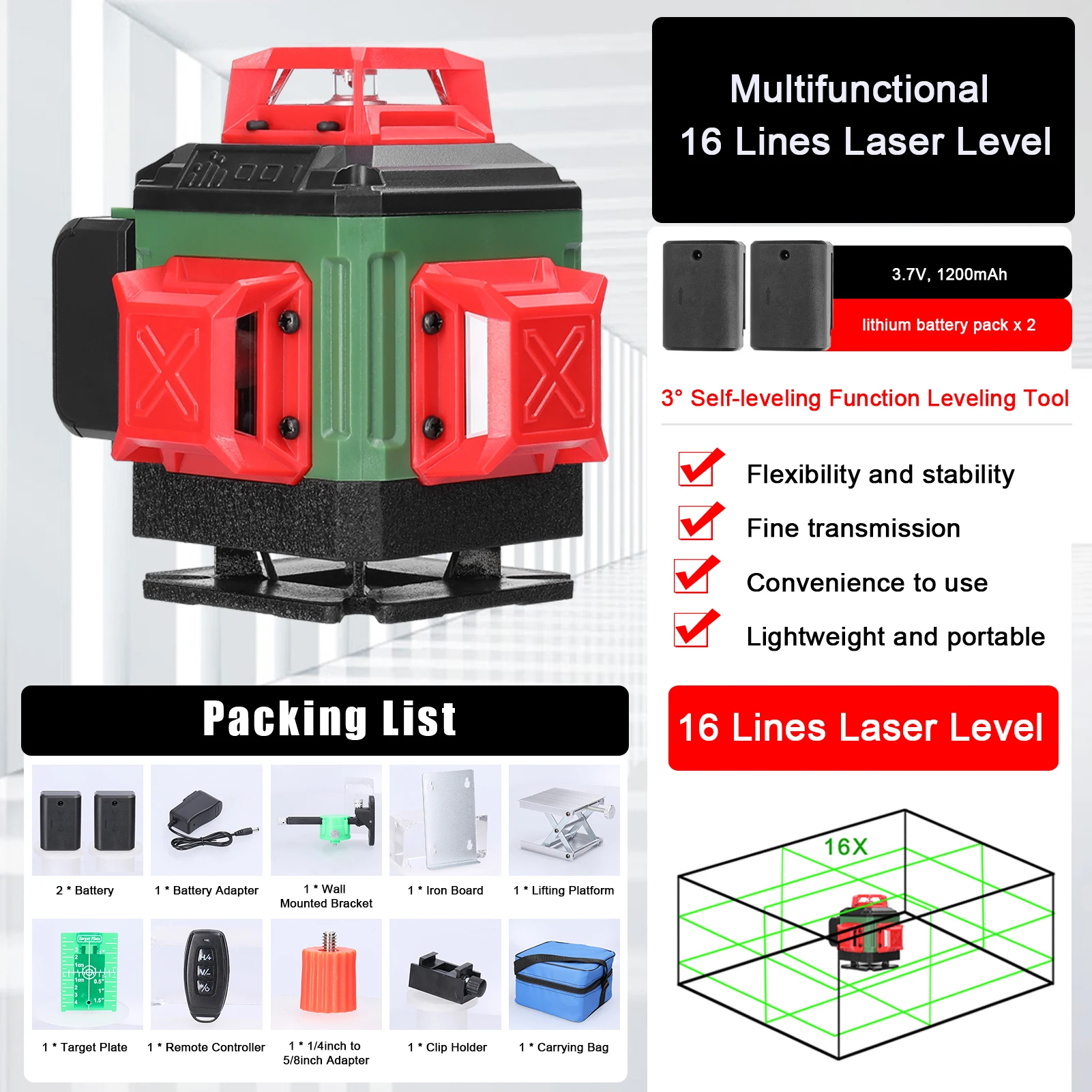

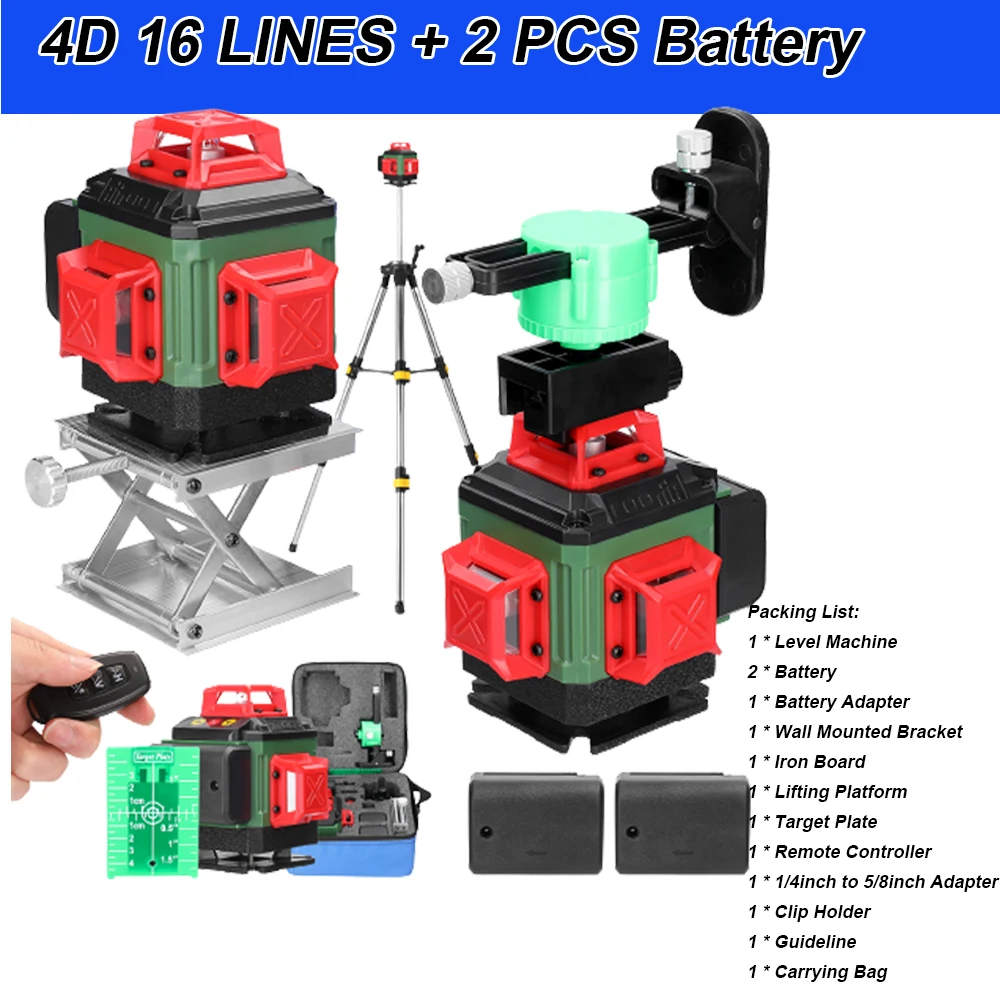

Packing List:
1 * Level Machine
2 * Battery
1 * Battery Adapter
1 * Wall Mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * Target Plate
1 * Remote Controller
1 * 1/4inch to 5/8inch Adapter
1 * Clip Holder
1 * Guideline
1 * Carrying Bag
