530S Display

Electric Bike LCD Display,Waterproof Electric Bicycle LCD Instrument 530S 8 Fun DisplayEbike Screen Intelligent LCD Display Panel for BAFANG BBS01 BBS02 BBSHD Mid Drive Motor

  About this item

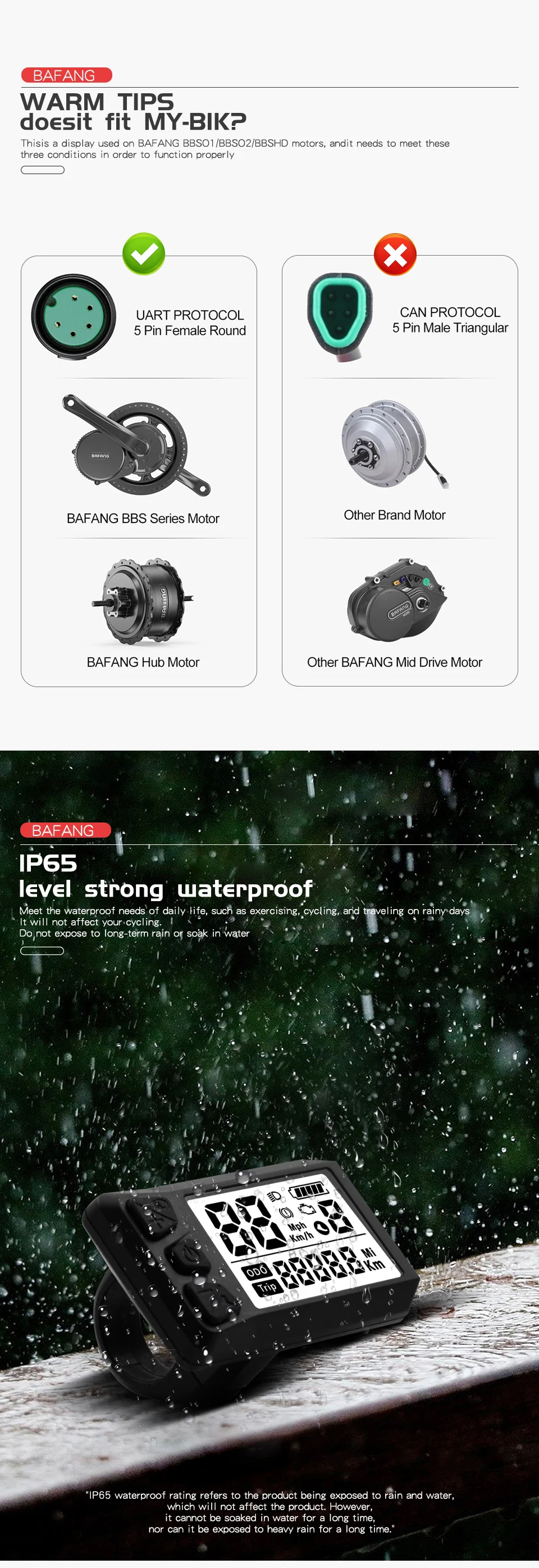

●[ COMPATIBILITY ] This small-sized ebike display 530S is only compatible with BAFANG elctric bike motor with UART 5.0~5.8 protocol . If you are not sure , please message us before purchasing

●[ INTELLIGENT 530S ABS & PC DISPLAY ] The2.0inchscreenoffers exceptional visibility , even in bright sunlight , allowing you to easily monitor your ride

●[ EASY INSTALLATION ] The 530S can be installed on the left side of the horizontal tube with a handlebar size of φ22.2mm , making installation a breeze

●[ Comprehensive Data Display ] The 530S displays a variety of important data , including speed , headlight , battery indication , helping you stay informed and safe during your ride .

  Features

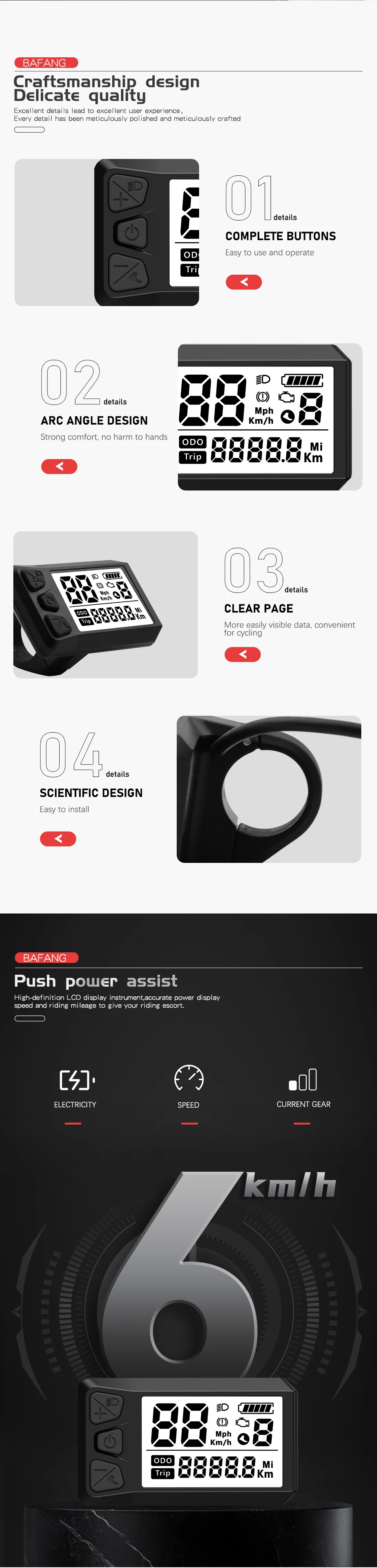

ØIndependent button, easy to operate

ØSpeed display：Metric / Imperial, can be set according to customers’ habits

ØMileage mode：Odometer, Trip distance

ØSmart battery indicator：5-level POWER indicator

Ø5-level Brightness：1: darkest; 5: brightest.

ØAssist Level:3/5/9-level adjustable

ØWalking Mode

ØErrors Code

ØFirmware upgrade

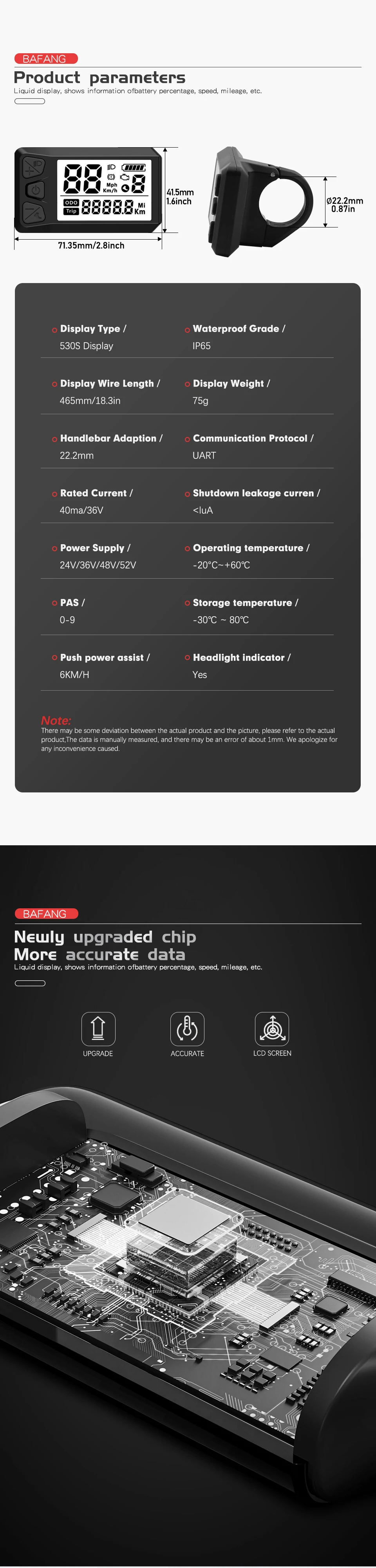

  Specification:

• Power supply: 24V/36V/48V/52V

• Rated current:18mA/36V

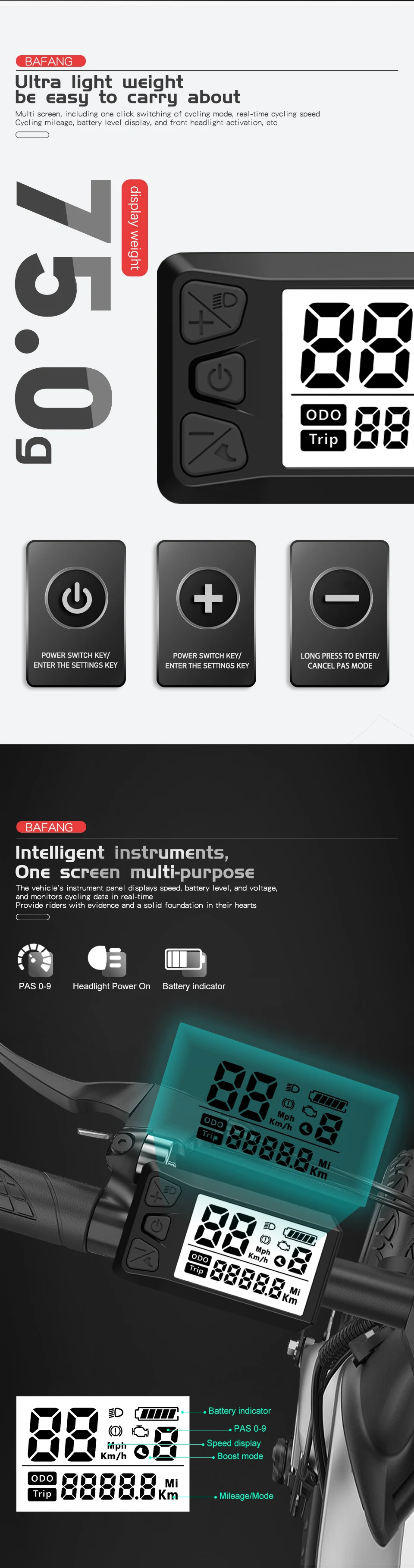

• Weight:53g

• Applicable Handlebar Size: 22.2mm / 0.9in

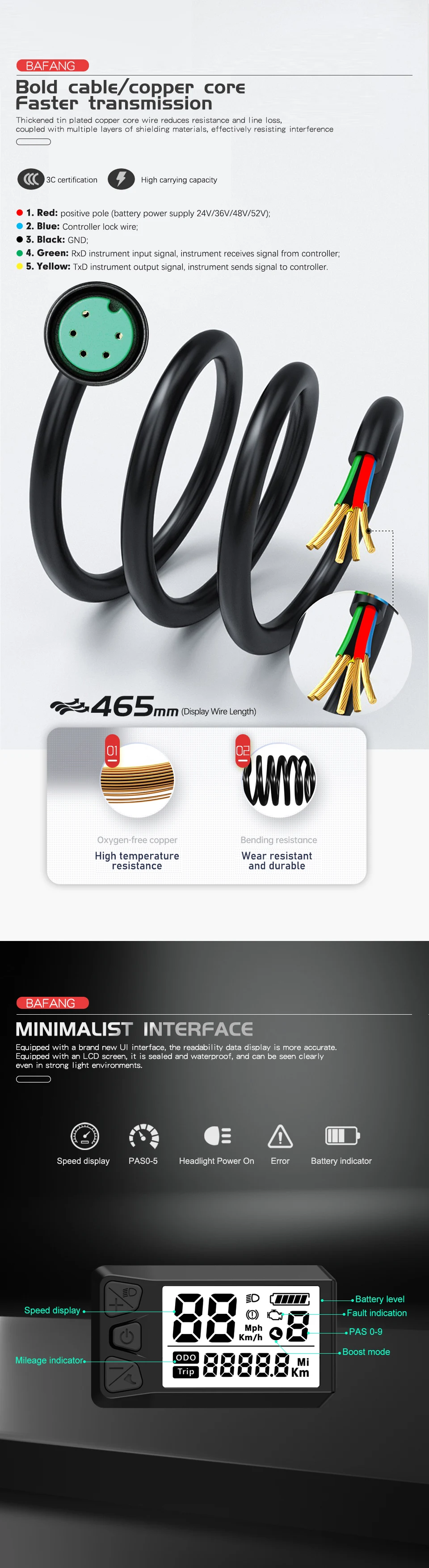

• Interface Type: 5 pin waterproof interface

• Support levels mode: 0-9

• Off leakage current < 1uA

• Operating temperature : -20～70℃

• Storage temperature : -30～80℃

• Material: ABS, Acrylic, Silicone

• Communication mode: UART

• Waterproof grade: IP65

• Storage humidity: 30%-70%

• Compatible Motors: For BAFANG BBS01 BBS02 BBSHD Mid Motor
