Features:

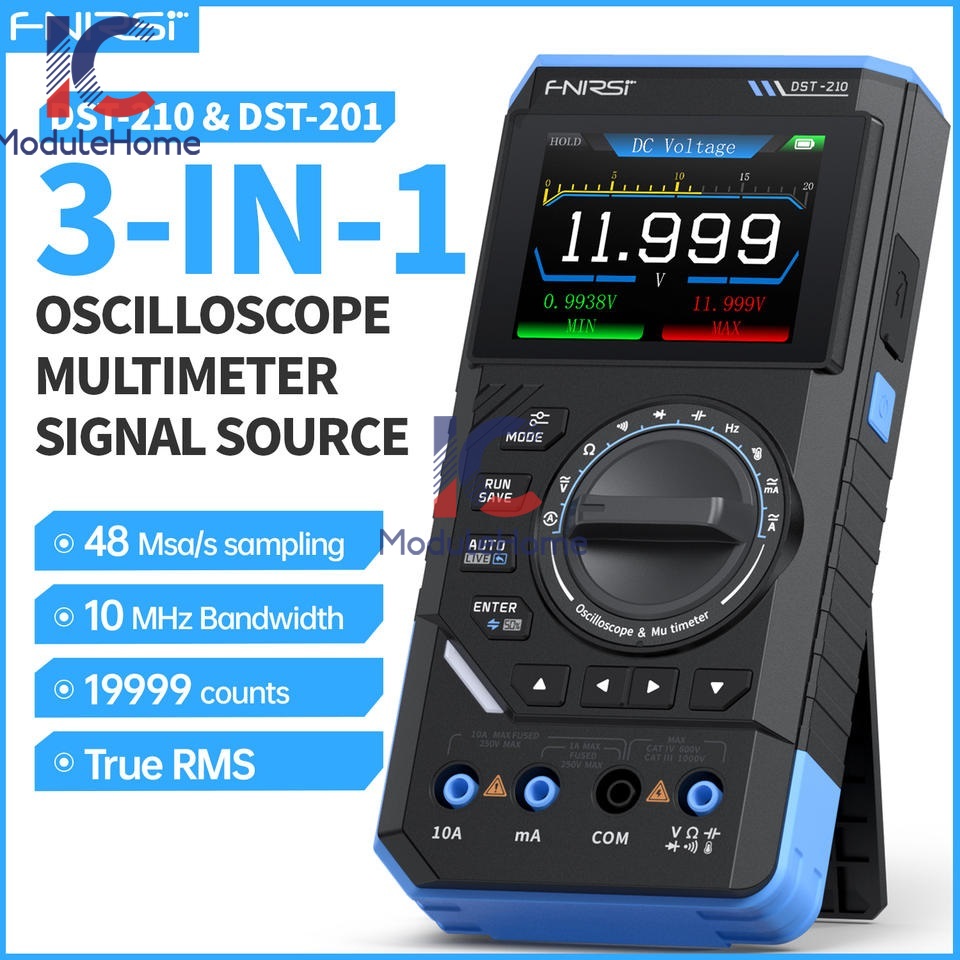

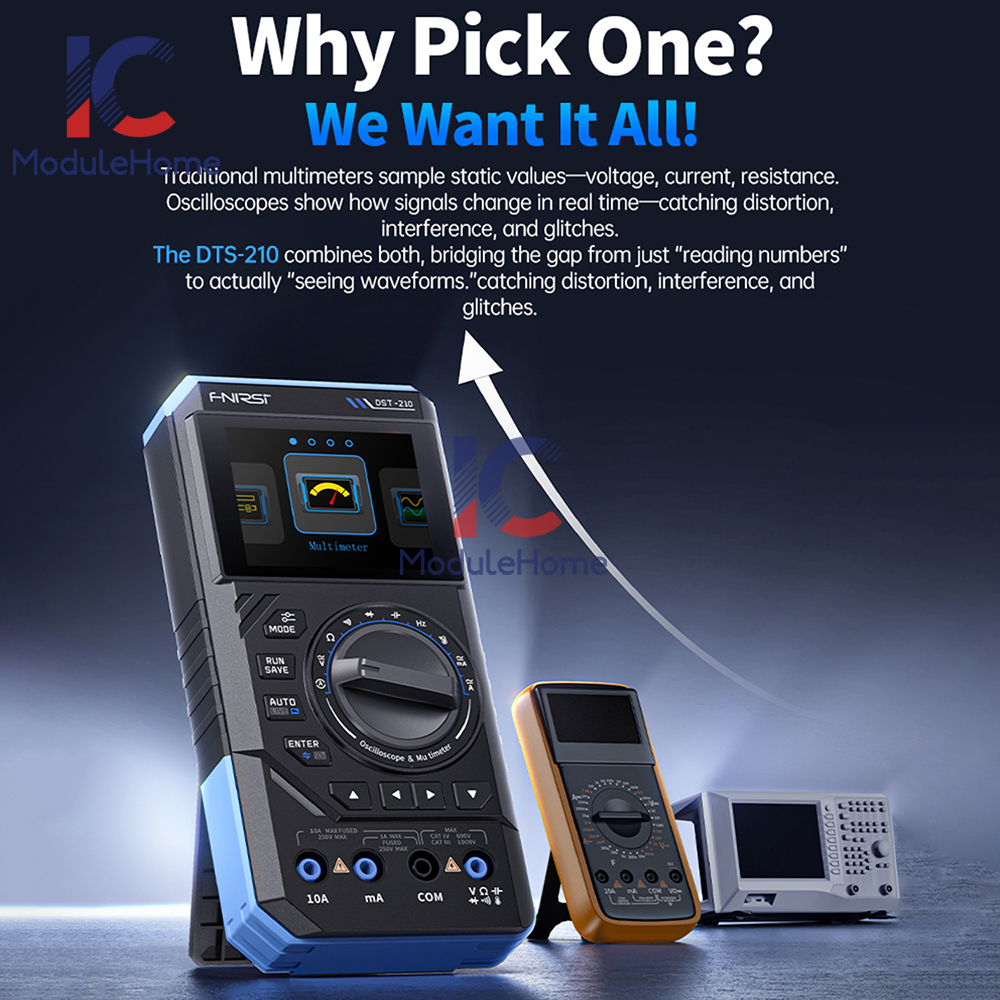

1.Multi-function 3-in-1: Oscilloscope + Multimeter + Signal Generator for multiple uses

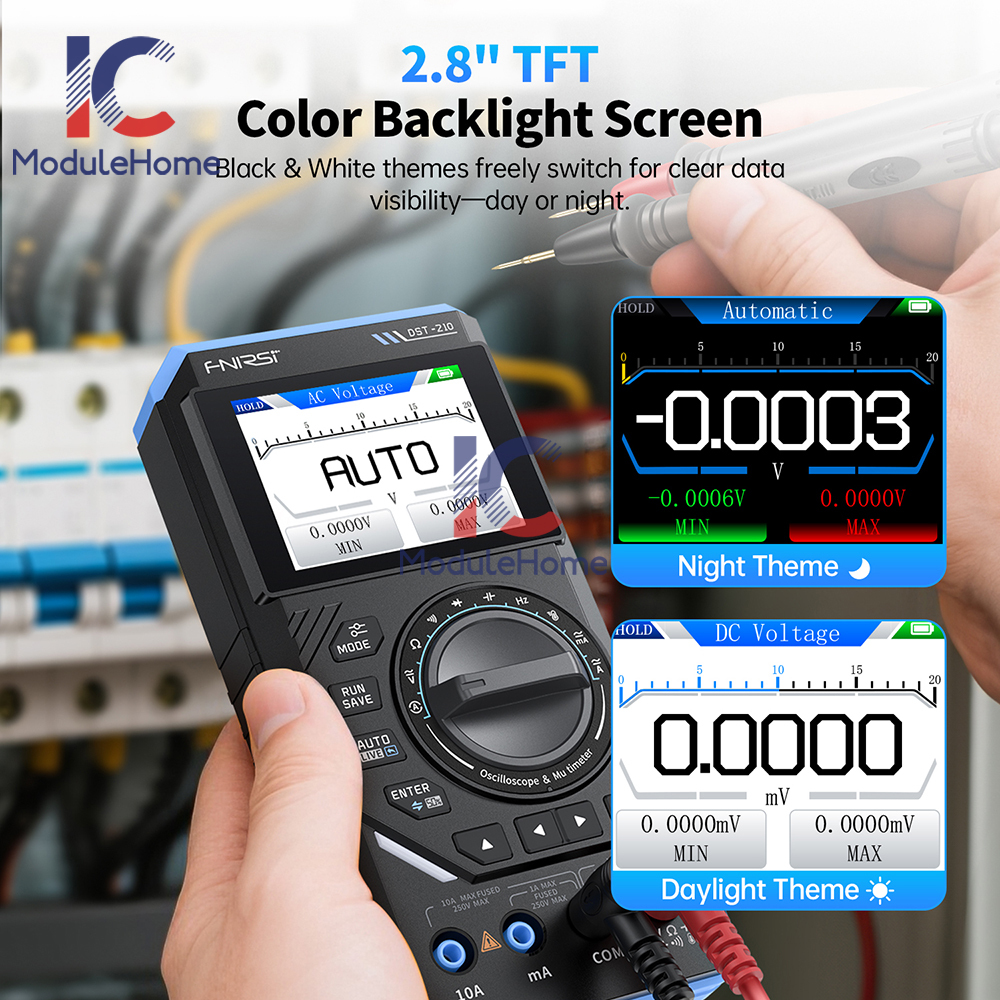

2. Equipped with 2.8-inch TFT color screen, clear and intuitive picture.

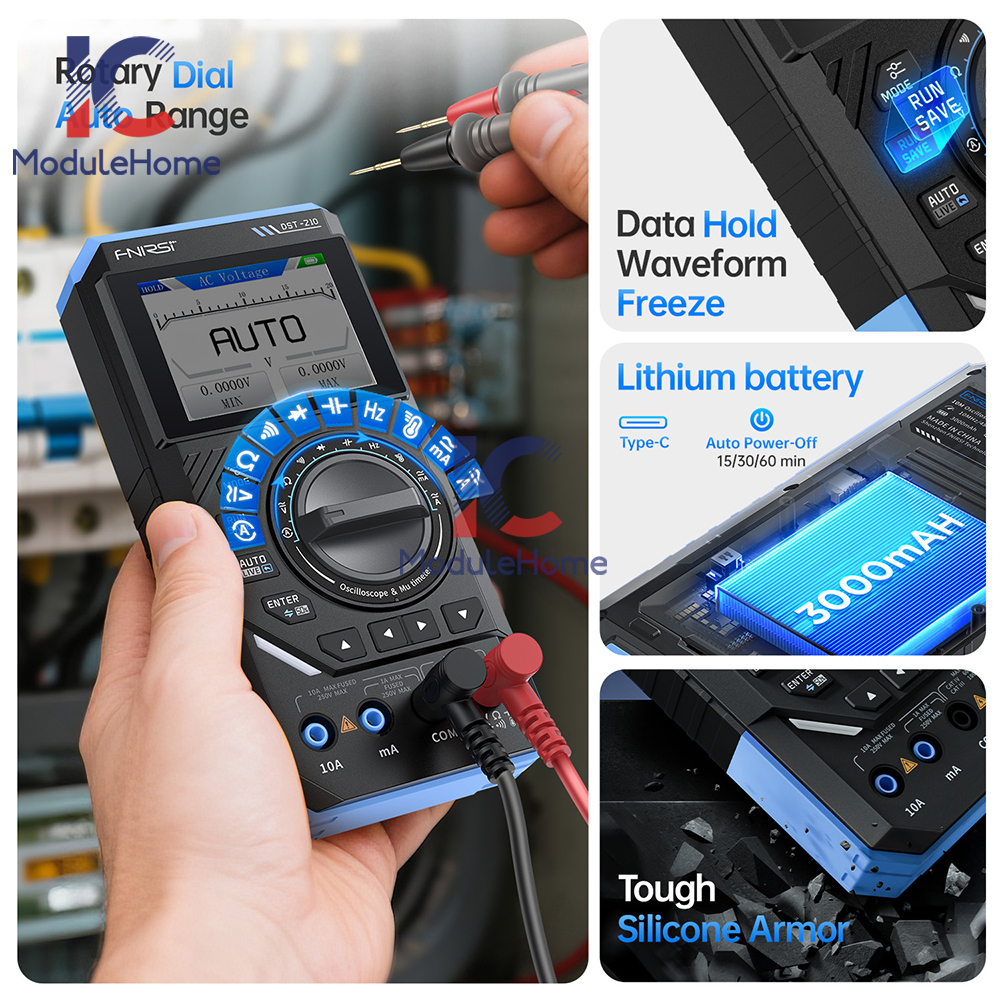

3. Built-in high-capacity rechargeable battery (3000mAH), support long time standby 10 hours.

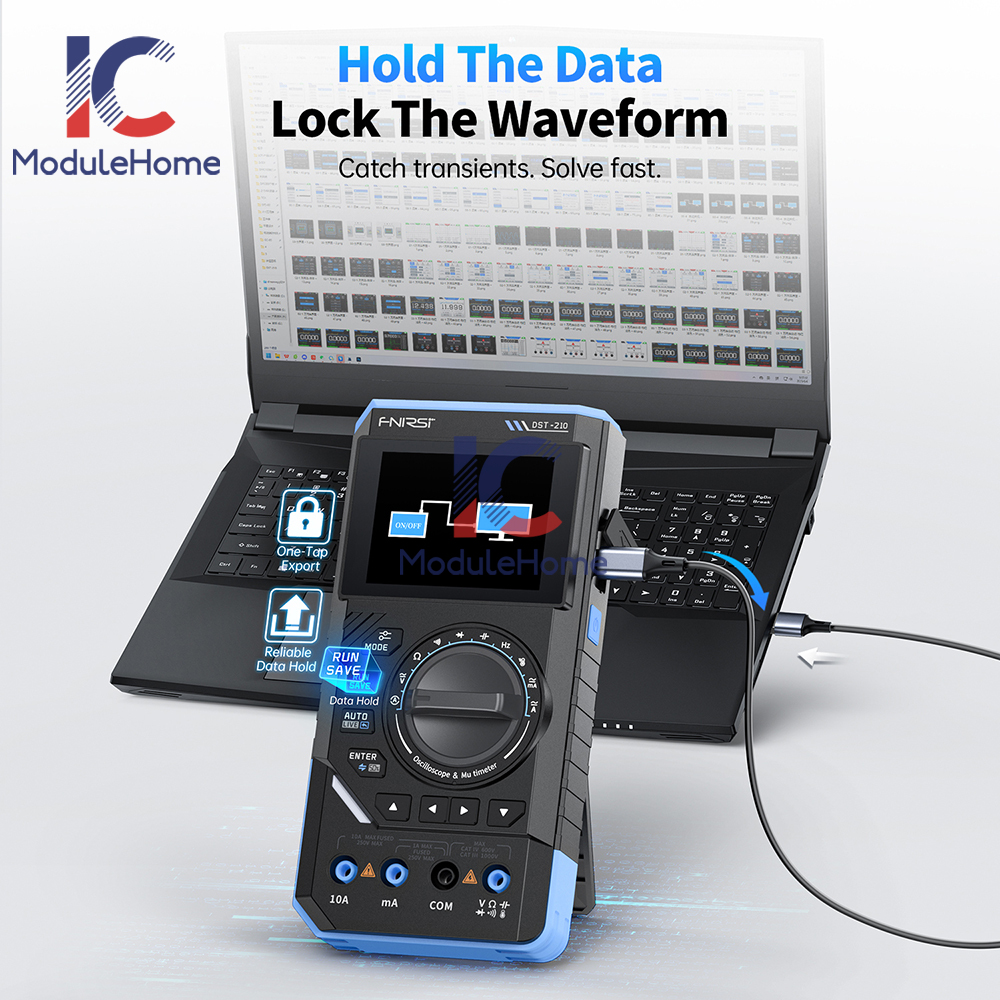

4. Waveform storage: support screenshot saving and viewing, easy to analyze data.
5. Signal generator function: support 13 kinds of waveform output, frequency range 0-50KHZ, output voltage adjustable 3V, output parameters/frequency, amplitude, duty cycle adjustable, flexible to adapt to a variety of needs.

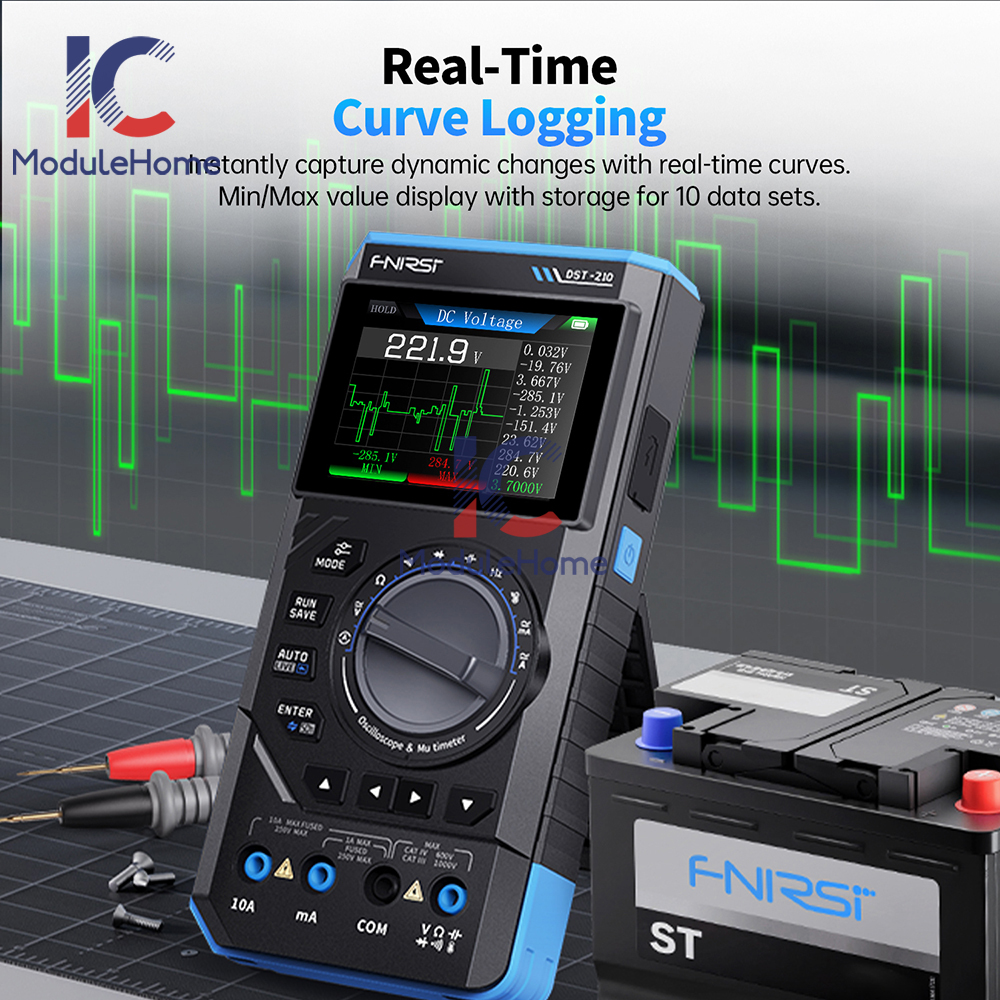

6. Multimeter function: with recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/pass, frequency, temperature, data retention, LIVE zero fire line, etc., with overload protection and battery undervoltage indicator function.

Model parameters:
Model: DST-210/DST-201 (optional)
Screen material: 2.8-inch TFT color screen
Backlight: backlight brightness adjustable

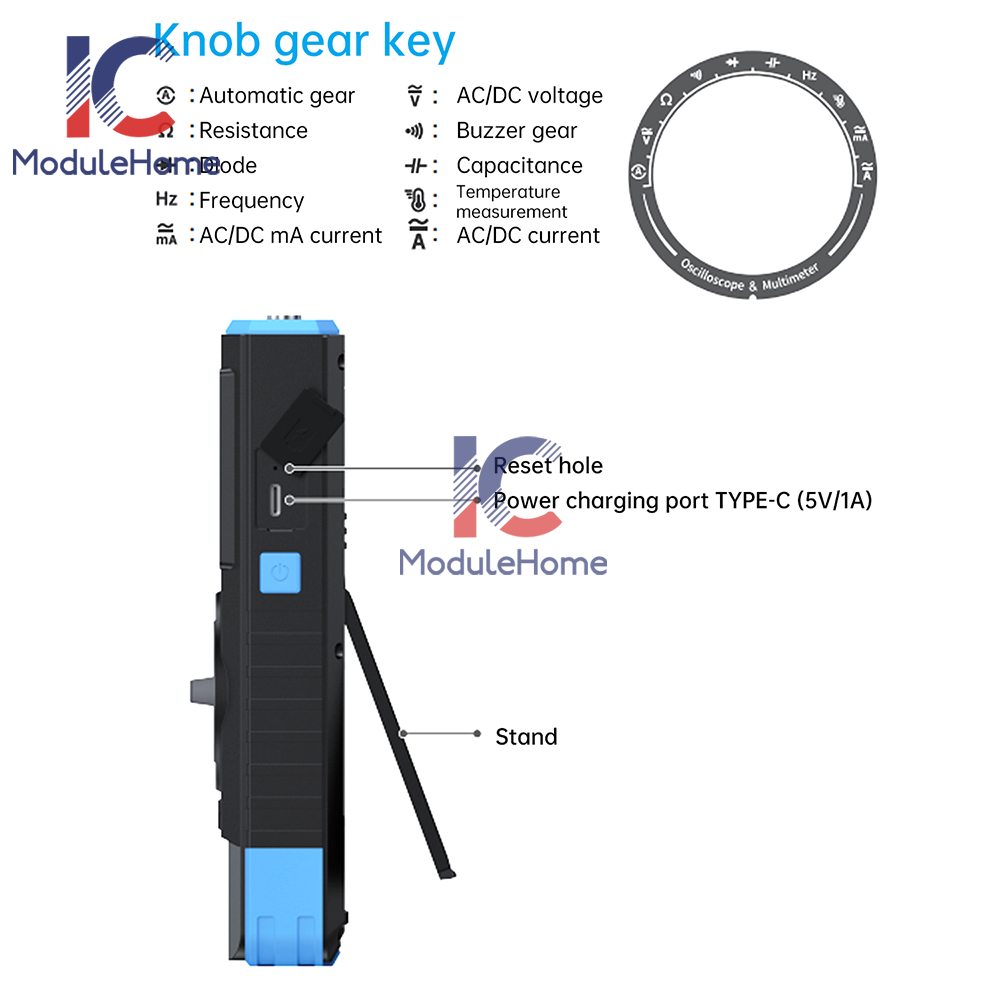

Power supply: TYPE-C (5V/1A)
Battery: 3000mAh
Switchable language: Chinese, English
Product dimensions: 177.43*87.47*34.5mm

Multimeter parameters:
DC voltage: 1.9999V/19.999V/199.99V/1000V Accuracy: ±0.5%+3
AC Voltage: 1.9999V/19.999V/199.99V/750V Accuracy: ±1%+3
DC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.2%+3
AC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.5%+3
Resistance: 19.999MΩ/1.9999MΩ/199.99MΩ/19.999KΩ Accuracy: ±0.5%+3
Resistance: 1.9999KΩ/199.99Ω Accuracy: ±2.0%+3
Capacitance: 999.9 uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF Accuracy: ±2.0%+5
Capacitance: 9.999mF/99.99mF Accuracy: ±5.0%+20
Frequency: 9.999MHz/999.9KHz/99.9.9KHz/9.999KHz/999.99Hz/ 99.99Hz/9.999Hz Accuracy: ±0.1%+2
Temperature: -55~+1300°C/-67~2372°F Accuracy: ±2.5%+5

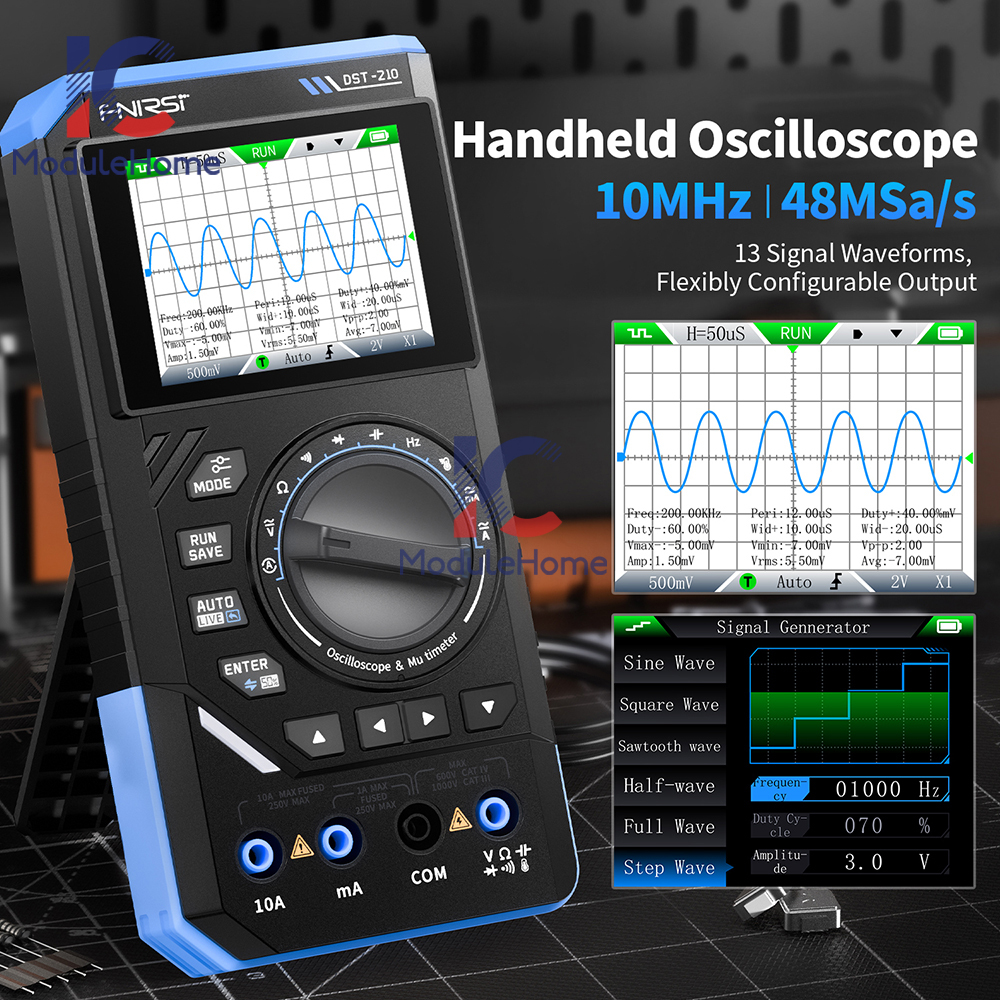

Oscilloscope parameters:
Real-time sampling rate: 48MSa/s (DST-210)
Analog bandwidth: 10MHZ (DST-210)
Horizontal time base range: 50ns~20s (DST-210)
Real-time sampling rate: 5MSa/s (DST-201)
Analog bandwidth: 1MHZ (DST-201)
Horizontal time base range: 500ns~20s (DST (DST-201)
Coupling method: AC/DC
Test voltage range: 1:1 probe: 80Vpp(+40V), 10:1 probe: 800Vpp(+400V)
Vertical chair sensitivity: 10mV/div~10V/div (x1 steps)
Vertical displacement: Adjustable, with indication
Trigger modes: Auto, Normal, and Single (Auto/Normal/ Single) Trigger type: Rising edge, normal, and single (Auto/Normal) Single)
Trigger Type: Rising Edge, Falling Edge
Trigger Level: Adjustable, with indication
Waveform Freeze: Yes (HOLD function)
Automatic Measurement: Maximum, Minimum, Average, RMS, Peak, Frequency, Period, Duty Cycle
Signal Transmitter Parameters:
Output Waveforms: Supports 13 kinds of waveform outputs
Waveform Frequency: 0-50KHZ
Square Duty Cycle: 0-100% Rectangular Wave, Rectangular wave, sawtooth wave adjustable
Waveform amplitude: 0.1V-3.0V

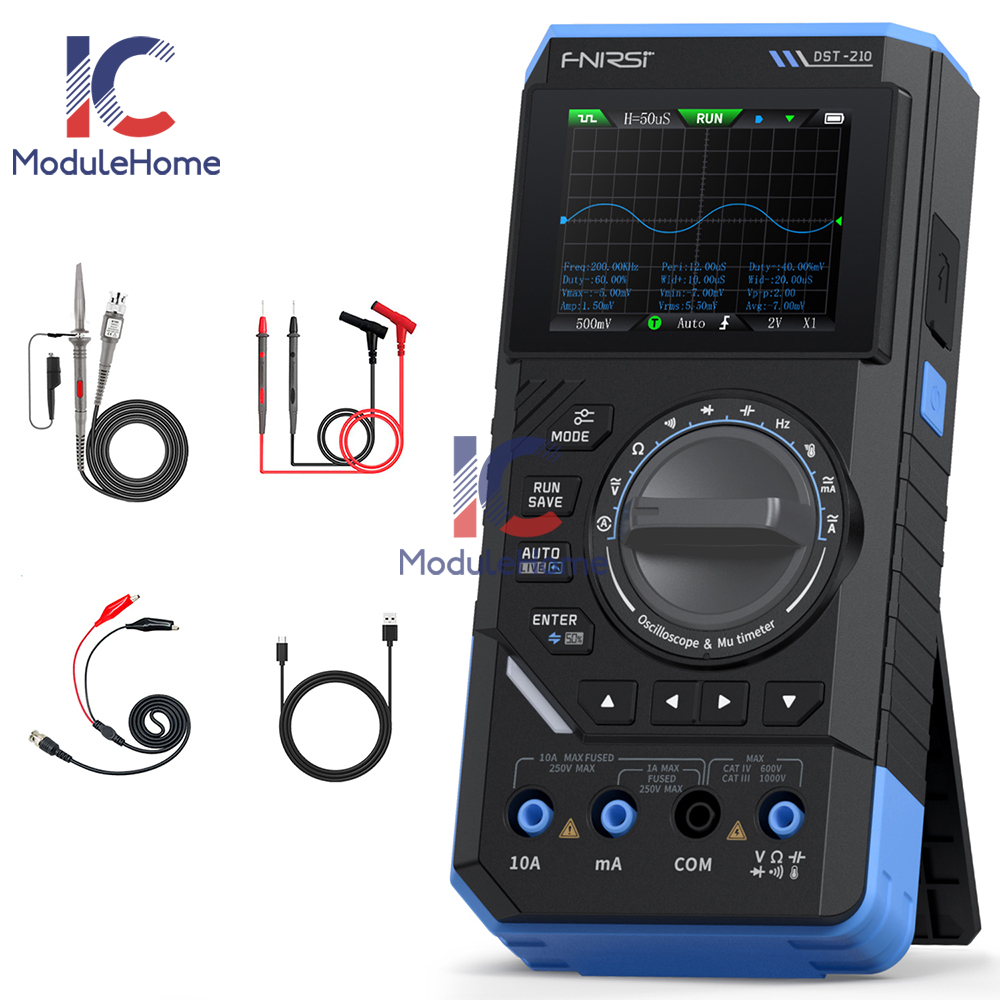

Package includes:
Package 1:
Mainframe * 1
P1600 Oscilloscope Probe * 1
USB-C Charging Cable * 1
Test Pen * 1
Alligator Clip Probe * 1
Package 2:
Mainframe * 1
USB-C Charging Cable * 1
Test Pen * 1
Alligator Clip Probe * 1
