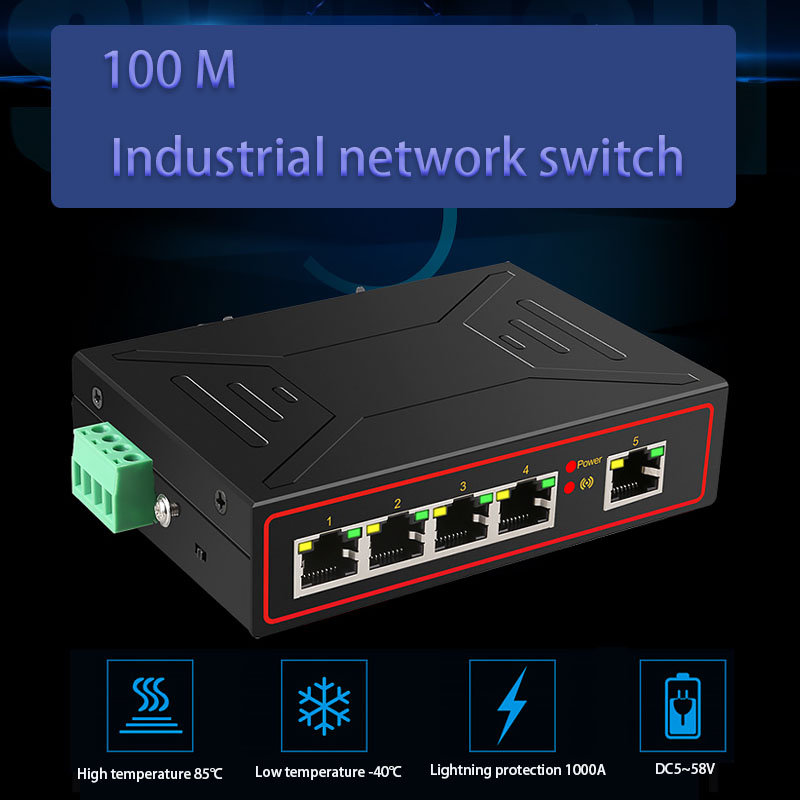

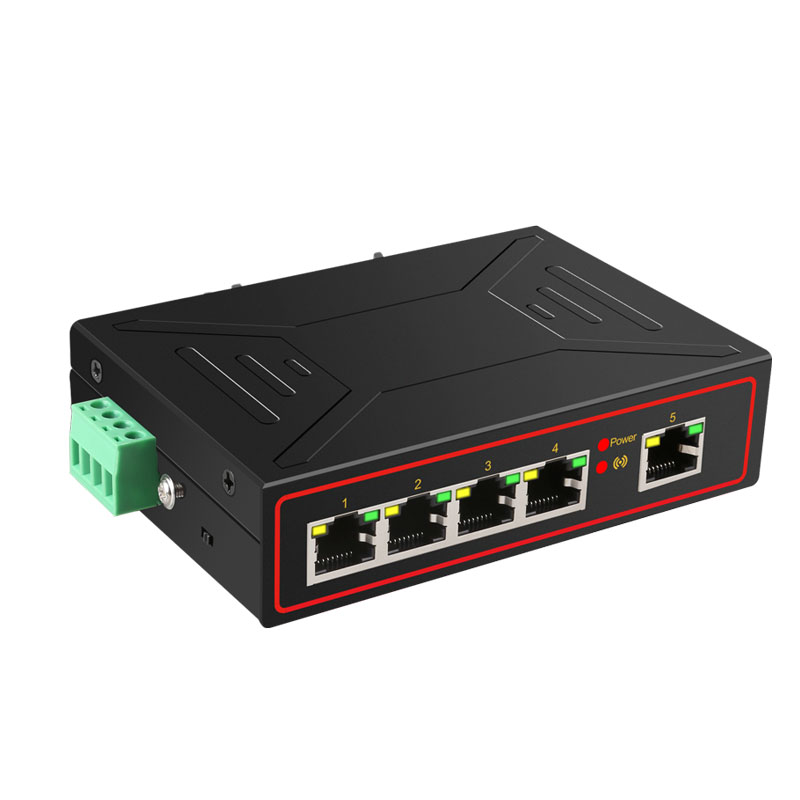

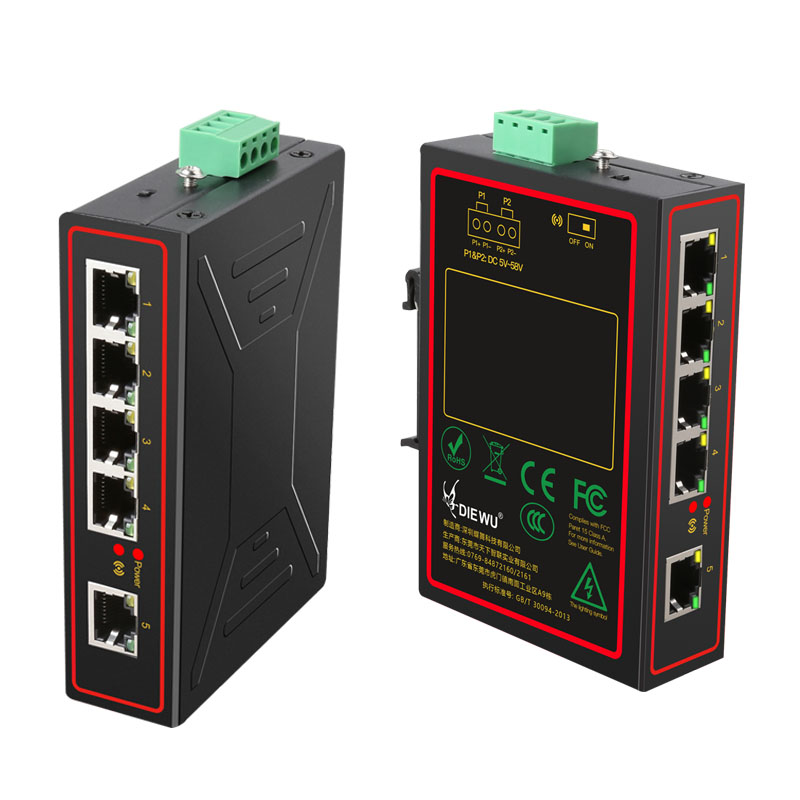

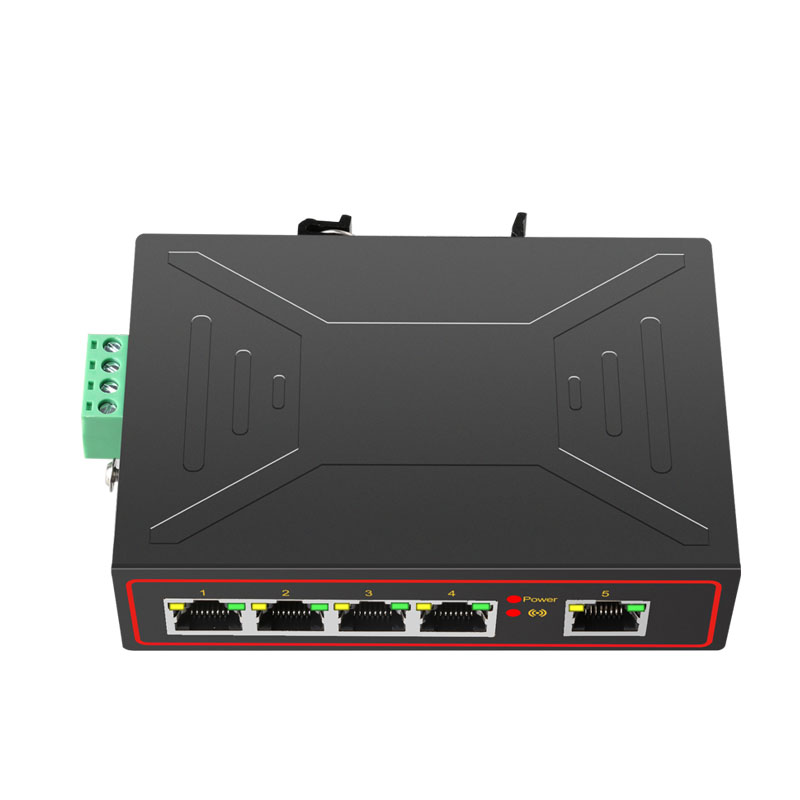

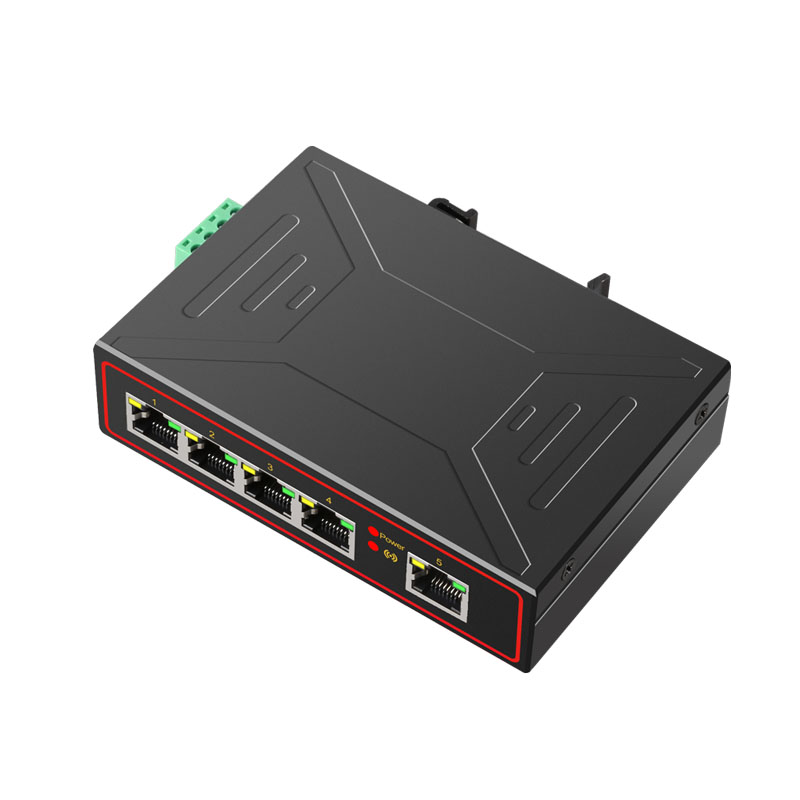

RJ45 Hub Industrial network switch Game switch 10/100mbps sharing switch
| Model number | TXI173 |
| Chipset | IP175GHI |
| Port number | 5 port 10/100M Auto MDI-MDIX RJ45 |
| Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az |
| Network media | 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP |
| Data rate | 10/100M |
| Forwarding rate | 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps |
| LED Indicator | 10/100Mbps(Link/Act, speed),Power, enhance Indicator |
| Dimension | 118*80*30mm |

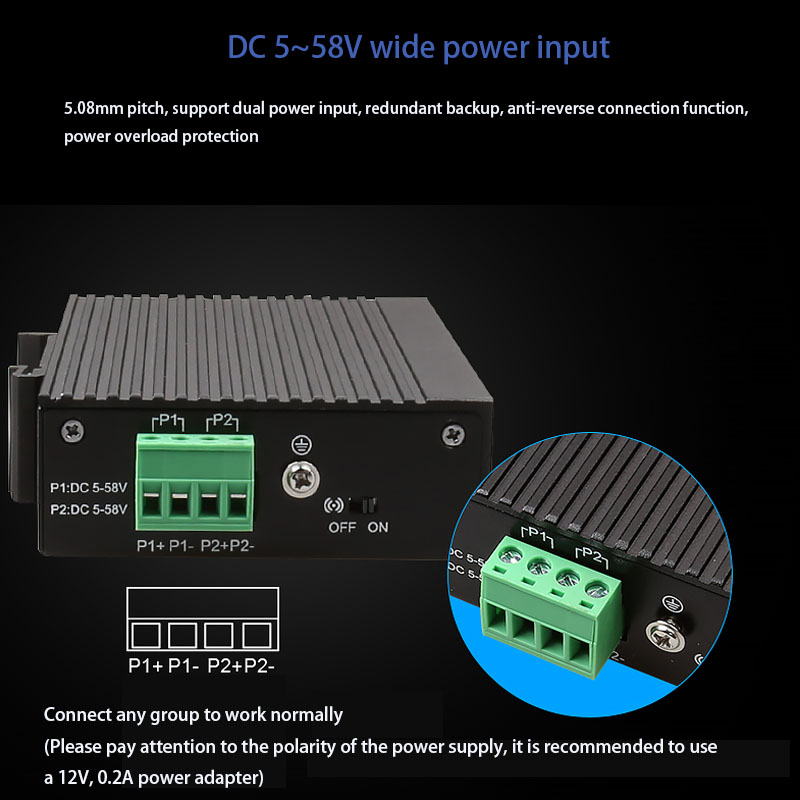

| Power Input | DC5V-58V |
| Power Consumption | Max1.5W |

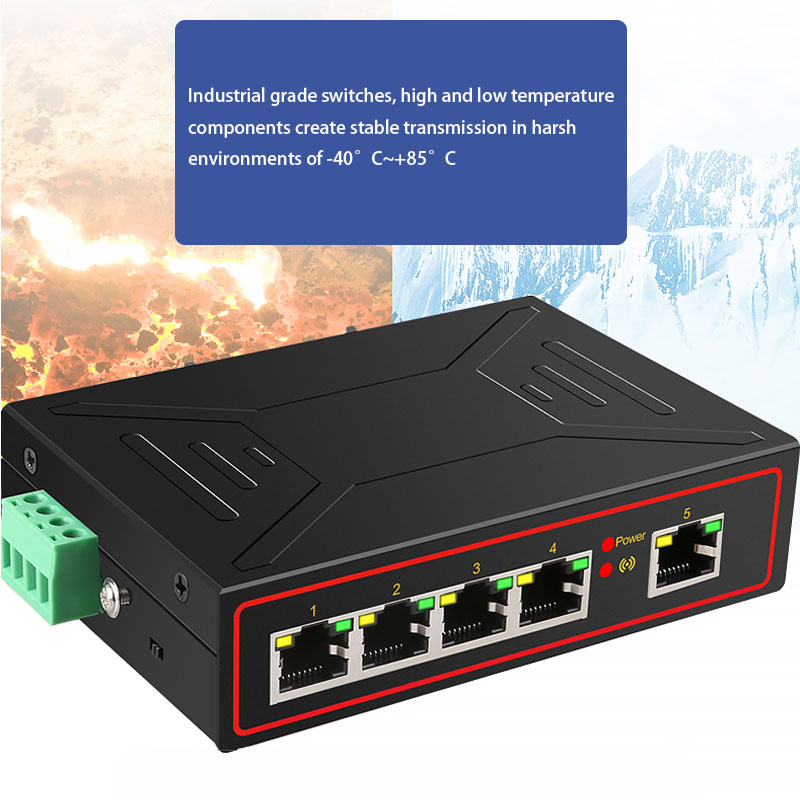

| Environment | Operating Temperature: -40 ℃-85 ℃ Relative Humidity: 10%-90%(non-condensing) Storage Temperature: -40℃-85℃ Relative Humidity: 5%-90%(non-condensing) |

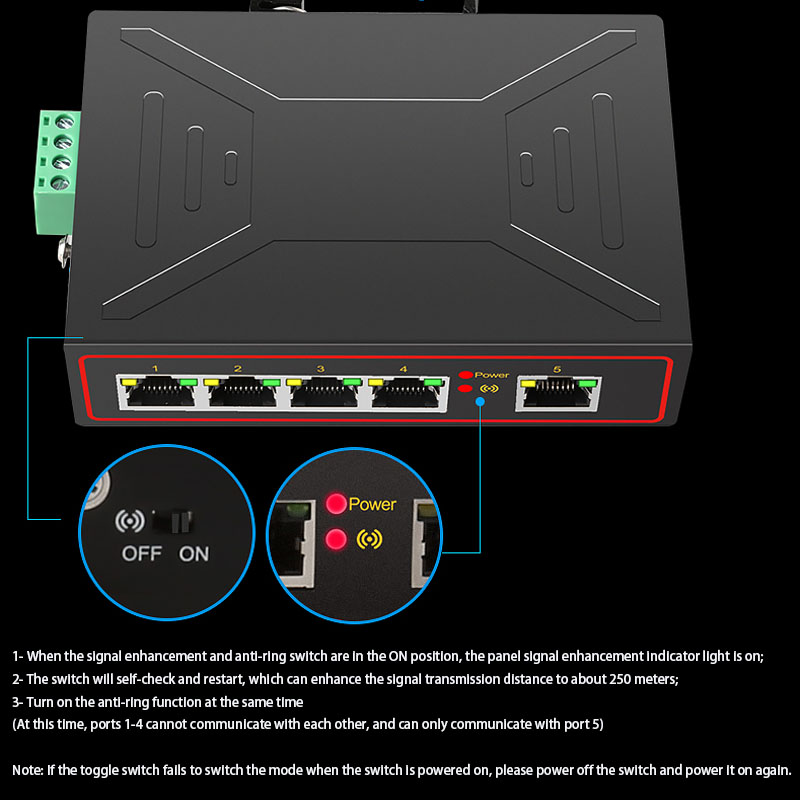

| Other function | Enhance switch |
5 port Embedded 10/100 PHY Switch Controller
Support 5 100BaseTX or 4 100Base TX + 1 FX
Support Auto MDI-MDIX function
Power Management Tool (PWMT®)
- APS, auto-power saving while Link-off
- IEEE 802.3az protocol based power saving & 10Mbps Te for 10Mbps
- WOL+®, light traffic power saving
- PWD, force-off power saving
Support Auto Factory Test (AFT®)
Single Power 3.3V supply
Built in Vcore Regulator
· Two Priority queues per port
Support 802.1p & DiffServ based QoS
QoS
- Port base
- 802.1p
- IP DiffServ IPV4/IPV6
- TCP/UDP port number
- Pins configure ports priority (VIP port)
Support max forwarding packet length 1552/1536 bytes option
Support port mirror function
Support 1k MAC address
Support broadcast storm protection
Support port trunking (LACP)
Support 16 VLAN (IEEE Std 802.1q)
- Port-based/Tagged-based VLAN
- Support insert, remove tag
Built-in 50 ohm resistors for simplifying BOM
85nm Process
Package and operation temperature
IP175G: 48 Pin QFN(6x6), 0~70℃
