Features:
1. Using high-quality materials, the output can be selected from 3.3V, 5V, 9V, and 12V;

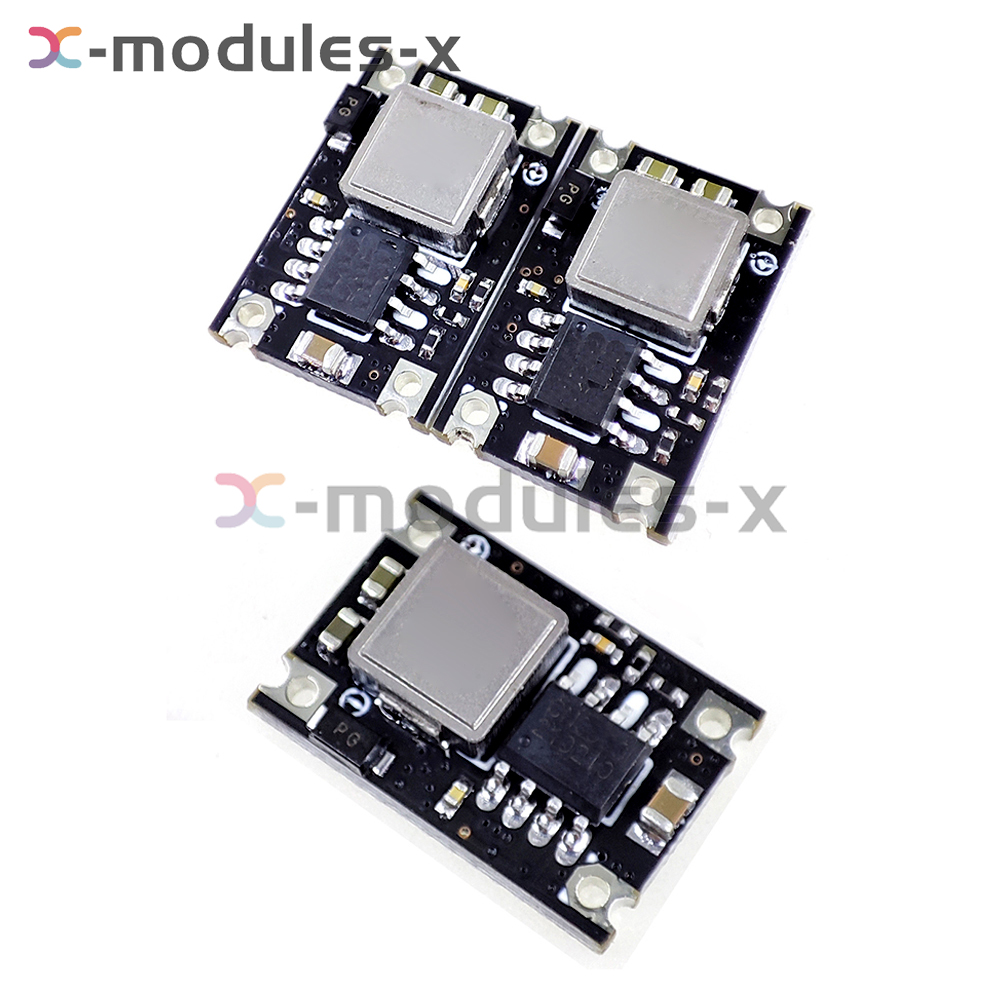

2. This power module is a power supply that can be directly mounted on a printed circuit board;
3. It can provide power supply for dedicated integrated circuits, digital signal processors, microprocessors, memory, field programmable gate arrays, and other digital or analog loads;

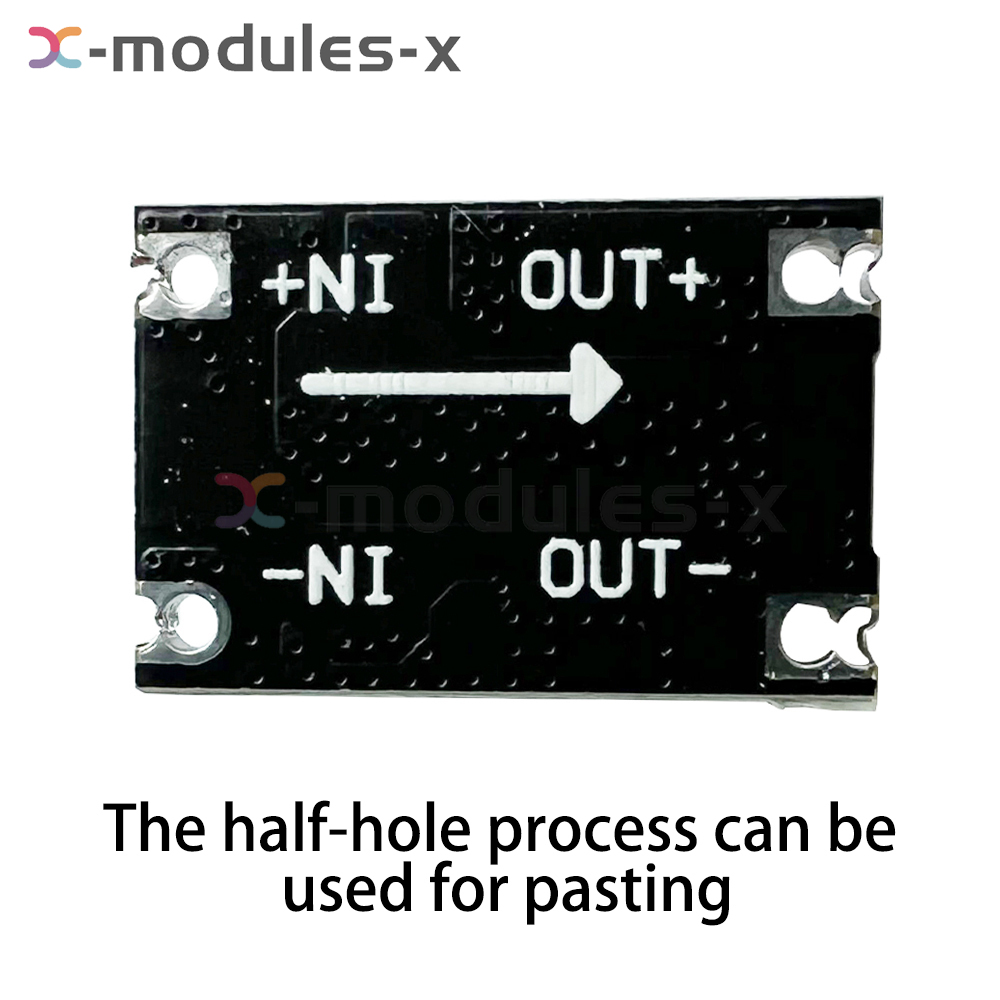

4. The module body is small and lightweight, suitable for wiring and surface mount connections;
5. Long service life, normal use can reach 30000 hours without faults (output current does not exceed rated value).

Parameters:

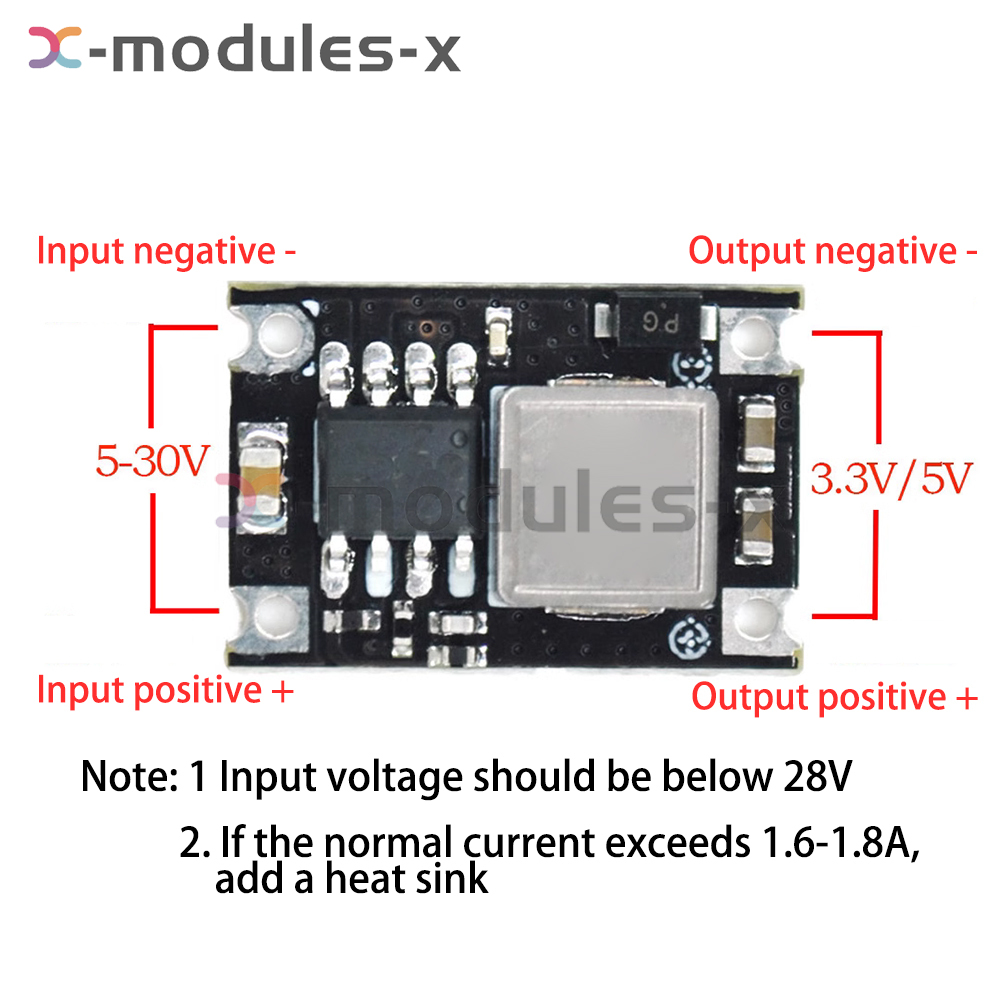

Input voltage: 5V-30V (must be higher than the output voltage), preferably below 28V

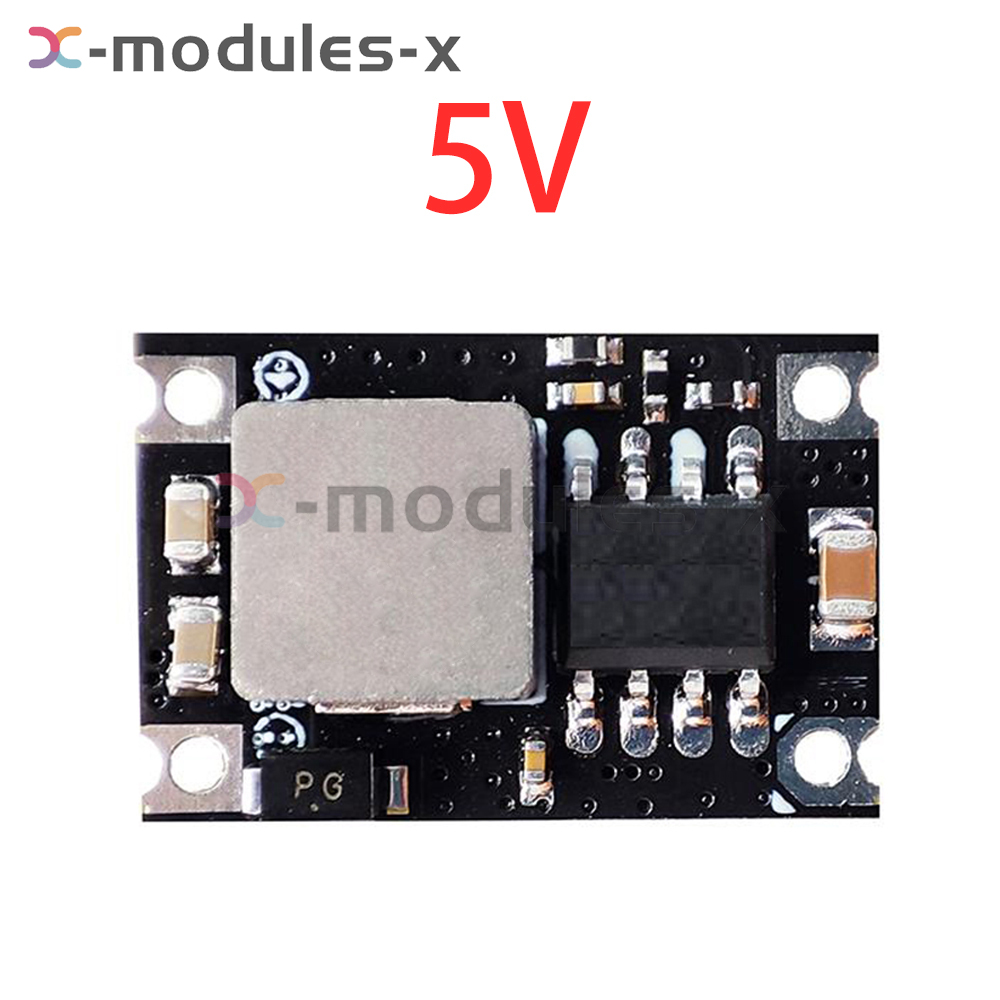

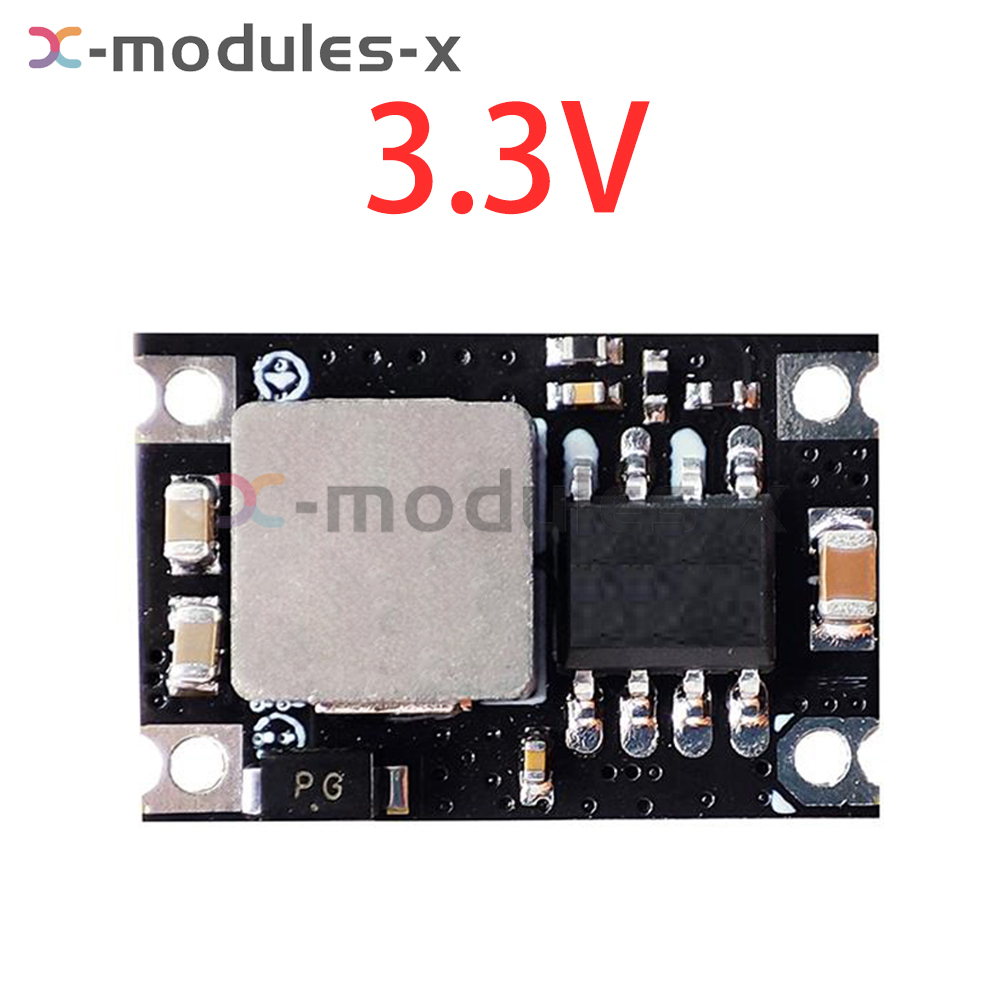

Output voltage: 3.3V/5V/9V/12V
Output current: 3A (maximum) Normal 1.6-1.8A Exceeding heat dissipation
Conversion efficiency: 96% (highest)
Output ripple:<30mV
Output accuracy: ± 0.1v
No load current:<1mA
Working temperature: -40 ℃~+85 ℃
Working humidity: 20%~90%

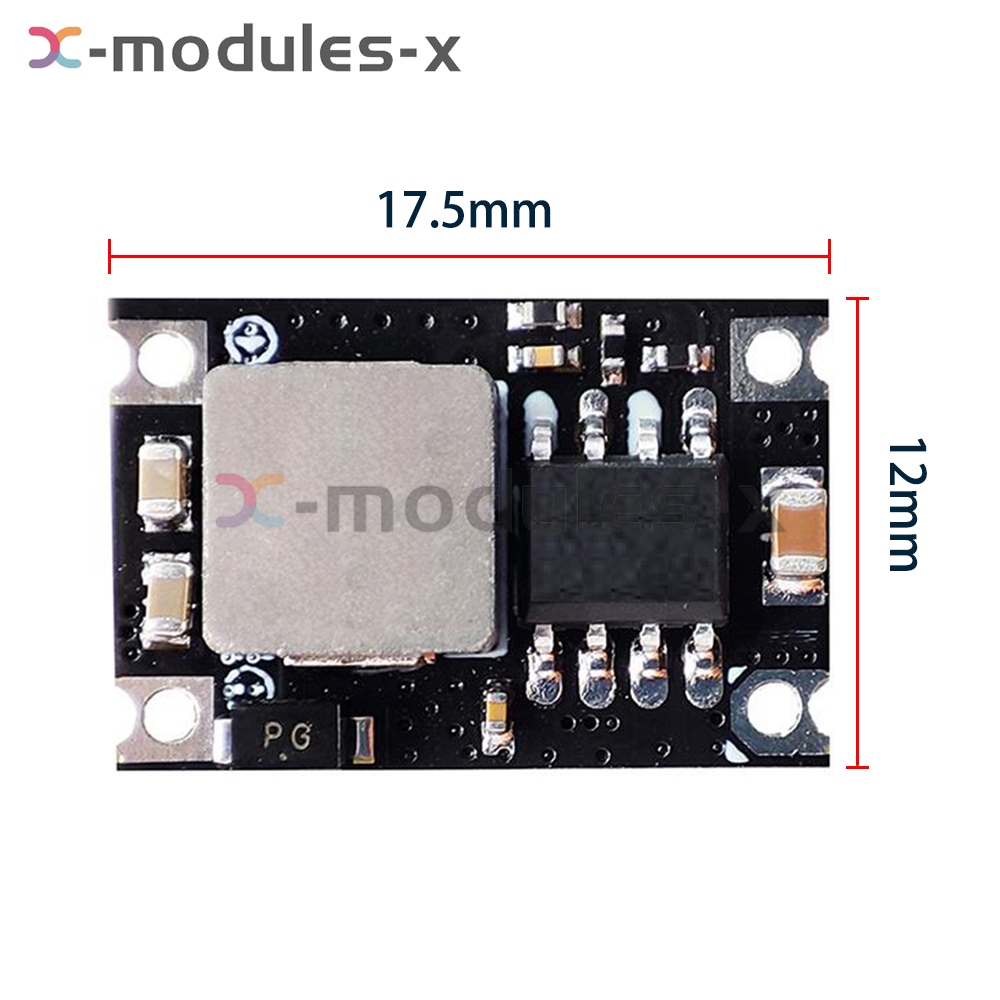

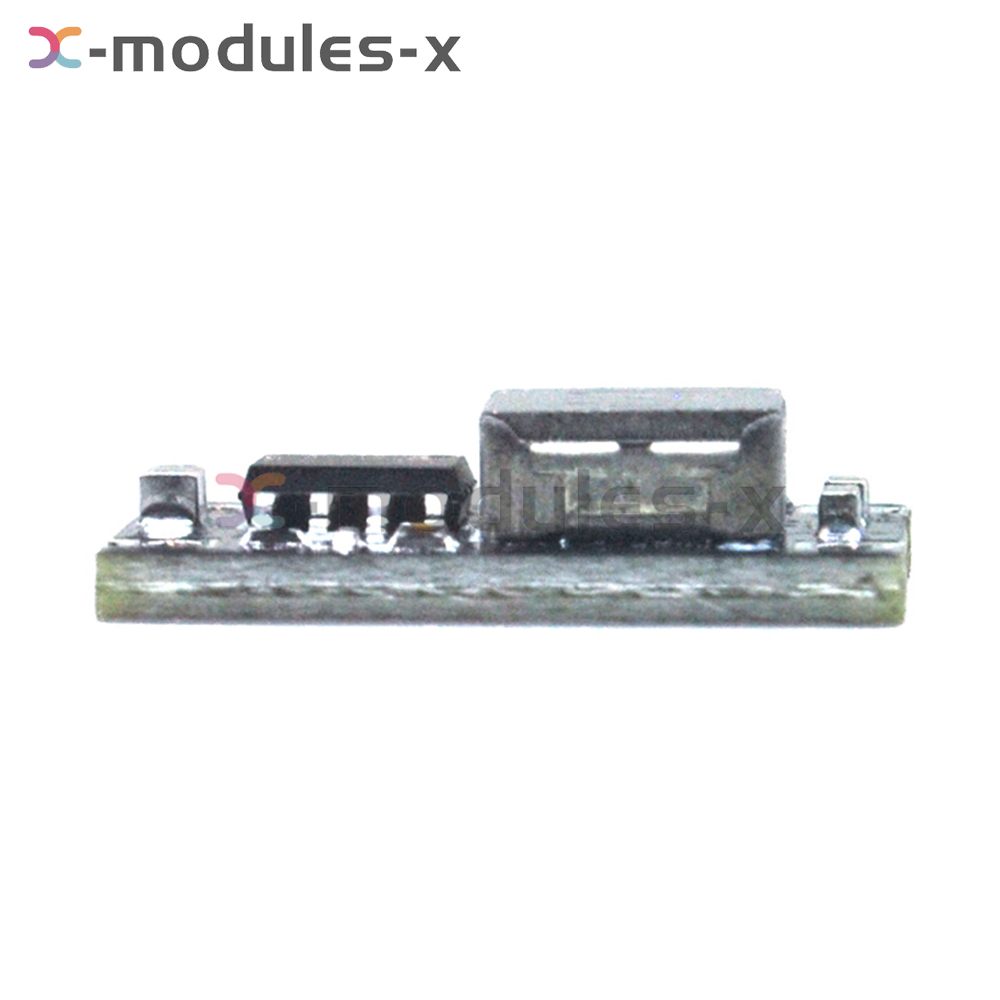

Size: 17.5 * 12 * 4.5mm (length * width * height)
PCB layers: 2 layers
Shutdown function: not supported
Heat dissipation method: natural heat dissipation

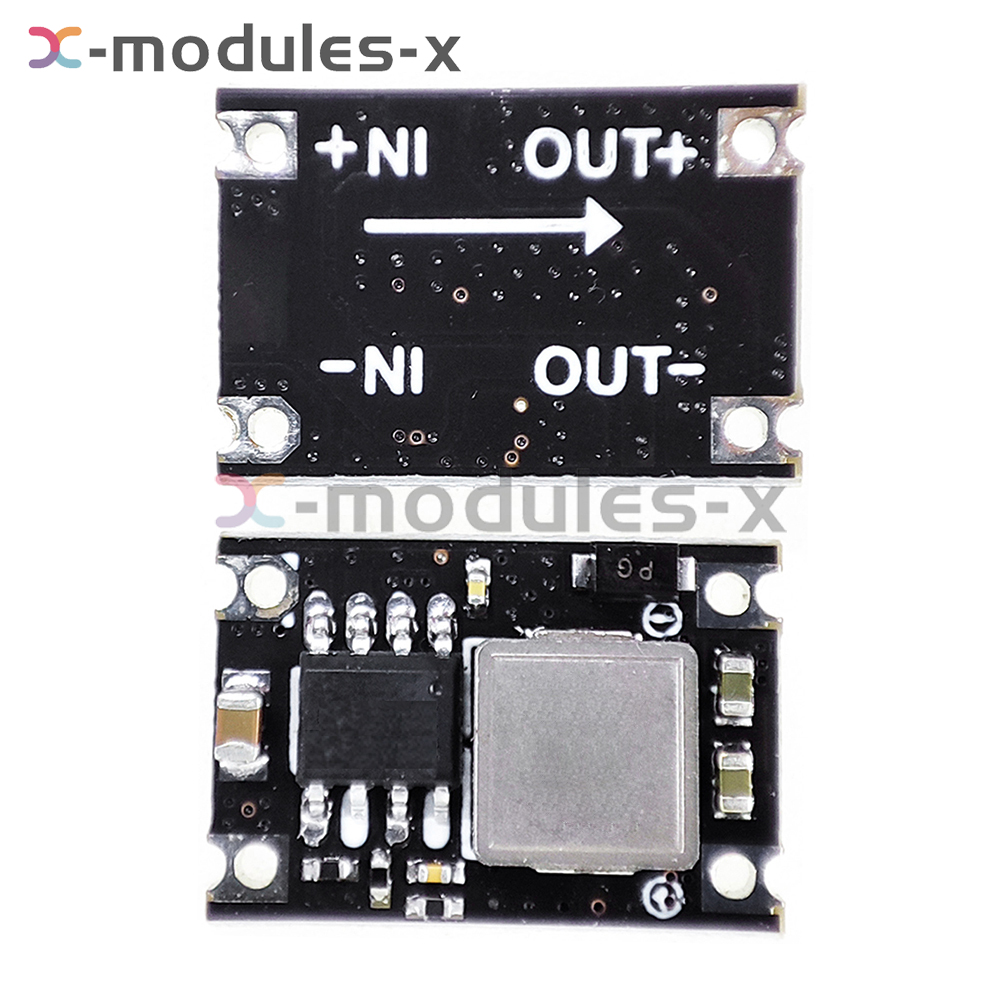

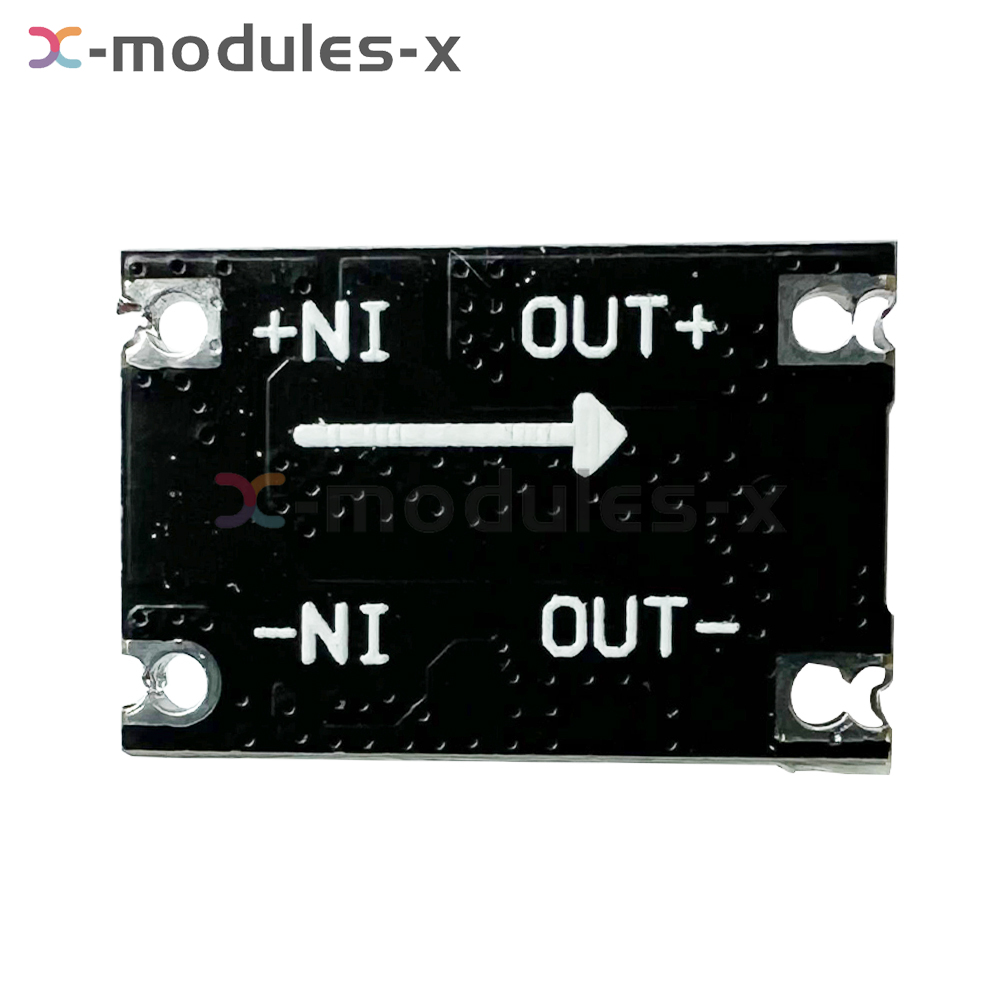

Installation method: Wiring
Is isolation included: Without isolation
Production process: machine bonding, reflow soldering
Service life: 30000 hours without faults (output current not exceeding rated value)
be careful:
1. The input voltage is preferably below 28V
If the normal current exceeds 1.6-1.8A, please add a radiator

Package Include:
1-10X module
