Gaming adaptive 2.5Gbps Gigabit PCI-E Network Card Ethernet RJ-45 LAN Adapter
Product Description
l Integrated 10/100/1000M/2.5G transceiver.
l Supports 2.5G and 1G Lite mode.
l Auto-Negotiation with Extended Next Page capability(XNP).
l Supports PCI Express 2.1.
l Supports pair swap/polarity/skew correction
l Configurable MDI port ordering(MDI swap) for easy PCB layout.
l Crossover Detection&Auto-Correction.
l Supports 1-Lane 2.5/5Gbps PCI Express Bus.
l Embedded OTP memory can replace external EEPROM
l LAN disable with GPIO pin.
l Customized LEDs.
l Controllable LED Blinking Frequency and Duty Cycle.
l Self-Loopback diagnostic capability.
l Thermal management.
l 88-pin QFN “Green”package.
l Serial EEPROM.
l Supports 32Mbytes External Serial Peripheral Interface(SPI) Flash.
l Supports ECMA-393 ProxZzzy Standard for sleeping hosts.
l Supports LTR(Latency Tolerance Reporting)
l Wake-On-LAN and “RealWoW!”Technology(remote wake-up) support.
| Chipset | RTL8125B |
| Port number | 1* RJ45 |
| Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz |
| Network media | 10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP |
| IEEE Standards | IEEE 802.11a/b/g/n/ac |
| Data rate | 10/100/1G/2.5Gbps |
| Interface | PCI Express 1x slot |
| Auto MDIX | YES |
| Full Duplex Support | YES |
| MTBF | 376,212 Hours |
| LED Indicator | Link/Act, Speed |

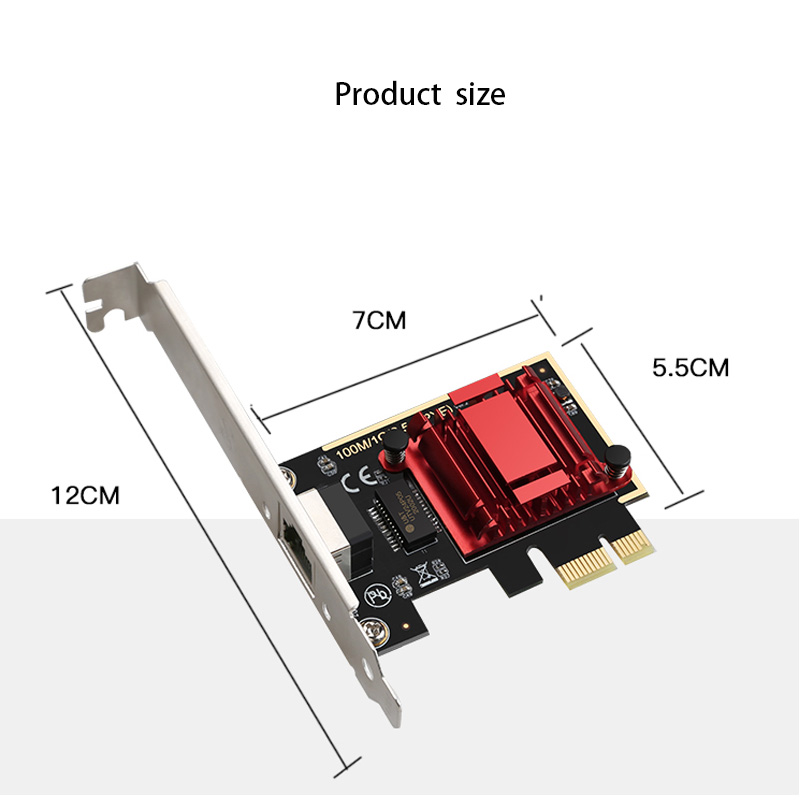

| Dimension | 71.5*50*1.6mm |
| Support OS | Windows®10(32/64), Win7 (32/64), Win8,8.1 (32/64) Windows Server® 2012, 2008 LINUX up to 4.15 |
| Environment | Operating Temperature: 0 ℃-60 ℃ |
