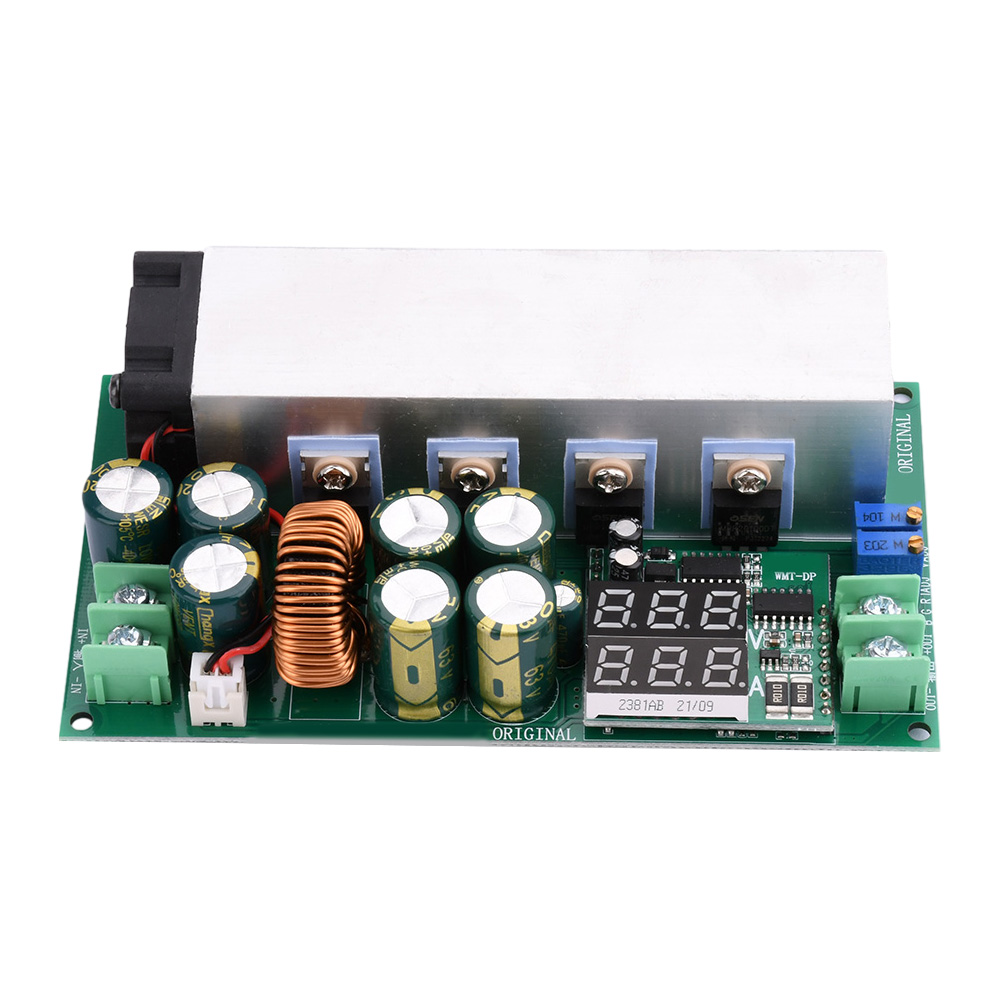

Features:
1. High performance, the output voltage current can be adjusted continuously;
2. Increase the number of display function, the output voltage can be displayed, it is more convenient to use;
3. Simple operation, use it to be available to use;
4. Using high -quality materials, the input voltage can reach up to 80V;
5. The efficiency is extremely high, up to 93%.
1. High performance, the output voltage current can be adjusted continuously;
2. Increase the number of display function, the output voltage can be displayed, it is more convenient to use;
3. Simple operation, use it to be available to use;
4. Using high -quality materials, the input voltage can reach up to 80V;
5. The efficiency is extremely high, up to 93%.
Product parameters:
Input voltage: DC12-80V (72V battery that cannot be used for)
Output voltage: 2.5V-50V adjustable (only downstration) (the maximum output voltage = input voltage*0.8)
Output current: 20A (MAX) 25A overcurrent
Maximum power: 600W
Conversion efficiency: ≥93%
Protection: overcurrent protection, anti -anti -irrigation

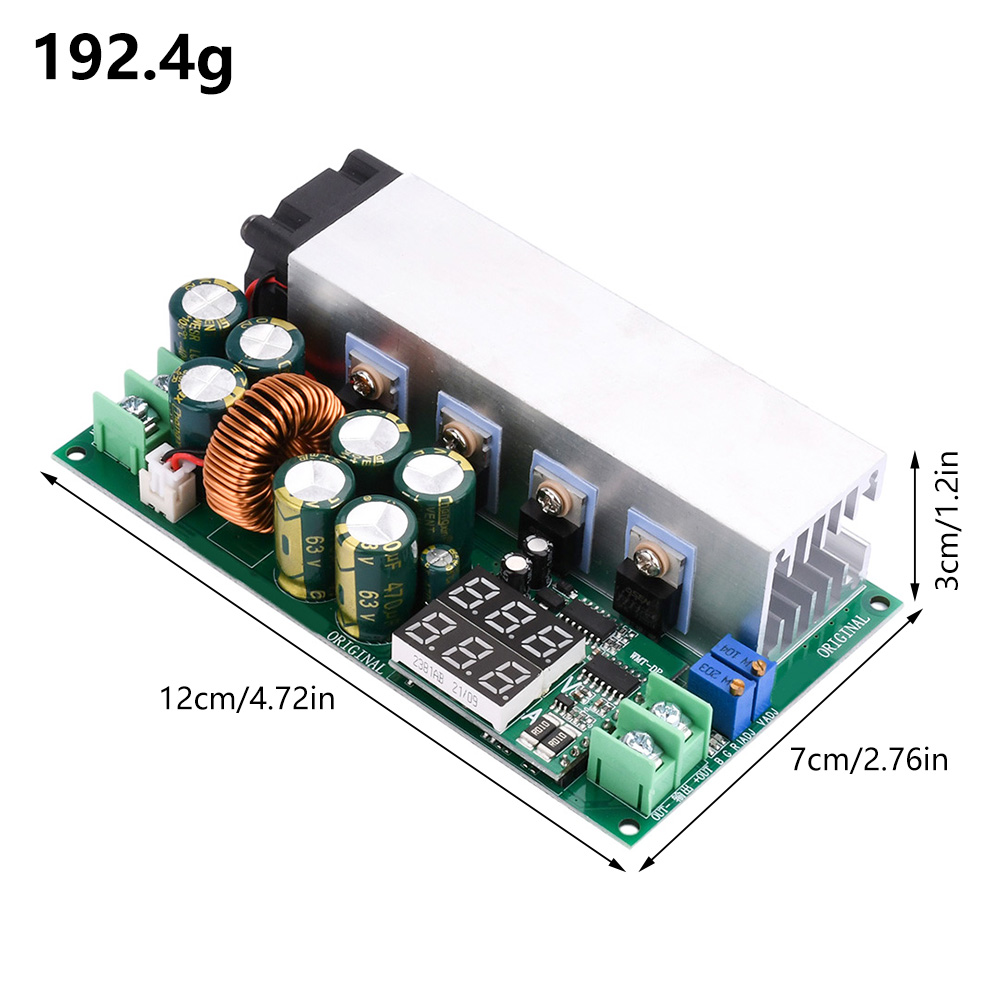

Size: L125mm*W70mm*H32mm
Work temperature: -40-85 ℃
Storage environment: -20 ℃-+50 ℃
Relators: 65 ± 20%
Wiring: high power situation, thicker wiring as possible.
Input voltage: DC12-80V (72V battery that cannot be used for)
Output voltage: 2.5V-50V adjustable (only downstration) (the maximum output voltage = input voltage*0.8)
Output current: 20A (MAX) 25A overcurrent
Maximum power: 600W
Conversion efficiency: ≥93%
Protection: overcurrent protection, anti -anti -irrigation
Size: L125mm*W70mm*H32mm
Work temperature: -40-85 ℃
Storage environment: -20 ℃-+50 ℃
Relators: 65 ± 20%
Wiring: high power situation, thicker wiring as possible.

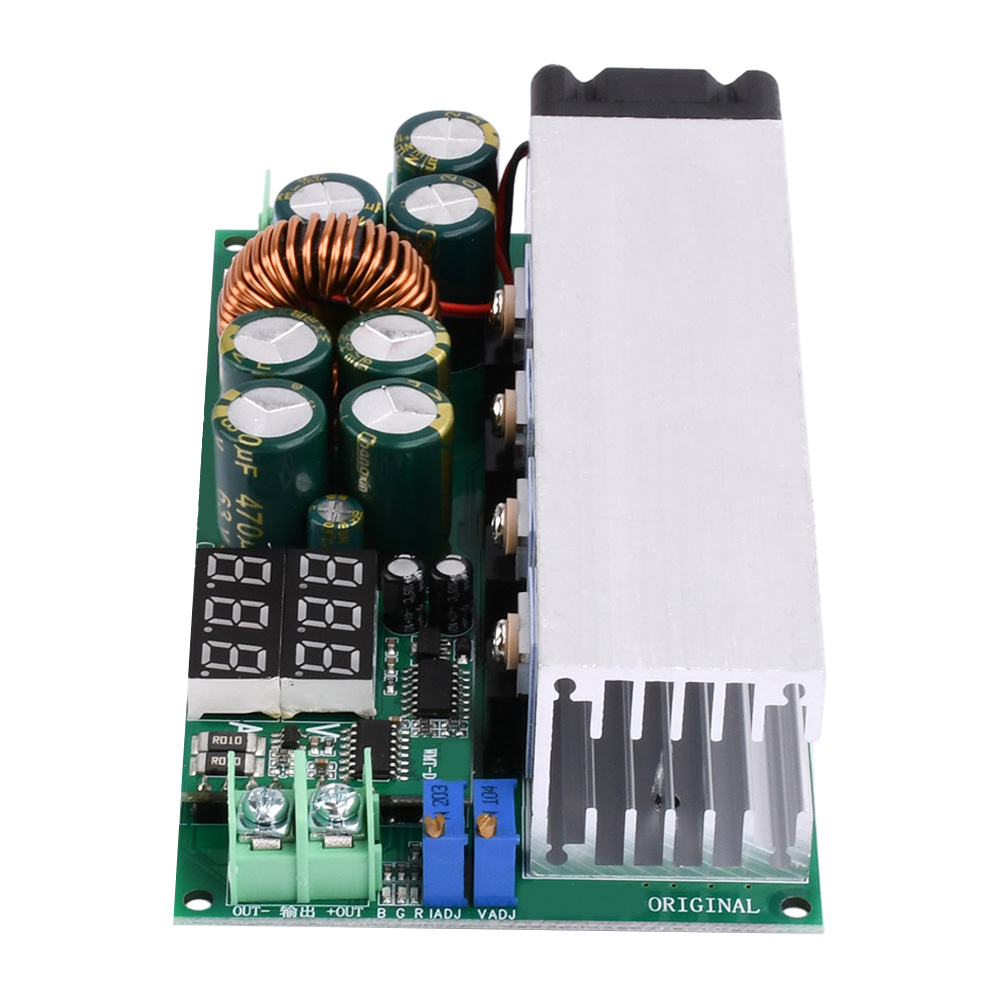

Interface Description:
In+: Enter the positive pole
IN-: Enter negative electrode
Out+: Output positive pole
Out-: output negative electrode
B-BULE blue light: no current in constant pressure
G-Green green light: current light
C-R-Red red light: Hengli mode light
IADJ: current adjustment, big clockwise, small clockwise small
VADJ: voltage adjustment, large clockwise, small clockwise small
In+: Enter the positive pole
IN-: Enter negative electrode
Out+: Output positive pole
Out-: output negative electrode
B-BULE blue light: no current in constant pressure
G-Green green light: current light
C-R-Red red light: Hengli mode light
IADJ: current adjustment, big clockwise, small clockwise small
VADJ: voltage adjustment, large clockwise, small clockwise small
Note: Charging batteries and batteries, please add diodes to the output to prevent anti -irrigation!
Product List:
1X module
1X module
