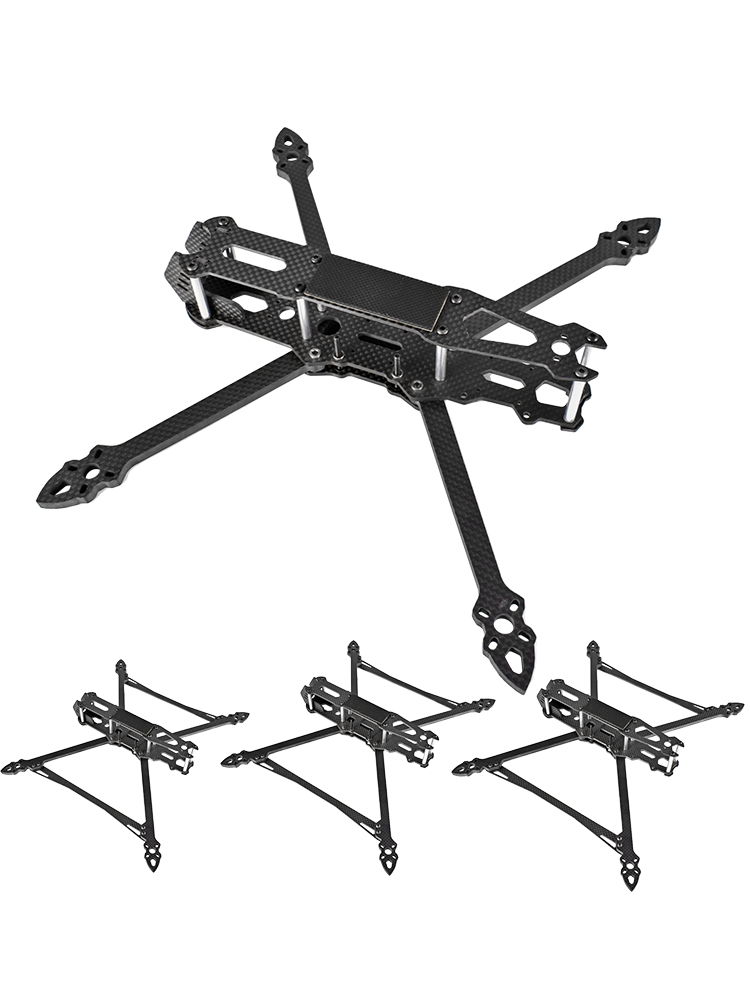

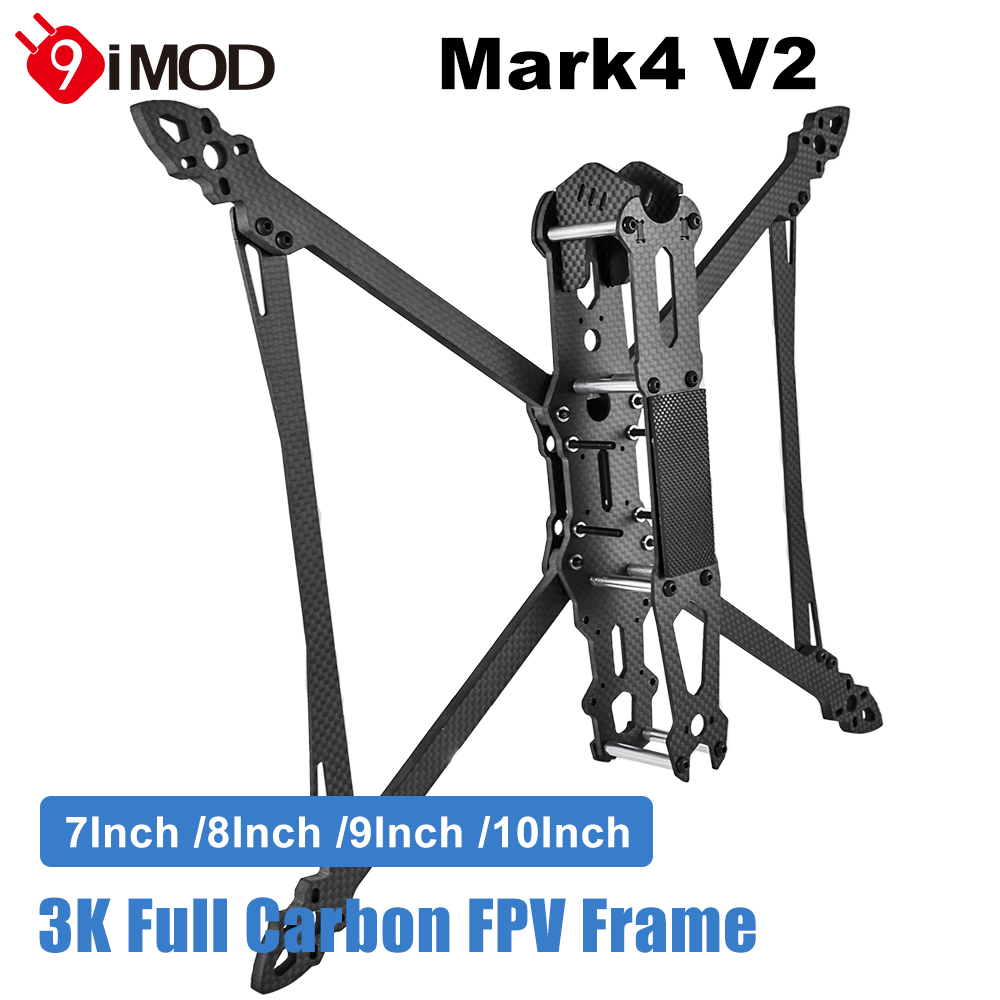

9IMOD MAK4 V2 7/8/9/10inch 295/367/387/427mm 3K Carbon Fiber 6mm Arm For RC FPV Freestyle Long Range Racing Drone Quadcopter
Features:
1. 7/8/9/10 inch FPV Frame-The frame is really solid and well balanced, perfect balance between performance and durability.
2. Full 3K carbon fiber material, make the drone light weight but very strong,perfect balance between performance and durabilit
3. 6mm thickness frame arm, compact design greatly reduce the total weight, small wind resistance coefficient.
4. Easy to assemble, suitable for FPV enthusiasts who pursue high-performance and diverse flight experiences,can fly outdoors or indoors in a large space.
Descriptions:
The upgraded version of the new MARK4 V2,which is beautiful and durable,light in weight and high in strength,easy to assemble, suitable for both beginners and senior players.

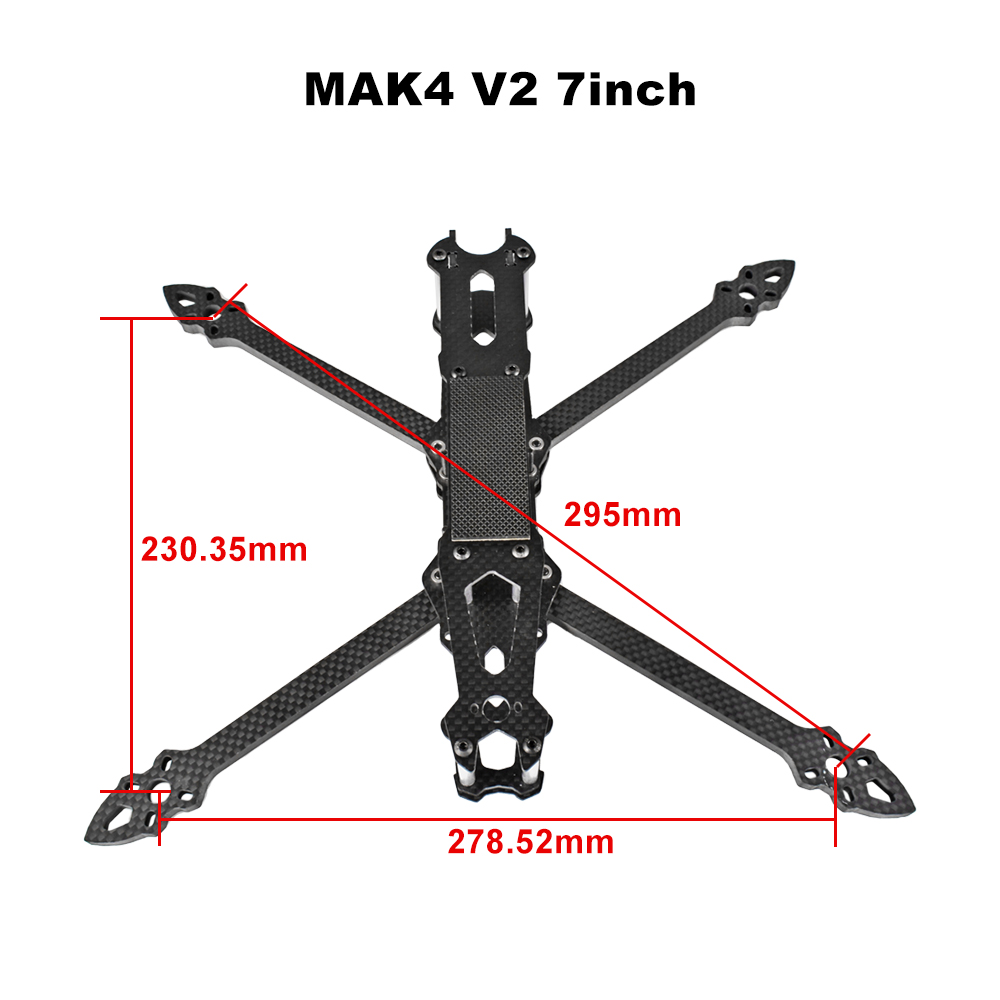

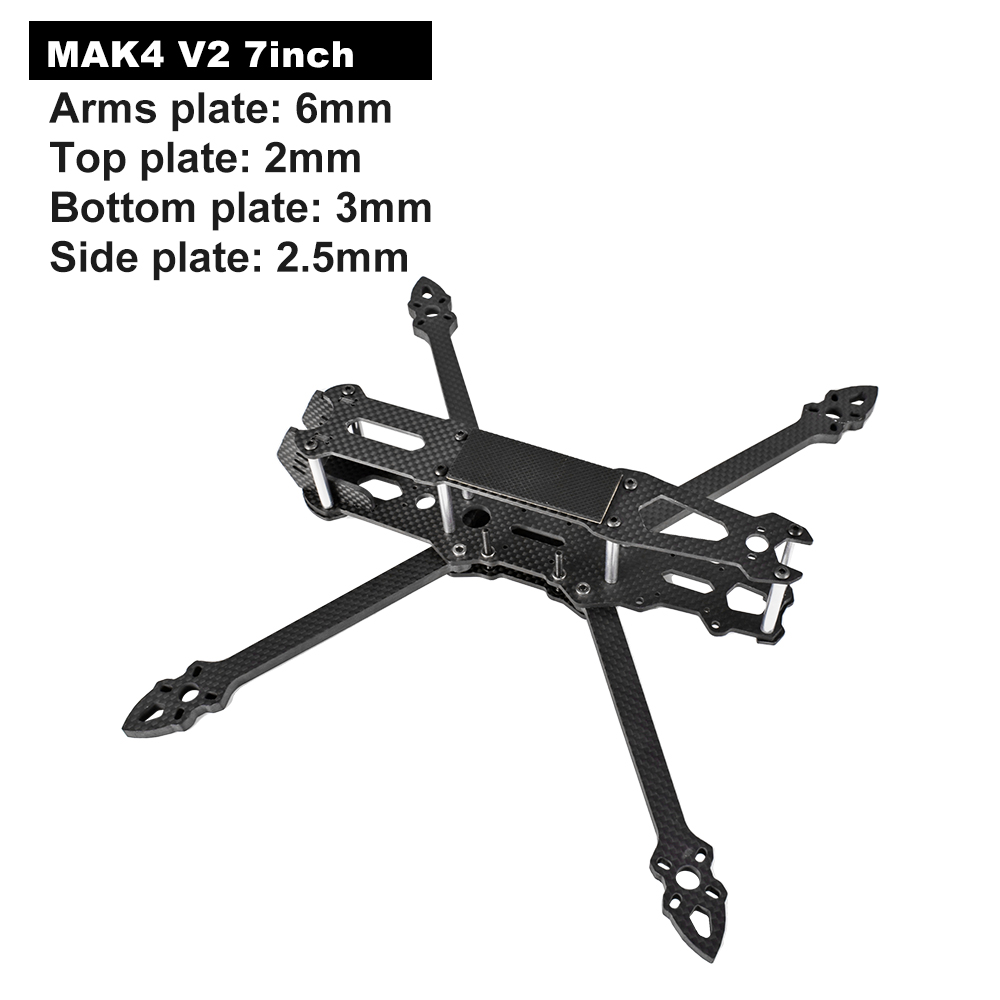

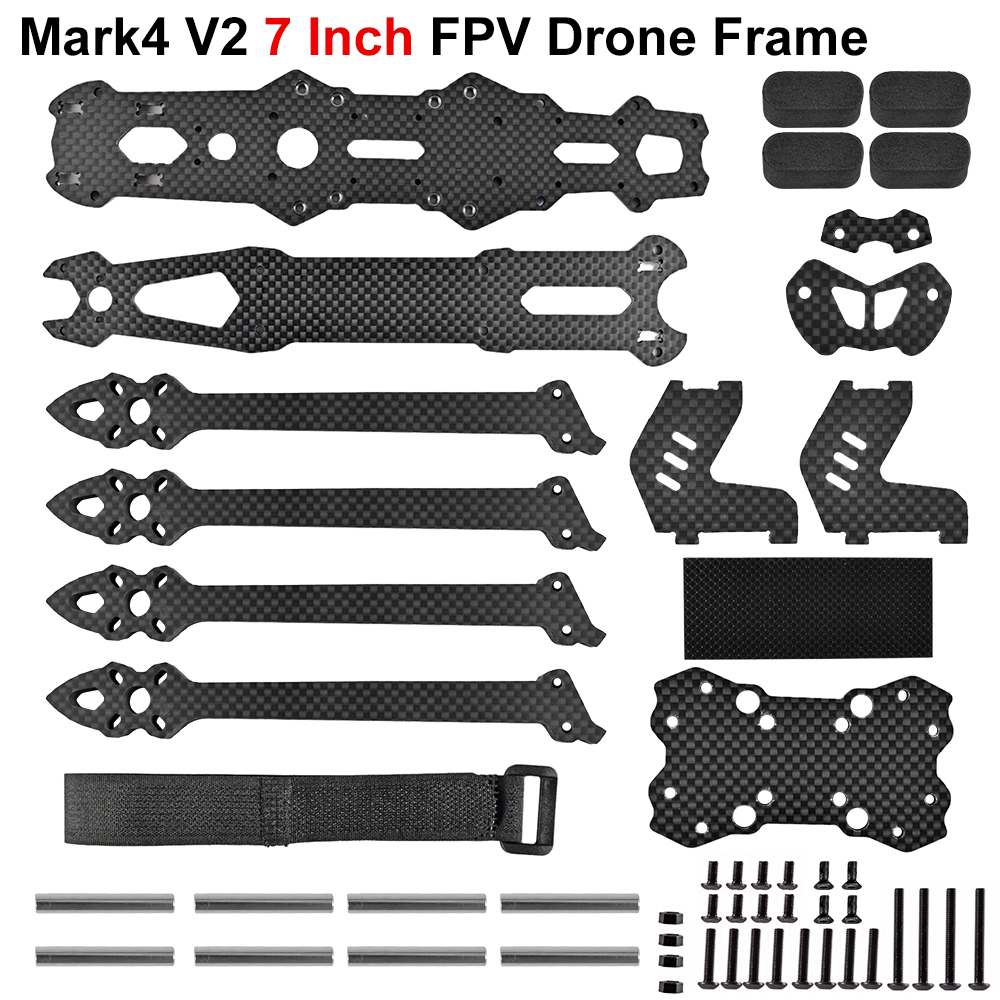

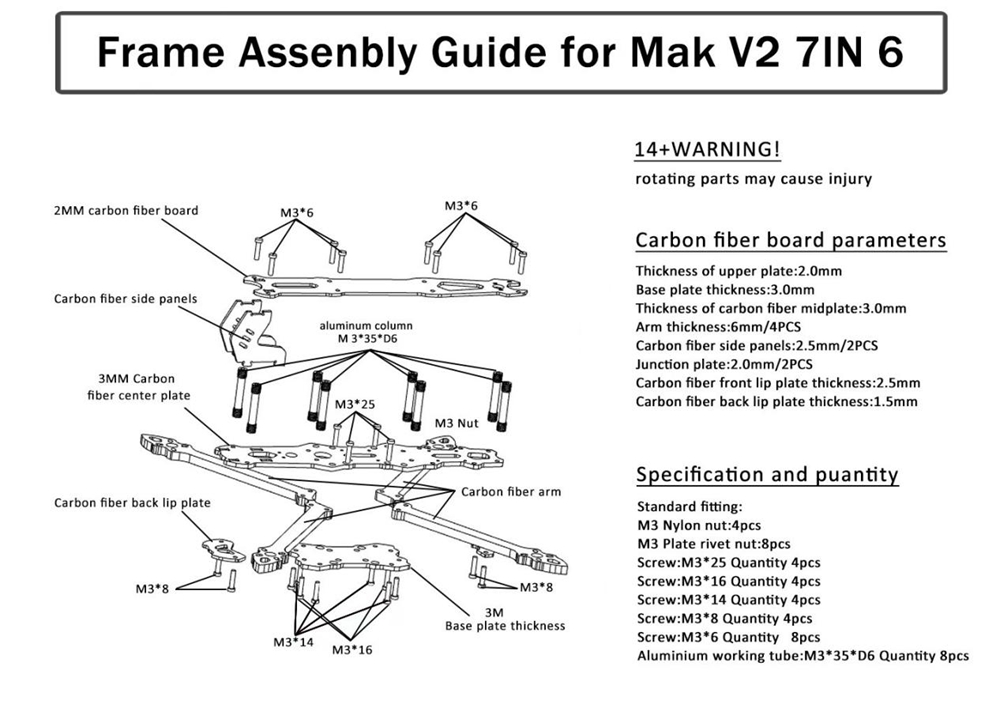

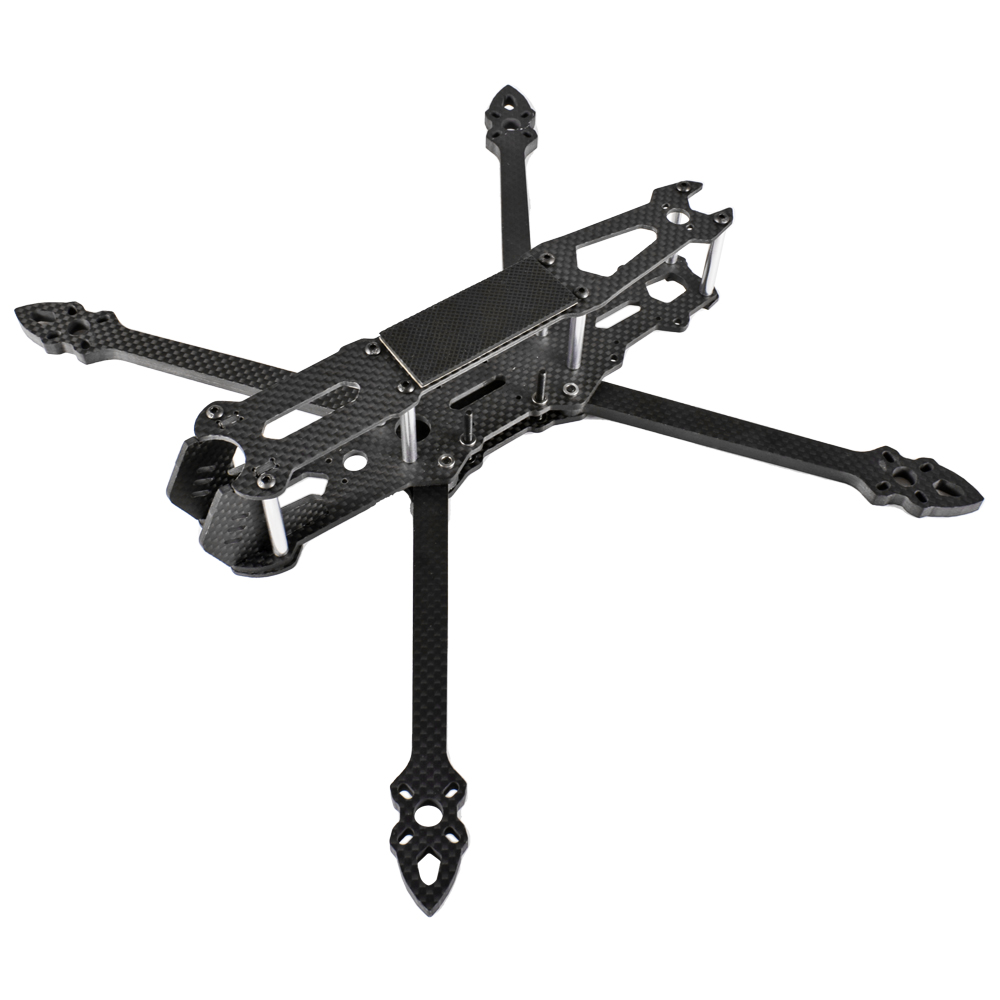

Model: MAK4 V2 7inch
Frame structure: X-Type
Wheelbase: 295mm
Weight: 185g
packing: electrostatic bag
Size: 230.35mm * 278.52mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Recommended configuration (not included) ：
Propeller: 7-inch
motor: 2806.5/2807/2810/2812
flight control: F4/F405/F7/F722
electric: 45A-65A ESC
Camera: 19 * 19MM
Battery: 6S-3000MAH-6500Mah

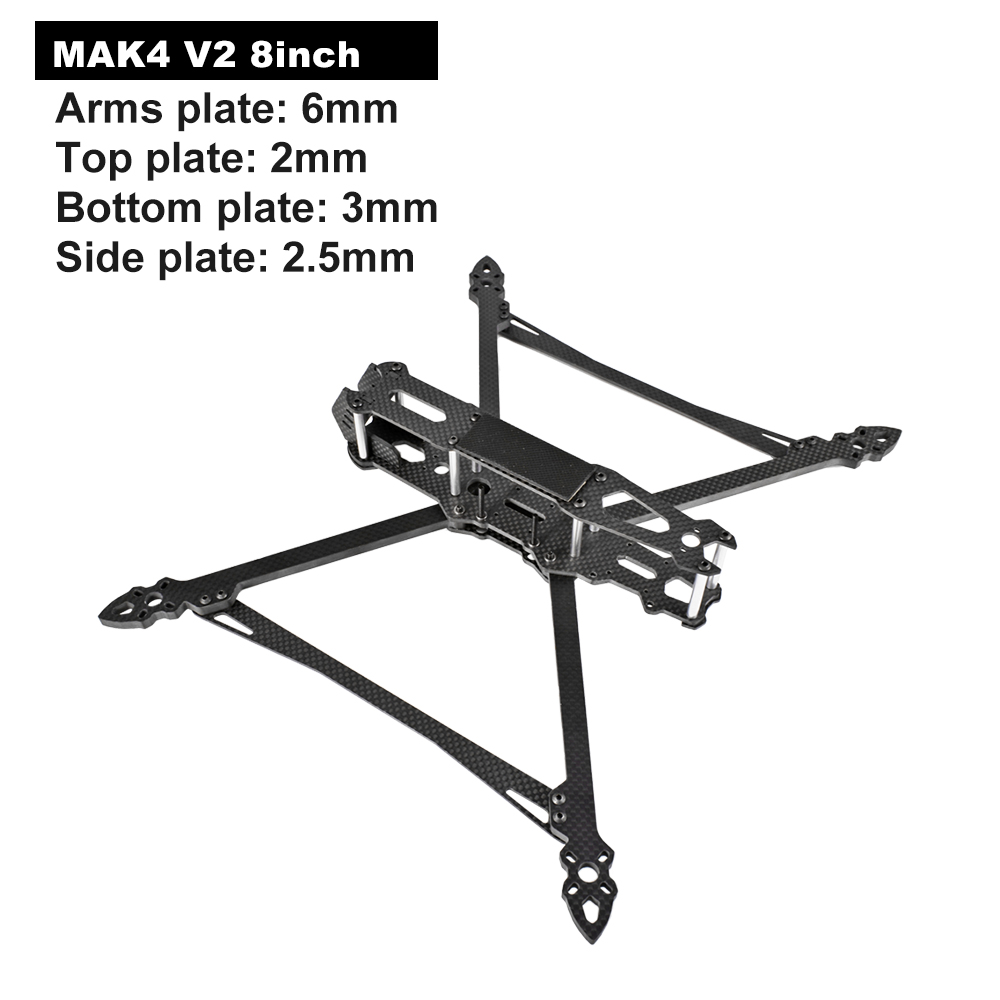

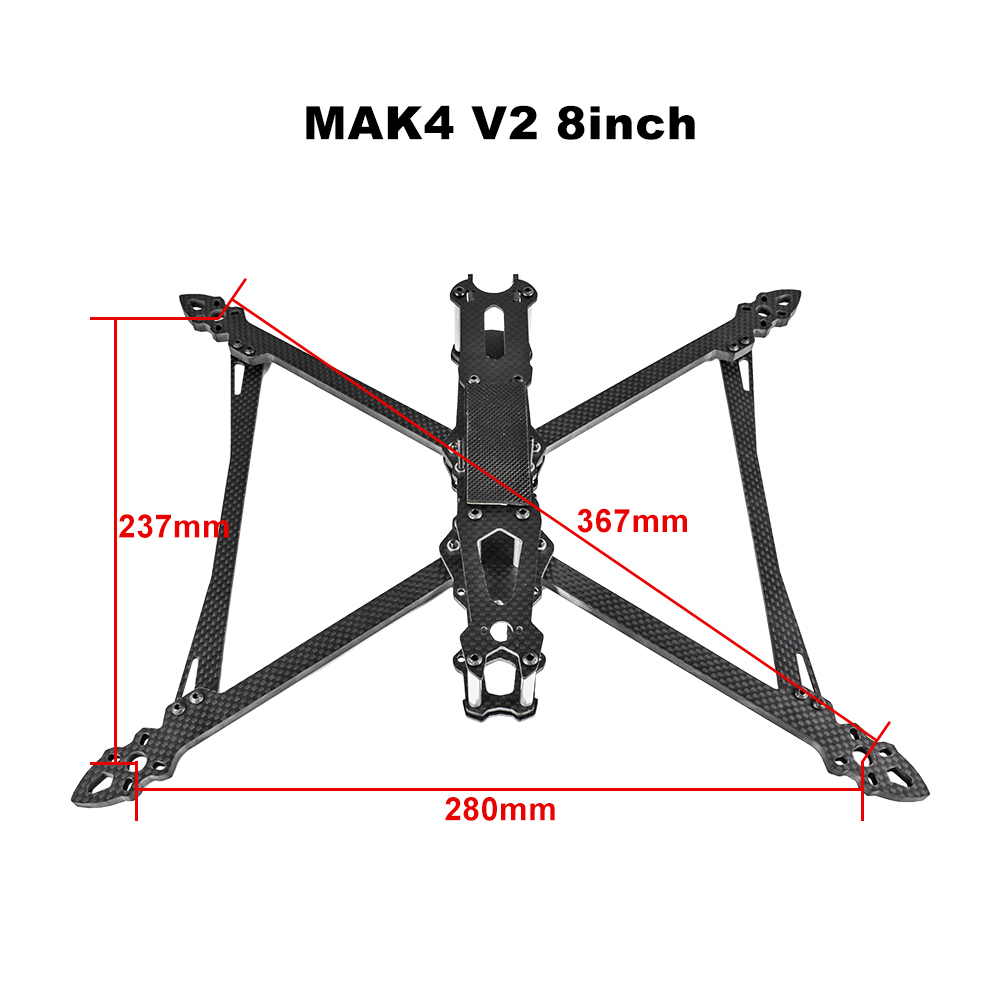

Model: MAK4 V2 8inch
Wheelbase: 367mm
Weight: about 214g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

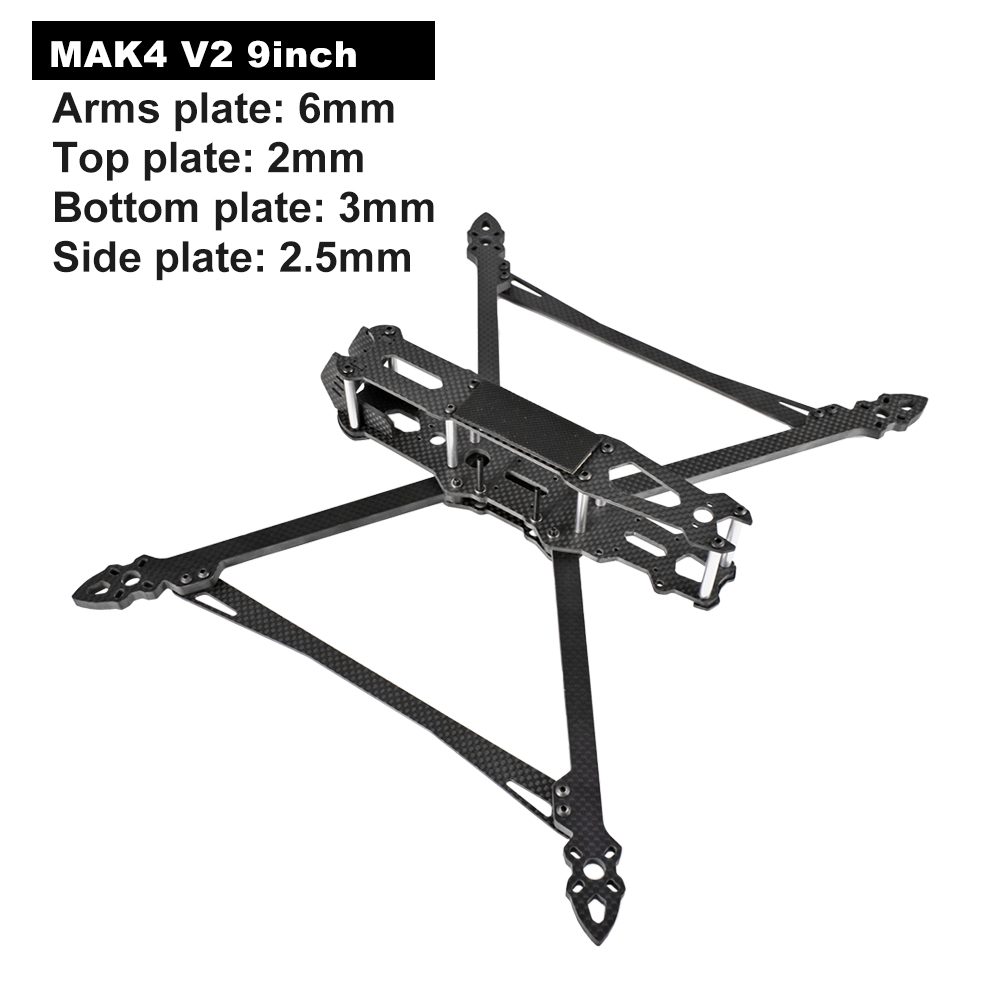

Model: MAK4 V2 9inch
Wheelbase: 387mm
Weight: about 220g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

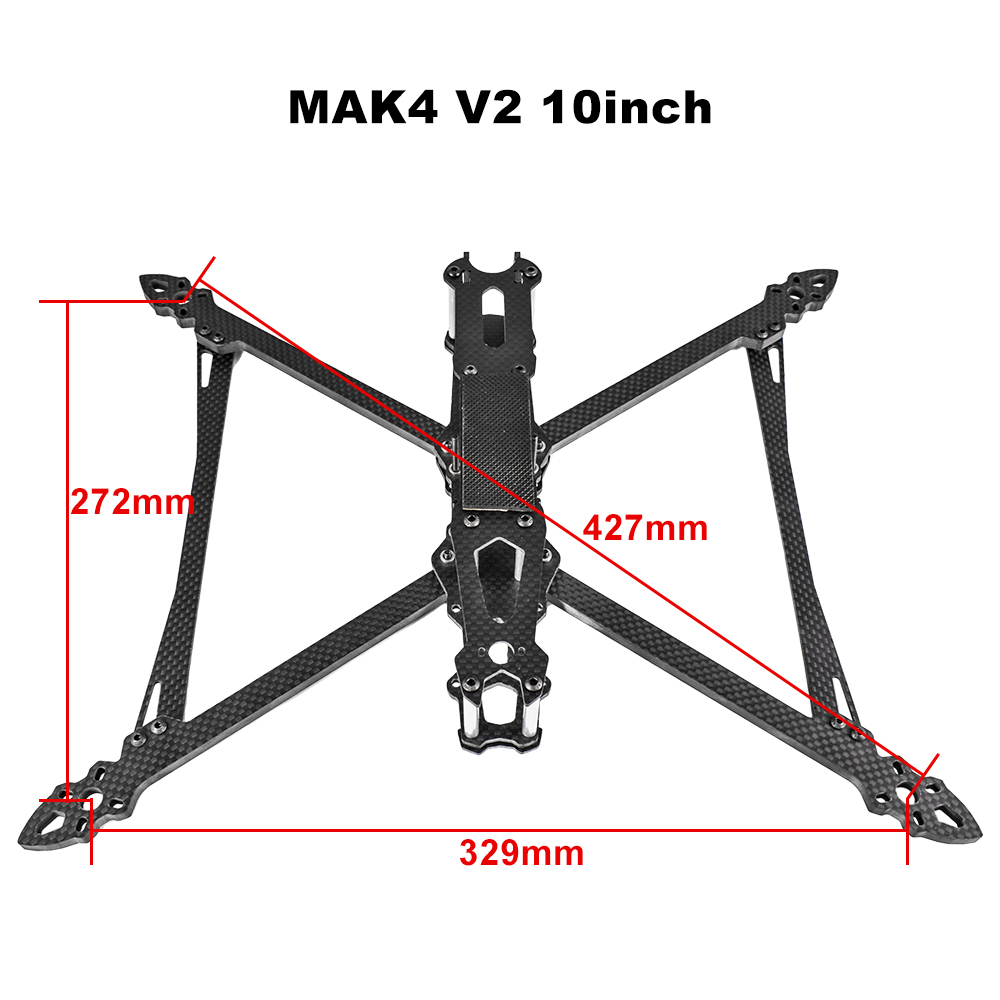

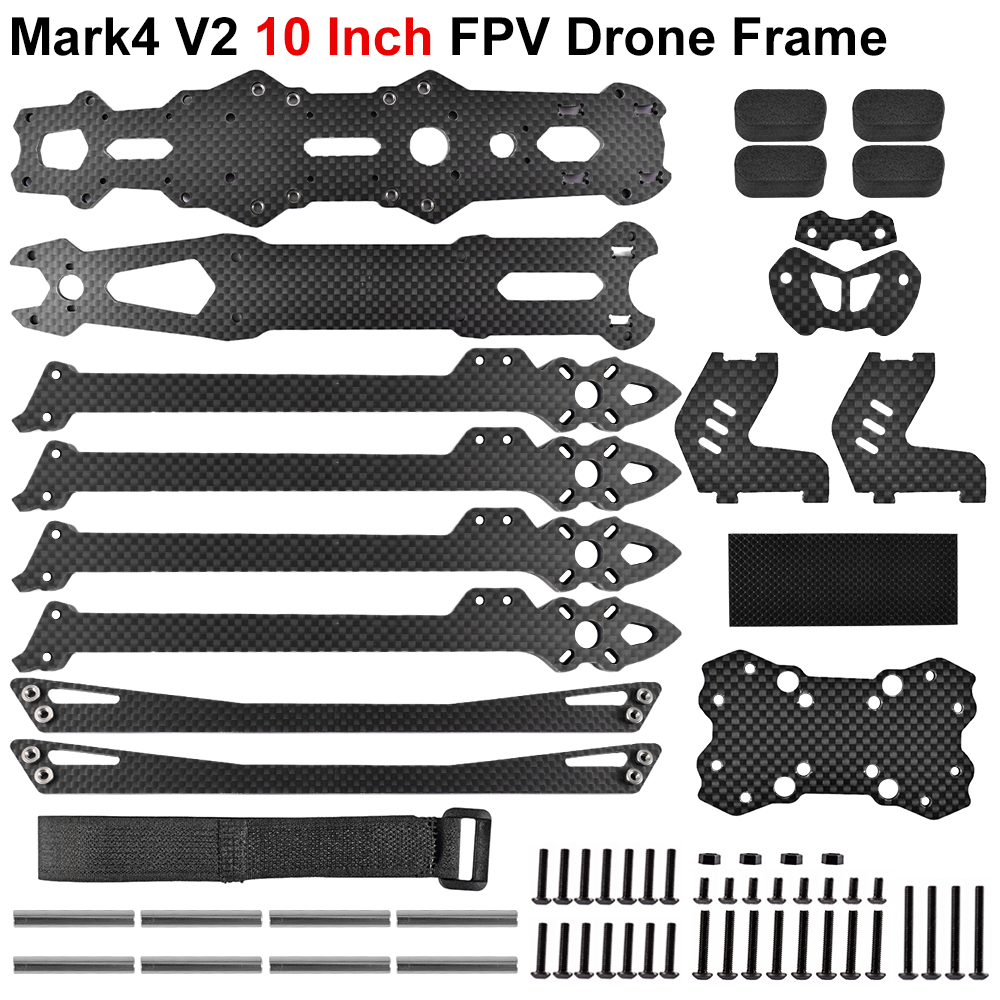

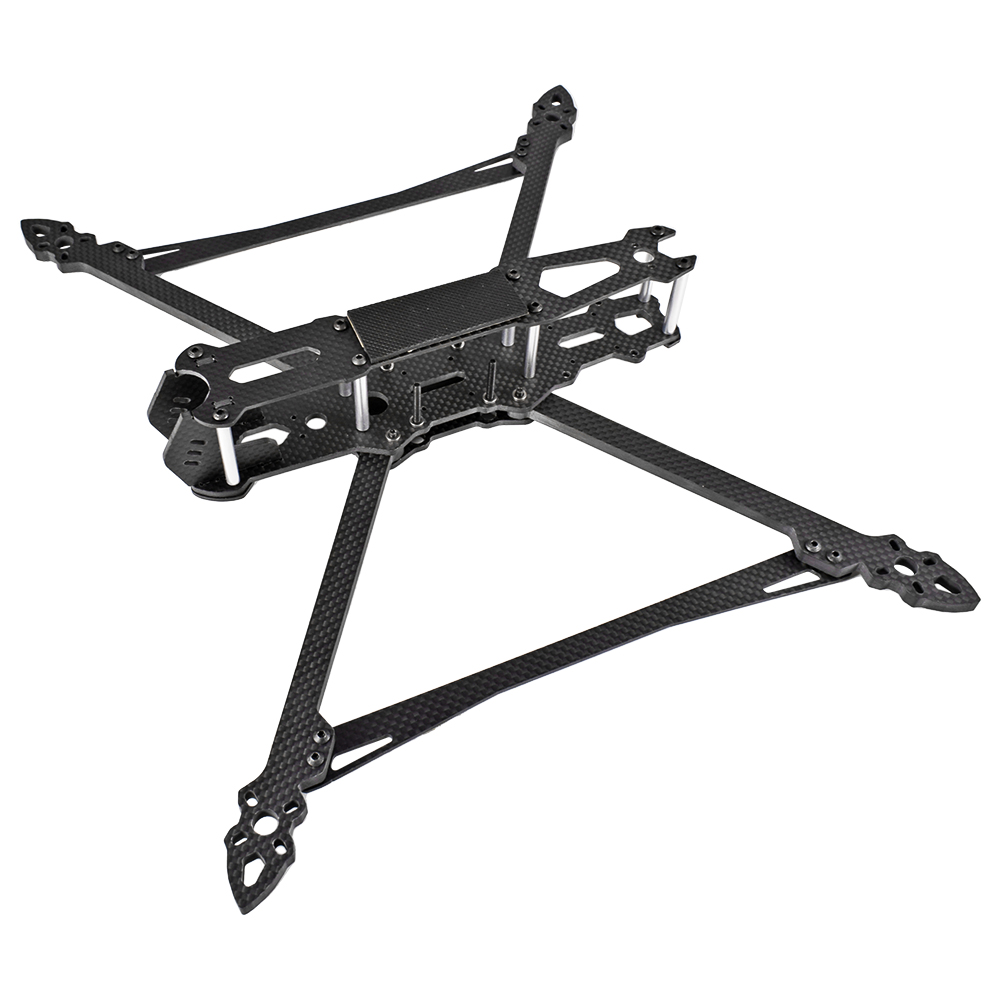

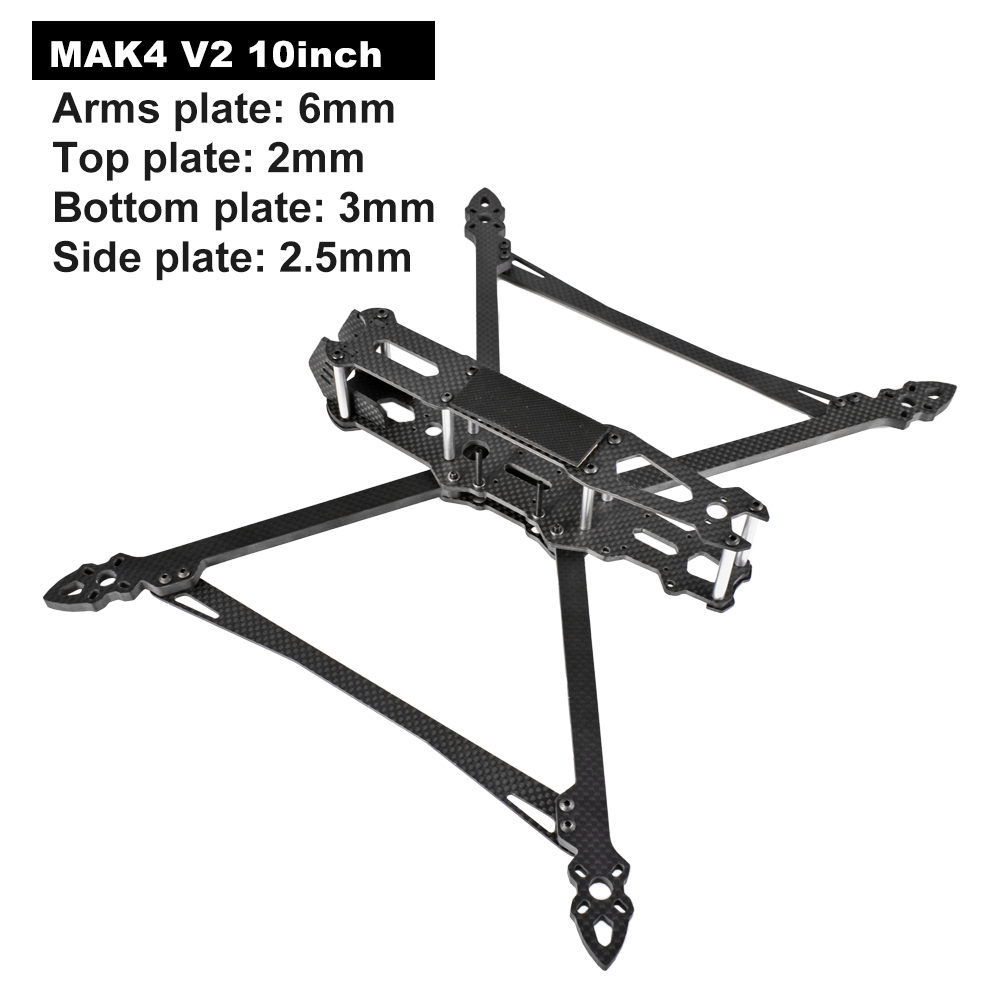

Model: MAK4 V2 10inch
Wheelbase: 427mm
Weight: about 227g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

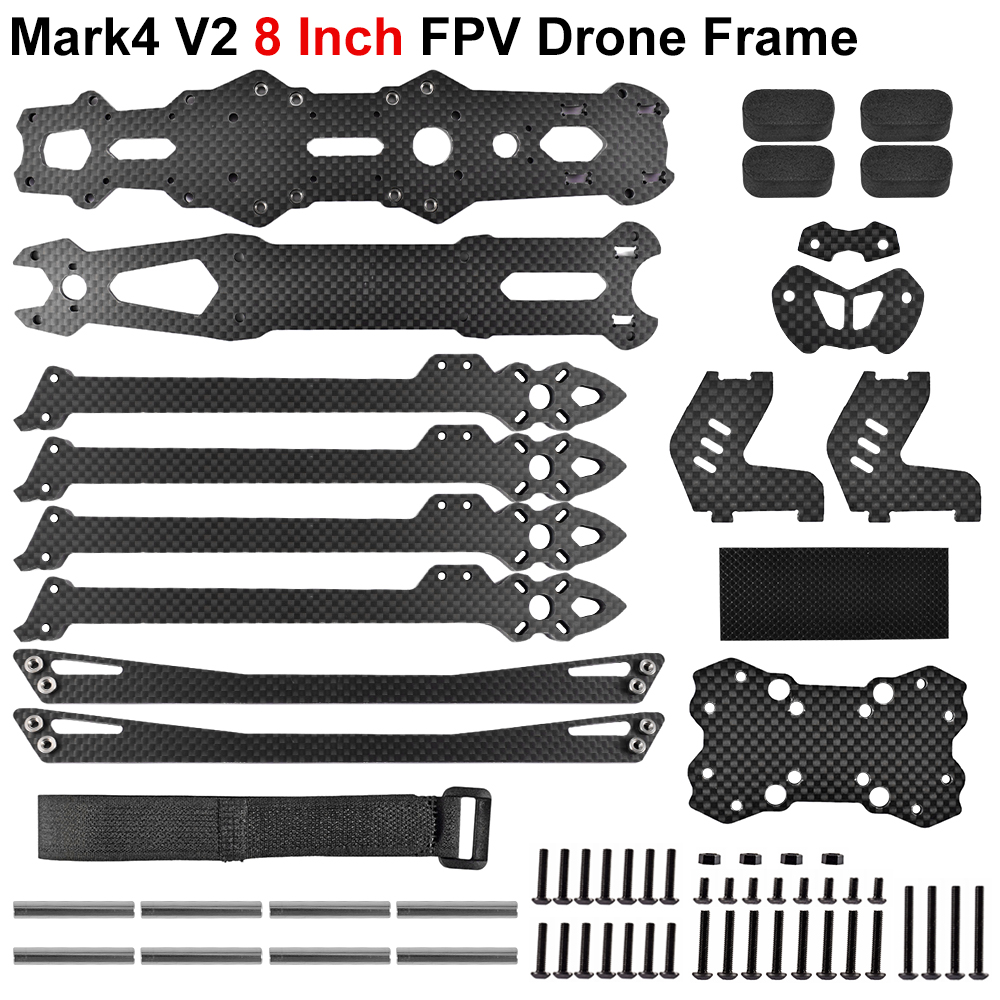

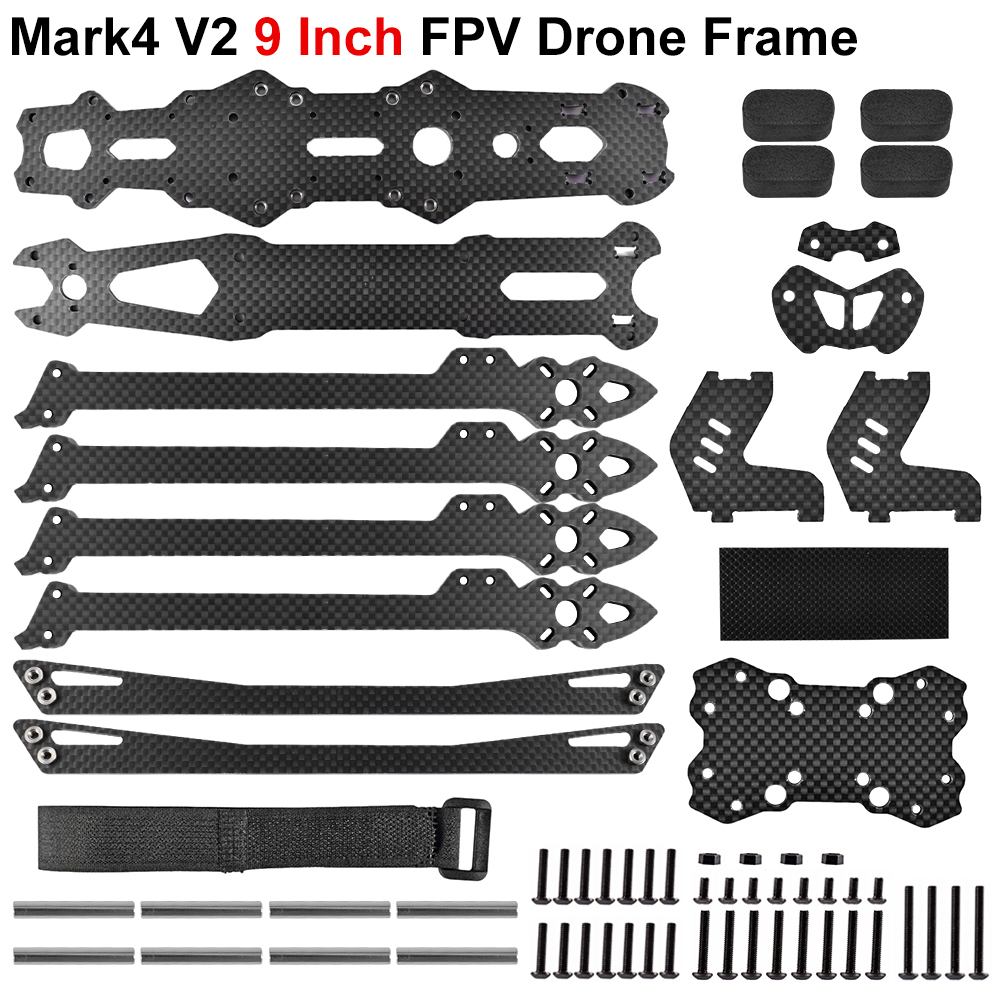

Package Included:
1 Set x Mark4 V2 7inch/8inch/9inch/10inch Carbon Fiber Frame Kit
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
