A3 Sign Vinyl Cutter Plotter Machine with Contour Cut Function Card Stickers Cut
- The new model features upgraded movable paper rollers, which can be adjusted to better stabilize the material during cutting. The older version had fixed rollers that could not be moved.
- An additional communication interface has been added, allowing support for USB flash drives (U-disk) for data transfer and file loading.
- A new screen display has been integrated for improved user interaction and operation.
- The biggest upgrade is in the A3 positioning system, which now uses camera-based positioning for higher accuracy. Additionally, the number of paper rollers has been increased from 2 in the old model to 3 in the new one, effectively preventing the center of the material from lifting or curling up.
Technical parameters
Model: DC-330Pro
Voltage: AC100-240V
Max. feeding width: 450mm
Max. cutting width: 310mm
Cutting thickness: ≤1mm
Speed/Pressure: 20-800mm/s 20-500g
Buffer: 1-4M

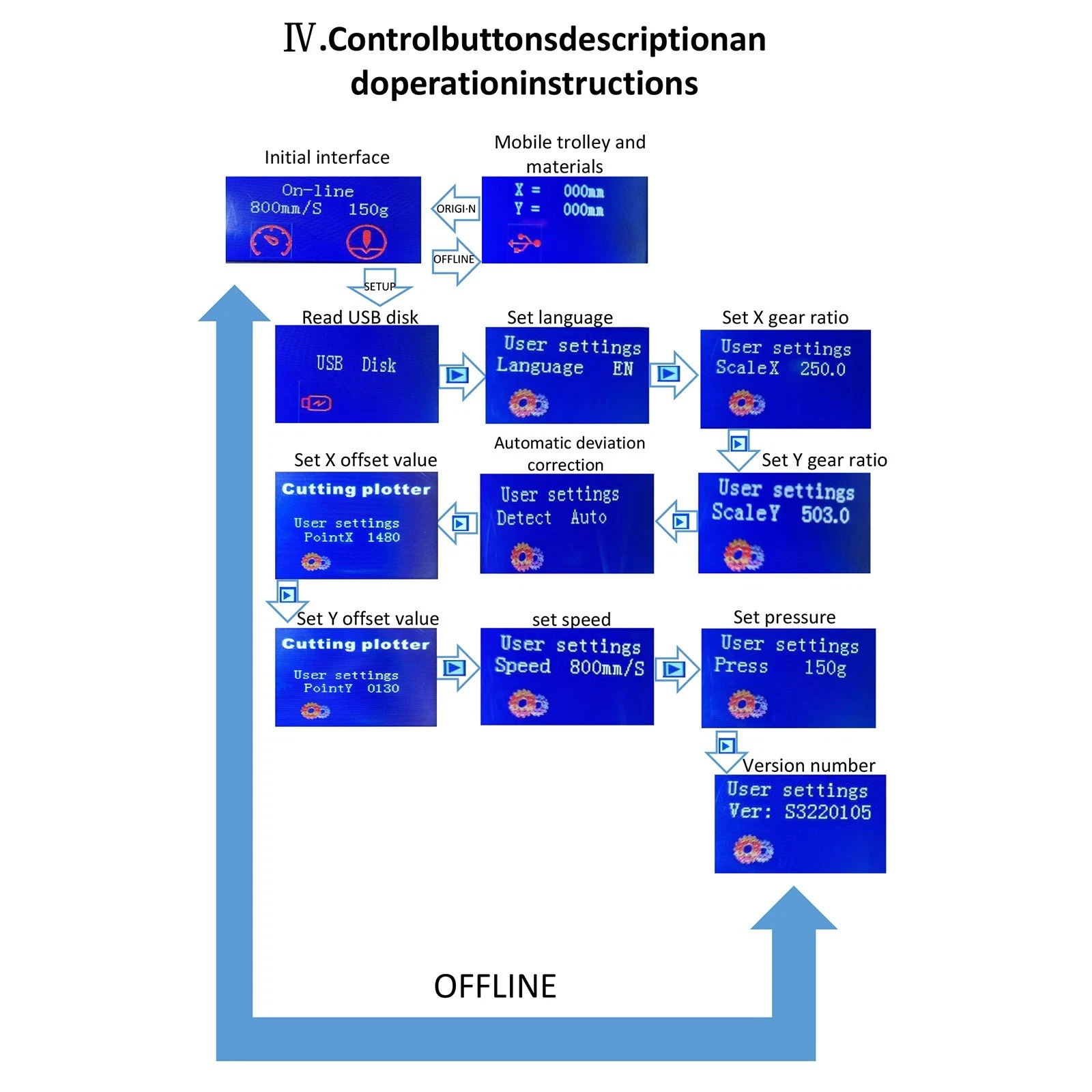

LCD display: CN/EN
Real-time Speed: adjusting
Support: Interface USB+U-DISK
Re-cutting function: Support
Re-cutting accuracy: 0.127mm
Resolution Ratio: 0.0245mm/step
Language format: HPGL
Precautions
1. Protective material must be removed before turning on the cutting plotter.
2. Check the label on the back side of the plotter to confirm that the rated voltage required by the plotter matches the voltage of the power base.
3. Firstly make sure that the power switch is off, then plug the power supply into grounded power outlet.
4. Please do not touch the power cord with wet hands to avoid electric shock.
5. Please only use the power cord, data cable provided with this product, or manufacturer-approved replacements.
6. Please do not drop metal objects and liquids into the machine to avoid malfunction.
7. After shutting down, you must wait another 5 seconds to turn on the cutting plotter again, otherwise it will cause damage to the cutting plotter.
8. In thunderstorms, turn the power switch to OFF and unplug the power cord.
9. Please do not privately change the manufacturer's components.
10. Manufacturer reserves the right to change product specifications without prior notice.
11. The manufacturer only bears the legal obligations of the product itself sold to the users, and does not bear other losses caused by the malfunction of the products.
12. Without our company’s permit, no part of this manual can be copied or transmitted in any name.
Packing List:
1 x Main Unit
1 x Power Adapter (110-240V)
1 x Power Cable
1 x USB Data Cable
1 x USB Flash Drive

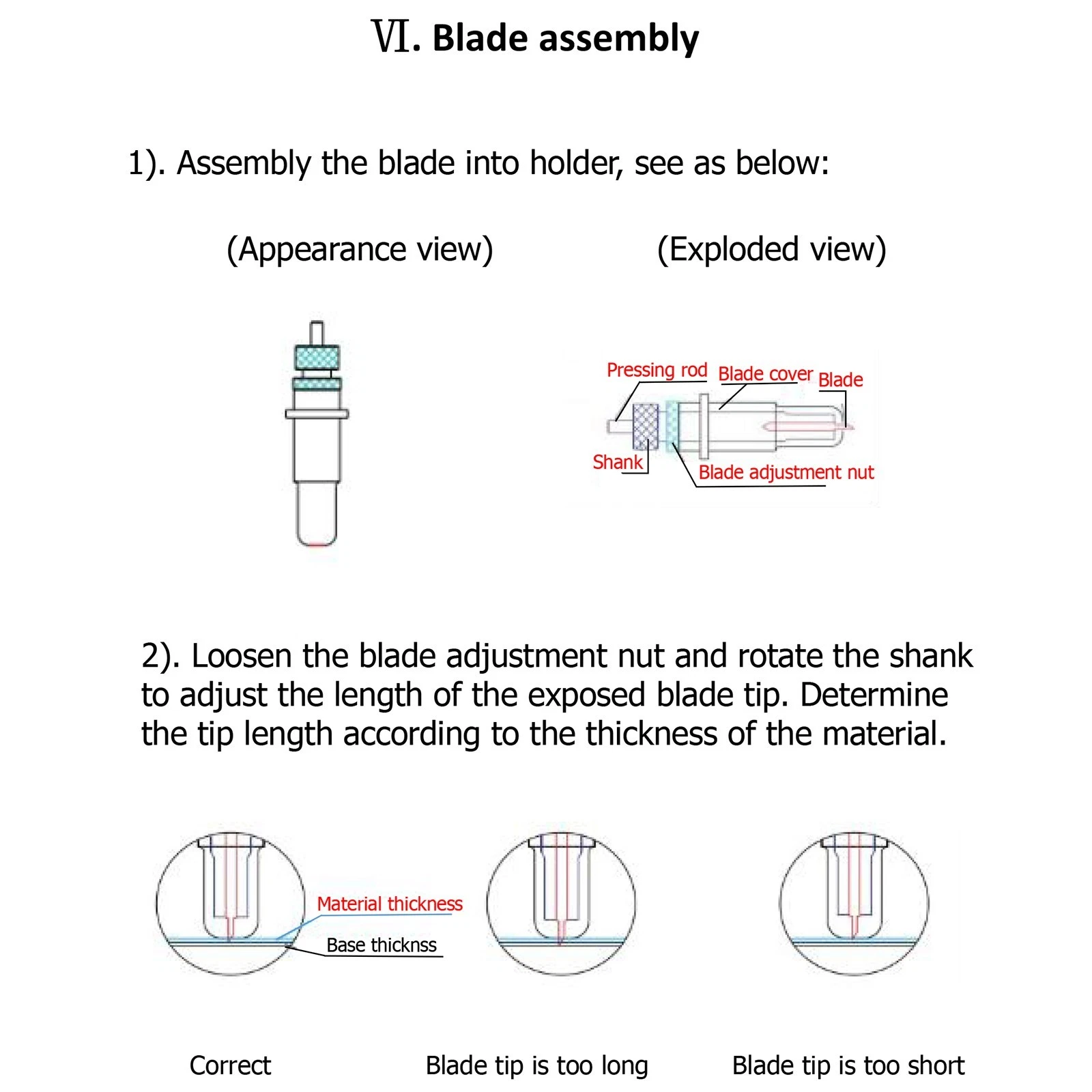

1 x Cutting Blade Holder, Set of Blades (45°)
1 x Drawing Pen Holder, Pen Cartridge
2 x Cutting Mat
1 x Warranty Card
