Description
Product Parameter

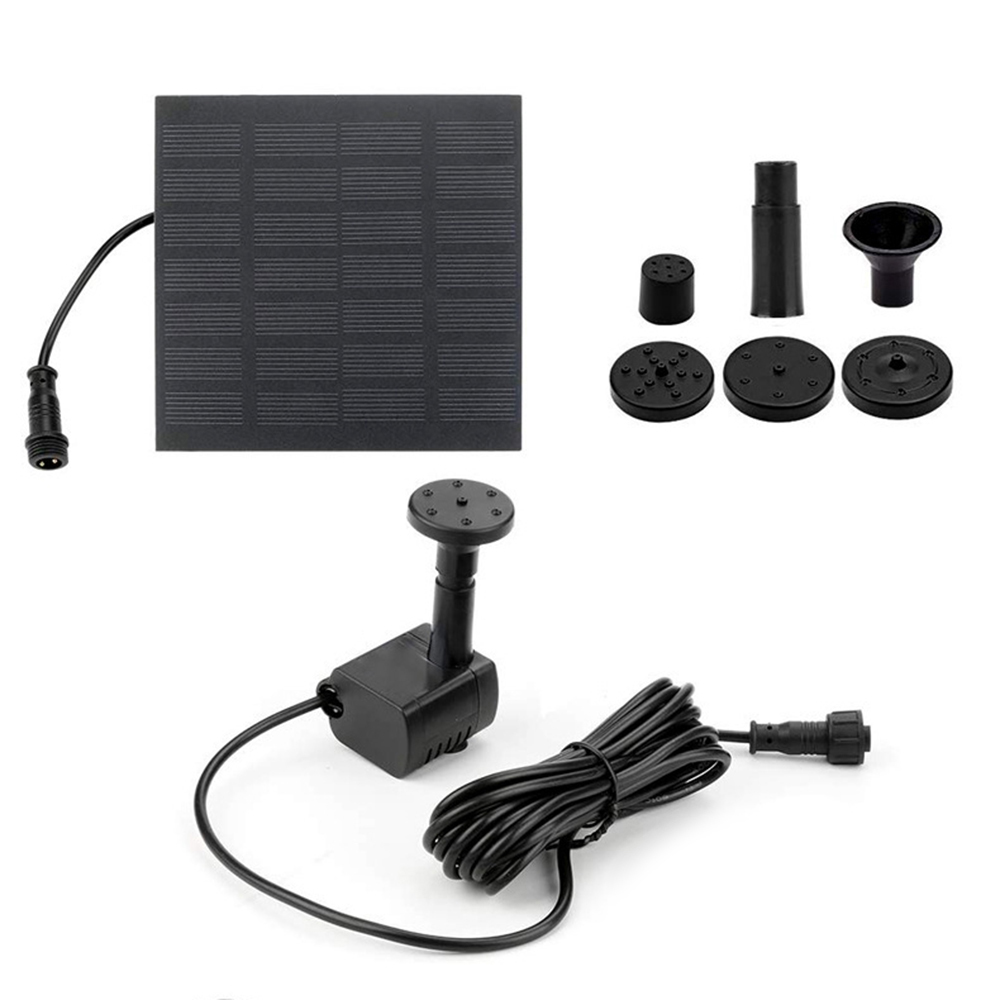

7V 1.8W 180L/H Style 1/2

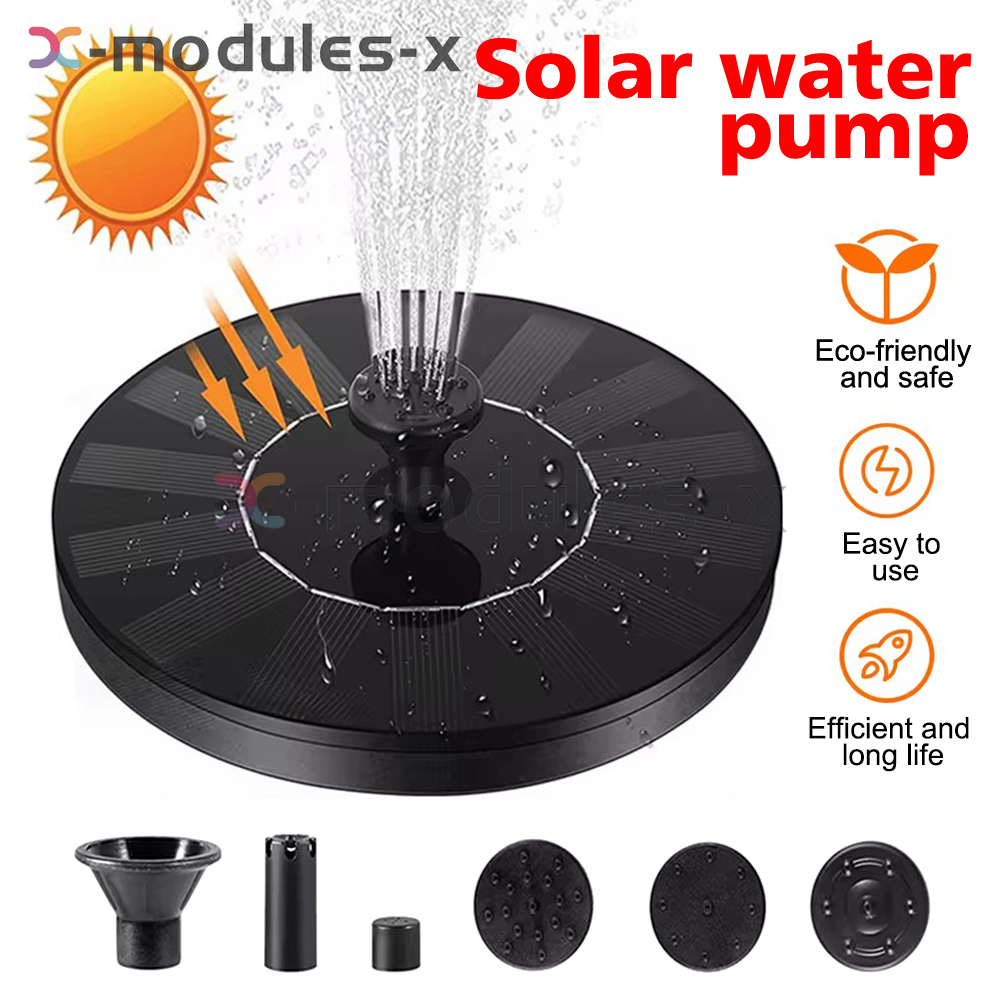

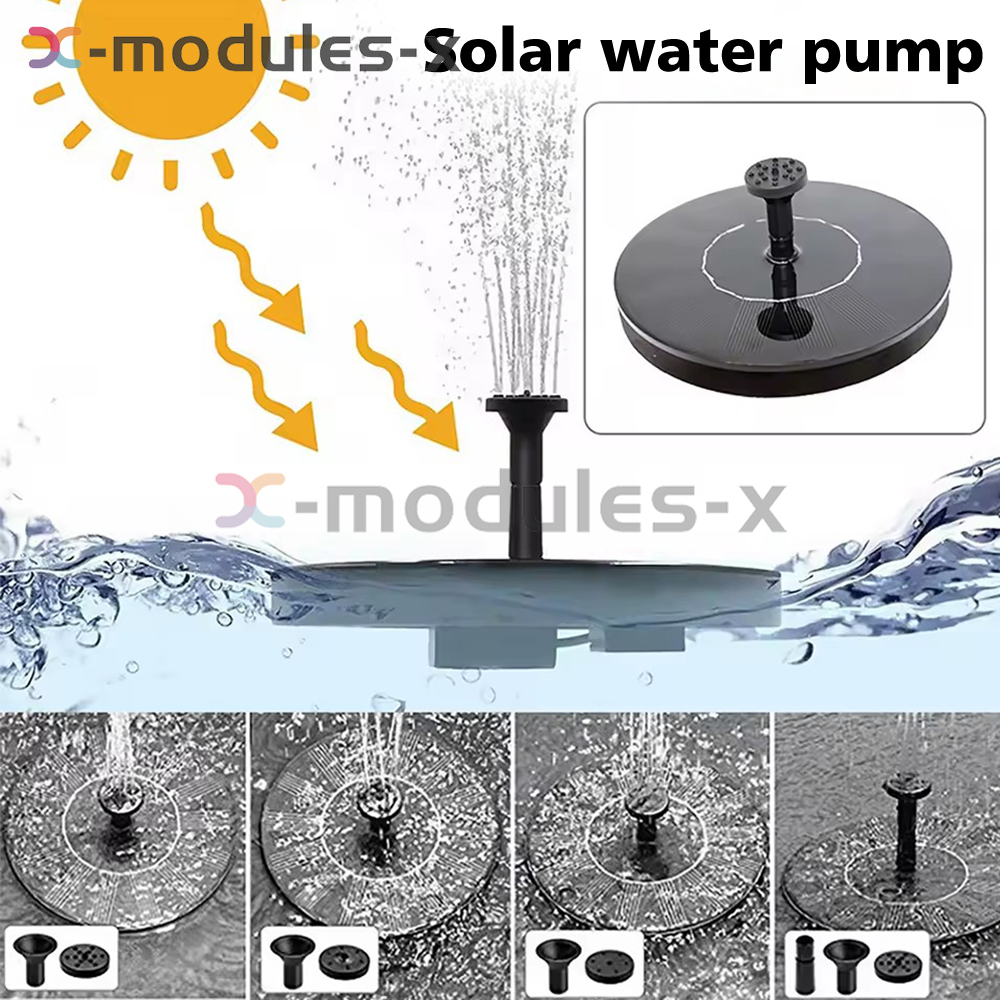

Product name: solar water pump
Rated voltage: 7V
Rated power: 1.8W
Product material: monocrystalline silicon
Product size: 11*11cm
Maximum flow rate max: 180L/H
Maximum head: 100cm
Product size: 11*11cm
Application Scene：Outdoor, courtyard
Rated voltage: 7V
Rated power: 1.8W
Product material: monocrystalline silicon
Product size: 11*11cm
Maximum flow rate max: 180L/H
Maximum head: 100cm
Product size: 11*11cm
Application Scene：Outdoor, courtyard
Delivery list
Solar panel*1
Water pump*1
Accessories*6
English manual *1
Solar panel*1
Water pump*1
Accessories*6
English manual *1

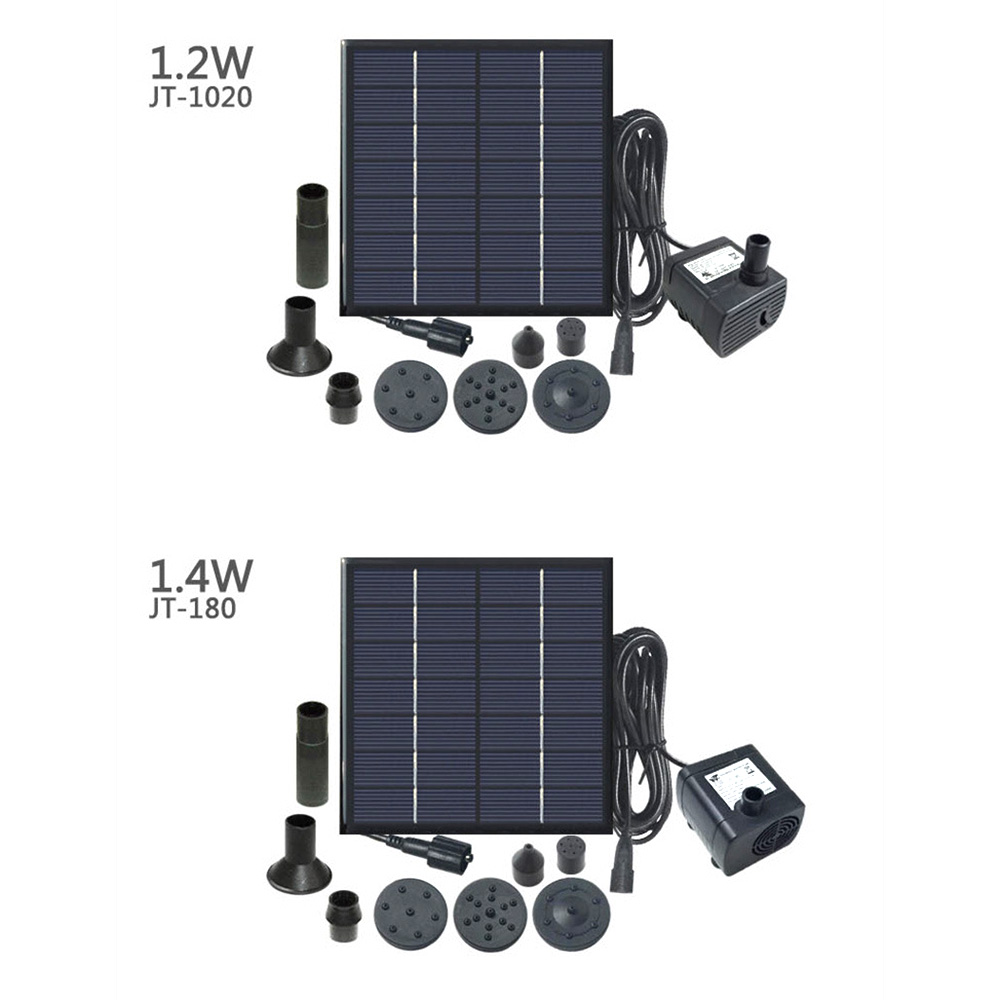

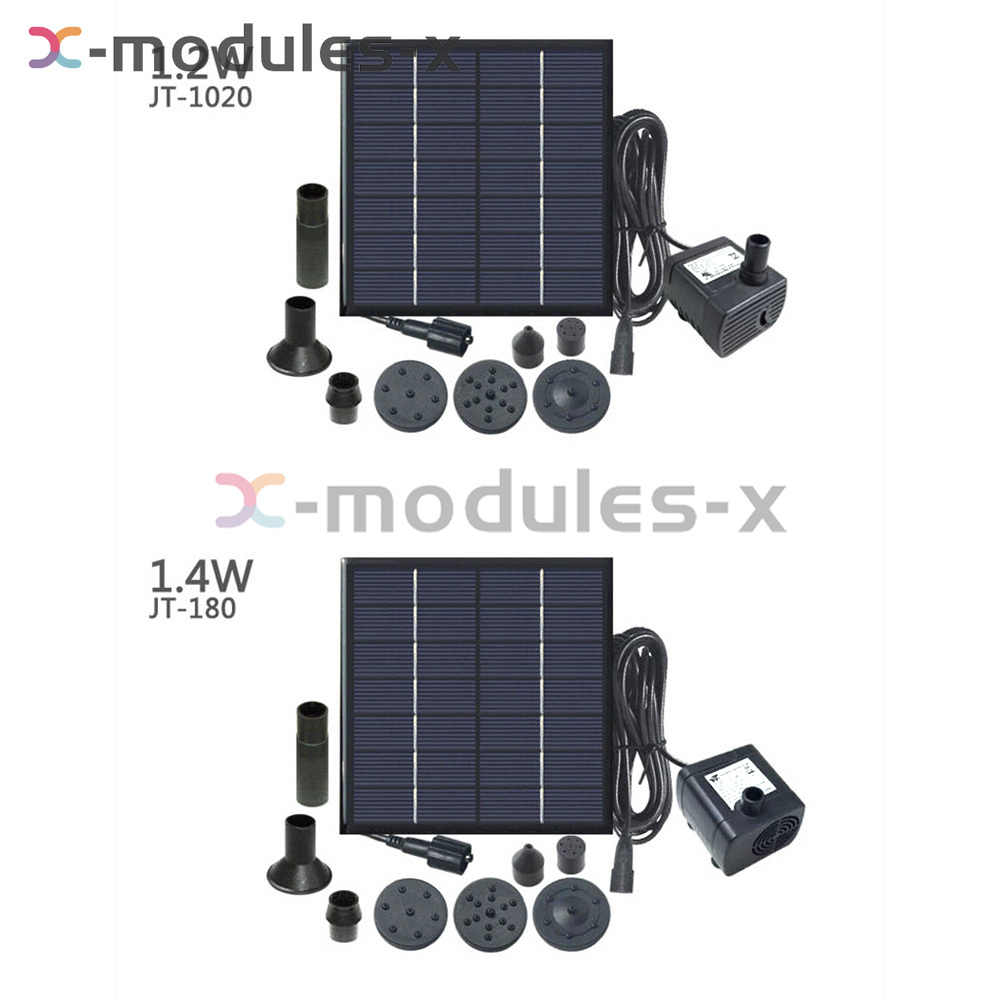

JT-1020 1.2W/JT-180 1.4W
Rated voltage: 7V
Rated power: 1.2W/1.4W
Material: monocrystalline silicon, PET laminated
Water pump specification:
Operating voltage: DC 7V
Working current: 150MA
Maximum head: 100CM
Maximum flow rate: 200L/H
Pump life: >30,000 hours (for reference only)
Pump noise: low
Rated power: 1.2W/1.4W
Material: monocrystalline silicon, PET laminated
Water pump specification:
Operating voltage: DC 7V
Working current: 150MA
Maximum head: 100CM
Maximum flow rate: 200L/H
Pump life: >30,000 hours (for reference only)
Pump noise: low
Note:
1 This product is a solar-powered direct-drive water pump, there is no external battery, the height of the water spray depends entirely on the strength of the sun, in the weak sunlight, the pump will not work continuously, but it will automatically start again and again until the sunlight reaches a certain strength after the pump to resume continuous work. When using the product, please place the product in the sunlight without shade, there are shadows cover will affect the normal work of the pump.
2 The pump must be completely immersed in water, not for a long time dehydration work. When the pump is just immersed in water, due to air inside the pump, it is recommended to wait for the pump to spray water normally after inserting the nozzle.
3 Please keep the water source clean and clean the water pump regularly to prevent foreign objects from being sucked in by the water pump and causing the pump to not work properly.
1 This product is a solar-powered direct-drive water pump, there is no external battery, the height of the water spray depends entirely on the strength of the sun, in the weak sunlight, the pump will not work continuously, but it will automatically start again and again until the sunlight reaches a certain strength after the pump to resume continuous work. When using the product, please place the product in the sunlight without shade, there are shadows cover will affect the normal work of the pump.
2 The pump must be completely immersed in water, not for a long time dehydration work. When the pump is just immersed in water, due to air inside the pump, it is recommended to wait for the pump to spray water normally after inserting the nozzle.
3 Please keep the water source clean and clean the water pump regularly to prevent foreign objects from being sucked in by the water pump and causing the pump to not work properly.
Package list:
solar fountain kit *1
solar fountain kit *1

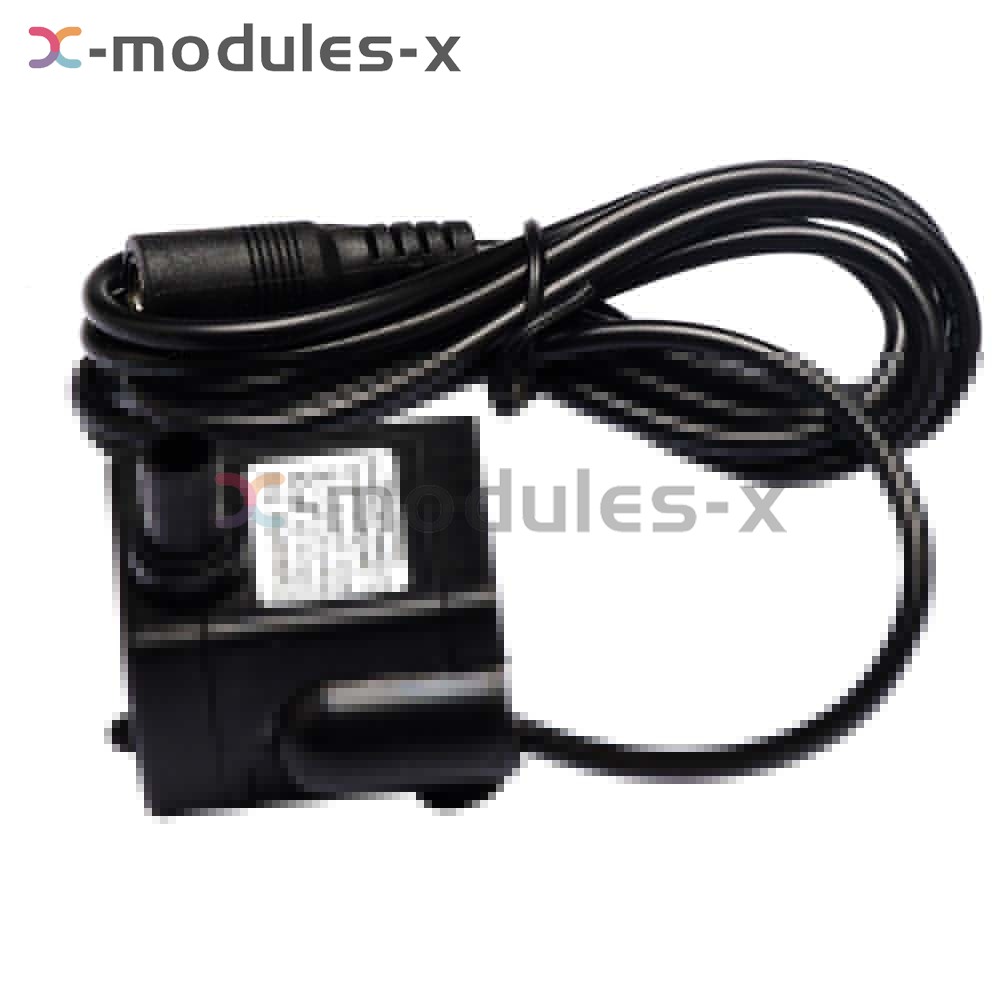

DC12V 3W
Product Model:DC-1020
Voltage: DC12V
Power: 3w
Flow rate: 300L/H
Outlet via: external diameter of about 8mm
Wire length: about 1.5 meters
Size: 39*38*28mm
Product Model:DC-1020
Voltage: DC12V
Power: 3w
Flow rate: 300L/H
Outlet via: external diameter of about 8mm
Wire length: about 1.5 meters
Size: 39*38*28mm

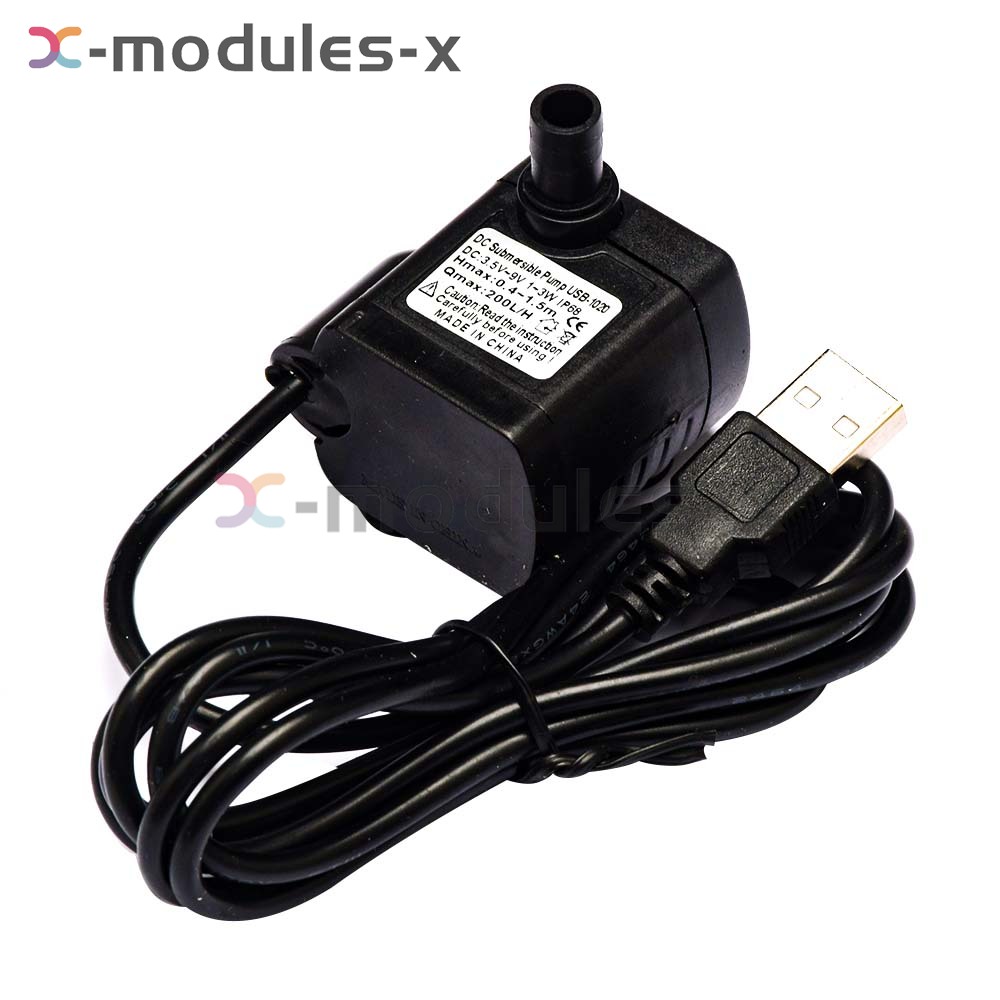

DC5V 3W USB
Voltage: DC 3.5V~9V
Power: 3W
Flow rate: 200 L/H
Product size: 39*38*28mm
Outlet: 8mm
Voltage: DC 3.5V~9V
Power: 3W
Flow rate: 200 L/H
Product size: 39*38*28mm
Outlet: 8mm

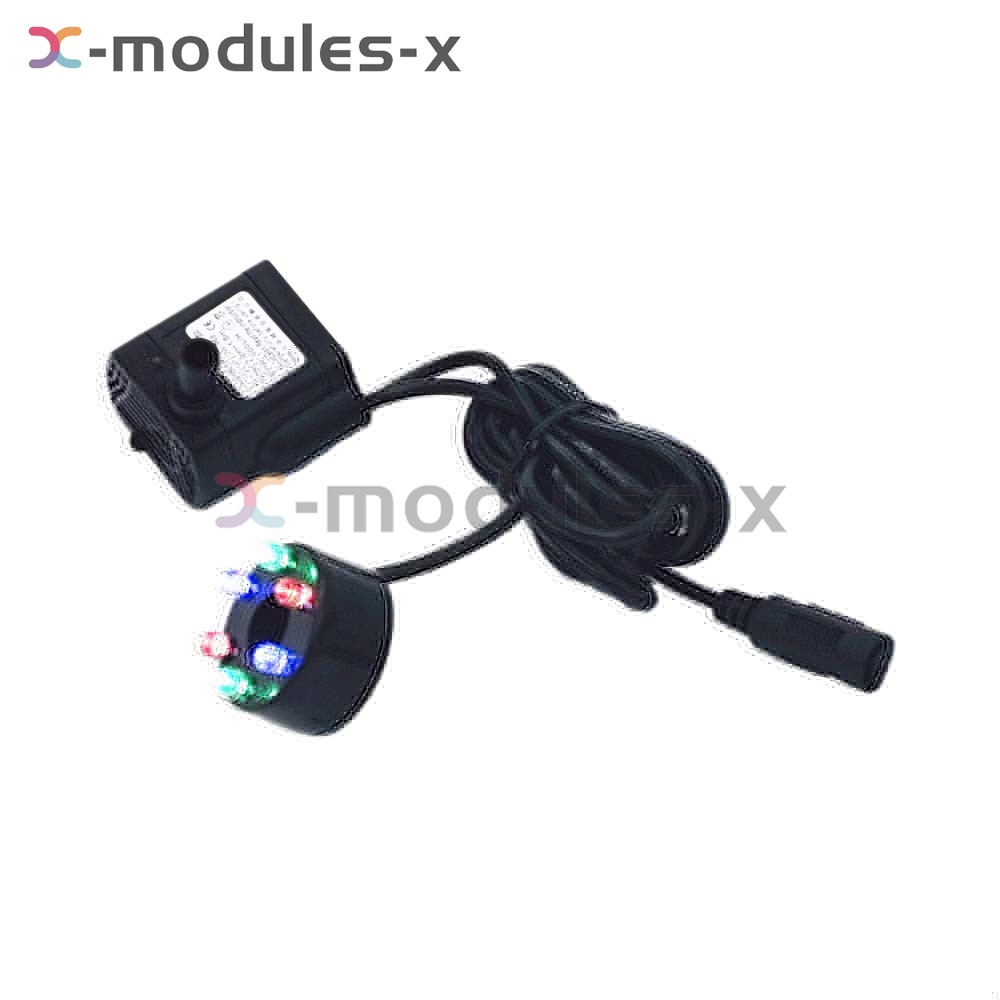

DC5.5-12V 3W LED
Model: DC-1020
Voltage: DC5.5V-12V
Power: 3W
Lift: 1.5m
Flow rate: 200L/H
Outlet caliber: outer diameter of about 8mm
Wire length: 1.5 meters
Model: DC-1020
Voltage: DC5.5V-12V
Power: 3W
Lift: 1.5m
Flow rate: 200L/H
Outlet caliber: outer diameter of about 8mm
Wire length: 1.5 meters
DC 24V 3W
Voltage frequency: DC12V~24V
Power: 3W
Lift: 1.5 meters
Flow rate: 200L/H
Outlet caliber: outer diameter of about 8mm
Wire length: 1.5 meters
Voltage frequency: DC12V~24V
Power: 3W
Lift: 1.5 meters
Flow rate: 200L/H
Outlet caliber: outer diameter of about 8mm
Wire length: 1.5 meters

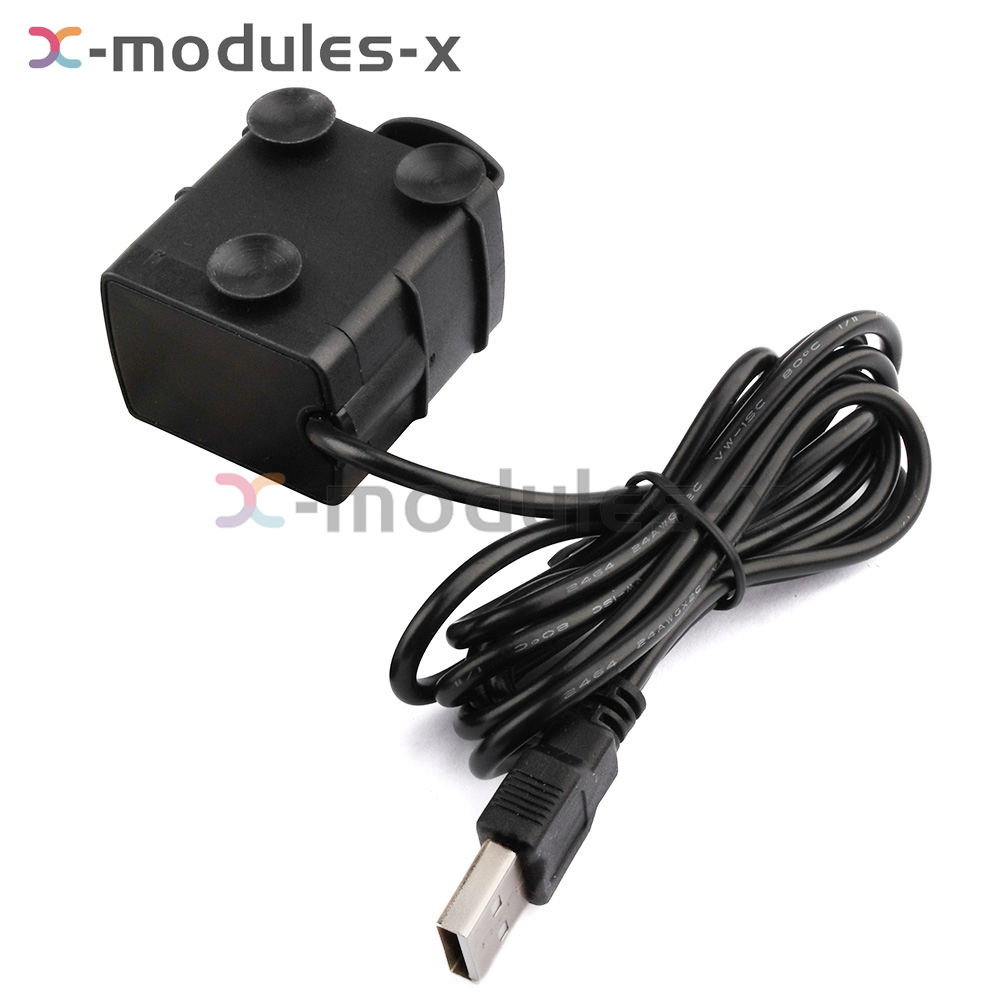

DC5V USB/DC12V USB/DC24V USB/DC5V DC/DC12V DC/DC24V DC
Product Name：Cooling water circulation DC
Product Model: brushless water pump
Voltage: DC5V (wide voltage rated 4V ~ 9V) Flow: 90L / h head: 1m Power: 1.2W
DC12V (Wide voltage rating 4.5V ~ 12V) Flow: 240L / h Head: 2.5m Power: 4.8W
DC24V (Wide voltage rating 16V~24V) Flow rate: 240L/h Lift: 2.5m Power: 4.8W Inlet Diameter: 8.5mm
Outlet diameter: 8.5mm
Pump noise: < 45DB
Size: 55(L) X34(W) X 41 (H)mm
Product Name：Cooling water circulation DC
Product Model: brushless water pump
Voltage: DC5V (wide voltage rated 4V ~ 9V) Flow: 90L / h head: 1m Power: 1.2W
DC12V (Wide voltage rating 4.5V ~ 12V) Flow: 240L / h Head: 2.5m Power: 4.8W
DC24V (Wide voltage rating 16V~24V) Flow rate: 240L/h Lift: 2.5m Power: 4.8W Inlet Diameter: 8.5mm
Outlet diameter: 8.5mm
Pump noise: < 45DB
Size: 55(L) X34(W) X 41 (H)mm

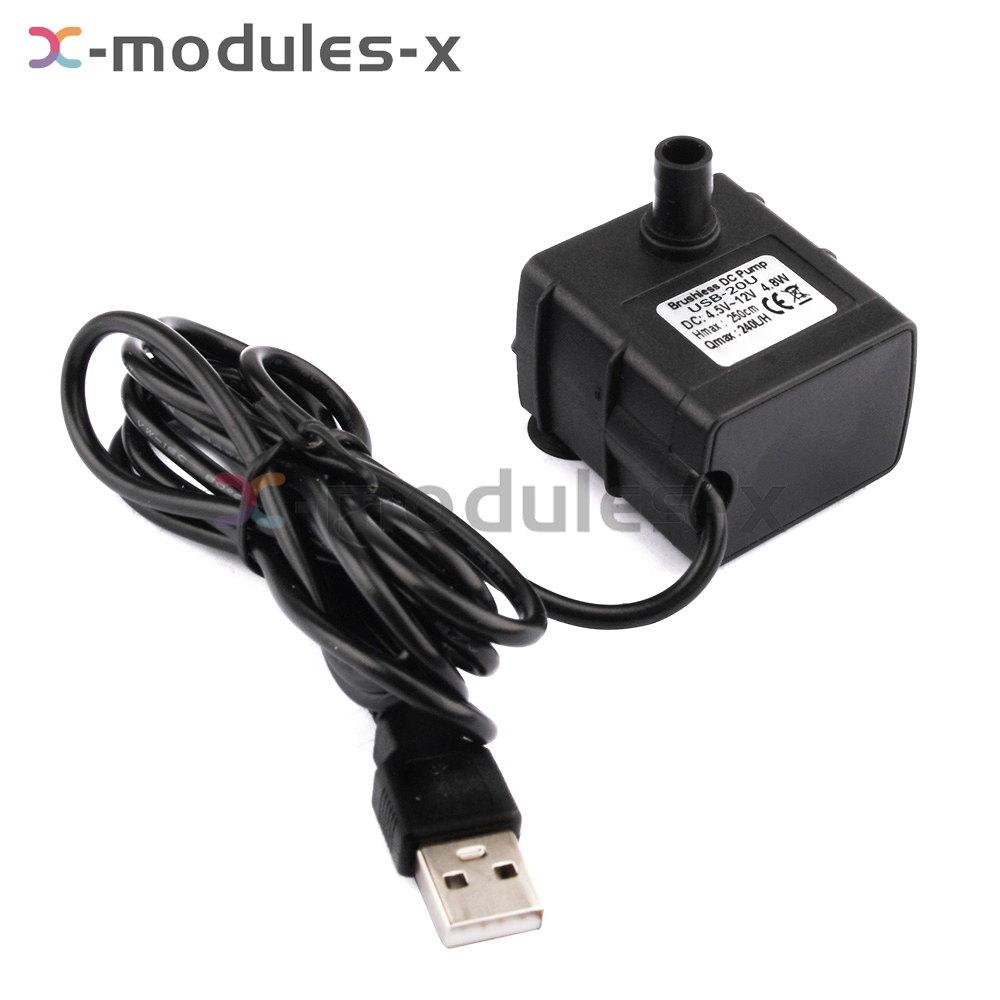

DC5V USB-20U/DC12V USB-20U/DC24V USB-20U
Model: USB-20U
Size: 55*37*30mm
Outlet: 8.1mm
Voltage: DC5V (Wide voltage rated 4V ~ 9V) Flow: 90L / h (voltage 9V is the flow rate can reach 240L / H) Head: 1m Power: 1.2W
DC12V (wide voltage rating 4.5V ~ 12V) Flow: 240L / h (voltage is 4.5 when the flow rate of about 110L / H) Lift: 2.5m Power: 4.8W
DC24V (Wide voltage rating 16V~24V) Flow rate: 240L/h (Voltage is 16V when the flow rate of about 110L/H) Lift: 2.5m Power: 4.8W
Application Scenario: pet water dispenser, fish tank oxygen, hydroponic plant growth machine, medical and beauty equipment and other products in the water cycle.
Model: USB-20U
Size: 55*37*30mm
Outlet: 8.1mm
Voltage: DC5V (Wide voltage rated 4V ~ 9V) Flow: 90L / h (voltage 9V is the flow rate can reach 240L / H) Head: 1m Power: 1.2W
DC12V (wide voltage rating 4.5V ~ 12V) Flow: 240L / h (voltage is 4.5 when the flow rate of about 110L / H) Lift: 2.5m Power: 4.8W
DC24V (Wide voltage rating 16V~24V) Flow rate: 240L/h (Voltage is 16V when the flow rate of about 110L/H) Lift: 2.5m Power: 4.8W
Application Scenario: pet water dispenser, fish tank oxygen, hydroponic plant growth machine, medical and beauty equipment and other products in the water cycle.
Delivery list(option)
Water pump*1
Water pump*1
