Product Details
1.High sensitivity reception: -92dBm reception sensitivity, ensure stable signal transmission, the longest distance up to 400 meters.
2.Wide voltage support: supply voltage 3.3-10V, compatible with a variety of power supply environment, adaptable.
3. Support a variety of remote control: support FS-I6 and other second-generation AFHDS 2A protocol remote control, wide compatibility.
4. Runaway protection function: with runaway protection settings to ensure flight safety, easy to operate.
5. Support PWM output: support PWM signal output, suitable for fixed-wing models, precise control.

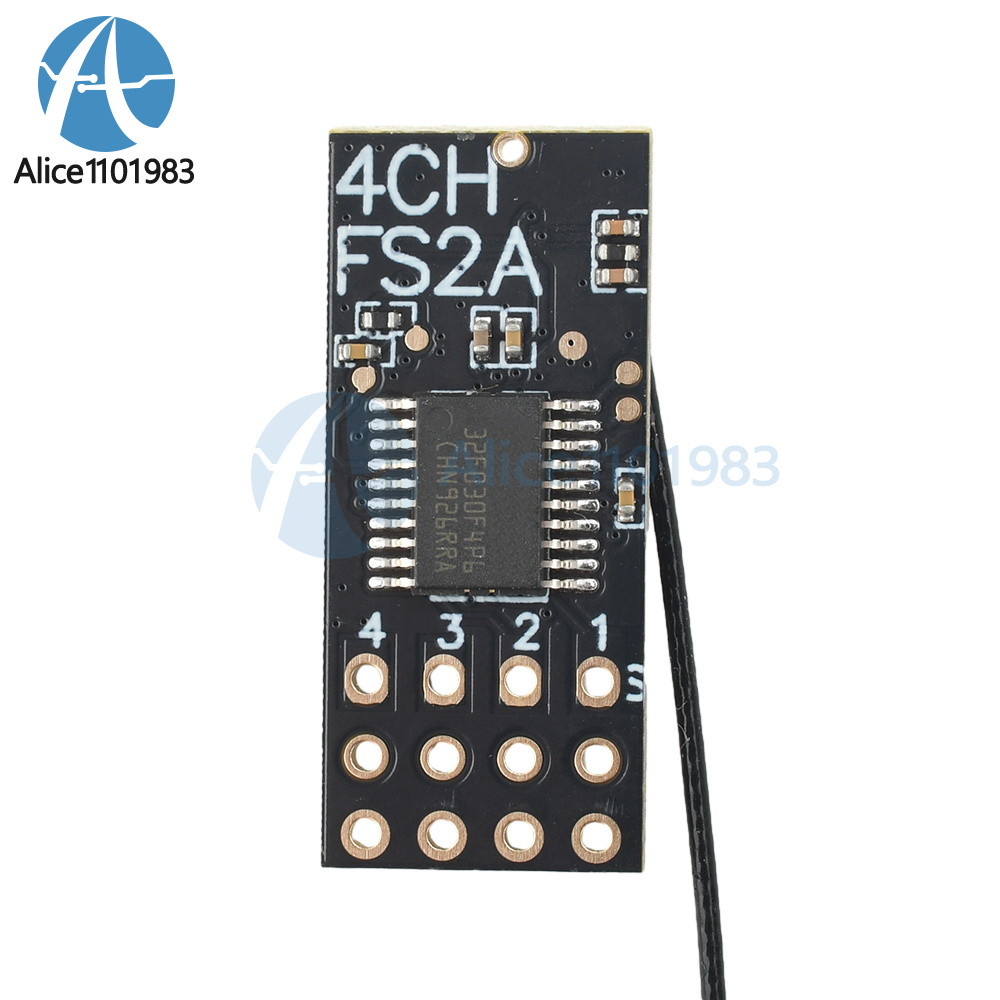

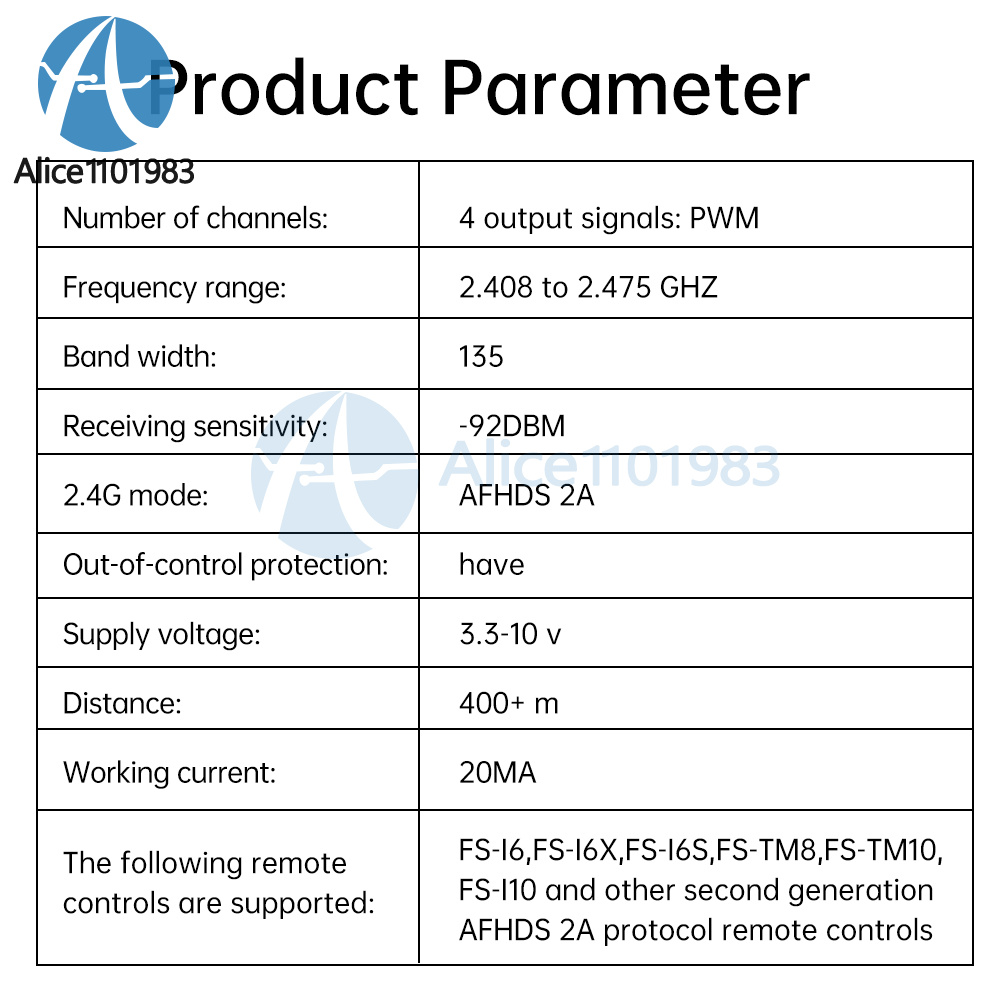

Number of channels: 4
Output signal: PWM
Frequency range: 2.408-2.475GHZ
Band width: 135
Receiving sensitivity: -92DBM
2.4G mode: AFHDS 2A
Fail-safe: Yes

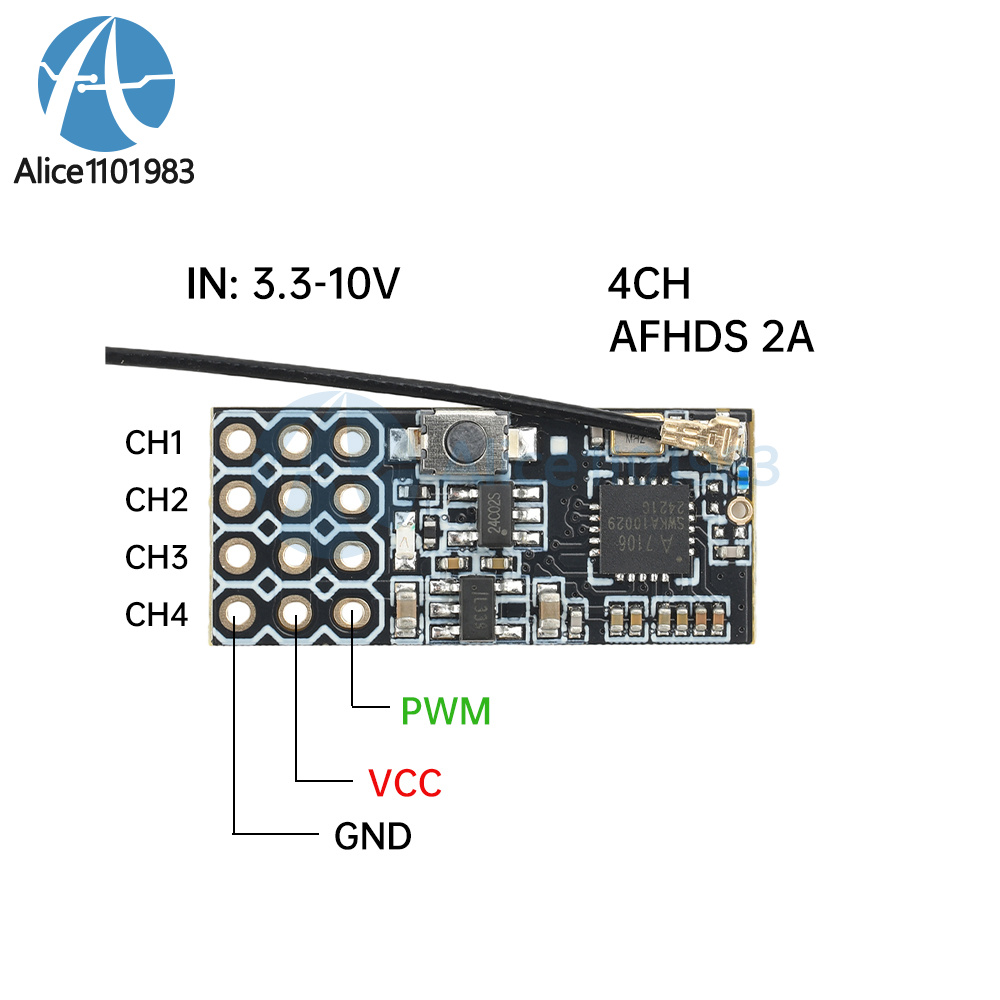

Supply Voltage: 3.3-10V
Distance: 400+ meters
Working Current: 20MA

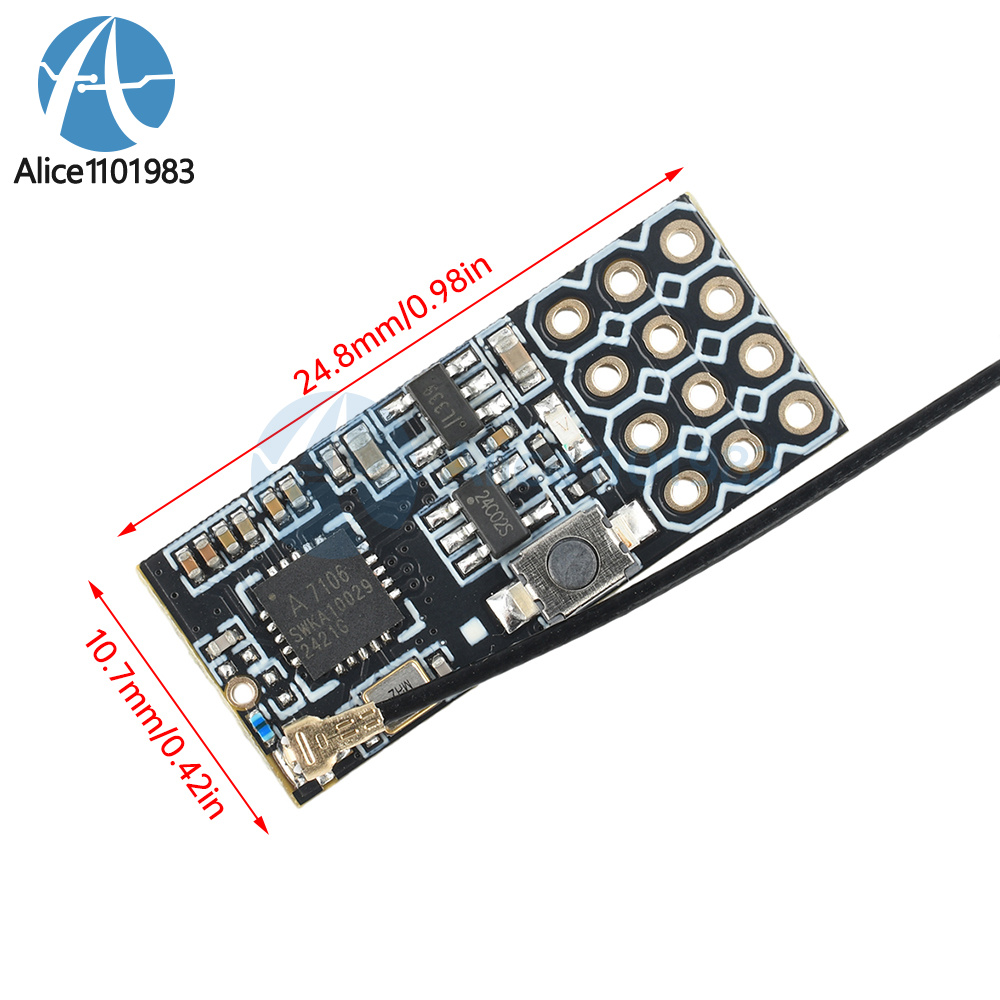

Overall Dimension: 11 *25MM
Support the following remote controls: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other second generation AFHDS 2A protocol remote controls.

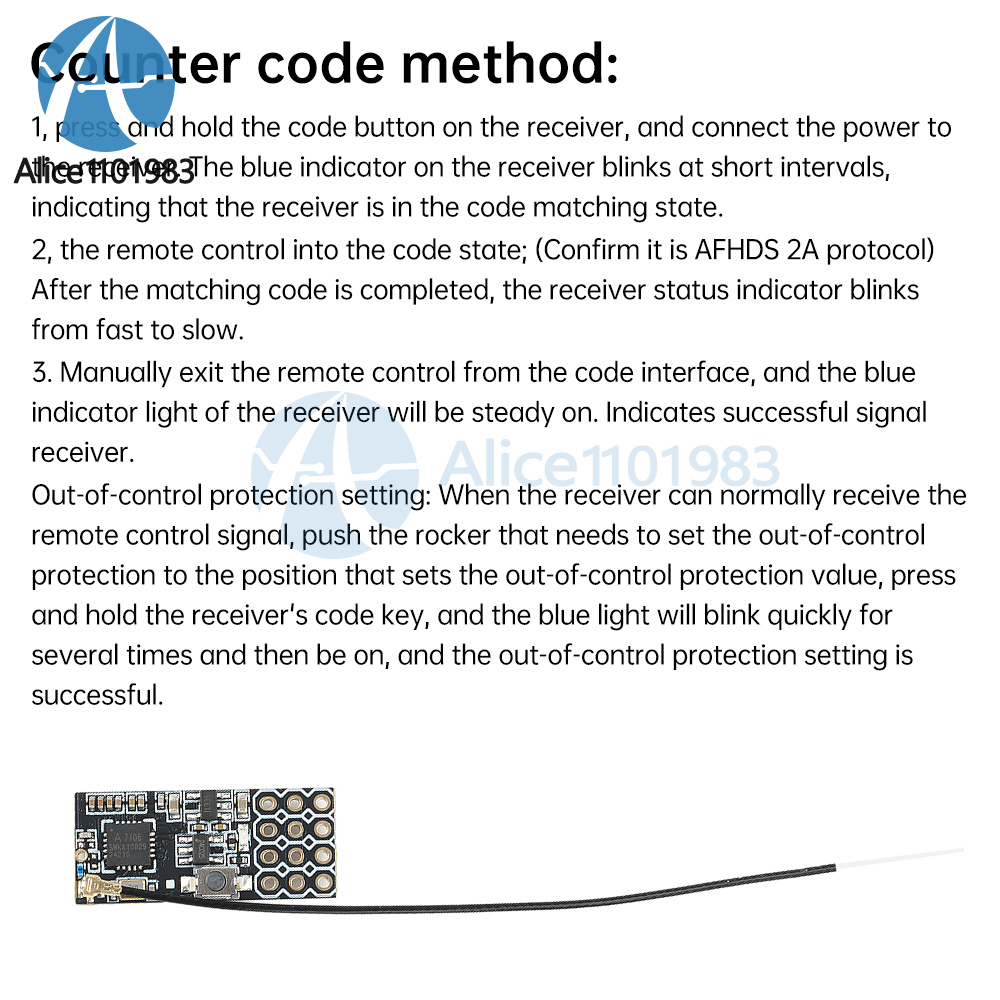

Code pairing method:
1. Press and hold the code pairing button on the receiver and connect power to the receiver. The blue light on the receiver will flash quickly to indicate that it is in the code matching state.
2. Put the remote control into the code pairing state; (Confirm that it is AFHDS 2A protocol)
After the code pairing, the receiver status indicator changes from fast blinking to slow blinking.
3, the remote control manually exit the code interface, this time the receiver blue indicator light becomes always on. It means the signal receiver is successful.
Loss of control protection setting:
Receiver normal can receive the remote control signal state, will need to set the loss of control protection rocker to set the loss of control protection value of the position, long press the receiver code buttons, blue light rapid flashing a few times and always bright, loss of control protection set successfully.

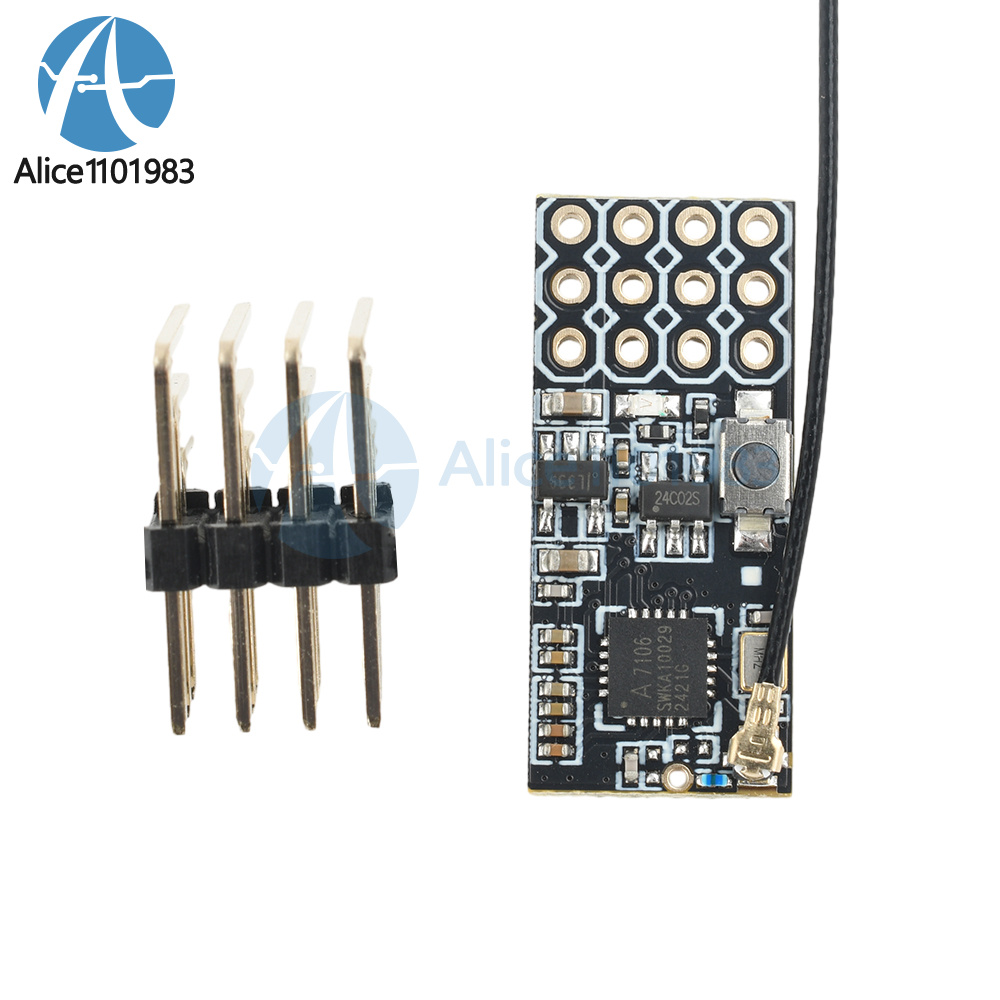

1 x Module
1 x Pin
