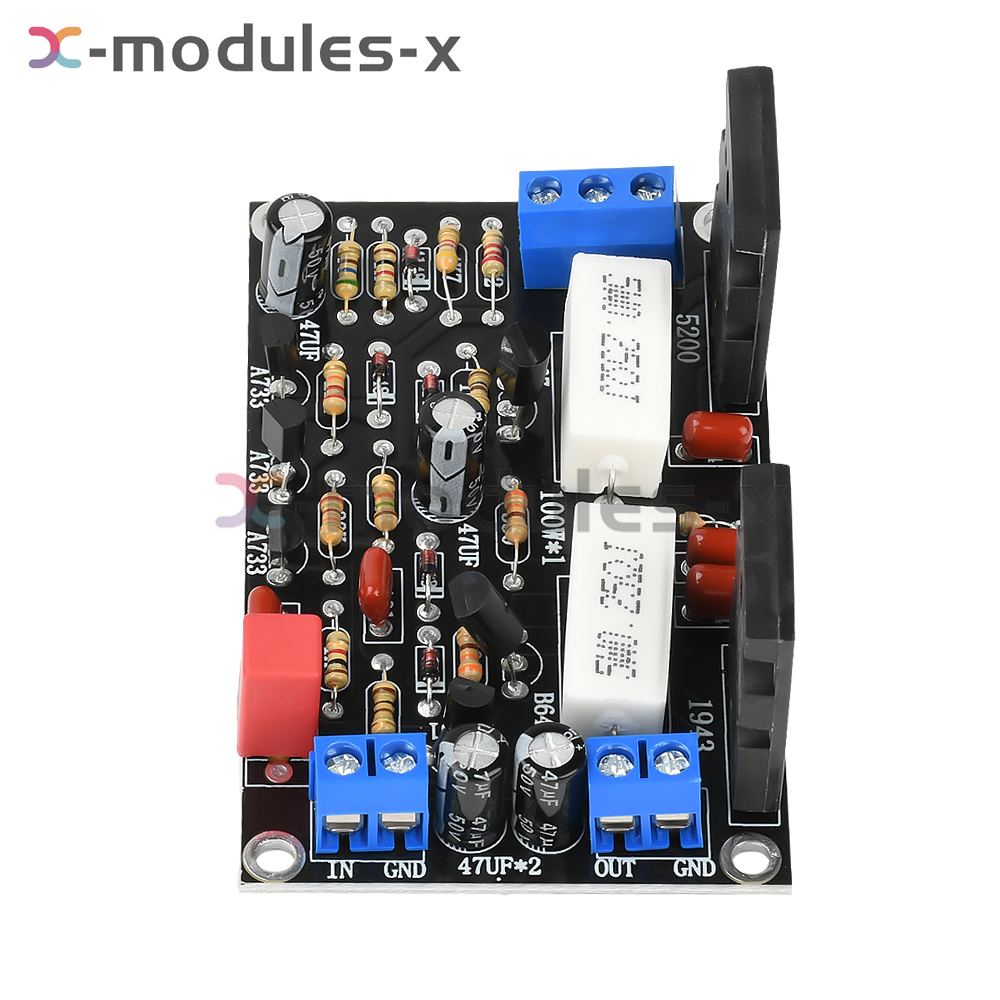

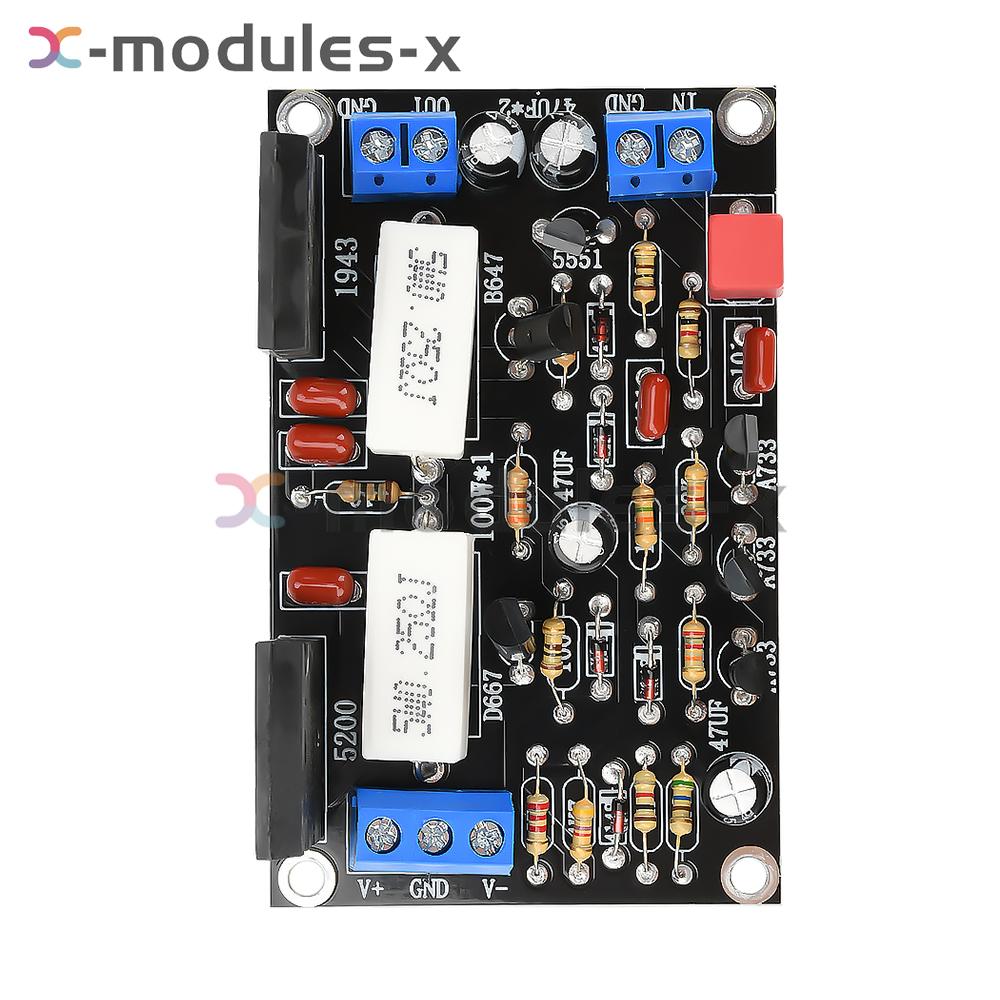

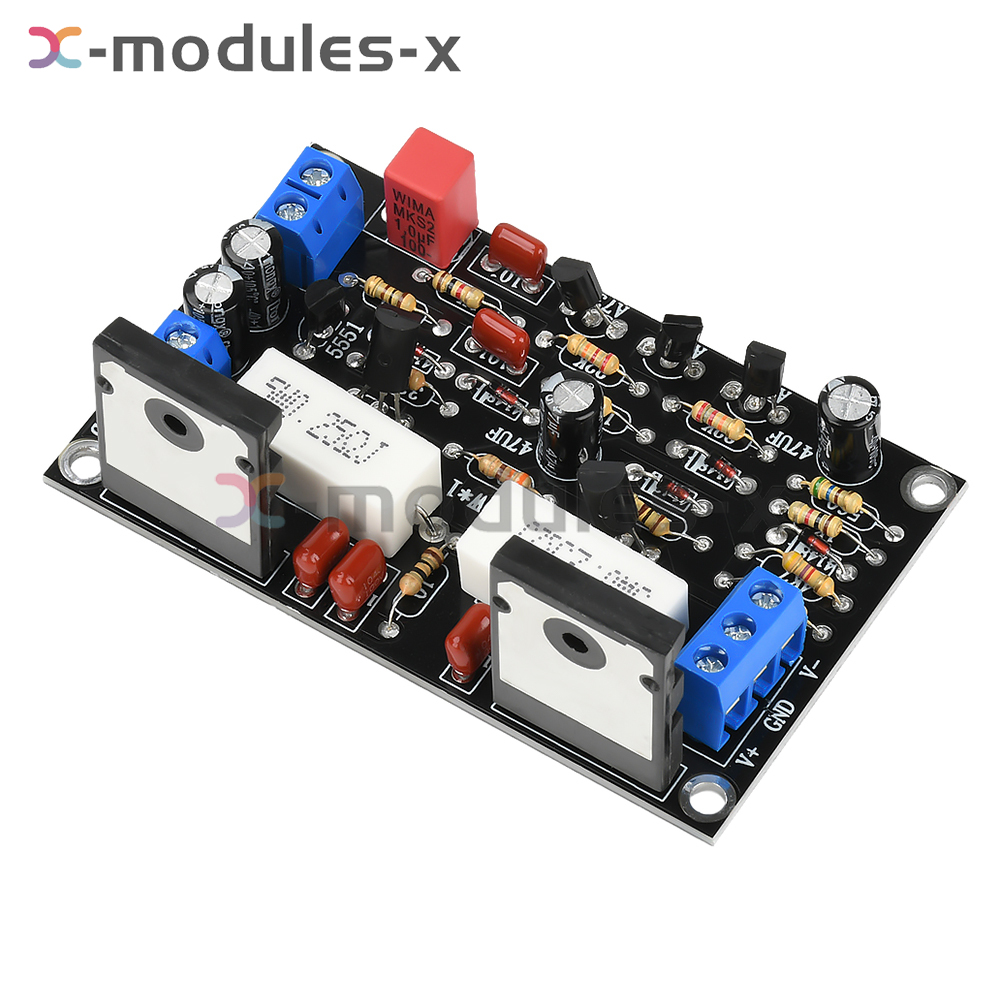

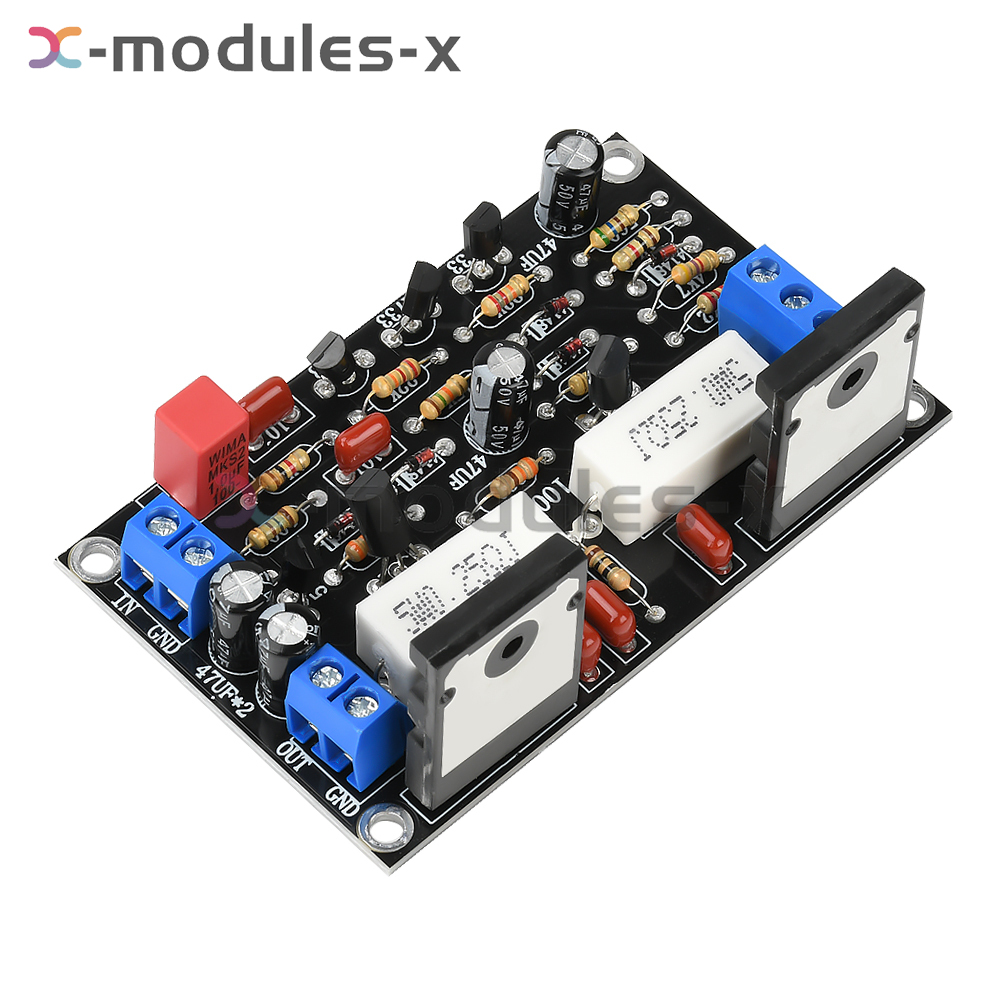

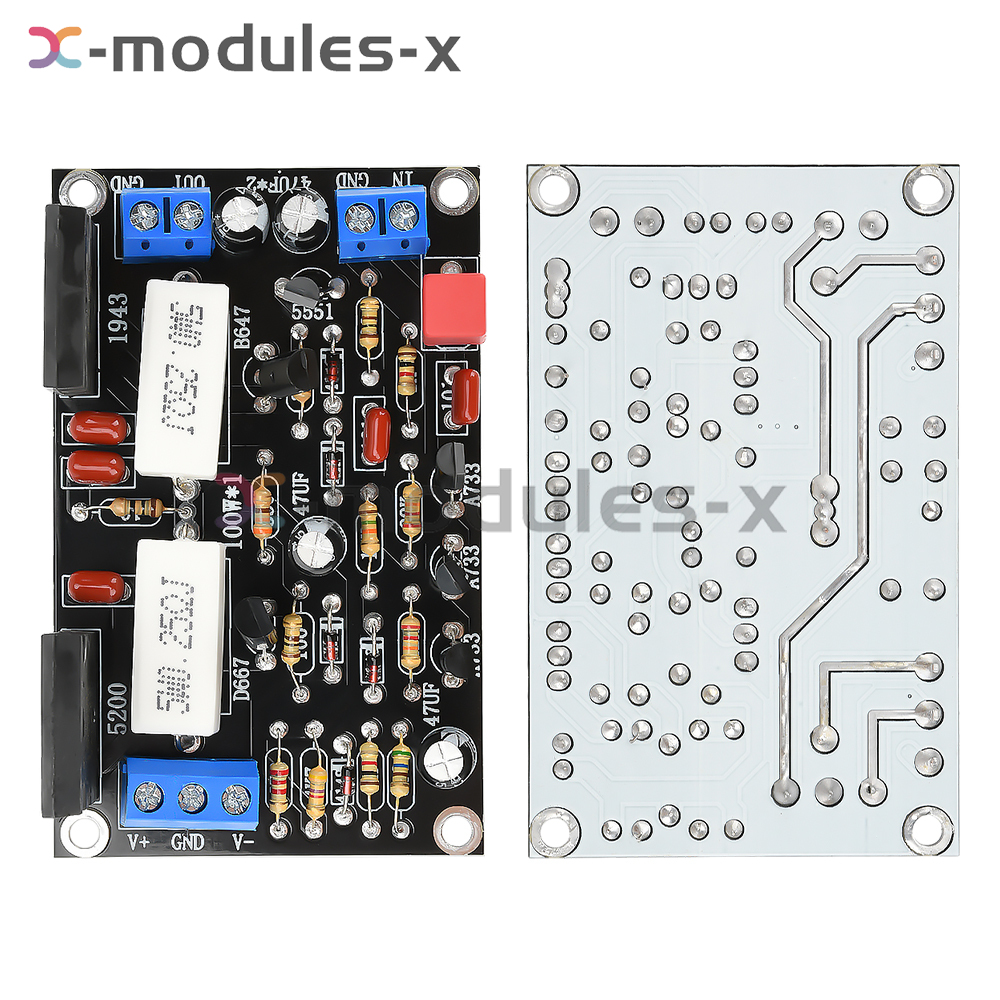

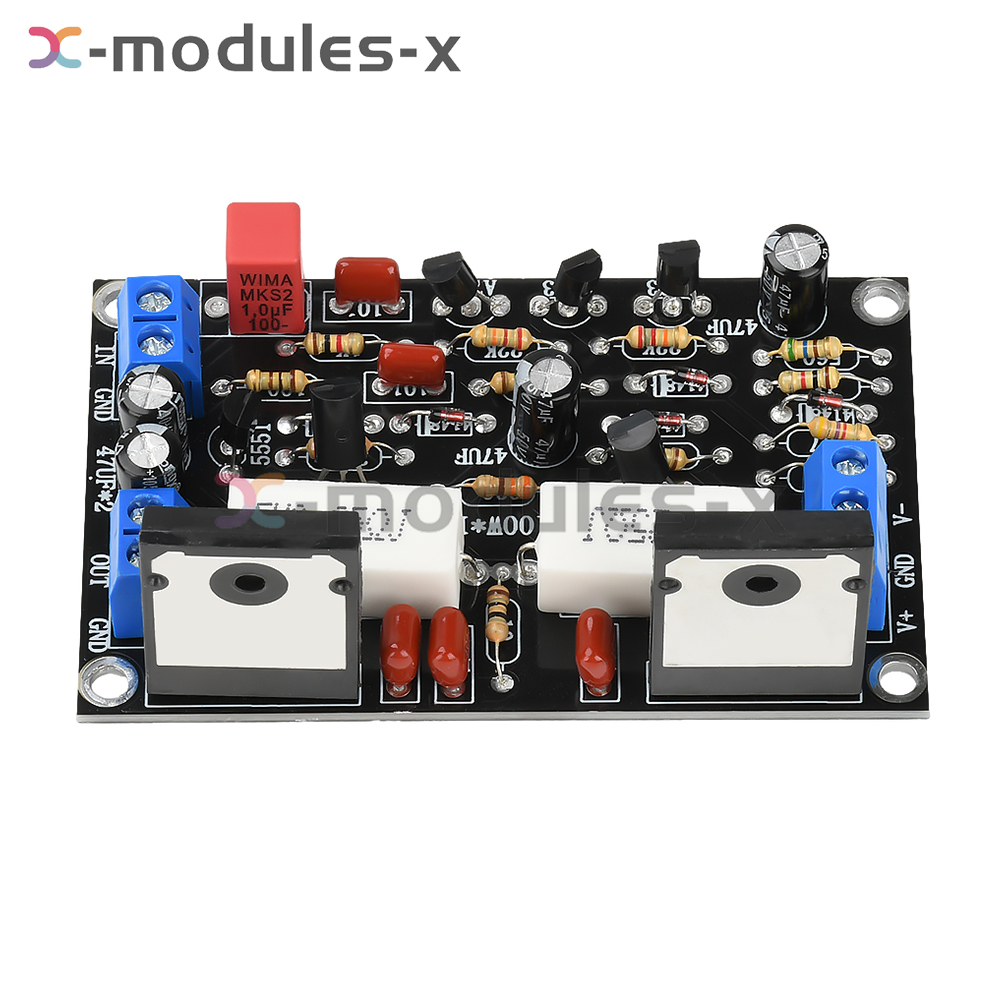

2SC5200+2SA1943 Mono 100Wx1 Power Amplifiers HIFI Audio Amplifier Board
Description
Features
1. Switching noise is small, will not have too much impact on the speaker, to protect the speaker while providing a more comfortable listening experience
2.Strong 100W power: support mono 100W high power output, easy to drive all kinds of speakers, to meet the demand for high sound quality
3. Classic circuit architecture: adopts the classic amplifier circuit design, stable and reliable operation, to ensure long time use without failures
4. As long as you install and connect correctly, no need to debug: as long as the connection is correct, no need for any debugging can be used normally, the operation is simple and convenient
5. Low noise, zero drift: small bottom noise and zero drift control, to ensure pure sound quality output, restore the real sound details.
1. Switching noise is small, will not have too much impact on the speaker, to protect the speaker while providing a more comfortable listening experience
2.Strong 100W power: support mono 100W high power output, easy to drive all kinds of speakers, to meet the demand for high sound quality
3. Classic circuit architecture: adopts the classic amplifier circuit design, stable and reliable operation, to ensure long time use without failures
4. As long as you install and connect correctly, no need to debug: as long as the connection is correct, no need for any debugging can be used normally, the operation is simple and convenient
5. Low noise, zero drift: small bottom noise and zero drift control, to ensure pure sound quality output, restore the real sound details.
Specification

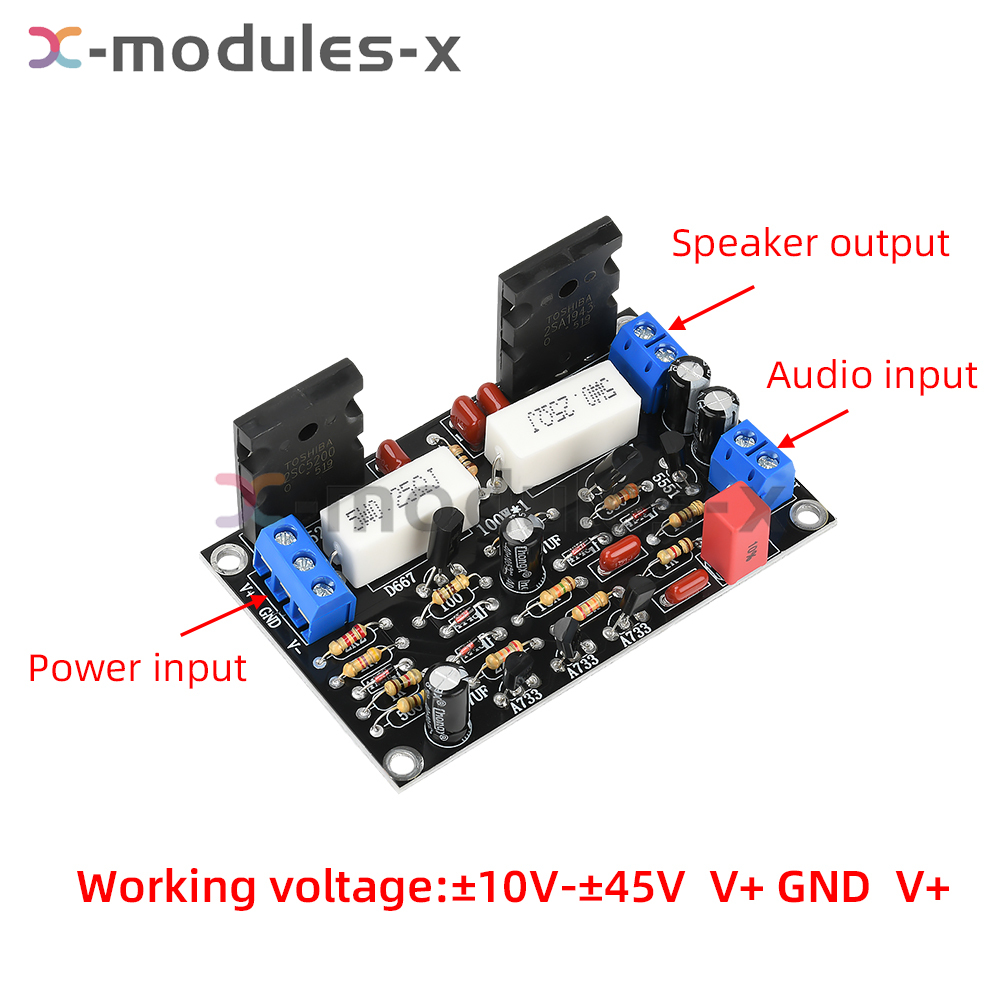

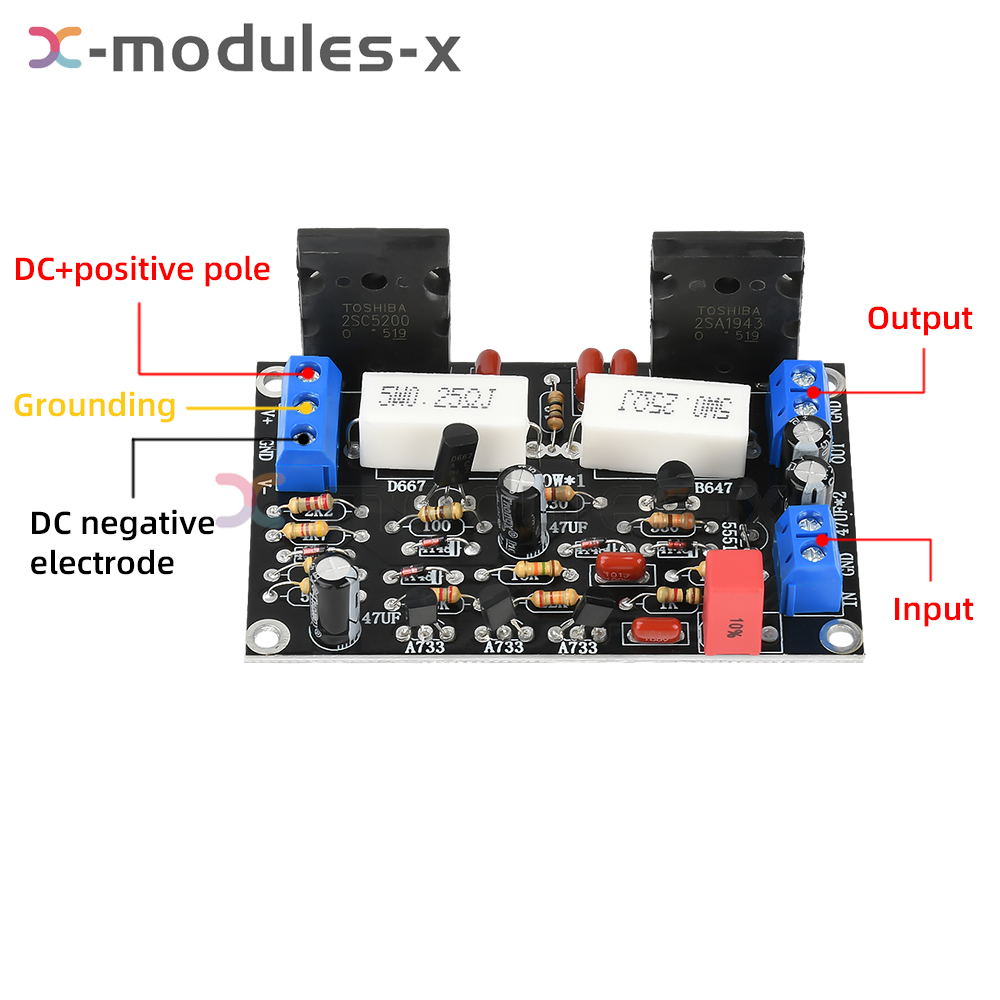

Operating voltage: DC-10V-45V (recommended voltage (+35V) -0-(-35V))
Rated output power: 100Wx1 (4Ω±35V)
Maximum output power: 150Wx1 (4Ω±45V) large heat generation, not recommended

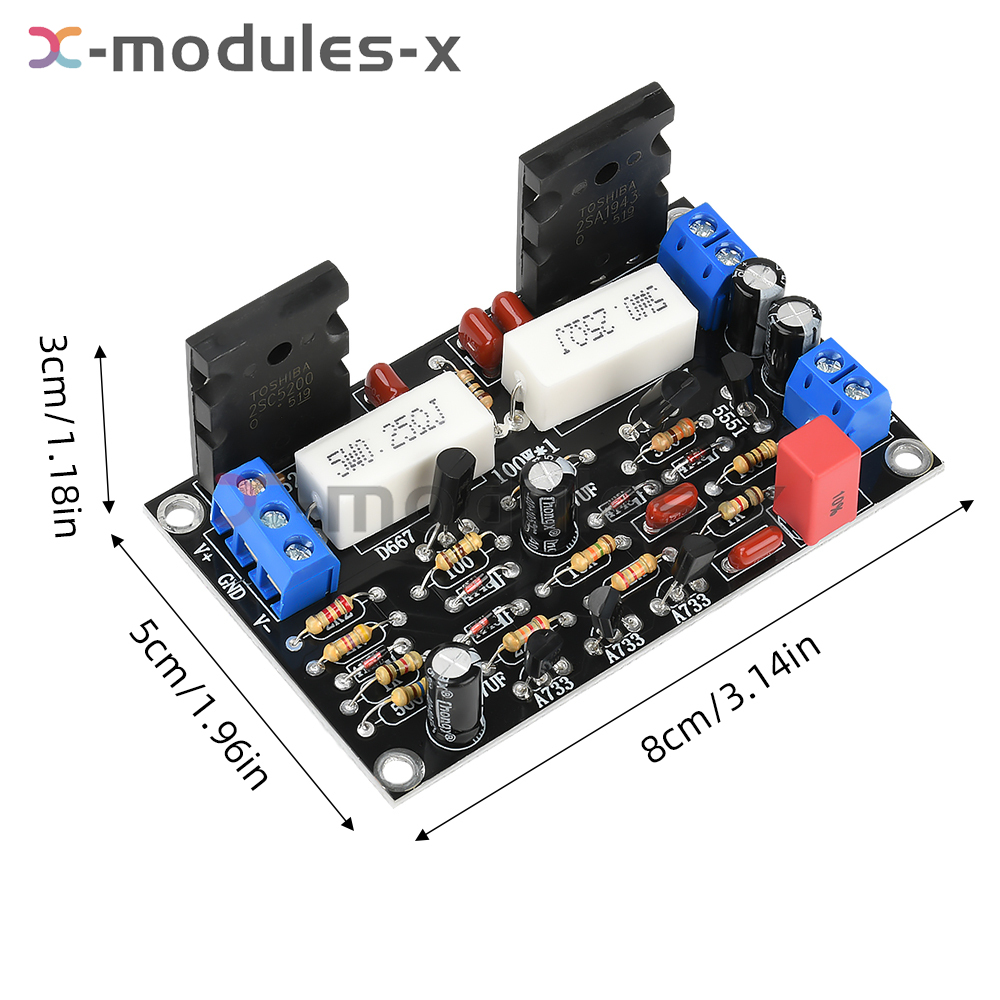

Board size: 80mm * 50m * 30mm
Input and output seat spacing: 5.08mm
Hole distance between the two tubes: 47MM

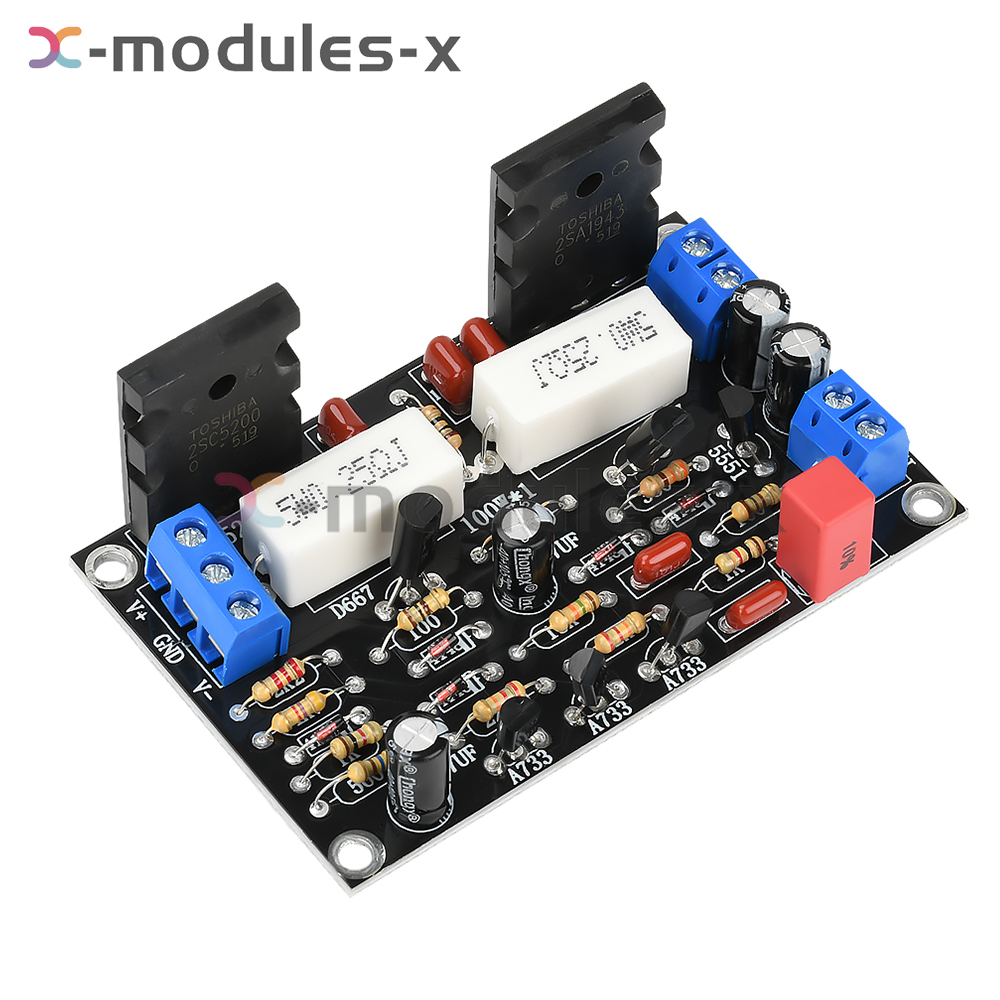

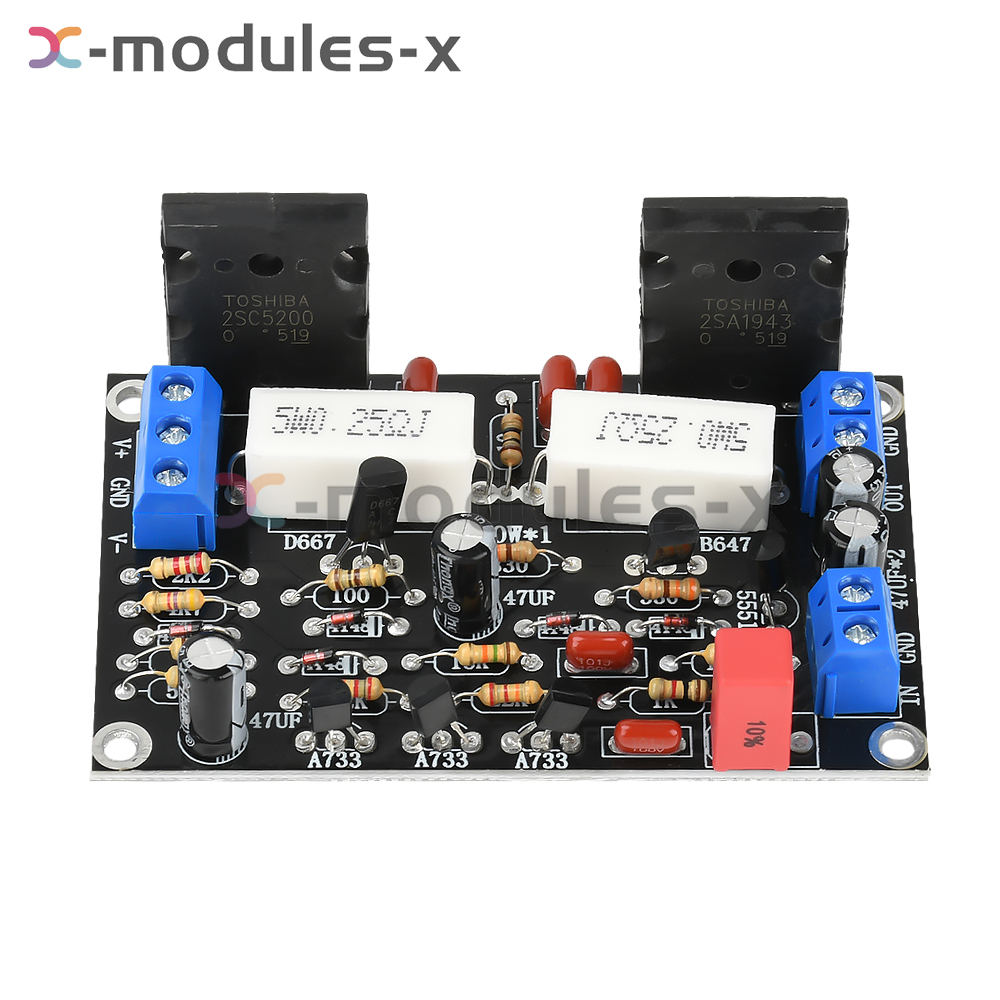

Board power tubes are: 2SC5200 + 2SA1943 (Refurbished)
Operating voltage: DC-10V-45V (recommended voltage (+35V) -0-(-35V))
Rated output power: 100Wx1 (4Ω±35V)
Maximum output power: 150Wx1 (4Ω±45V) large heat generation, not recommended
Board size: 80mm * 50m * 30mm
Input and output seat spacing: 5.08mm
Hole distance between the two tubes: 47MM
Board power tubes are: 2SC5200 + 2SA1943 (Refurbished)
Package includes
1 x Module
1 x Module
