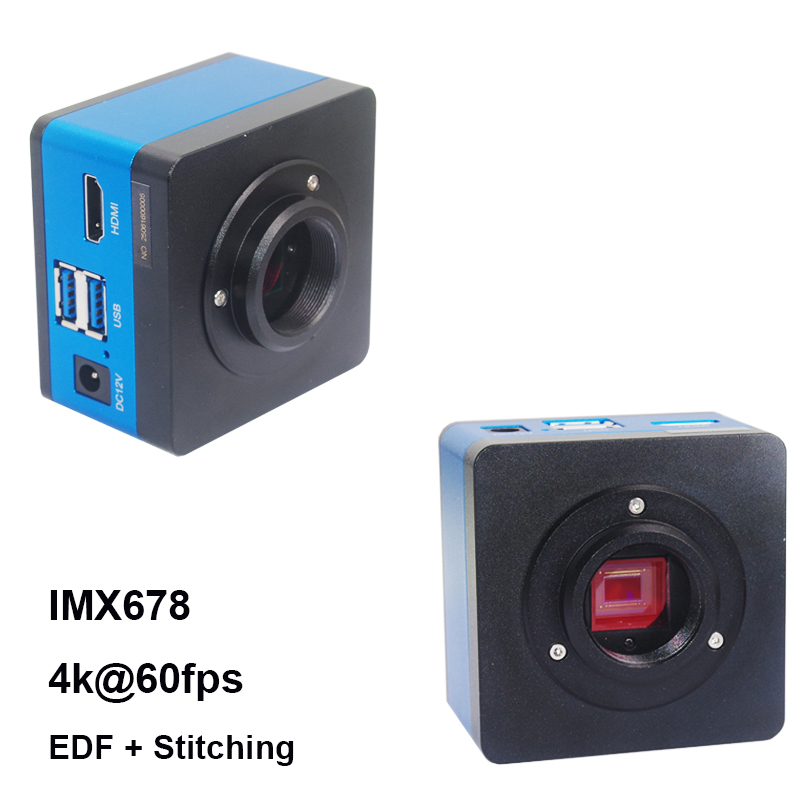

SONY IMX678 1/1.8" (4K@60FPS) Sensor HDMI output digital microscope camera

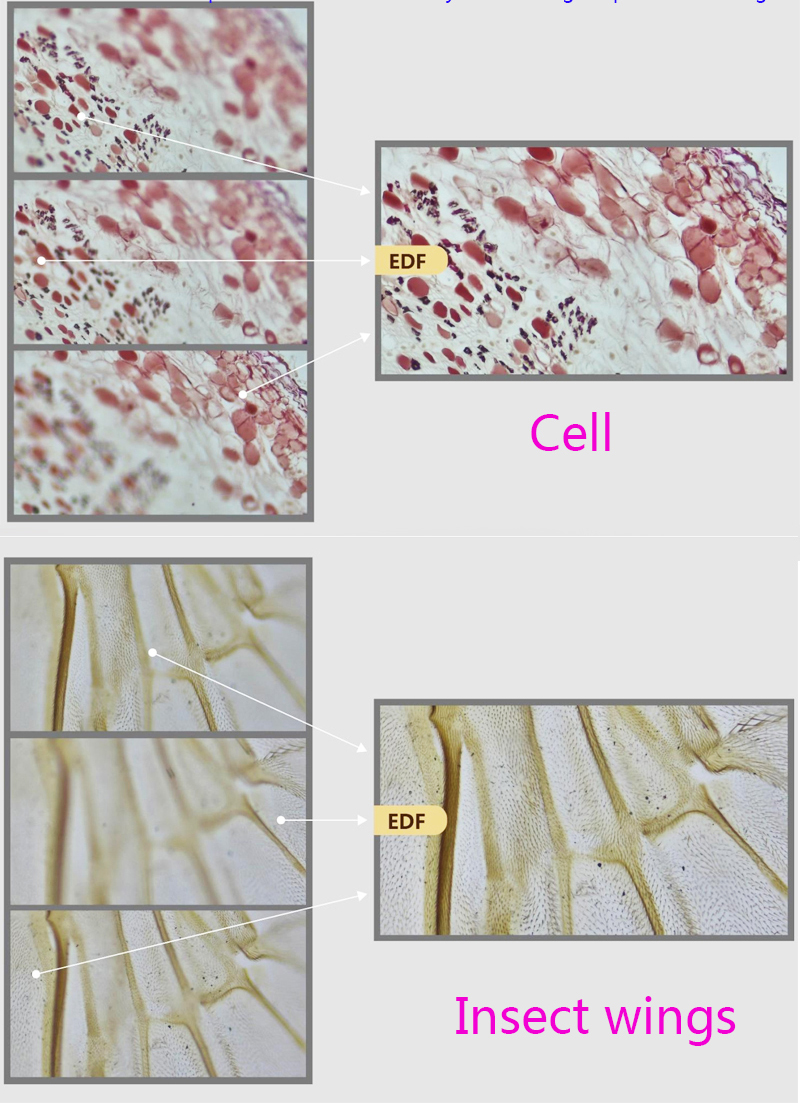

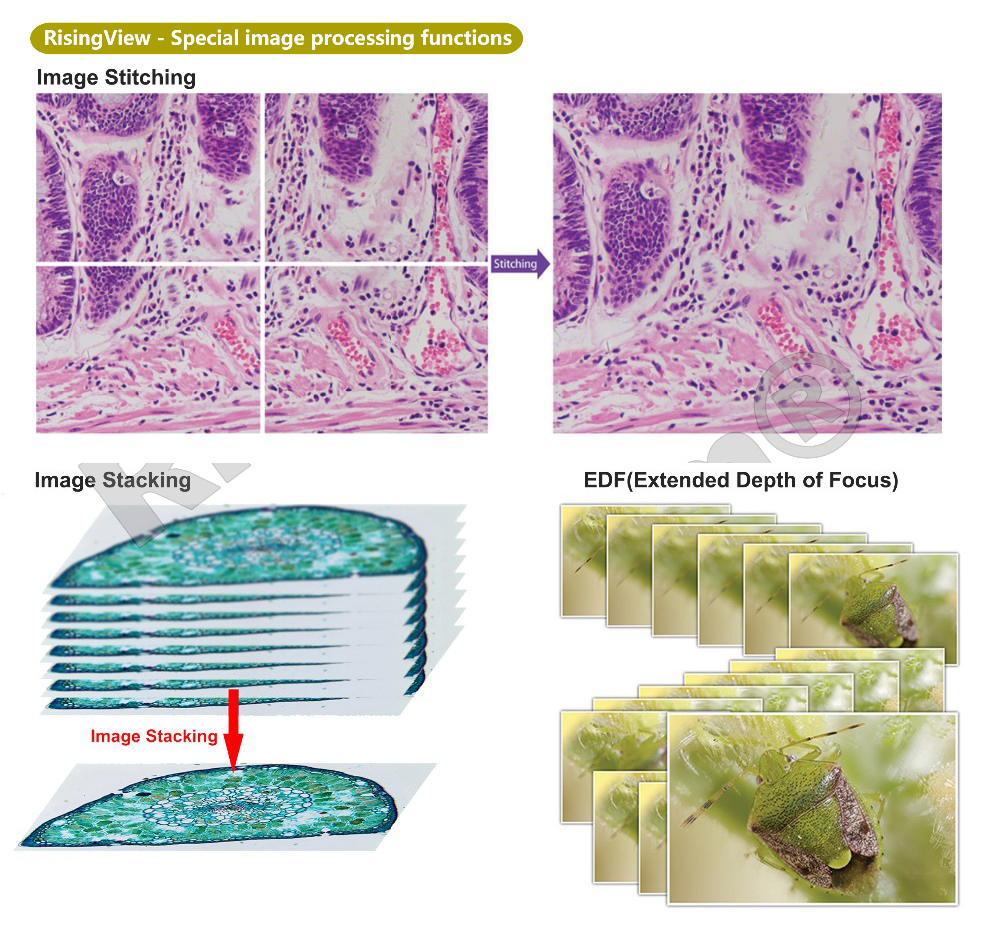

With EDF + Stitching Feature







The OCAM series is the next-generation live-view imaging-system with 1080P/ 4K resolution at 60 FPS.

XCAM4K series comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.

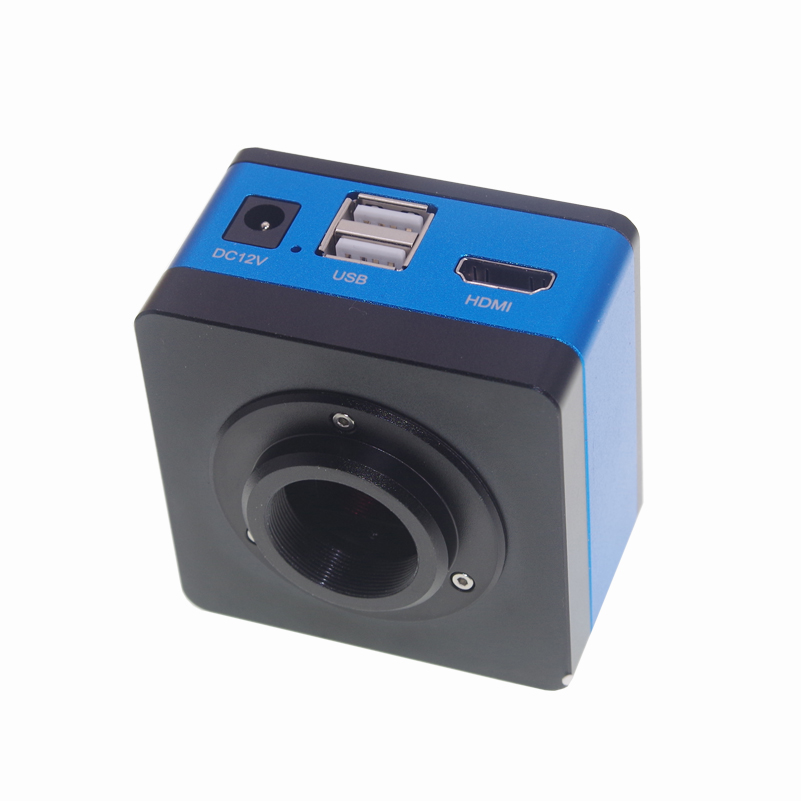

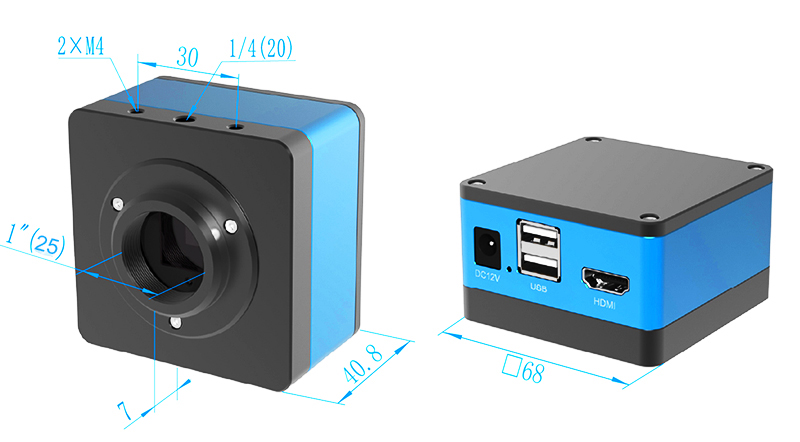

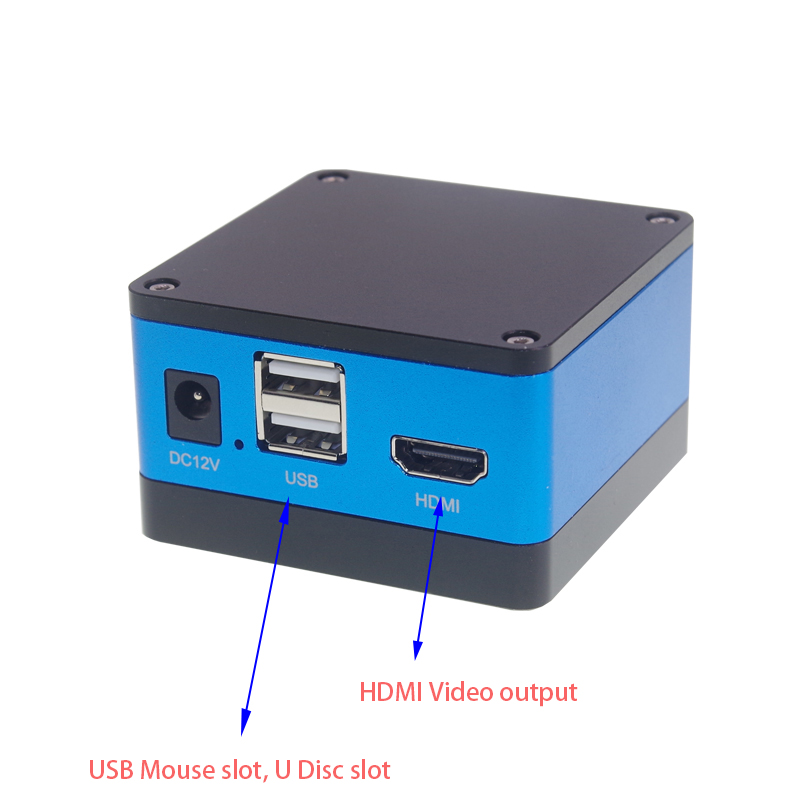

The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television











Camera Application:

  • Scientific research, digital teaching (teaching, demonstration and academic discussing);
  • Digital laboratory, medical research;

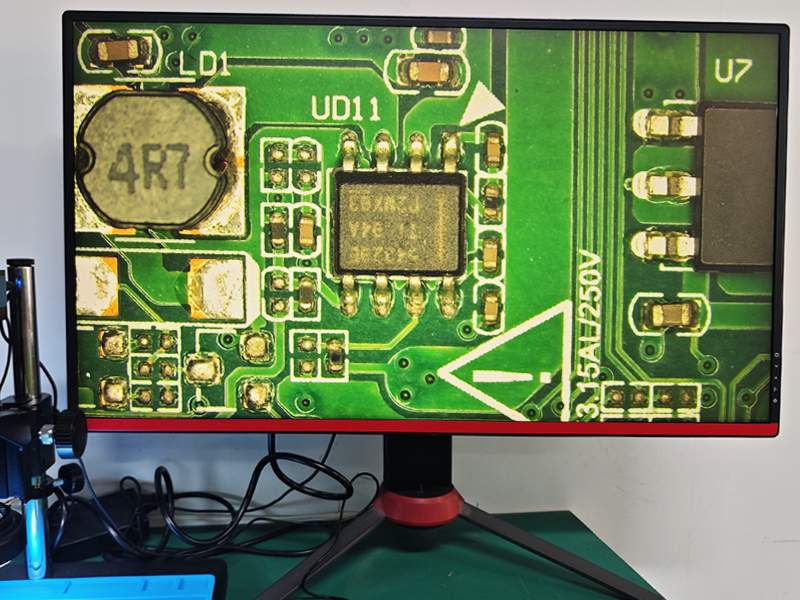

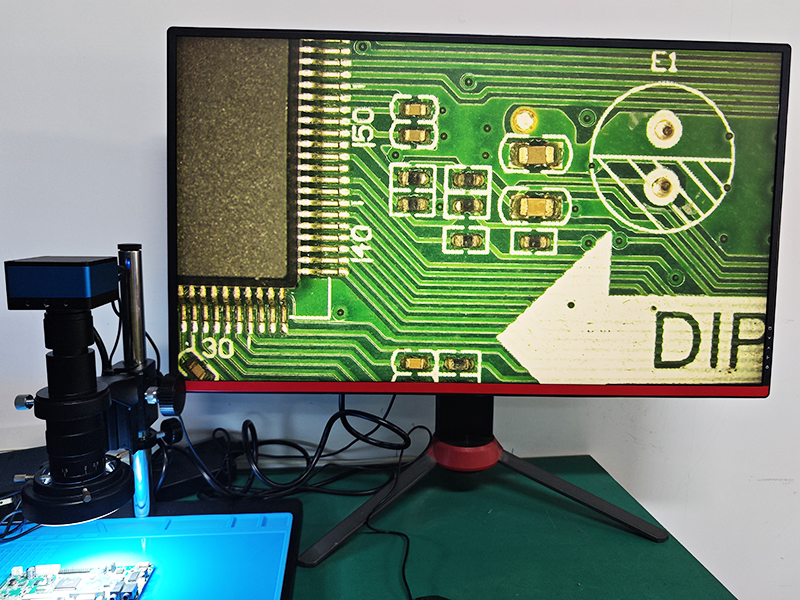

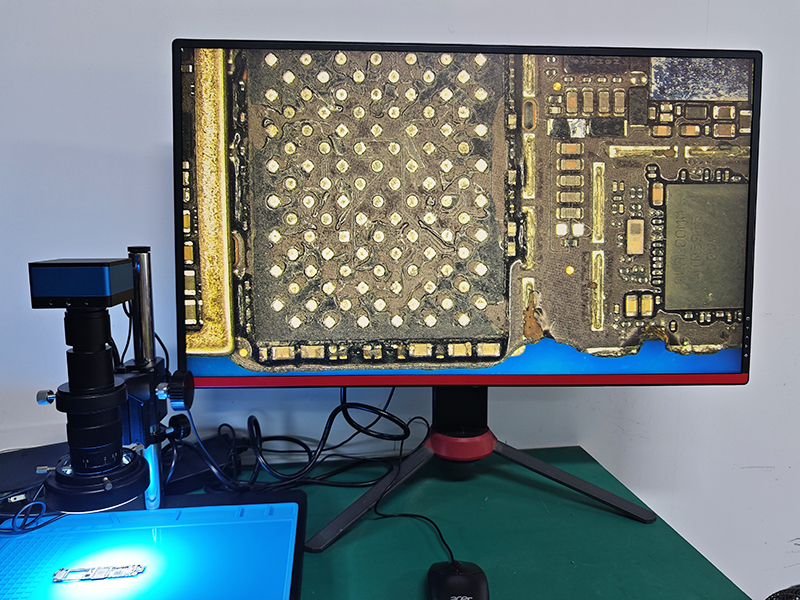

  • Machine vision (PCB detection, IC quality control);
  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aviation and military;

Feature:

  • HDMI camera using Sony Starvis backlit CMOS sensor
  • Embedded XCamView software for controlling cameras, providing rich measurement, grid line management, and custom template functions
  • Provide automatic edge finding, parallel line distance measurement, rectangle measurement, and other automatic measurement functions
  • Provide USB storage function, support local preview and playback, image to image, image to video comparison function
  • Powerful ISP function, providing functions such as dark enhancement, sharpening, and 3D noise reduction
  • Support quick switching of default effects between biological microscopes and stereo microscopes, making it convenient for users to use in multiple scenarios

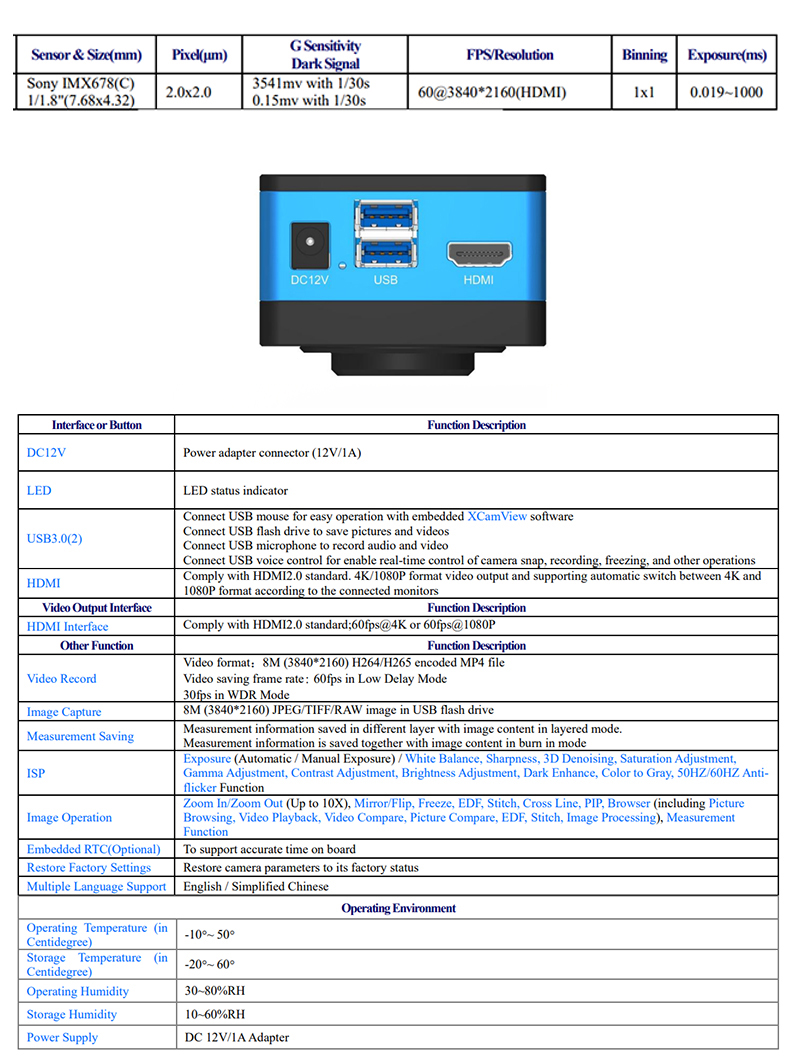

Specification:

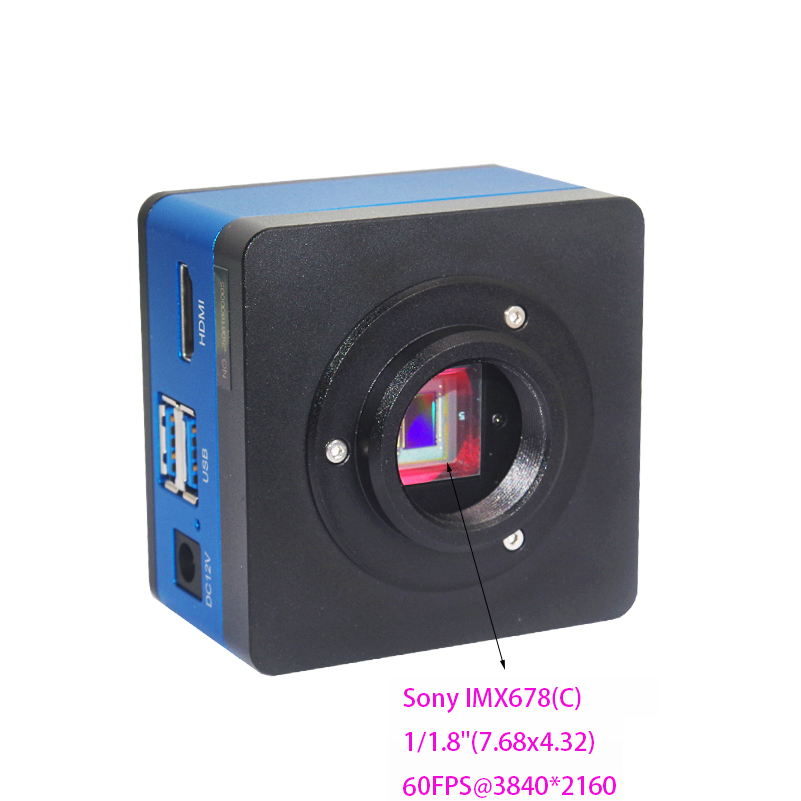

  • Sensor: SONY imx678 Sensor, senzor size:1/1.8"
  • Pixel(μm) : 2.0x2.0 (SONY imx678)
  • Resolution: 1080P FHD (2mp 1920x1080) / 4K Ultra HD (8mp 3840x2160)
  • Preview frame rate： 60fps @ 1080P , 60fps@3840x2160
  • Max recording frame rate: /60fps under HDMI
  • Exposure : 0.1ms~1000ms
  • Real time measurement
  • Support U disk storage

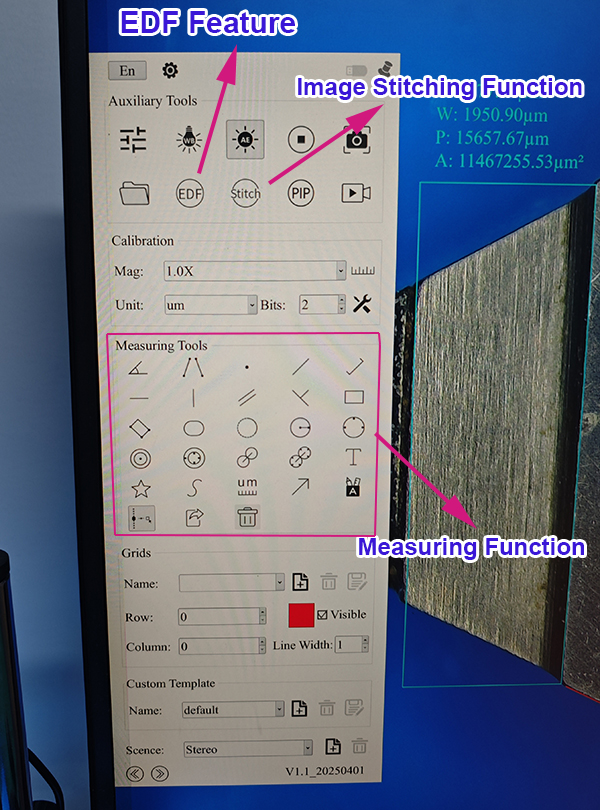

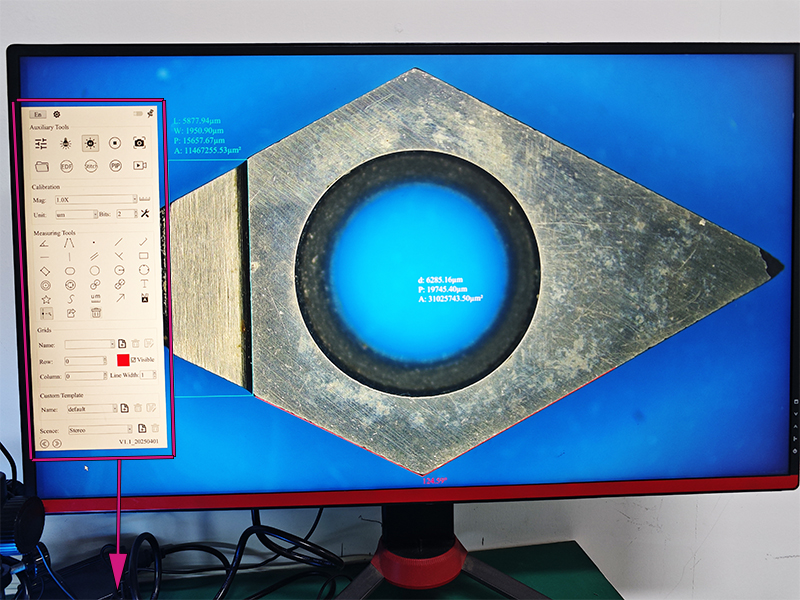

Camera Measurement Toolbar:



  • The Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the Measurement Toolbar

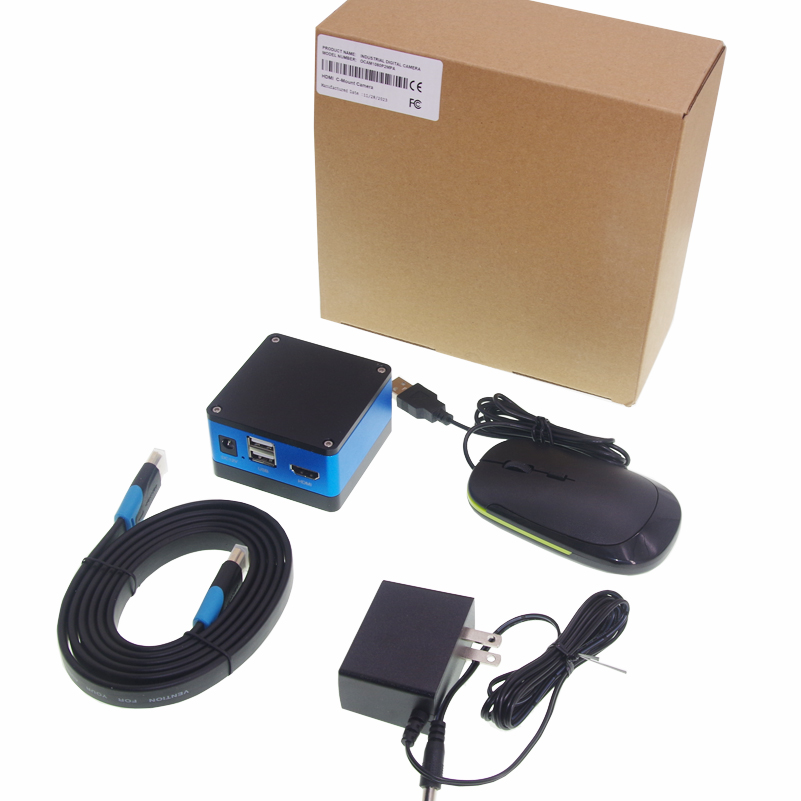

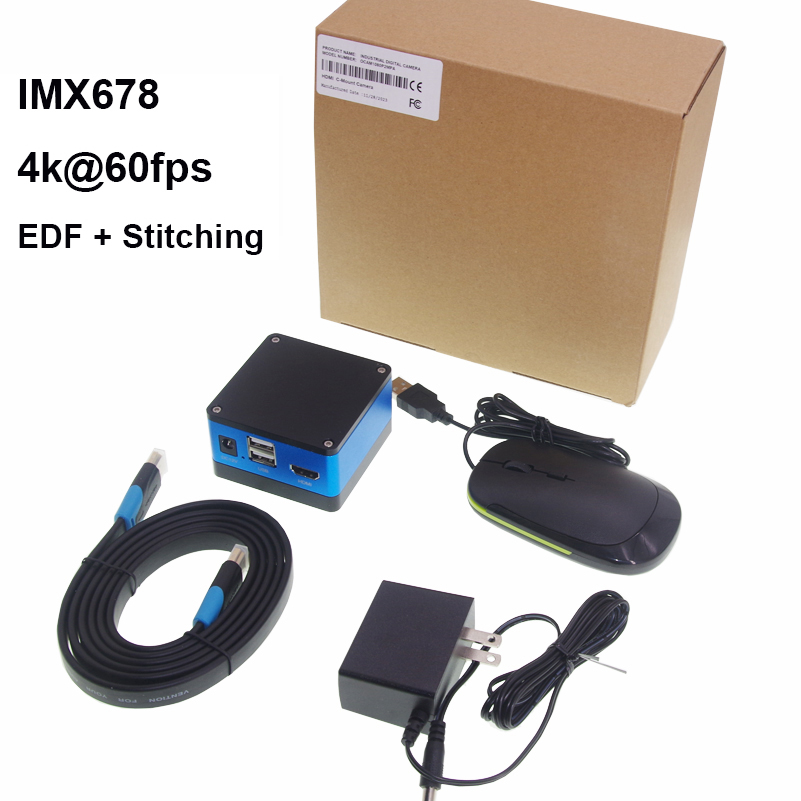

Package including:

  • 1 x 4K Camera
  • 1 x HDMI cable
  • 1 x USB Mouse
  • 1 x Power Supplier (EU, US ,UK, AU Plug is available for choose)

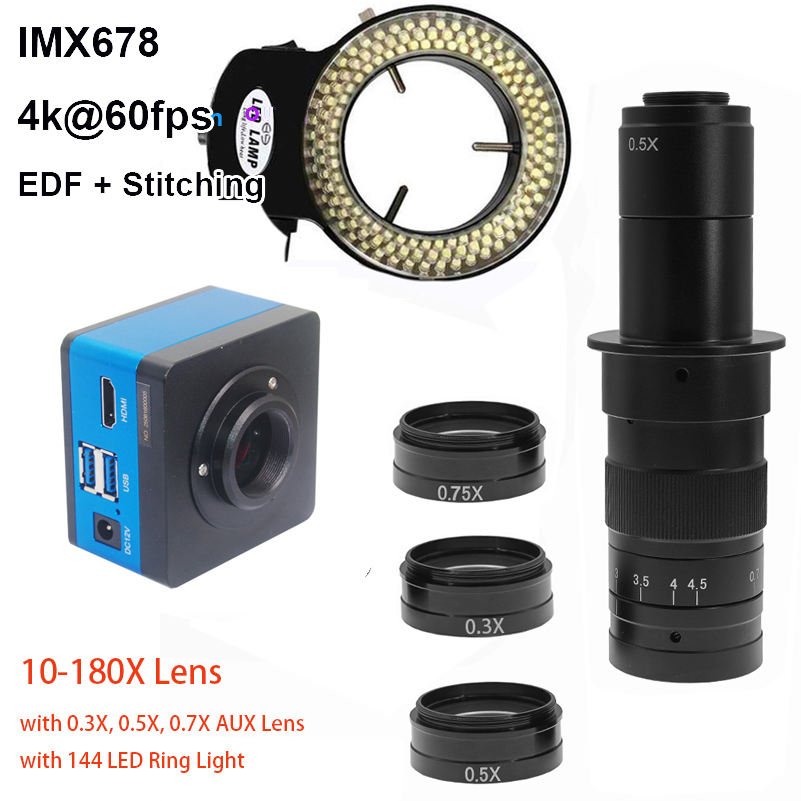

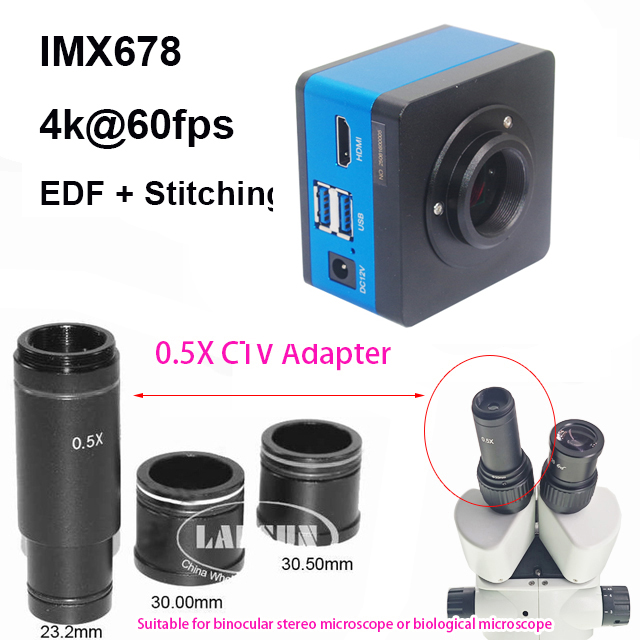

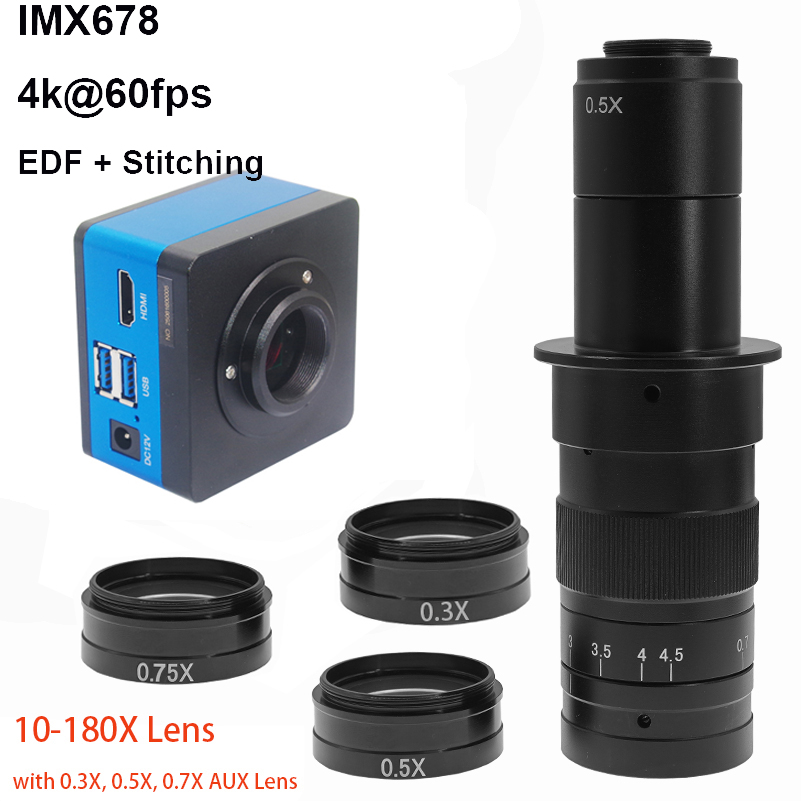

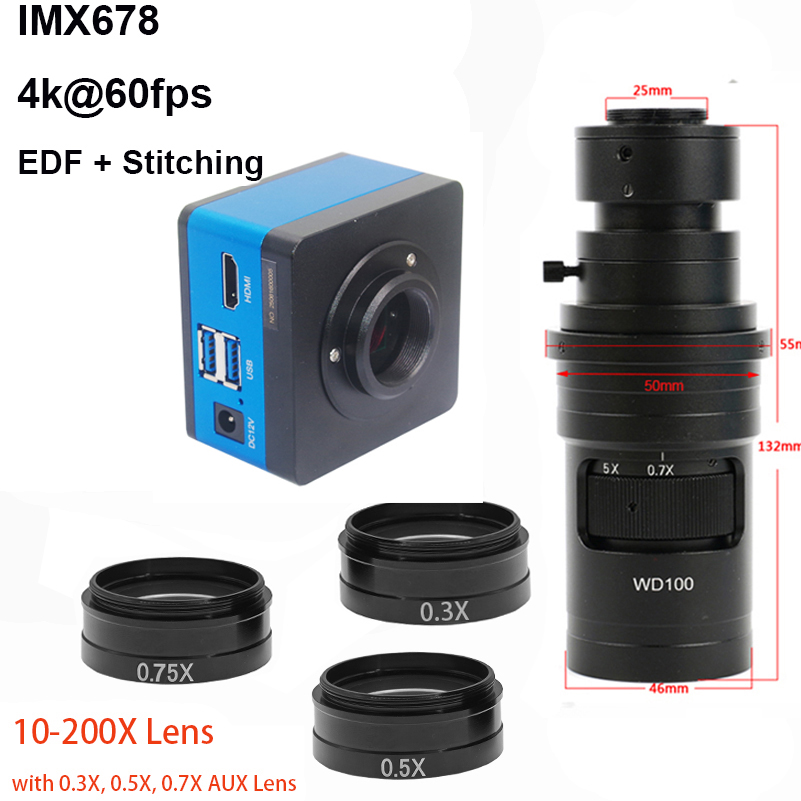

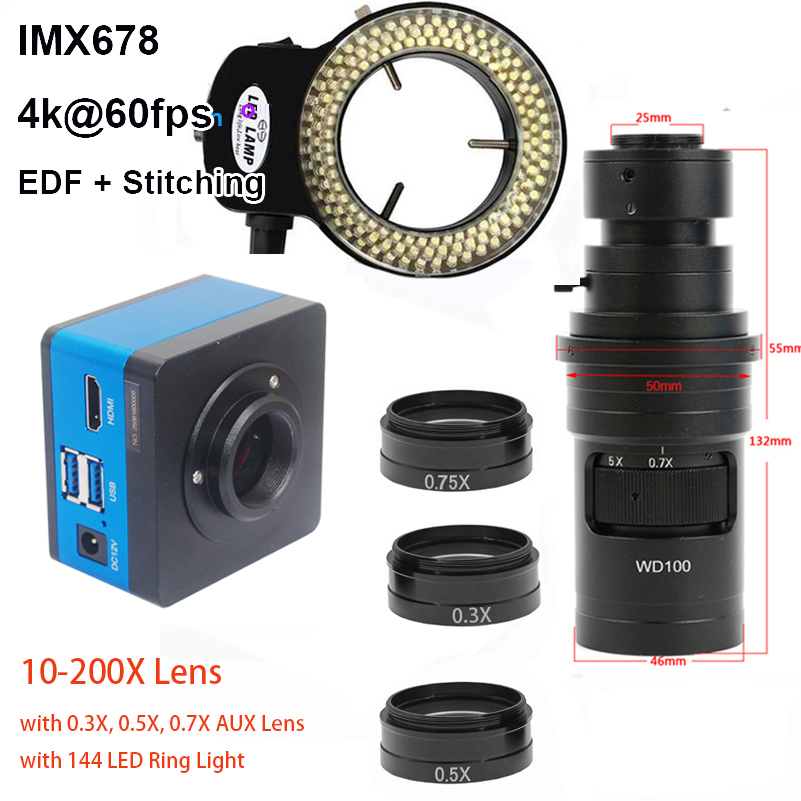

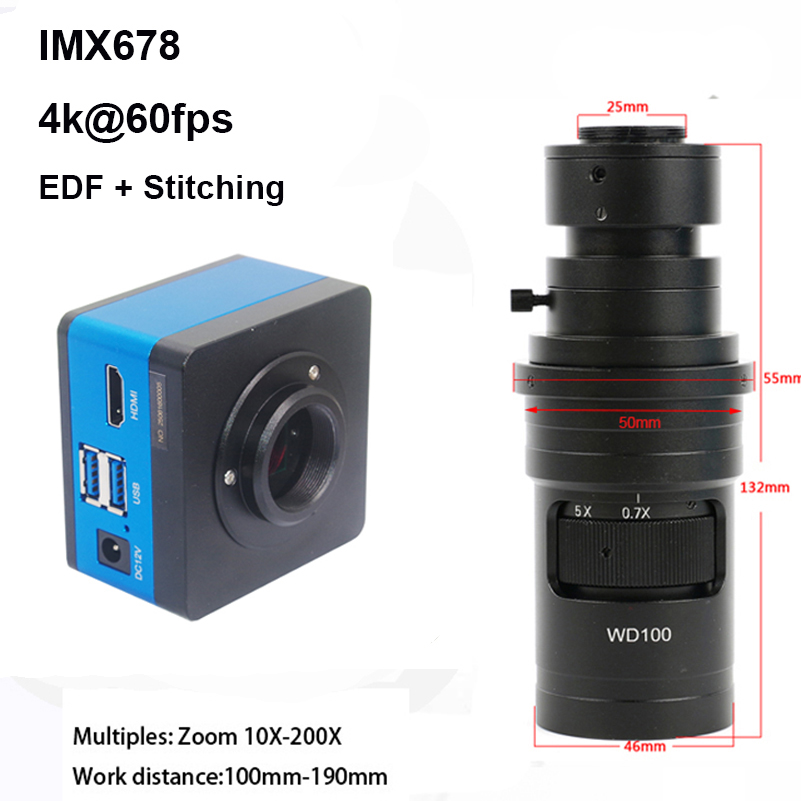

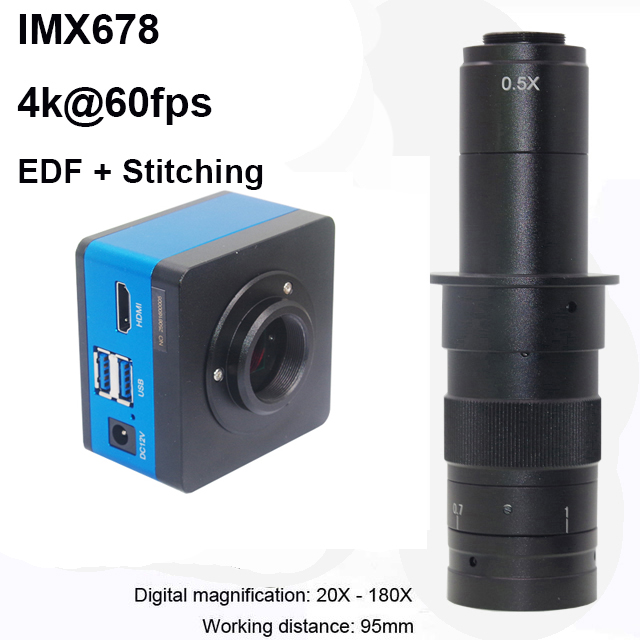

Camera set (option):




------------------------------------------------------------------------------------------------------------



------------------------------------------------------------------------------------------------------------



------------------------------------------------------------------------------------------------------------



------------------------------------------------------------------------------------------------------------



------------------------------------------------------------------------------------------------------------



------------------------------------------------------------------------------------------------------------



------------------------------------------------------------------------------------------------------------
