Deerobust 700C Carbon Rims for Road/CX/Gravel
Asymmetric 25丨38丨45丨50丨55mm (Depth)
x 25mm (18mm inner width)
Tubeless Clincher/ Tubular Optional
Asymmetric 35丨40丨45丨50丨80mm (Depth)
x 28mm (21mm inner width)
Tubeless Clincher
SPECIFICATION:
| Model |
25/38/45/50/55XA-25 |
| Use |
Road/Cyclocross |
| Size |
700C |
| Material |
Toray T700 full carbon+ T800+ high TG |
| Brake |
DISC brake or 3K brake |
| Weight |
25mm width: 320g for 25mm丨 390g for 38mm丨 420g for 45mm丨 430g for 50mm丨 470g for 55mm丨
28mm width: 370g for 35mm丨 400g for 40mm丨 410g for 45mm丨 430g for 50mm丨 600g for 80mm丨
Tolerance: +/-15g |
| Tubeless |
YES |
| Spoke hole |
16-32H |
| ERD |
589 for 25mm丨 569 for 35mm丨 563 for 38mm丨 559 for 40mm丨 549 for 45mm丨 539 for 50mm丨 529 for 55mm丨 479 for 80mm丨 (nipple head NOT included) |
| Width |
25mm/ 28mm |
| Depth |
25mm丨38mm丨45mm丨50mm丨55mm 35mm丨40mm丨45mm丨50mm丨80mm |
| Max weight limit |
100kg/220lbs |
| Max spoke tension |
150kgf |
| Max tyre pressure |
125psi/8.6bars |
| Finish |
Matte/glossy |
| Decal |
customized |
| Weave |
Ud/3k |
| Standard |
EN Standard |
| Lead time |
15 working days |
| Warranty |
24 months |
Our online sales will contact with you after order is received to make sure
that we make the rims according to your requirements.

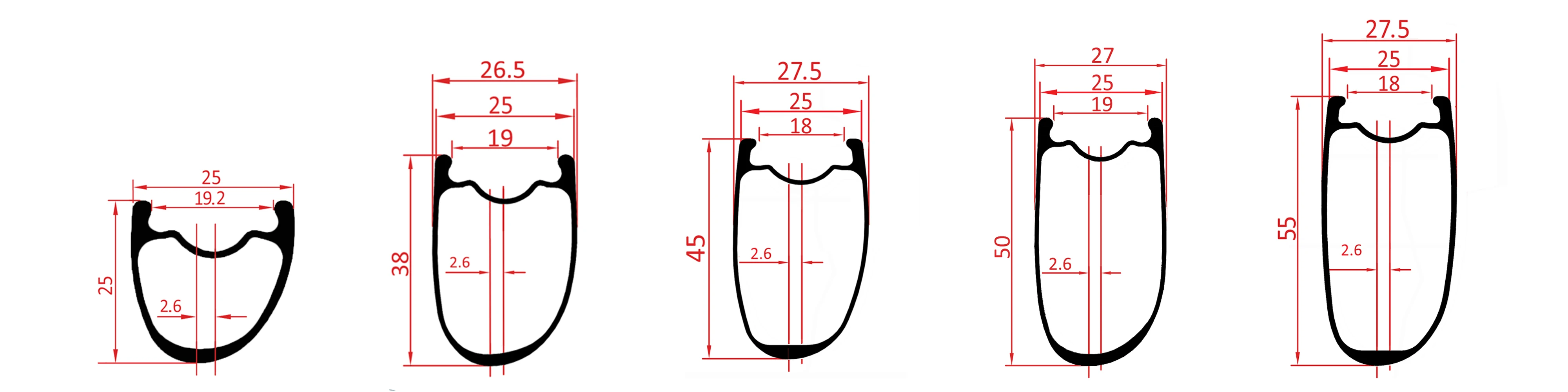

RIM PROFILE:
DETAILS:
|
Offset Asymmetrical Design
Asymmetrical rims build up into stiffer, stronger and more reliable wheels by improving the bracing angles of a dished wheel and equalizing the spoke tensions between the drive and non-drive side spokes. On a Road bike wheelset with disc brakes, both the front and rear wheels have significant dish. With traditional rims, the rim is centered (or dished) by decreasing spoke tension on one side relative to the other so that the rim is pulled into center.
Full Carbon Clincher(Tubeless ready).High Strength Carbon for Lightweight Performance.
Using the latest carbon forming technology, we are able to build a very strong rim from carbon only. Deerobust 38mm clincher carbon road bike tubeless rims,run tubeless tire well,and bead lock design make the tubeless system safe,basalt brake surface offer great brake performance,rims are light,stiff and durable.
In addition, the supporting parts are added with a small number of T800 to enhance the strength.
TLR(TUBELESS READY) TECHNOLOGY
We strongly believe that the quality, consistency and quality of our products is the most cost-effective in the industry. In order to ensure that DEEROBUST rims not only meet international safety requirements but also comply with additional and higher quality standards, we use SGS and EN 14781 standards when manufacturing the rims.
