Product Description
1. MediaTek AG3335MN high-performance GPS chipset
2. High sensitivity (-165m)
3. Even if satellite signals are weak, the first positioning is still very fast
4. Supports NMEA0183 communication protocol
5.-in super capacitor, can store satellite signal data obtained quickly
6. Built-in ceramic antenna
7. With strong magnetism that can be adsorbed on the vehicle8. 100% Waterproof and slip-resistant bottom
9. USB or RS232 connection interface
10. With LED indicator to display GPS positioning
LED light off: Not enabled
LED light on: Signal search
LED flashing: Positioned
11. Supports WAAS ENGOS. Product specifications: Chip: MediaTek AG3335MN
Frequency:
GPS, Galileo, QZSS, SBAS: L1, 1575.2 MHz,
C/A code
GLONASS: L1, 1602 MHz
BeiDou: B1, 1561098 MHz
C/A code: 1.023 MHz chip rate
Number of channels: 75 tracking channels
Sensitivity: -16 dBm
Accuracy: 3 meters, 2D RMS
Positioning: 2.5 meters, 2D RMS
2 meters, 2 RMS, WAAS enable
Speed: 0.1 m/s
Time: 1 microsecond satellite synchronization
Coordinate data
Default: WGS-8
Reception time
Re-reception: Average 0.1 second
Hot start: Average 1 second
Warm start: Average 33 seconds
C and warm start: Average 33 seconds
Related restrictions
Altitude: 18,000 meters (60,000 feet) maximum
Speed:515 meters/second (10,000 knots) maximum
Gravity: Less than 4G
Shake: 20 meters/second ×3
Power
Main power input: 4.5V ~ 6.5V DC input
Consumption: 42mA
Protocol
Operating level:TL level
Output voltage: 0V~2.85V
Transmission speed: 4,800 bps
Output format:
NMEA 183 GGA, GSA, GSV, RMC
(GLL, VTG, ZDA, GRS, GST are optional)
Ph characteristics
Volume: 2.32" x 1.65" x 0.82" (59mm x 47mm x 21)
Length of signal line: 1.50 meters
Operating temperature: -40°C to 85°C

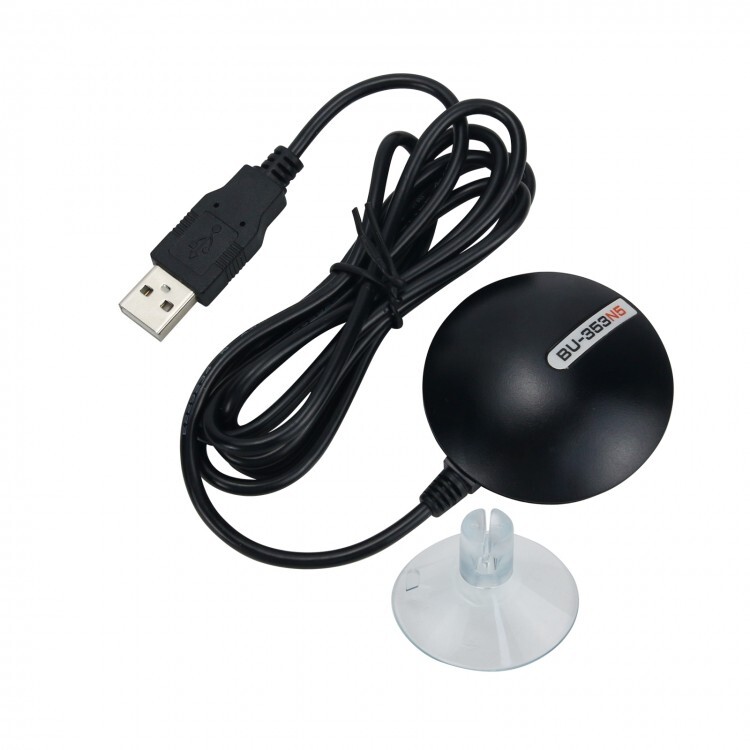

BU-353N5 USB GPS Receiver of High Quality for GlobalSat WIN7/8/10/XP Network Optimization Road Test
Description:BU-353N5 features a USB interface, high GNSS sensitivity, and low power consumption.
It is powered by High sensitivity GNSS solution. The BU-353N5 can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. The BU-353N5 supports 75 channel all-in-view tracking. BU-353N5 acquires and tracks satellites in the shortest time. In addition, its cable allows for easy routing to your equipment behind, headliners and side panels and terminates to a custom USB connector.
Features:
- High sensitivity solution
- Very high chipset sensitivity (Tracking Sensitivity: -165 dBm)
- Extremely fast TTFF (Time To First Fix) at low signal level
- Support NMEA 0183 data protocol
- Built-in Backup power to reserve system data for rapid satellite acquisition
- Built-in patch antenna
- Super-cohesive magnetic for mounting on the car
- Water resisted and non-slip on the bottom
- USB interface connection port
- LED indicator for GPS fix or not fix. LED OFF: Receiver switch off; LED ON: No fixed; Signal searching; LED Flashing: Position Fixed
Package Included:
- 1 x USB GPS Receiver
- 1 x Quick Start Guide
- 1 x Suction Cup
