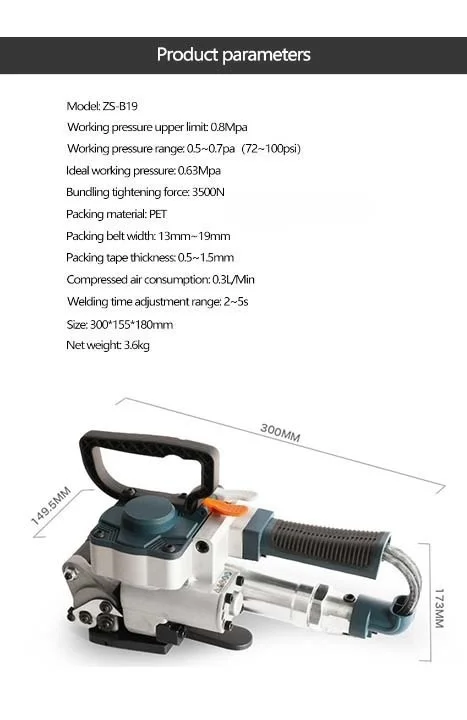

Parameter
Mode: B19
Tensionforceof binding band(when input air pressure is 0.63Mpa): 3500N
Max： allowable
working pressure : 0.8Mpa
Requiredd scope of working pressure : 0.5~ 0.7Mpa(72~ 100psi)
Ideal working press:sure: 0.63Mpa
Weight of packaging miachine: 3.65kg
Total length: 300mm(base70mm)
Material of packaging belt: PET
Width of packaging belt: smaller than 19mm/ smaller than 25mm
Thickness packaging belt: 0.5-1.5mm
Vibration quantity: meet requirements of ISO5349
Consumption of compressed air: 0.3L/Min
Fusion time: 2-5s

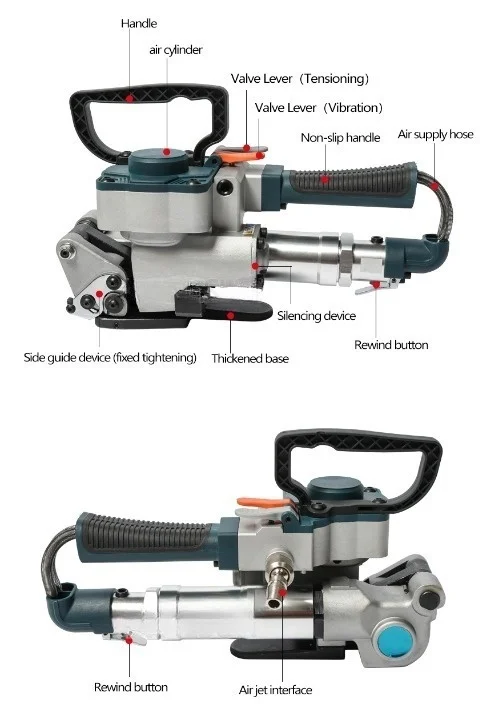

Parts：
(1) Tightener: 3,500N (when 0.63Mpa)
(2) Cutting device
Heavy cutting device：
The heavy cutting device is composed of blade holder and blade and is used to cut 0.5-1.5 mm thick packaging belt.
Friction cutting device：
The friction cutting device is used to cut 0.5- -0.7 mm lightweight PET packaging belt.
Suspension：
B19 proper hooks may be suspended at different positions (top sealing,vertical sealing, and horizontal sealin
