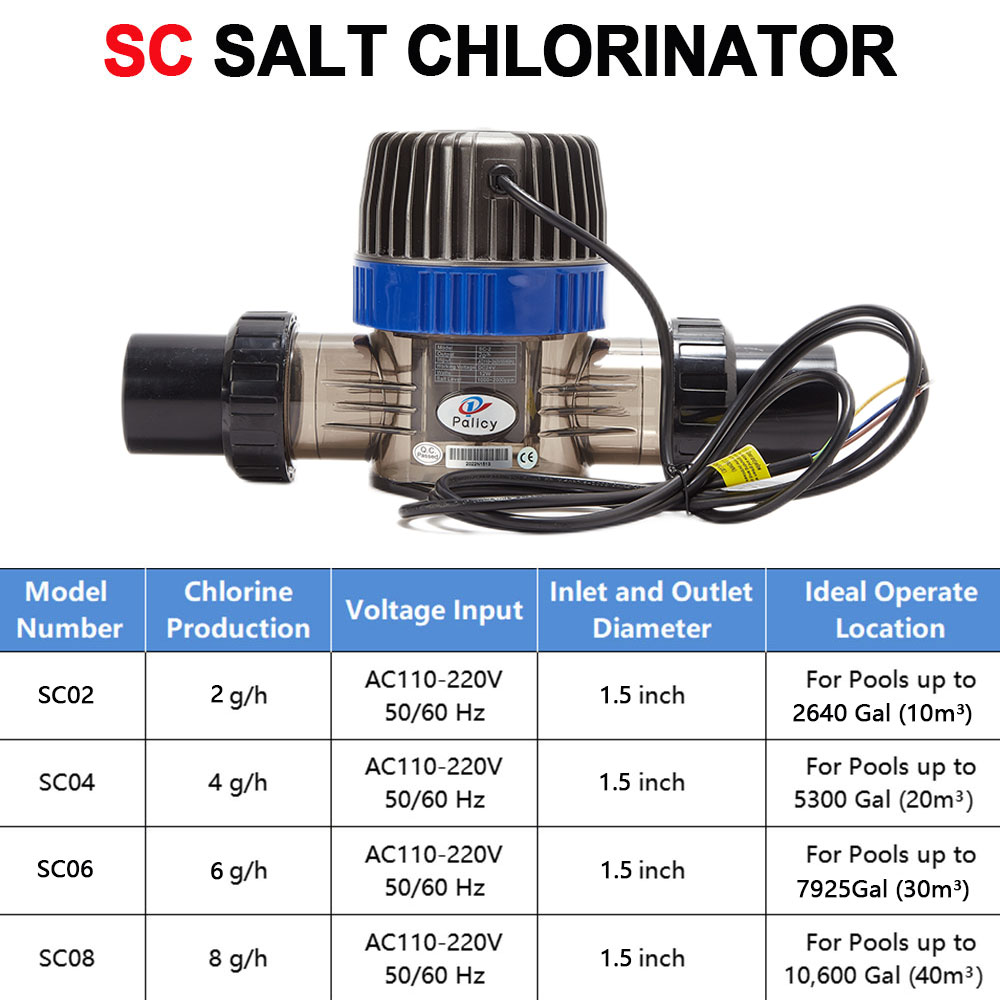

Product name: Salt Chlorine Generator
Model Number: SC02, SC04, SC06, SC08
Voltage Input: AC 110~220V
Hertz: 50/60Hz
Power: 48W
Chlorine Production: 2g/hr, 4g/hr, 6g/hr, 8g/hr
Sites suitable for (Optional): Pools up to 2,640 gallons(10m³) / 5,300 gallons(20m³) / 7,925 gallons(30m³) / 10,600 gallons(40m³)
Size of salt generator: 12.7" L x 4.7" W x 6.7" H
Net Weight: 1.5 KG
Pipe Connecting Size: 1.5 inch (metric: ∅50mm)
Salinity Level: 1000-2000ppm
Features: Efficient disinfection, Easy installation
Functions: Self-cleaning; No water, overload, high temperature protection; Electrode short circuit protection
Warranty: 1 Year
The best disinfection choice for above ground pools with 10-40m³ pool water.
It is very simple to use, just add salt to the pool to quickly and stably generate the chlorine required for pool water disinfection. It is not only makes pool water clearer, safer, and more comfortable, but avoid all the disadvantages of traditional chlorine disinfection (dificulty storage, odor, red eye, itchy skin, bleached clothing, etc.)
PRODUCT FEATURES

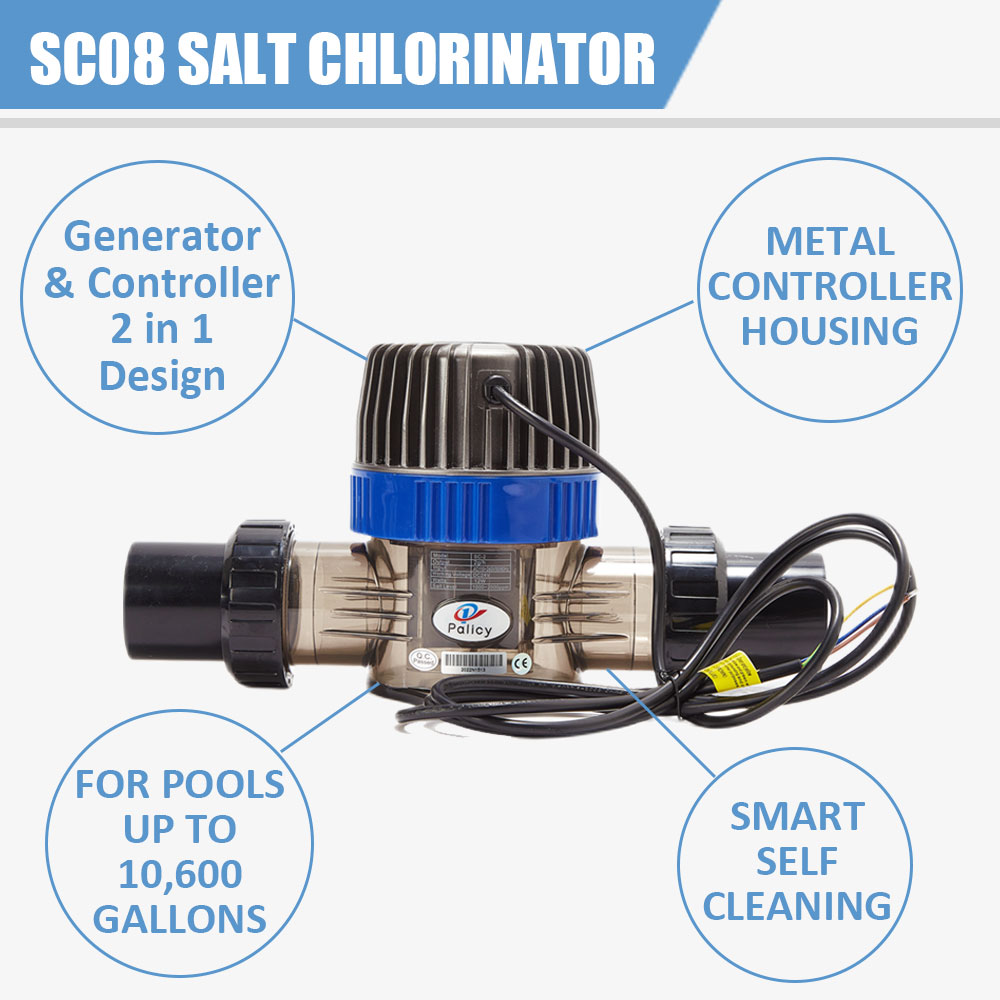

SC cholorinator adopts intelligent control technology, one button start and stop. Colorful indicator light. Easy to install, the electrode has a circulating cleaning function. Two speed adjust the chlorine. It also features anhydrous, overload, high temperature and electrode short circuit protection systems.
1. Integrated design, easy installation, less space occupation.
2. Water inlet and outlet should be at the same level to reduce pipeline layout.
3. Disassembled and cleaned titanium metal plate, convenient installation and maintenance.

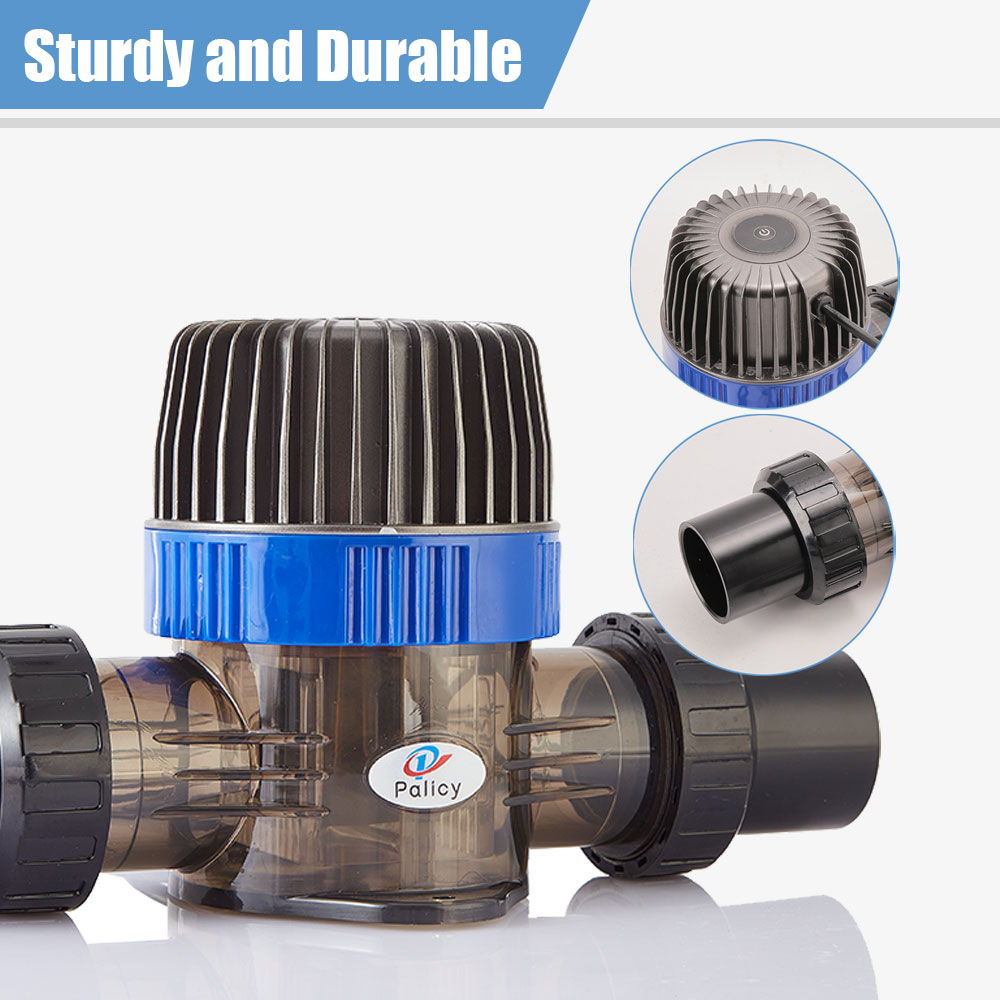

4. Metal controller shell, durable, good heat dissipation effect.
5. Two stalls adjust the chlorine production.
6. There is a hint of salt content. There is also a error notification function.
7. Power off memory function. Automatically starts the last running mode.

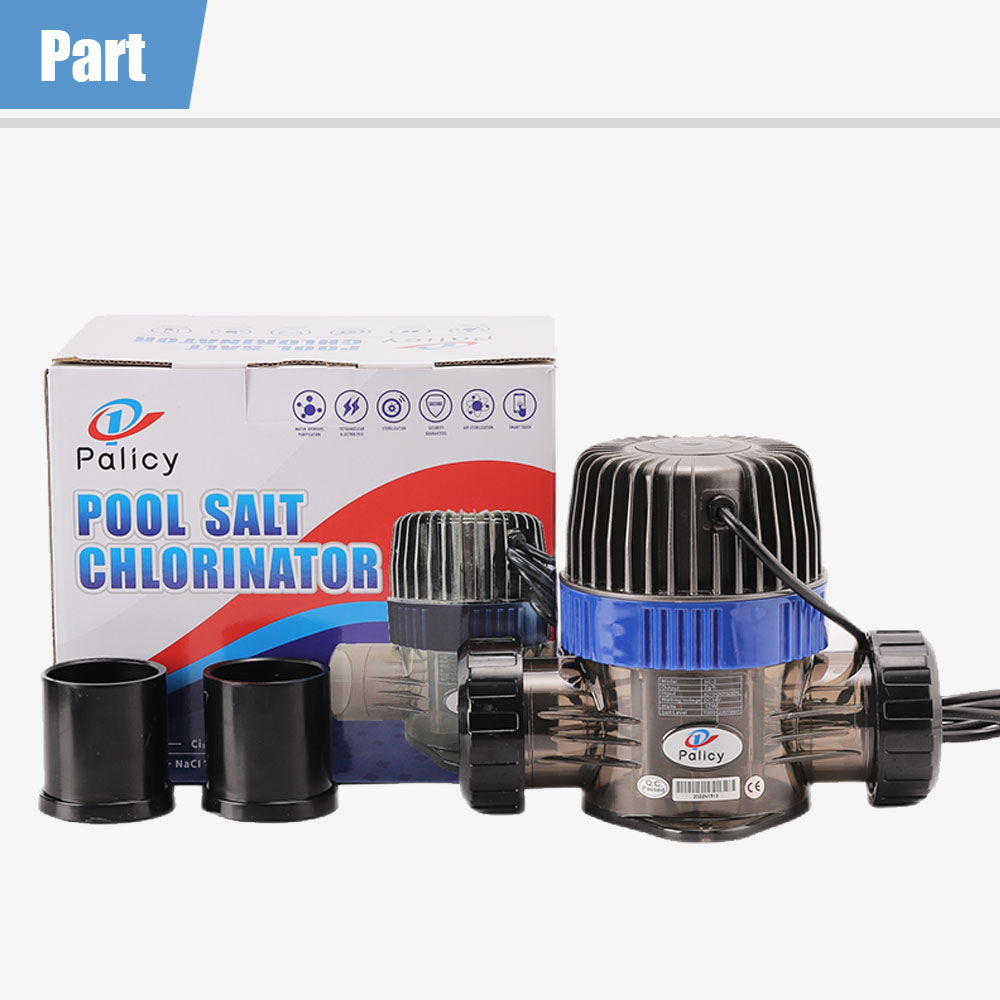

PACKAGE LIST
1 x Salt Chlorine Generator
4 x Accessories
1 x Manual
Products Description
Q & A
A: The unit will readily accept 1.5" PVC, if your pipe size is 2", that set up will require 1 1/2" to 2" adapters which are easy to buy.
Q2: My pool is 8k gallons. would SC08 salt chlorine generator will be appropriate??
A: Yes, this salt chlorine generator is suitable for all swimming pools up to 10,600 gallons.
Q3: Would you recommend this product for above ground pool?
A: The SC Seris is a great option for above ground pools.
Q4: I like very well the product, and thinking to purchase, the main problem I want to know, how you guys measure the qtty of salt?
A: The best working salt concentration of SC CHLORINATOR is 2000 PPM, means it requires 2 kg of salt per 1m³ of water.
Q5: Can this be installed vertically? I have no room available on the main line horizontally and was hoping not to install additional pvc.
A: Yes, horizontal or vertical installation is possible.
