Item specifics

Condition
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitionsopens in a new window or tab
Product number
FC2543
Power
compressed air, normal working pressure range 0.3~0.8MPa (3-8 kg)
Name
Lengthened punching machine D-150
Brand
Unbranded
Packing size
26*15*18cm
Type
other
Origin
CN(Origin)
The lowest usable air pressure
0.25MPa
Drive
Bore 32, Stroke 12
Certification
NONE
Model Number
D-150
Item Weight
3kg

Item description from the seller

Notice:


when the parcel arrived to your customs, please pay the tax and pick up the parcel,we are not responsible for any customs duty or import

tax.


If your place is remote, then need to pay 45usd .


Specifications:


Name: Lengthened punching machine D-150

Available sizes: 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm,

8mm, 10mm

Drive: Bore 32, Stroke 12

Power: compressed air, normal working pressure range 0.3~0.8MPa (3-8 kg)

Structure: The depth of the feeding trough is about 180mm, and the center

to the bottom is 150mm, that is, the maximum distance from the actual punching center to the edge of the bag is 150mm

The lowest usable air pressure: 0.25MPa

Packing size: 26*15*18cm

Weight: 3 kg


Applications

Main application (plastic bag, plastic bag punching, small round hole vent

hole, small round hole hanging hole, hook hole hanging rod hole)


Note:
The picture is for reference only, please refer to the actual product.

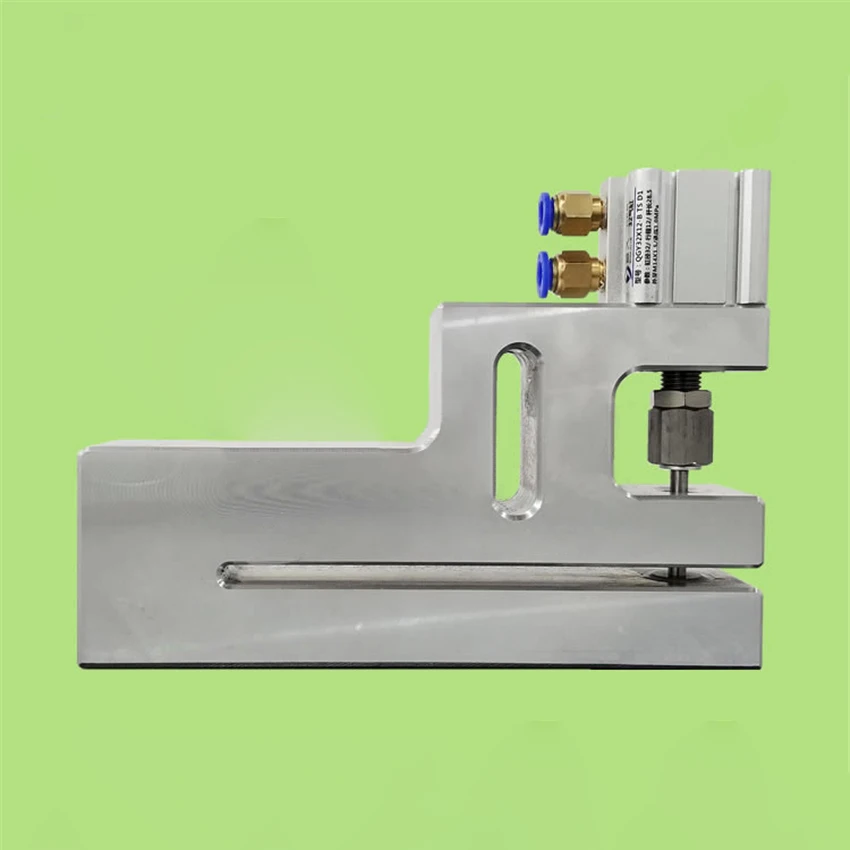

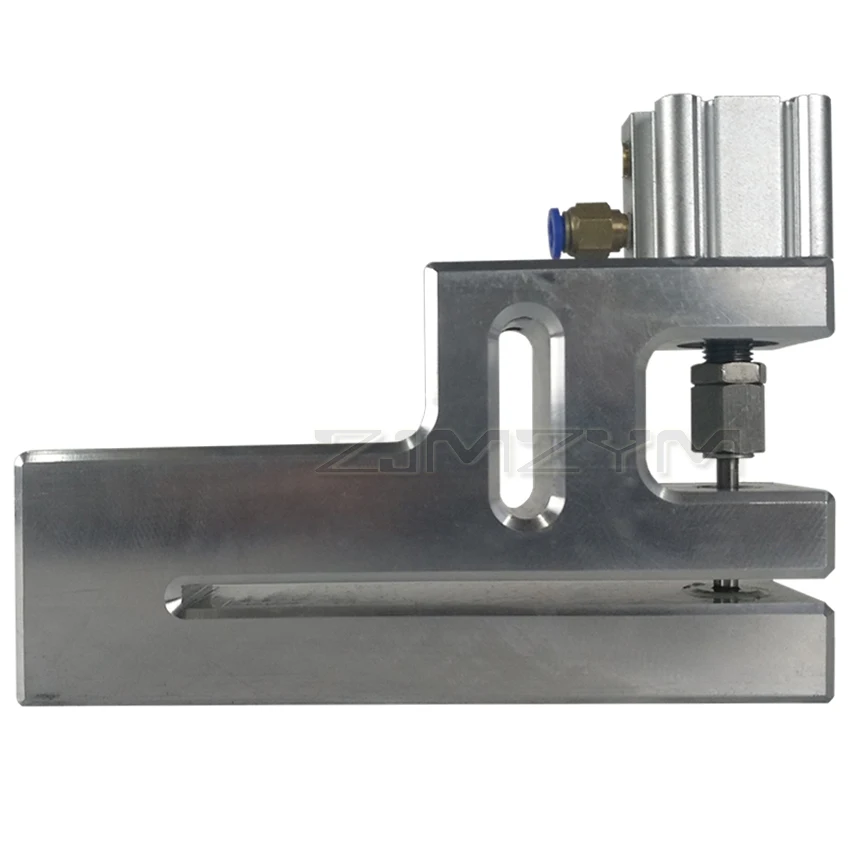

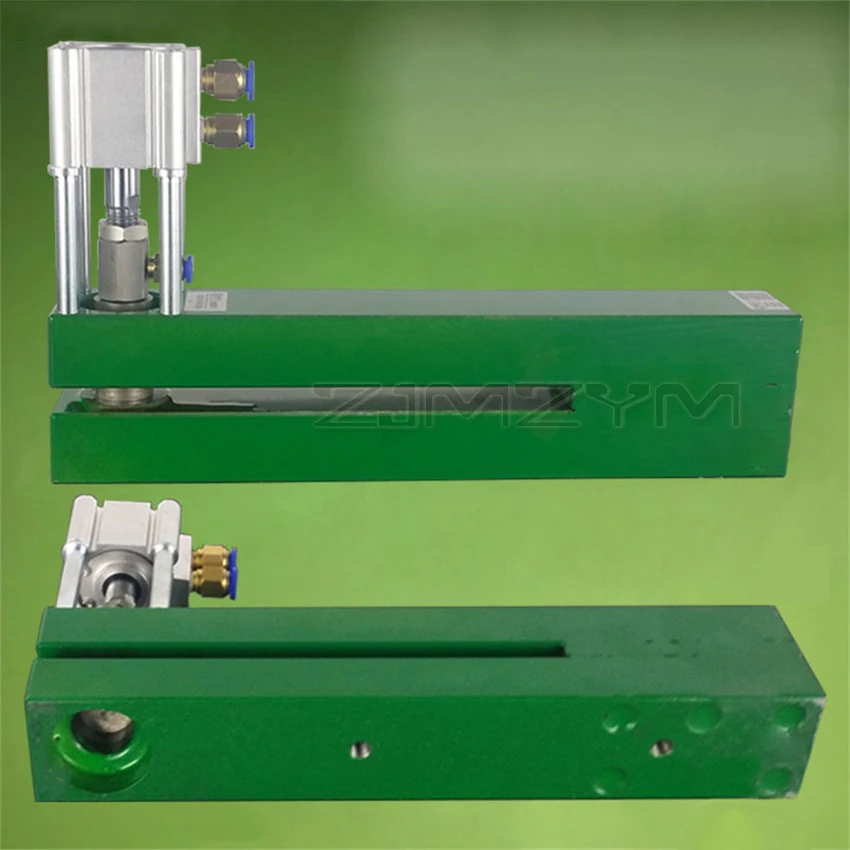

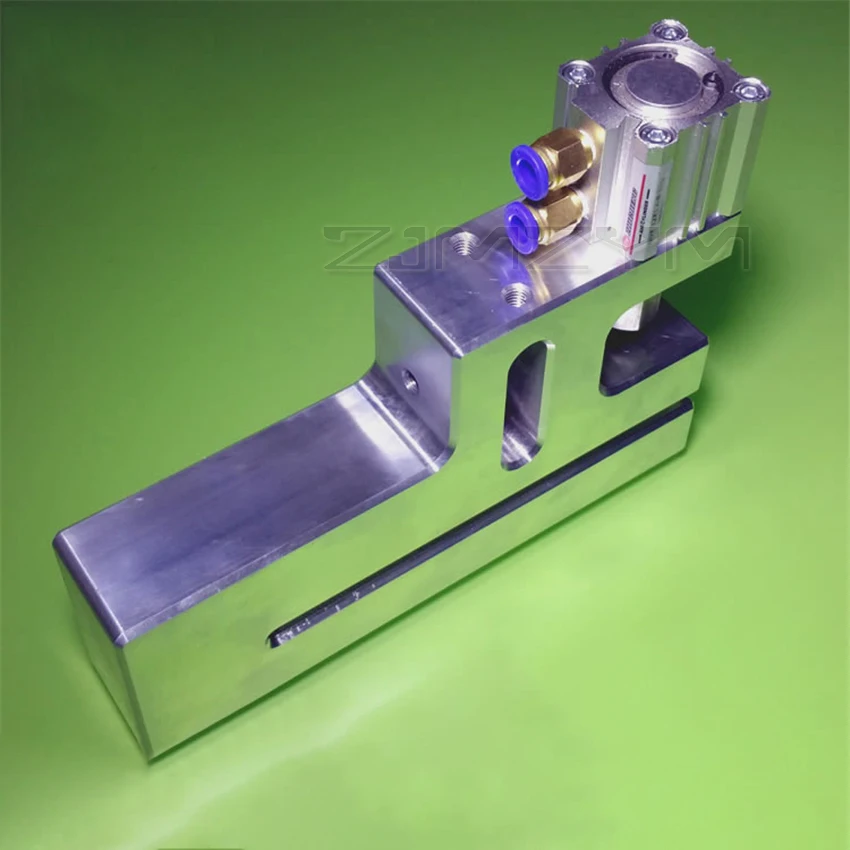

Picture showing:
