DC6V-12V to 800KV Arc High Voltage Generator Pulse High-Voltage Module


Product Feature
1: Wide range of applications
2: Small size
3: High efficiency
4: Output high voltage pulse
5: cost-effective

This module is a high-voltage module/high-voltage generator made by a high-voltage package/transformer through a circuit composed of components. It can be used as a high-voltage source for student science experiments/electronic instruments/negative ion generators/science mini-productions. The module is made using the principle of Tesla coil. It can output high voltage pulse, small size, high efficiency and violent discharge intensity.

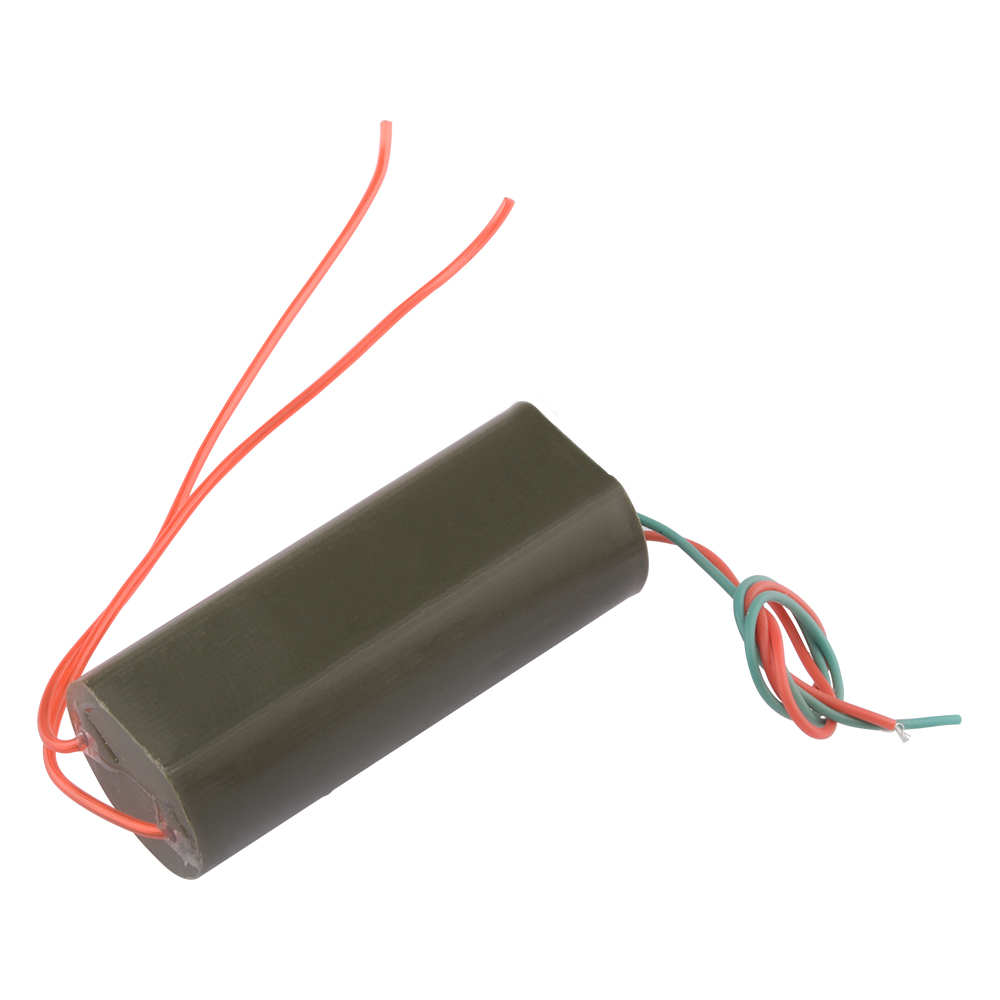

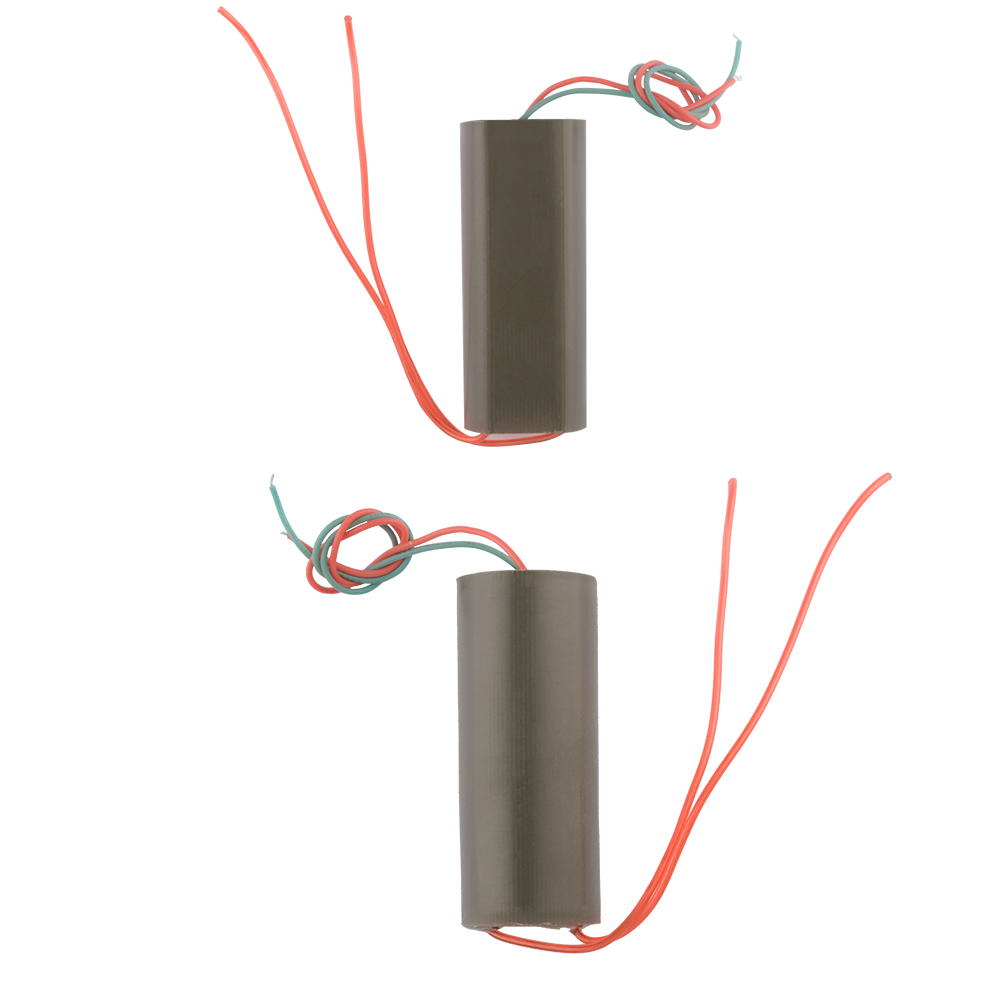

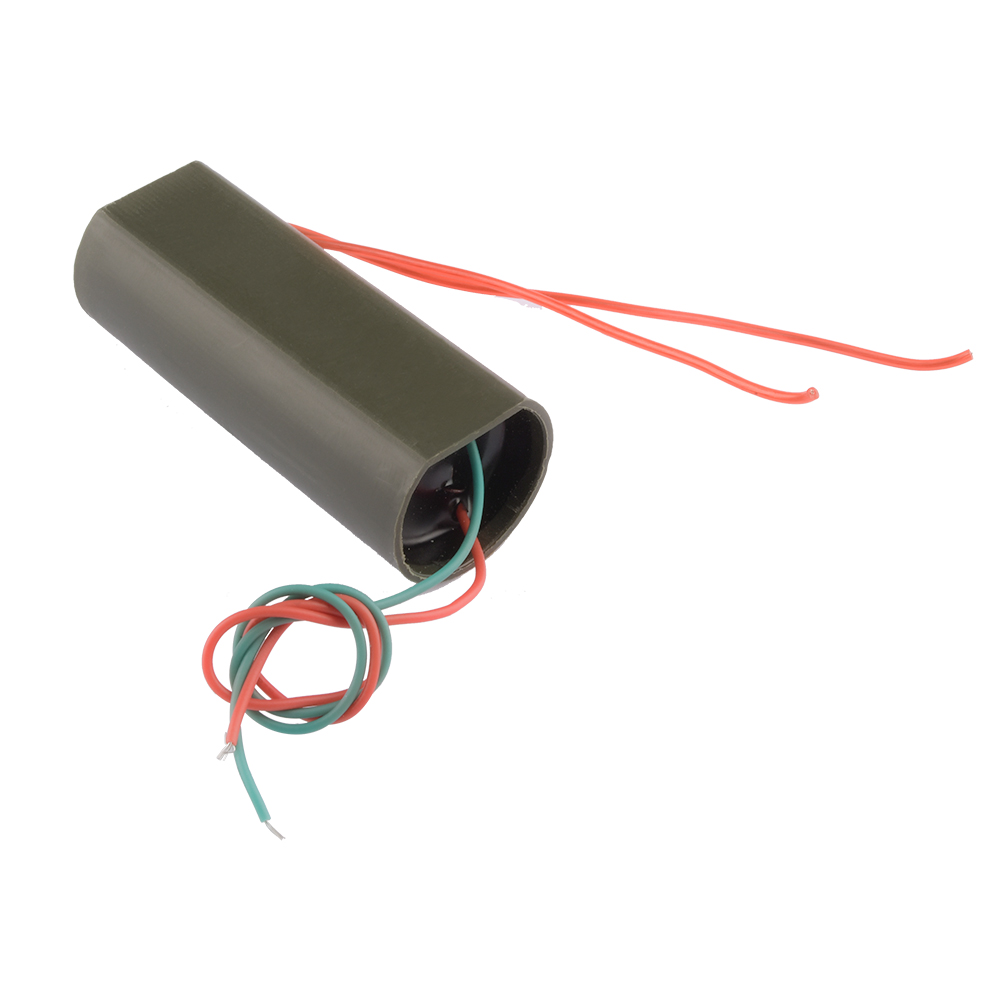

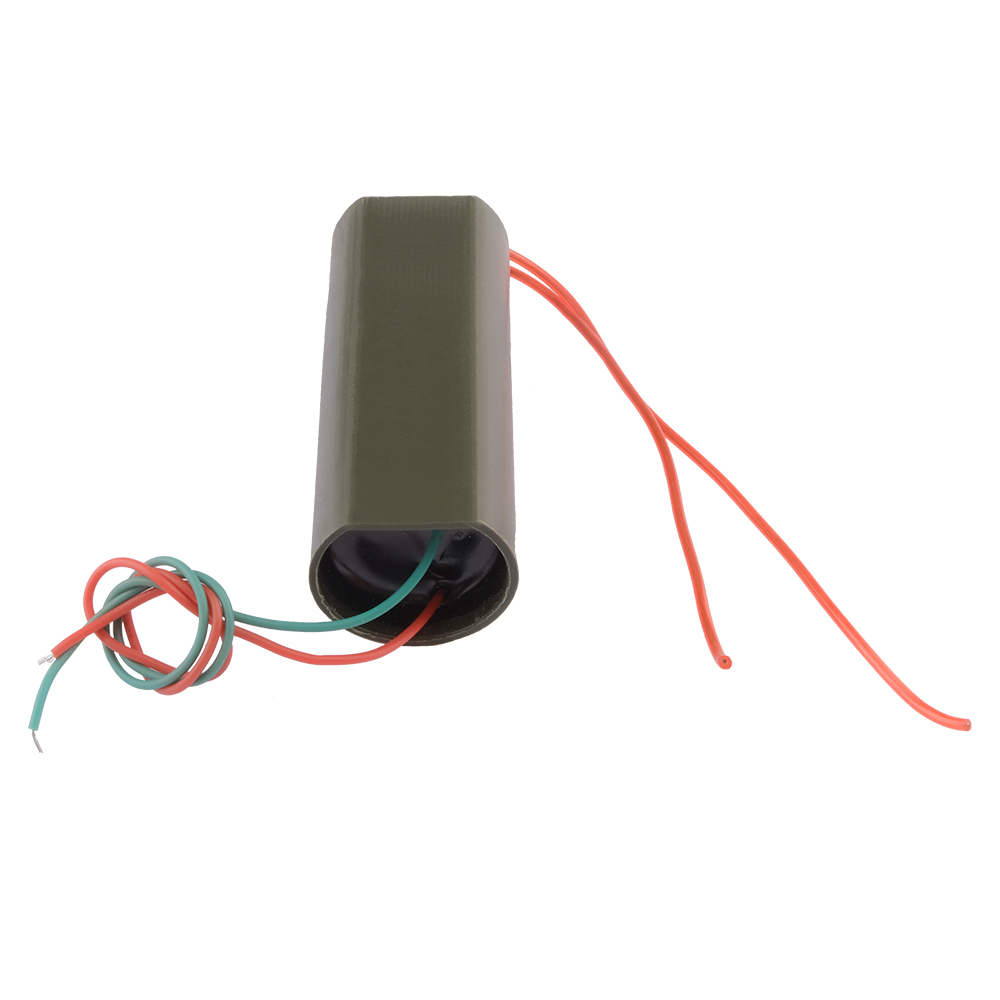

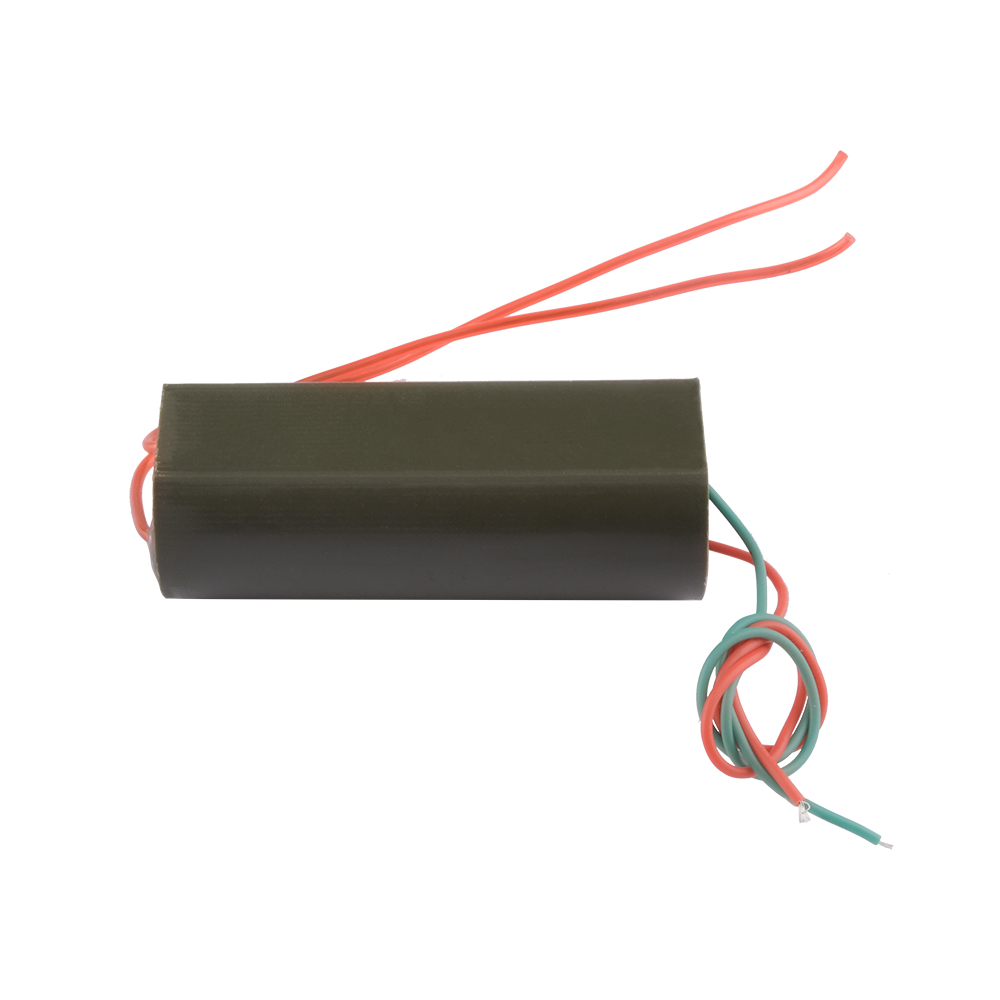

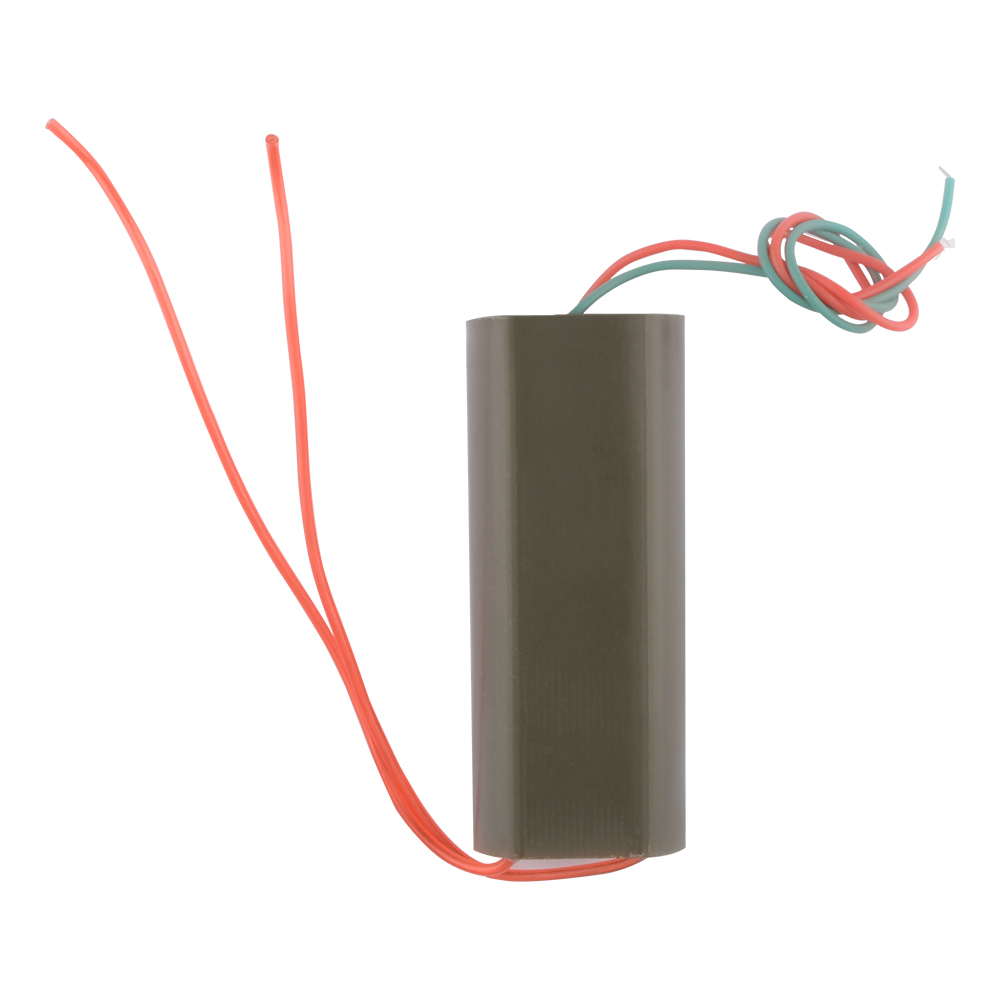

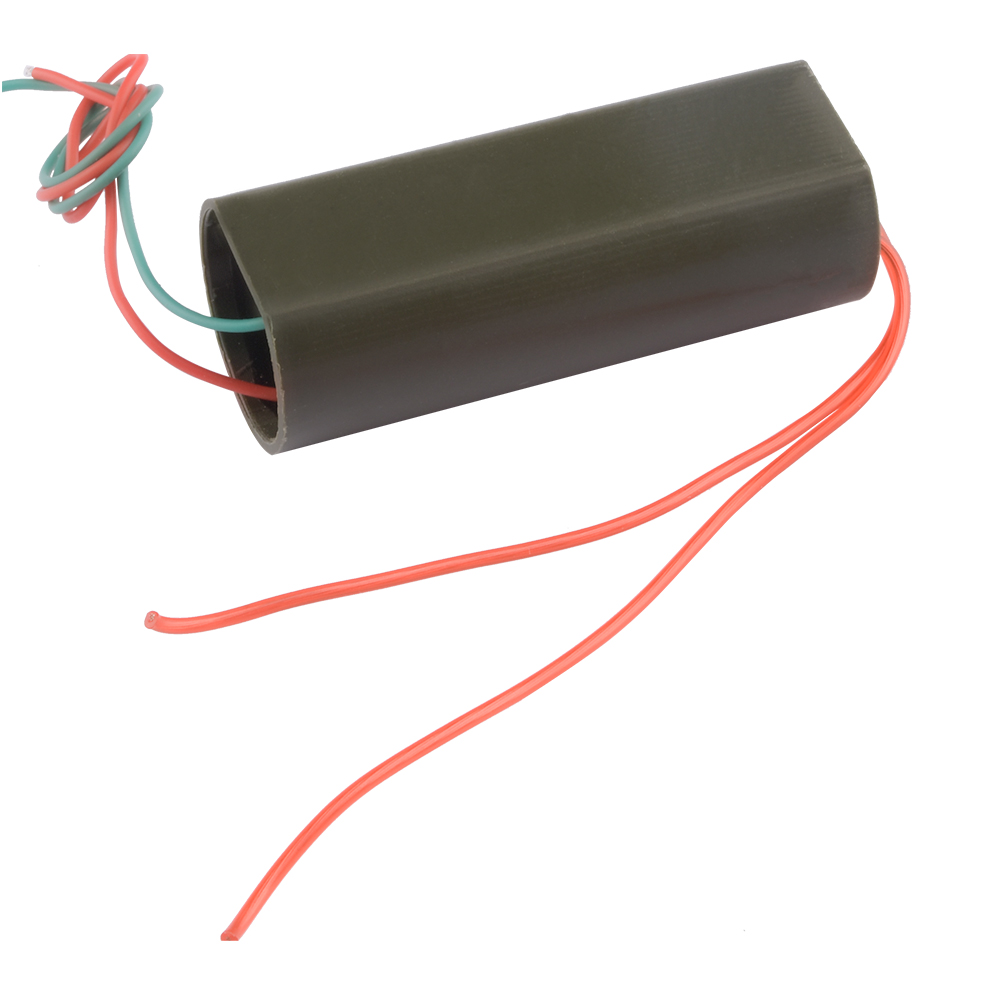

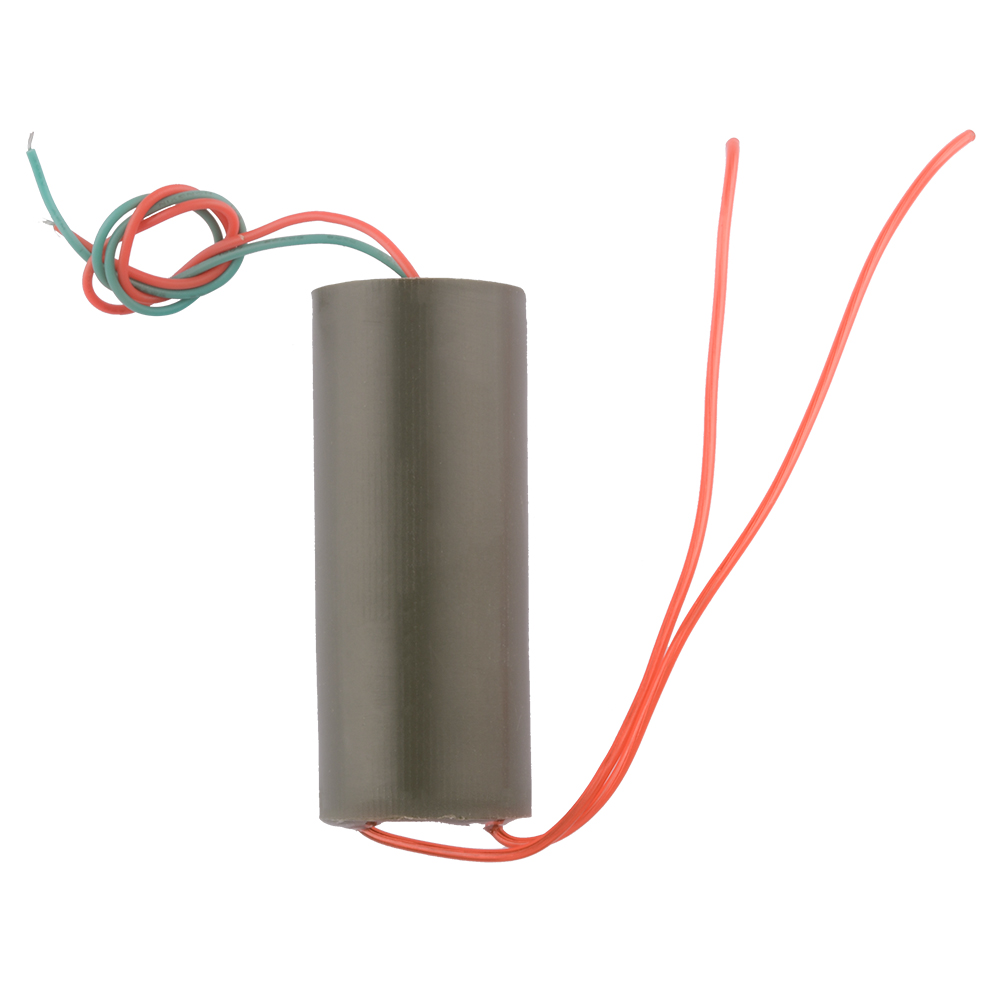

Product Name: High Voltage Generator
Volume: length 88mm diameter 26mm cut surface diameter 24mm
Voltage: Input DC6-12V,
Output DC800KV
Current: input 4A, output 0.5A
Line length: input about 10 cm,
output about 10 cm
Structure: shell integrated
Two-pole discharge distance: about 0.5-1.5 cm (more easily damaged)
Uses: commonly used in high-voltage production, electronic DIY, product development, high-voltage electronic anti-theft, etc.

How to use: The two poles of the high-voltage output terminal (single-color thick wire) are fixed within the specified discharge distance, and the low-voltage input terminal (two-color thin wire) is connected to the battery with the positive pole of the red line and the green line of the negative pole, and the high-voltage arc can be generated.
Input requirements: This product does not need auxiliary circuits, and can be used directly when connected to a battery. The input terminal is connected to a single 3.7V lithium battery (such as 18650 battery) or a nickel-cadmium/nickel-metal hydride battery pack, 4V or 6V battery, etc. (6V battery can reach the maximum best effect)

Notes on using the module:
1. The high-voltage module should be avoided when it is powered on when the high-voltage is no-load. Before power-on, the appropriate distance from the high-voltage line end must be adjusted. The arcing distance of the high-voltage line is proportional to the voltage and capacity of the battery used.
2. When testing the arc distance, the experiment should be from short to long. It is strictly forbidden to exceed the longest arcing distance when power is on. Because the high-voltage energy cannot be released, it is very easy to damage the module.
3. The power of the module is large, and it is not suitable for heat dissipation inside, so it cannot work for a long time.
4. The way to judge whether the battery capacity can drive the maximum output power is to measure the battery voltage when the arc is drawn. If it is around 6V, it can output the maximum power.
5. Two small-capacity lithium batteries are connected in series to 7.2V, and the measured voltage has dropped to about 4V in the arcing state. The smaller the capacity, the lower the voltage. Therefore, it is recommended to use a lithium battery above 2000MA, and it is best to use a battery above 4000MA if possible.

list
1*High voltage generator high voltage module
