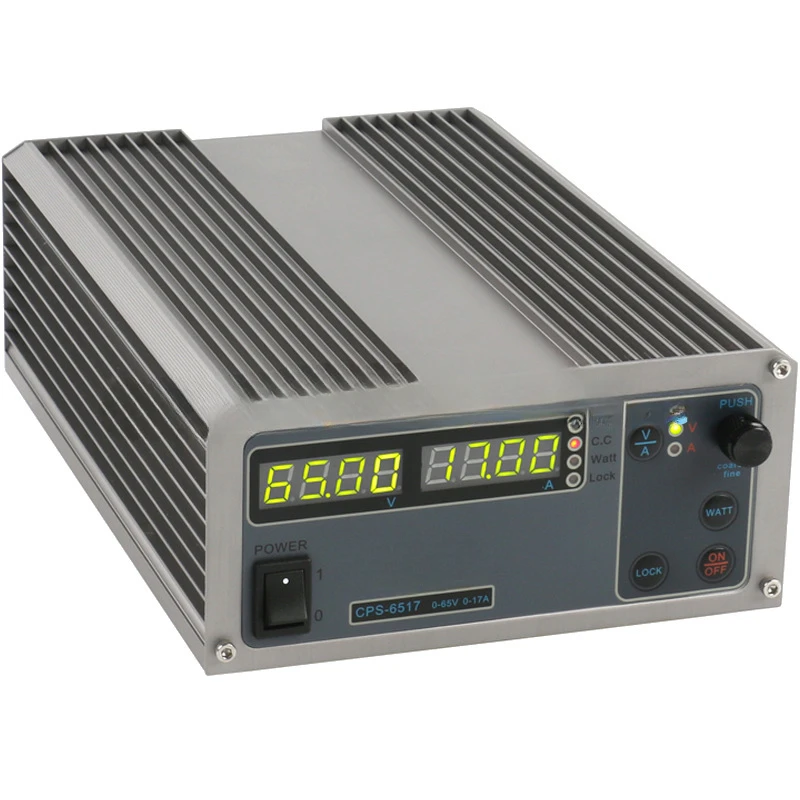

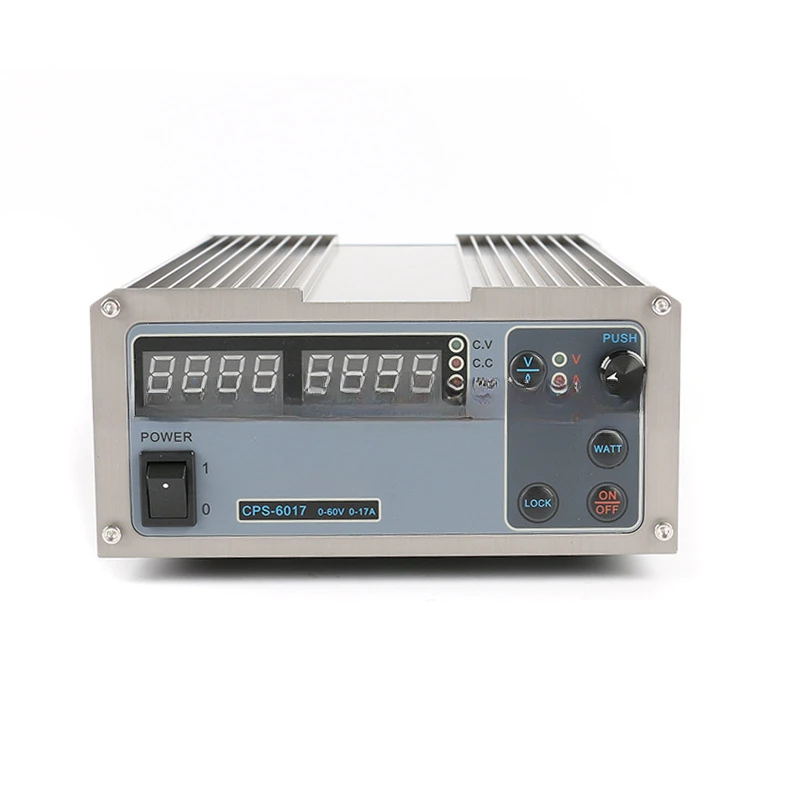

CPS-6017 60V 17A  CPS-6517 60V 17A Adjustable DC Power Supply

Features:

• It adopts microprocessor (MCU) control, which is extremely cost-effective.
• High power density, small and beautiful appearance
• All-metal shell, extremely low electromagnetic interference
• Use encoder to adjust voltage and current, set quickly and accurately
• Four-digit digital voltmeter and ammeter, set and display accurate to two decimal places
• Active Power factor correction (Active power factor correction), rated output power factor> 97%;
• High efficiency, up to 90% efficiency
• Low ripple noise, peak ripple below 30mV
• Output ON/OFF switch
• Intelligent Protection: output short circuit protection, Tracking overvoltage protection (Tracking OVP), Tracking overcurrent protection (Tracking OCP), over temperature protection (OTP)

Features:

• It adopts microprocessor (MCU) control, which is extremely cost-effective.
• High power density, small and beautiful appearance
• All-metal shell, extremely low electromagnetic interference
• Use encoder to adjust voltage and current, set quickly and accurately
• Four-digit digital voltmeter and ammeter, set and display accurate to two decimal places
• Active Power factor correction (Active power factor correction), rated output power factor> 97%;
• High efficiency, up to 90% efficiency
• Low ripple noise, peak ripple below 30mV
• Output ON/OFF switch
• Intelligent Protection: output short circuit protection, Tracking overvoltage protection (Tracking OVP), Tracking overcurrent protection (Tracking OCP), over temperature protection (OTP)

Specifications:

Operating voltage range 170-264vac
Operating frequency range: 45-65Hz
Output voltage range: 0-60V; 0-65V
Output Current range 0-17A

Power factor ≥ 97%
Efficiency (220Vac, full load) ≥ 89%
Full load input current (220Vac) ≤ 5.1A
No-load input current (220Vac) ≤ 180mA
Voltmeter accuracy ≤ 0.3% +1 digits
Ammeter accuracy ≤ 0.3% +2 digit

Constant voltage state
Load regulation rate (0-100%) ≤ 30mV
Input voltage regulation rate (198-264Vac) ≤ 10mV
Ripple noise ≤ 30mV
Ripple noise (R.M.S) ≤ 3mV
Setting accuracy ≤ 0.3% + 10mV
Transient response time (50%-100% rated Load) ≤ 1.0ms

Constant Current state
Load regulation rate (90%-10% Rated Voltage) ≤ 50mA
Input voltage regulation rate (198-264Vac) ≤ 20mA
Ripple current noise (peak-peak) ≤ 30mAp-p
Setting accuracy ≤ 0.3% + 20mA
Size (width × height × depth) 160 × 75 × 228mm
Weight 2.5kg

Note: No additional notice is given for product upgrades.
