Features:

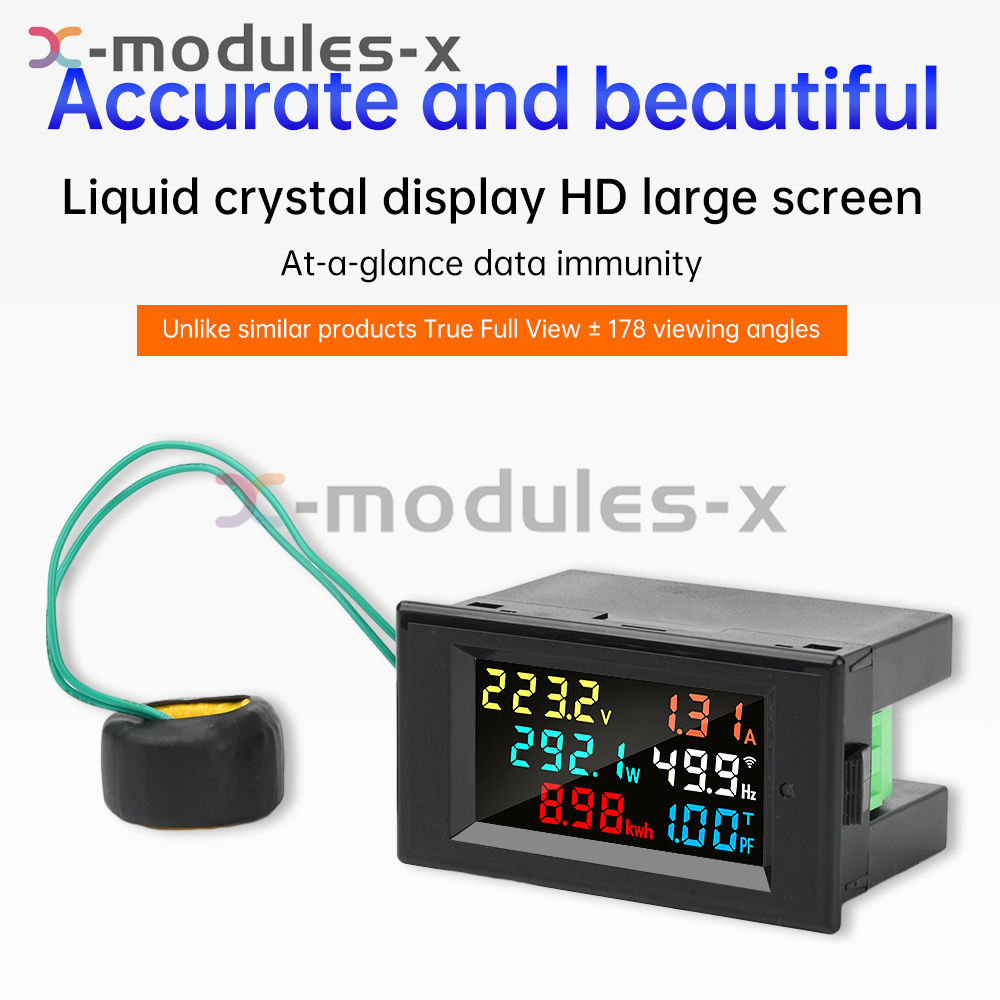

1. Using high-definition HD LCD display, ± 178 ° viewing without blind spots, data at a glance
2. Function test: AC voltage, current, power, frequency, electric energy, power factor.

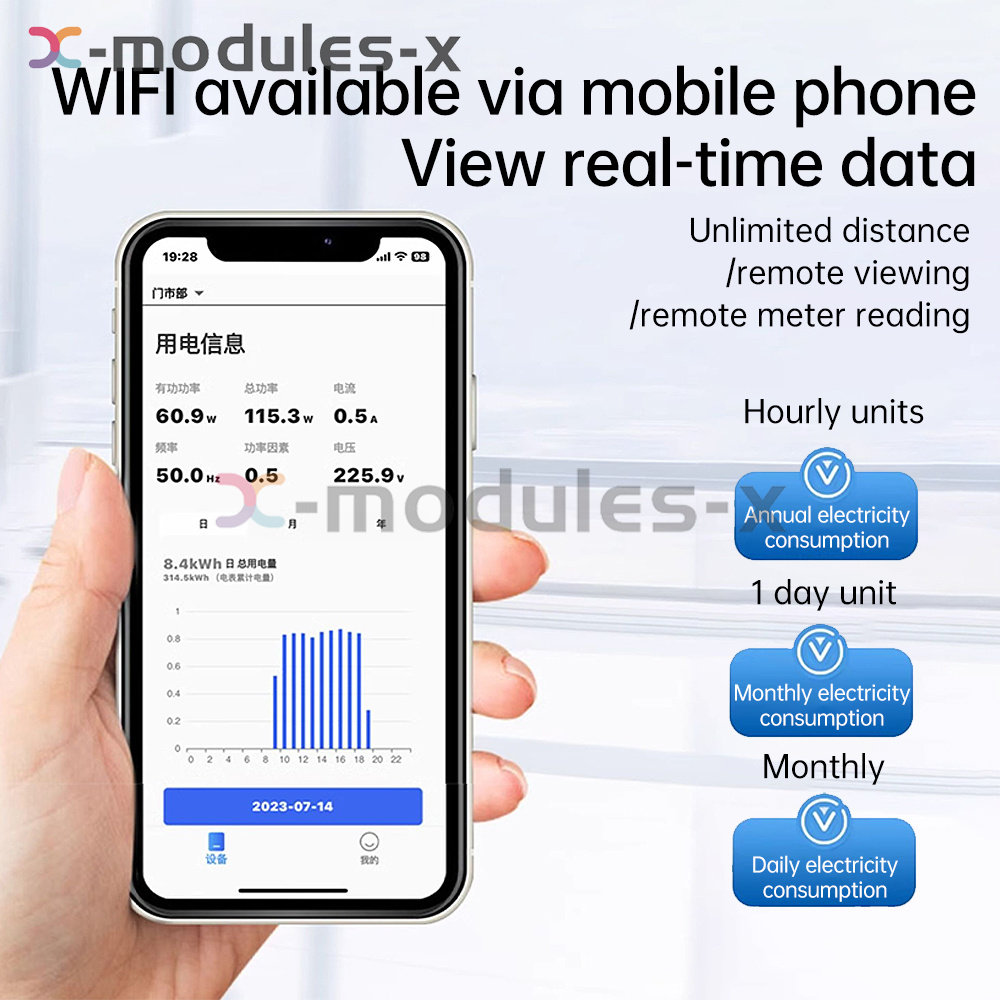

3. Real-time data can be viewed via cell phone, unlimited distance, remote viewing, remote meter reading

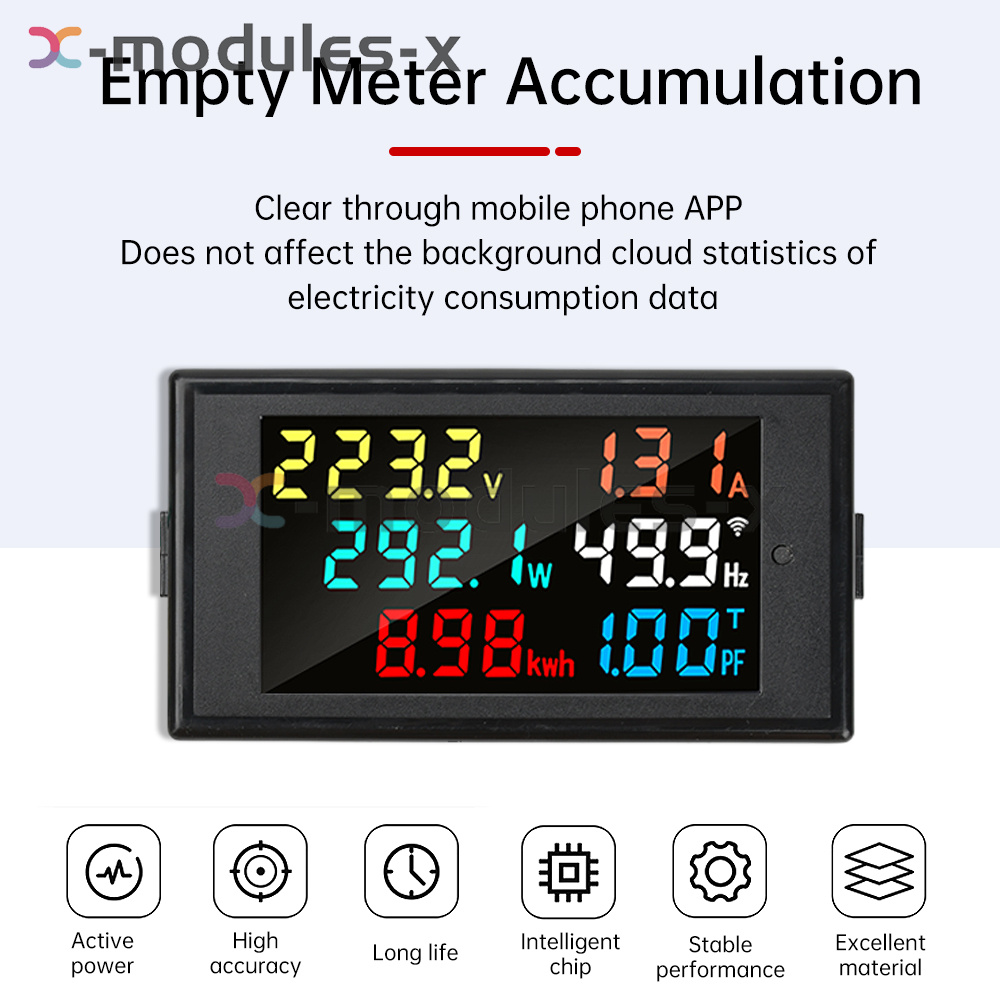

4. Empty the meter accumulated power consumption: through the cell phone APP empty, empty does not affect the background cloud statistics power consumption data

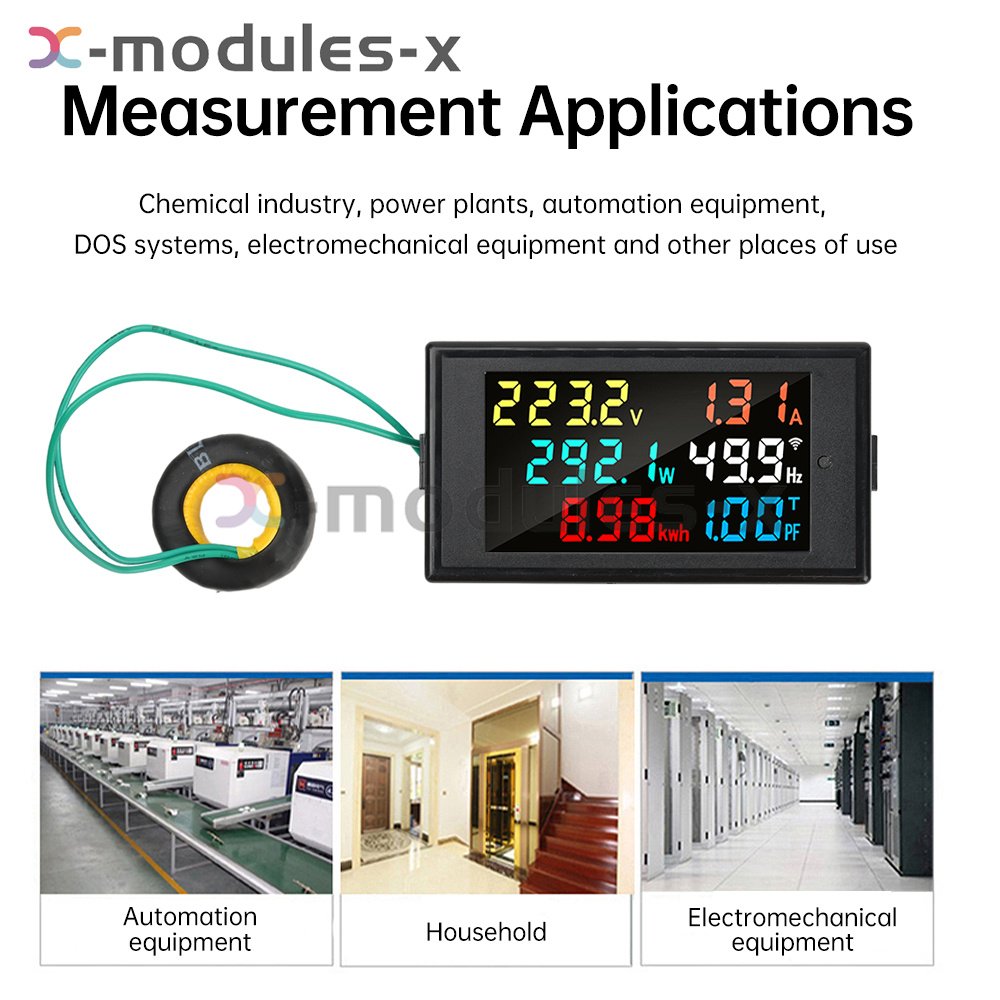

5.Measurement application scope: suitable for chemical industry, power plant, automation equipment, DOS system, electromechanical equipment and other fields.

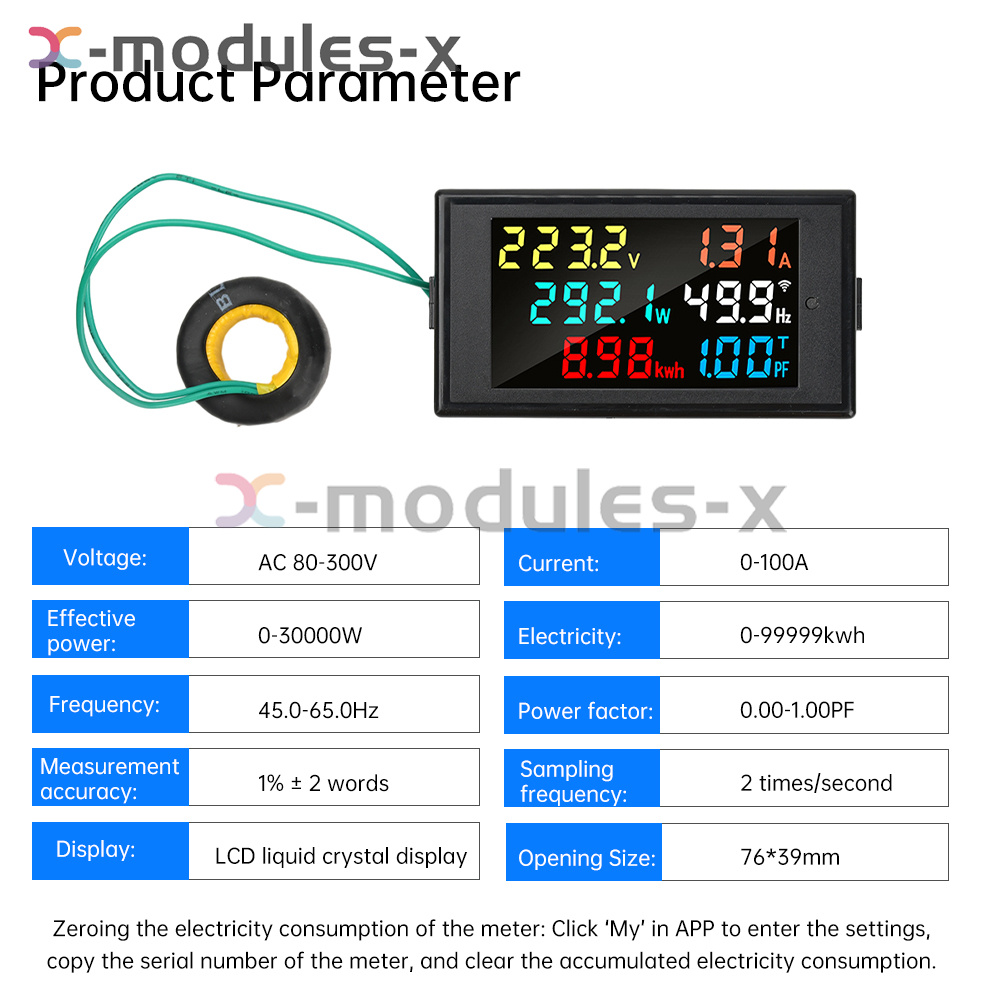

Parameter:
Voltage: AC 80-300V
Current: 0-100A
Effective power: 0-30000W
Electricity: 0-99999kwh
Frequency: 45.0-65.0Hz
Power factor: 0.00-1.00PF
Measurement accuracy: 1%±2 words
Sampling frequency: 2 times / sec
Display mode: LCD liquid crystal display

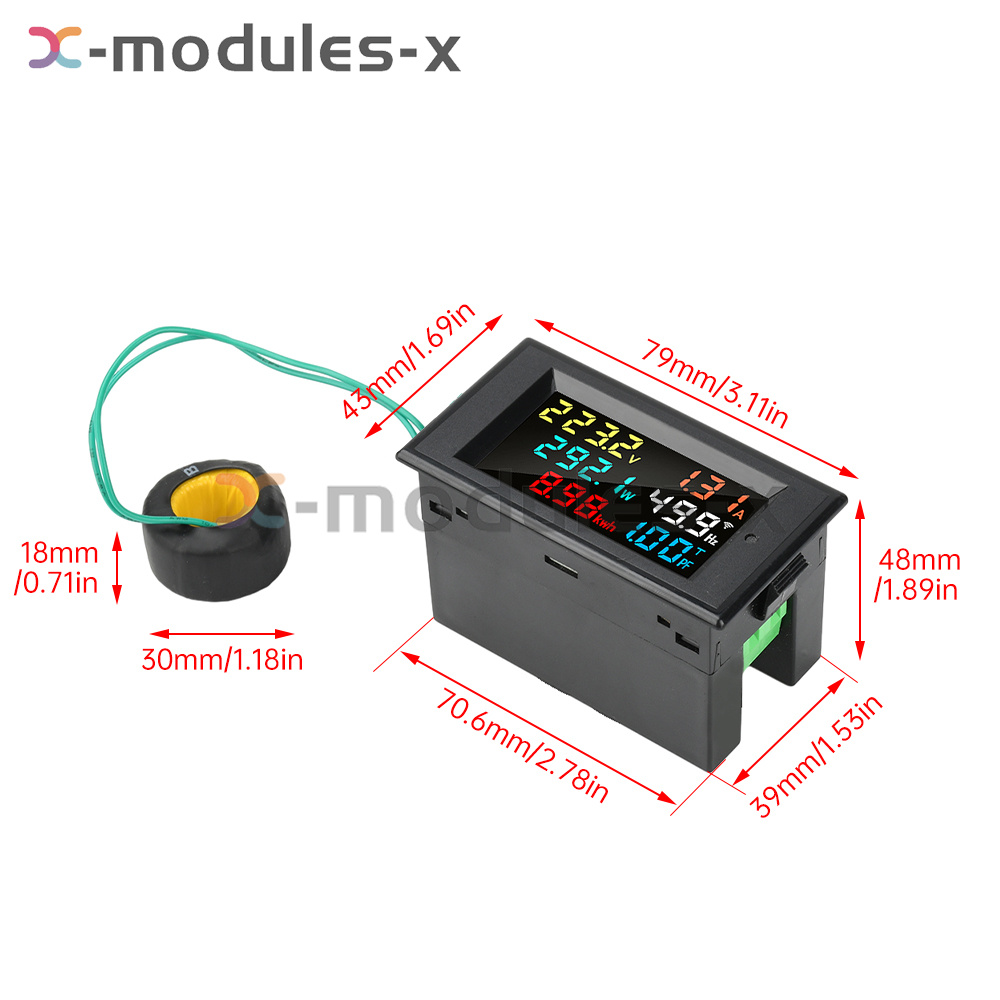

Overall Dimension: 79*48*43mm
Opening size: 76*39mm

Meter zeroing: APP click “My” to enter the settings, copy the meter serial number, and clear the accumulated power.

Package include:
Electricity meter*1
