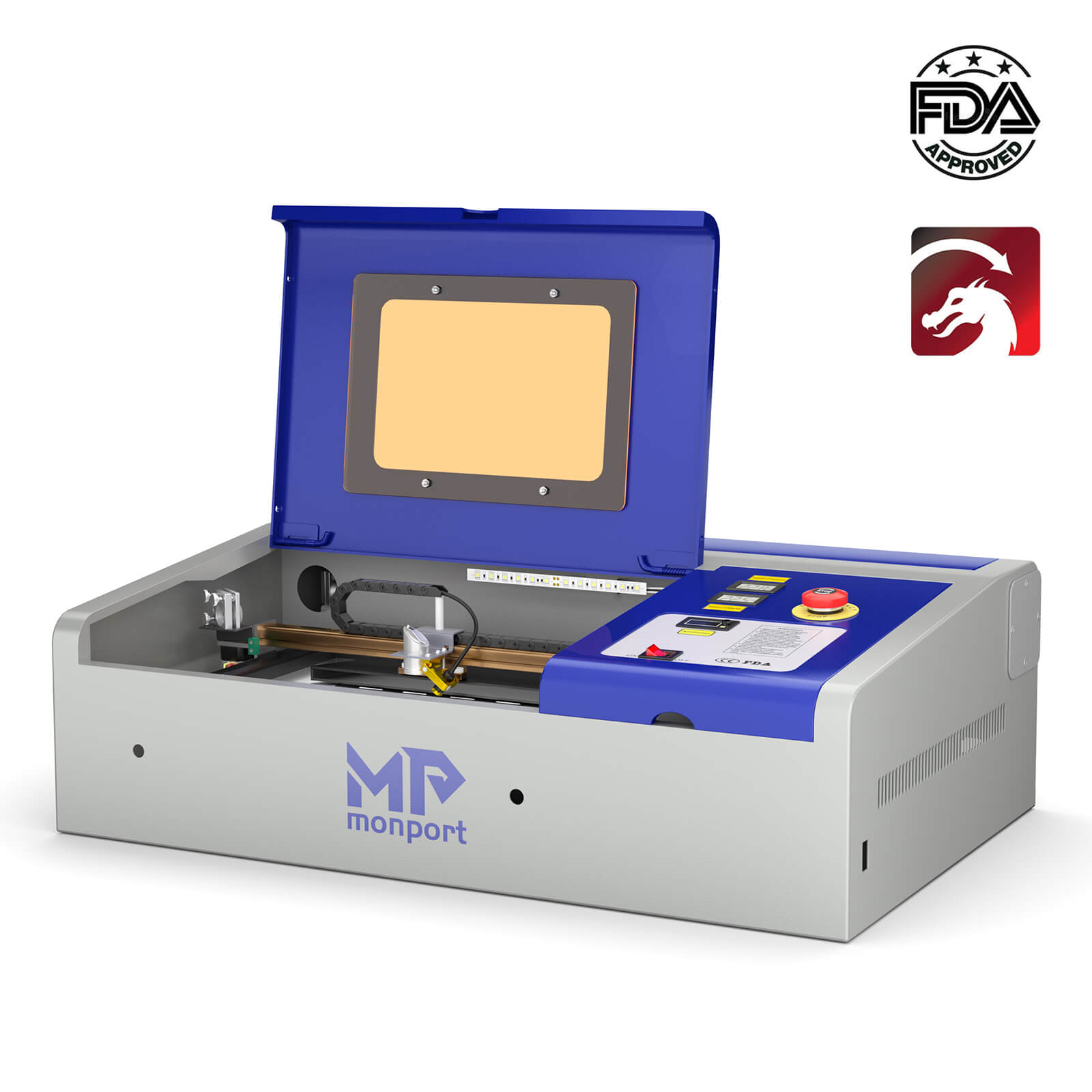

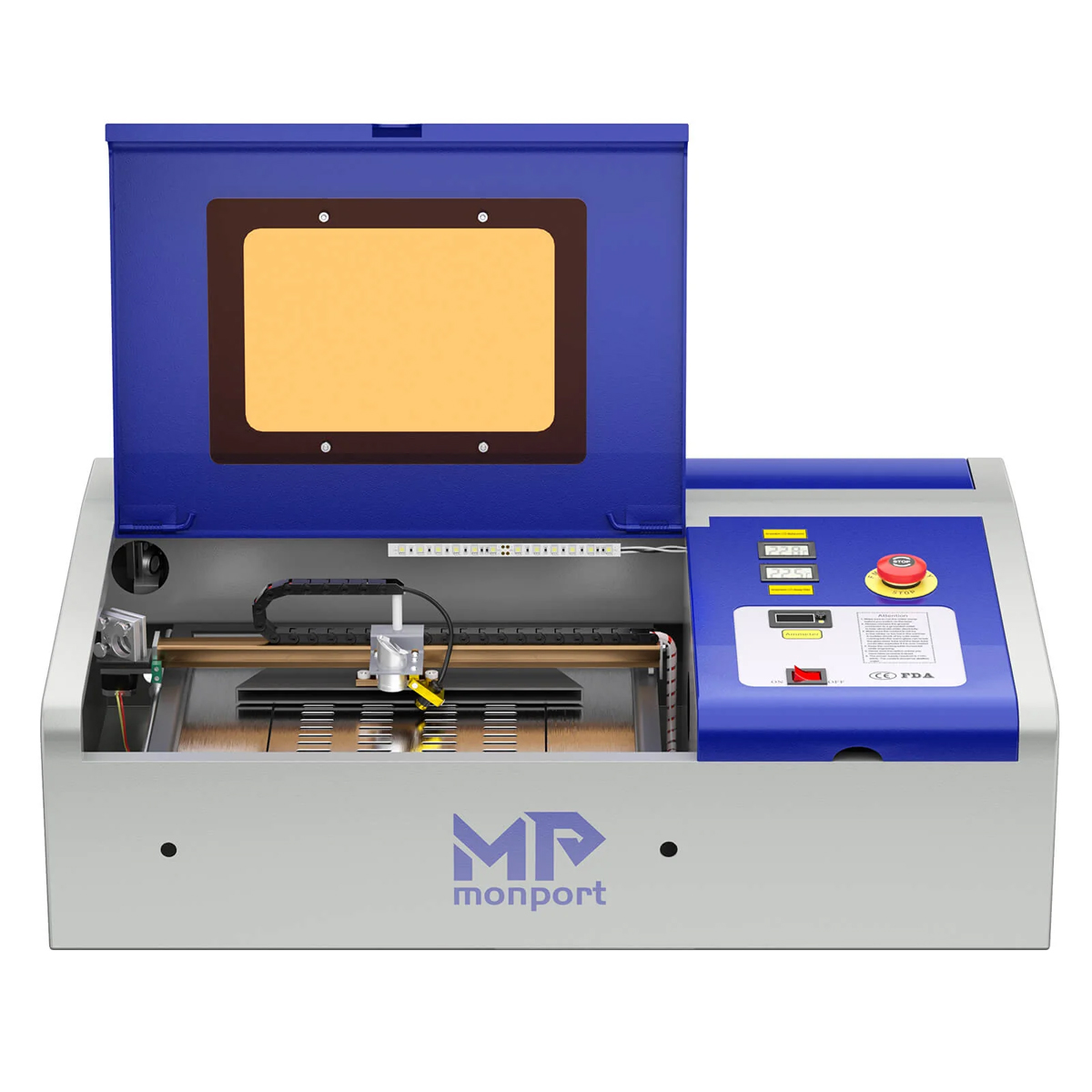

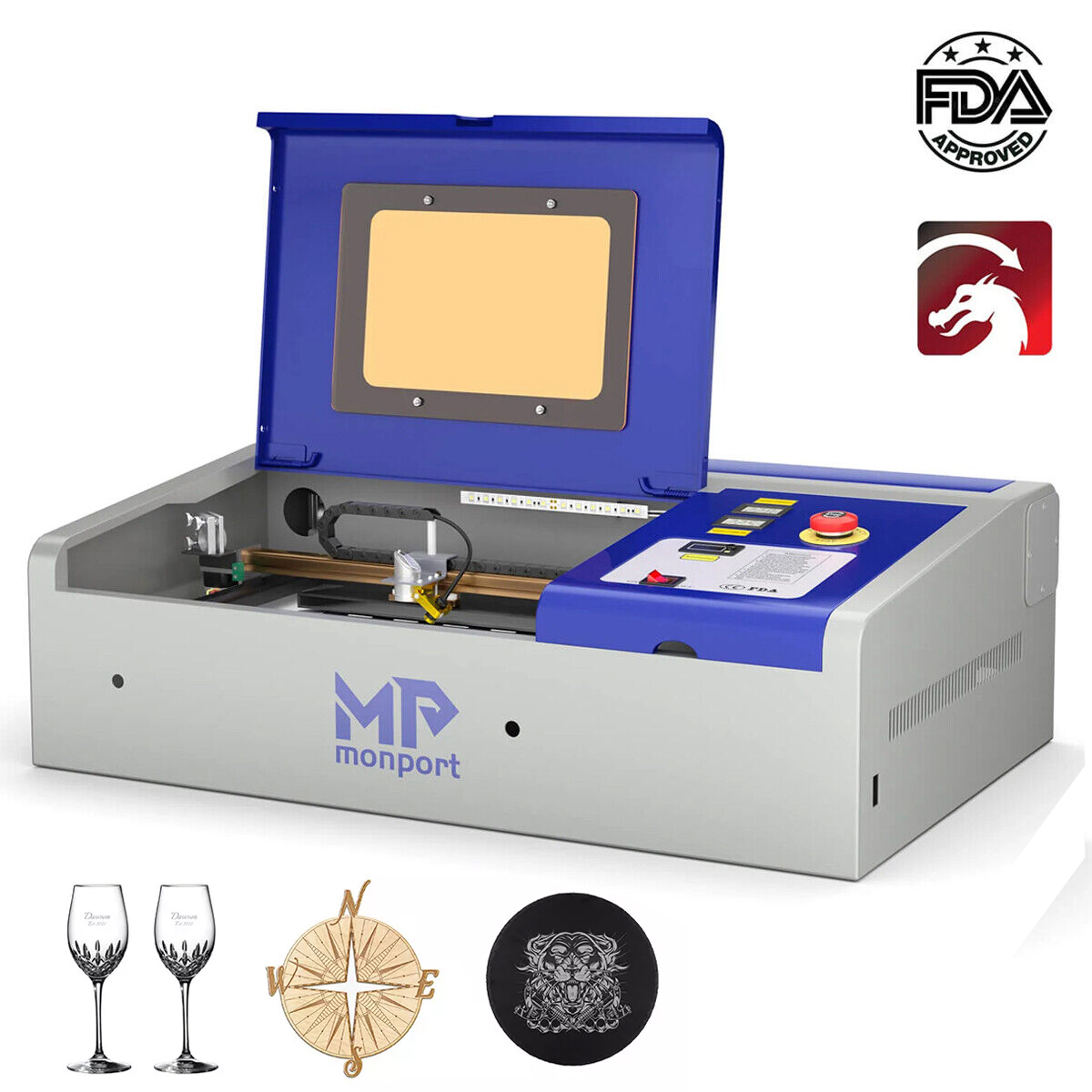

Monport 40W Lightburn-ready (12" X 8") CO2 Laser Engraver & Cutter with FDA Approval - 40W Basic
Features & Benifits
🔥 Exceptional Speed and Precision
- Our Desktop Engraving Machine guarantees high-speed engraving, reaching up to 350mm/s. It's also incredibly precise, offering an engraving accuracy of 0.01 inches. Whether it's wood, glass, acrylic, or leather, this machine engraves it all with utmost perfection.
🔥 Lightburn Compatibility
- We've equipped this 40W machine with an upgraded control board to ensure compatibility with Lightburn - the leading, most widely-used software in the industry. With Lightburn, your design possibilities are virtually limitless.

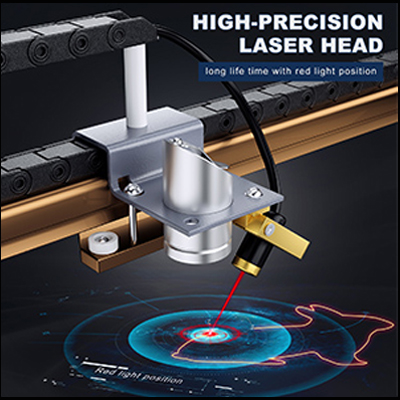

🔥 Red Dot Guidance
- Never miss the mark with our Red Dot Guidance feature. Mounted on the laser head, it illustrates the laser's path, providing unparalleled precision when lining up your cuts and engravings.
🔥 Innovative Dual Work Bed

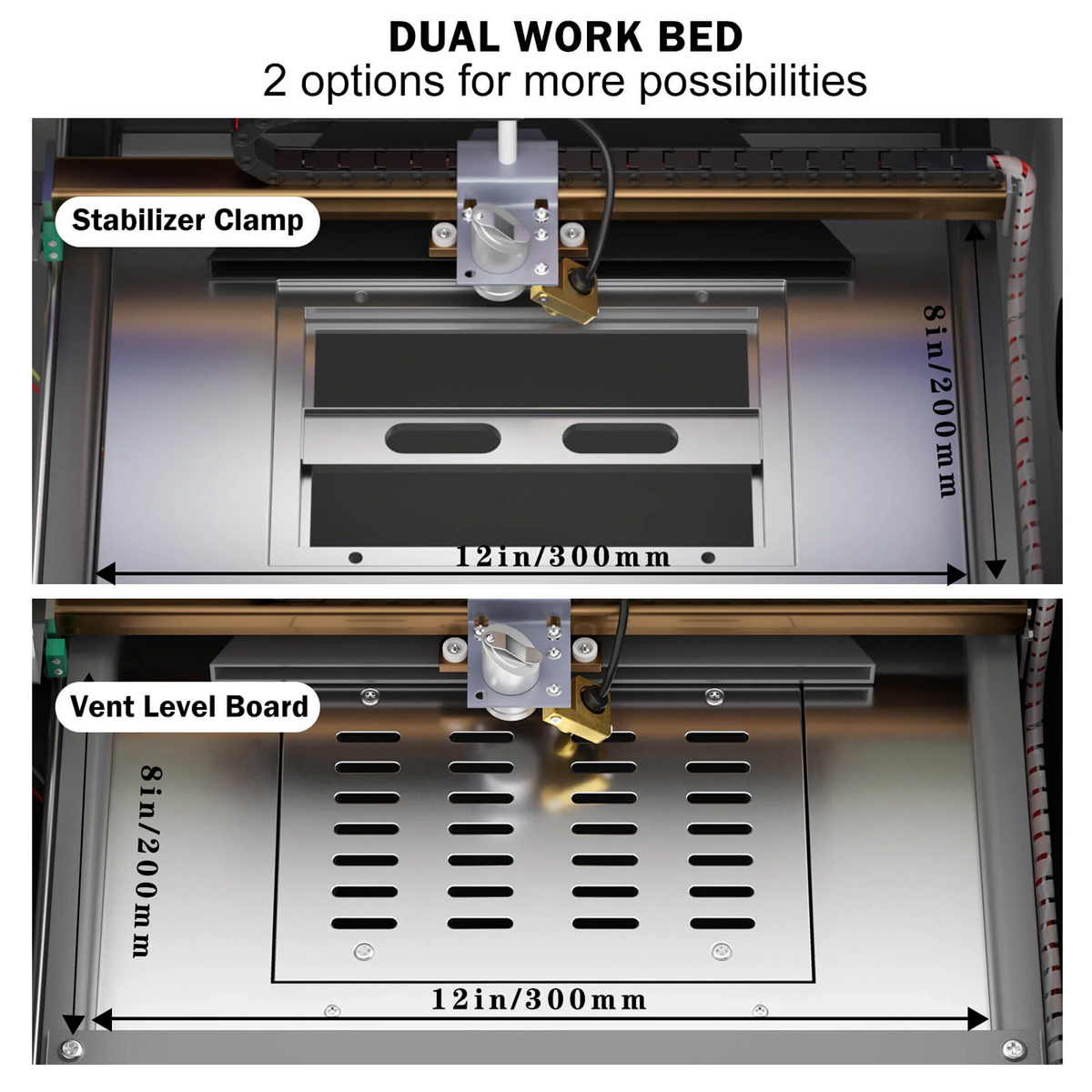

- The machine comes with a dual work bed, offering two options for more possibilities. The stabilizer clamp secures irregularly shaped objects in place, while the vented level board caters to regular shapes, making every engraving project a breeze.

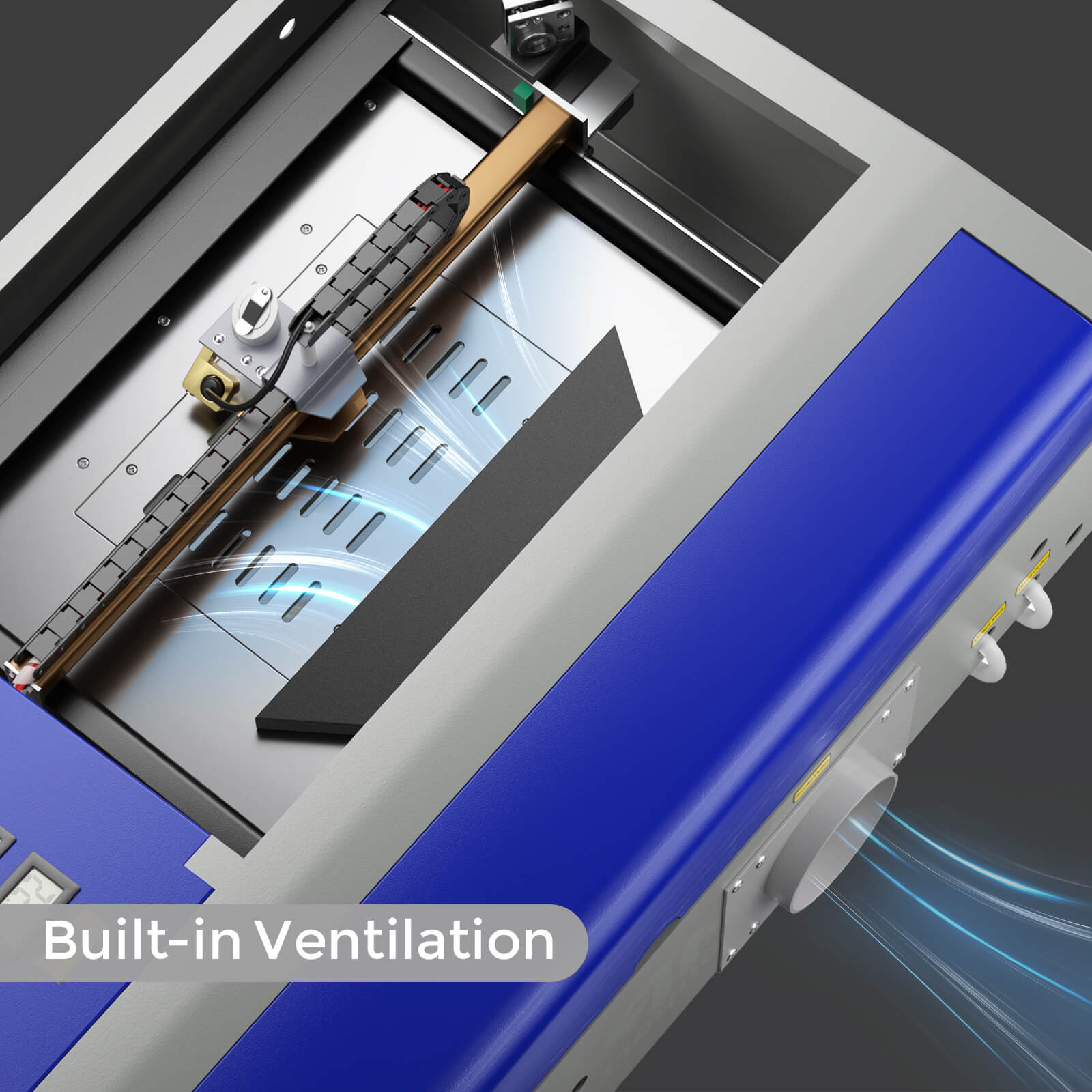

🔥 Built-in Ventilation
- Integrated fan to boost laser performance, improve ventilation, and reduce noise.The exhaust port helps to create a safe work environment, so you can vent the fumes to the outdoors.
40W CO2 Engraver Specification - Lightburn Software Comp.
With the upgraded control board, this 40w machine can be compatible with Lightburn, which is the most popular and widly-used softare on the market.
- Lightburn is a layout, editing, and control software for your laser cutter.
- With Lightburn laser software, you can: Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, and BMP).
- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing.
- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more.Send the result directly to your laser cutter.
Laser System
- Rated at over 40 watts

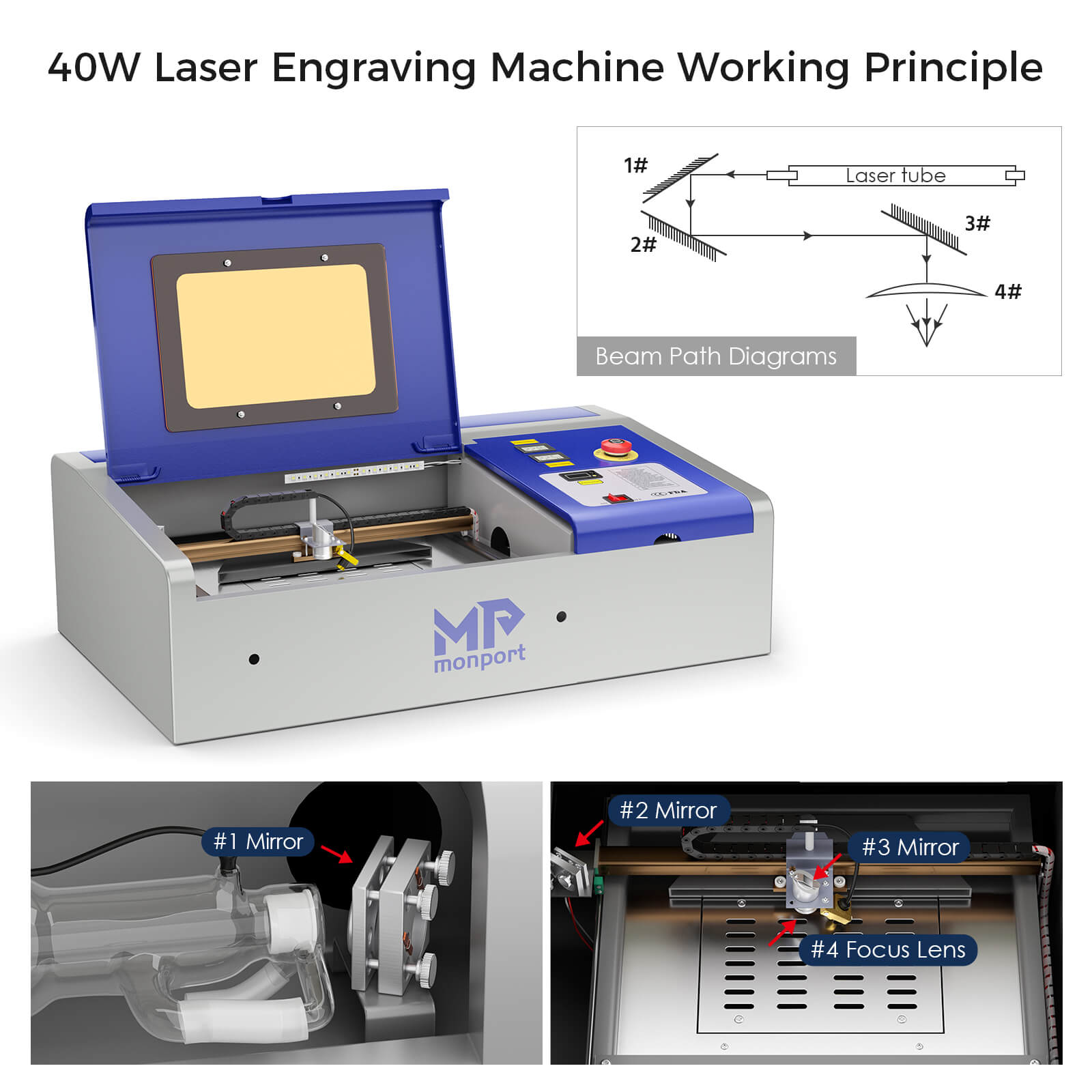

- Easy-to-adjust Optical path
- 12mm Focal lens diameter & 2.0" Focal distance
- 20mm Mirror diameter
- Recommended engraving speeds: 100–255 mm/s
- Recommended cutting speeds: 1–20mm/s (actual speed depends on the thickness of the material)
Mechanics
- Linear rails system— Custom extruded aluminum linear rails
- Motion— Equipped with stepper X, Y axis, plus mechanical limit switches
- Cooling— Easy-to-setup water pump and hoses
- Ventilation— On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors
ADVANCED FEATURES
|
|
|
|
|

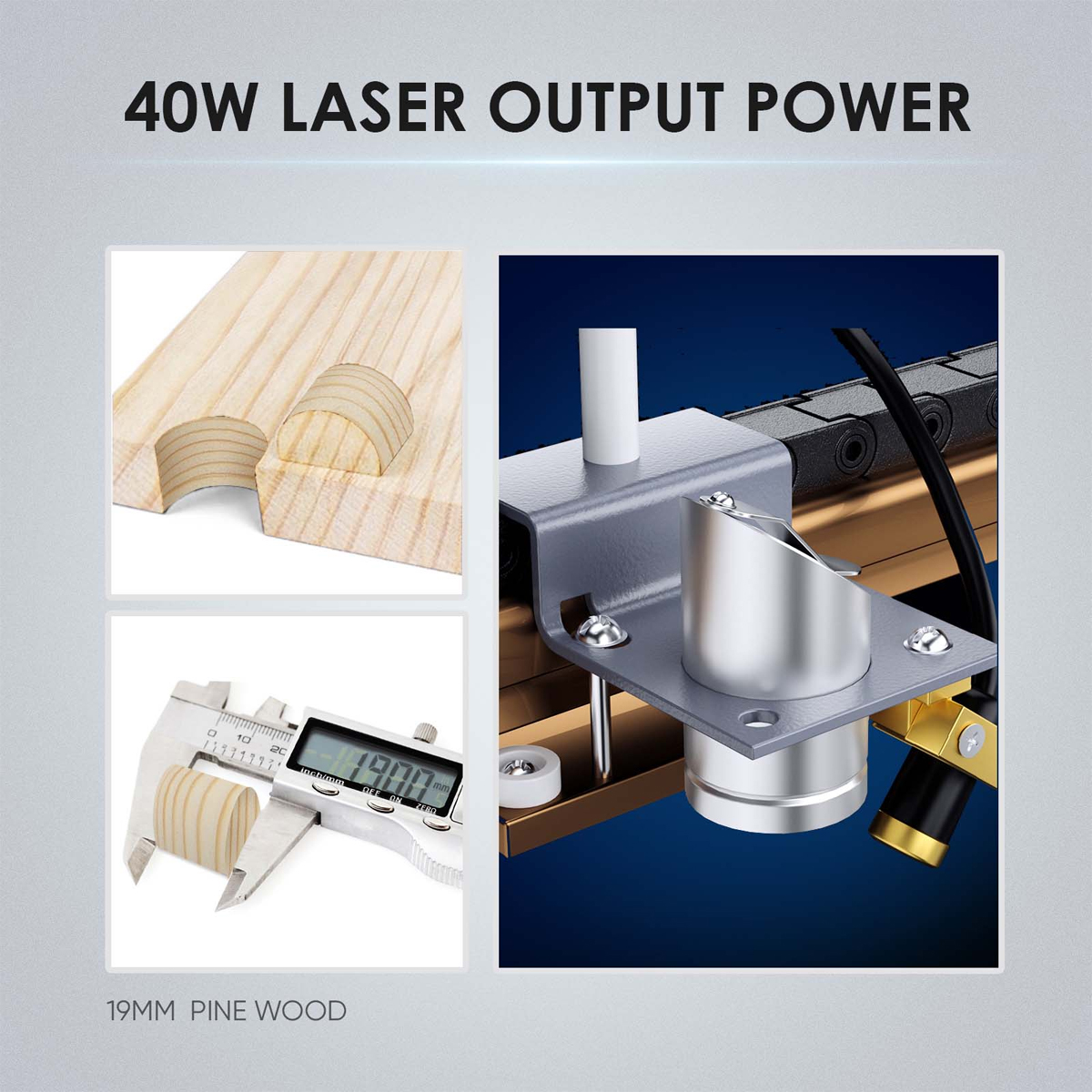

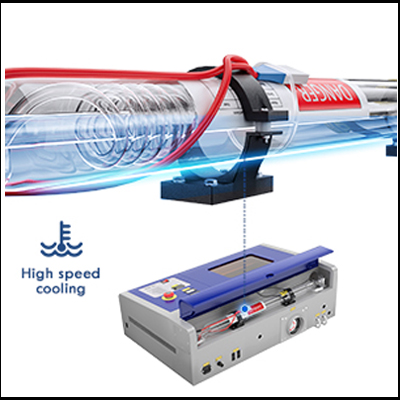

Water Cooling System and 40W Laser Tube
The easy setup water cooling system, including a compact water pump & built-in hoses. Laser Tube Lifetime Up to 2,000 operation hours depending on power setting. |
Red Dot Guidance
It mounts on the laser head which shows the laser path of the machine and can offer more precision when lining up cutting and engraving. |

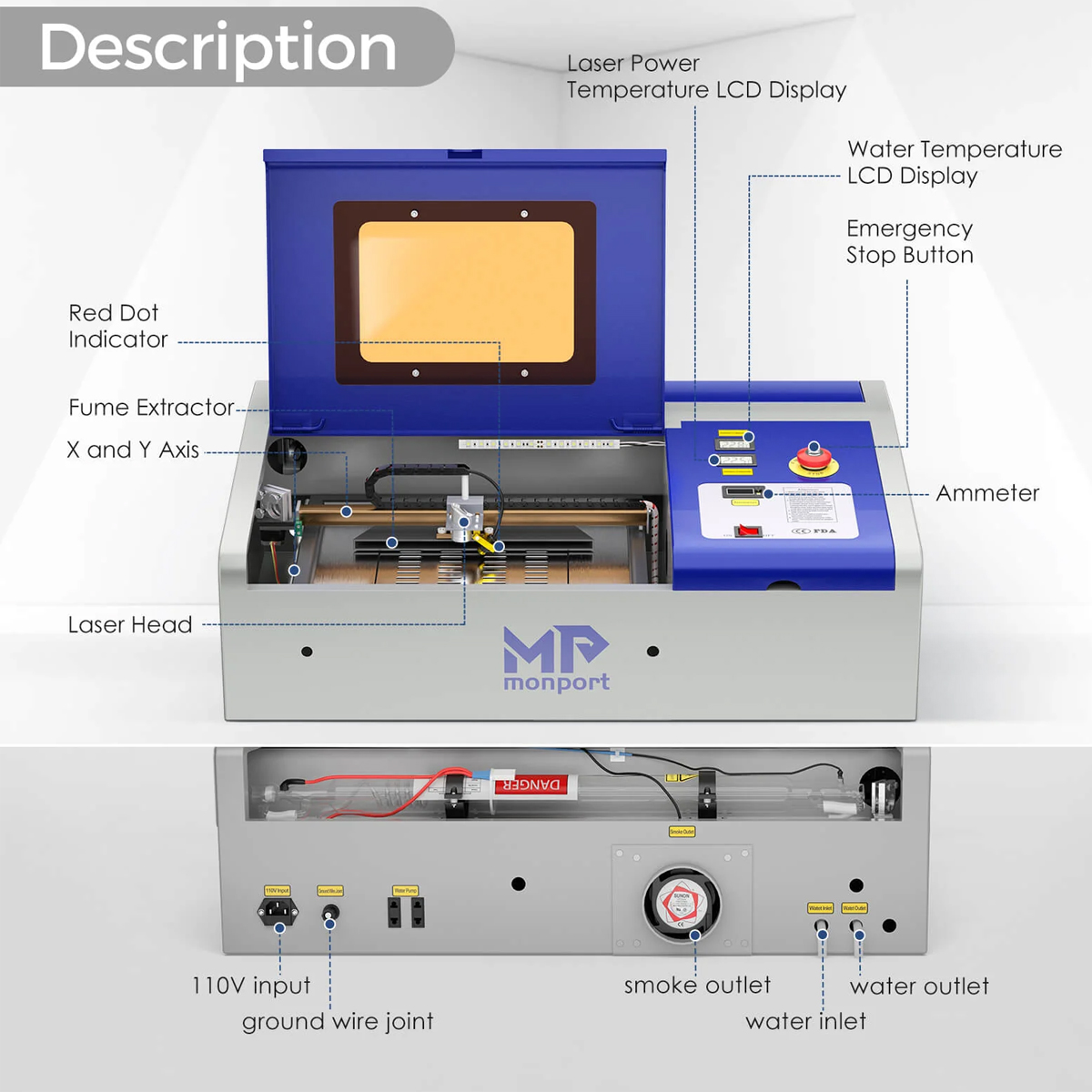

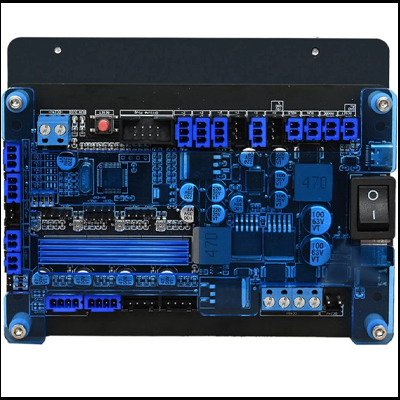

K40+ Motherboard
Monport's brand-new K40+ motherboard not only enabling vertical movement along the Z axis for easy lifting and focusing, but also working with LightBurn to create intricate photorealistic grayscale images. |
|
|
|
|
3 LED Monitor Displays
There are 3 LED displays with real-time data. They can monitor the water temperature, laser temperature and the current power, which help you to find wheter any problem occurs. |

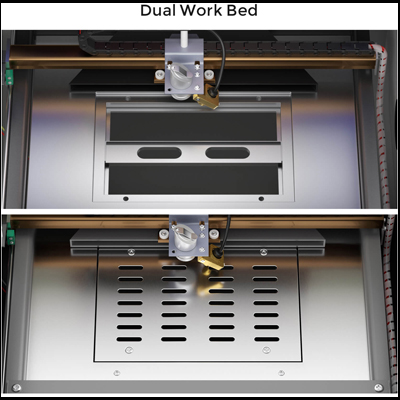

Dual Workbed & Efficient Exhaust System
40W engraver support Dual workbed to compatiable for your work. Our high-performance exhaust system works perfectly with our built-in fan, directing hazardous debris away from the engraving surface and into your ventilation system, enhancing your work quality and safety. |
LightBurn Software LightBurn communicates directly with your MONPORT CO2 Laser Engraver and most other DSP controlled laser engraving machines. Take advantage of a complete set of composition tools to artistically draw, arrange and edit shapes to create beautiful vector graphic designs for breathtaking engravings. |
Dimension
- Working Dimension: 8’’ x 12’’ (200 mm x 300 mm)

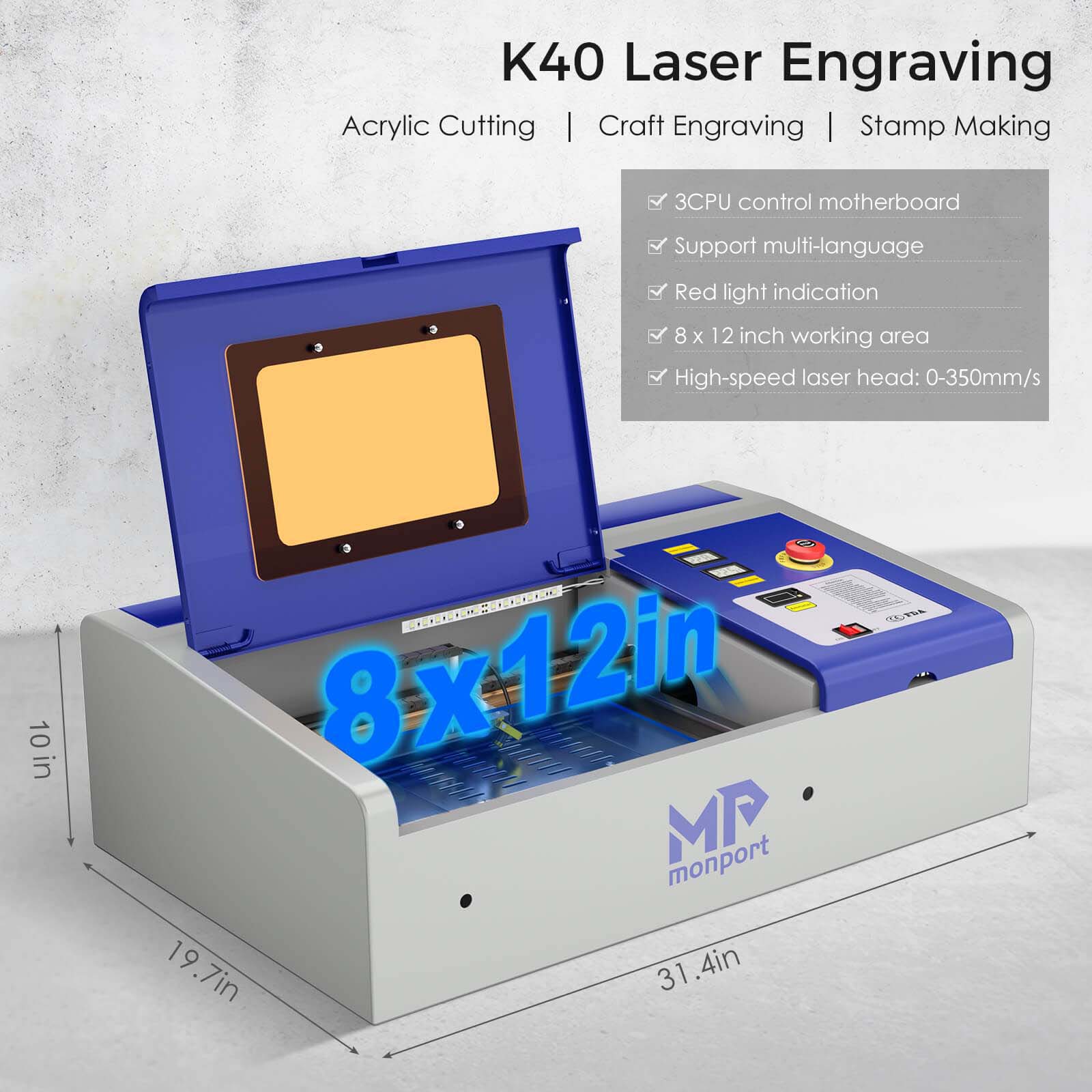

- Machine Dimension: 32” x 20” x 10” ( 81.3 cm x 50.8 cm x 25.4 cm )
- Package Dimension: 37” x 25” x 16” ( 94 cm x 64 cm x 41 cm )
- 0.5” Standard Z-depth ( workspace height with the vented level board installed )
- 2.5” Max Z-depth ( workspace height with vented level board removed )
- Net Weight: 63 lbs. ( 28.6 kg )
Package Contents
- Laser Engraver Machine *1
- A Pair of Laser Protective Glasses *1
- Accessory Bag *1
- Venting Exhaust Duct *1
- USB 2.0 Cable *1
- Power Cord *1
- Stainless Steel Clamp *1
- Water Pump *1
- Double-sided Tape *1
- Silicone Sealant *1
- Random Material for Test *1
- Wrench *1
- A Focus Plate *1
- Instruction Manual *1
| Manchine Model | Monport 40W Lighhtburn-ready |
|---|---|
| Working Area | 8" x 12" |
| Machine Dimension | 31.4" x 19.7" x 10" |
| Exhaust Port Diameter | 4'' |
| Output Power | 40W |
| Compatible Operating Systems | MacOS,Windows XP/7/10 |
| Max.Process Speed | 350mm/s |
| Product Weight | 48.5 lbs |

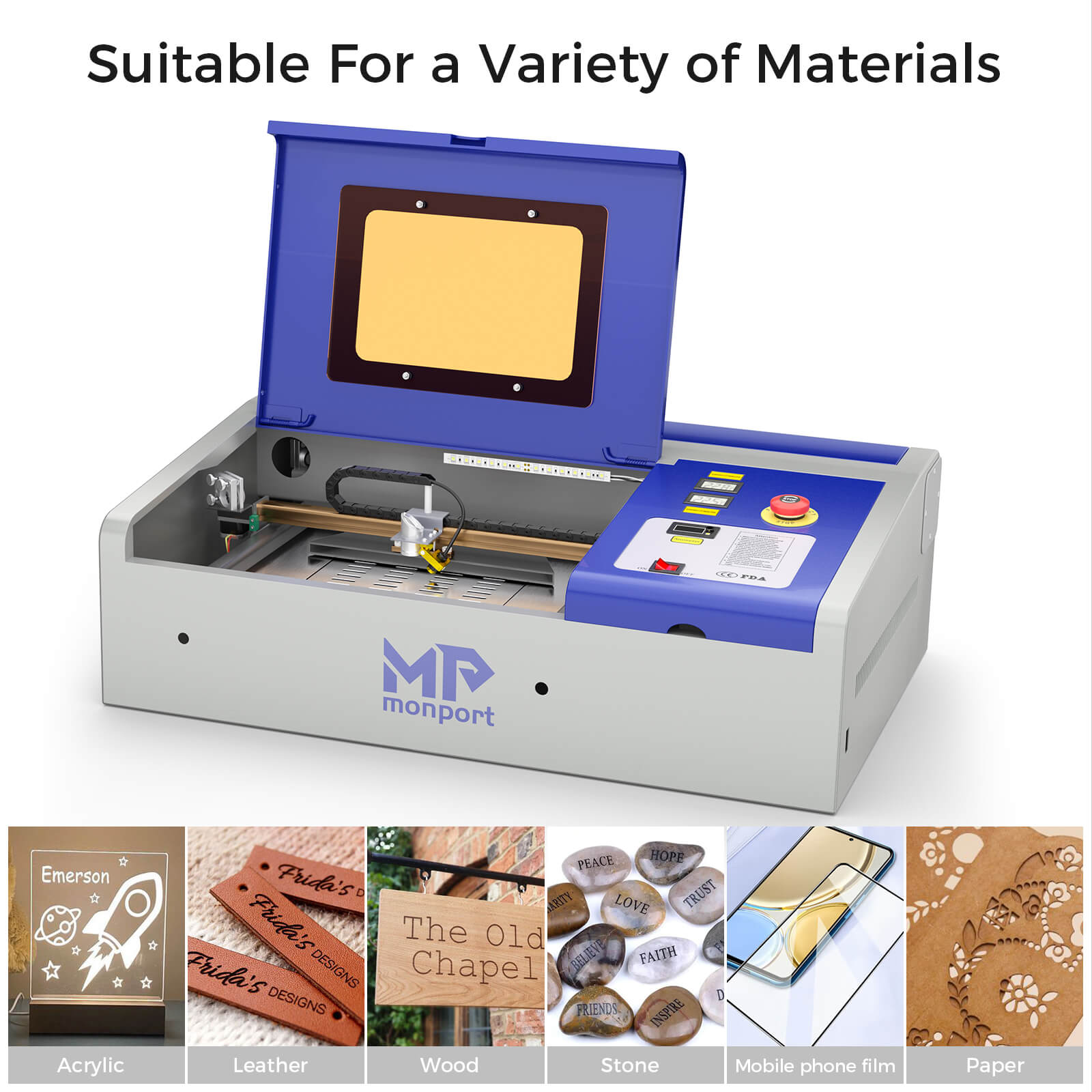

| Material Capability | Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber. |
| Focal Lens Diameter | 12mm |
| Mirror Diameter | 20mm |
| Expected service Life of Laser Tube | 1500-2000 hours |
| Laser Frequency | 20-100 kHz |
-
