Specification
Product name: Hydraulic Punching Machine
Model number: CH-80
Tonnage: 50T
Laryngeal depth: 120 mm
Mold configuration: Φ16、Φ18、Φ22、Φ25
Punching Range: Thickness of Iron Plate/Steel Plate: ≤16MM;
Angular Iron: 6-12# ;Channel Steel: 8-15#
Packaging size: 37*21*38cm
Weight: 78KG
Hole diameter:6.5-25mm
Packing:
1*Hydraulic Punching Machine+4*die
Note:
1.There are two types of machine: Single Loop / Double-Loop
Please tell us your choice, or we'll send it at random.
2. The two-hole is custom-made, the ordering time is about 4-5 days, and the return is not supported!

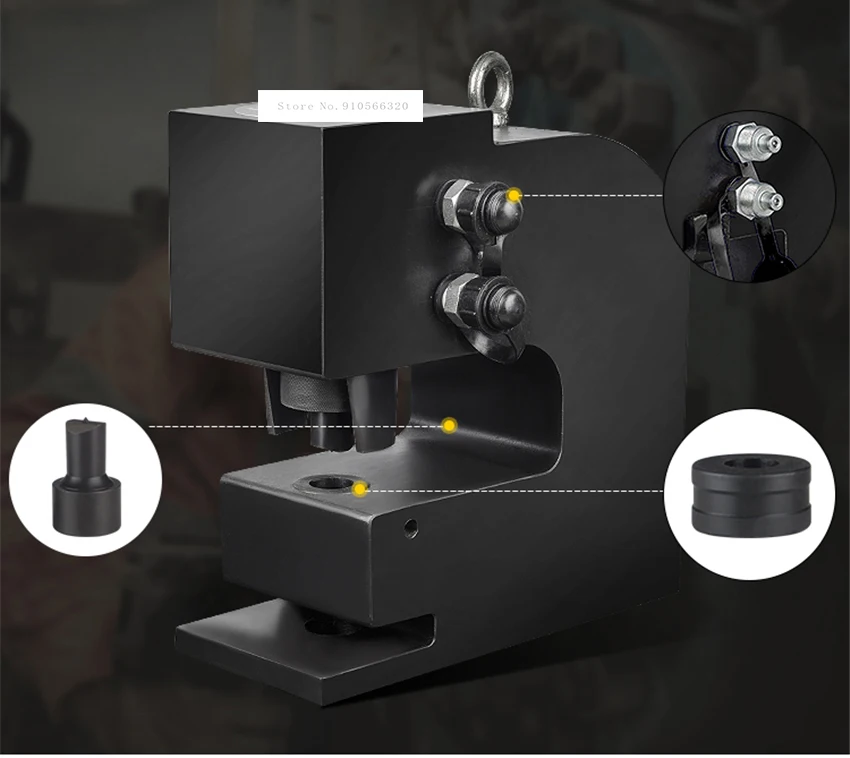

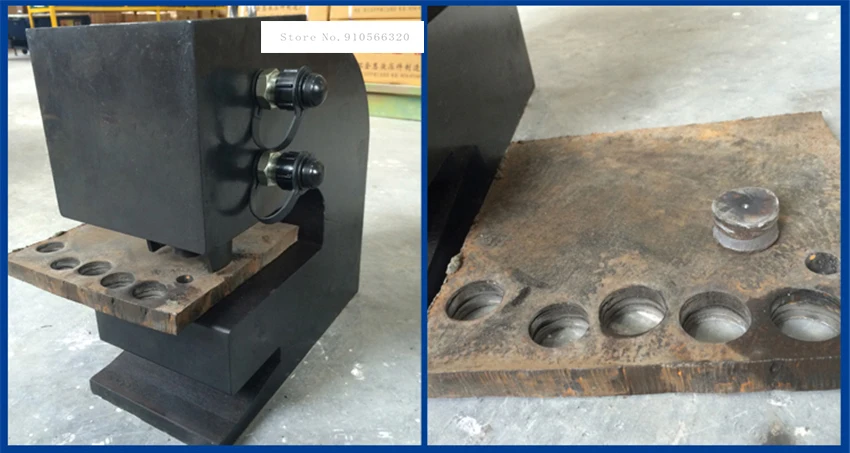

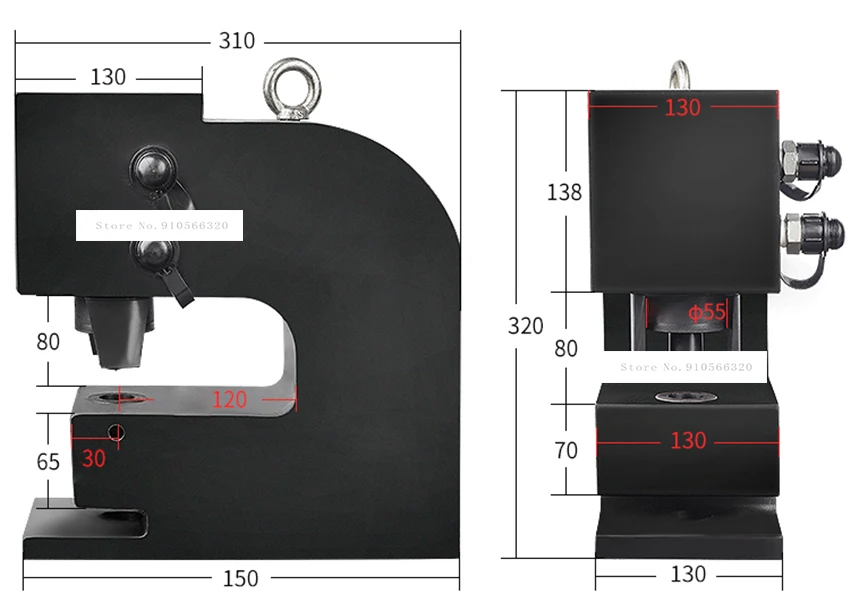

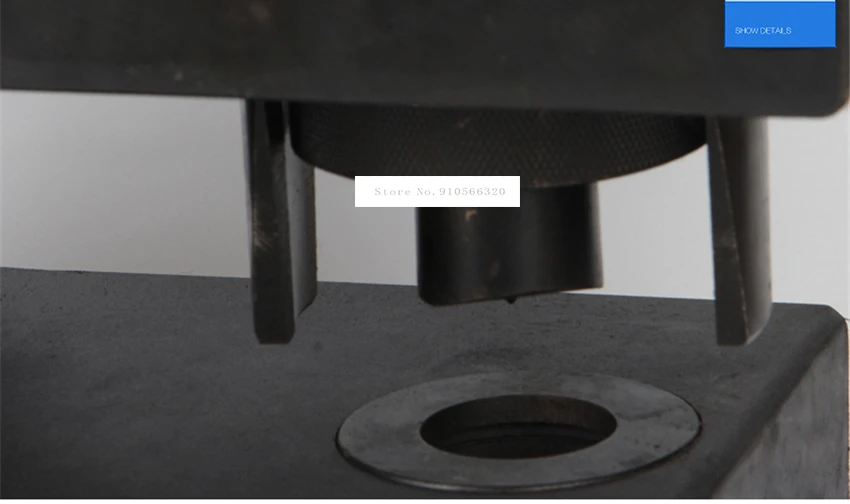

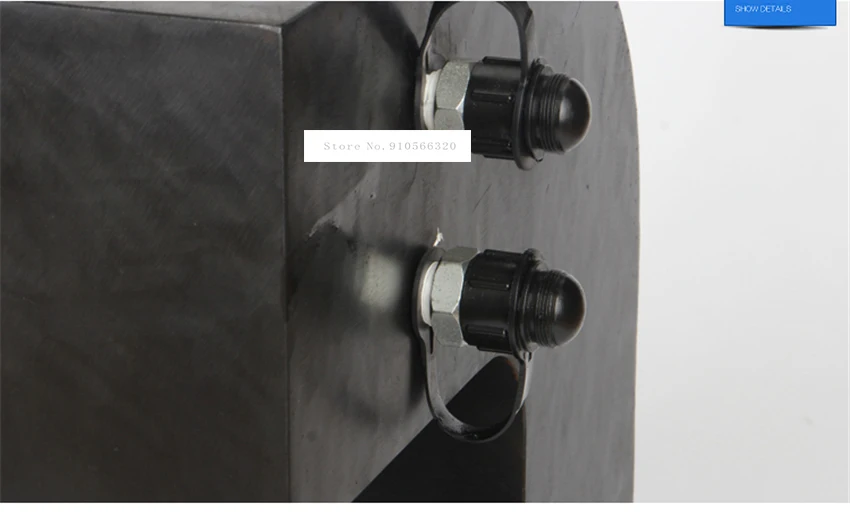

Picture showing
|
