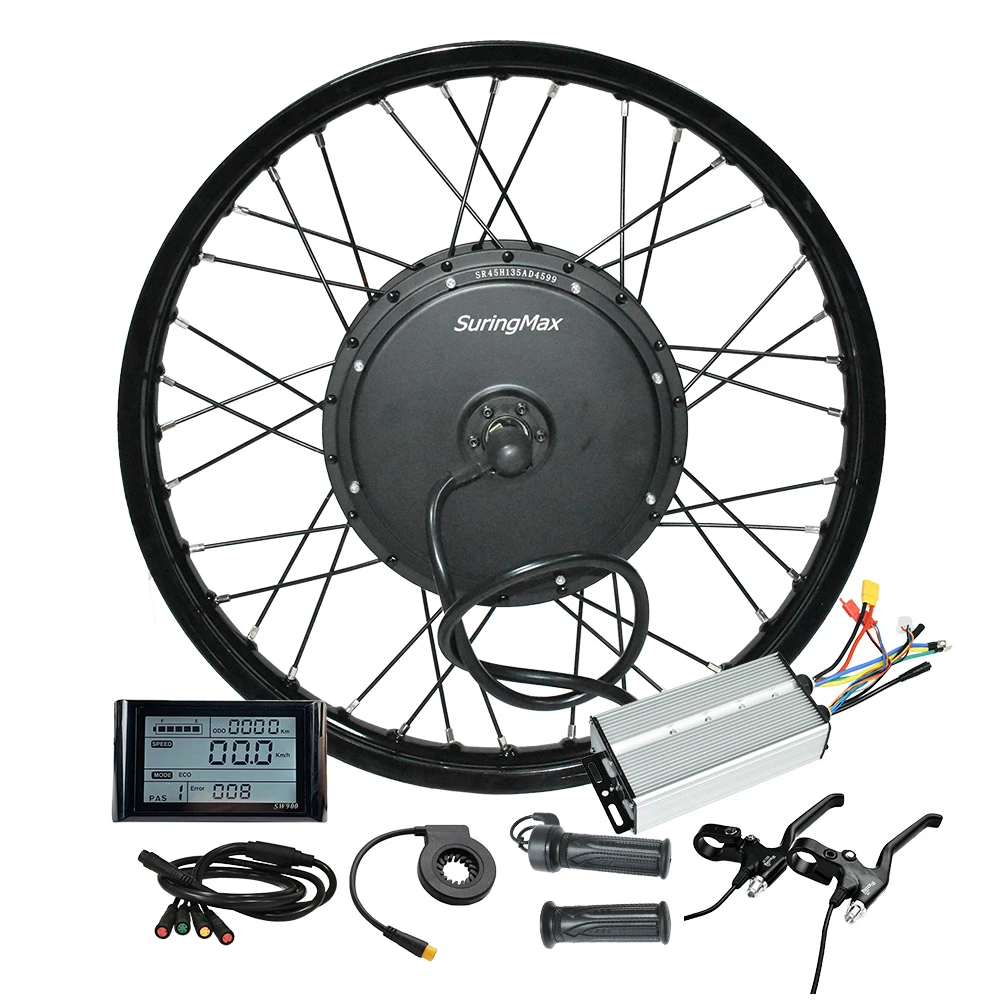

The price is for A 5000w motor+ A 19inch motorcycle rim+10G spokes+A 72V 100A controller+A SW900 LCD display+A brake sensor+A thumb throttle.
The motor is the version 2 of 50H magnet 5000W hub motor.the advantage of it is :
1)It 's aluminum stator,is 0.35mm 300 silicon steel sheets.23 pairs(46 pieces)magnets in the motor.
2)The phase wire is 10 mm square,it can afford 100Amps current.
3)It has 2 pieces of hall wire,so you don't need to be worried about the hall problem.
Specification of the 5000w motor
Actuation position Rear
Colour Black
Rated voltage 72V-96V
Rated power 3000-5000W
Max speed 30km/h---120km/h
Rated dfficiey >80%
Weight 13.5Kg
Open size 150mm
Cable location Shaft side left
Spoke specification 10G
Spoke hole 36 holes
Hall sensor Optional
Connector Optional
Brake type V/Disc brake
Noise <50dB
Water proof grade IP54
max load speed
48V 72V 84V 96V
16 inch 34km/h 51km/h 60km/h 69km/h
18 inch 38km/h 58km/h 67km/h 77km/h
20 inch 43km/h 64km/h 75km/h 86km/h
22 inch 47km/h 71km/h 82km/h 94km/h
24 inch 51km/h 77km/h 90km/h 103km/h
26 inch 55km/h 83km/h 97km/h 110km/h
28 inch 60km/h 90km/h 105km/h 120km/h
About the 5000 motor kit
* Rim: 19inch motorcycle rim,1.6 model. Suitable tyre is 2.75-3.0.
* Controller: 72V100A squarewave type. Dual function mode which is safer and more durable.

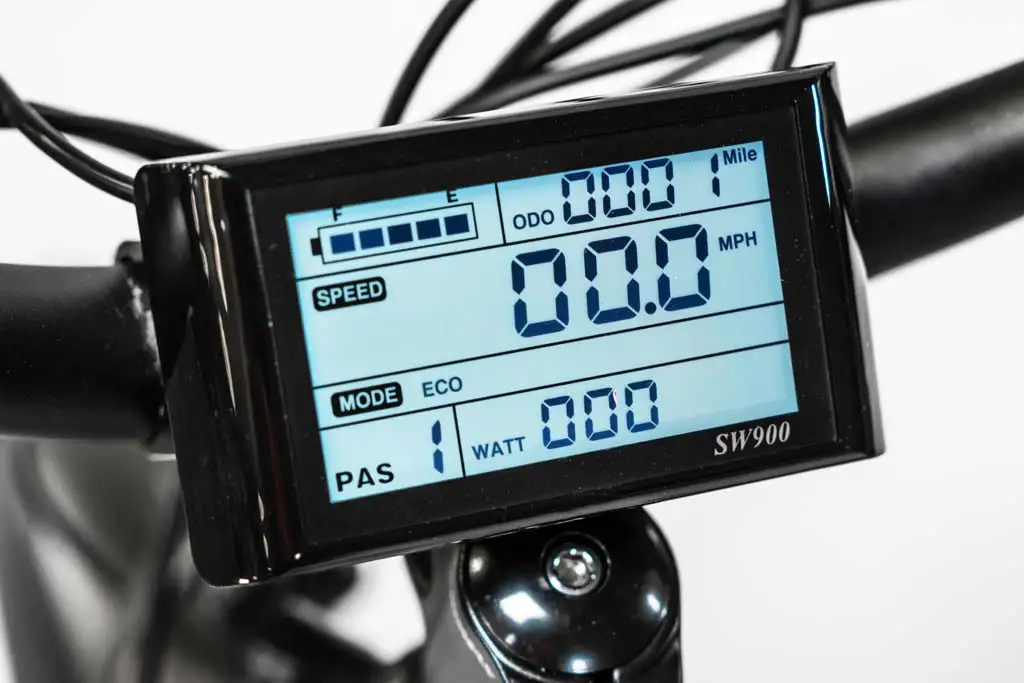

* Display: SW900 display display, data clear+ error report.
* Brake sensor: safer than e-brake levers when under such big voltage and current. Use with your own normal brake levers to cut off power.
* Thumb throttle: smaller and easy to install.
Inner image
What it looks like when mounted on wheel and bike
