QS273 40H Electric Bike Spoke Hub Motor V3 Type 152mm drop-outs

Parameters:

-Motor Type: BLDC Hub Motor with Permanent Magnet
-Motor design: Double axle out
-Spoke hole: 3.4mm x 36pcs
-Matching Rim:18inch-19inch
-Magnet Height: 40MM
-Pole Pairs: 16paris
-Rated Power: 4000W
-Peak Power: 8000W-12000W
-Rated Voltage: 72V as default( 48-96V,optional)
-Max Speed:80KPH as default(30-120kph,optional)
-kV:11.46/12.46/13.54/15.69 etc.
-Max Torque: 182N.M
-Max Efficiency: 90%
-Continious Battery current:55A at 72V
-Max Battery Current:110A
-Brake type: Disc brake ,PCD6*44MM
-Rear Fork width for installation: 152mm
-Winding Holder material: Aluminium
-Cross Section of Phase wire: 16 mm2
-14MM English thread length for single/3-speed freewheel
-10mm axle flats
-Hall sensor phasing angle: 120 degree
-Temperature Sensor: KTY83/122
-Max. Working Temperature: 70-120 degree, Peak 150 degree
-Waterproof Grade: IP66
-Color: Black
-N.W./ G..W. : 18kgs / 21kgs

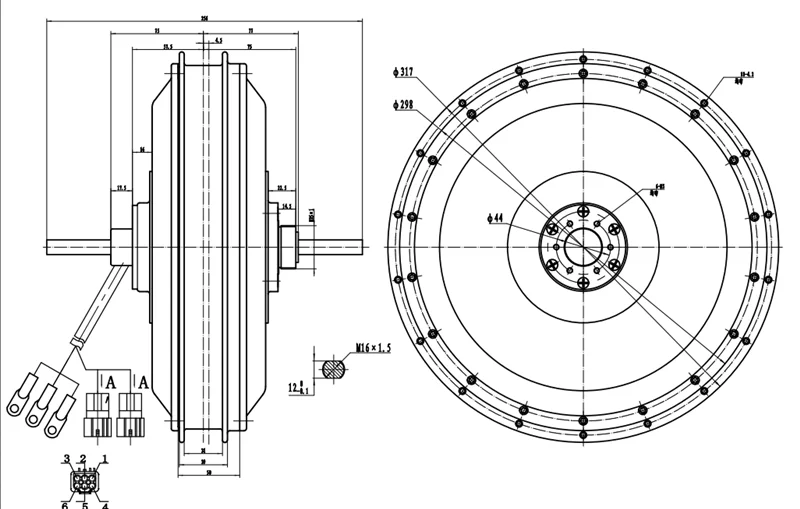

The drawing of the motor
