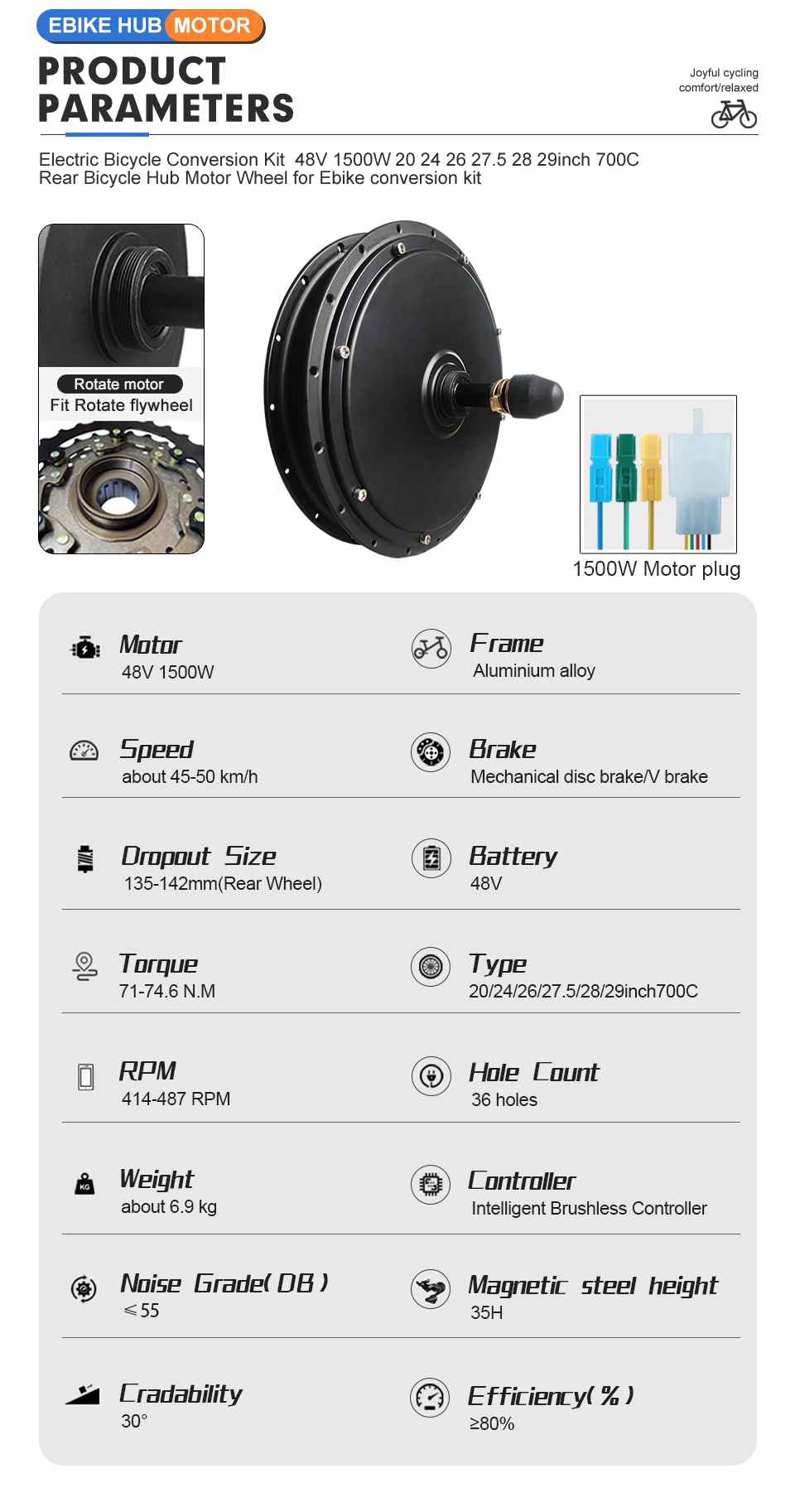

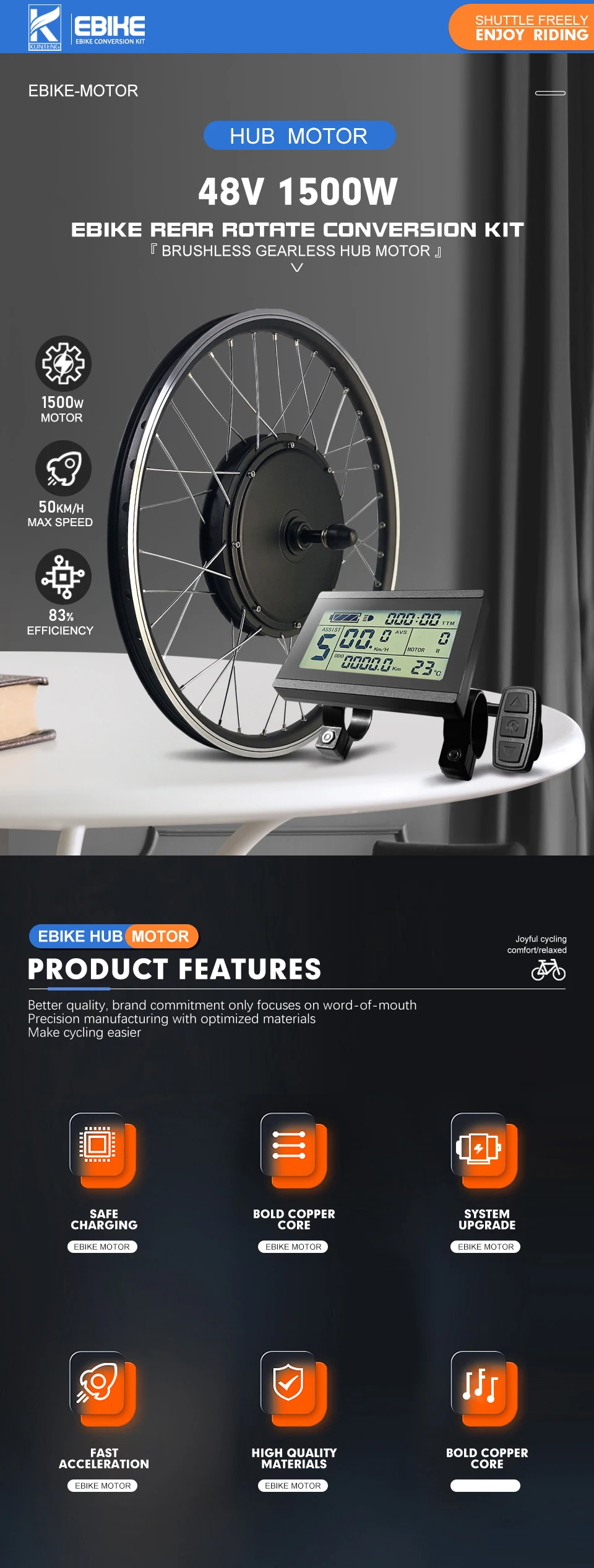

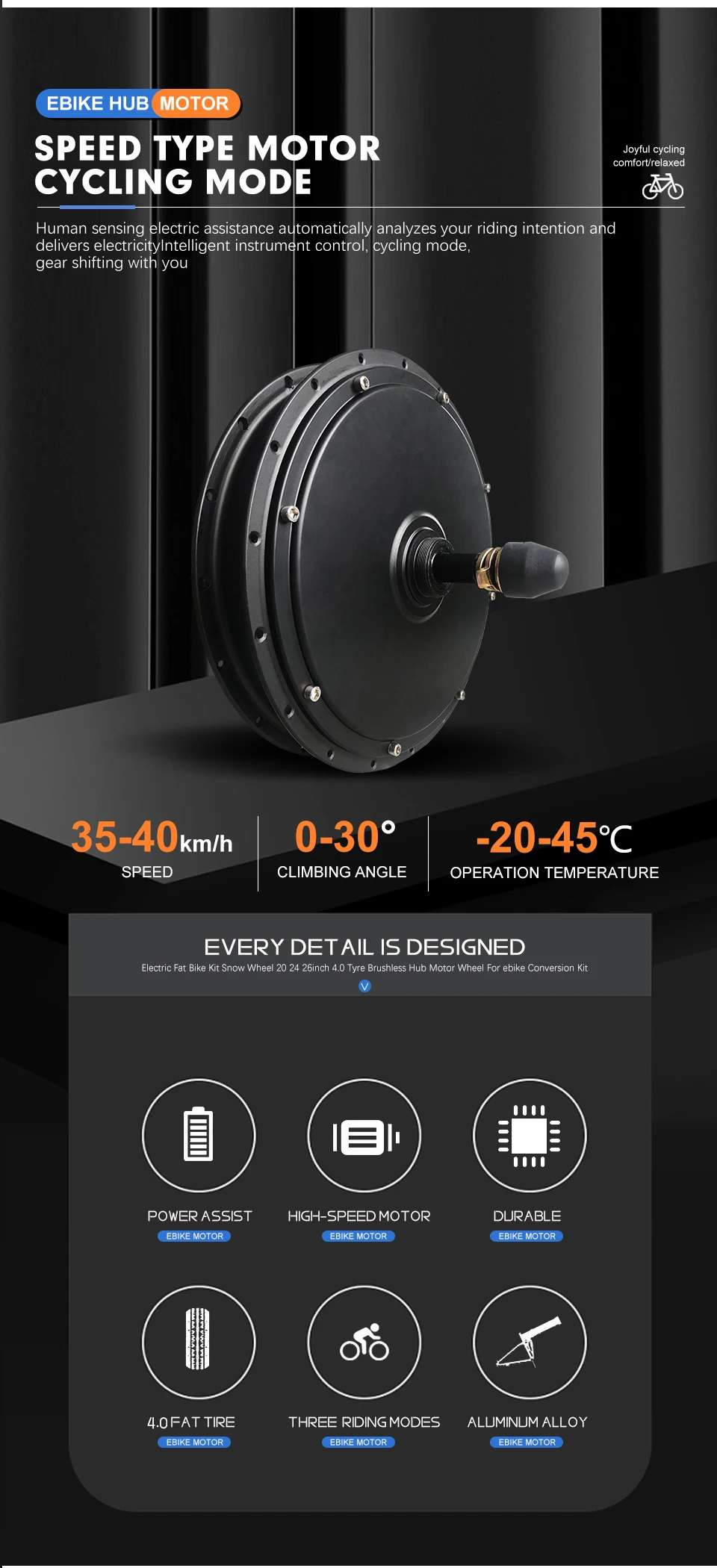

Motor：

●Rated Voltage：48V

●Rated Power：1500W

●Rated Speed：about 45-50km/h

●RPM：414-487 RPM

●Torque(N.M)：71-74.6 N.M

●Rear Fork(mm)：135-142mm

●Brake Type：V/Disc Brake

●Type：Brushless gearless hub motor

●Installation location:Rear wheel

●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

●Load≤200KG

●Motor cable length：200mm

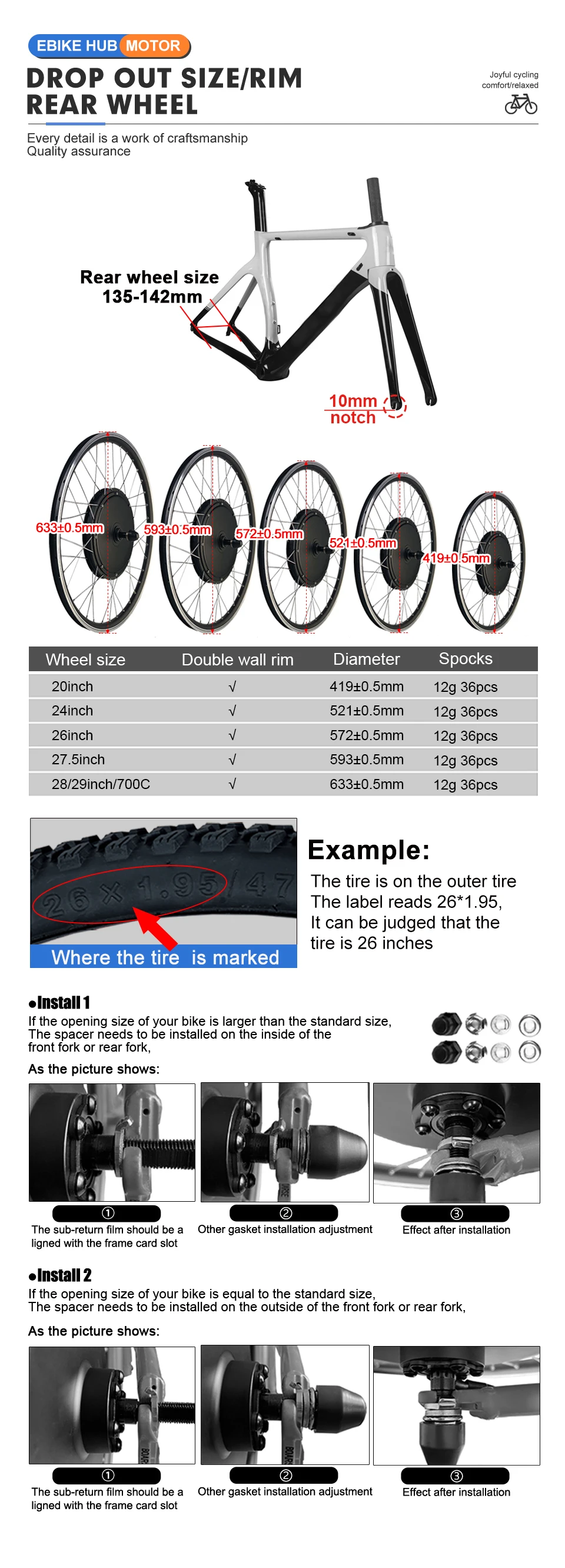

●Wheel size：20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel

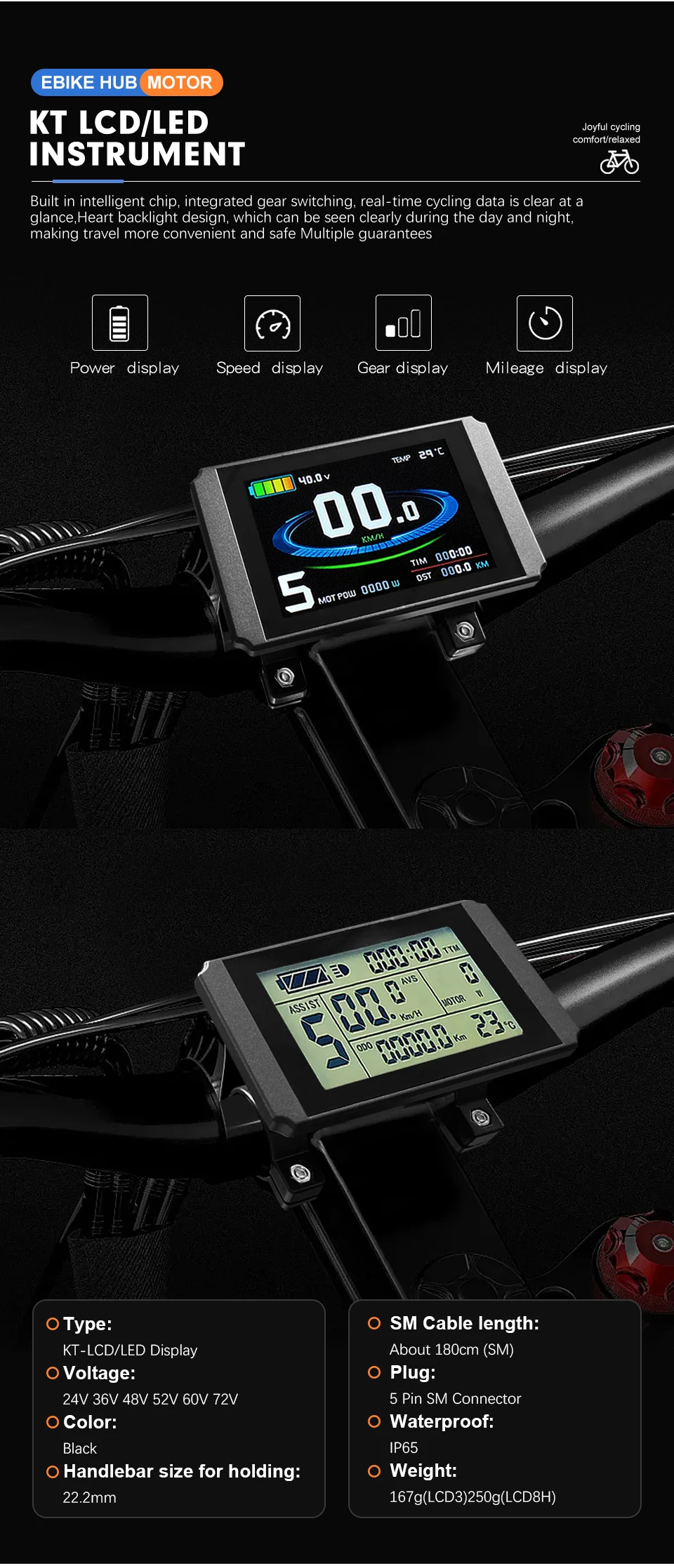

Display（Opition):

●Type :KT LCD/LED/Colourful Display

●Color :Black

●Voltage :36V 48V universal

●Cable length :●Cable length :About 180cm(SM)

●Plug :5 Pin SM plug

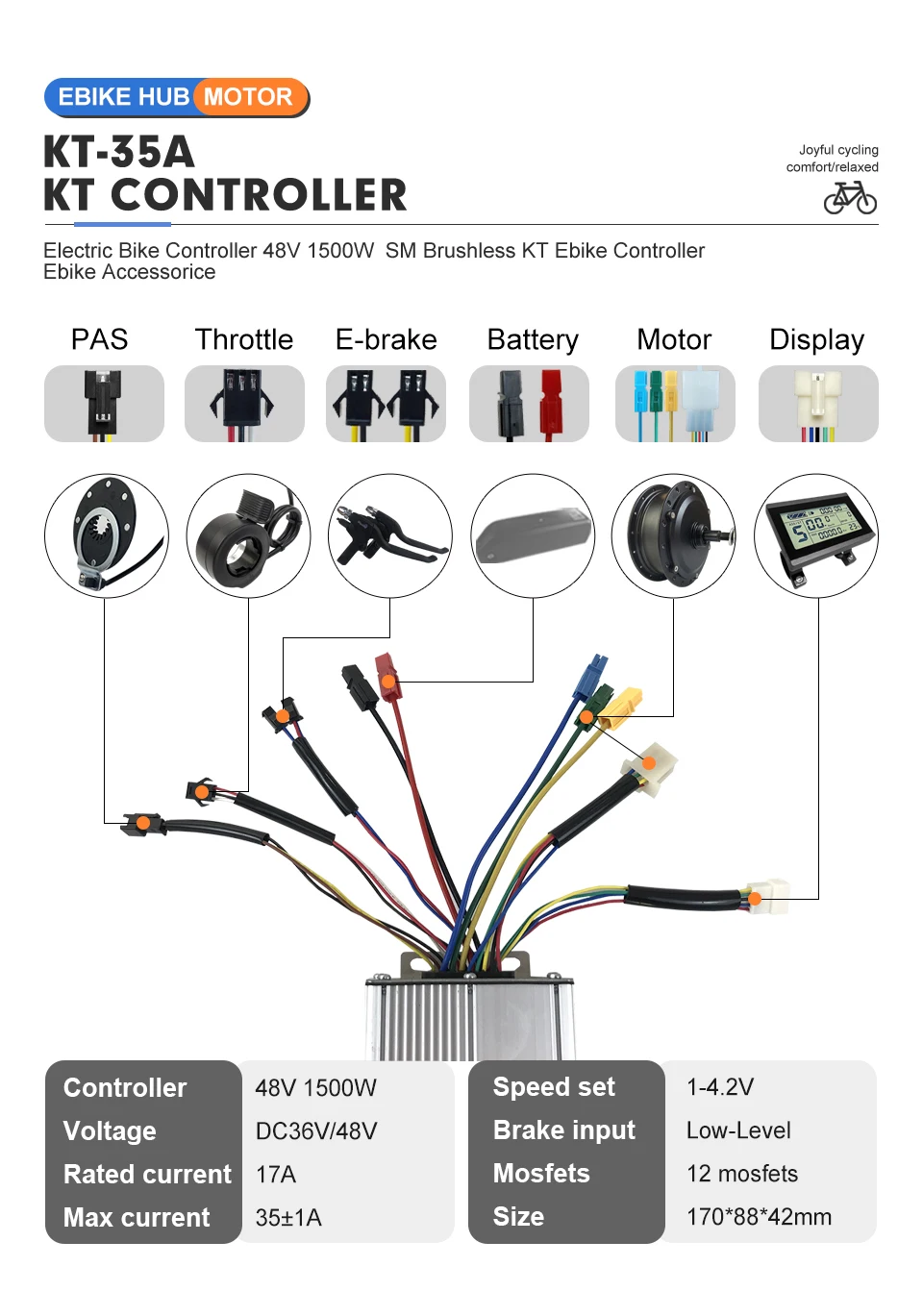

Controller:

●Dimension :190 * 82 * 41 mm

●Weight :650g

●Cable length :all about 13-15cm

●Mosfets:12 mosfets

●Maximum current :35±1A

●Rated voltage :DC36V/48V

●Speed set :1-4.2V

●Rated current :17A

●Brake input :Low-Level

●Low voltage protection :DC30/40±0.5V

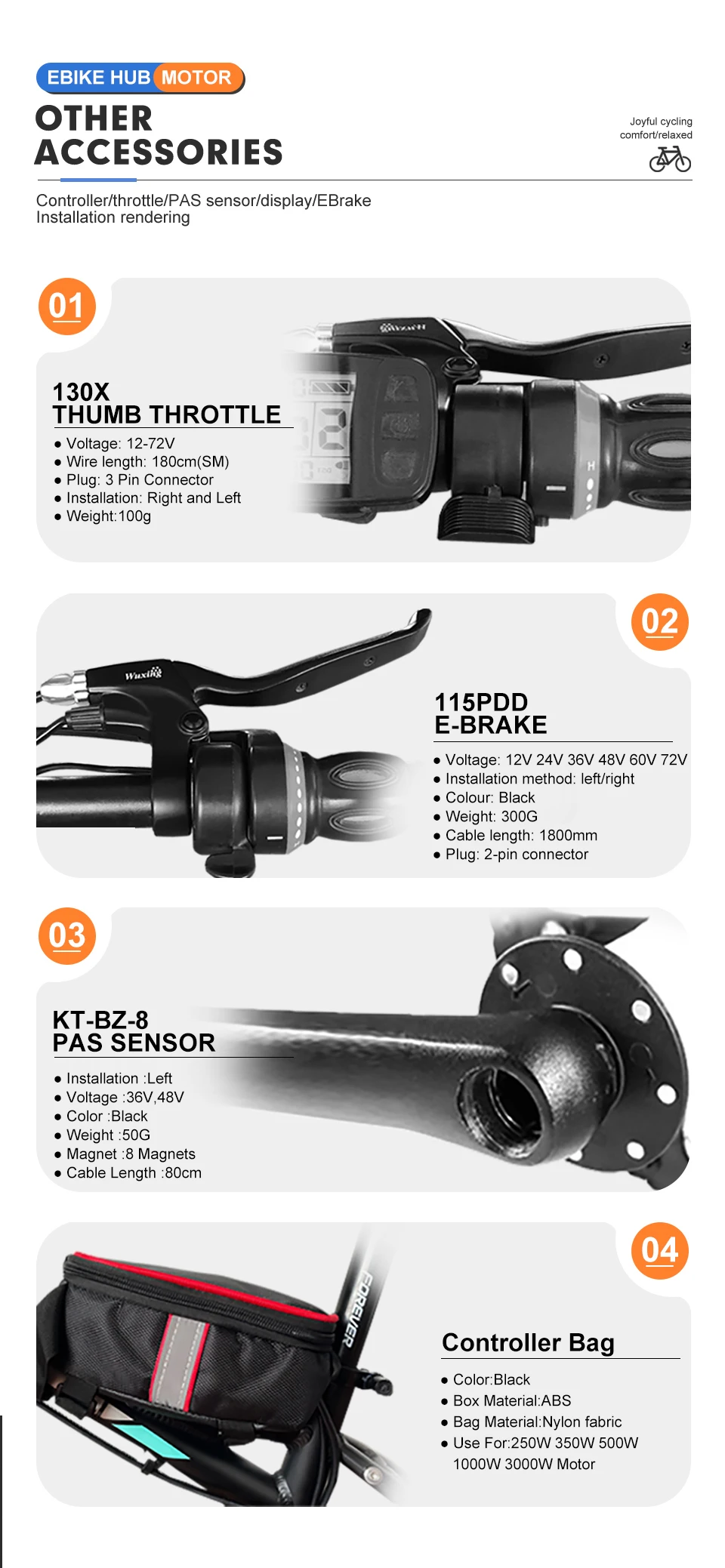

130X Throttle (Default):

●Type:130X Thumb Throttle

●Voltage:12V 24V 36V 48V 52V 60V 72V

●Wire length:180cm(SM)

●Weight :100g

●Waterproof :IP76

●Plug Type:3 Pin SM plug

●Color :Black

●Installation:Right

●Apply to:E-bike, E-Scooter, Ebike Conversion Kit

●Function:●Function:E-bike accelerator Finger Thumb Throttle

115PDD E-Brake (Default):

●Type:●Type:115PDD E-brake Cut Off Power

●Voltage:12V 24V 36V 48V 60V 72V

●Cable Length:180cm (SM)

●Weight :●Weight :300g

●Waterproof :IP76

●Material:Aluminum Alloy

●Installation:Left/Right

●Size:L156mm W105mm H34mm

●Plug :2 pin SM plug

PAS KT-BZ-8(Default):

●Type:KT-BZ-4 (8) Pulse assist sensor

●Voltage:36V/48V

●Cable Length:180cm including the connector

●Magnet :8 Magnets

●Weight :100 g

●Plug Type:3 Pin SM plug

●Color :As pictures shown

●Material:Plastic

●Installation:Left

●Adaptation:Ebike Electric Bike Bicycle

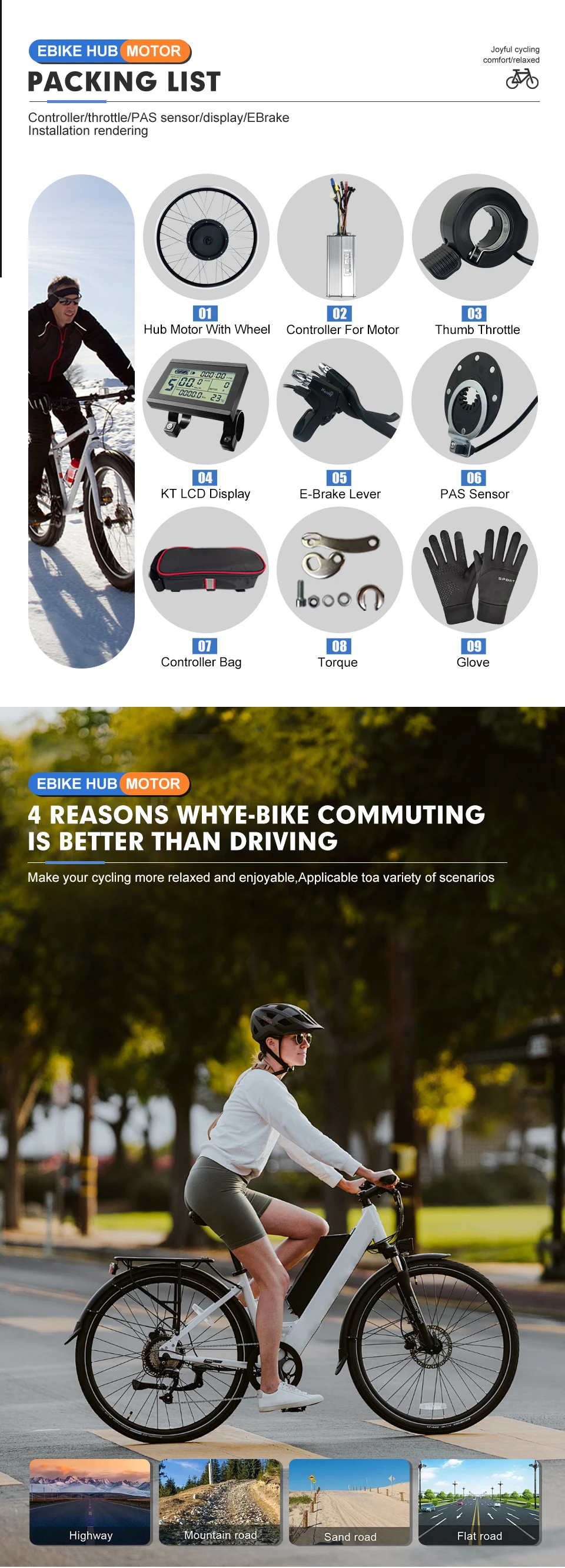

【Packing List】

①1500W rear rotate wheel x1 (without tire)

②35A controller x1

③Display and manual x1

④Throttle x1

⑤Power Cut-off Brake Levers x1

⑥PAS sensor x1

⑦Zip ties and Protection line x1

⑧Controller bag x1
