High Speed Air Fill Pillow Making Machine Air Cushion Machine

This Air Pillow Air Bubble Wrap Machine represents a revolution in Packaging. It brings the industrial packaging system to your business - wherever you want, whenever you need.

By using this machine, you can make as many air cushions and bubble wraps on demand as you wish to meet all your shipping needs without having to store bulky packing materials.

If you have limited storage space for packing peanuts and prefilled bubble wrapping, look no further, this ultra portable air cushion machine has a smaller footprint than a laptop. It's a great alternative to bulky bubble packing materials. It will make your workspace much more organized and neat.

Inflated Air Cushion Filling Machine
Model
Wiair1000
Wiair3000
Speed
3m/min
8m/min
Max. wind pressure
-
10Kpa
Wind pressure
Adjustable
Sealing bag size
200*80mm; 200*100mm; 200*150mm; 400*250mm; 400*290mm

Title goes here.

1). Flexible and easy to handle (just plug in and begin)
2). Easy to operate
3). Lower energy consumption
4). Save your space
5). No need air supply
6). You can adjust the air when the machine is running
7). Easy to maintain
8). Makes industrial strength packaging supplies with 2 different types of inflatable packaging
9). Natural and environmental materials
10). Anti-collision damping control effect
11). Use to fill up or support blank, clean and tidy

Detailed Images

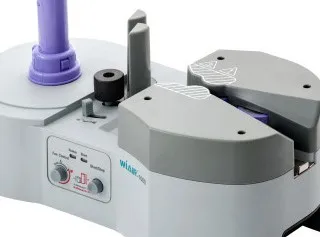

High Speed Air Fill Pillow Making Machine Air Cushion Machine With Cheapest Price

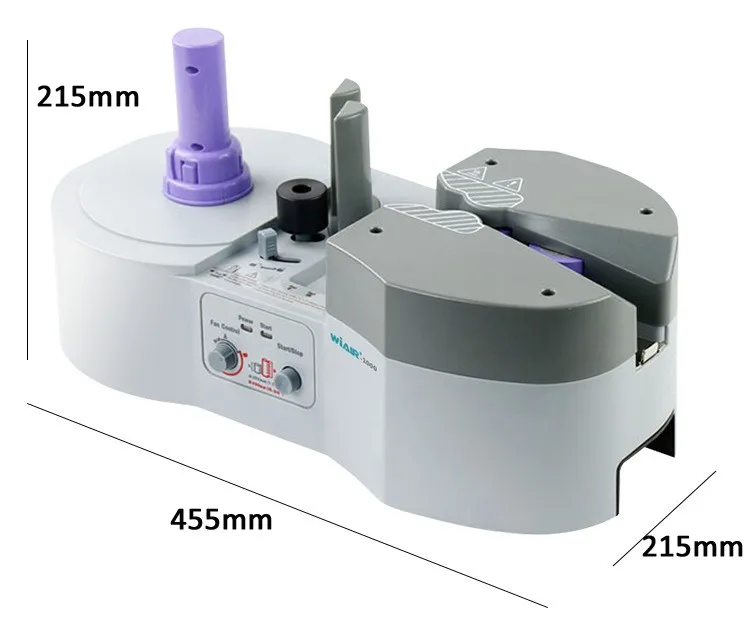

Small size and powerful

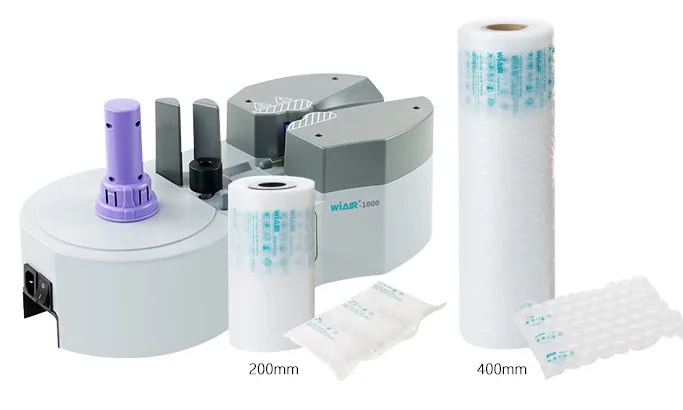

Only 455mm in length, only 3.6KG, the body performance is two. It can blow up 200mm single row bubbles and 400mm continuous row bubbles. There are very few machines on the market that can blow a variety of film rolls.

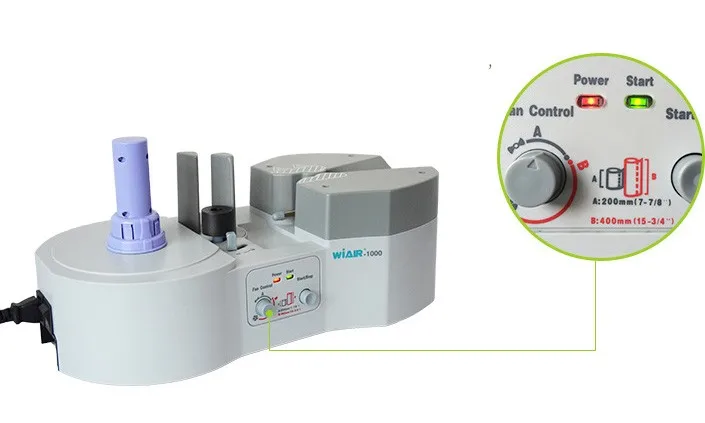

Constant temperature design, air volume


Preheat for 3 minutes, the green indicator light is on, reaching a constant temperature of 150-160. The temperature is not affected by winter and summer. The 20cm single-row film roll is in A mode, and the 40cm continuous film roll is in B mode, which can be adjusted as much as possible.

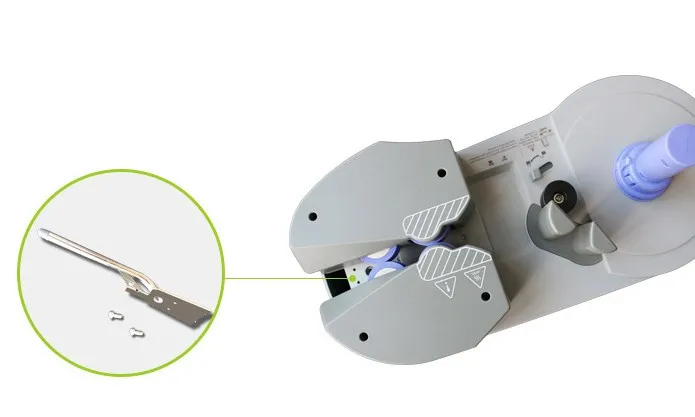

The blade is durable and easy to replace


The blade is made of hard alloy steel (420J2 martensitic stainless steel), which can be used for up to 1 year and the blade is replaced with So Easy. Simply remove the three screws, remove the screws from the bottom of the machine, and pull out the duct to replace the blade.

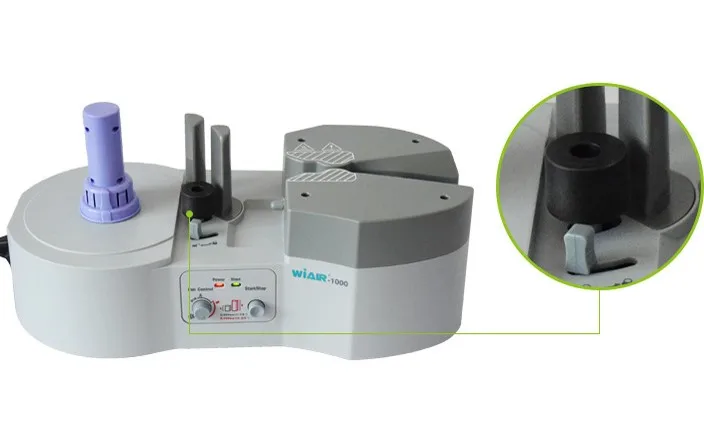

Special pressure roller to prevent running film



The innovative design of the locking film wheel completely solves the problem of film deviation. In the process of film walking, ensure that the film position is fixed, and no deviation occurs, which will not cause trouble to the user.

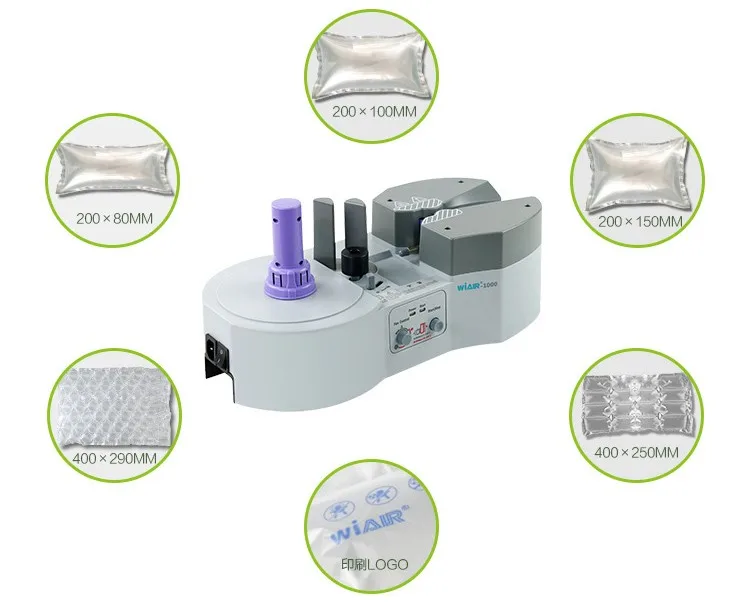

Customizable, printable

5 regular bubble bag style, to meet the daily packaging needs, a large amount of customizable size, printing LOGO.

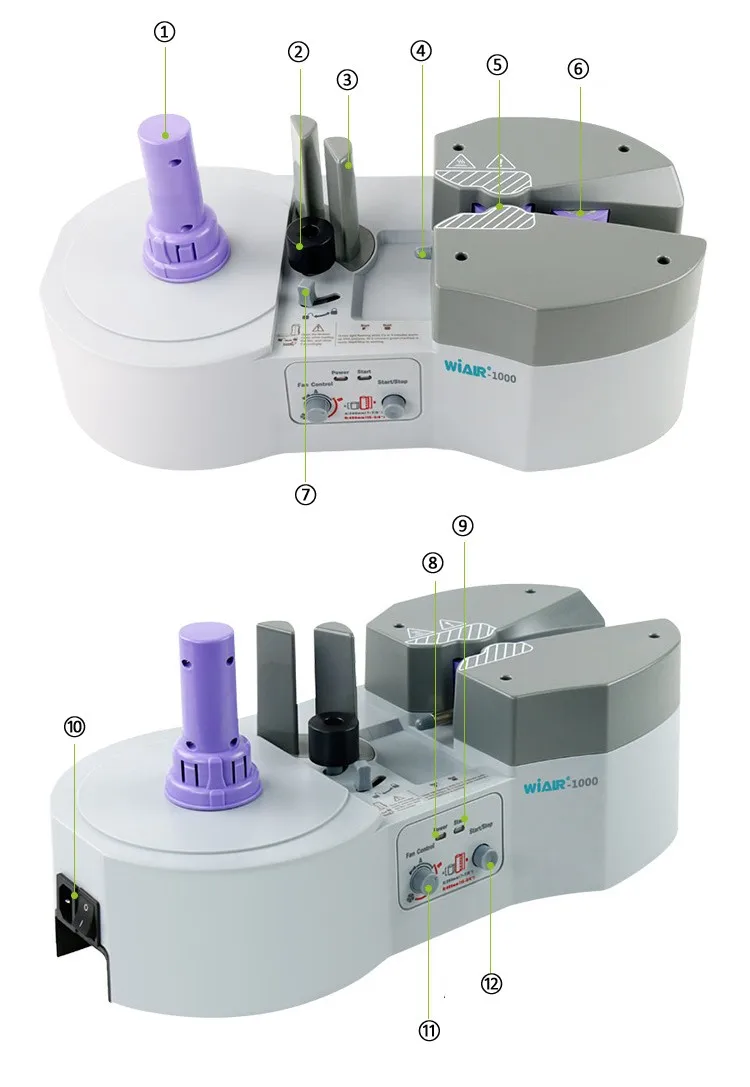

①Feeding roller
②Roll film tensioner
③Tension column
④Air nozzle
⑤Heating roller
⑥Puller
⑦Roll film tensioner switch
⑧Power indicator
⑨On/off knob indicator
⑩Power switch
⑪Air density setting knob
⑫Start/Paduse button

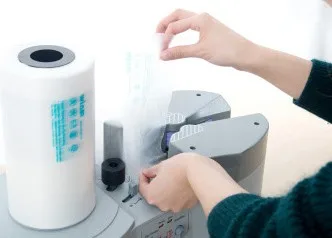

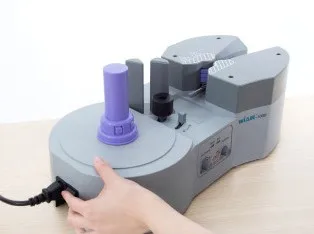

1.Connect power for air cushion machine, turn on the switch, wait for 5 minutes, stop the green light from being on, and warm up.

2.The bubble film cylinder is buckled downward, and the notch is aligned with the roller boss to insert the feed shaft

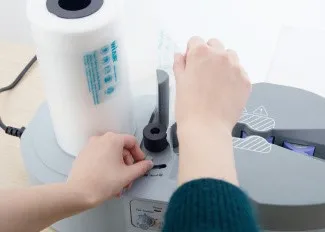

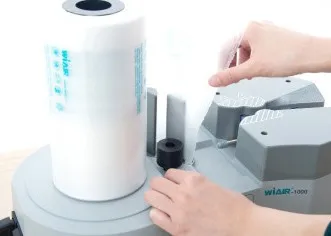

3.Open the pressure roller switch and wrap the bubble film from the outside of the first tensioning shaft

4.Close the pressure roller switch and pass the bubble film air vent through the air duct guide post.

5.Pull the bubble film to the pressing part of the ironing wheel to ensure automatic mold advancement at startup.

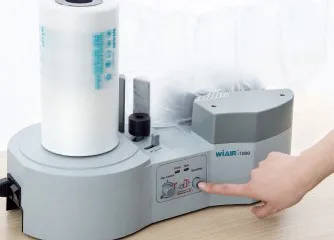

6.Press the start button to adjust the air volume and pull the inflated bubble bag to the right.

Packing
Size
54 (L) * 30 (W) * 28 (D)cm
