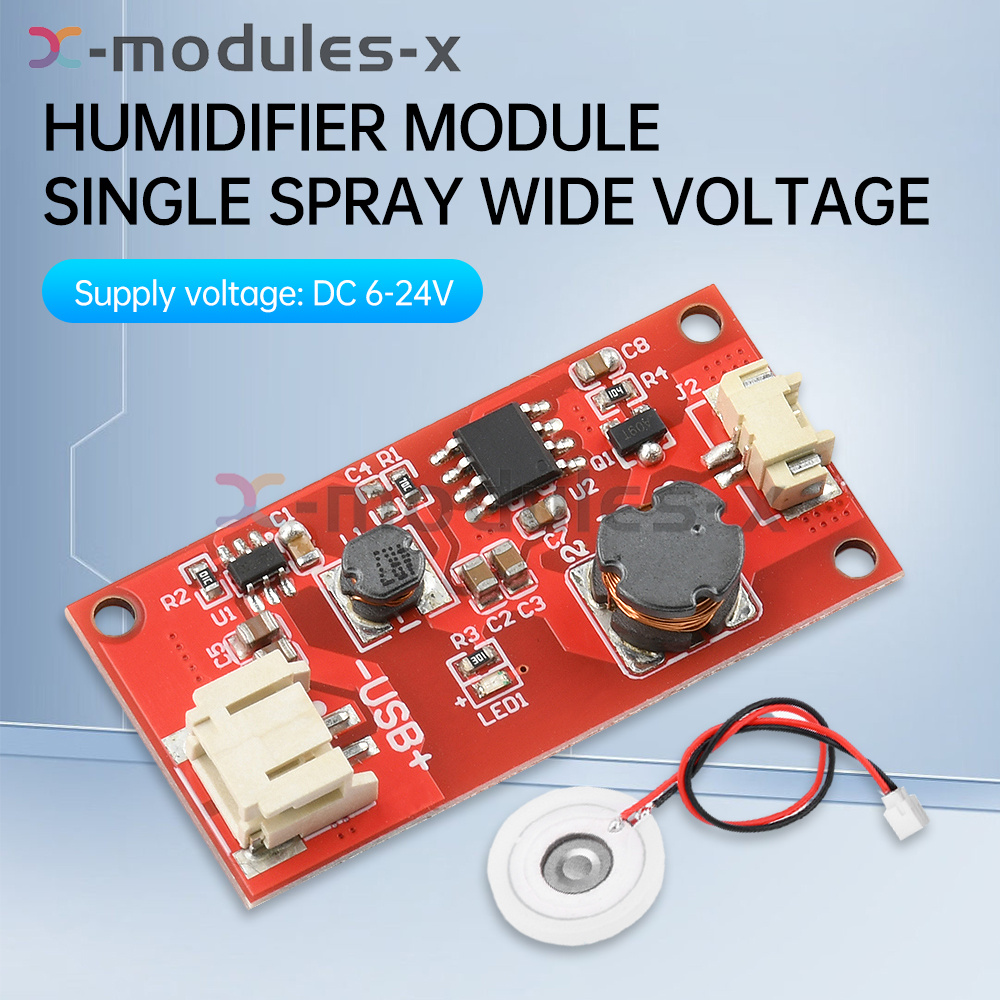

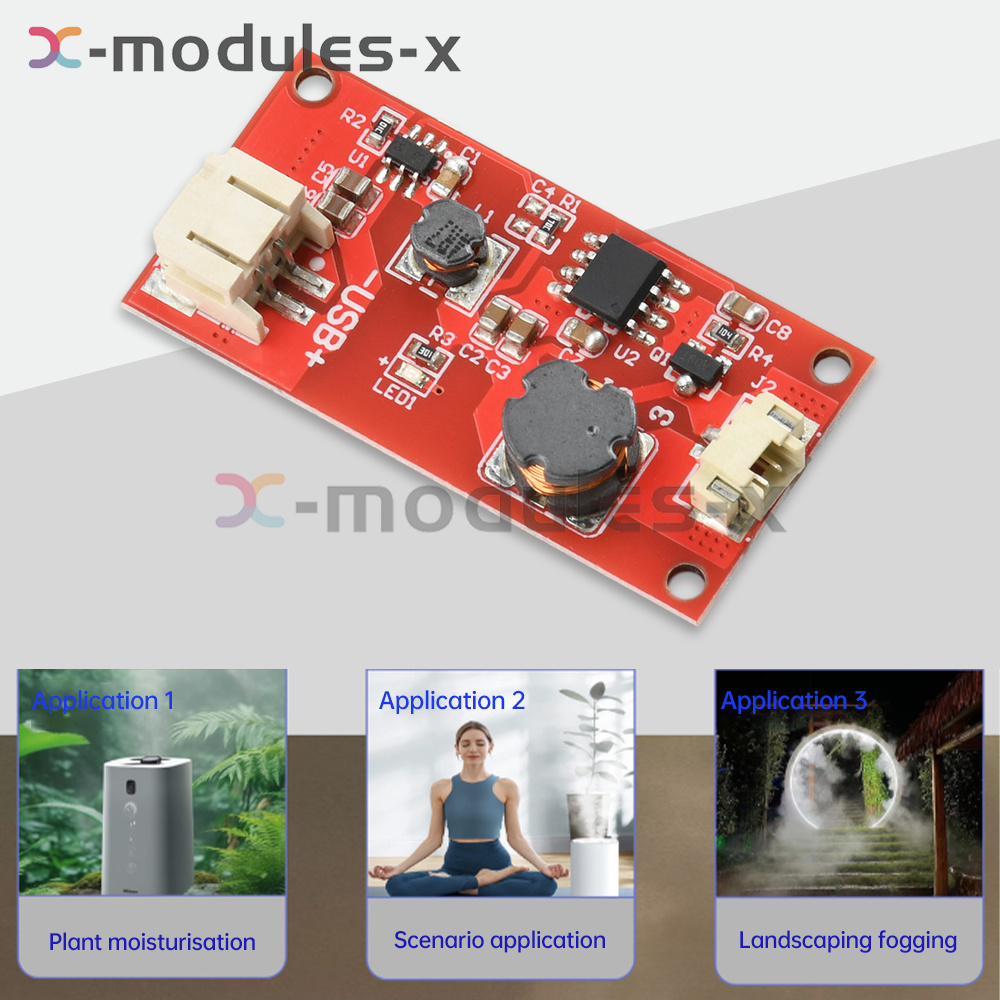

DC6-24V Humidifier Mist Maker Driver Circuit Board Ultrasonic Atomization Module
Description
Features
1. Flexible power supply: support DC 6-24V wide voltage input, can meet different use scenarios.
2. Easy to use: loaded with a good atomizer holder cotton swabs, the atomizer is sprayed when it meets water.
3. High-efficiency atomization performance: the use of microporous atomizer, atomization effect is fine and uniform, suitable for a variety of environmental needs.
4. low power consumption design: low power consumption, effective power saving, extend the use of time, suitable for long time operation.
5. Compact and lightweight structure: small size, easy to integrate into a variety of equipment, easy to carry.
1. Flexible power supply: support DC 6-24V wide voltage input, can meet different use scenarios.
2. Easy to use: loaded with a good atomizer holder cotton swabs, the atomizer is sprayed when it meets water.
3. High-efficiency atomization performance: the use of microporous atomizer, atomization effect is fine and uniform, suitable for a variety of environmental needs.
4. low power consumption design: low power consumption, effective power saving, extend the use of time, suitable for long time operation.
5. Compact and lightweight structure: small size, easy to integrate into a variety of equipment, easy to carry.
Specification
Module parameters:

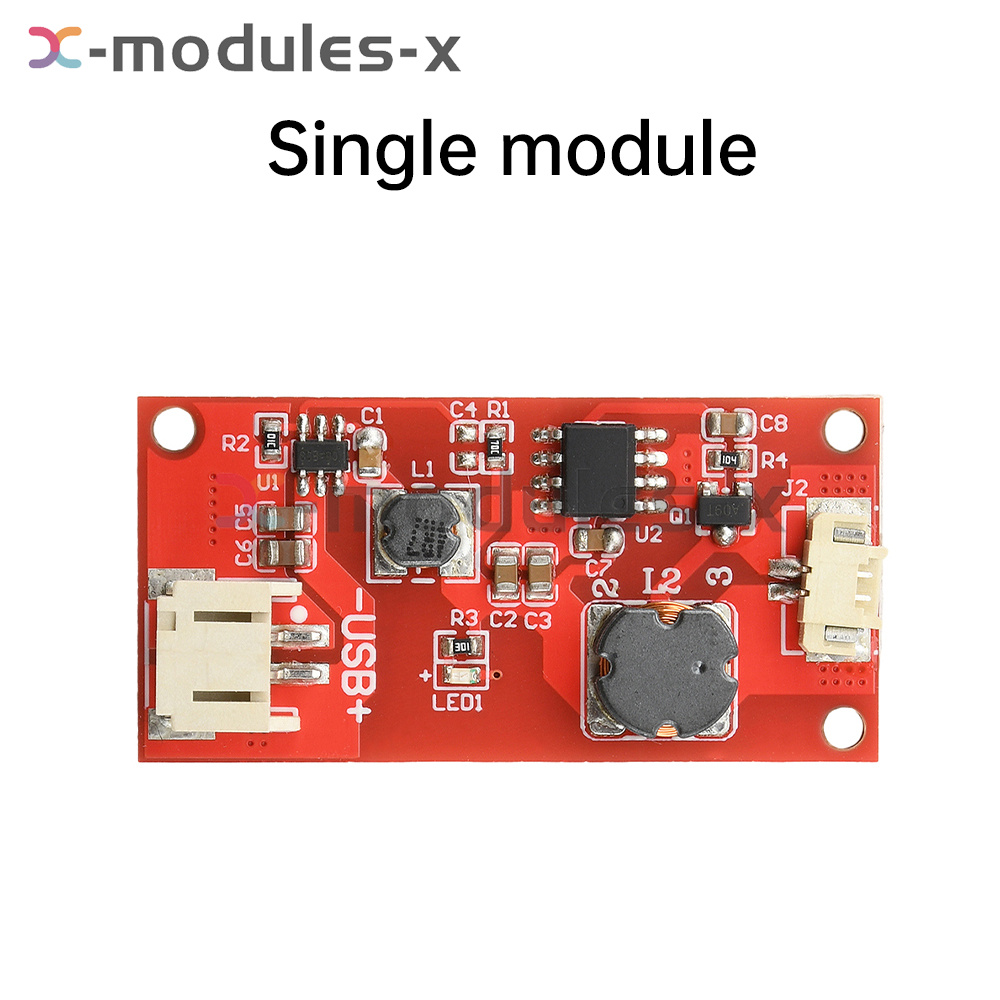

Name: Wide voltage single spray module
Material: 1.2MMFR-4
Supply voltage: DC 6-24V
Rated current: 300MA
Power: 1.5-2W

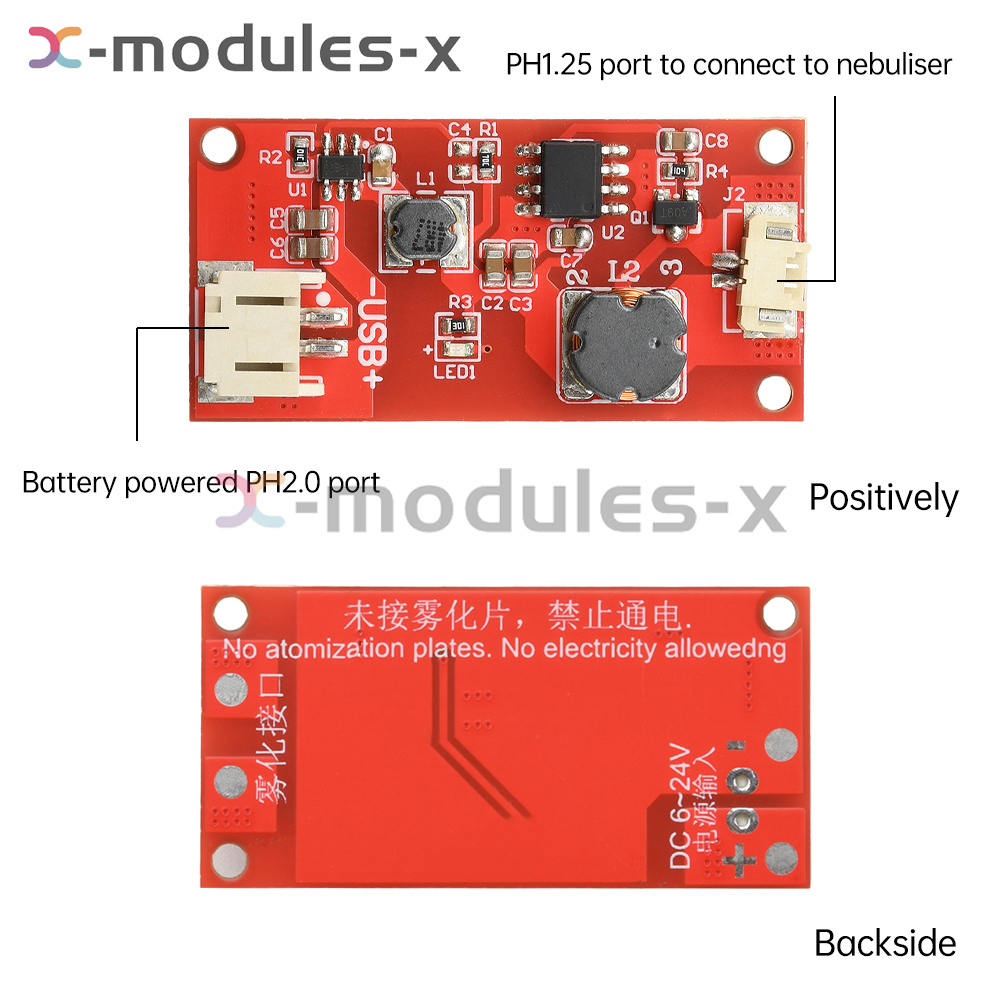

Battery power supply port: PH2.0

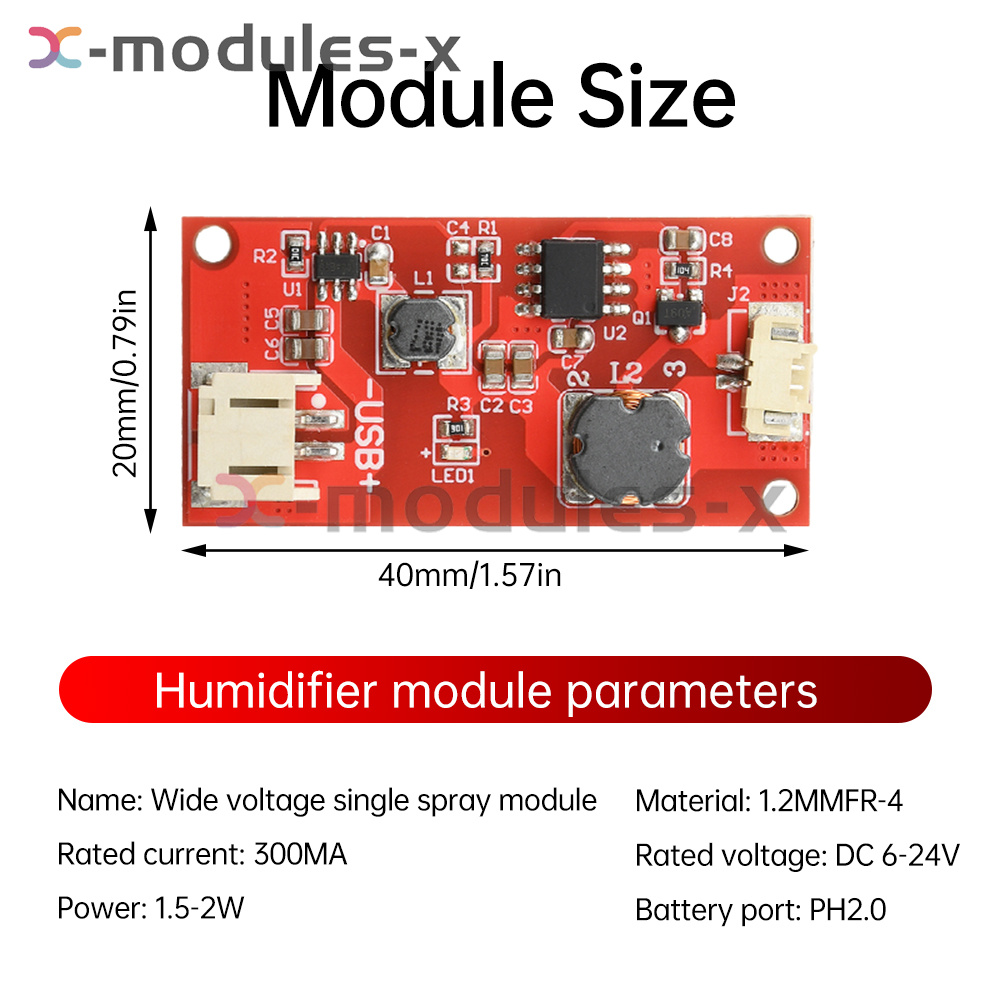

PCB board size: 40mm*20mm
Module parameters:
Name: Wide voltage single spray module
Material: 1.2MMFR-4
Supply voltage: DC 6-24V
Rated current: 300MA
Power: 1.5-2W
Battery power supply port: PH2.0
PCB board size: 40mm*20mm

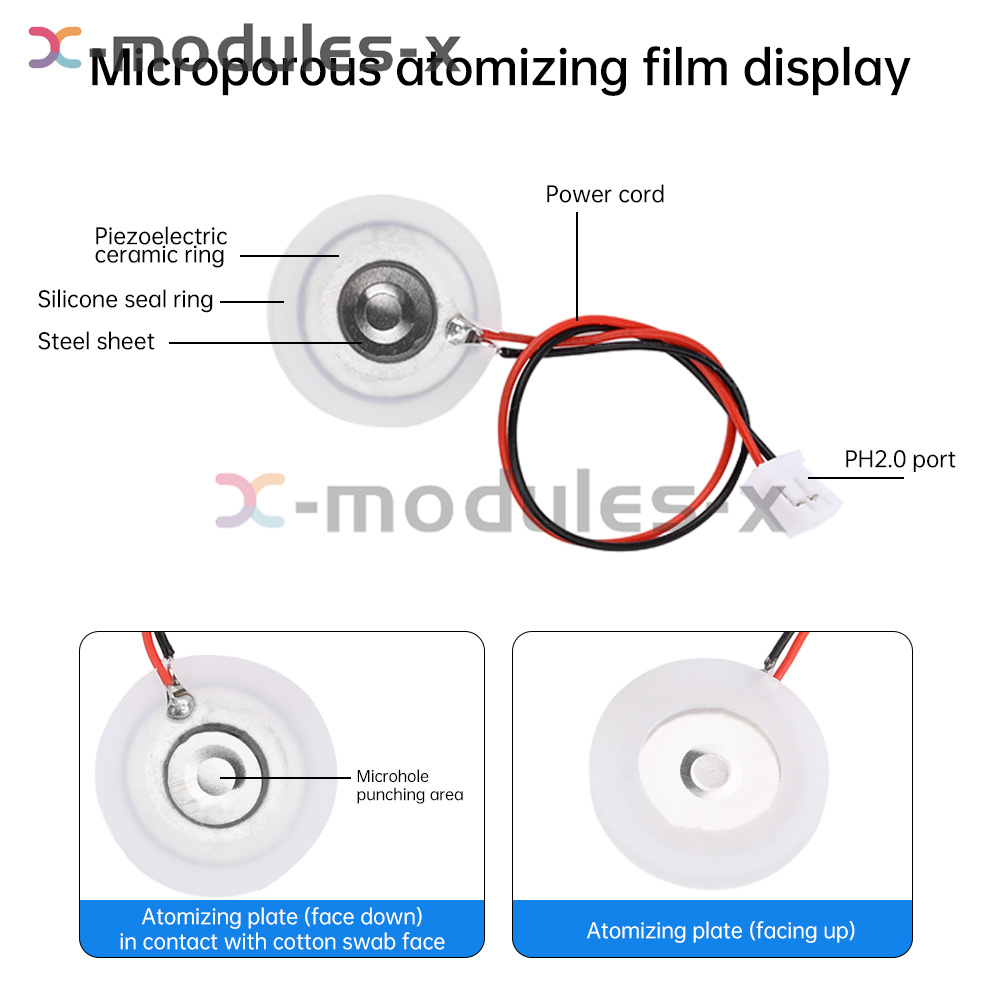

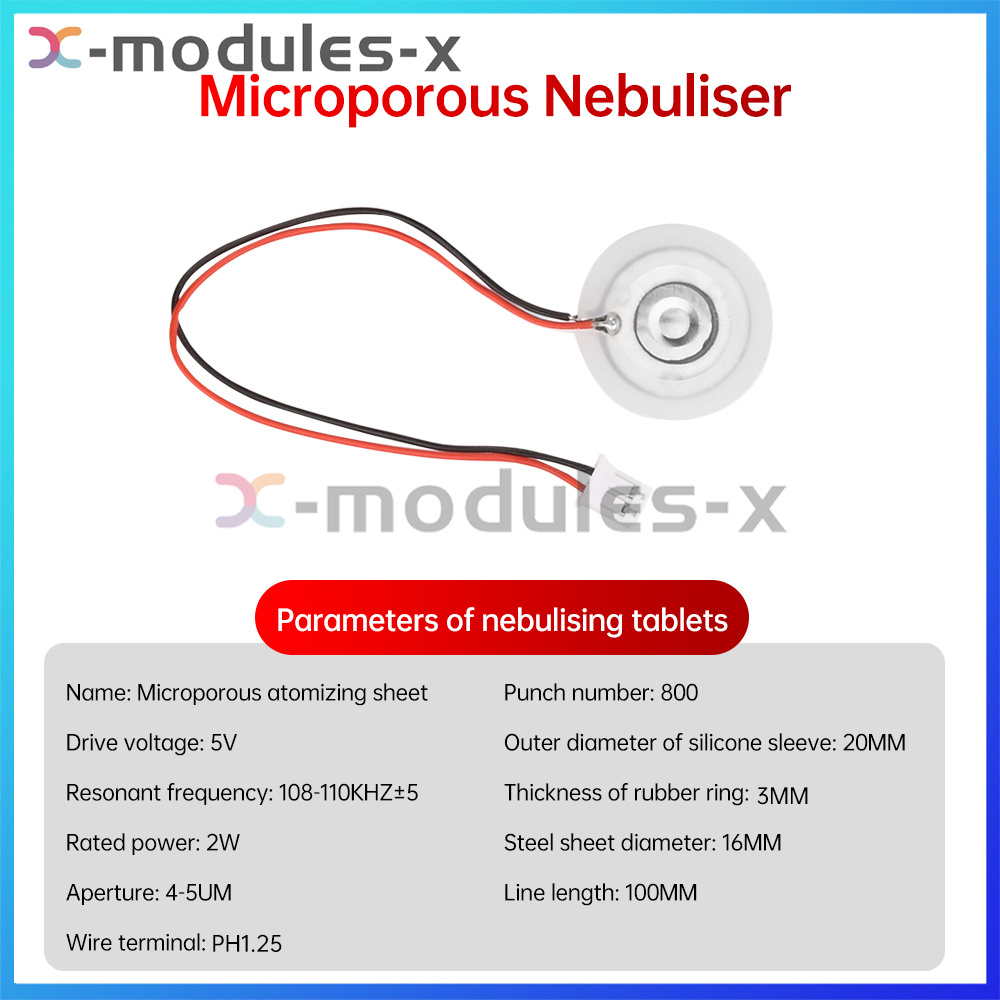

Fogging sheet parameters:
Name：Microporous atomizer sheet
Driving voltage: 5V
Resonant frequency: 108-110KHZ±5
Rated power: 2W
Hole diameter: 4-5UM
Number of holes: 800
Outer diameter of silicone sleeve: 20MM
Thickness of rubber ring: 3MM
Steel plate diameter: 16MM
Wire length: 100MM
Wire terminal: PH1.25

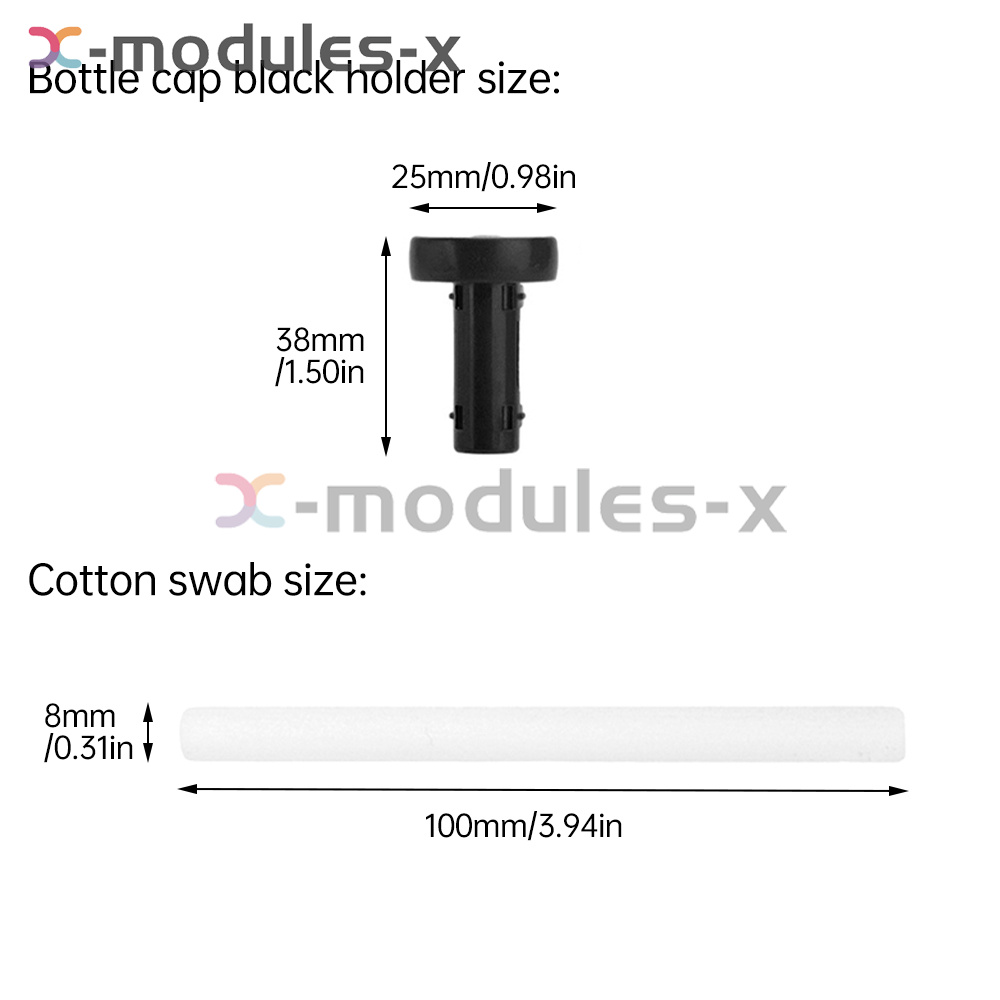

Cotton stick: 100mm*8mm
Name：Microporous atomizer sheet
Driving voltage: 5V
Resonant frequency: 108-110KHZ±5
Rated power: 2W
Hole diameter: 4-5UM
Number of holes: 800
Outer diameter of silicone sleeve: 20MM
Thickness of rubber ring: 3MM
Steel plate diameter: 16MM
Wire length: 100MM
Wire terminal: PH1.25
Cotton stick: 100mm*8mm

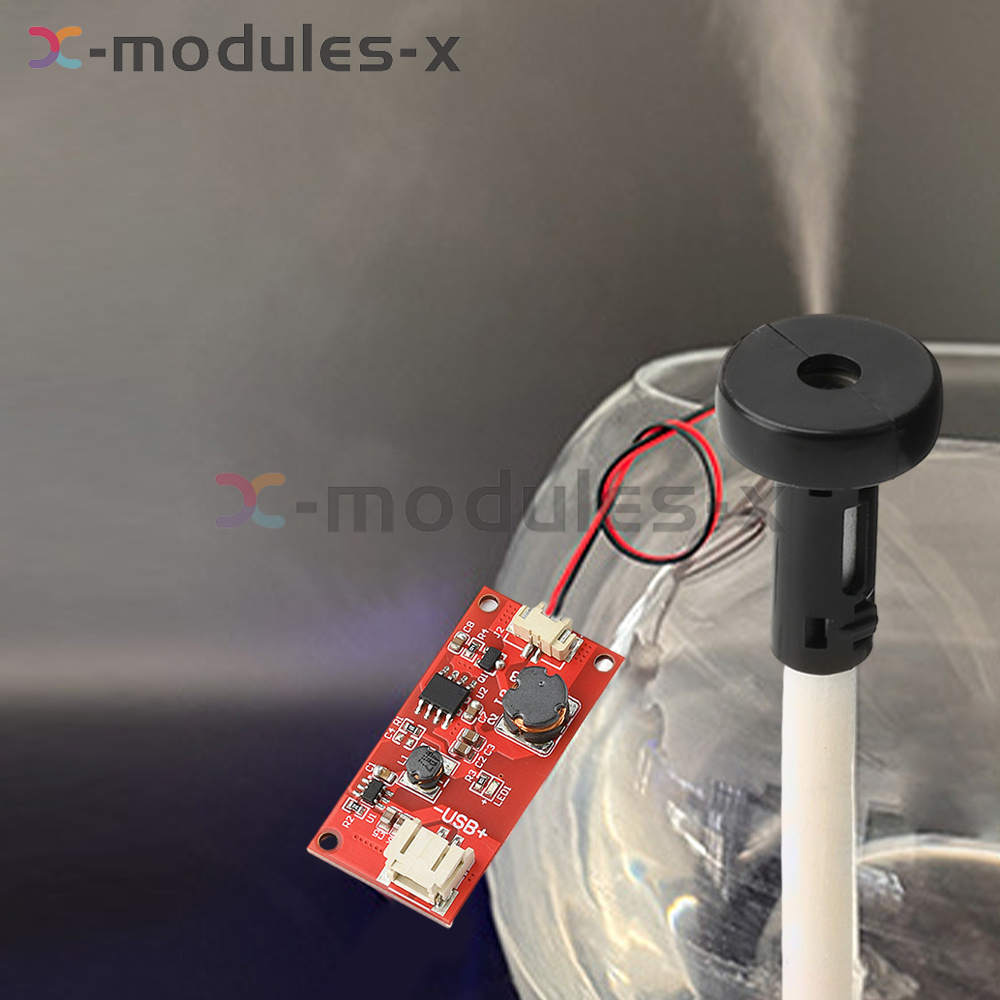

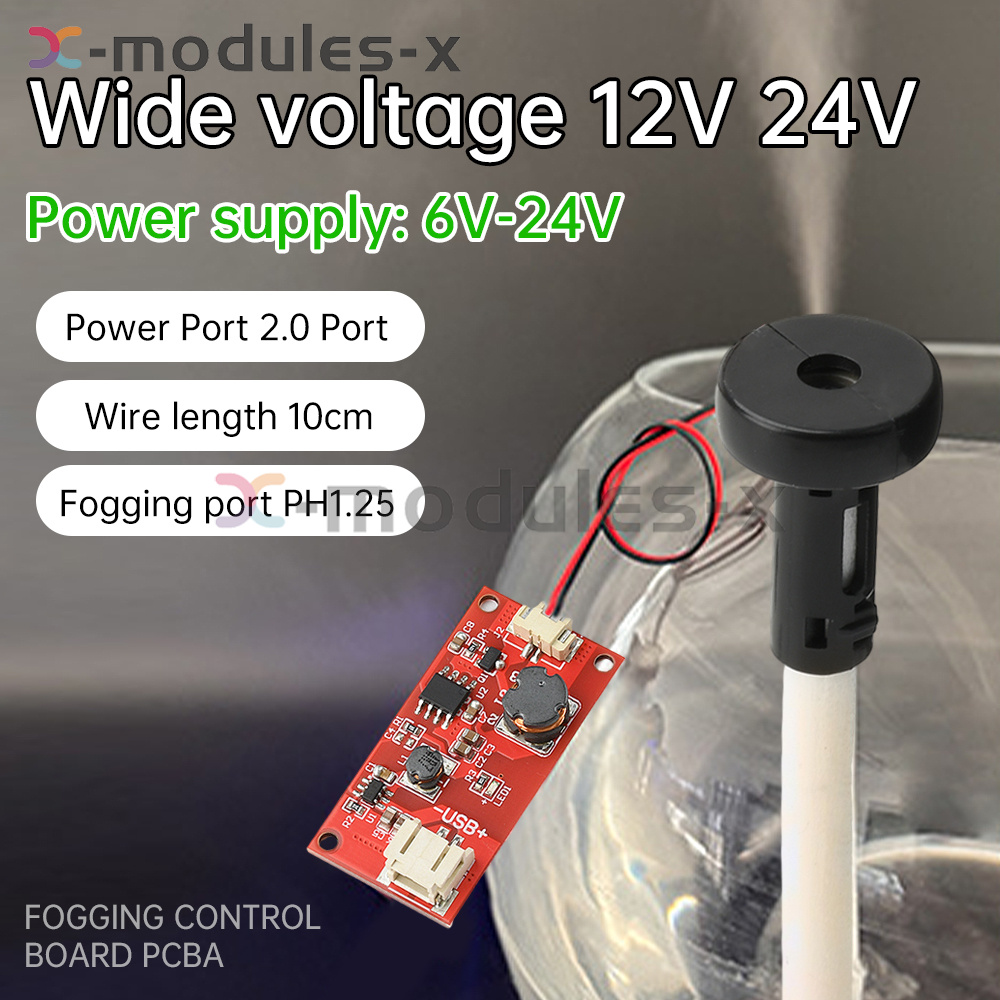

Usage:
1, the first installed atomizer plate bracket cotton swabs
2, the atomizer to the module atomizer port
3, and then connect the power supply to the module power port
4, press the power switch
5, the atomizer is sprayed when it meets water
1, the first installed atomizer plate bracket cotton swabs
2, the atomizer to the module atomizer port
3, and then connect the power supply to the module power port
4, press the power switch
5, the atomizer is sprayed when it meets water

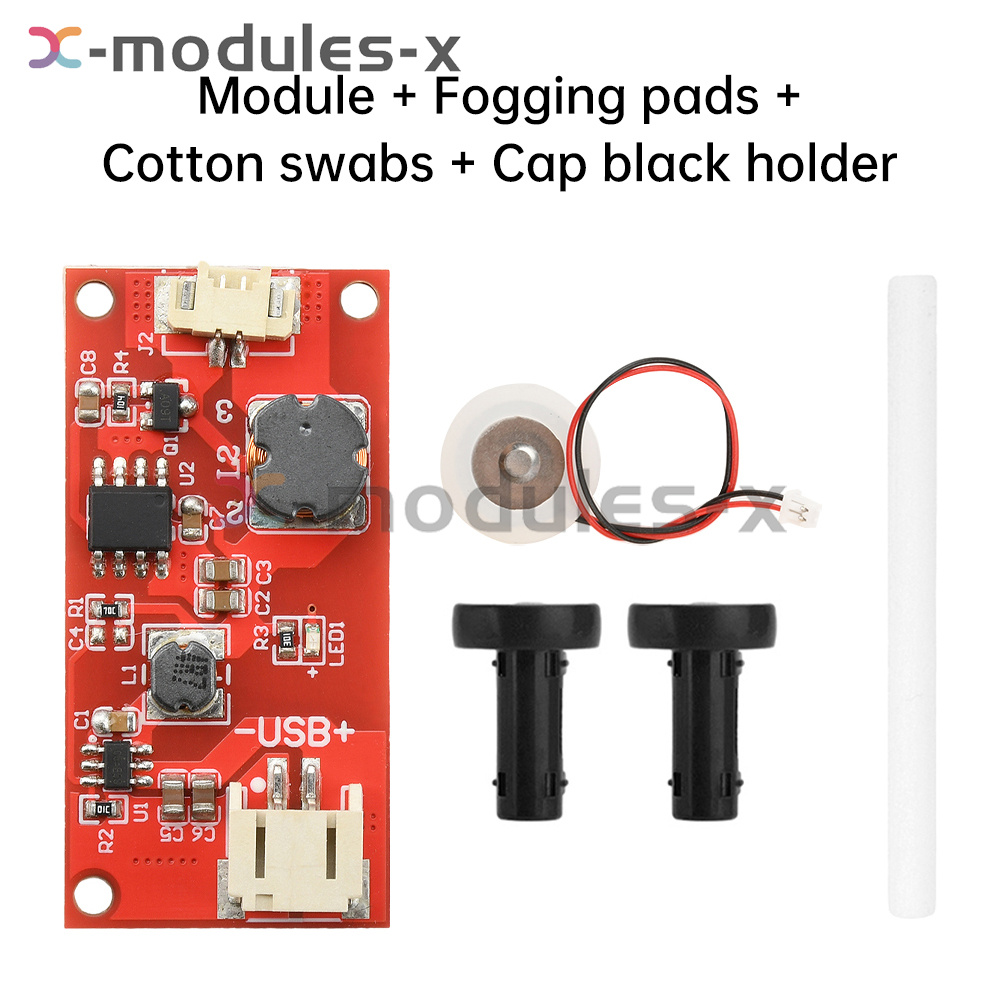

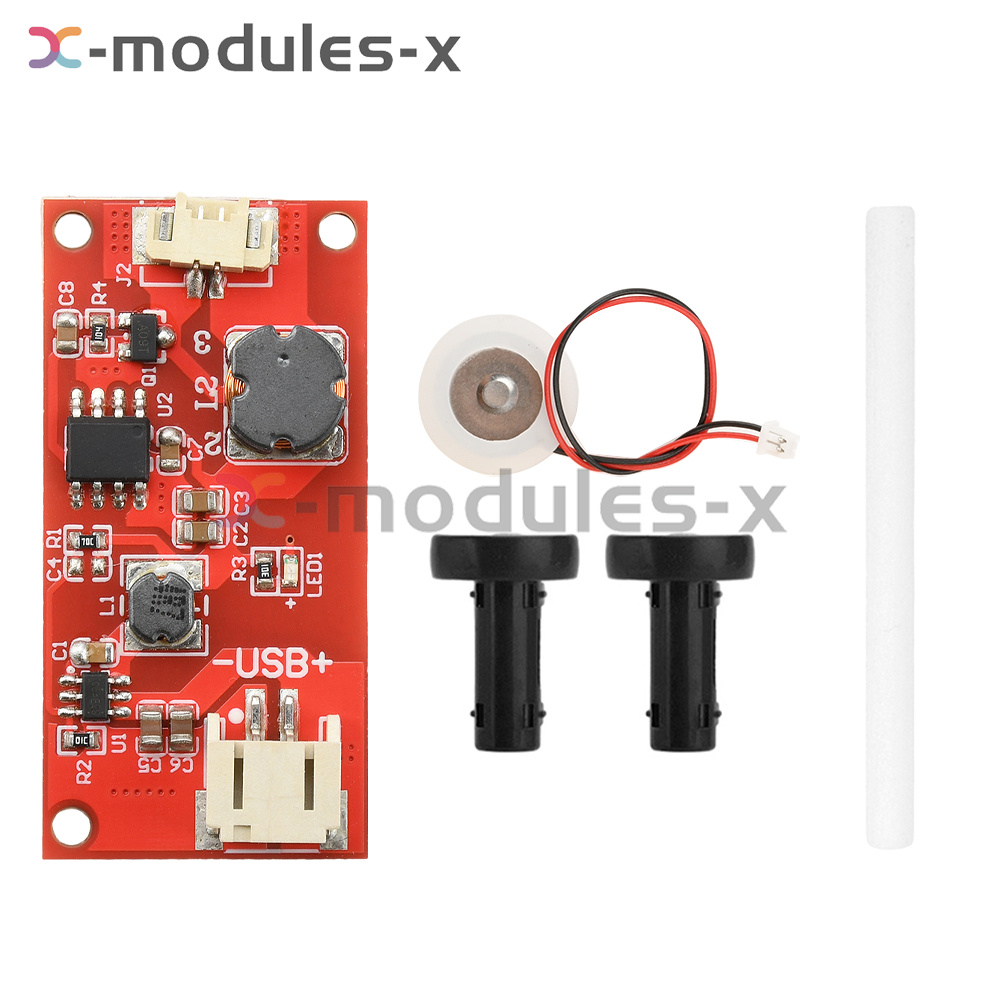

Package includes
1 x Module
1 x Fogging sheet(optional)
1 x Stand(optional)
1 x Cotton swab (optional)
1 x Module
1 x Fogging sheet(optional)
1 x Stand(optional)
1 x Cotton swab (optional)
Precautions:
1, it is strictly prohibited to poke the atomizer, atomizer welding points can not be folded and torn
2, is strictly prohibited without connecting the fog piece of electricity
3, it is strictly prohibited to use fast charger
4, is strictly prohibited to modify the module
5, the module can not touch the water
6, all-steel piece (raised surface) downward contact, cotton swabs absorb water
7、Rated power input
1, it is strictly prohibited to poke the atomizer, atomizer welding points can not be folded and torn
2, is strictly prohibited without connecting the fog piece of electricity
3, it is strictly prohibited to use fast charger
4, is strictly prohibited to modify the module
5, the module can not touch the water
6, all-steel piece (raised surface) downward contact, cotton swabs absorb water
7、Rated power input
