Part Number.
11-2269, mm23001c, 112269
[Item Type]: Integrated potentiometer 11-2269 for setting minimum and maximum speed, acceleration and deceleration, torque and infrared compensation;
Adjustable Thyristor Speed Controller for permanent magnet or shunt winding, brushed motors
[Features]: Input: 115 or 230 volts AC, 50/ 60hz; Armature voltage (115 volts AC IN): 0- 90v DC; Armature voltage (230v AC IN): 0- 180v DC; 5 Amp output,
10 Amp w/heatsink; 1/8 hp to 1 hp - 90 volts DC; 1/4 hp to 2 hp - 180 volts DC
[Stable performance]: Replaceable Minarik MM23001C DC motor, to ensure perfect compatibility with the adapted models, stable performance,
can be directly replaced with the old motor speed controller, to improve the efficiency of the equipment
[High-quality materials]: The product is made of high-quality plastic, corrosion and wear-resistant to ensure long-term use.
[Simple installation]: Simple structure, no need for complex installation procedures, can be completed in a short time
Specification.
Input: 115 or 230 volts AC, 50/ 60hz
Armature voltage (115 volts AC IN): 0-90 VDC
Armature voltage (230 volts AC IN): 0-180 VDC
5 Amp output, 10 Amp w/heatsink
1/8 hp to 1 hp @ 90 volts DC
1/4 hp to 2 hp @ 180 volts DC
1% adjustment over 60:1 speed range
Size 4-5/16“ x 3-19/32” x 1-19/32”
Features.
Speed controller for permanent magnet or shunt, brush type motors.
For motors from 1/8 HP to 2 HP.

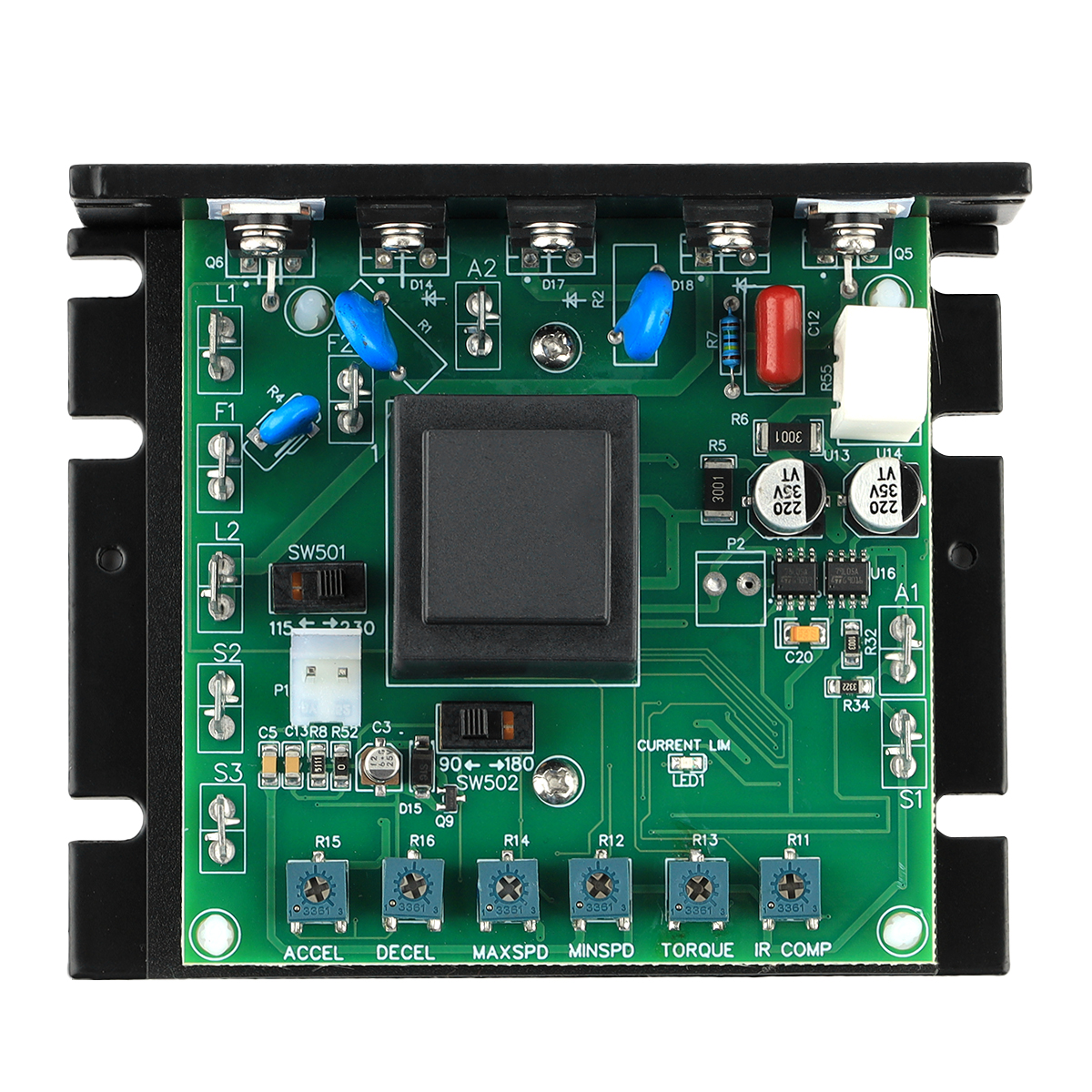

Integral potentiometers set minimum and maximum speed, acceleration and deceleration, torque and IR compensation.
Includes speed control potentiometer.
Made of high quality material for more durability.
Note:Please check the part number and model number for proper fit before purchase.
Product List:
Controller*1
Connector card*9
Gasket*2
Accessories*1
Instruction manual *1
