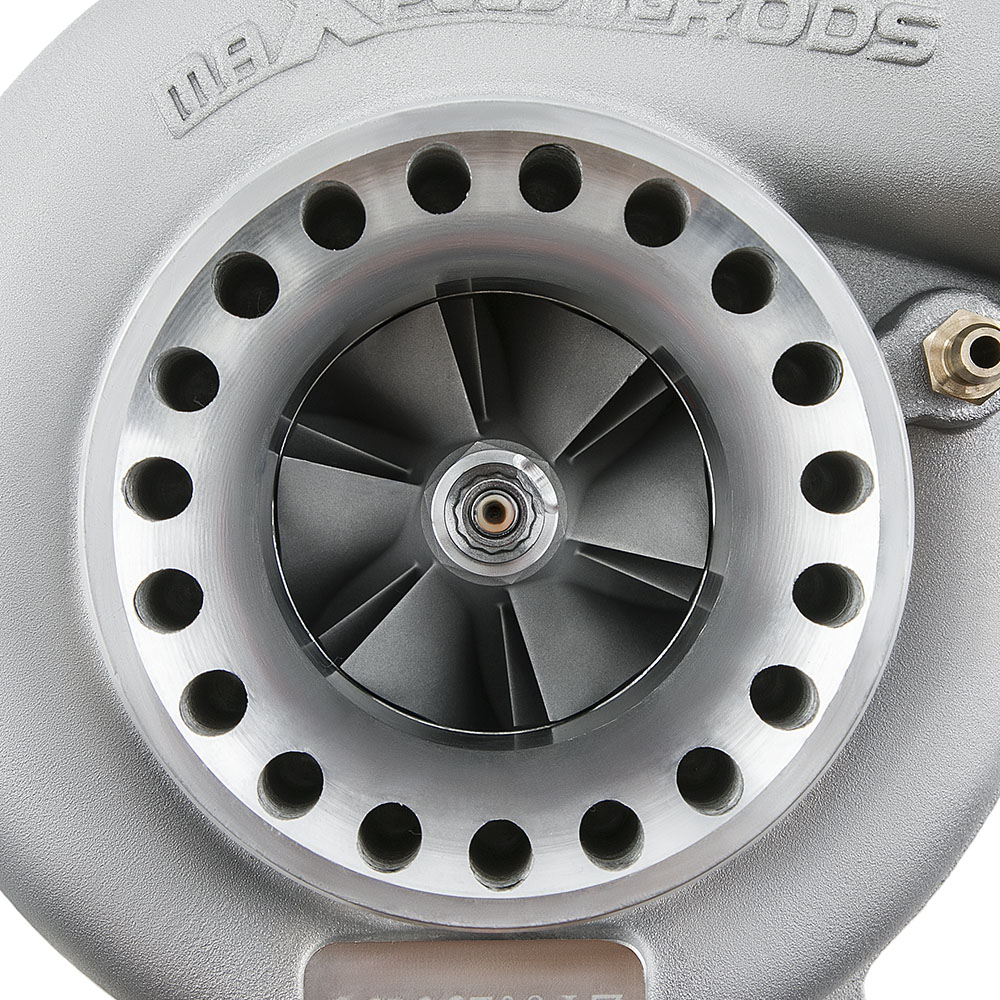

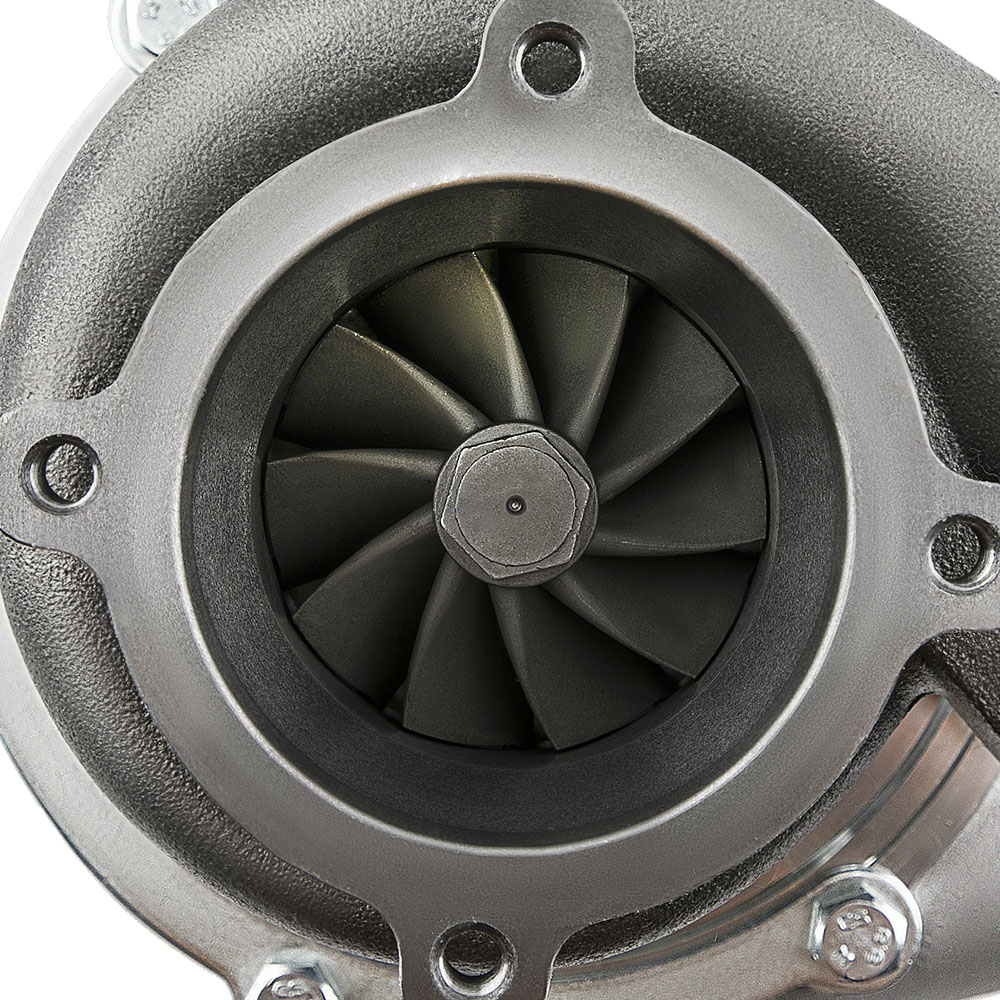

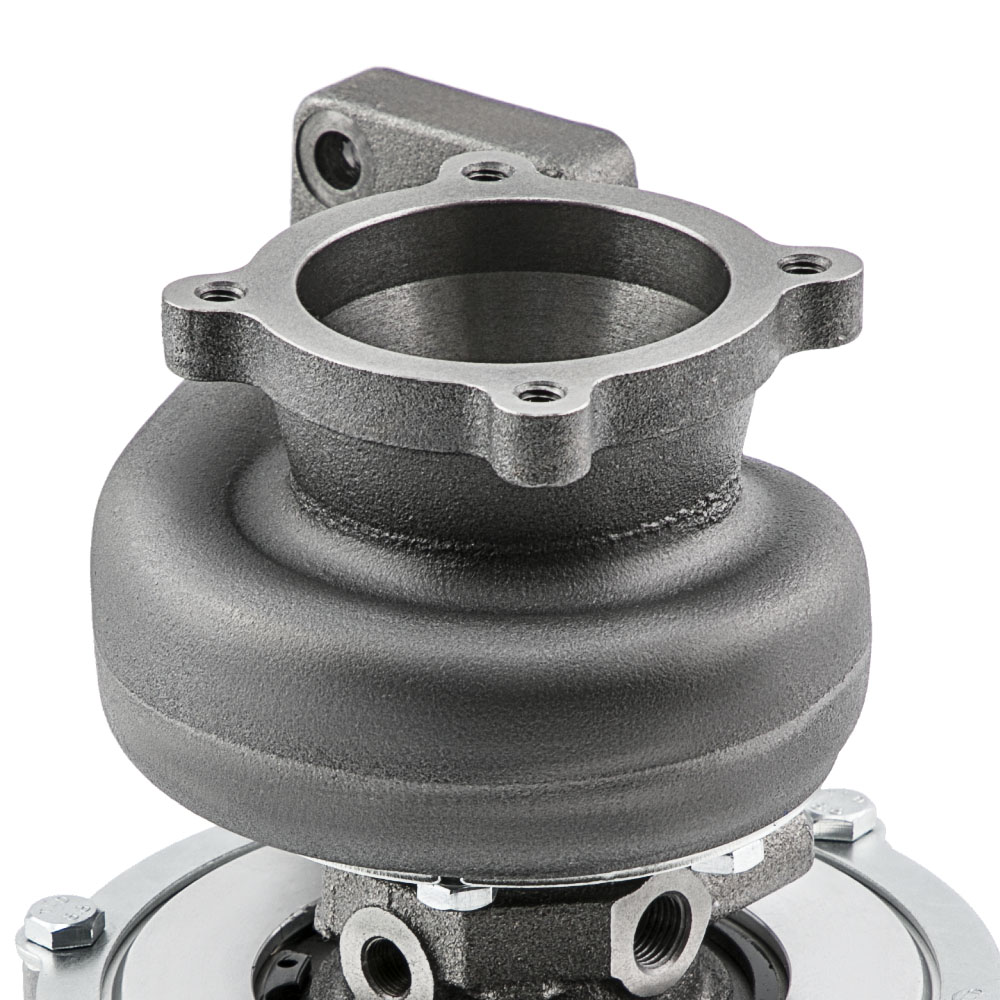

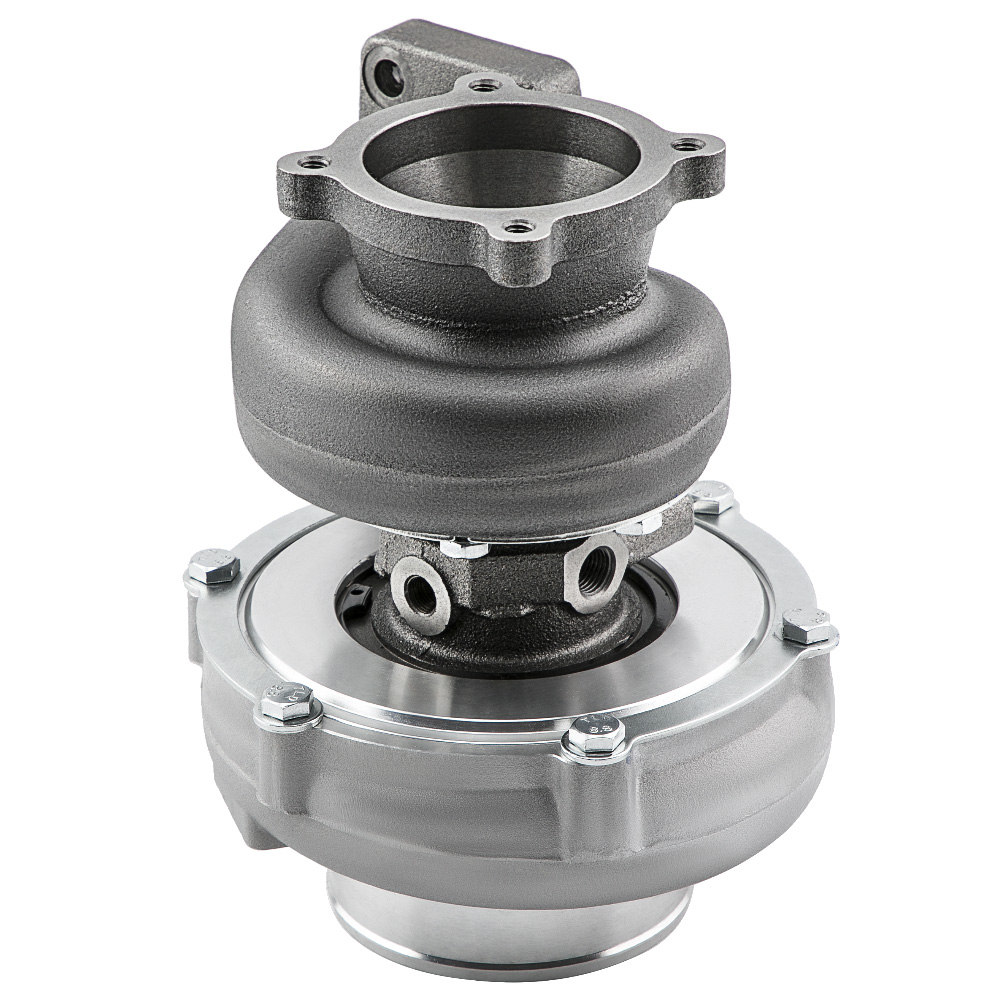

T3 GT3582 GT35 A/R 0 .63 0.7 Anti Surge housing Turbocharger TurbocompresorT3 GT3582 GT35 A/R 0 .63 0.7 Anti Surge housing Turbocharger TurbocompresorT3 GT3582 GT35 A/R 0 .63 0.7 Anti Surge housing Turbocharger TurbocompresorT3 GT3582 GT35 A/R 0 .63 0.7 Anti Surge housing Turbocharger TurbocompresorT3 GT3582 GT35 A/R 0 .63 0.7 Anti Surge housing Turbocharger Turbocompresor
T3 GT3582 GT35 A/R 0 .63 0.7 Anti Surge housing Turbocharger Turbocompresor T3 GT3582 GT35 A/R 0 .63 0.7 Anti Surge housing Turbocharger Turbocompresor T3 GT3582 GT35 A/R 0 .63 0.7 Anti Surge housing Turbocharger Turbocompresor T3 GT3582 GT35 A/R 0 .63 0.7 Anti Surge housing Turbocharger Turbocompresor T3 GT3582 GT35 A/R 0 .63 0.7 Anti Surge housing Turbocharger Turbocompresor

T3 GT3582 GT35 A/R 0 .63 0.7 Anti Surge housing Turbocharger Turbocompresor

  • Fast
    Shipping
  • International
    Shipping
  • 30 Days
    Return Policy
  • Secure
    Shopping
DESCRIPTION



Application

Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Horse Power: Capable of Boosting Horse Power up to 600HP

*Notice: Please confirm that there is enough space in your car to install this turbo before purchasing.


Specification

Turbine Side:
Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Floating/Journal Bearing
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Wastegate: W/O Wastegate
Oil feed/inlet: M10*7/16-24
Oil drian/outlet: M14.1 & 2*M8*1.25
Water inlet/outlet: M14* 1.5
Maximum PSI: 22
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g

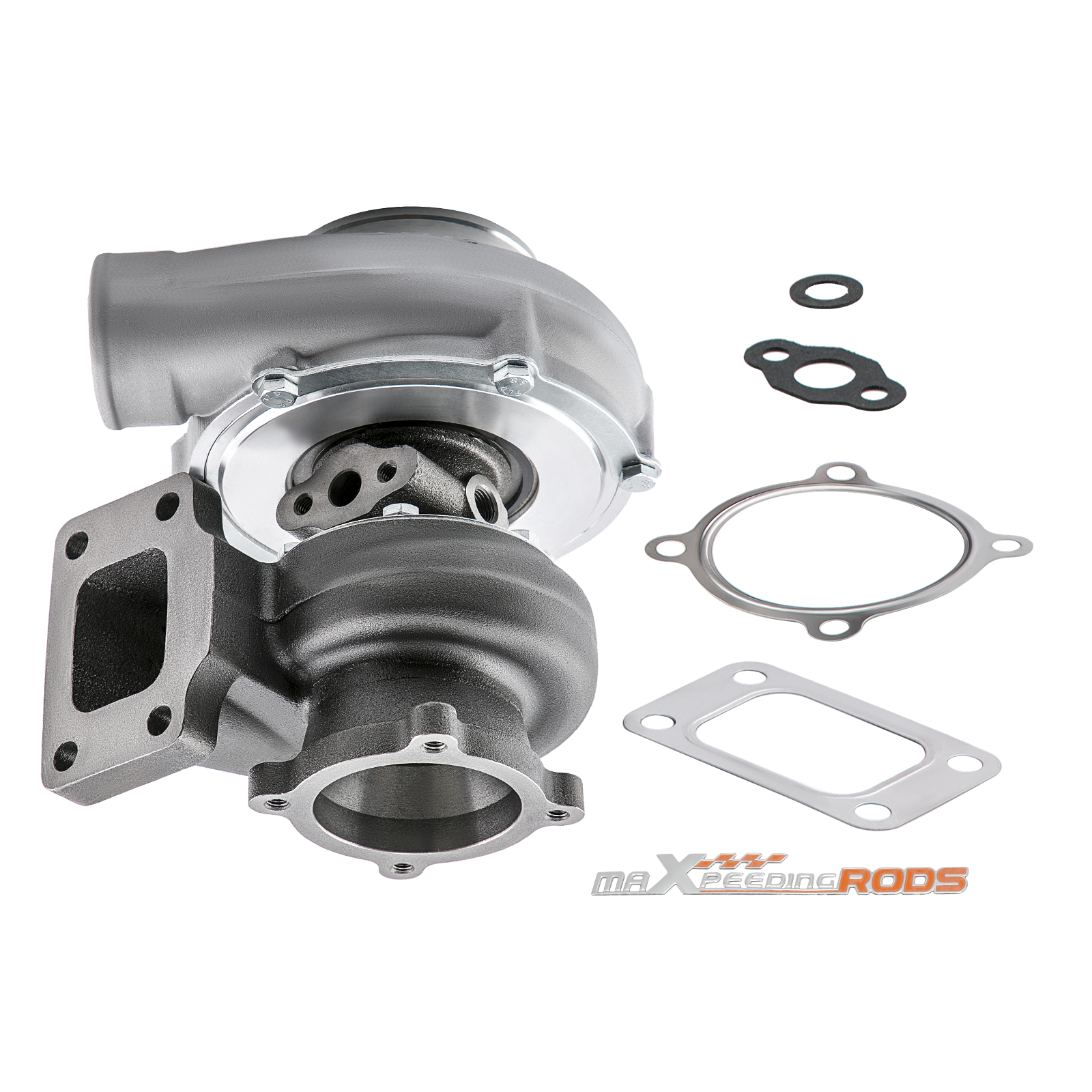

Package included

1 xTurbocharger
2 x Flange gaskets
2 x Oil feed/drain gaskets


Features

Product Material:
1. Turbine housing : Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel: Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. Compressor housing: ZL104 aluminum
4. compressor wheel/blades: Cast aluminium with good gas tightness and corrosion resistance
5. Max HP: UP to 600hp



Product Feature

*Product Material
1. Turbine housing : Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

*Product Features
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer



Installation Notice

We highly recommend you make sure the points below before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately.
Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.



Notice
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
——Universal fit for 4/6-cylinder 2.5L-6.0L engines, supports up to 600HP & 22PSI boost. ——QT450-10/K418 alloy & ZL104 aluminum construction, high temp resistance & durable. ——Floating bearing + water-oil cooling, precision balanced for stable & efficient performance. ——Complete kit with turbo & gaskets, ready for installation; professional install recommended. ——Cost-effective upgrade, boosts power 20-40%, ideal for reliable engine modification.
