24 Port 8Gbit Fc Brocade Sm-310-0000 Network Switch 16x License +16x Gbigs V755

The description of this item has been automatically translated. If you have any questions, please feel free to contact us.


This offer is

This auction is si

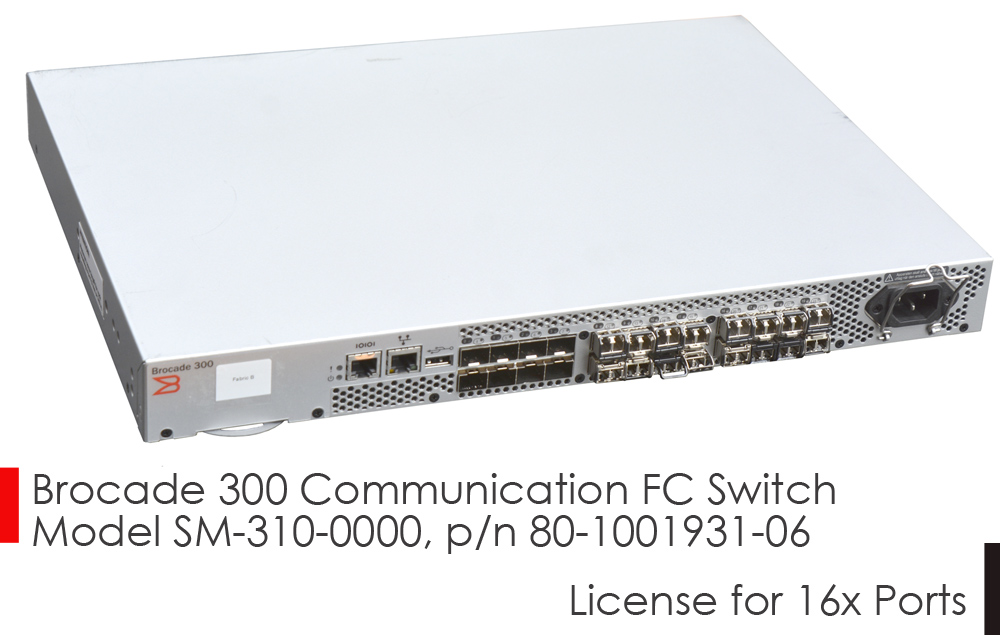

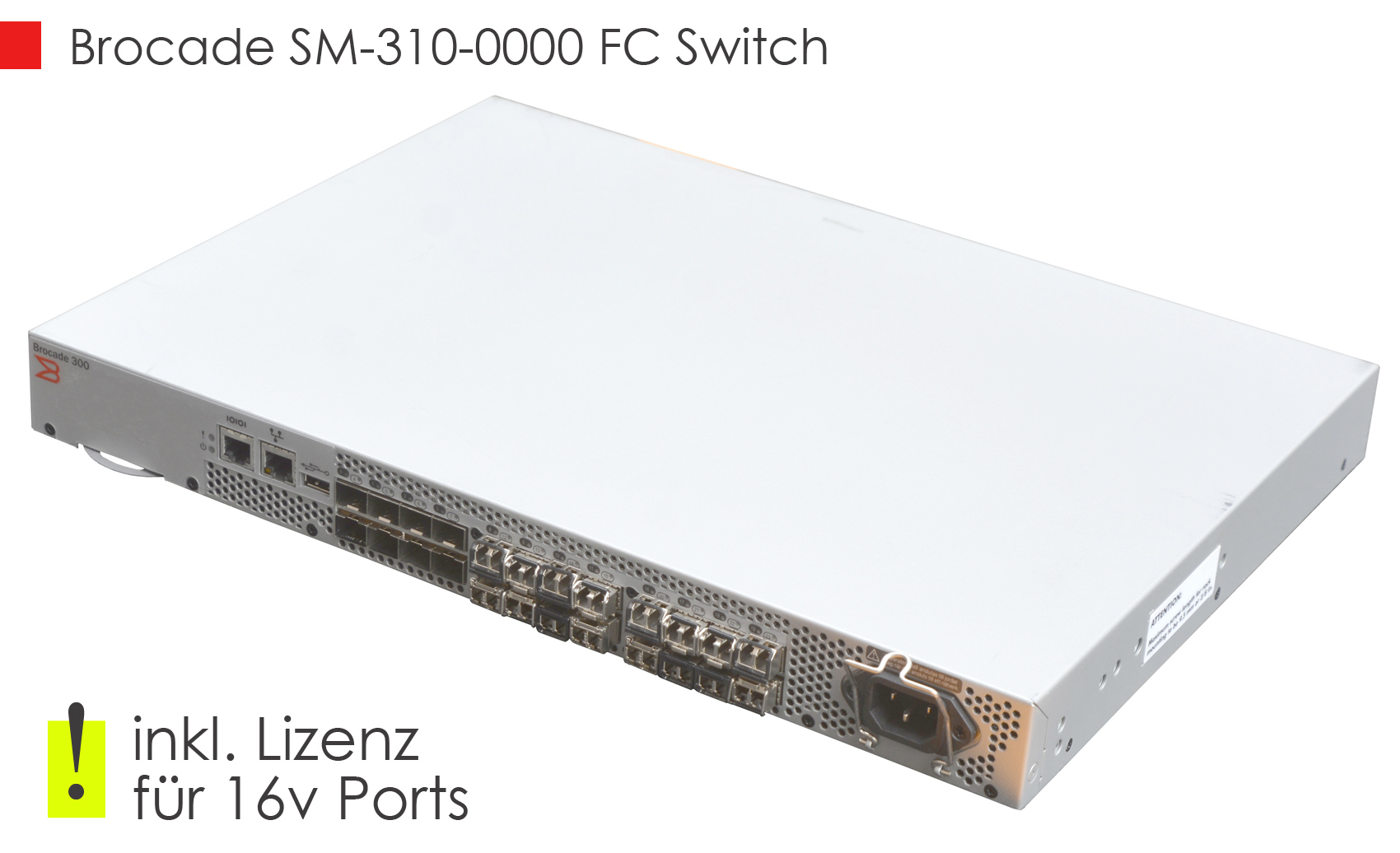

Brocade SM-310-0000-a fibre channel-san switch with up to 24 ports and 8 Gbit/s port speed. The compact 1-HE device (1 U) is suitable as an inexpensive entry or edge switch for storage networks, but offers numerous enterprise functions and high performance. Below is a detailed summary of the technical features:
Ports and configuration options; With this switch you have a license for 16x ports, the delivery takes place including 16x GBics; It is not an internet play, but a network switch for data storages (HDD Shelfs) etc.

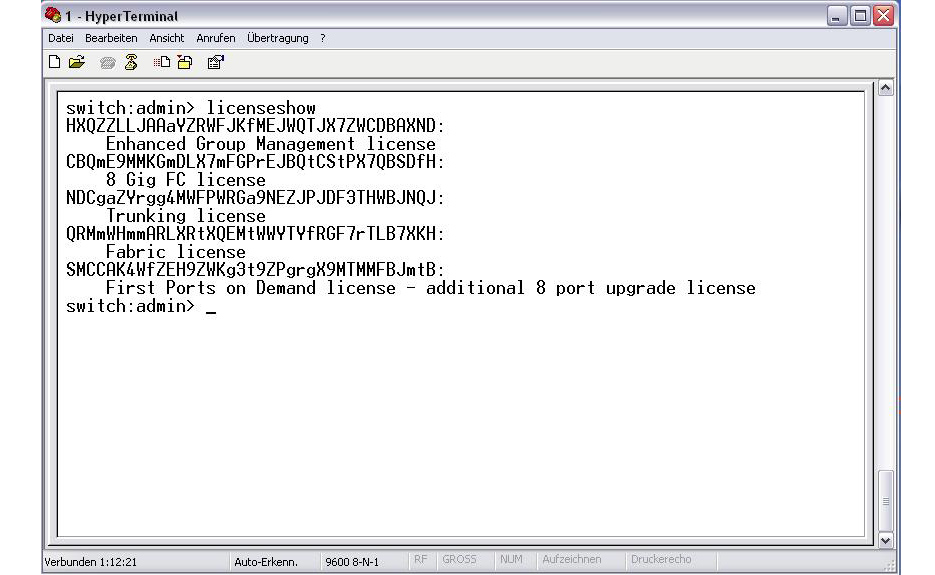

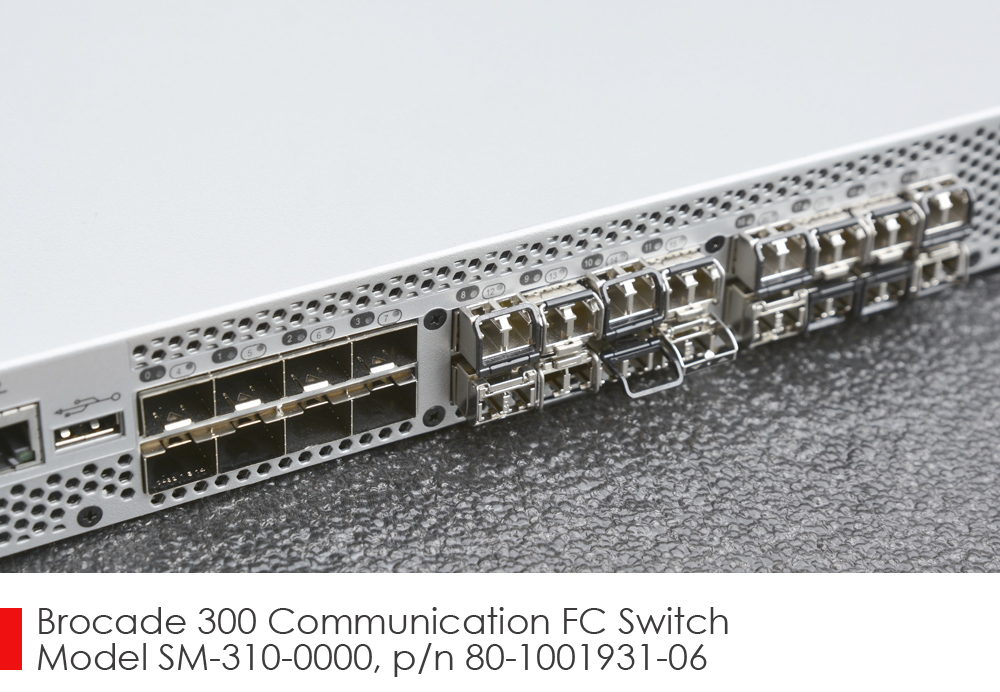

Data ports: 24 × fibre channel ports (SFP/SFP+ slots) with up to 8 Gbit/s per port. 8 ports are activated at the factory; The activation on 16x ports was made. The possible expression on 24 ports is via ports-on-demand licenses.
Port-Types: Supports Universal Fibre Channel Portmodi-E_Port (Inter-Switch Link), F_PPOR (Fabric connection for devices), FL_PORT (LOOP connection) and M_Port (Mirror Port for Port Monitoring).
Management/service ports: Equipped with a dedicated 10/100 Mbit/s Ethernet port (RJ-45) for management, a serial console connection (RJ-45) and a USB port. The USB connection is used to secure/restore configurations and firmware upgrades.




      ISL Trunking: Supports frame-based trunking with up to eight 8 GBPS ports per ISL drink, with a maximum bandwidth of 64 Gbps per trunk.
Agregate bandwidth: 192 Gbps (24 ports × 8 Gbps).
Latz: maximum fabric latency of 700 NS without competition, cut-through-through routing at 8 Gbps.
 Management: Supports HTTP, SNMP V1/V3, Telnnet; Brocade Advanced Web Tools, Fabric Watch, Ezswitchetup Assistant, Network Advisor San Enterprise/Professional; Cli, SMI-S-compliant.
Security: Supports DH-Chap, FCAP Switch authentication, FIPS 140-2 L2 conformity, IPSec, LDAP, OpenLDAP, port binding, Tacacs+, SCP, SSH V2, SSL.


Specifications:
Width: 42.88 cm / height: 4.29 cm / depth: 30.66 cm
Weight: 4.2 kg without SFP/SFP+ media
Operating temperature: 0 ° C to 40 ° C; Storage temperature: −25 ° C to 70 ° C





 Scope of delivery: Switch as described

Condition: used, fully functionable





***
