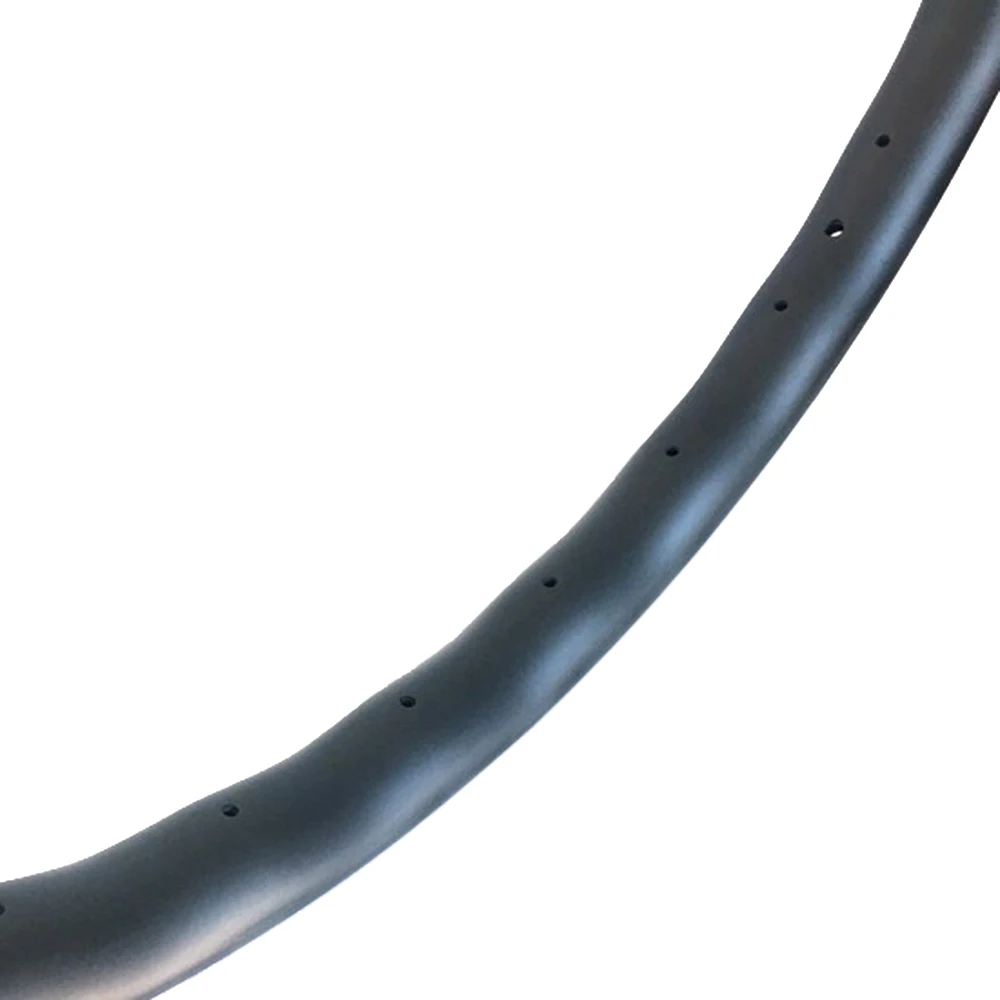

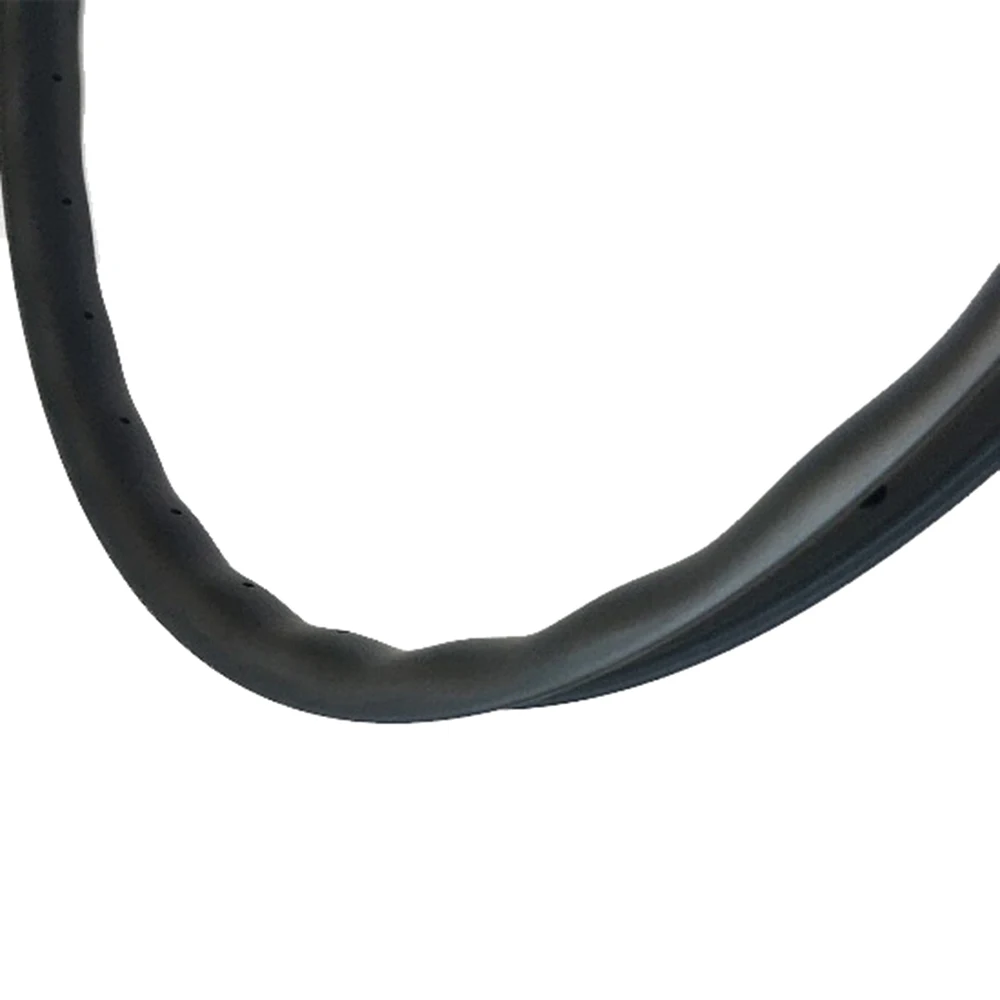

Wave Shape Asymmetric 29er Mtb XC Bike Boost 23.5mm Deep 29/31/33/35mm Width Carbon Wheel Tubeless Clincher Hookless Rim

Options

  • Weave:UD 3K 12K TWILL MARBLE

  • Finish: matte/glossy

  • Spoke holes: 28

  • Nipple position: external / internal


Decal: custom logo / no logo / our logo

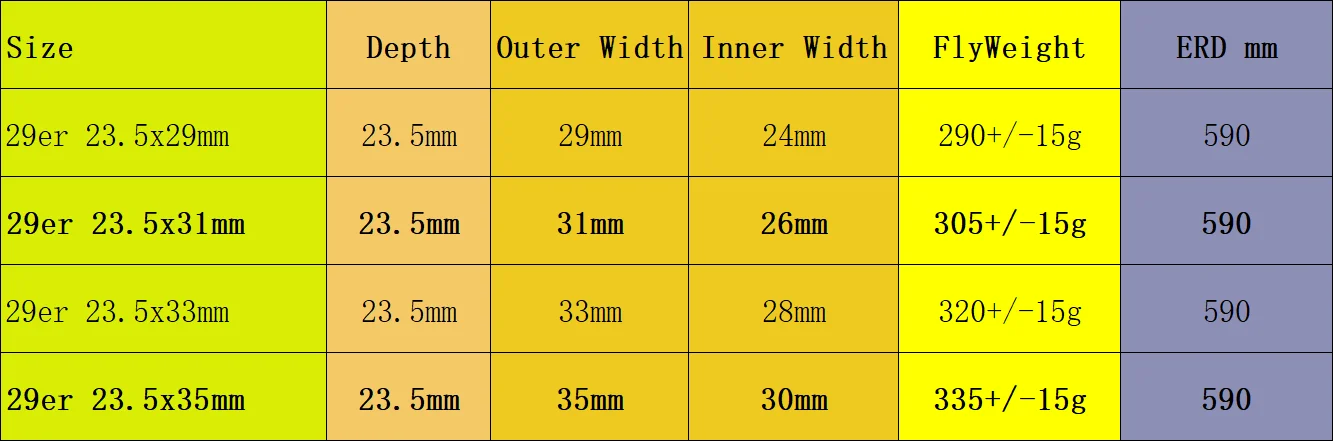

Size:

29er

Outer Width:

29mm

Inner Width:

24mm

Depth:

23.5mm

Spoke Holes:

28

Weight:

290±15g

Type:

Clincher

Weave:

UD

Finish:

Matt

Tubeless:

compatible

Braking System:

Disc brake

Nipple Position:

External/Internal

Material:

TorayT800 carbon

Weight Limit:

90kg

Spoke Tension:

180kgf

ERD:

590mm

Cycling Tire Pressure:

60psi max

Application:

Mtb XC Boost

Warranty:

12 Months

Standard:

EN


Note: ERD(no include nipple head dimension)

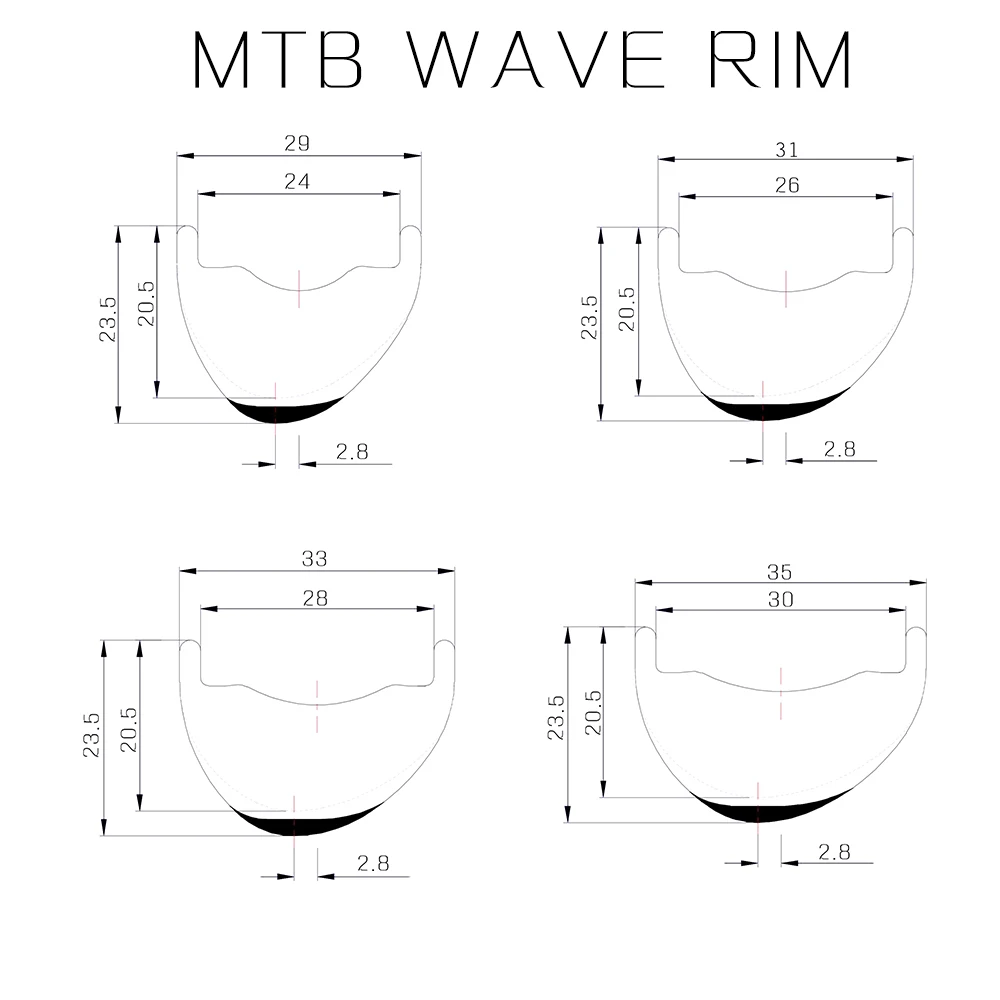

Cross Section
