Product Description

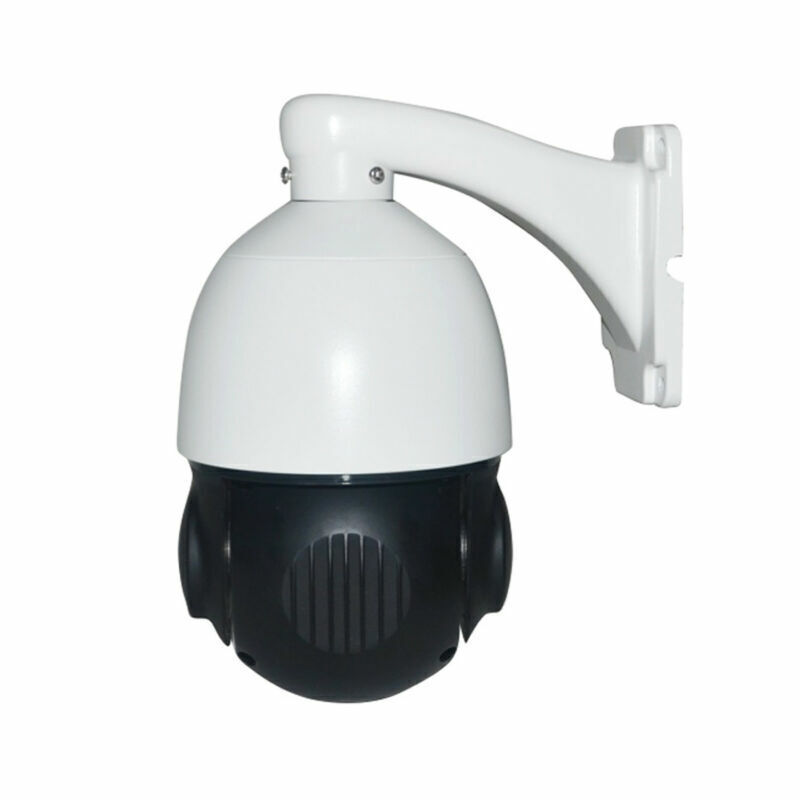

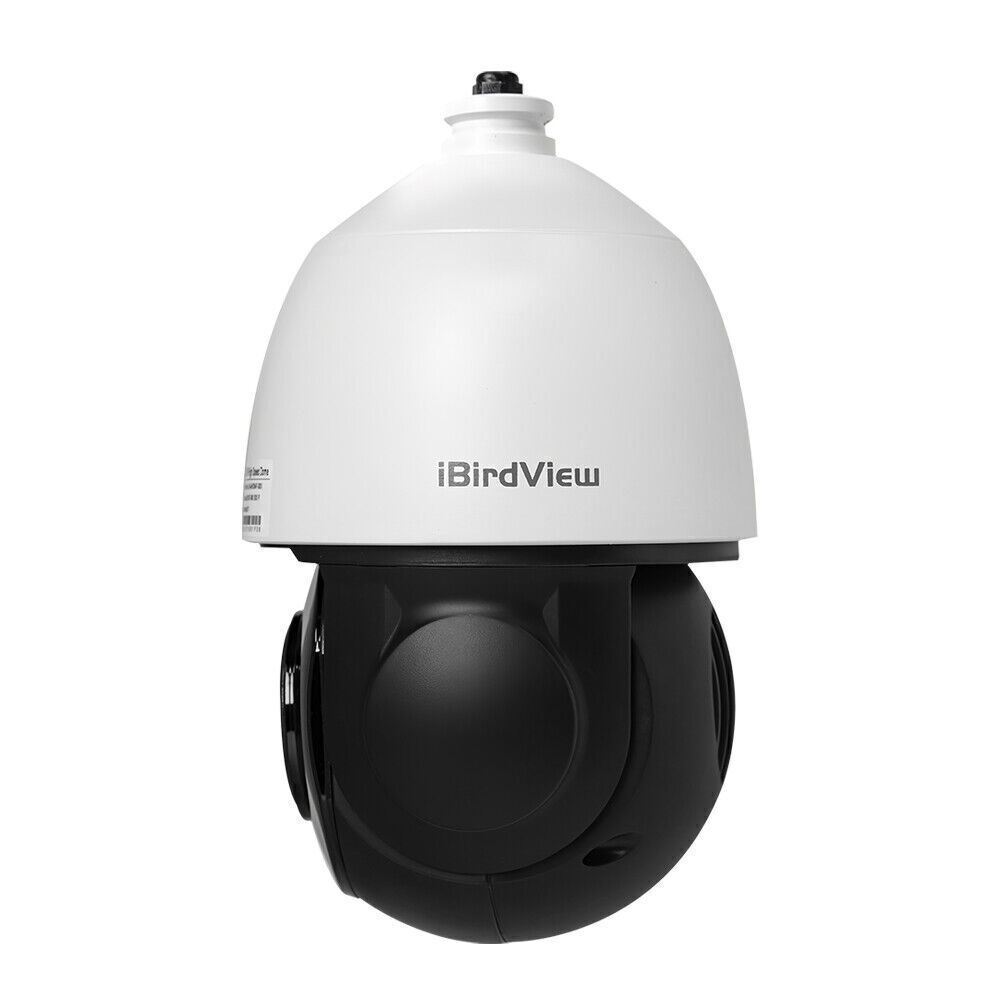

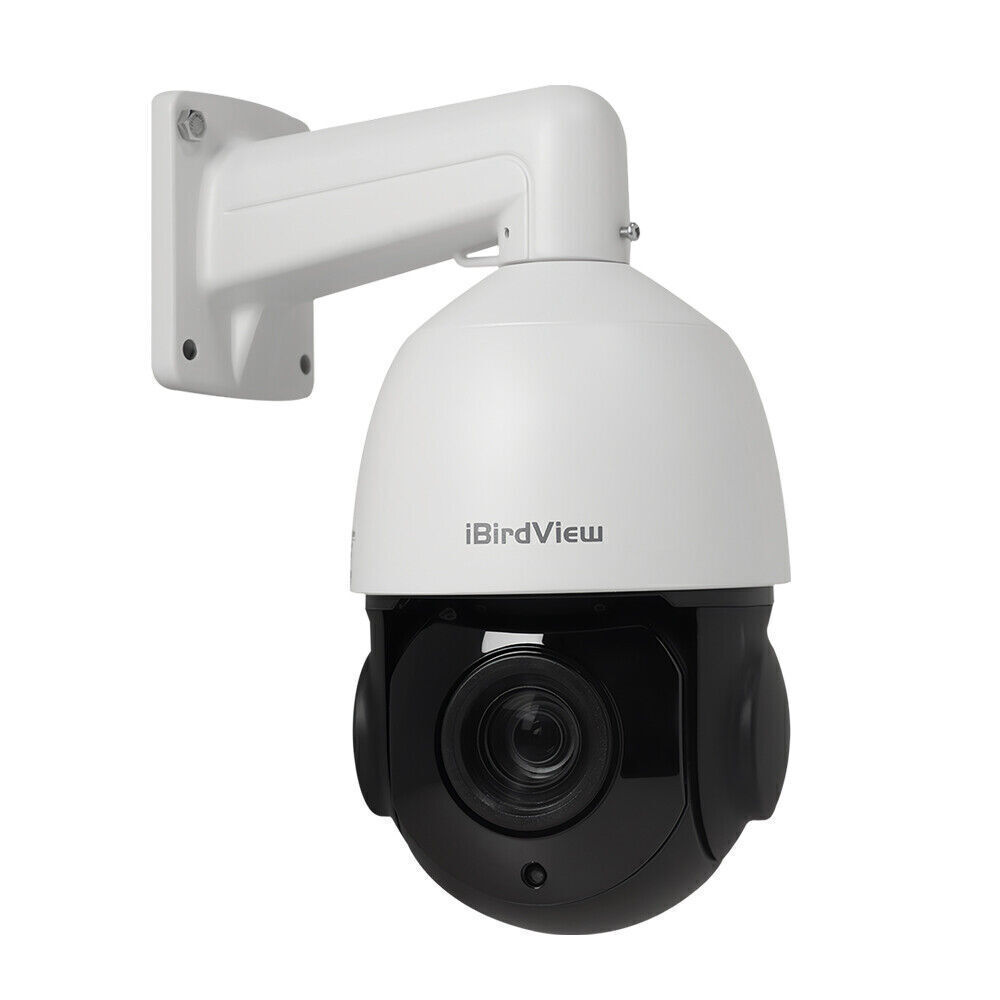

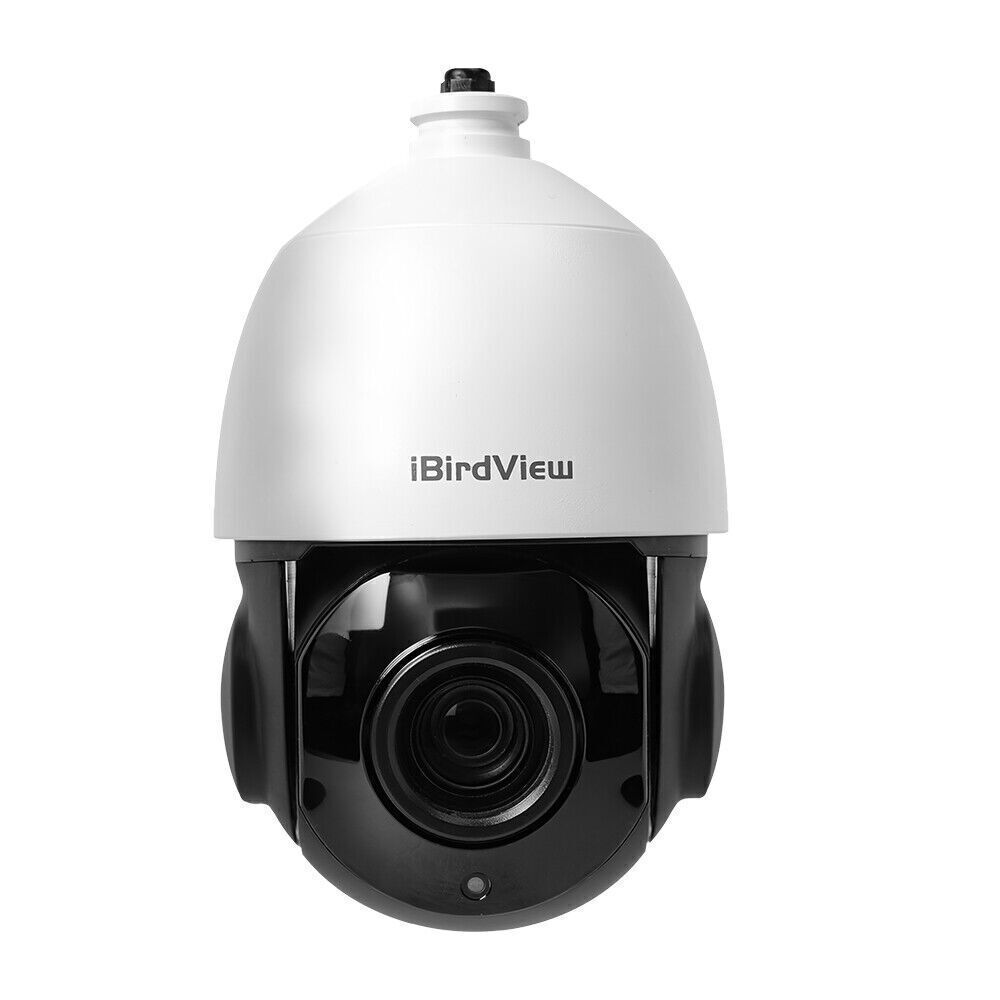

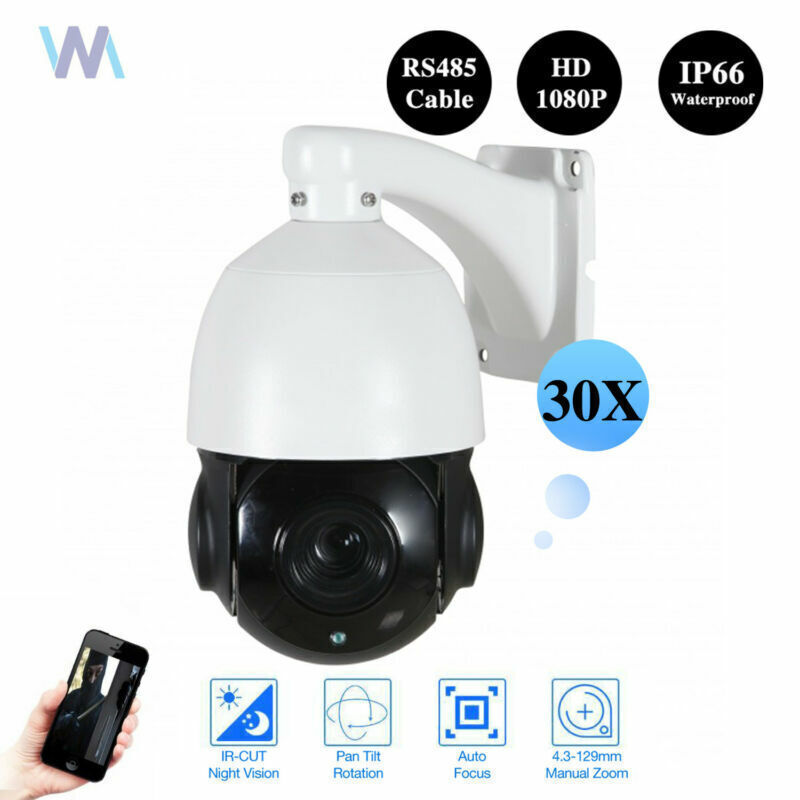

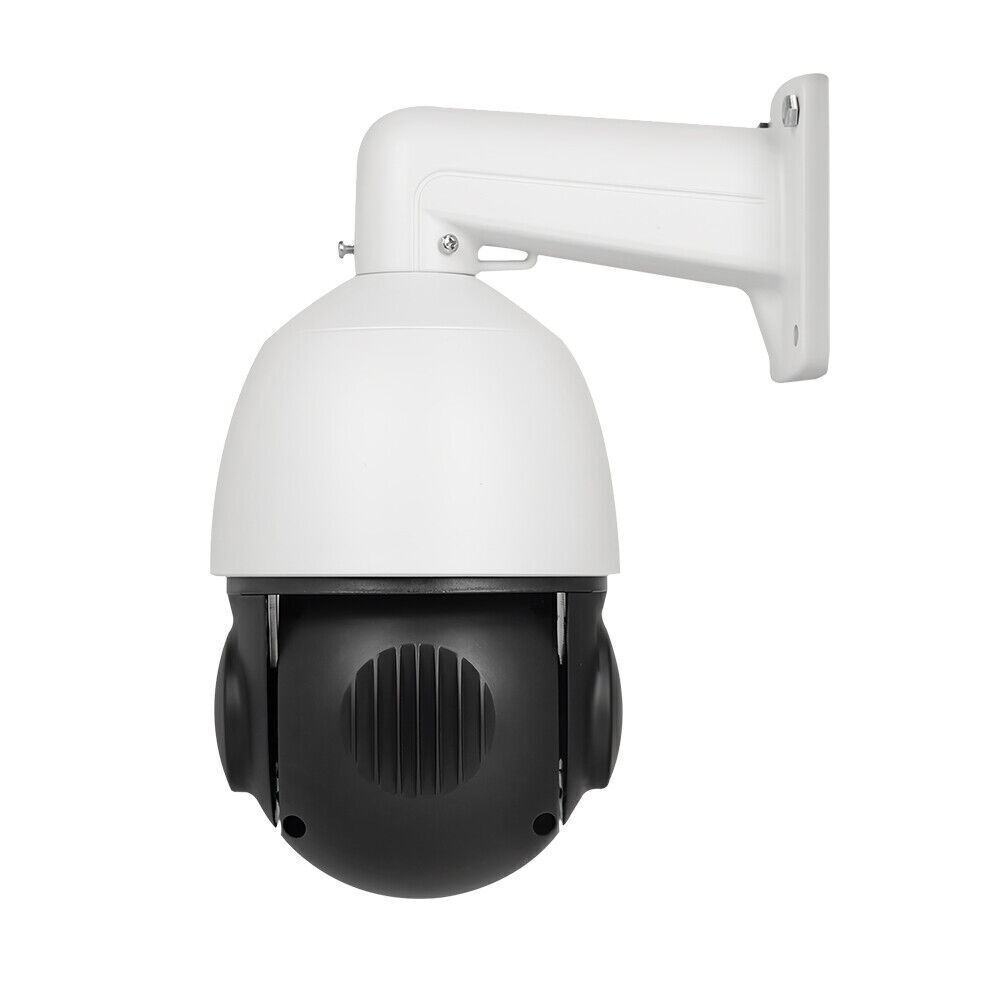

4in1 AHD/TVI/CVI/CVBS 30X 4.5'' ZOOM 1080P 2.0MP PTZ Speed Dome IR Camera Night

This is HD 4in1 PTZ camera! It's time to update your old fashion PTZ camera among CVBS, AHD, TVI, CVI. You don't need to change your Digital Video Recorder AND rewiring！ Cause signal transfer is selectable among AHD/CVI/TVI/CVBS.



Mini 4in1 PTZ 1080P Security Camera 30x Zoom IR Outdoor Medium Speed Dome 2MP

Model: iBirdView

Keep the original analog system

Real-time transmission, lossless video

High definition 1080P, 30X zoom

Long distance transmission up to 500 meters

OSD menu available/with 6pcs IR-Led.IR range:80M

IR illumination & power consumption is variable dependant on the zoom factor





Feature:

Keep the original analog system

Real-time transmission, lossless video

High definition 1080P, 30X zoom

Long distance transmission up to 500 meters

OSD menu available/with 6pcs IR-Led.IR range: 80M

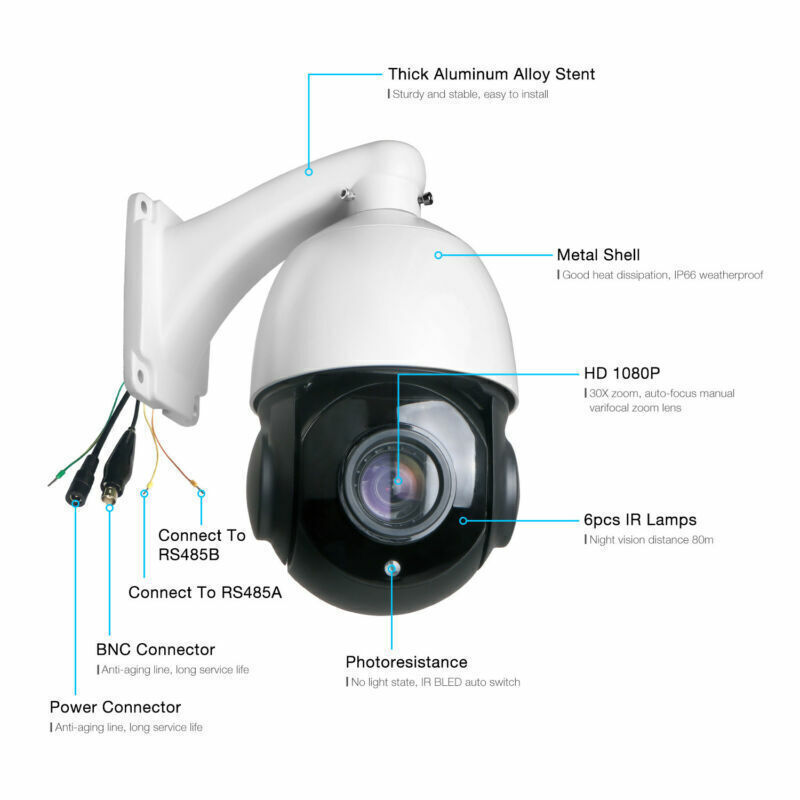

4.5'' total metal body construction, IP66 rate protection

IR illumination&power consumption is variable dependant on the zoom factor





Parameter

Camera

Sensor: 1/3'' Sony 323 CMOS

Effective Pixels: 1080P 1920(H) x 1080(V)

Total Pixels: 2.0MP

Lens: 30X f=4.3mm~129mm

Iris: F1.6~F3.0

Min. illumination: Color: 0.5Lux \  B/W: 0.05Lux

BLC: Support

WB: Indoor/outdoor/auto/manual

D/N: IR-Cut

S/N Ratio: ≥50dB

WDR: DWDR

Dome

DSP: NVP2441

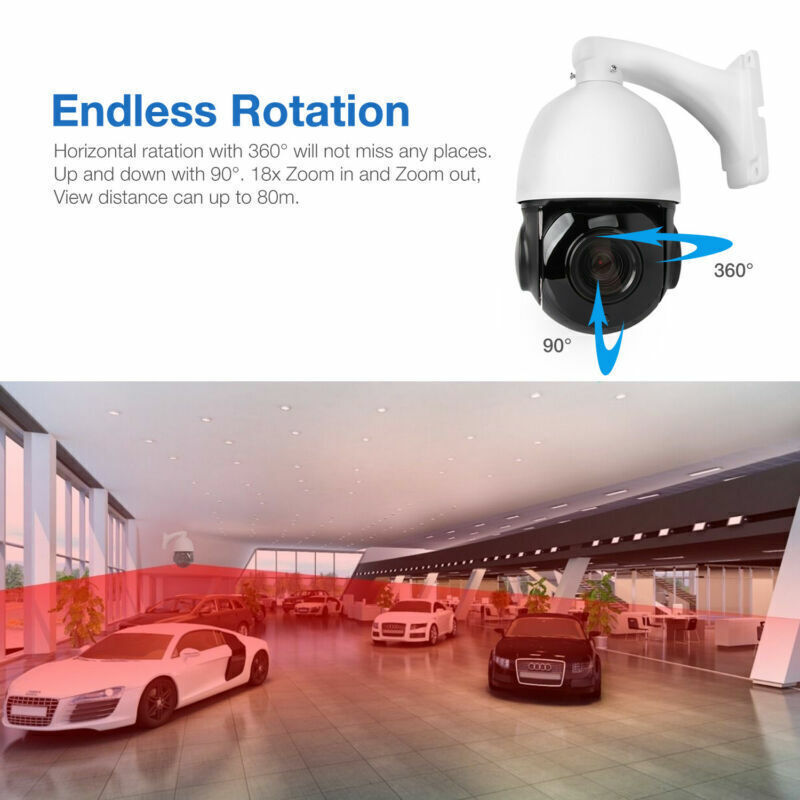

Horizontal Rotation Speed: 0.1°-60°/s

Horizontal Rotation Range: 360°

Tilt Rotation Speed: 0.1°-45°/s

Tilt Rotation Range: 93º

Auto Flip: Horizontal 180°, vertical 93°

Ratio Speed: Support

Preset Points: 220

Go to Preset Speed: 1-9 grades setting available

360° Scan: User programmable

A-B Scan: User programmable

A-B Scan Speed: 1-9 grades setting available

Dwell Preset: 1-60s interval available

Guard Tours: 3 groups

Guard Points: Max.16 points, dwell time user selectable

OSD Menu: Chinese, English

PWR on Action: Memory/Pattern 1/Tour 1/360 scan/AB scan/Preset 1-8/None

Signal Transfer: AHD/CVI/TVI/CVBS selectable

Park Time: 1-60 mins setting available

Pan and Tilt Position Display: Support

Baud Rate: 1200/2400/4800/9600bps

Communication: RS485 /coaxical cable

Operating Temperature: Indoor: 0°~ +40°: Outdoor: -40°~ +60°

Operating Humidity: ≤95% non condensing

Power Supply: DC12V 3A

Power Consumption: ≤5W

Lightning Protection: Transient voltage 6000V

IR Parameters

Auto Control IR LED: PWM

LEDs: Array 42Mil

IR Distance: Up to 80 meters

IR illumination On: 1-15 grades selectable







Package Included:

1x 4.5" 4 in 1 Medium Speed Dome Camera

1x Power supply

1x English Manual
