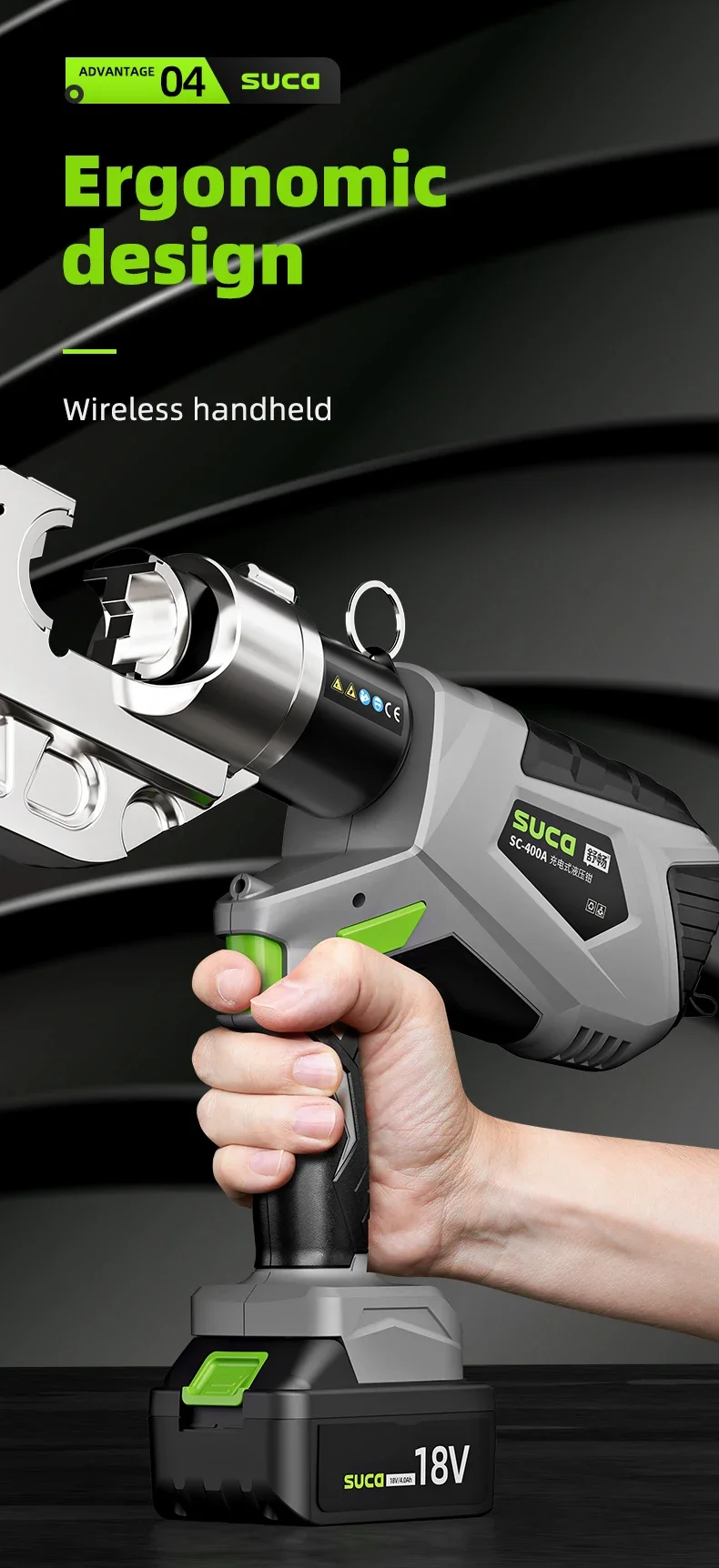

SUCA Hydraulic crimping tools

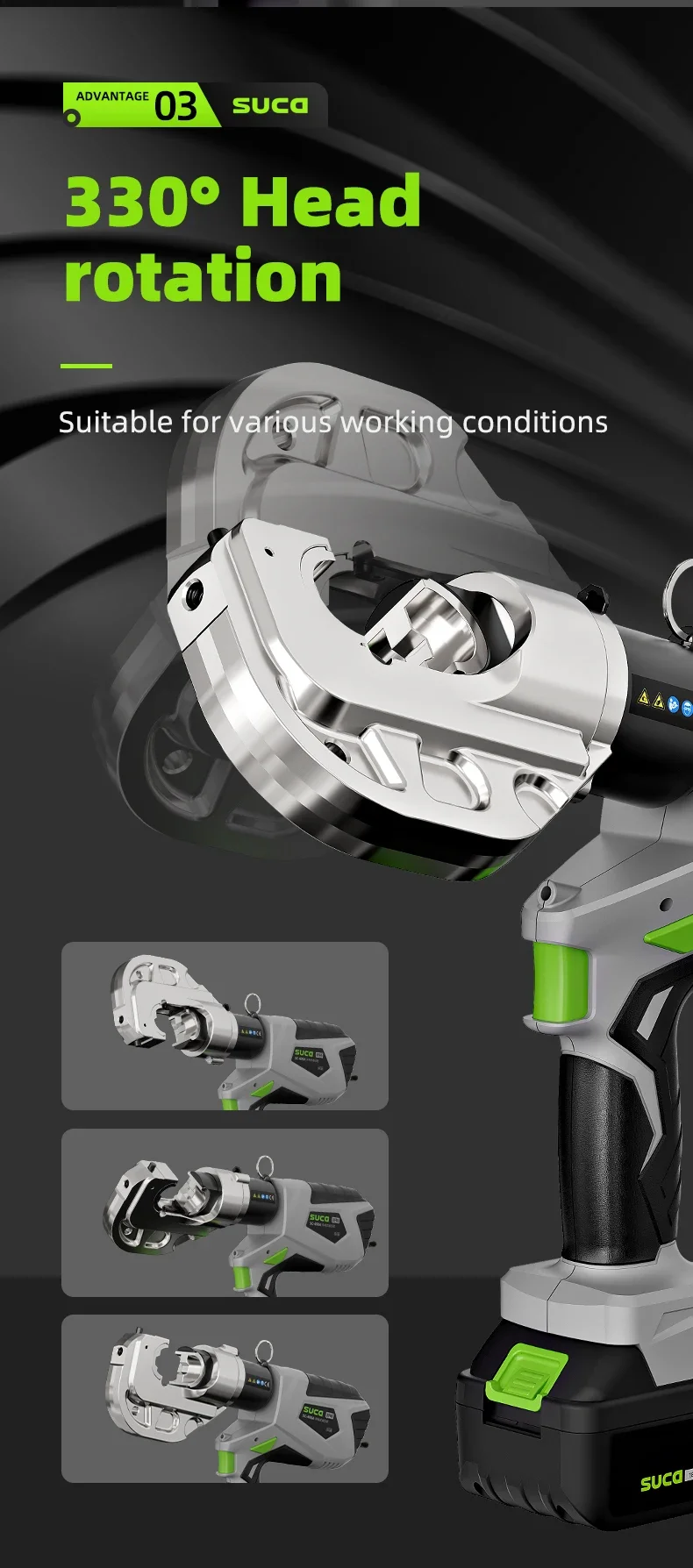

● The working head of electro-hydraulic tongs can be rotated 330° to meet different working conditions and usage
environments
environments

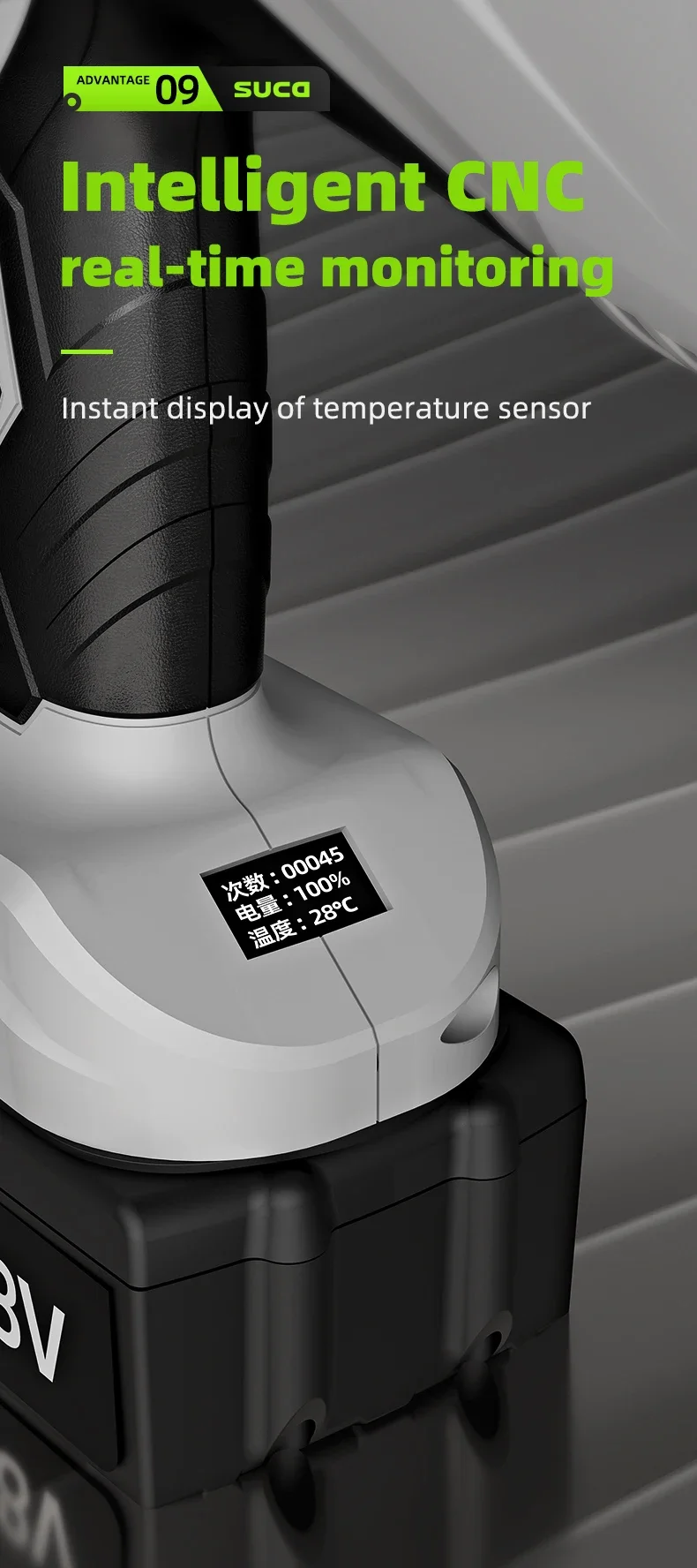

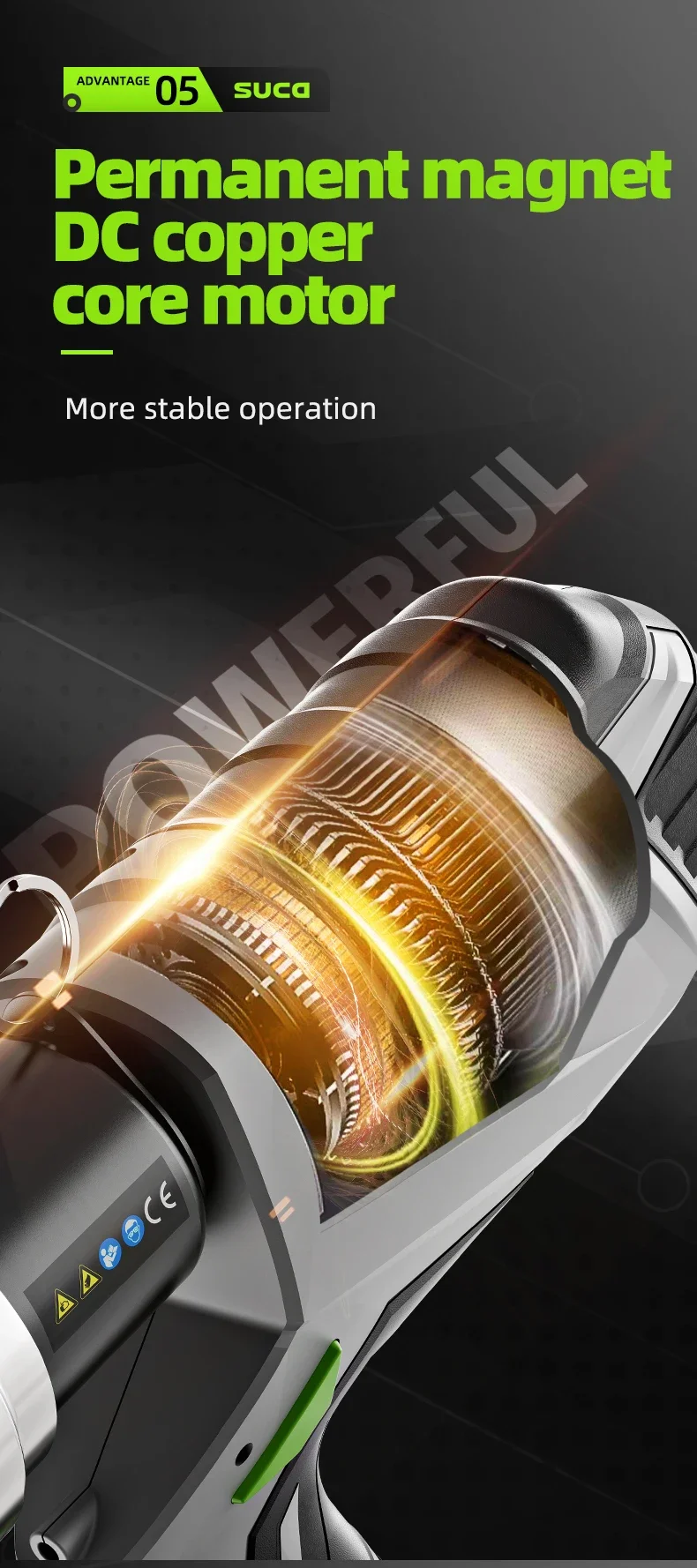

● Adopt permanent magnet DC motor, easy to work without effort ● The fuselage is equipped with a high-definition LCD

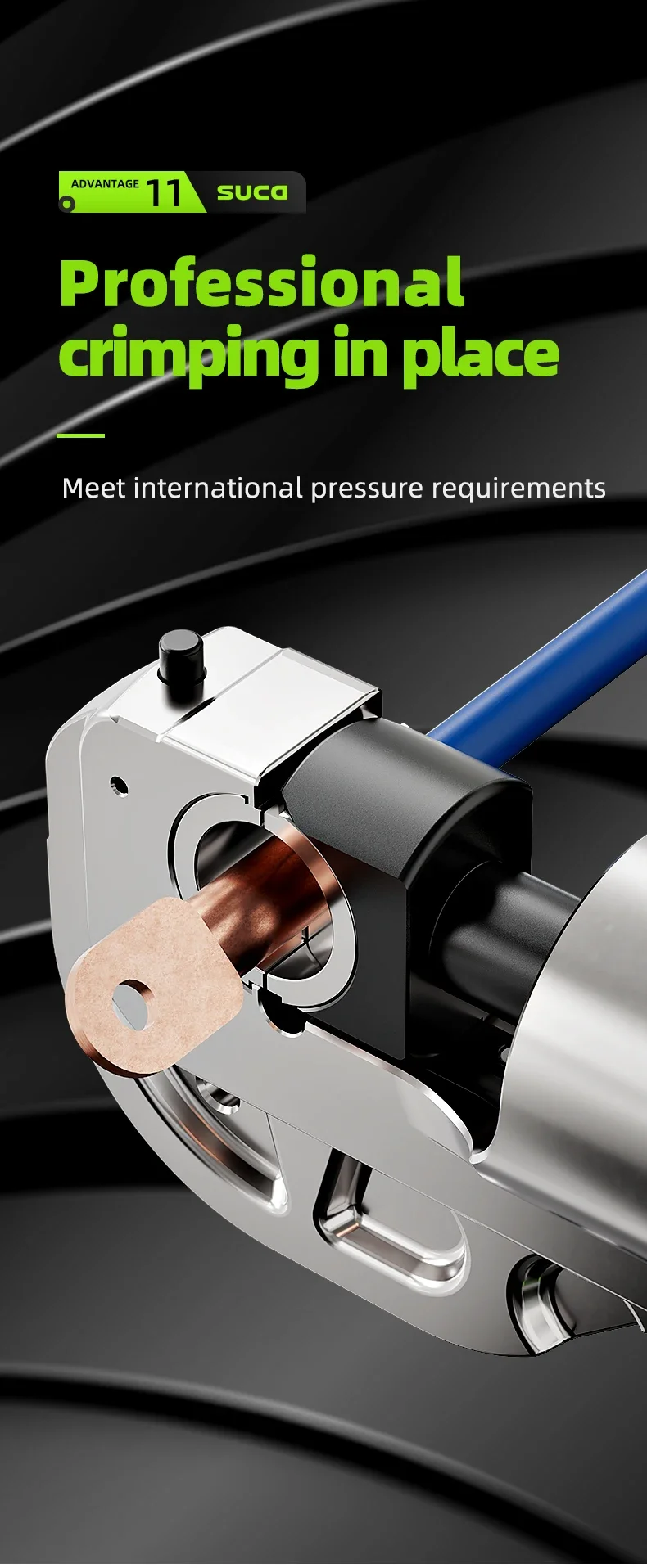

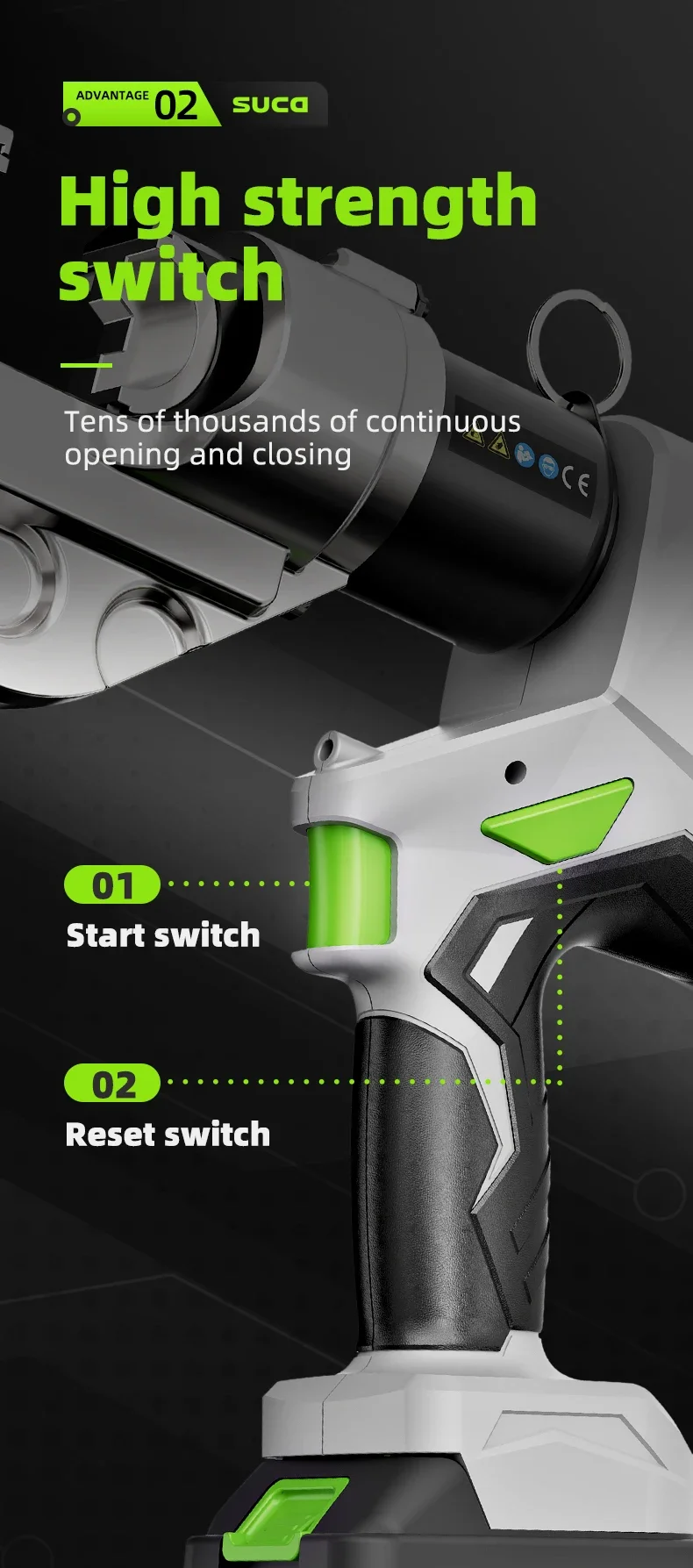

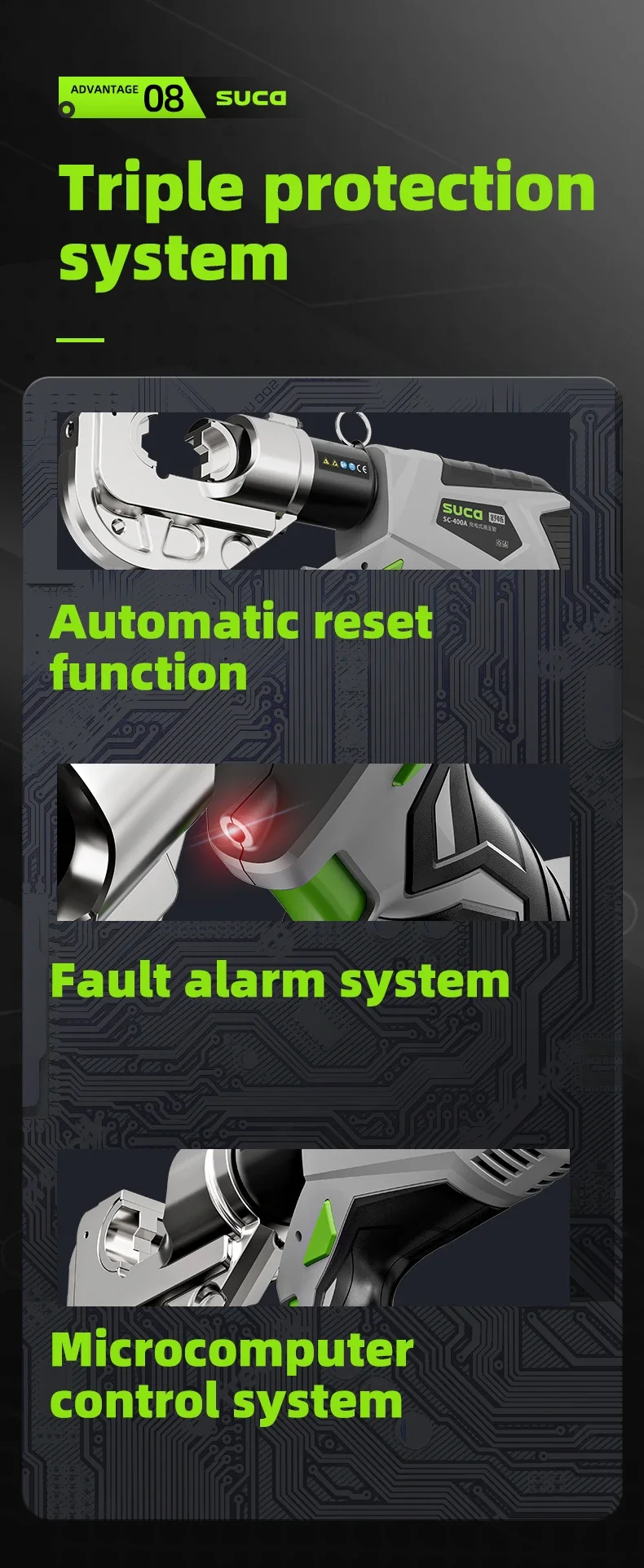

display, which records the power and crimping times in real time ● With reset switch, one-button reset to ensure your safety ● Professional crimping copper/aluminum wire terminals, the maximum pressure can reach 7 tons
display, which records the power and crimping times in real time ● With reset switch, one-button reset to ensure your safety ● Professional crimping copper/aluminum wire terminals, the maximum pressure can reach 7 tons
|

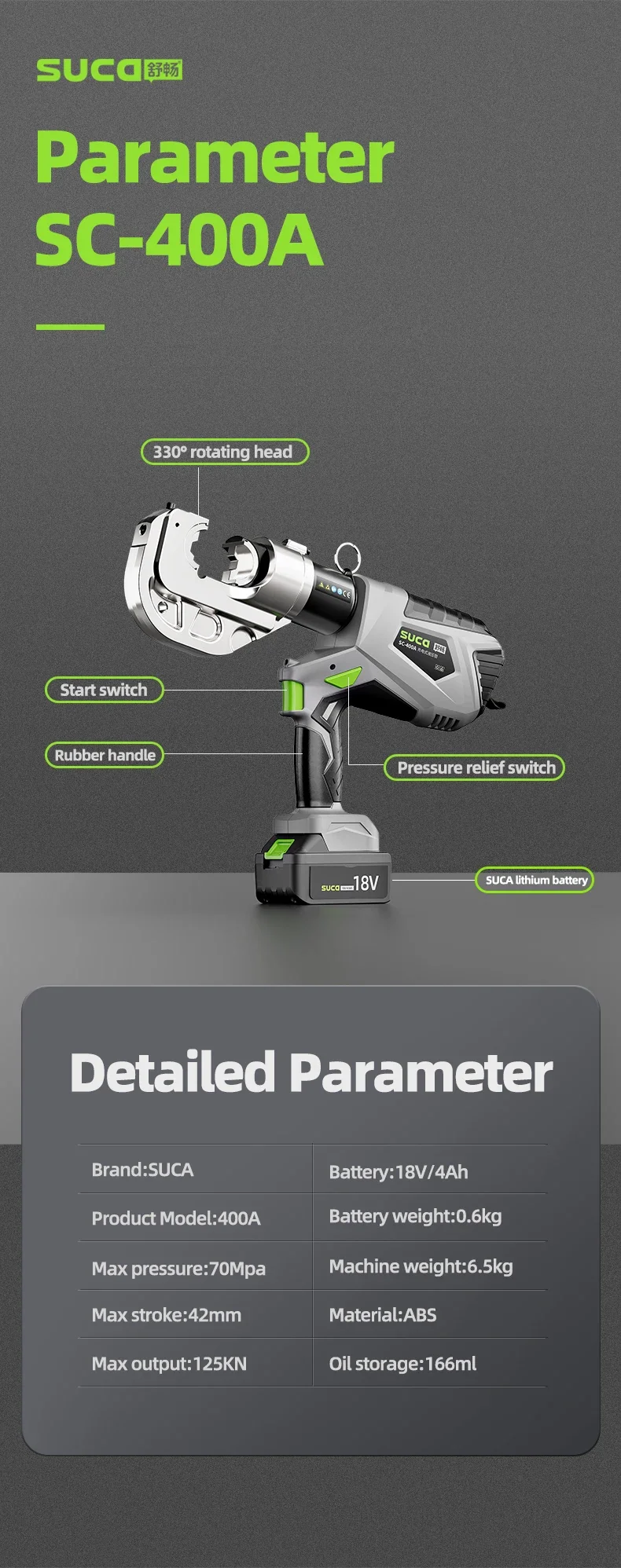

Product name
|
Hydraulic crimping tools
|
|
Model
|
SC-400 A
|
|
Weight
|
6.5 Kg
|
|
Size
|
420*270*72 mm
|
|
Time/crimp
|
8 s(CU 150 mm2)
|
|
Time /crimp
|
120 times (CU 150 mm2)
|
|
Oil storage capacity
|
166 ml
|
|
Max pressure
|
70 Mpa
|
|
Max stroke
|
42 mm
|
|
Max output
|
125 KN
|
|
Range of crimping
|
CU 400 mm2 / AL 300 mm2
|
|

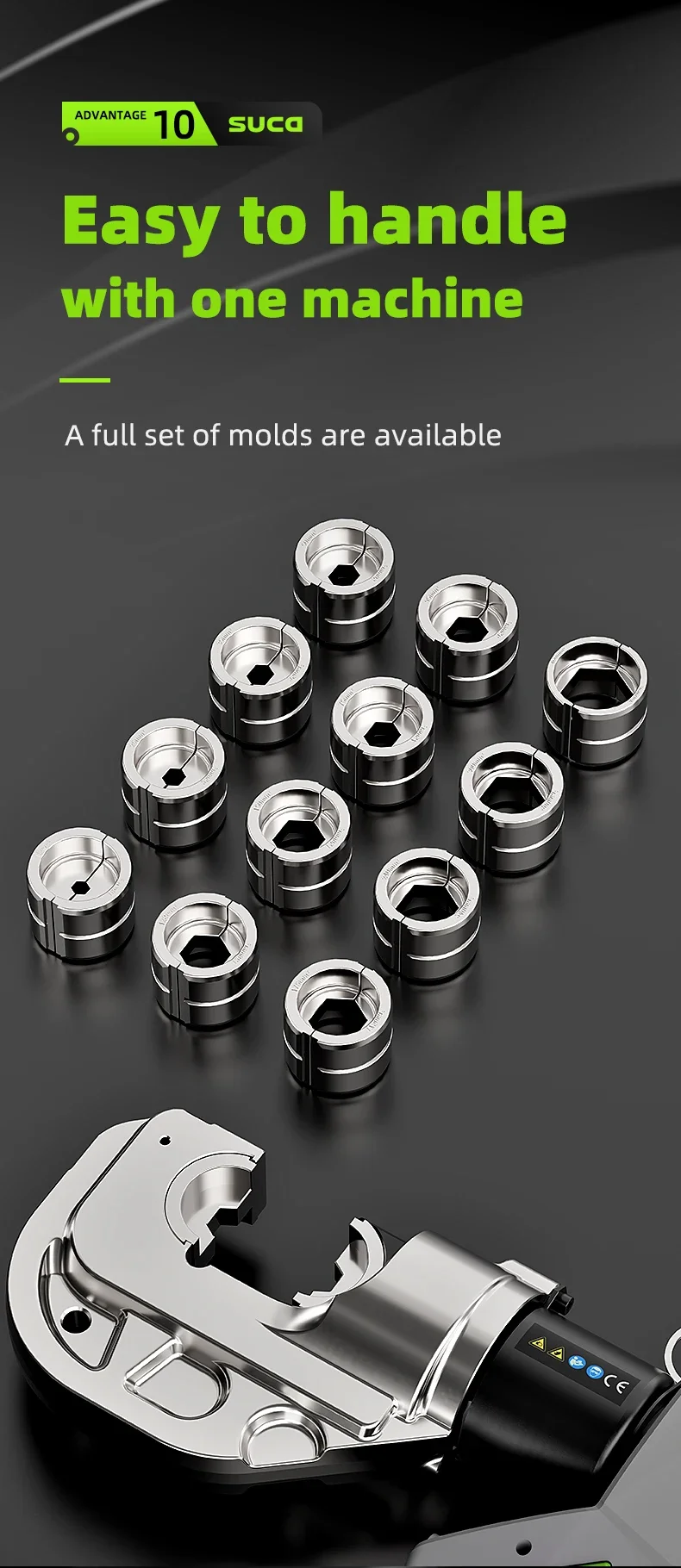

Crimping dies
|
16 ,25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400
|
|
Battery
|
18 V 4 Ah / 5Ah
|
