5.5KW MPPT HYBRID SOLAR POWER INVERTER _ SIMPLE/SECURE/SMART
VM II PLUS 5.5KW Solar Hybrid Inverter with MPPT 100A Working with or without battery (DC Input120-500Vdc)
KEY FEATURE
VM II PLUS 5.5KW Solar Hybrid Inverter with MPPT 100A DC Input 120-500Vdc/Working with or without battery
This is a multi functional inverter/charger, combining functions of inverter,solar charger and battery charger to offer
uninterruptible power support in portable size. Its comprehensive LCD display offers
user-configurable and easy-accessible button operation such as battery charging current,
AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
1.High effciency pure sine wave inverter(PF=1);Wide PV input range (12V dc -50V dc) 80A MPPT SCC;Intelligent 3stage 80A AC battery
charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.

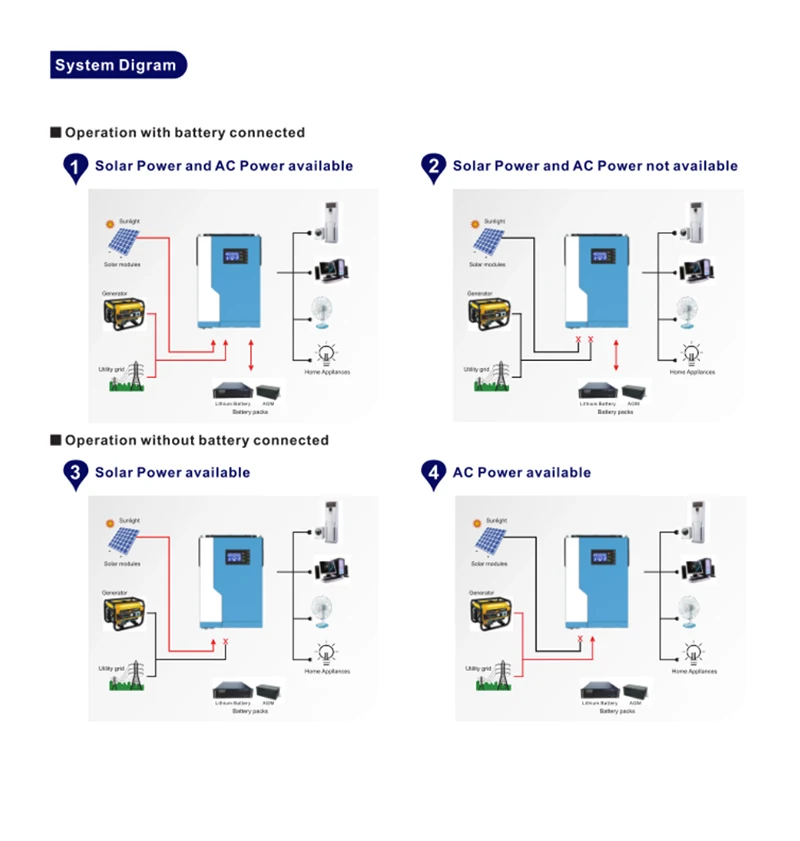

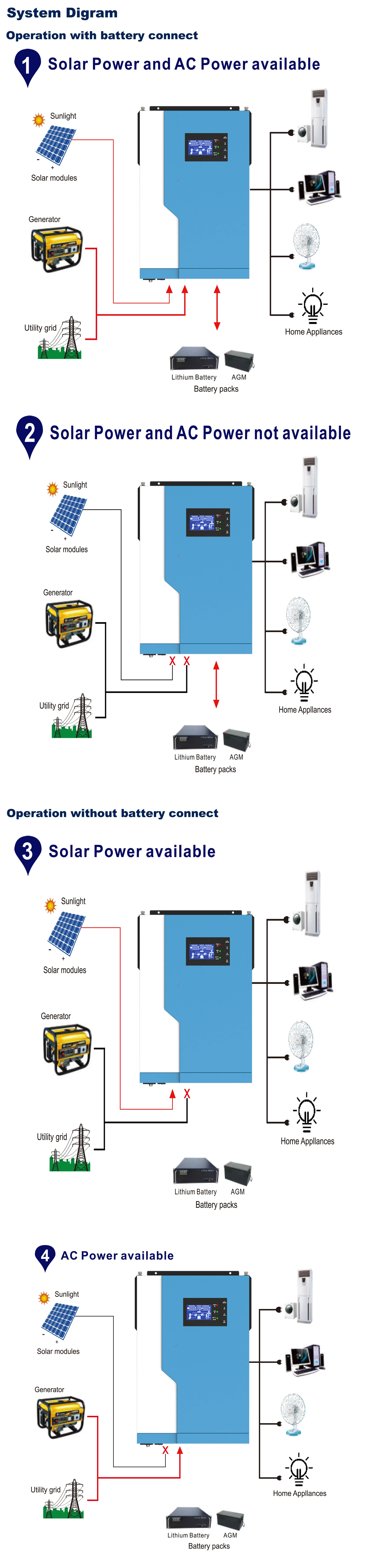

3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.

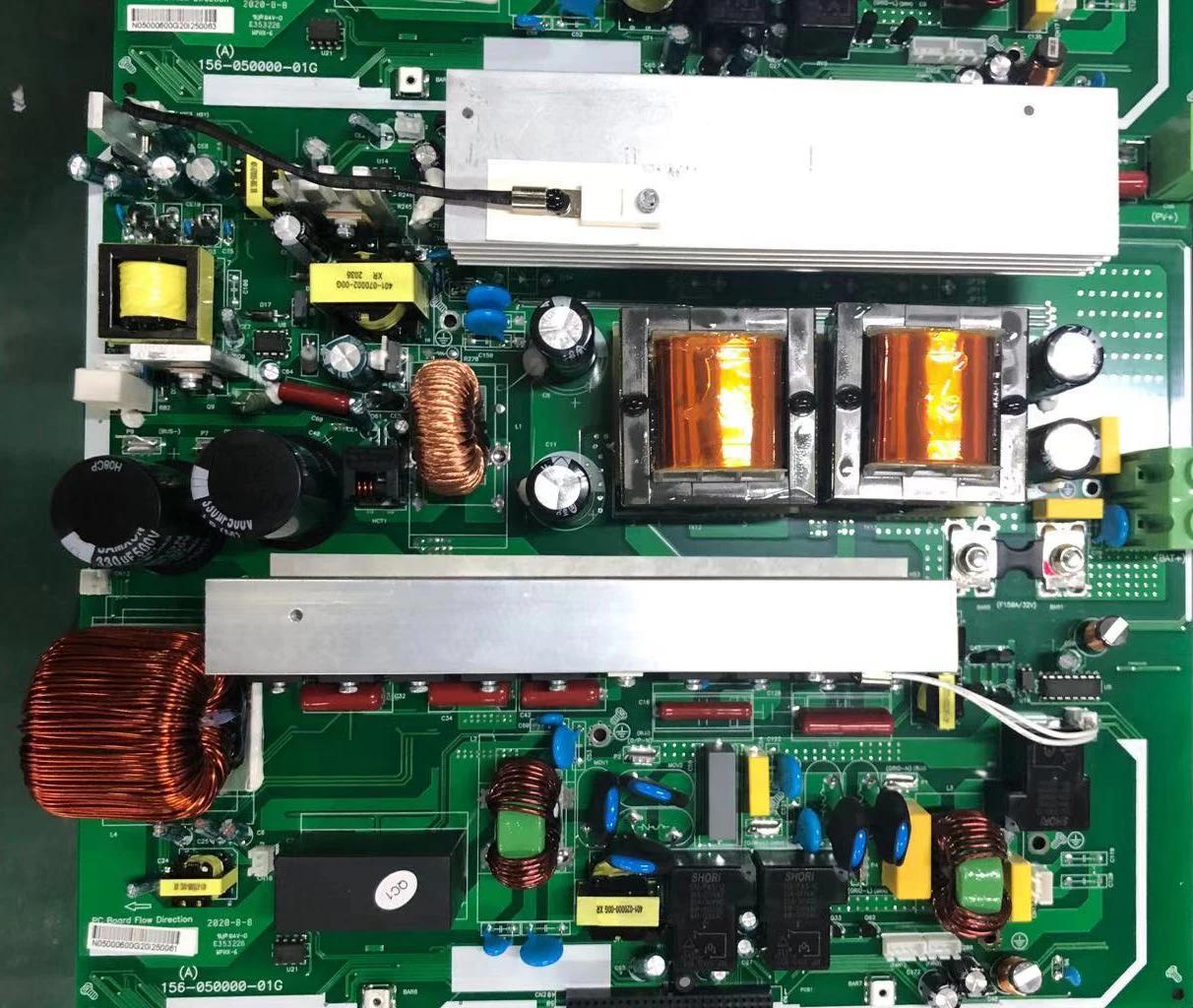

5. Field serviceable with replacement boards and spare parts.
6. Troubleshoot, or communication with USB/RS 232.

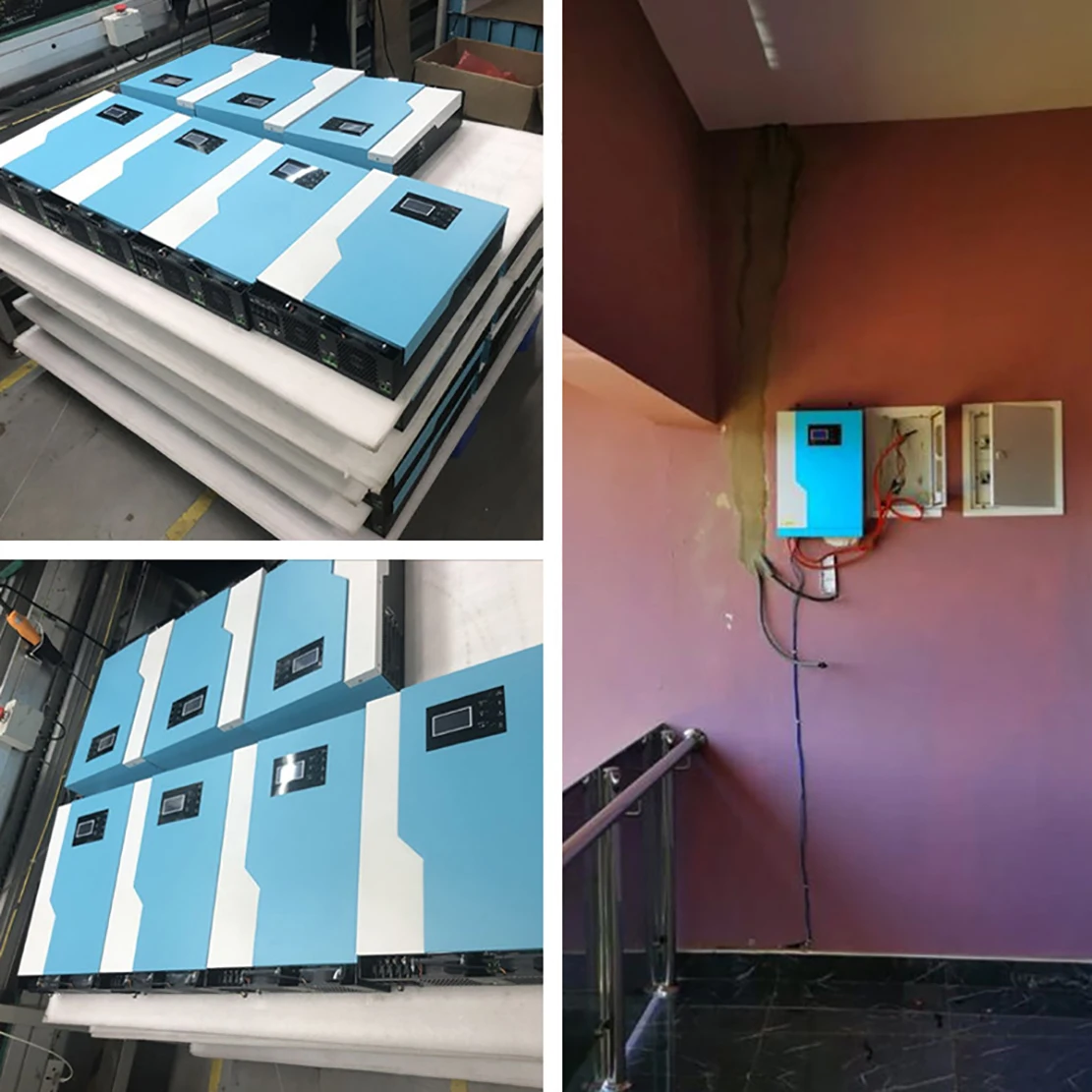

7. System configures quickly into compact, wall-mounted system.
|
MPS-V Plus Hybrid Solar Inverter 3500W/5500W 100A MPPT Charger 120V~500V PV
|
|
|
||
|
Model
|
3500W-PLUS
|
5500W-PLUS
|
||
|
Rated Power
|
3500VA/3500W
|
5500VA/5500W
|
||
|
Input
|
|
|
||
|
|
|
|
||
|
Voltage
|
230Vac
|
|
||
|
Selectable Voltage Range
|
170~280Vac/90~280Vac
|
|
||
|
Frequency Range
|
50Hz/60Hz auto sensing
|
|
||
|
Output
|
|
|
||
|
AC Voltage Regulation(Bat mode)
|
230Vac+/-5%
|
|
||
|
Surge Power
|
6400VA
|
10000VA
|
||
|
Efficiency(Peak)PV to Inv
|
97%
|
|
||
|
Efficiency(Peak)bat to Inv
|
94%
|
|
||
|
Transfer Time
|
10ms(personal computor);20ms(home appliance)
|
|
||
|
Waveform
|
pure sine wave
|
|
||
|
Battery&AC charger
|
|
|
||
|
Battery Voltage
|
24Vdc
|
48Vdc
|
||
|
Floating charge Voltage
|
27Vdc
|
54Vdc
|
||
|
Overcharge Protection
|
33Vdc
|
63Vdc
|
||
|
Maximum Charge Current
|
80A
|
80A
|
||
|
Solar Charger
|
|
|
||
|
Max PV Array Power
|
5000W
|
6000W
|
||
|
MPPT Range@Operating Volt
|
120VDC~450VDC
|
|
||
|
Max PV Array Open Circuit Volt
|
500VDC
|
500VDC
|
||
|
Max Charging Current
|
100A
|
|
||
|
Max Efficiency
|
98%
|
|
||
3.5KW SOLAR INVETER KEY FEATURE
1.Pure sine wave solar inverter 2.Output power factor 1 3.Wi-Fi/GPRS available for IOS and Android 4.Inverter running without battery 5.Bult-in 100A MPPT Solar Charger 6.High PV input voltage range 120V~500V 7.Smart battery charge design to optimize battery life
After Sales Service
We provide:
12 years warranty for solar panels
1 year warranty for solar inverters, can extend to 2 year.
3 year for batteries.
others; 1 year.
Any items due to our quality problem will replace with brand new ones!
