3-5kg spring weight balancer

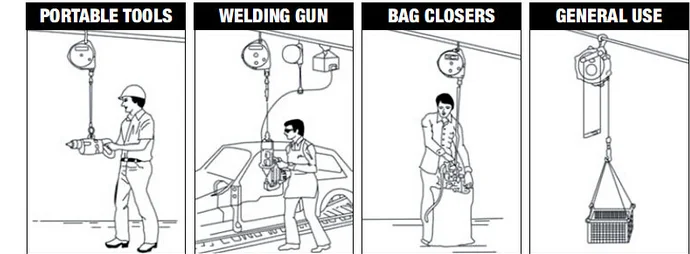

Spring balancer is a kind of accessorial tool special for suspending electrical machine, which can balance with weight of tools, and achieve modern and civilized production.It has been widely used for welding product lines of vehicle body, rivet lines, and assembly line of engine, motorcycles and home appliances where the tools must be hung. It'll be the ideal choice to reduce the labour intensity and increase the productivity.
|
Model |
Capacity |
Stroke |
Net weight |
|
|
(kg) |
(m) |
(kg) |
|
HW-3.0 |
1.5-3.0 |
1.9 |
1.6 |
|
HW-5.0 |
3.0-5.0 |
1.9 |
1.62 |
|
HW-9.0 |
5.0-9.0 |
1.8 |
4.2 |
|
HW-15 |
9-15 |
1.8 |
4.5 |
|
HW-22 |
15-22 |
1.5-2.8 |
8 |
|
HW-30 |
22-30 |
1.5-2.8 |
8.5 |
|
HW-40 |
30-40 |
1.5-2.8 |
10 |
|
HW-50 |
40-50 |
1.5-2.8 |
10.2 |
|
HW-60 |
50-60 |
1.5-2.8 |
10.8 |
|
HW-70 |
60-70 |
1.5-2.8 |
11.2 |
|
HW-80 |
70-80 |
1.5-2.8 |
12 |
|
HW-100 |
80-100 |
1.9-2.8 |
22 |
|
HW-120 |
100-120 |
1.9-2.8 |
23 |
|
HW-140 |
120-140 |
1.9-2.8 |
24 |
|
HW-160 |
140-160 |
1.9-2.8 |
24.5 |
|
HW-180 |
160-180 |
1.9-2.8 |
25 |
|
HW-200 |
180-200 |
1.9-2.8 |
25.5 |
|
HW-120/240 |
200-240 |
1.9-2.8 |
50 |
|
HW-140/280 |
240-280 |
1.9-2.8 |
52 |
|
HW160/320 |
280-320 |
1.9-2.8 |
54 |
|
HW180/360 |
320-360 |
1.9-2.8 |
55 |
|
HW200/400 |
360-400 |
1.9-2.8 |
56 |
