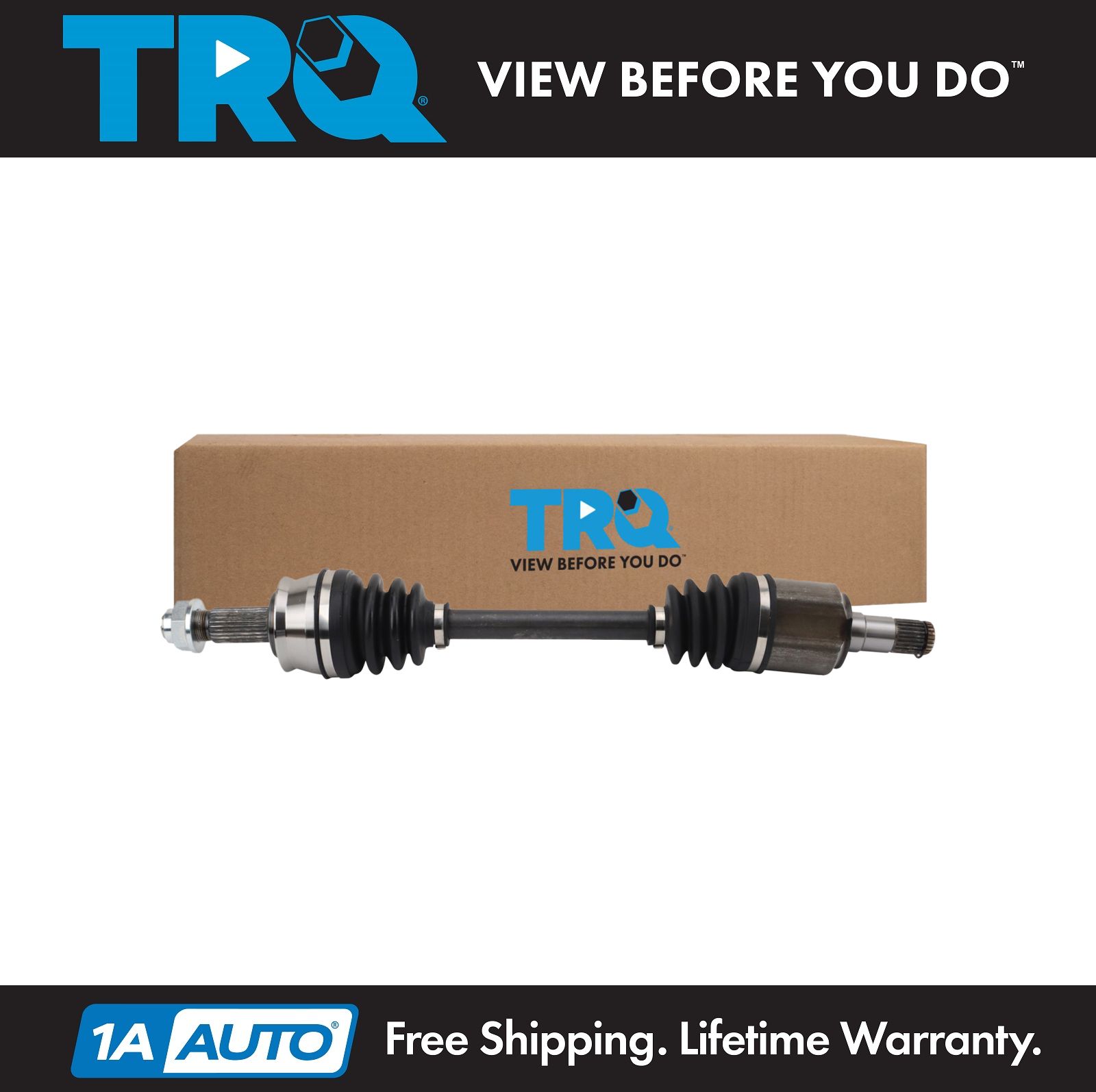

CV Axle Assembly

Check Fitment for Your Vehicle

2012 Fiat 500 Automatic Transmission Front Driver Side
2013-2016 Fiat 500 c Lounge Automatic Transmission Front Driver Side
2013-2016 Fiat 500 c Pop Automatic Transmission Front Driver Side
2013-2016 Fiat 500 Sport Automatic Transmission Front Driver Side
2013-2017 Fiat 500 Lounge Automatic Transmission Front Driver Side
2013-2017 Fiat 500 Pop Automatic Transmission Front Driver Side
2015-2016 Fiat 500 Abarth Cabrio Automatic Transmission Front Driver Side
2015-2016 Fiat 500 Turbo Automatic Transmission Front Driver Side
2015-2017 Fiat 500 Abarth Automatic Transmission Front Driver Side
2016 Fiat 500 c Easy Automatic Transmission Front Driver Side
2016 Fiat 500 Easy Automatic Transmission Front Driver Side

Verify exact fit by year, make, model, and options.

What’s in the Box

Product Attributes

Axle Nut Length: 0.91 in
Shaft Diameter: 0.91 in
Axle Nut Socket Size: 1.42 in
Boot Rib Quantity: 2
Compressed Length: 22.01 in
Shaft Diameter: 23 mm
Axle Nut Length: 23 mm
Outboard Spline Quantity: 25
Inboard Spline Quantity: 26
Axle Nut Socket Size: 36 mm
Compressed Length: 559 mm
Boot Color: Black
Axle Nut Thread Size: M24x1.5
Outboard Joint Type: Male
Inboard Joint Type: Male
Dynamic Damper Attached: No
ABS Tone Ring Included: No
Grade Type: Standard Replacement
Shaft Material: Steel
Axle Nut Included: Yes
Inboard Boot Material: Neoprene
Outboard Boot Material: Neoprene

Reference Numbers

Lifetime Warranty

This item is backed by our limited lifetime warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
