Specification


Name: 0-10W Handheld Laser Power Meter
Measurement objects: Handheld laser, high power laser pointer,

laser pointer pen, laser single tube and module
Measuring wavelength range: 200nm~10600nm
Range: 0-10.00W
Effective range of probe: φ13mm
Saturation time: 1~5 seconds
Measurement accuracy: ±2% or less
Resolution:1mW
Power supply: rechargeable, ordinary 5V 1A cell phone charger can be;

The red LED next to the charging port will light up when charging;
Standby time: > 6 hours

Digital tube display color: Green (random)
Gross weight: <0.2kg


Package Included:

Handheld Laser Power Meter*1


Please note:


1. The probe is a critical and sensitive device,

the surface coating must not be touched, stained or maliciously damaged;
The laser can not be focused on the probe when measuring,

and the parallel light can be used when measuring;

2.In general, less than 10 milliwatts, more than 5 watts,

the measurement error will be a little larger,
This is not suitable for production line use

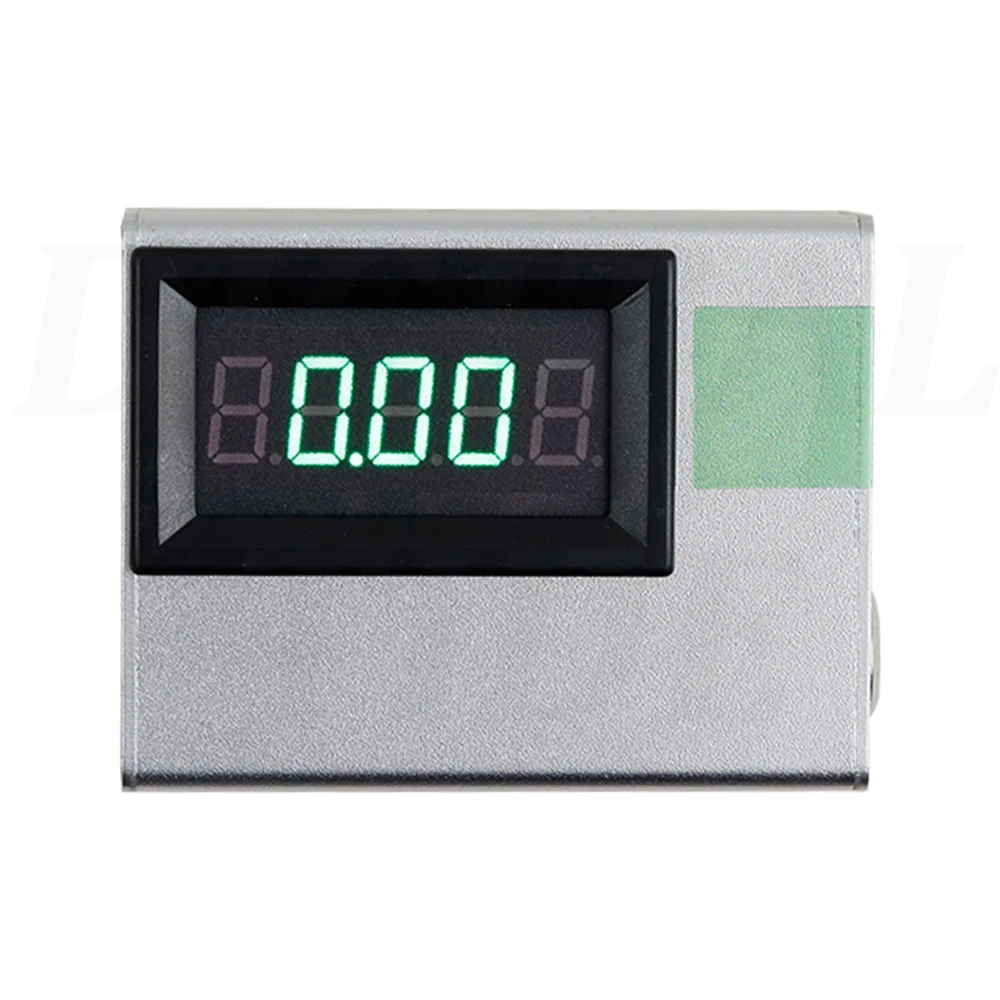

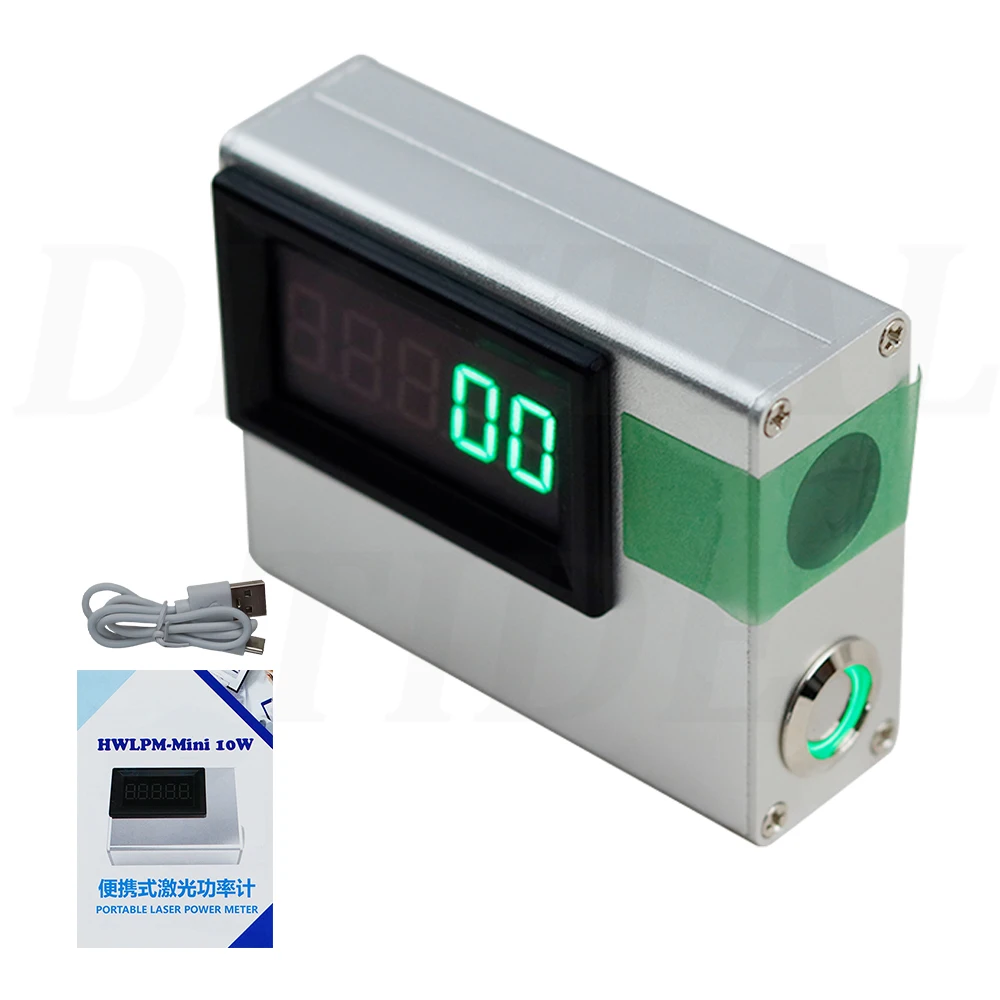

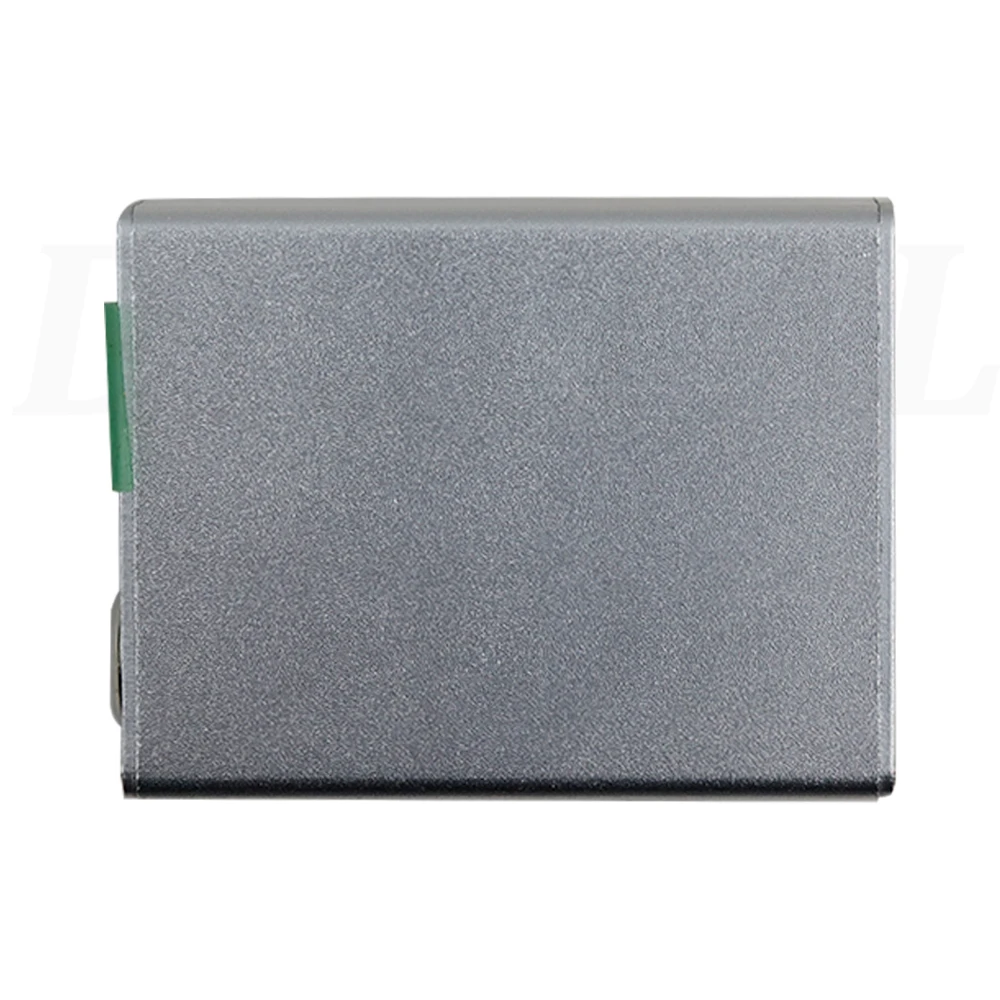

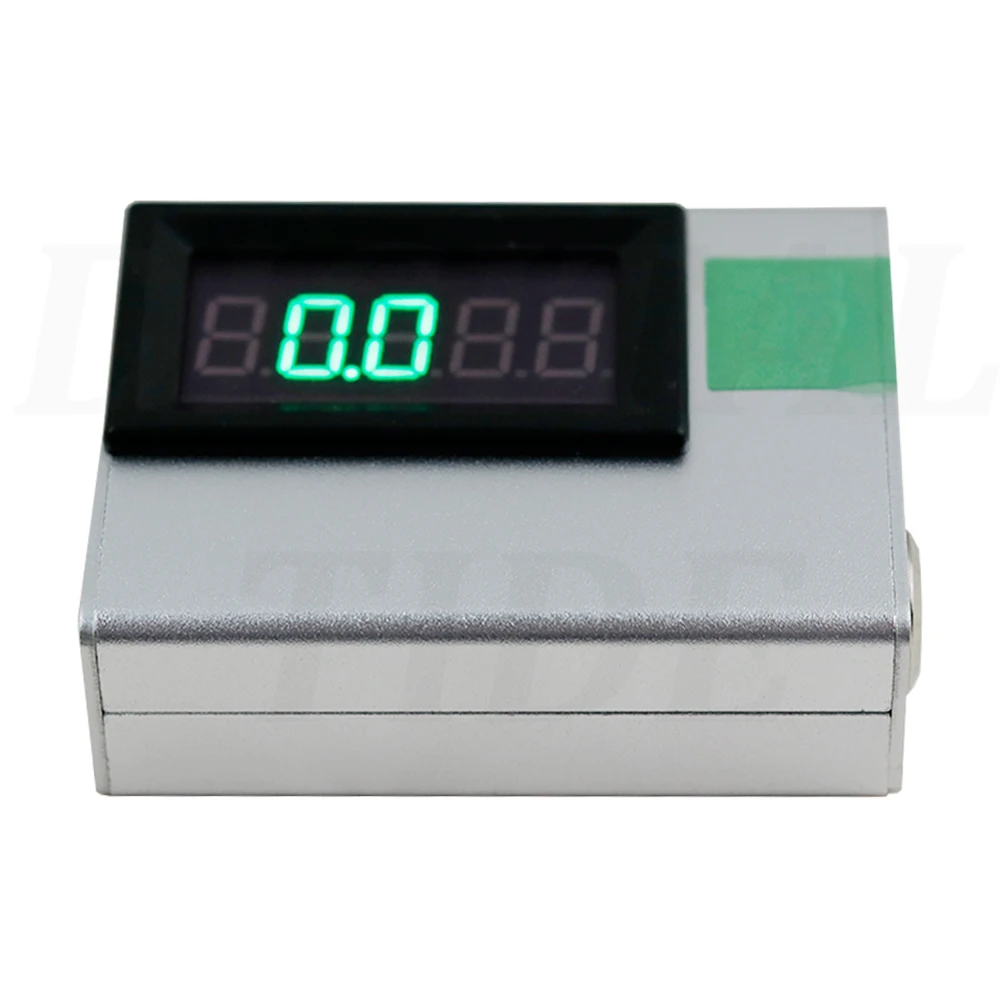

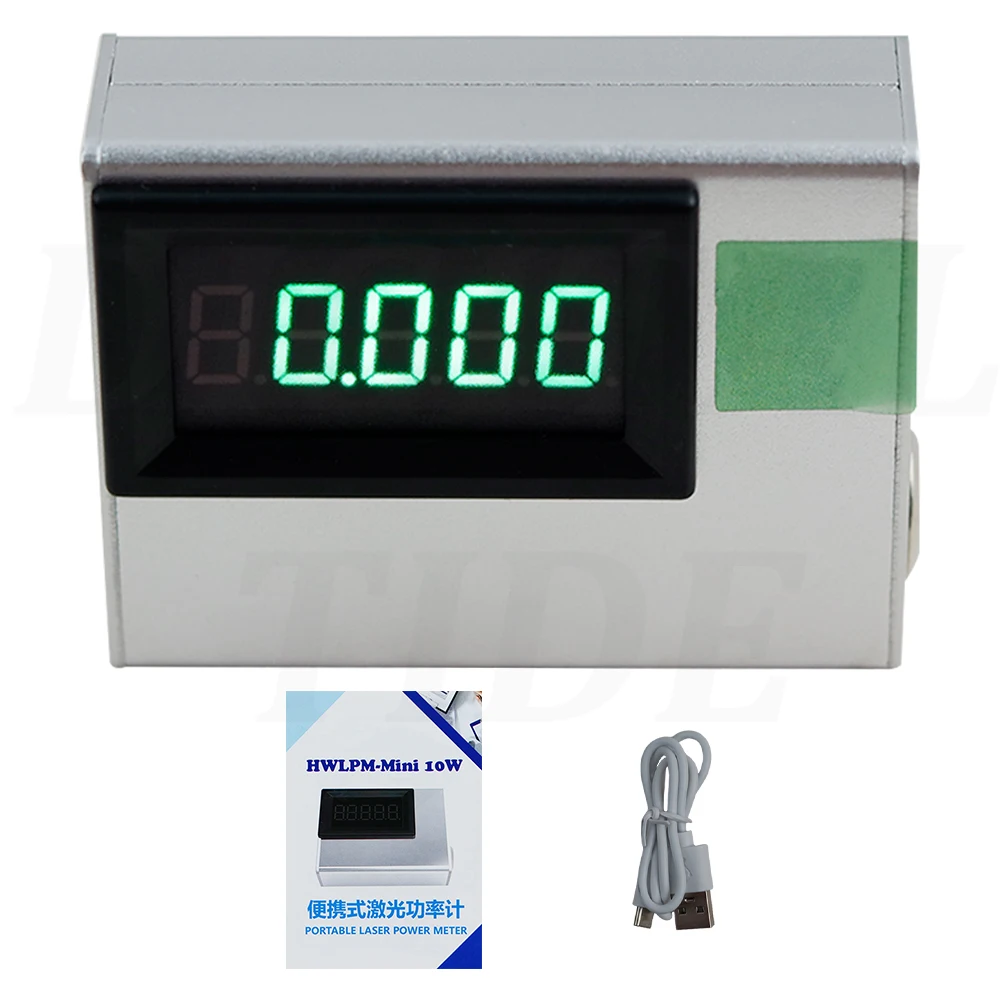

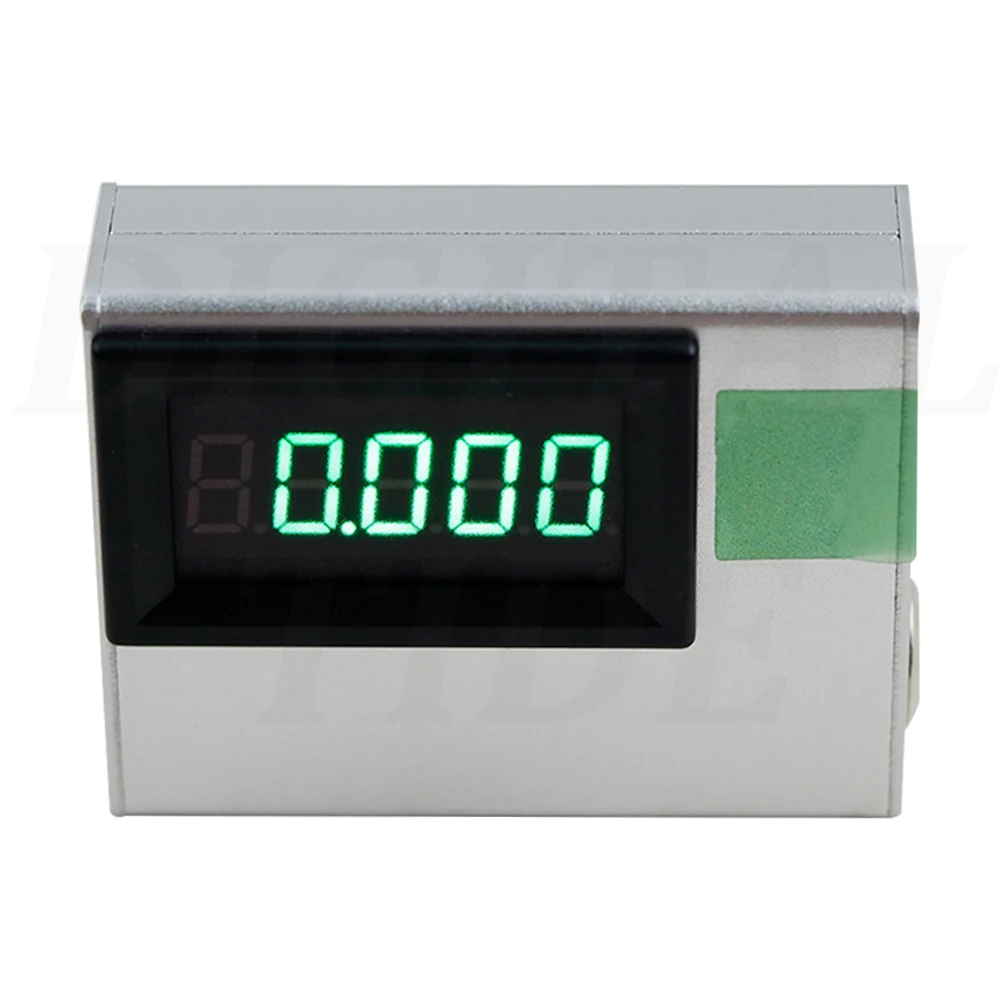

Picture showing
