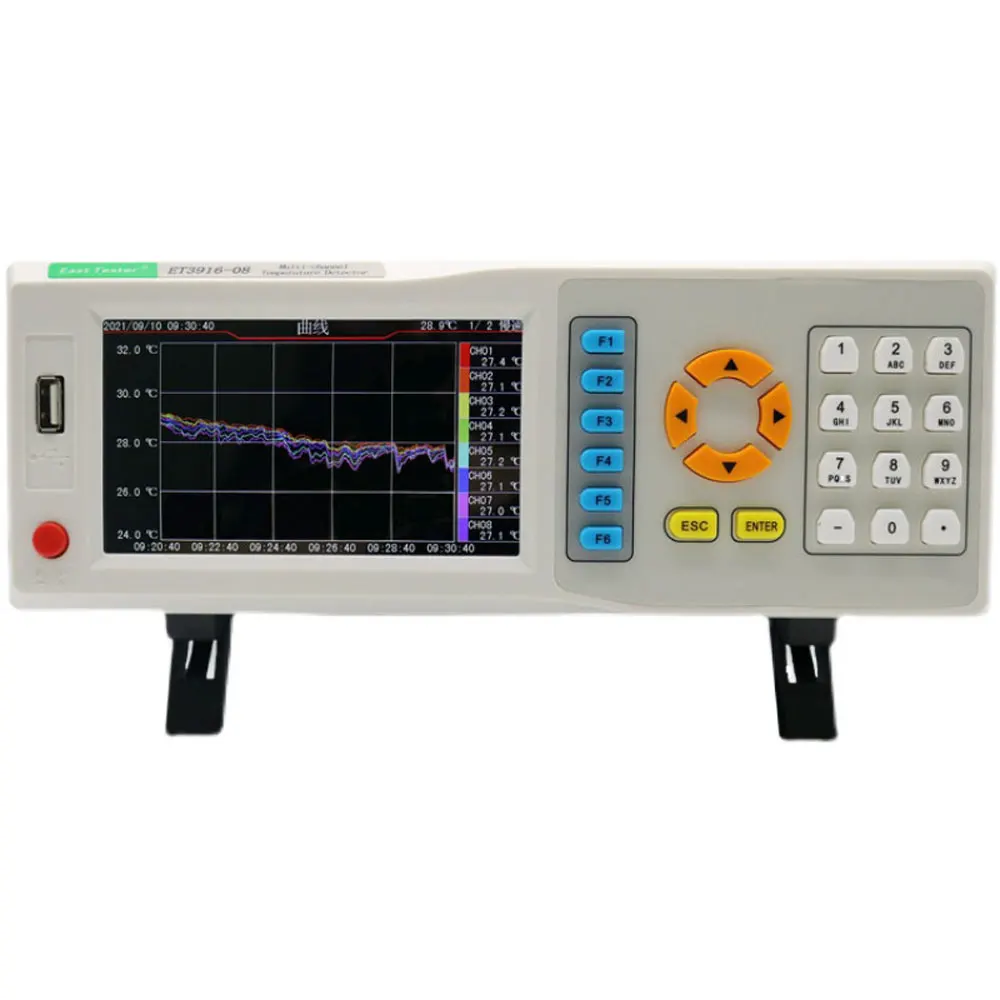

ET3916 Multi Channels Temperature Inspection Detector Thermocouple Measurement Tester with K type Thermocouple Probe Specification
With the characteristic of simple content, easy operation, large temperature data
storage, ET3916 multi channel data recorder supports thermocouple input, such as J、K、
T、E、S、N、B、R type, to reach the requirement of production line, laboratory and measurement
development department.
Its widely used in Lighting appliances, power tools, household appliances, electric
motors, electric heating appliances, pharmaceutical, petroleum, chemical, metallurgy,
electric power and other industries and scientific research units and other fields of
production enterprises, laboratories, quality supervision departments
Main Features:

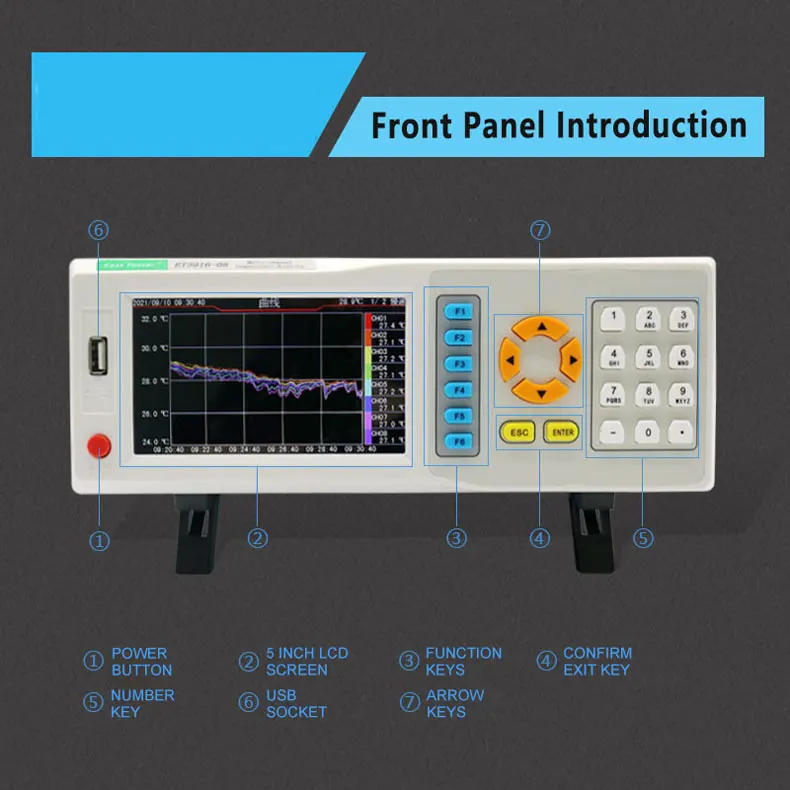

Adopt 5 inches industrial true-color display LCD display screen;
Adopt high speed and high performance 32 bits ARM microprocessor, fast response speed;
It supports multi channel signals’ acquisition, recording, display, alarm;
Each measurement module supports measurement of 8 channels, the max to 64 channels;
Modules quantity can be equipped according to customers’ requirement.

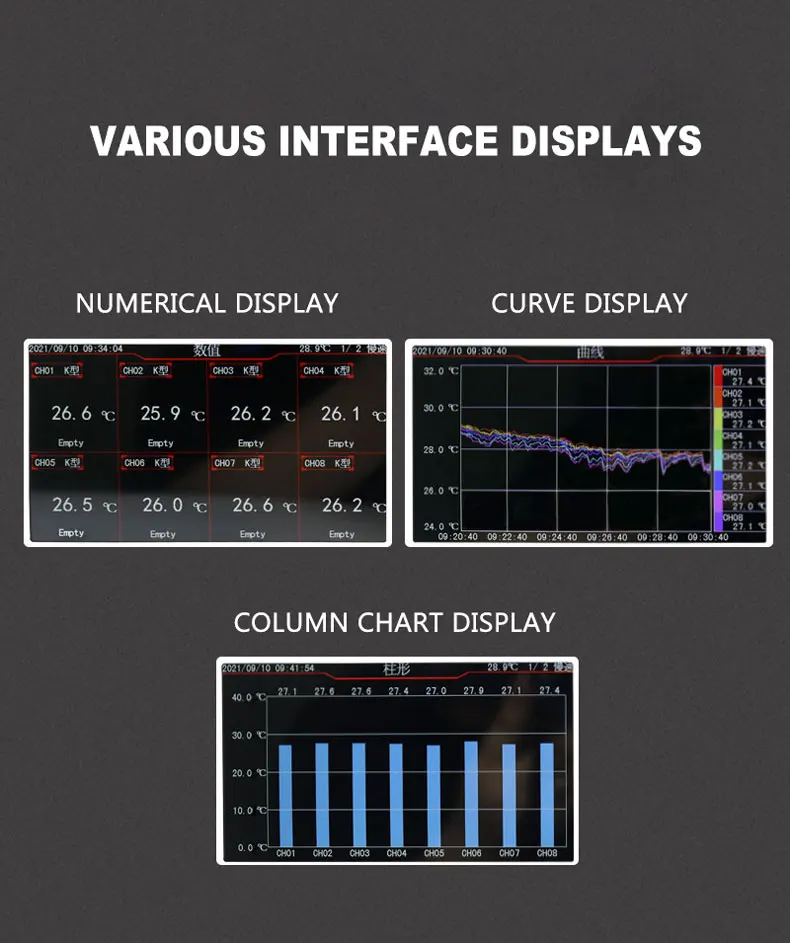

The data can be displayed in three modes: numerical values, curves and bar charts. The
numerical interface supports the values of 4/8/16/32 channels to be displayed in same time,
and its automatic page-turning, the time of page-turning can be selected by multi-levels.
6 digits display, display range can reach -999.99~9999.99 ；
Equipped GB2312 Chinese Character Library with full input method; ET3916 Multi Channel Temperature Detector
Each channel supports parameter setting separately( including upper/ lower alarm,
temperature calibration, display unit) and arbitrary naming;
When the measured temperature excesses upper/ lower alarm, it will alarm (optional: relay
alarm output)
Real-time clock: adopt hardware real-time clock, lithium battery power; the max time error is
±1 min/year
Each channel is isolated, disturb of high frequency and isolated voltage peak value reach
400V

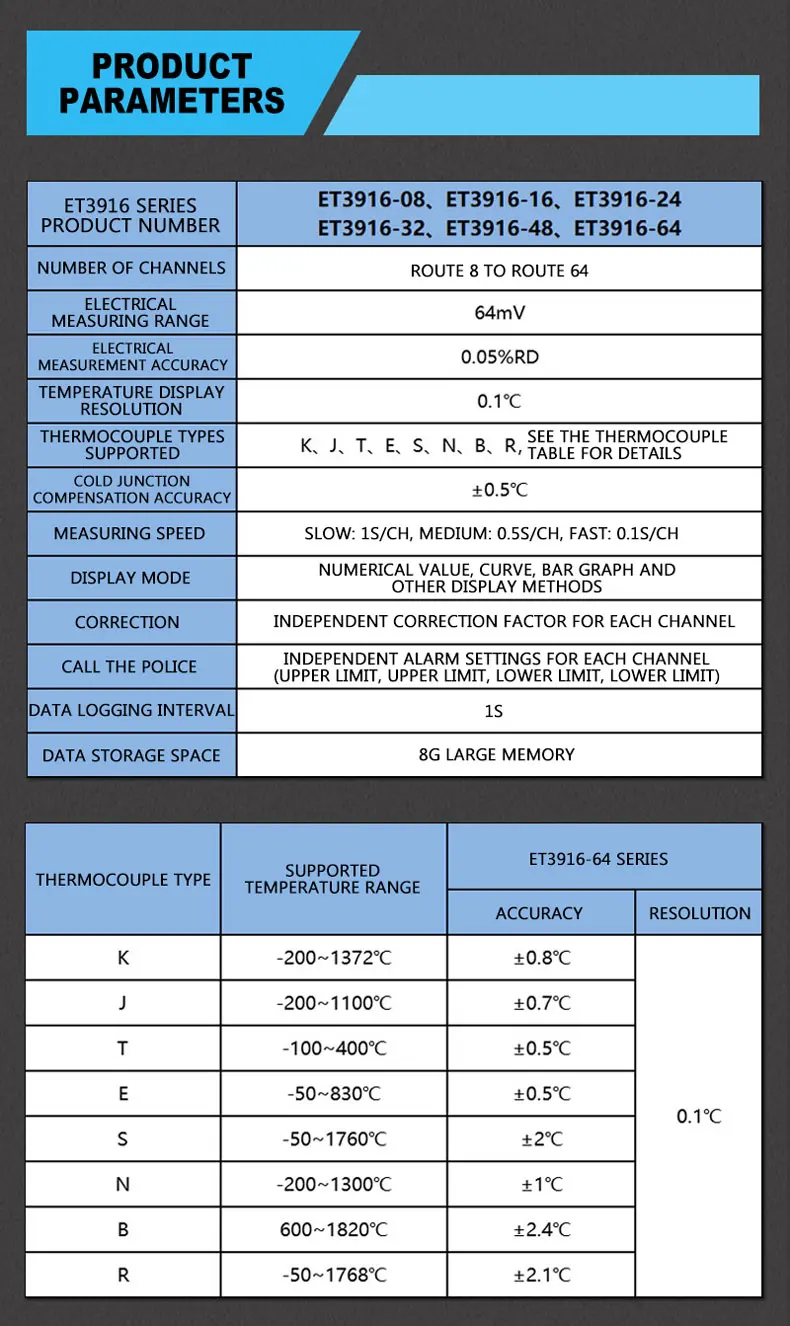

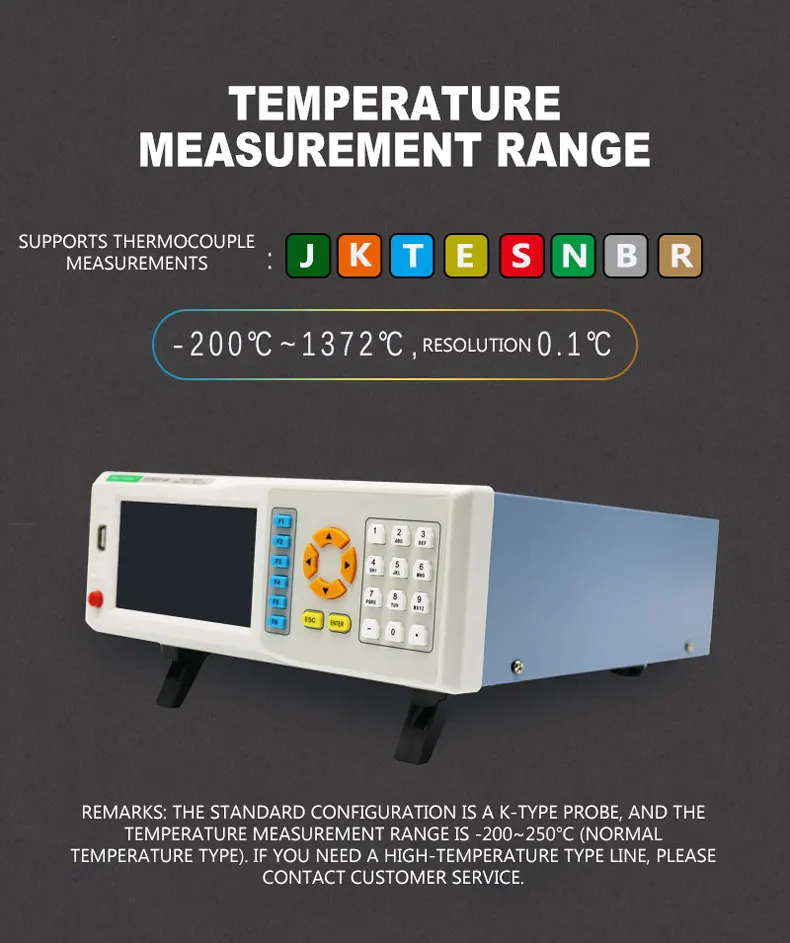

Supports thermocouple measurement: J 、 K 、 T 、 E 、 S 、 N 、 B 、 R
The 8GB FLASH memory chip is used to store historical data, and the data can be exported
through the U disk;
Measurement speed for option: slow speed: 1 s/channel, medium speed: 0.5 s/channel;

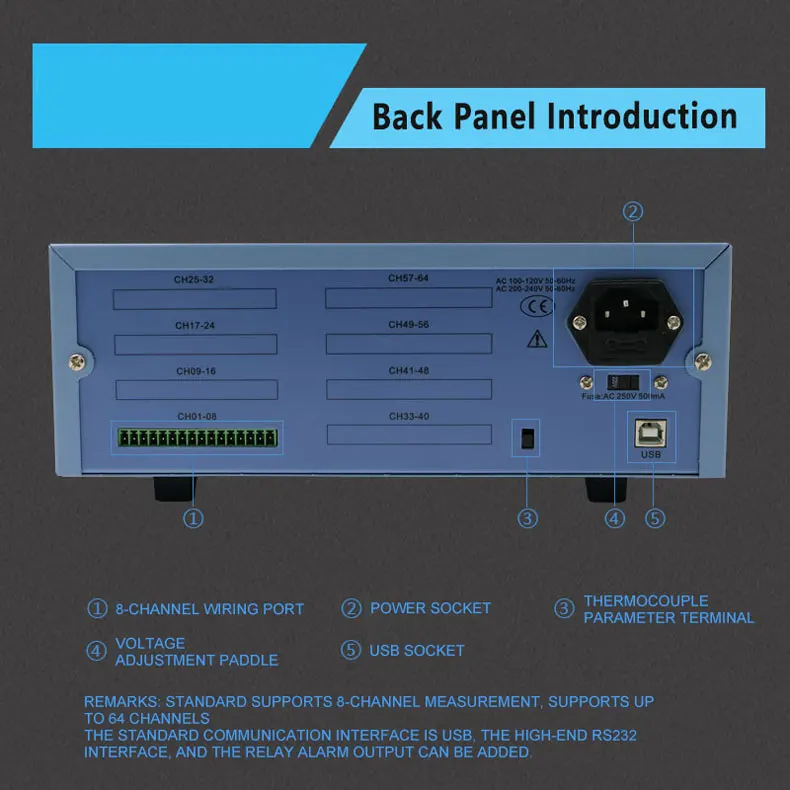

USB-HOST and USB-DEVICE communication port; USB-HOST to export the historical data
through U-Disk; USB-DEVICE to communicate with computer;
General Information:
Power Voltage:220V.AC±10%，or110V.AC±10%，45~65Hz；
Display: 5 inches industrial true-color display, 854×480
Working Temperature:0℃~40℃
Storage Temperature:-10℃~70℃
Relative Humidity:＜80%
Communication port: USB Device 、 USB Host(standard) ；
RS232 、 rely alarm output(optional) ；
Dimension:260mm×300mm×100mm（
L×W×H）；
|
