| Product SKU: | RM22862 M-003 |
|---|---|
| Brand: | RMStator |
| Condition: | New |
Stock image. Actual product may vary.
For additional product details or technical questions, please contact us.
Monday-Friday 9AM to 6PM Eastern Time.
Free Ground Shipping
Easy Returns
Secure Payments
Great Customer Service

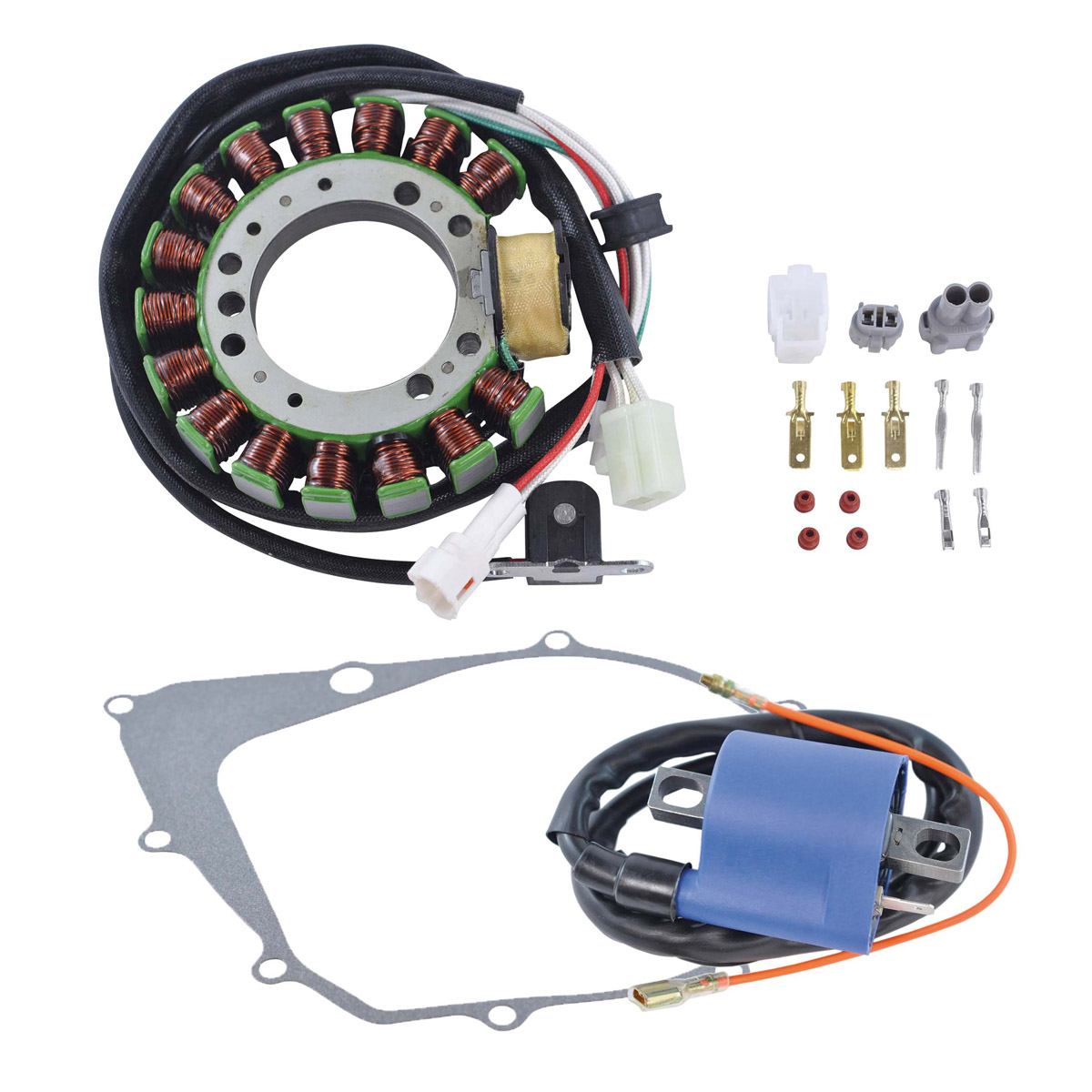

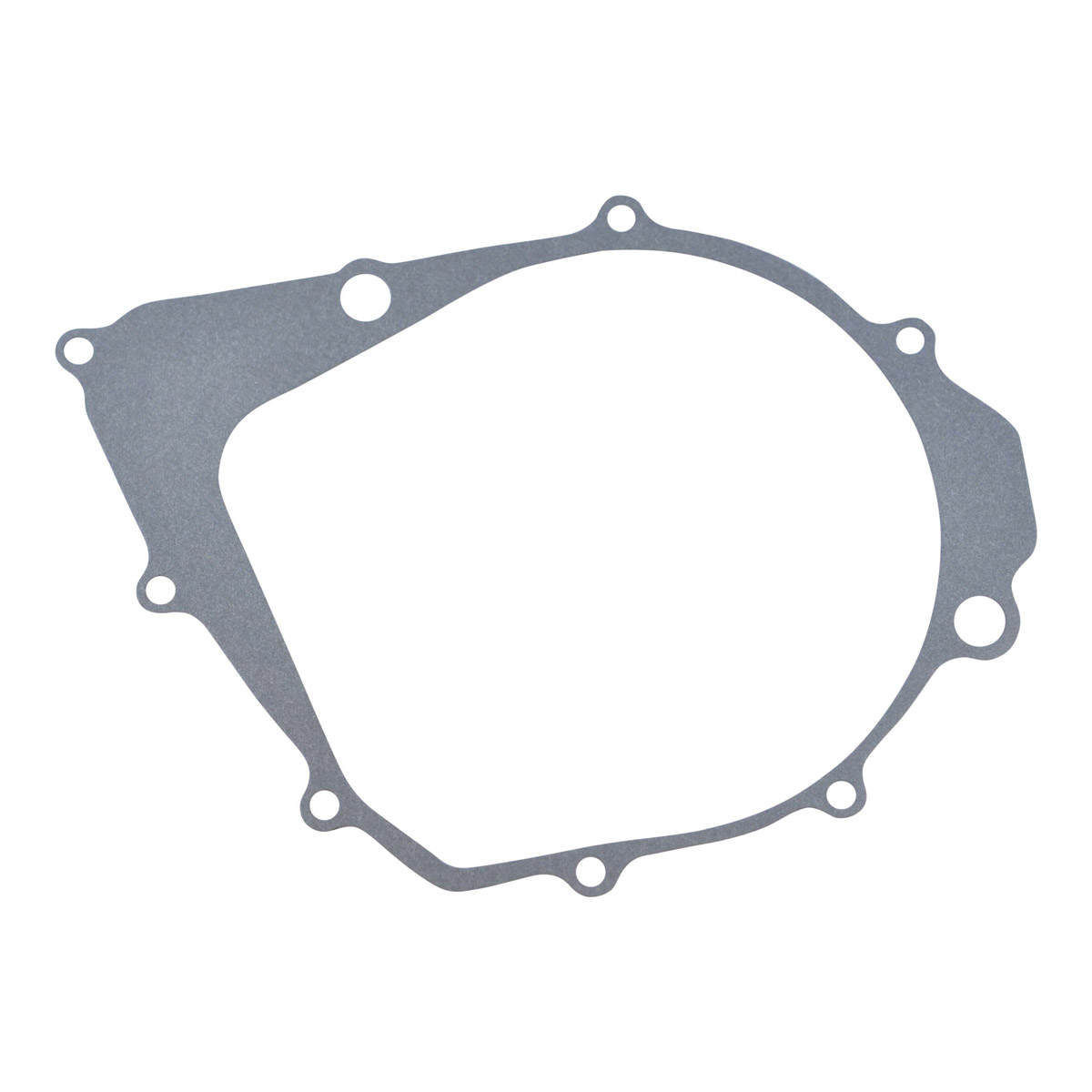

RMStator Stator Stator + Crankcase Cover Gasket + Ign Coil Kit For 1993-1997 Yamaha Kodiak 400 YFM400A
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

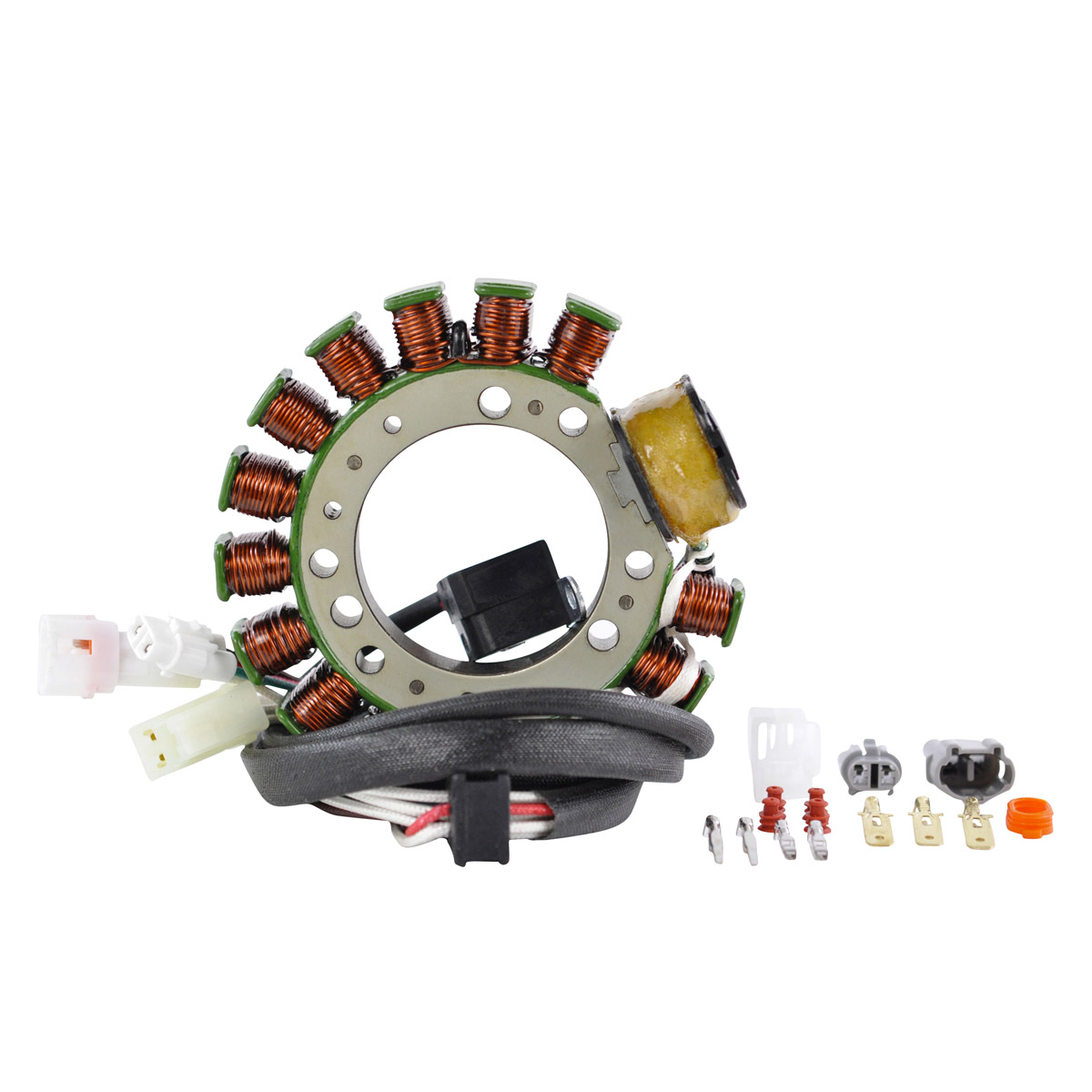

StatorStator Dimensions
Dimensions :
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 420 mm
Length of pickup coil's wire to grommet : 300 mm
Other specifications :
Number of wires : 7

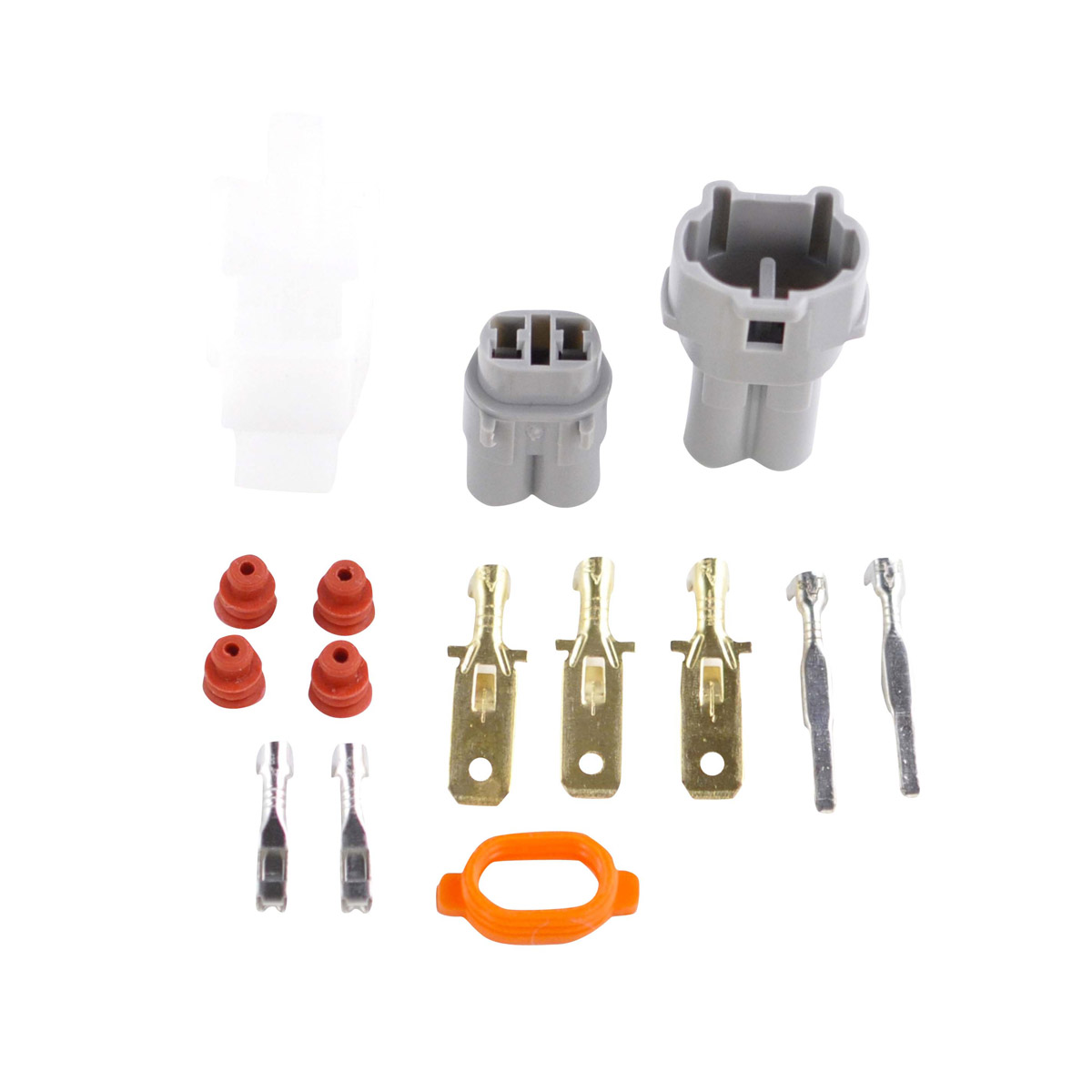

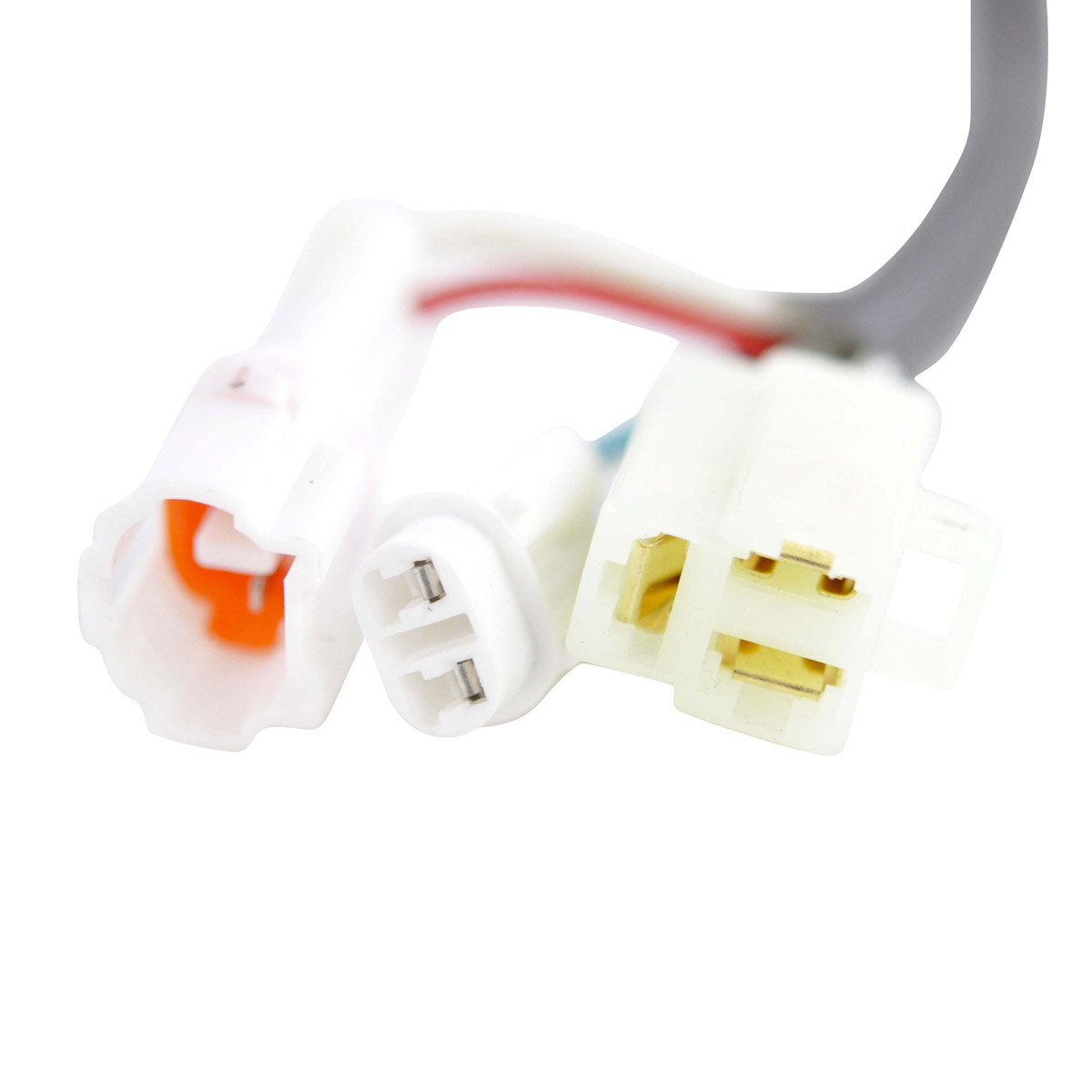

Number of plugs : 3
Number of pins : 7
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : White to Red = 450 ohms +/-20%
Source : Green to Brown = 320 ohms +/-20%

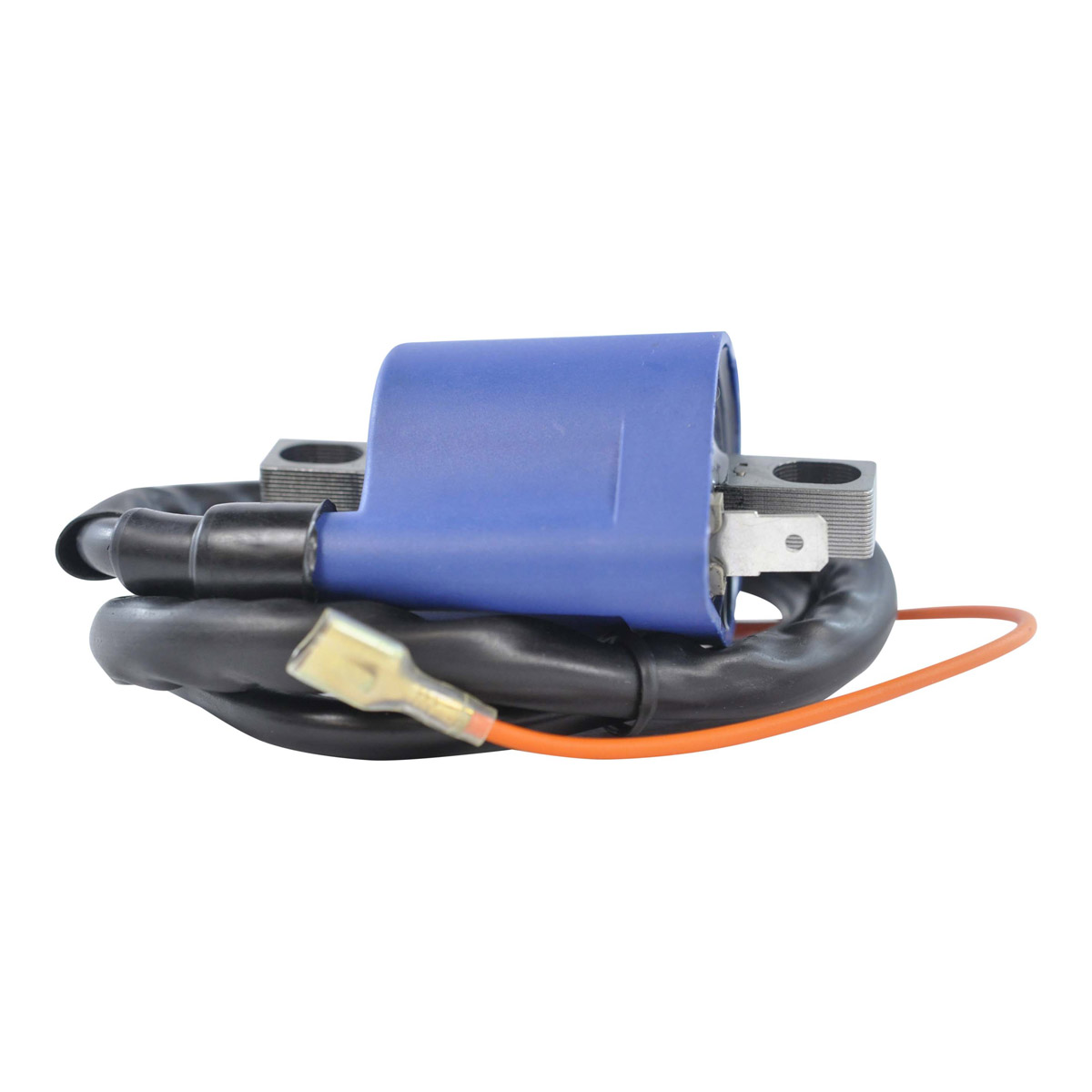

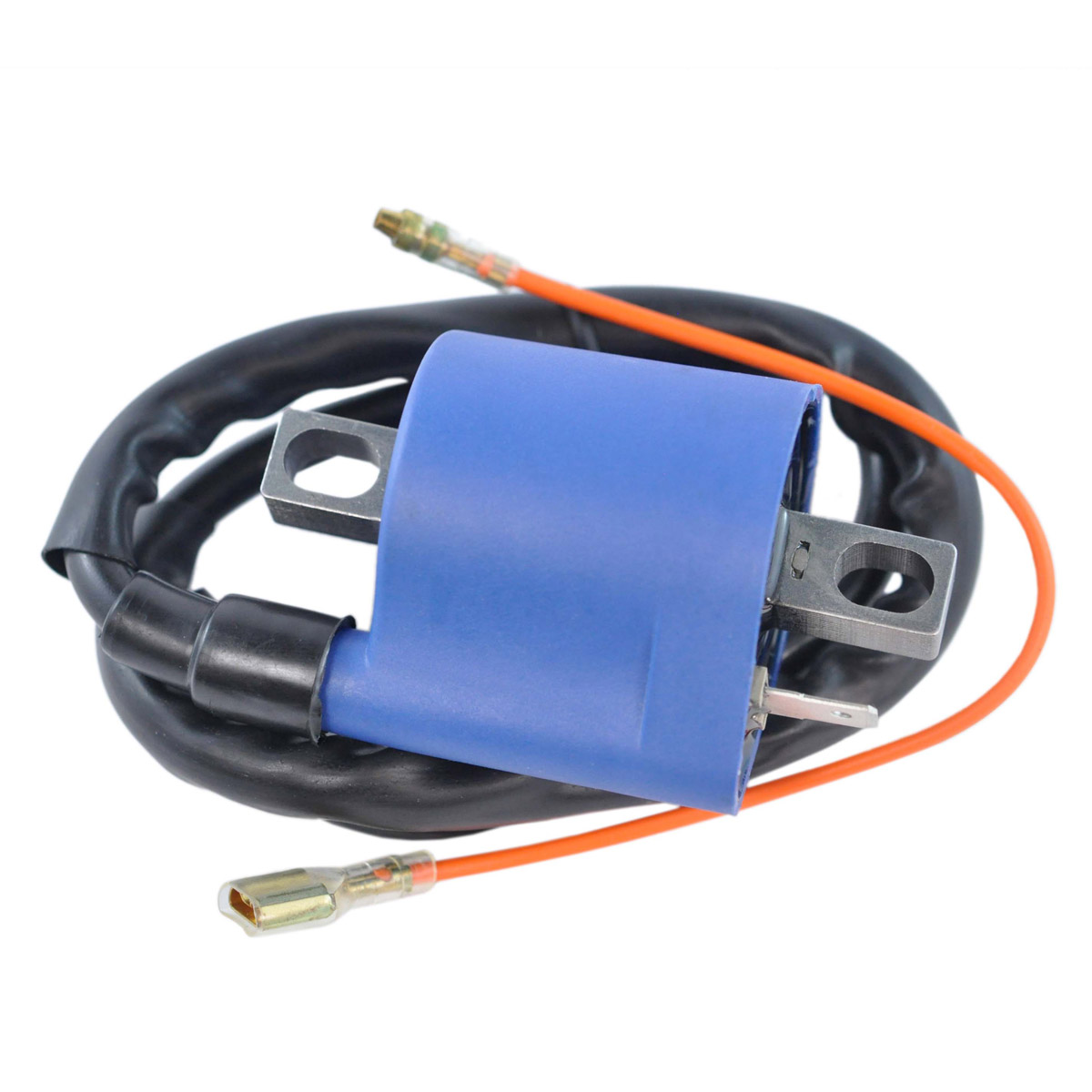

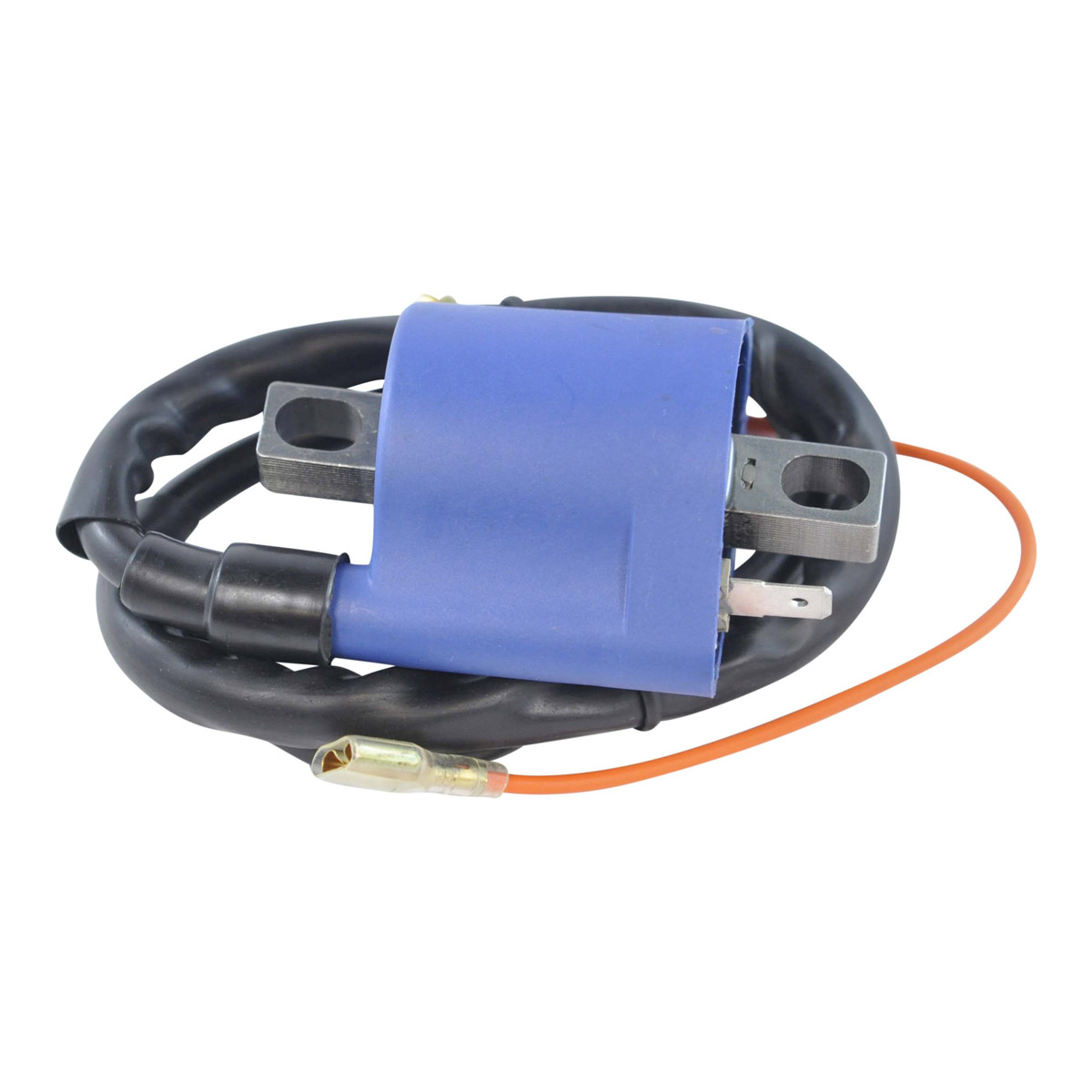

External ignition coil
Fixation holes center to center: 55 mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
Brand: RMStator
Part Number: RM22862
Note: Image is for reference only, actual product may vary slightly.
OEM Numbers:
RM22862-R00
