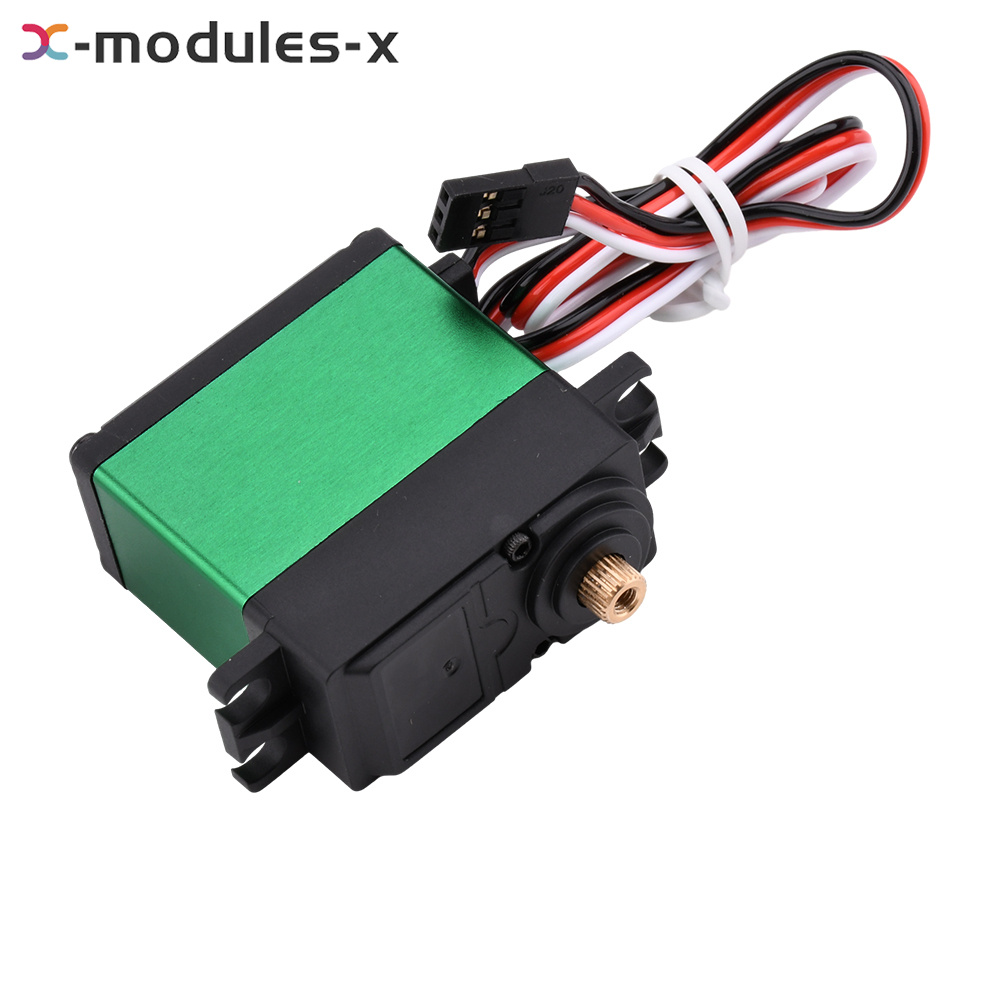

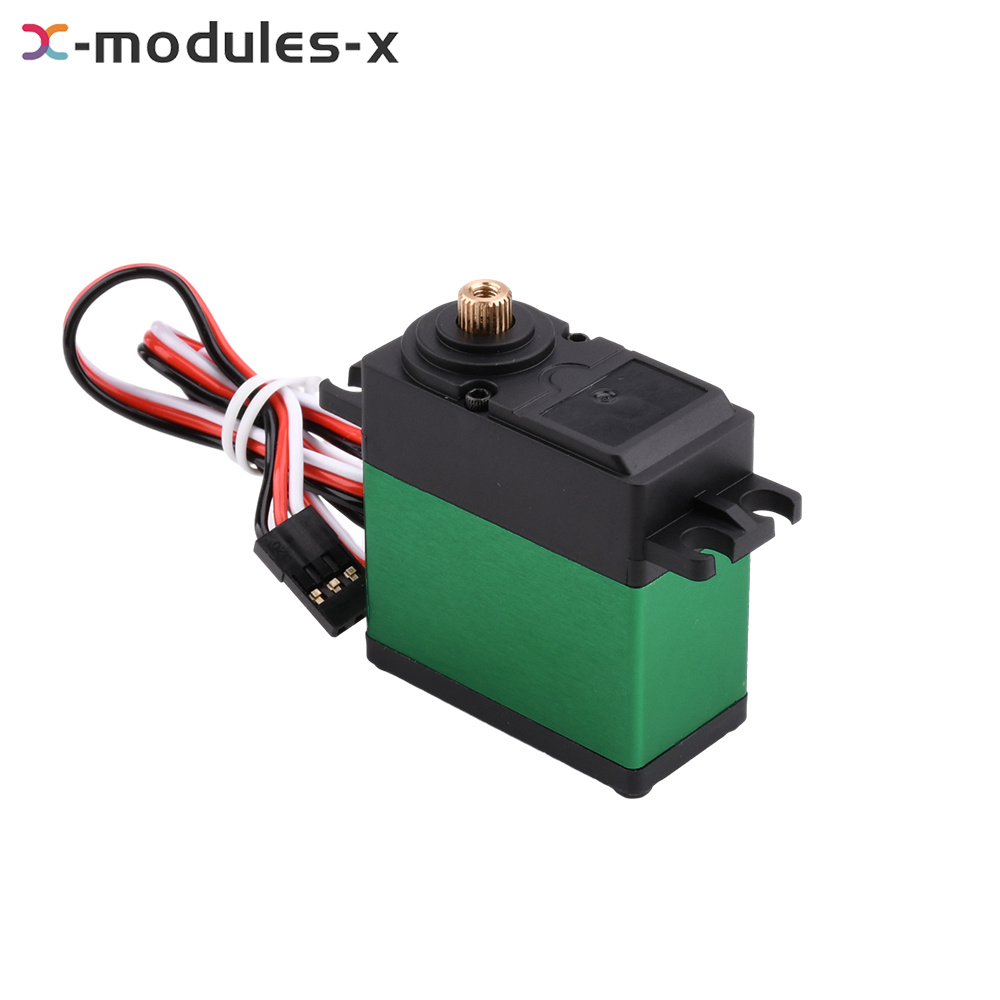

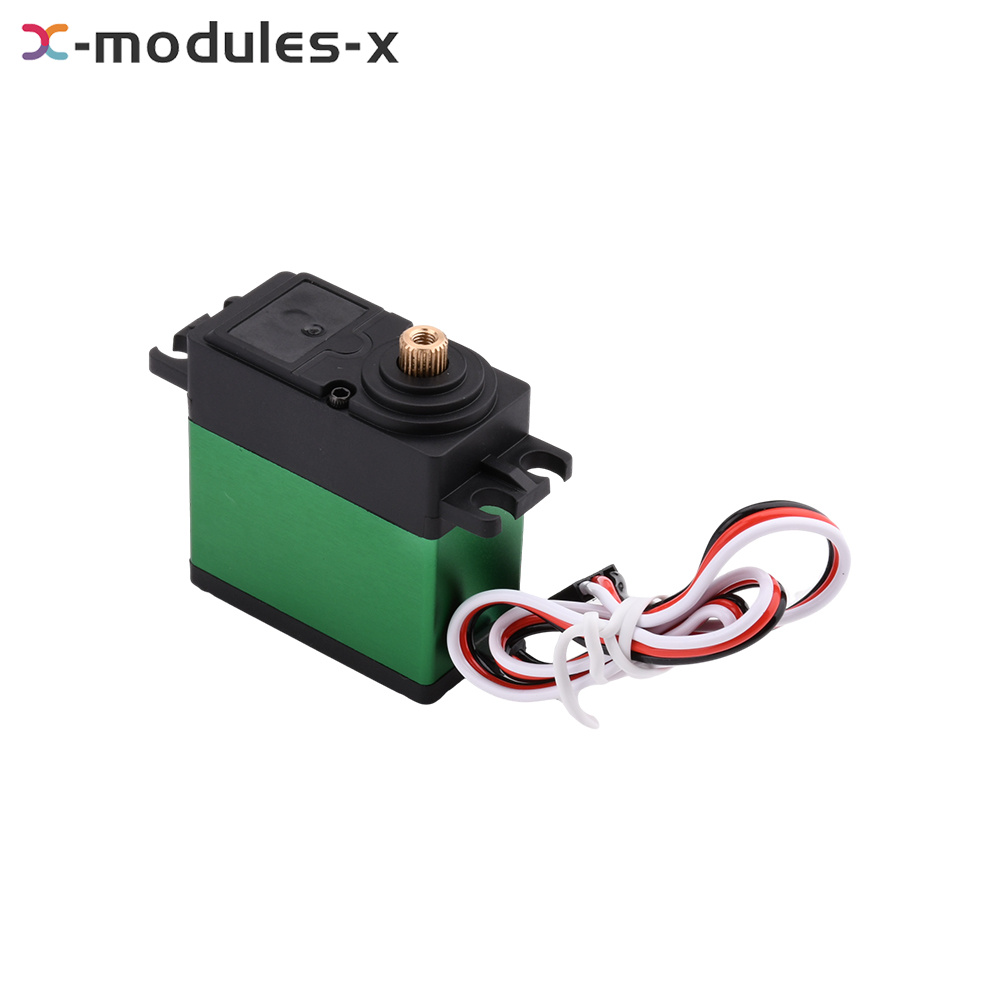

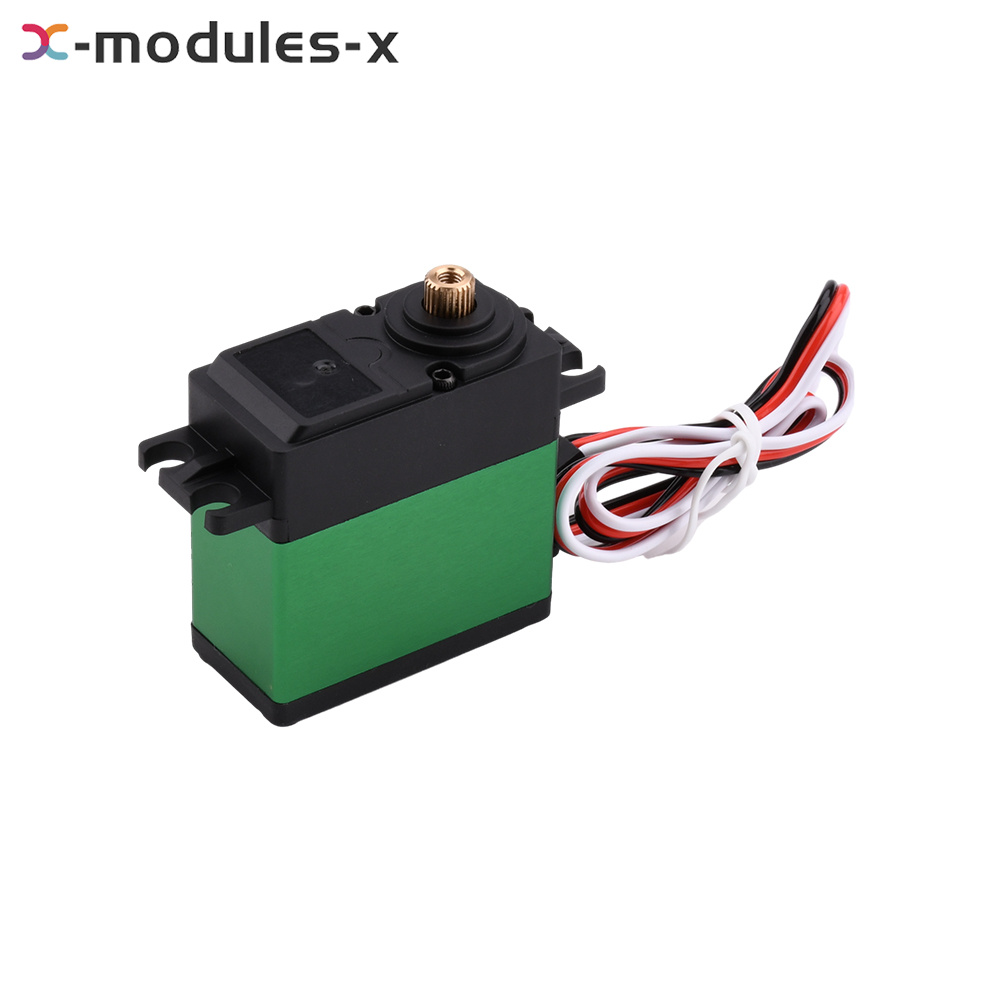

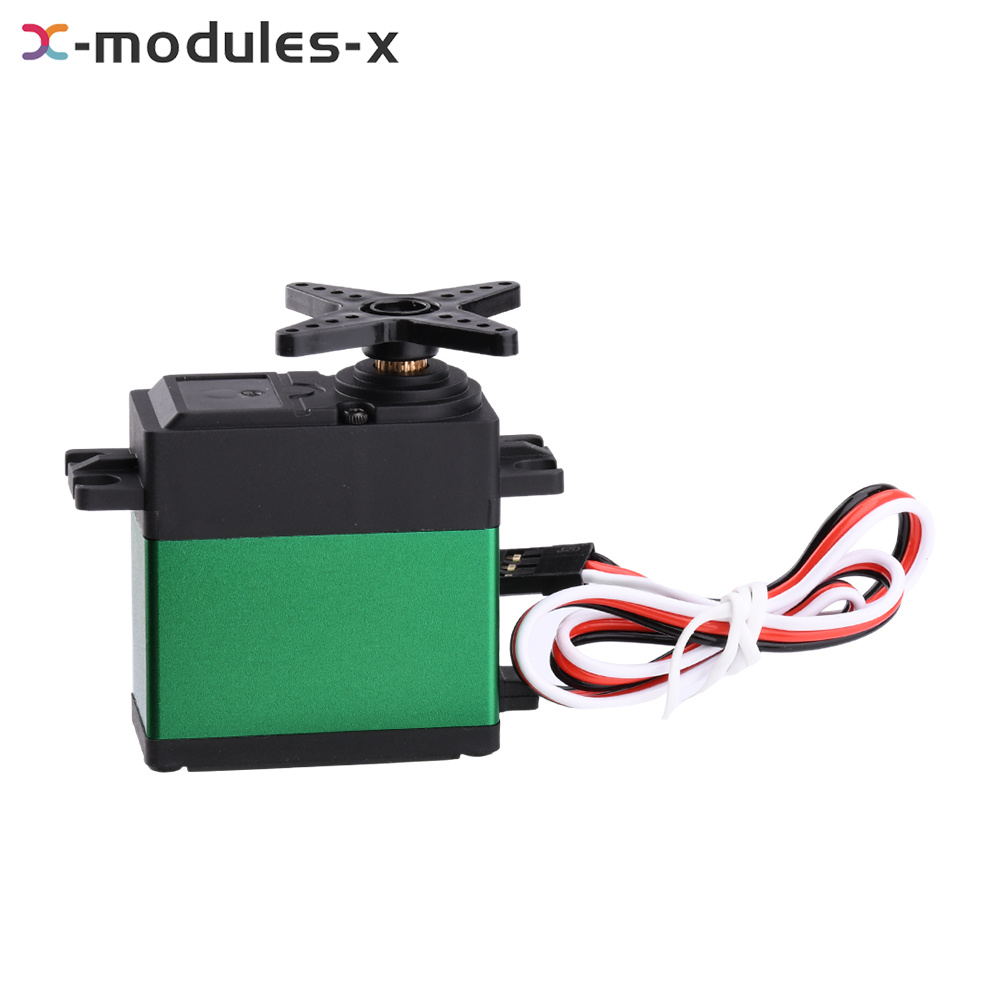

Universal 20KG 180° Metal Gear Torque Digital Servo For JR Car RC Model Arduino
Description
Features
1. All-metal gears, wear-resistant, wide range of applications
2. High precision, durability and responsiveness.
3. Metal gears with low noise, smoother and higher precision.
4. Good stability, controllable angle
5. Excellent quality
2. High precision, durability and responsiveness.
3. Metal gears with low noise, smoother and higher precision.
4. Good stability, controllable angle
5. Excellent quality
Specification
Servo size: 40.0*20.5*40.5mm
Gear type: 5 metal
Mechanism limit angle: 360°
Bearing: 2BB
Output shaft: 25T Diameter:5.9mm
Swing arm:Plastic POM
Housing: Engineering Plastic (PBT) + Aluminum Alloy
Servo line:320mm±5mm
Motor: Carbon brush motor
Servo size: 40.0*20.5*40.5mm
Gear type: 5 metal
Mechanism limit angle: 360°
Bearing: 2BB
Output shaft: 25T Diameter:5.9mm
Swing arm:Plastic POM
Housing: Engineering Plastic (PBT) + Aluminum Alloy
Servo line:320mm±5mm
Motor: Carbon brush motor
Electrical Characteristics
Operating voltage: 5V | 7.4V
Static Current: 200mA | 220mA
No-load speed: 0.19sec/60° | 0.15sec/60°
No-load current: 200mA | 220mA
Blocking torque: 24.2kg.cm | 30.5kg.cm
Plugging Current: 2200mA±10% | 2900mA±10
Operating voltage range: 5.0-8.4V
Operating voltage: 5V | 7.4V
Static Current: 200mA | 220mA
No-load speed: 0.19sec/60° | 0.15sec/60°
No-load current: 200mA | 220mA
Blocking torque: 24.2kg.cm | 30.5kg.cm
Plugging Current: 2200mA±10% | 2900mA±10
Operating voltage range: 5.0-8.4V
Control Characteristics
Pulse width range: 500 to 2500usec
Midpoint position: 1500usec
Rotation angle: 180°±3°(when 500～2500usec)
Deadband width: 5 usec
Pulse width range: 500 to 2500usec
Midpoint position: 1500usec
Rotation angle: 180°±3°(when 500～2500usec)
Deadband width: 5 usec

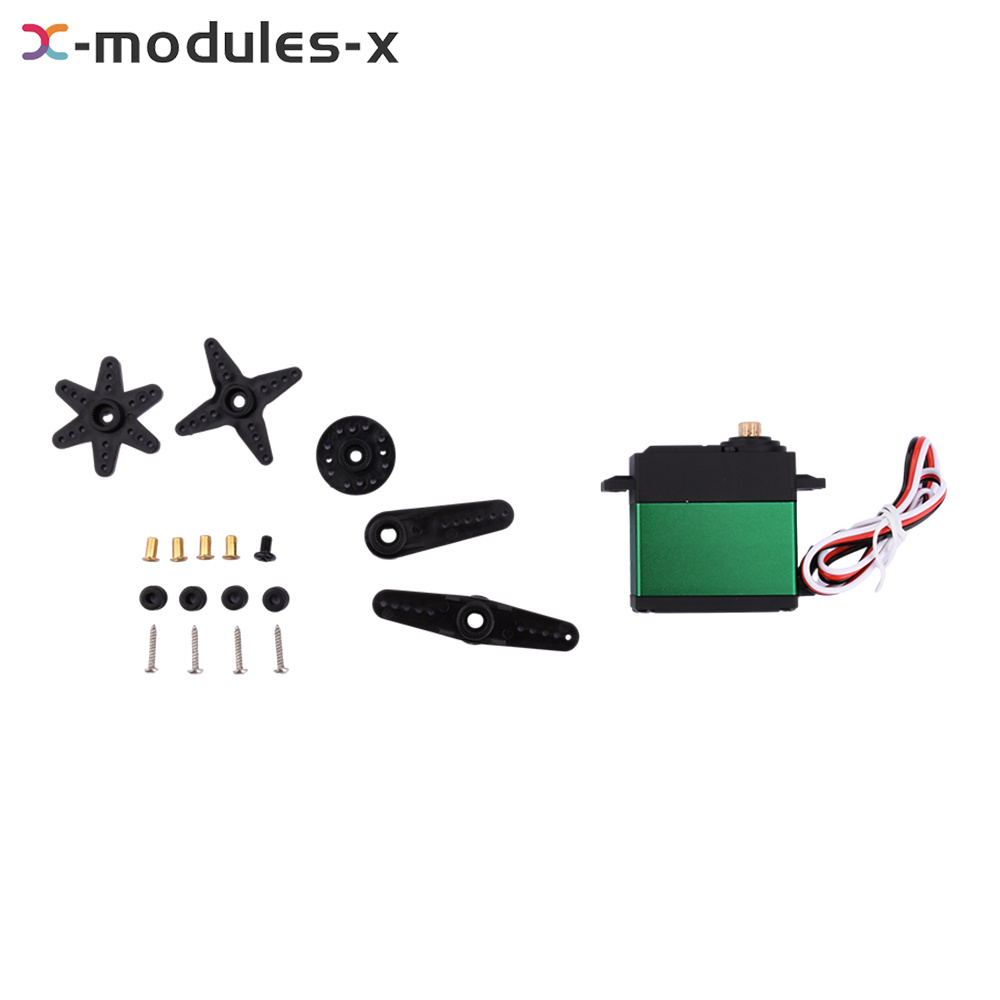

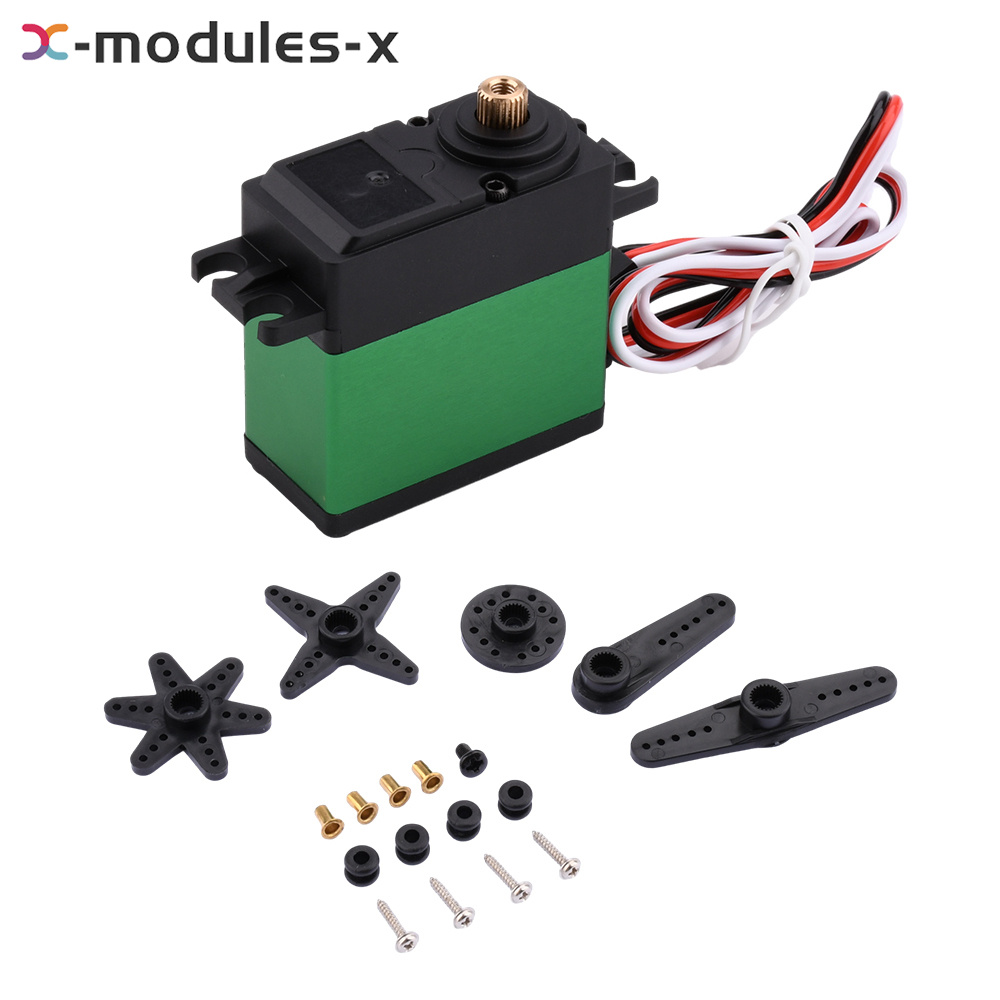

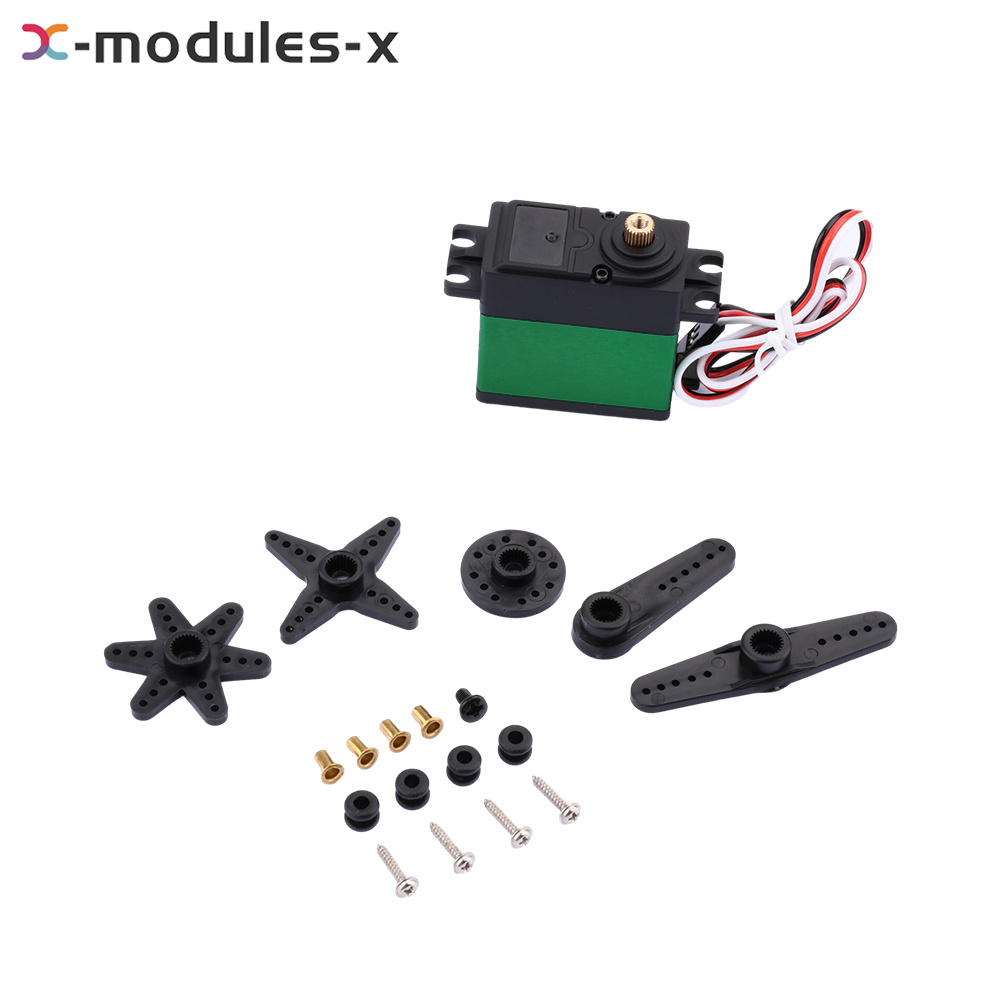

List

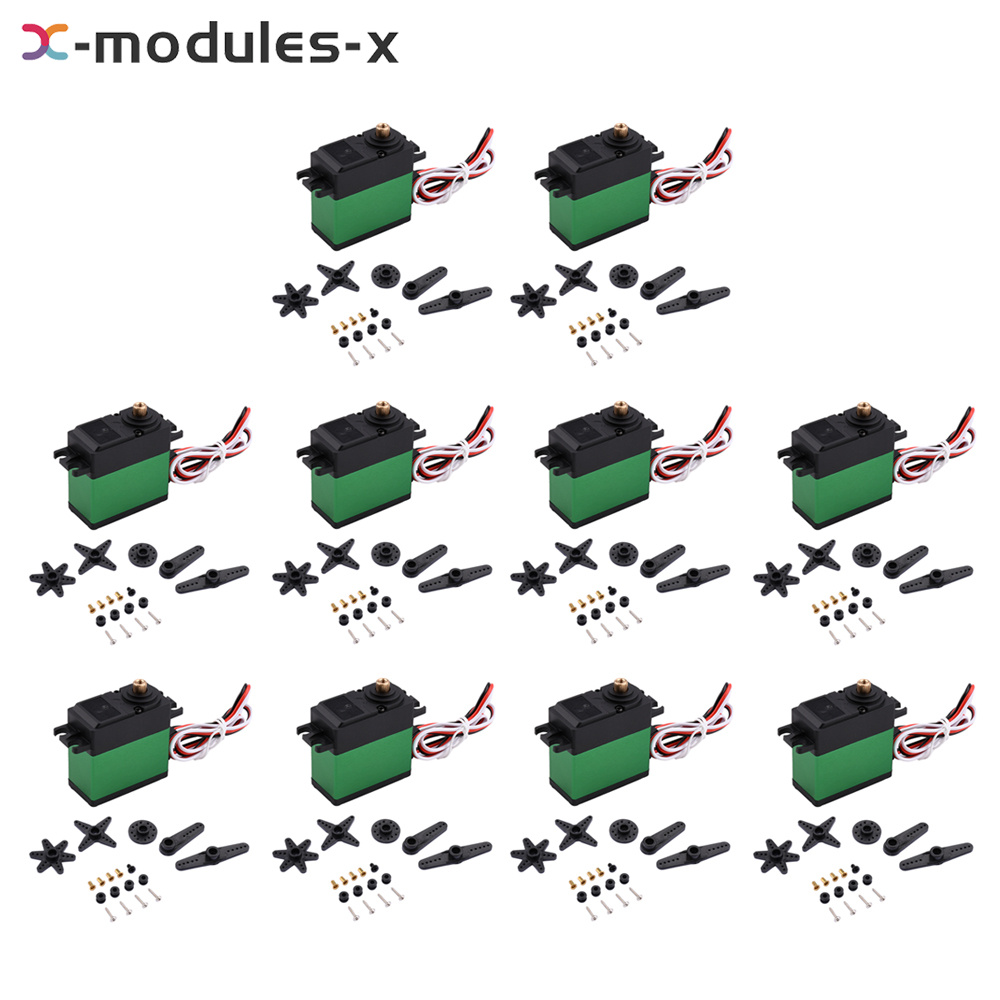

1/2/5/10 x Servomotor

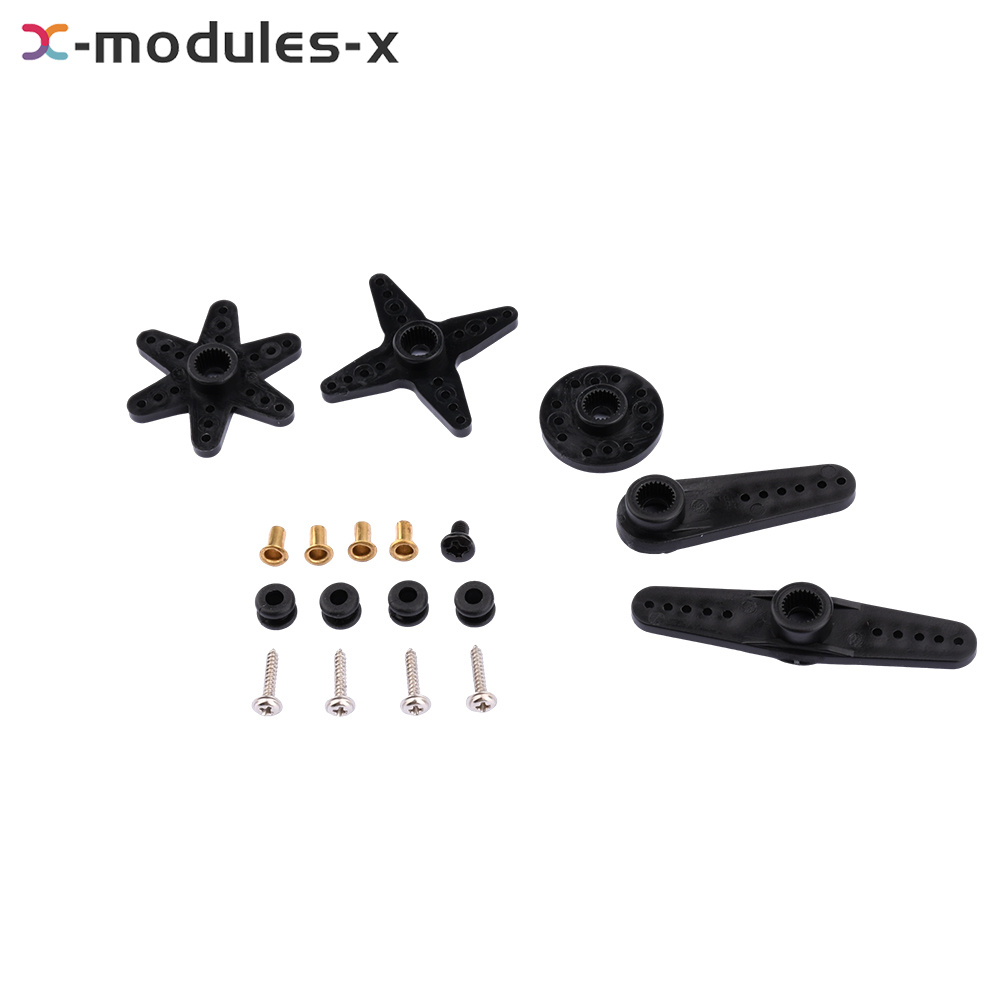

1/2/5/10 x Kit
1/2/5/10 x Servomotor
1/2/5/10 x Kit
