Commodity parameters:

Brand: PASAK Pasak

Product name: HB09 Center CARBON

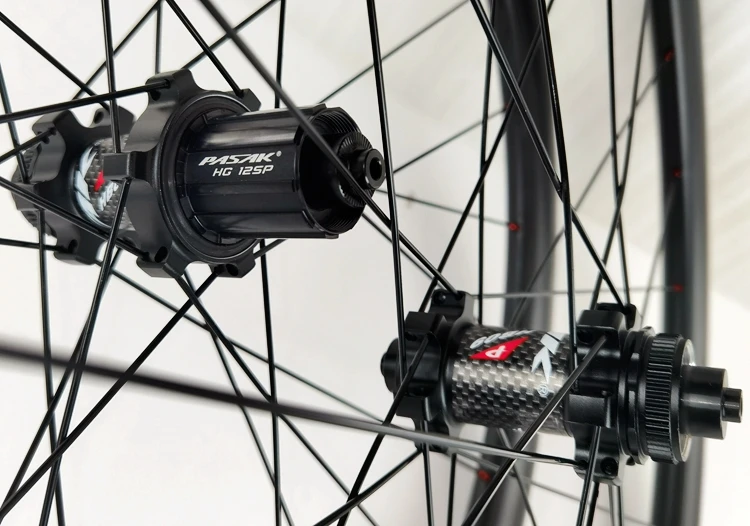

Front hub: aluminum alloy straight pull, lock, 24 holes, two bearing (Peilin), quick disassembly, 9*100MM, barrel shaft version: 12*100 or 15*100

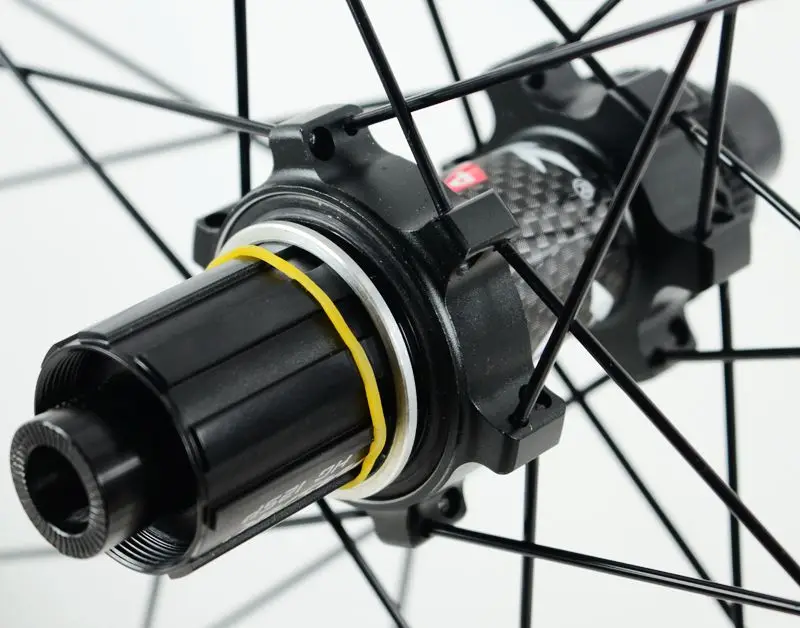

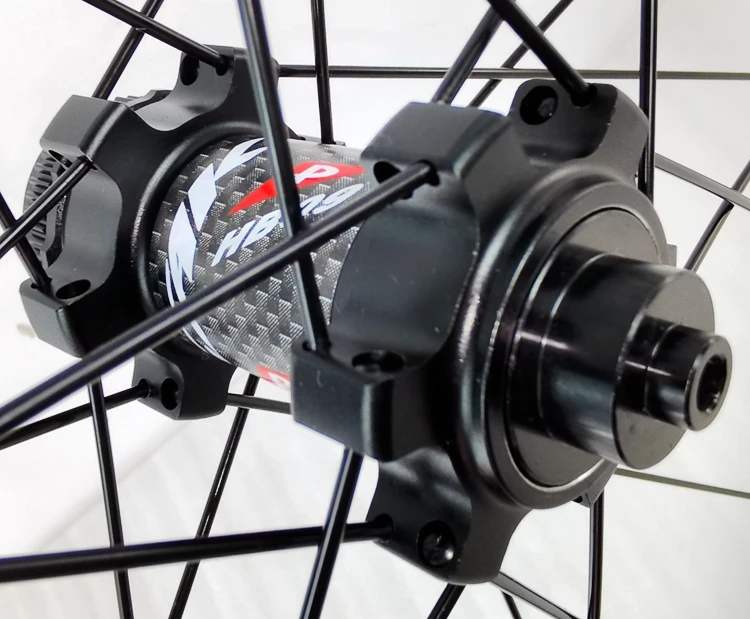

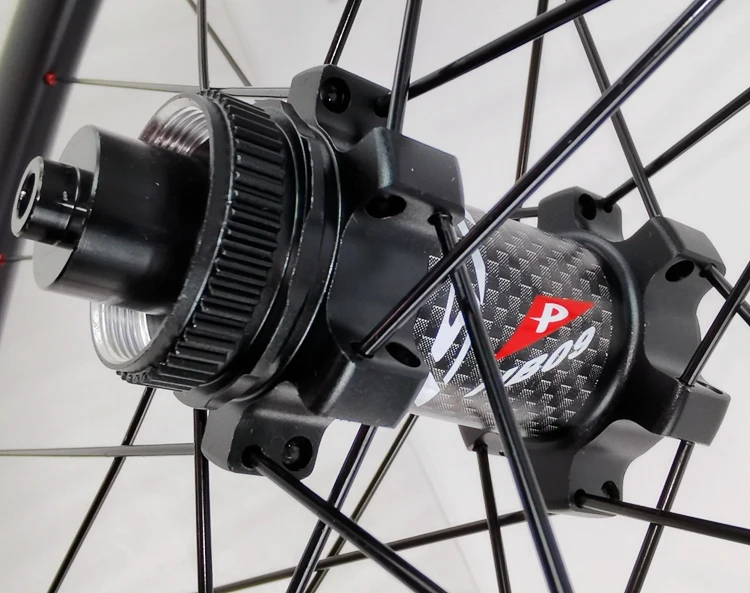

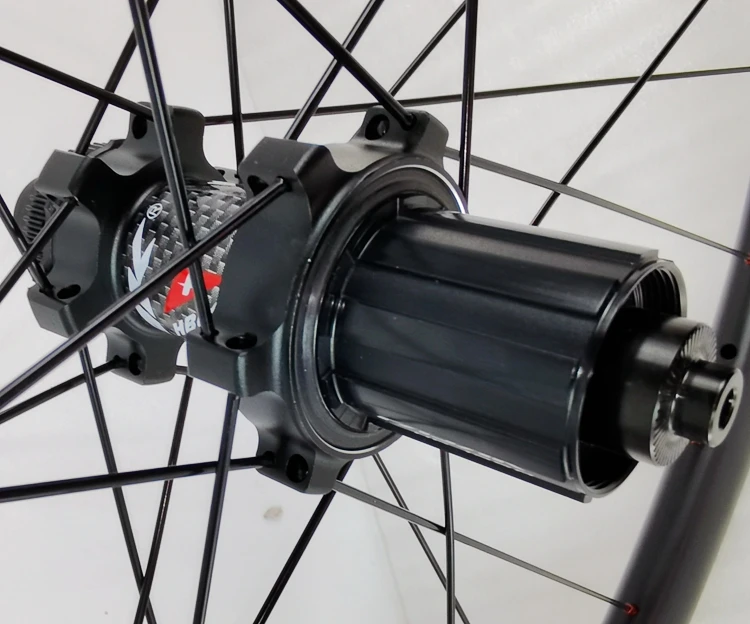

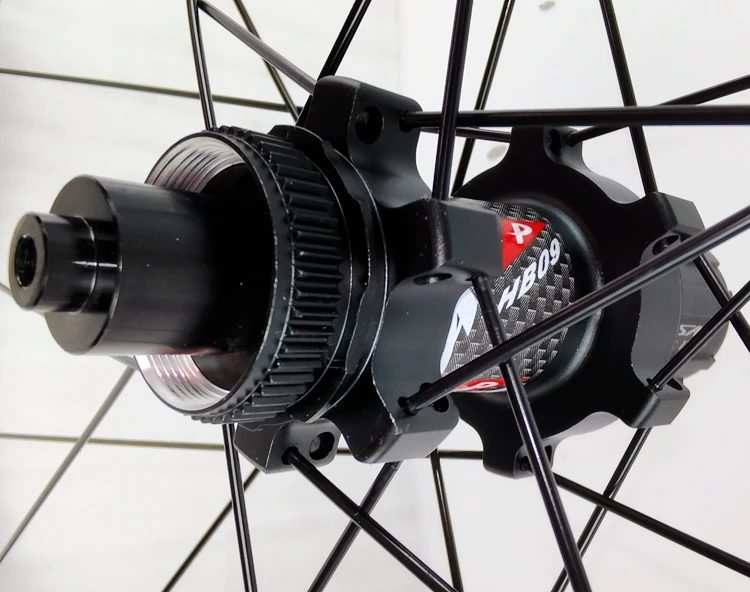

Rear hub: aluminum alloy straight pull, lock, after 24 holes, four bearing (Pealing) quick disassembly, 10*135MM, barrel shaft version: 12*142MM, can be removed without tools, cleaning/maintenance of the base is convenient.

Base: 8-12 speed 7075 Aluminum Alloy HG/XD/MS six-claw base (three teeth per claw). HG installation (8-11 speed installation requires one gasket, 12-speed flywheel installation directly), and 7-speed flywheel installation requires three gaskets

Spoke: Stainless steel electric black straight pull spoke with 14MM extended aluminum cap

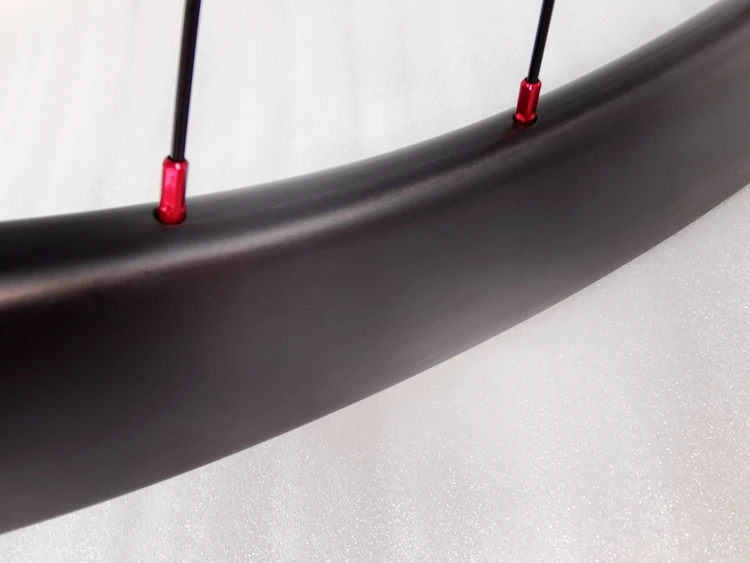

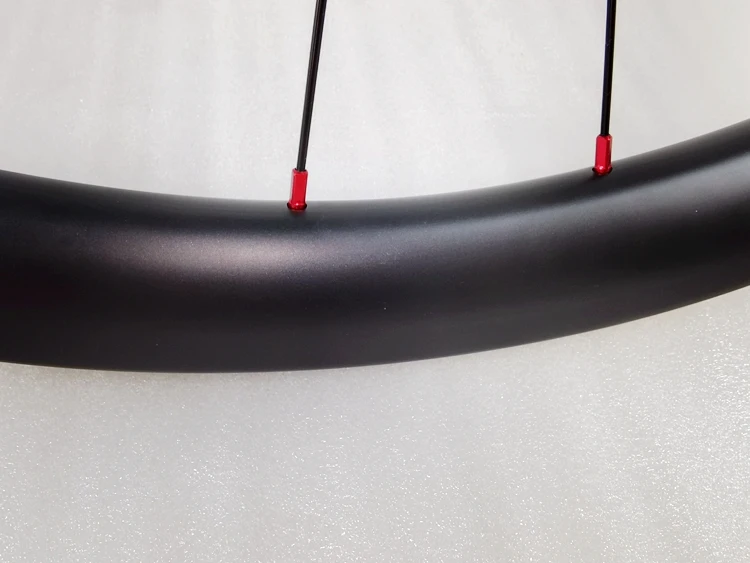

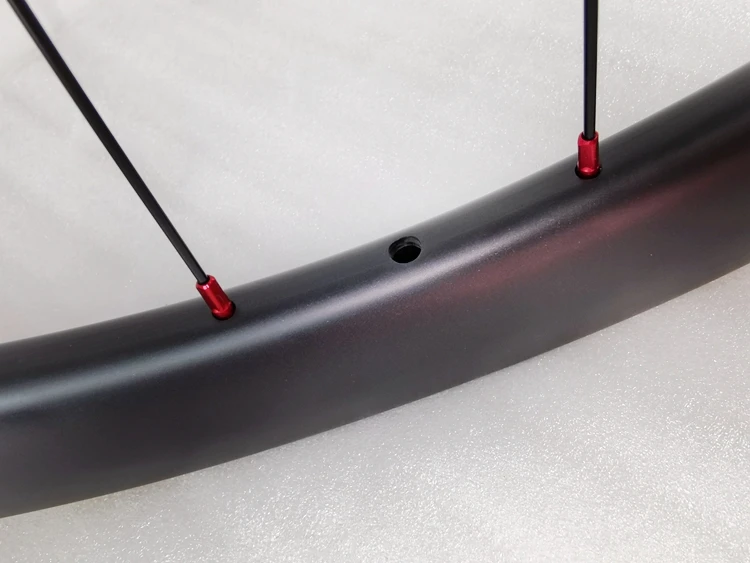

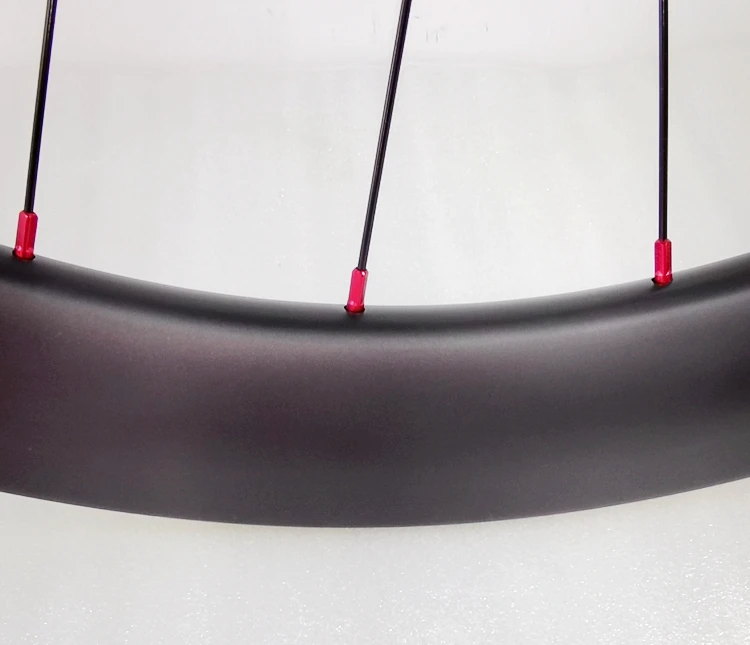

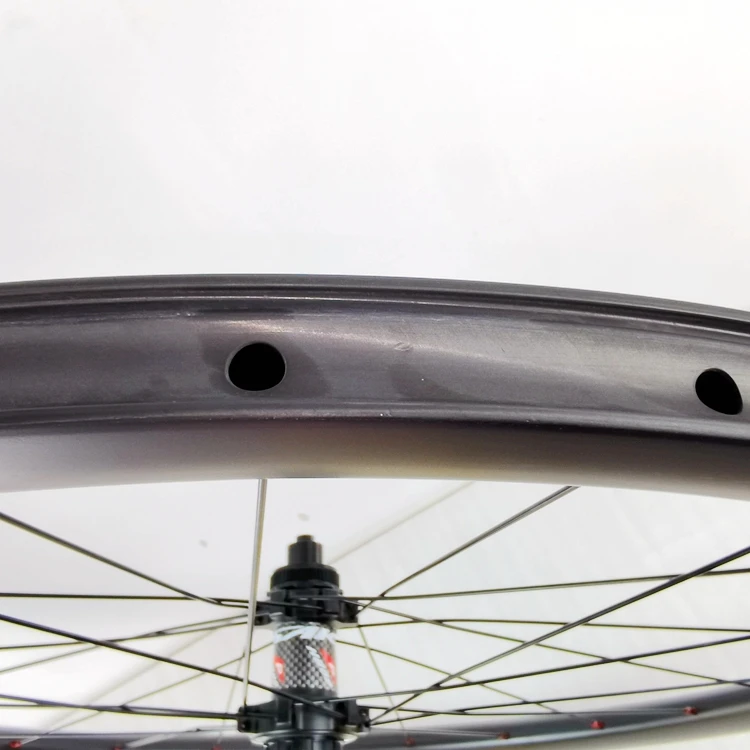

Rim: Carbon fiber opening/vacuum fat ring, ring height 38/50MM, UV optical disc brake ring, F/V gas nozzle

Weight: 38 carbon wheel: front wheel 810 grams, rear wheel 910 grams; 50 carbon wheel: Front wheel 820g, rear wheel 935g (excluding quick disassembly, a pair of error within 20g)

Recommended tire size: 700C*23C-45C; 29 "* 1.25" 2.1"

Wheel group distribution: Quick removal rod (quick removal version only), PVC explosion-proof tire pad, repair spoke 2, flywheel gasket 1 (HG version only)!

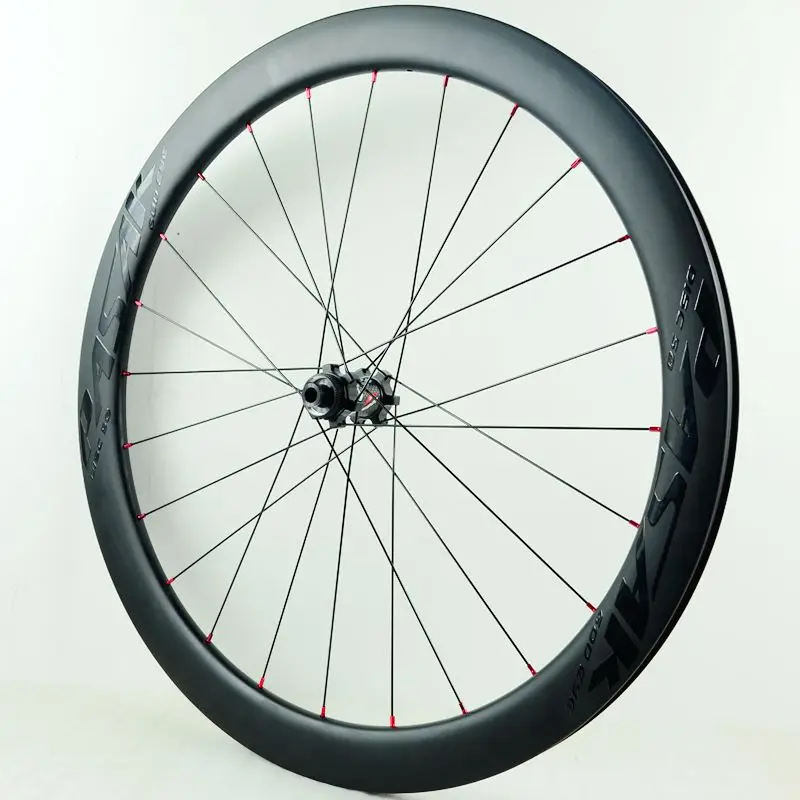

Baby real picture

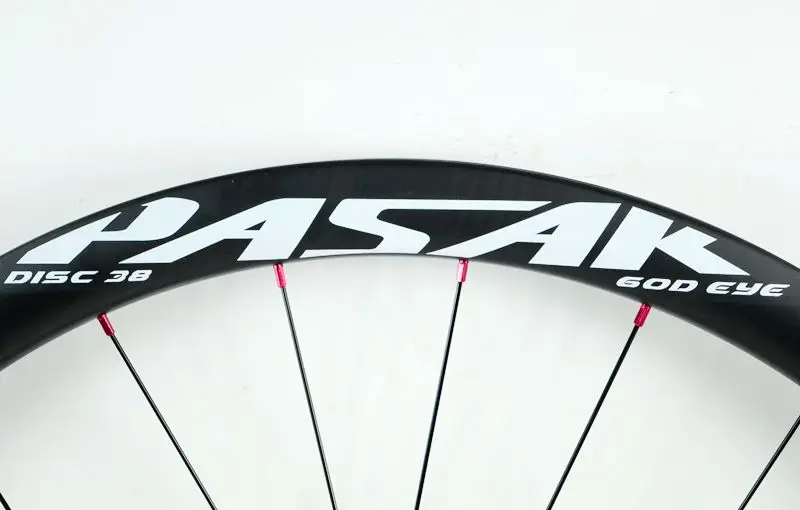

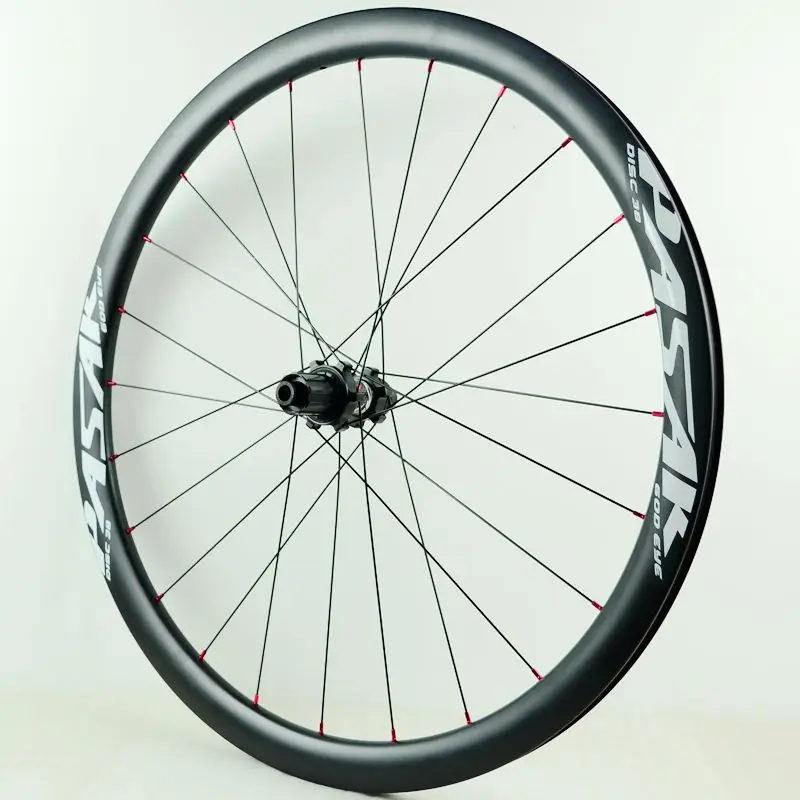

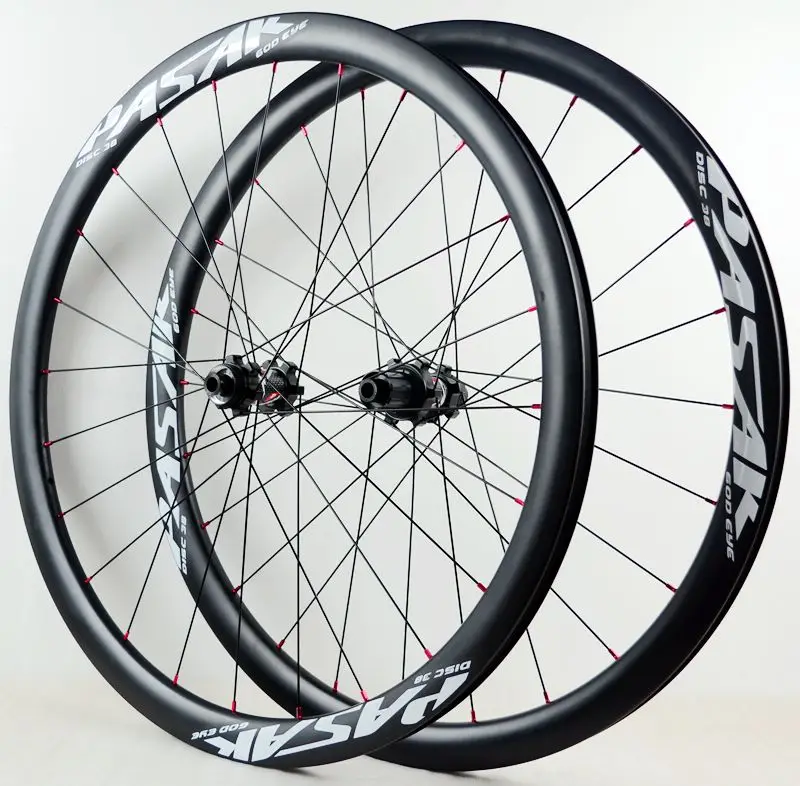

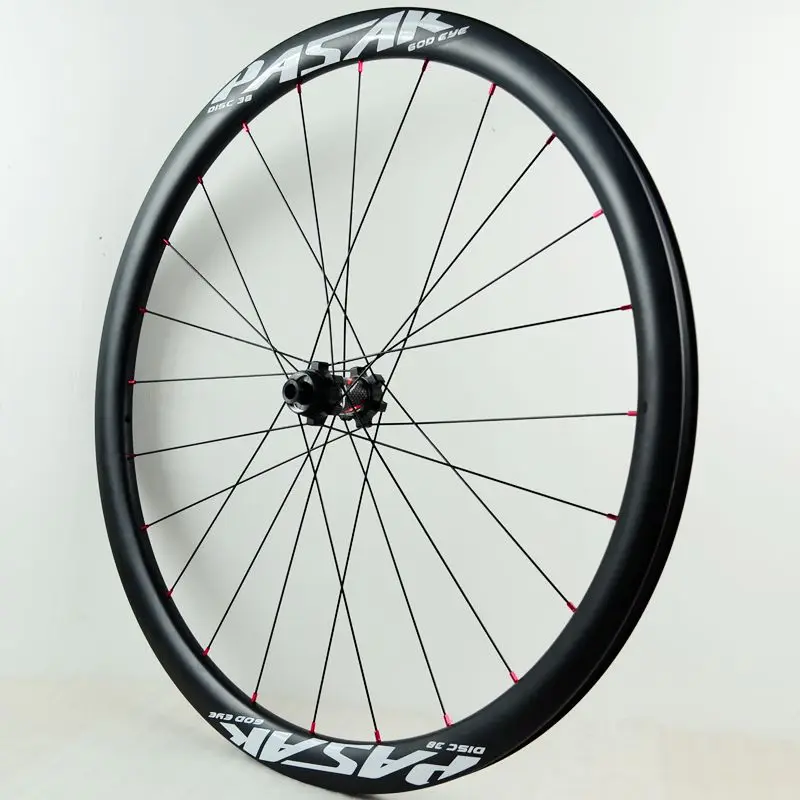

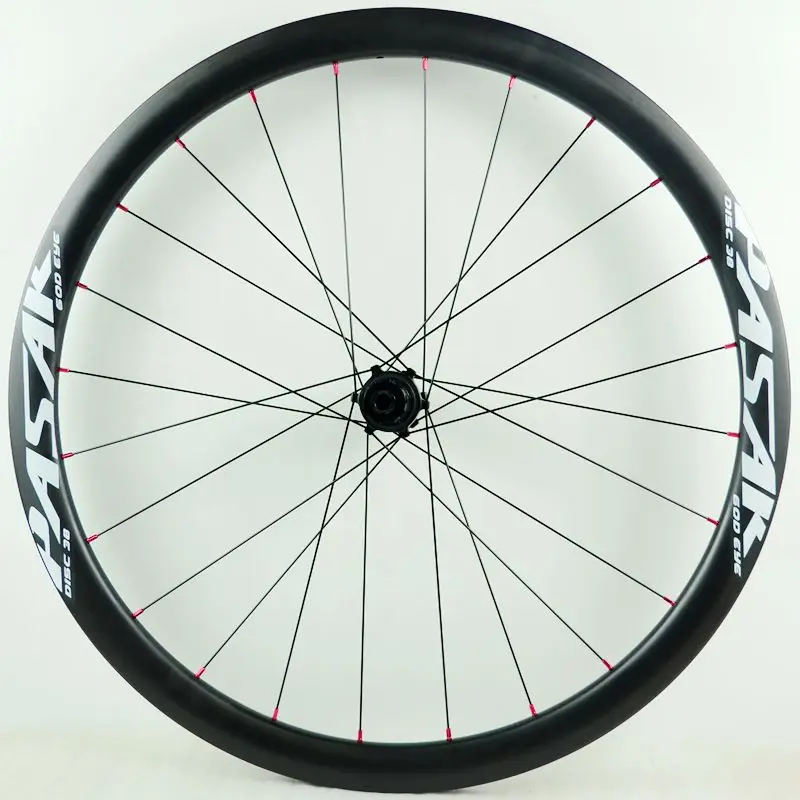

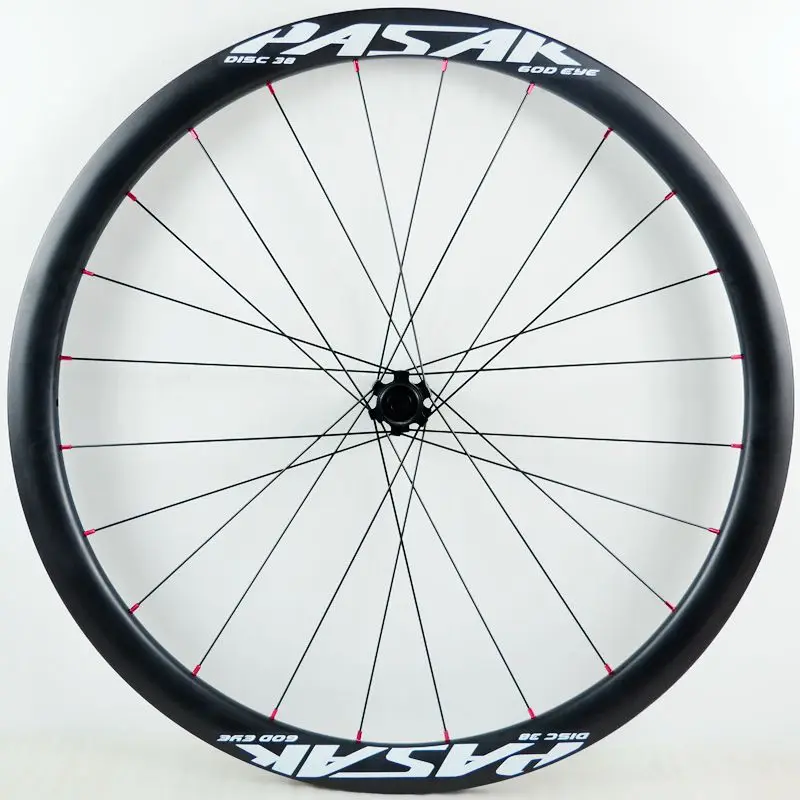

38MM BLACK HUB WHITE LOGO

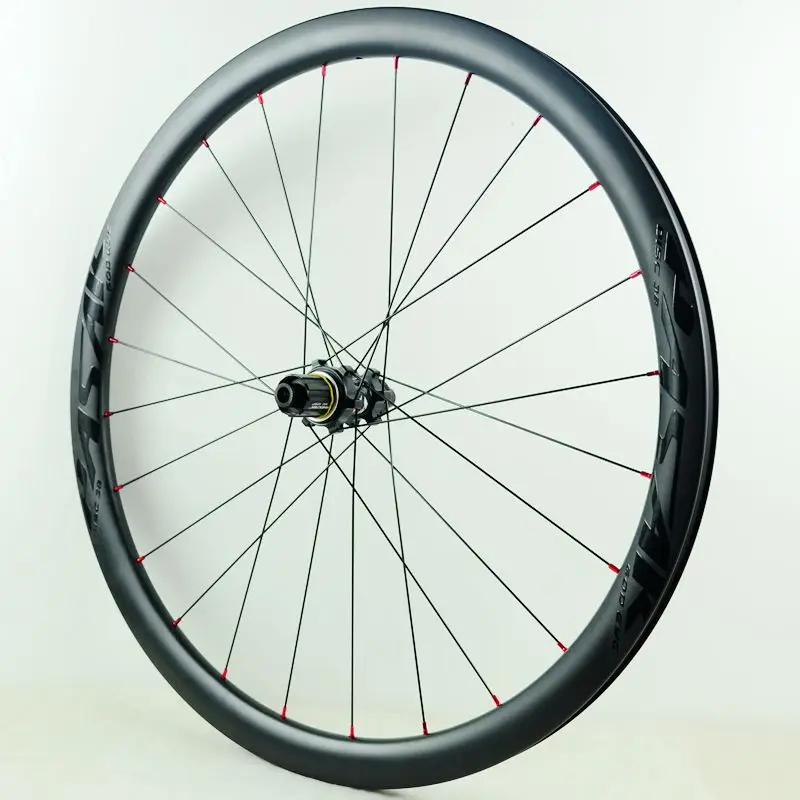

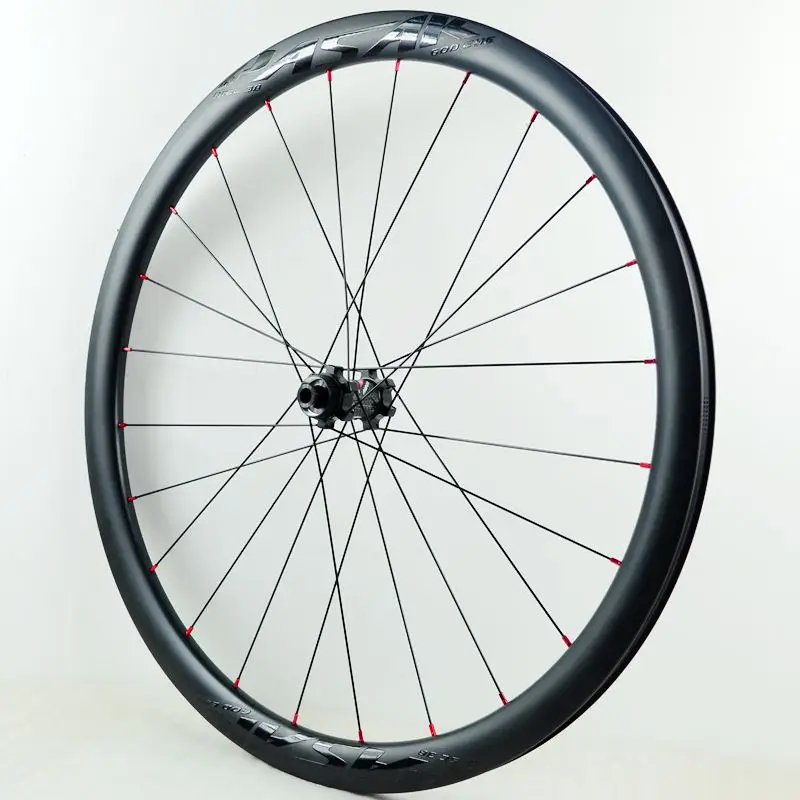

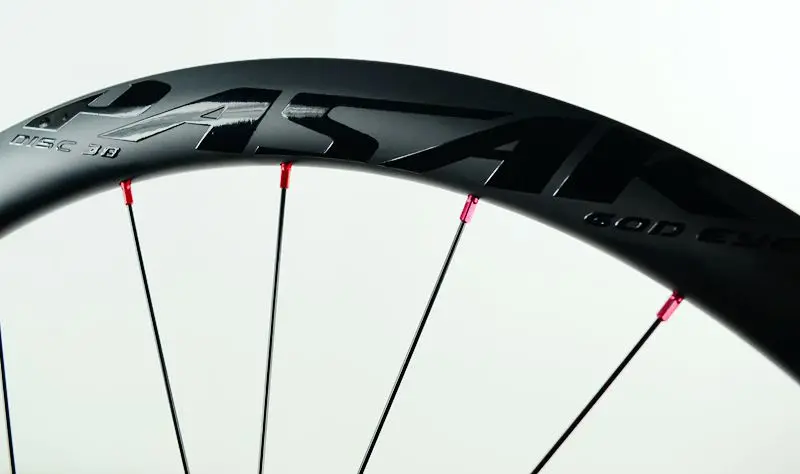

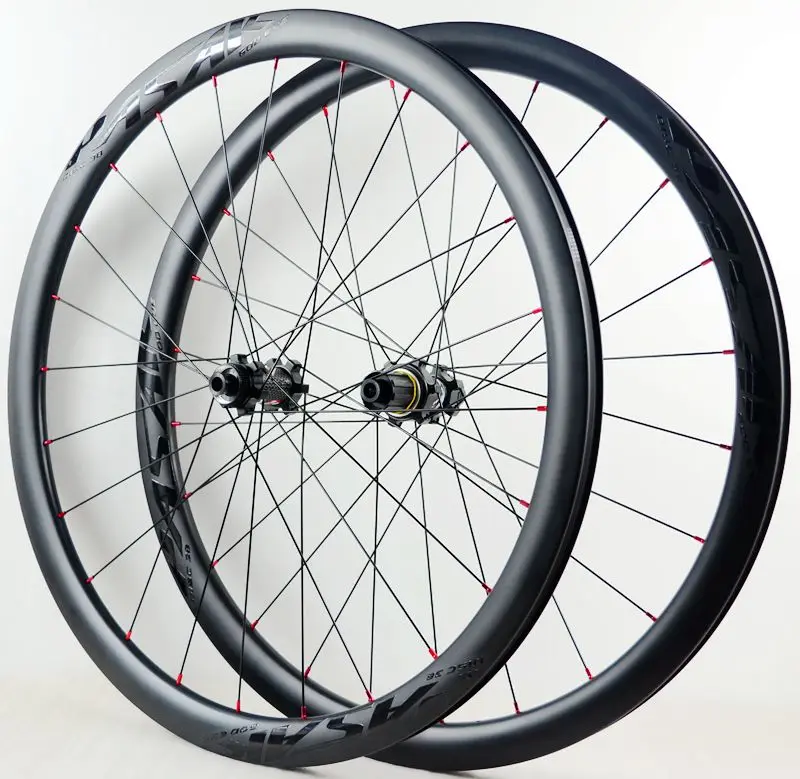

38MM BLACK HUB BLACK LOGO

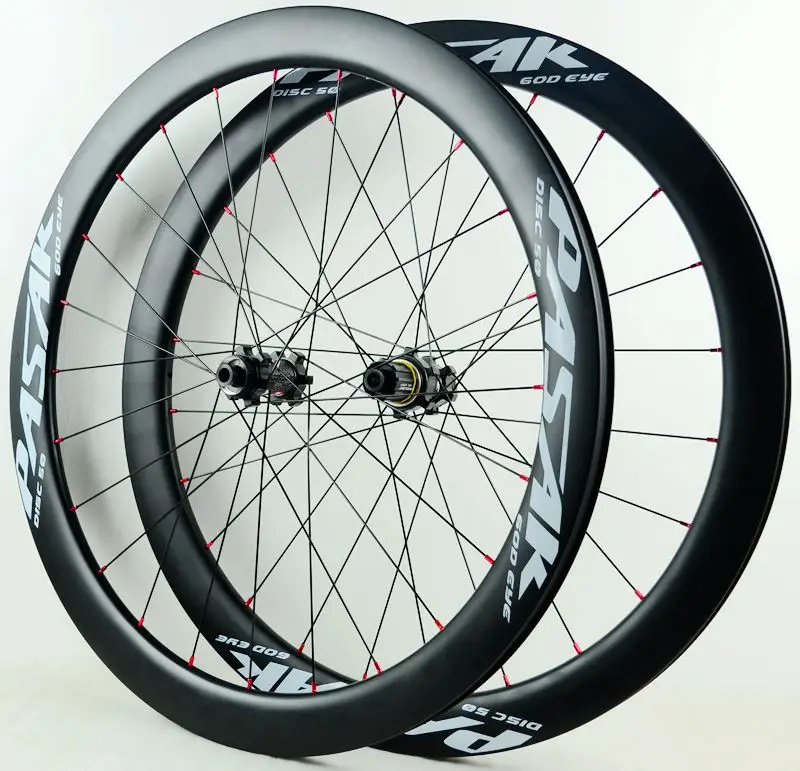

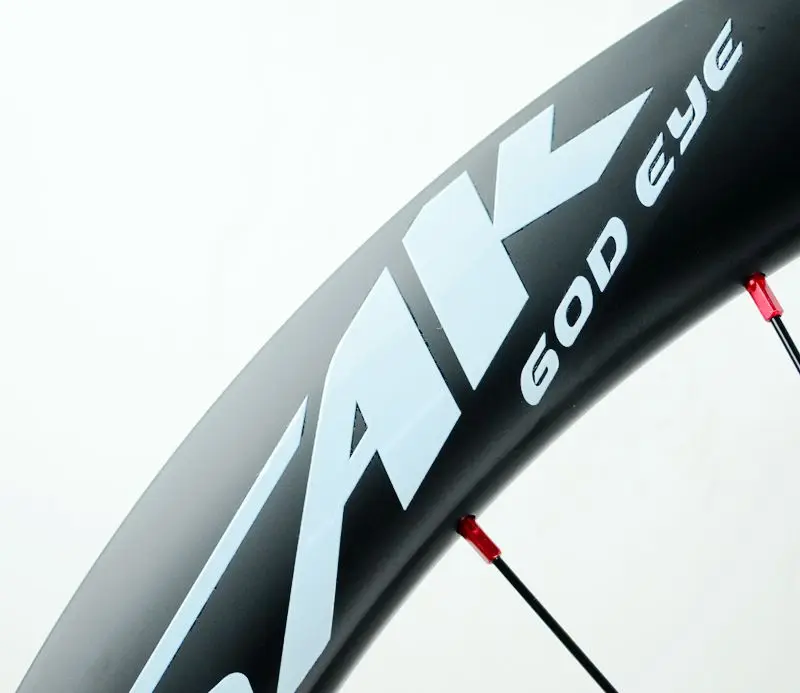

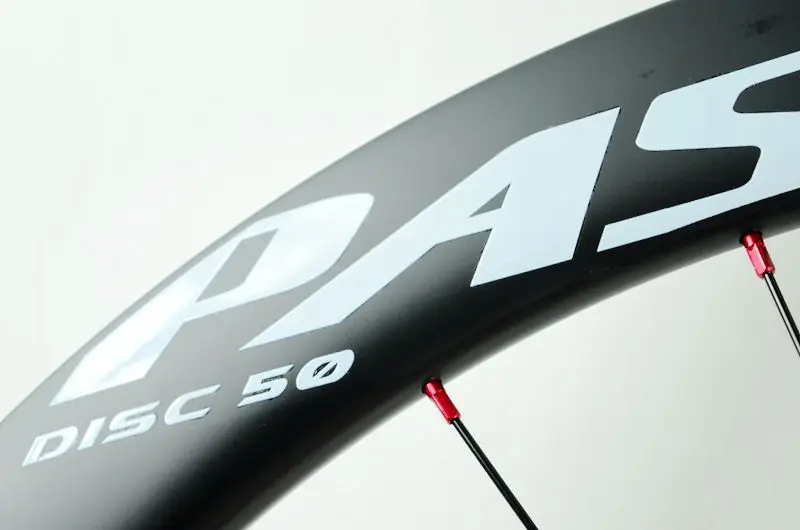

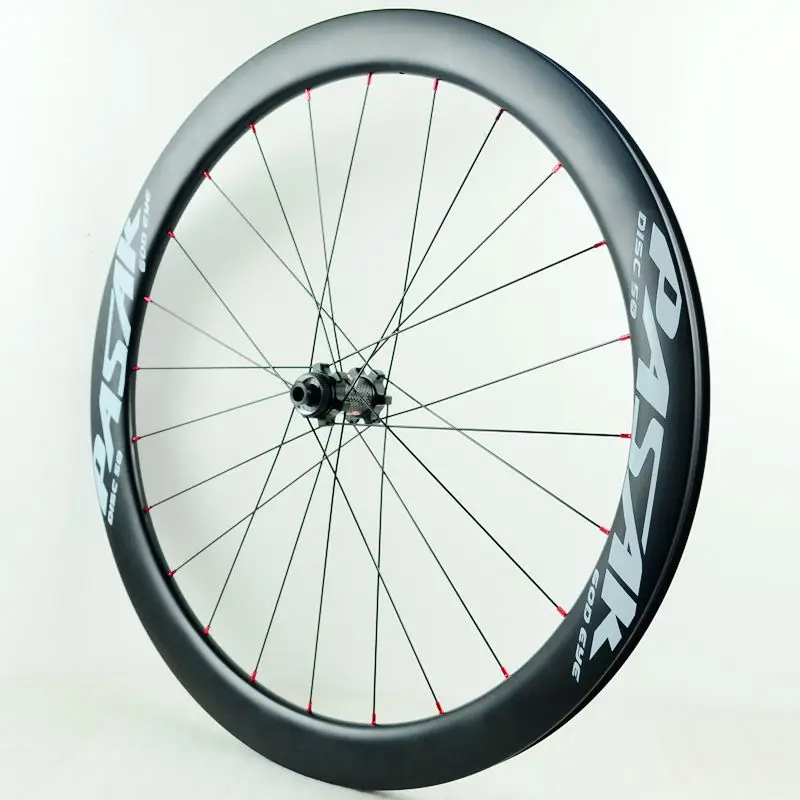

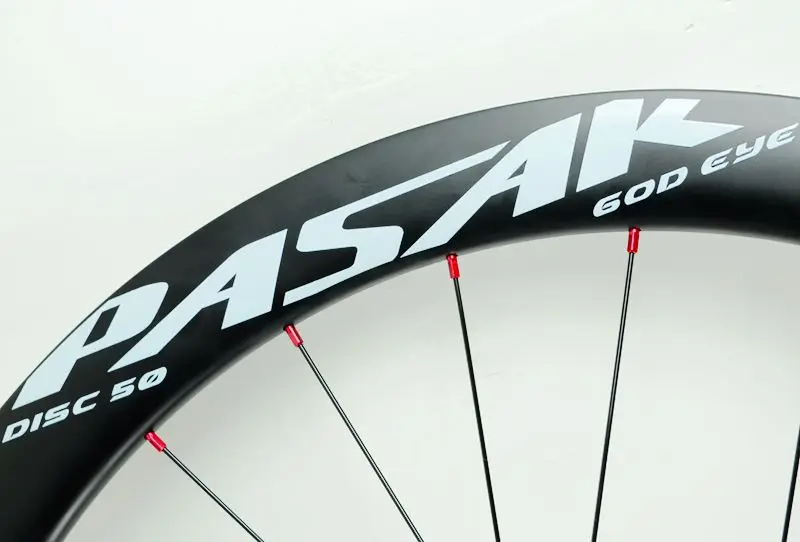

50MM BLACK HUB WHITE LOGO

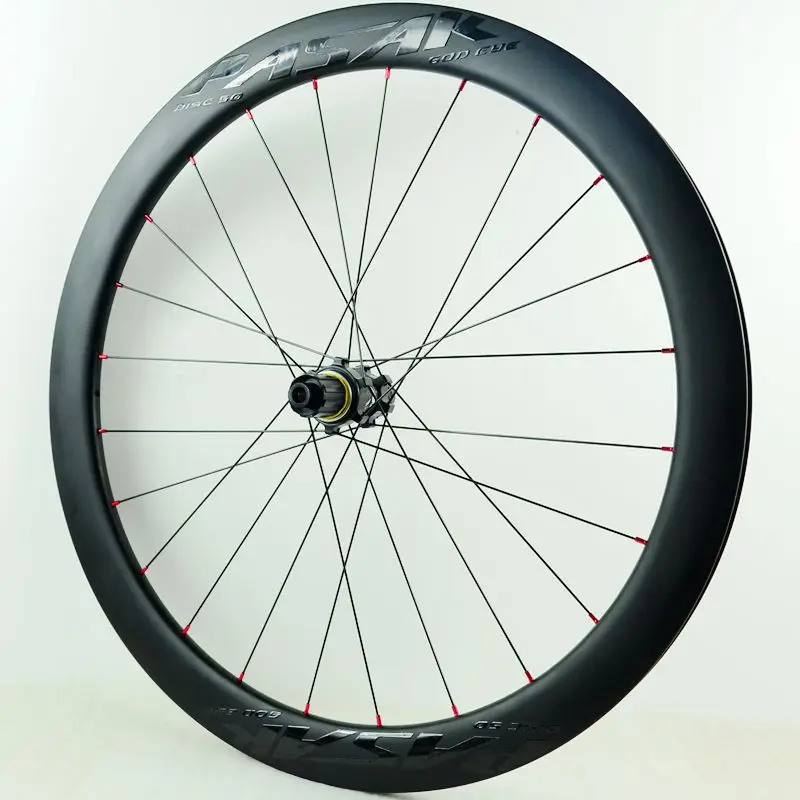

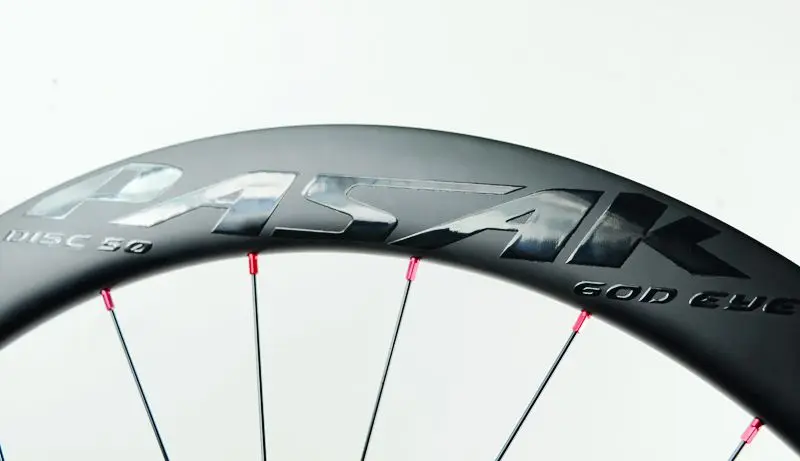

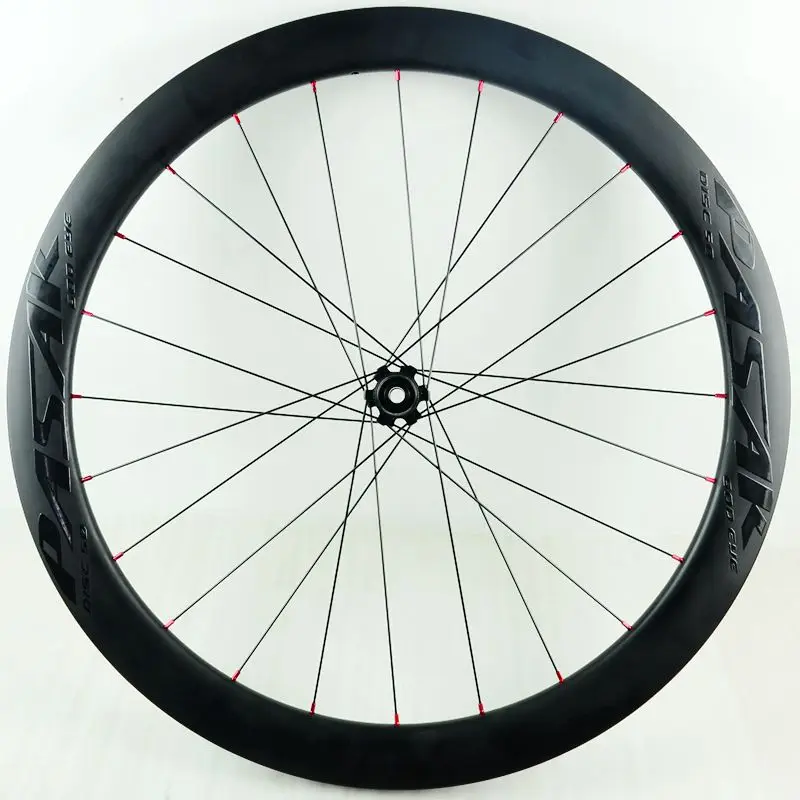

50MM BLACK HUB BLACK LOGO

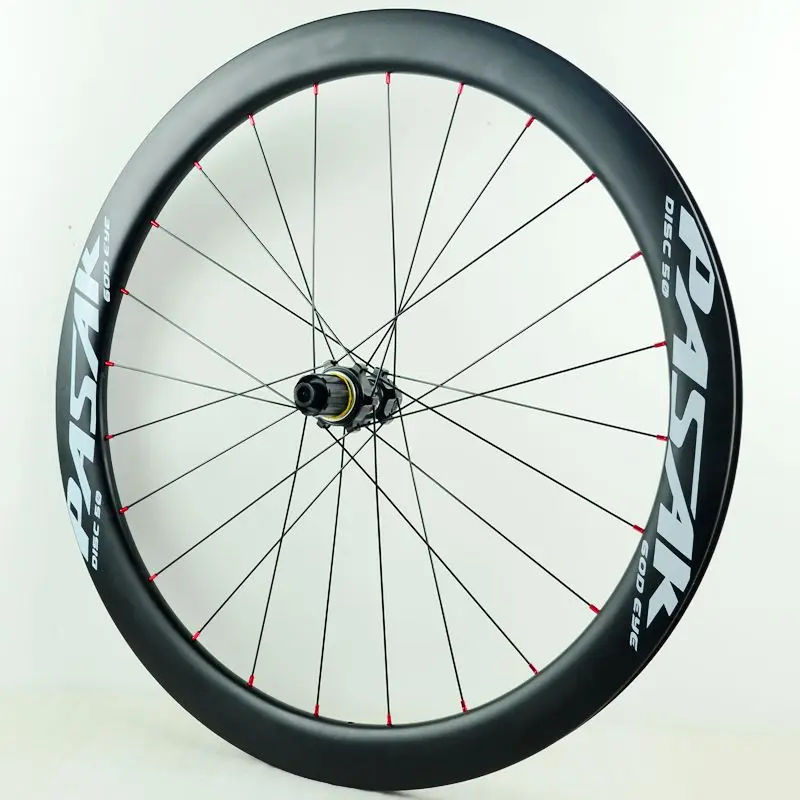

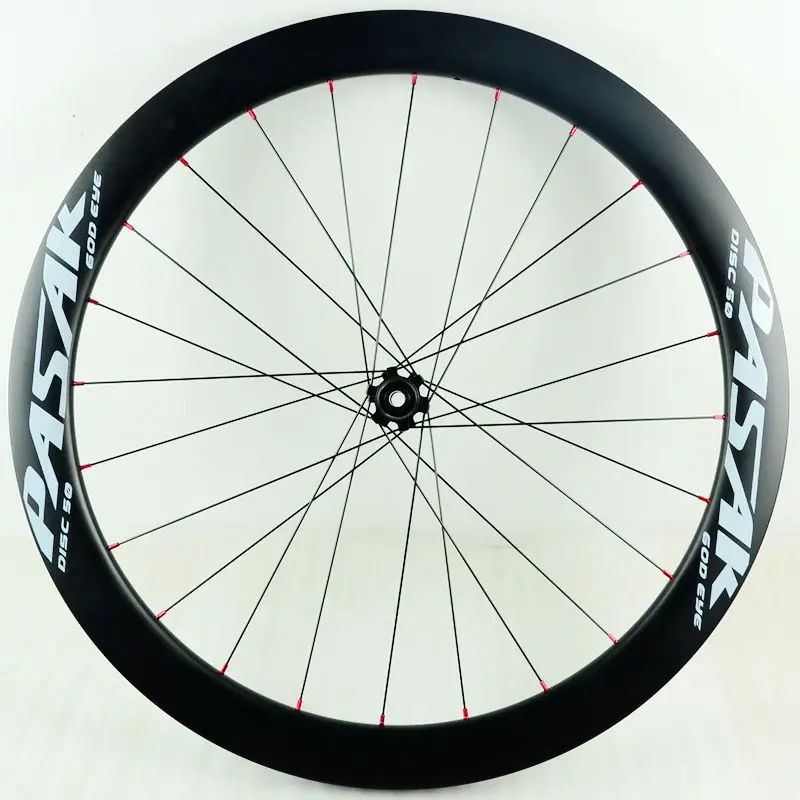

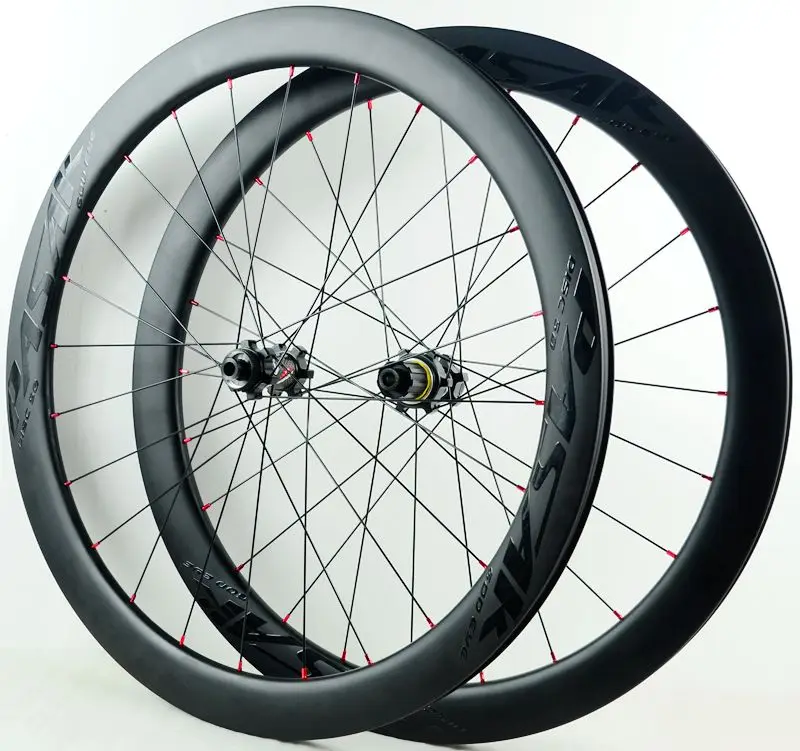

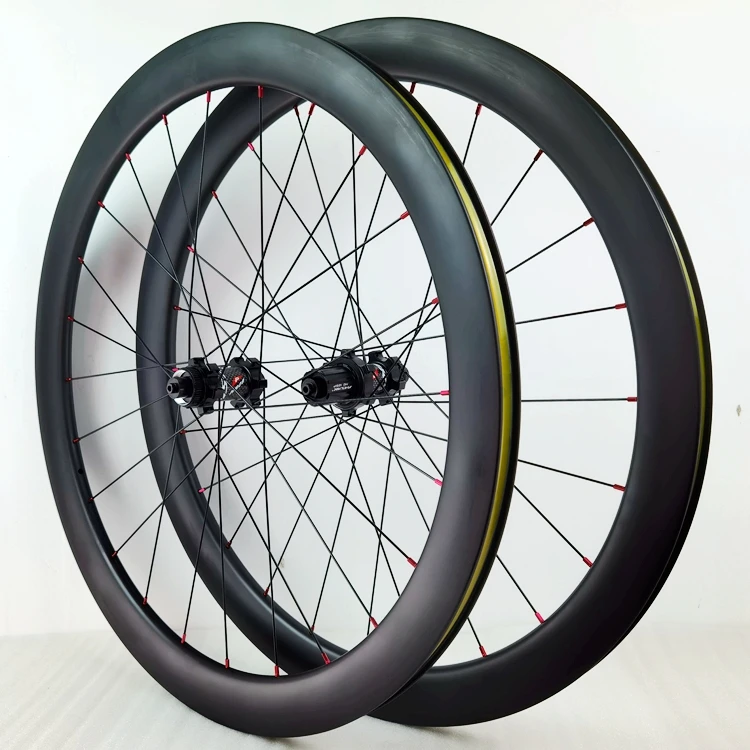

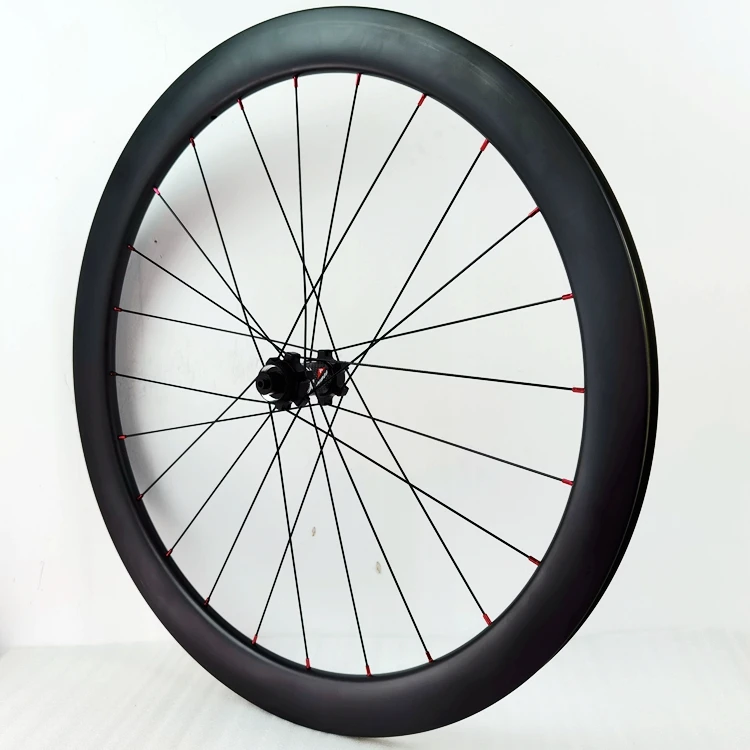

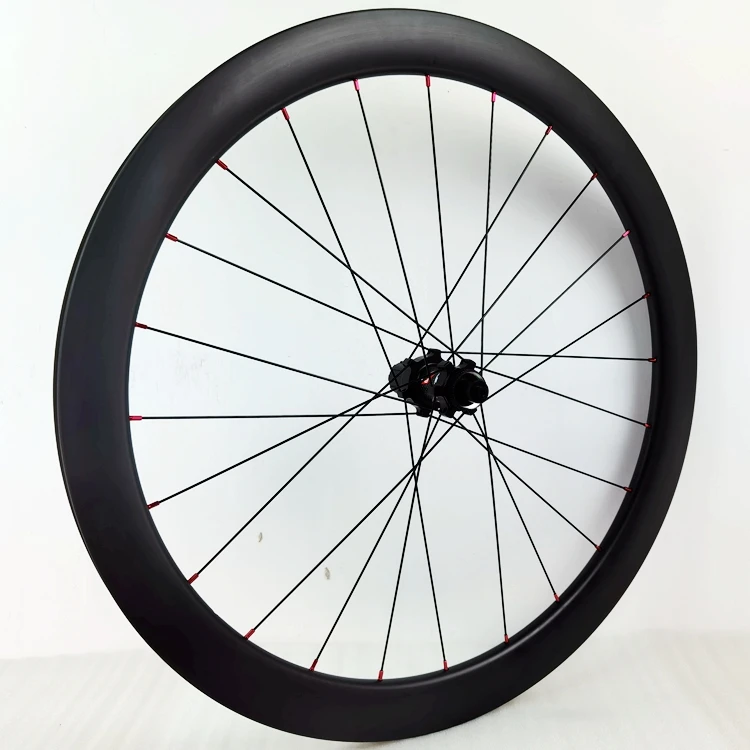

black hub 50MM rim

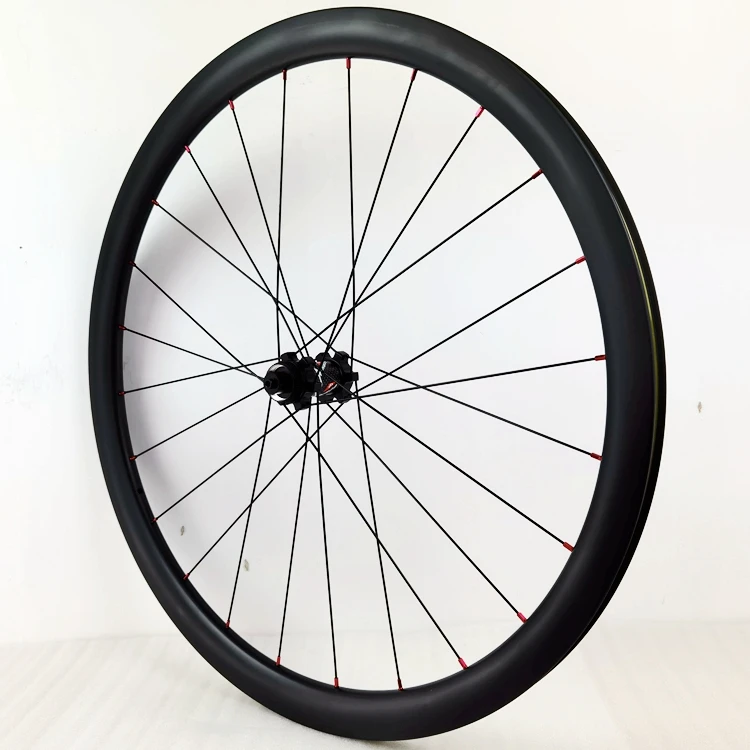

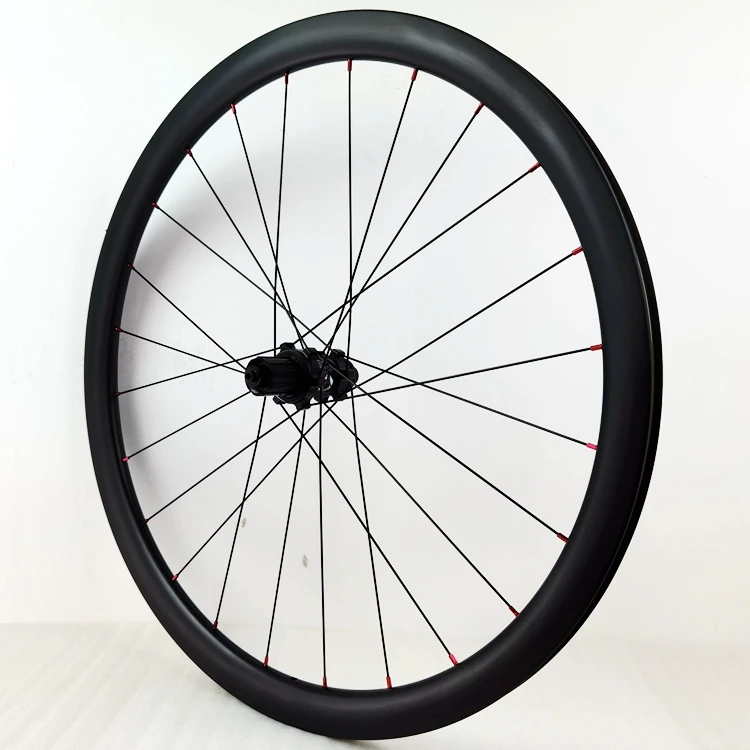

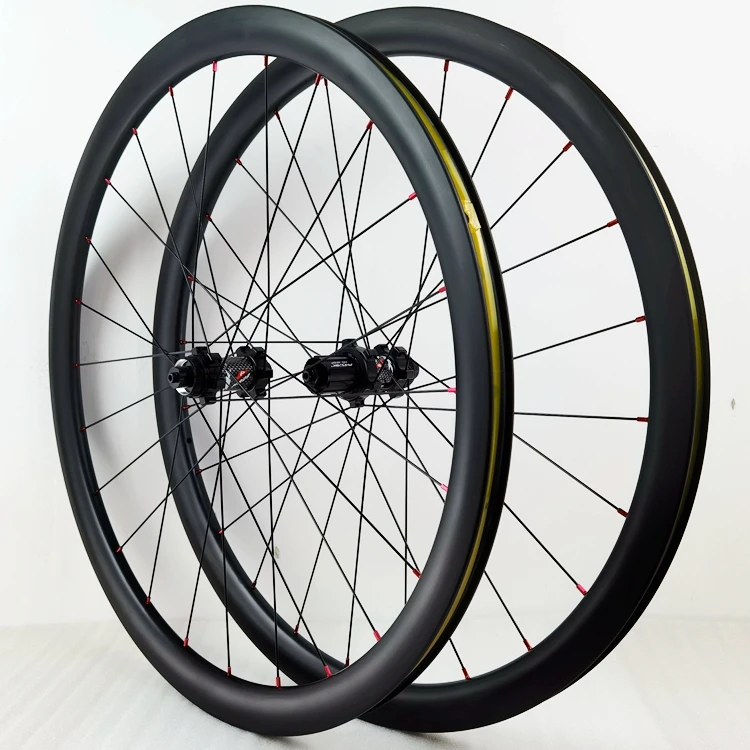

black hub 38mm RIM
