SX1509 16-channel I/O Output Module GPIO Keyboard Voltage Level LED Driver Model
Description
Description:
Are you low on I/O? No problem! The CJMCU-SX1509 can leverage your I2C interface for 16 extra channels of GPIO. And that’s not all! This handy device also contains a fully programmable LED driver and a keypad scanning engine which enables continuous keypad monitoring of up to 64 keys! Since the I/O banks can operate between 1.2V and 3.6V (5.5V tolerant) independent of both the core and each other, this device can also work as a level-shifter.
Are you low on I/O? No problem! The CJMCU-SX1509 can leverage your I2C interface for 16 extra channels of GPIO. And that’s not all! This handy device also contains a fully programmable LED driver and a keypad scanning engine which enables continuous keypad monitoring of up to 64 keys! Since the I/O banks can operate between 1.2V and 3.6V (5.5V tolerant) independent of both the core and each other, this device can also work as a level-shifter.

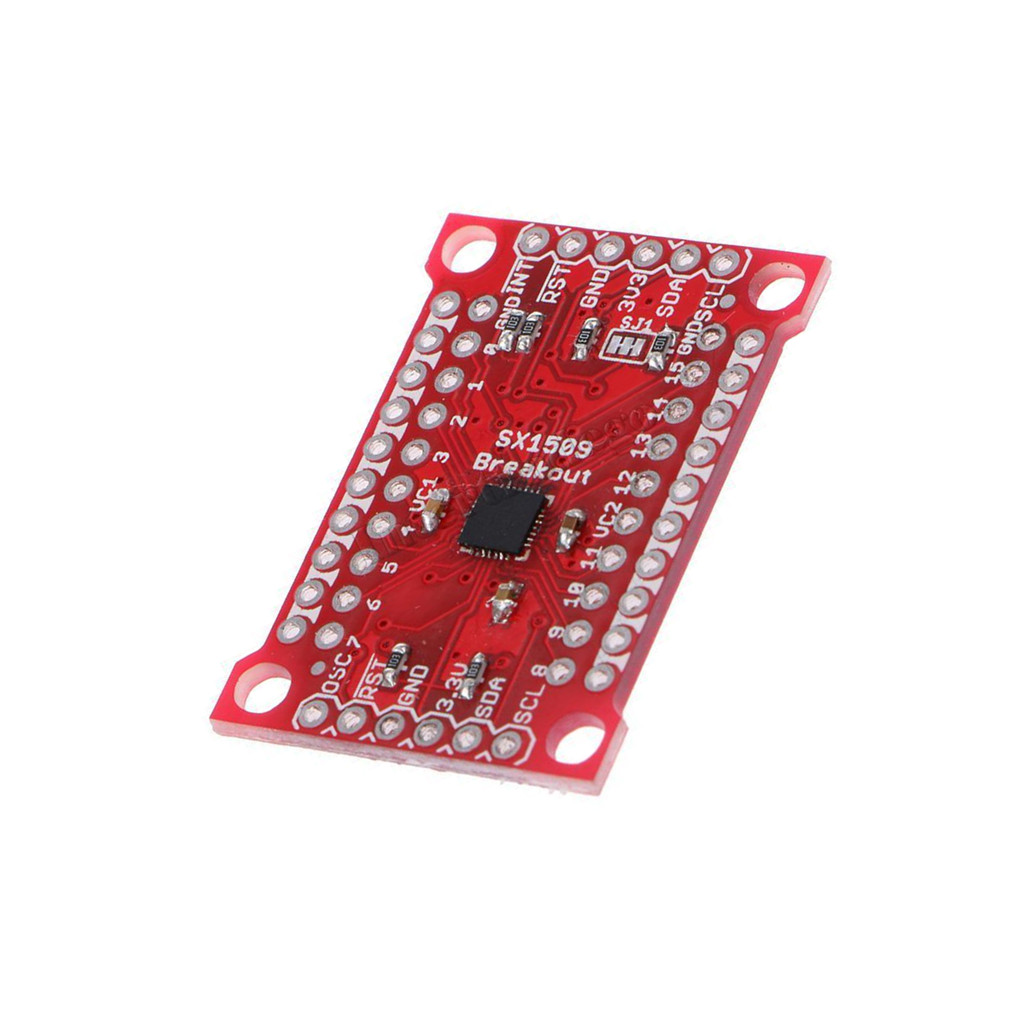

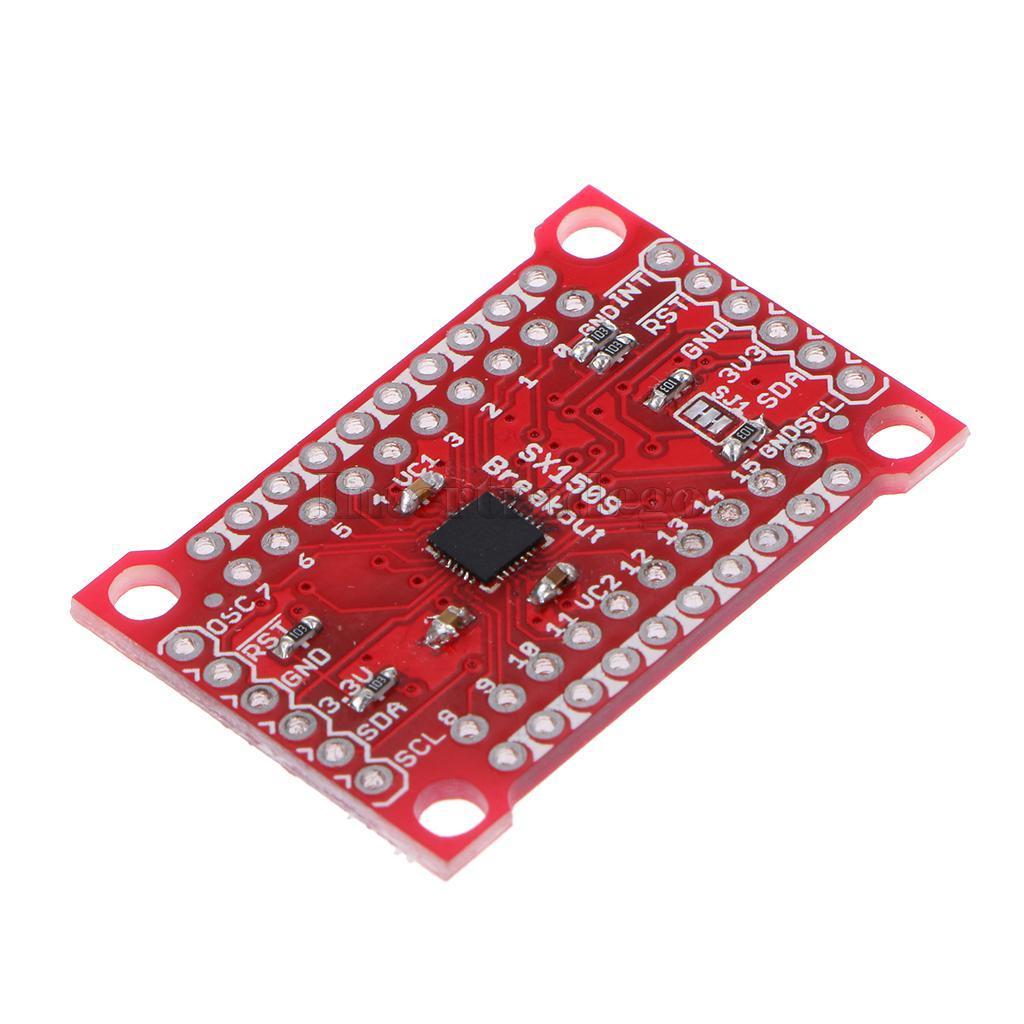

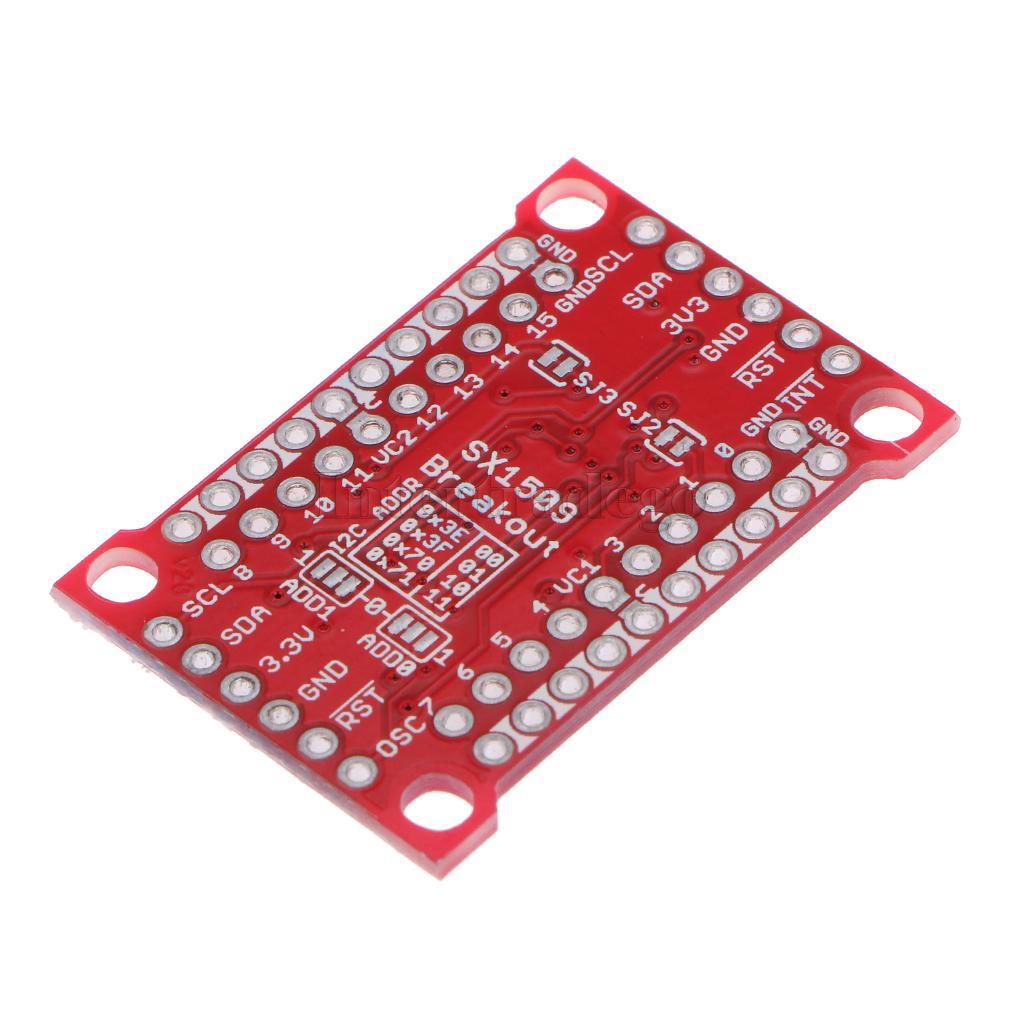

This breakout board makes it easy to prototype using the SX1509 so you can add more I/O onto your Arduino or I/O limited controller. We’ve even spun up an Arduino Library to get you started!
Size : 36mm*25mm*3mm
Color: Red
Size : 36mm*25mm*3mm
Color: Red
After receiving the package, please check the package contents. Any question, please feel free to contact us as soon as possible!

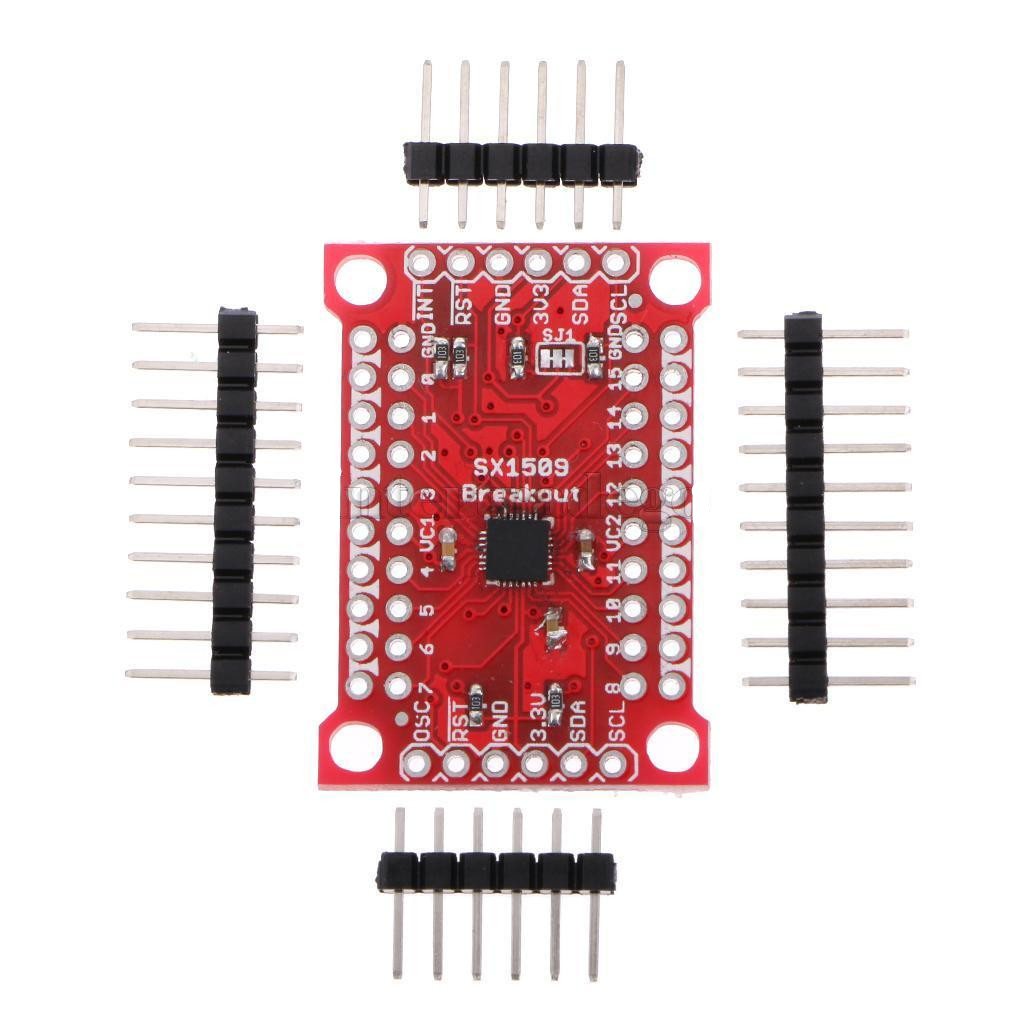

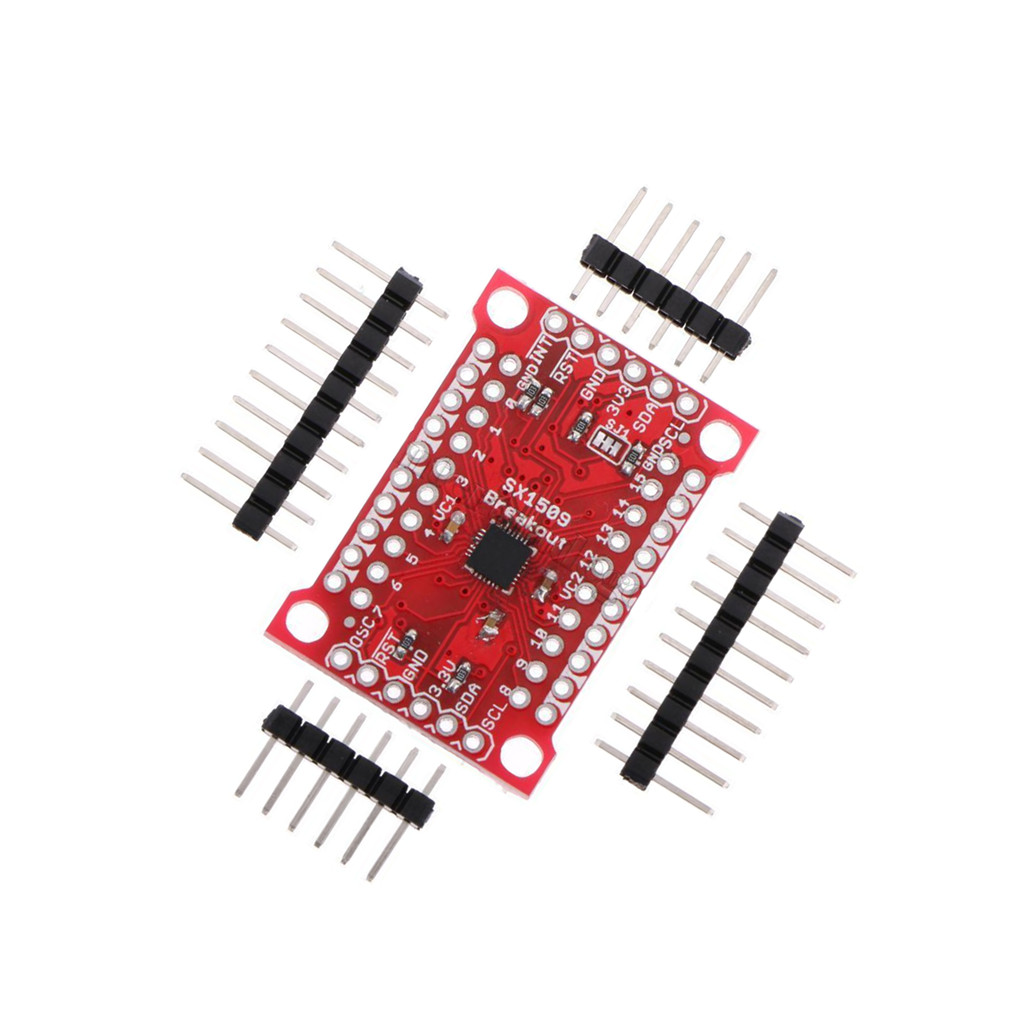

Package Includes:
1x Module

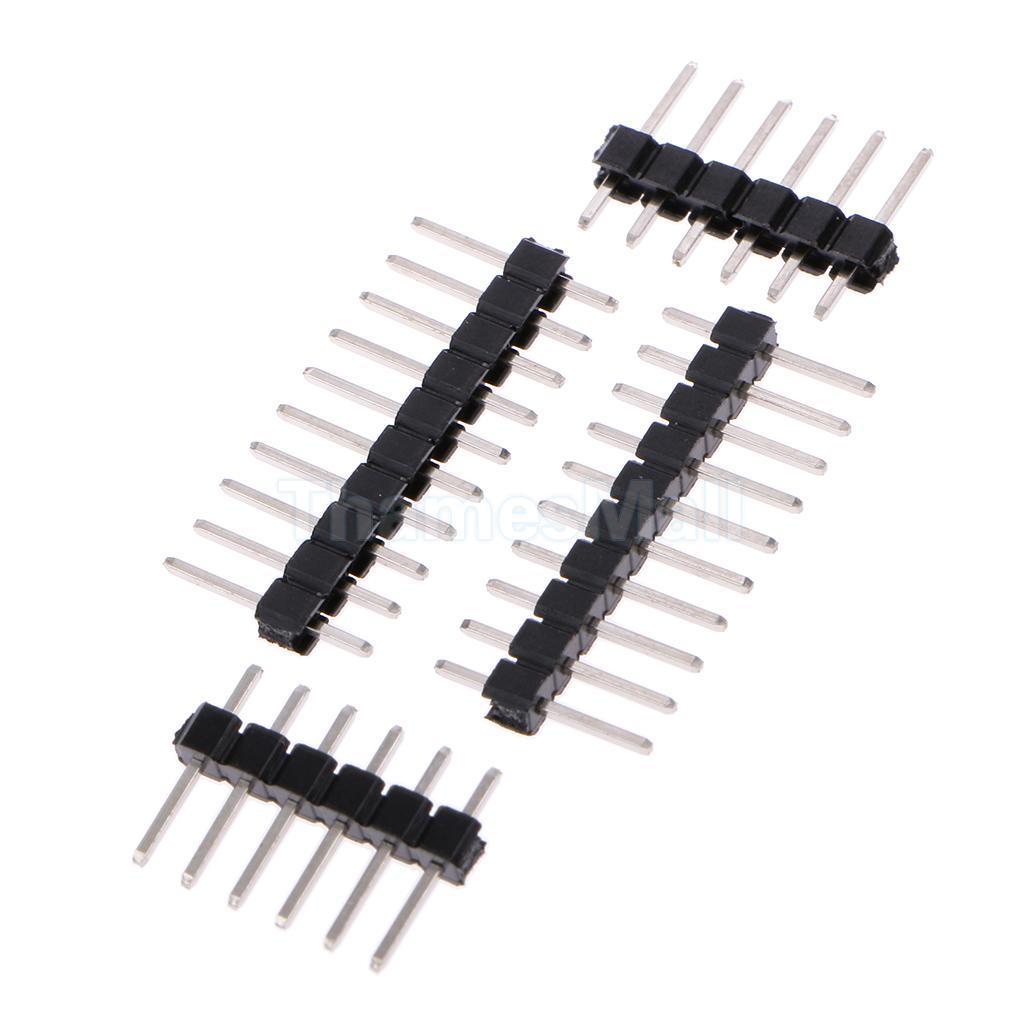

1x Pin
1x Module
1x Pin
