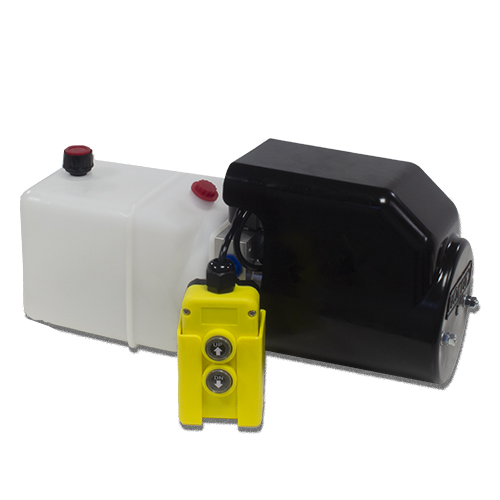

A DC single acting hydraulic power pack is a compact and versatile unit designed to provide hydraulic power to single acting cylinders. These power packs are widely used in various applications due to their ease of use, portability, and reliability.  Appropriate for all single-acting applications with horizontal mounting.

Flowfit DC single acting hydraulic power packs includes:

- 2.1CC/rev Gear Pump, Max flow 5 l/min
- DC Electric Motor c/w Relay and Plastic Motor Cover.
- Steel Tank with drain plug
- Suction strainer
- Return Oil Conveyor
- Filler Breather
- Relief valve set at 160 bar but adjustable from 40-200 bar as standard
- Adjustable flow control for cylinder decent control
- Let down valve, relief and P line check
- Port Size 3/8" BSP

The Flowfit Single Acting power pack will require a high capacity battery and a suitable in-line fuse for normal operation.

The motor is designed for intermittent use (S3) which is defined as a sequence of identical cycles of 10 minute duration. The cycle comprises a period of on-load (td) operation in which the motor may reach its maximum permitted temperature, followed by an off-load (tm) of time, insufficient for the motor to return to ambient temperature.

The value of S3 on this motor equates to 7% or 42 seconds of on-load operation in a ten minute period.

The pendant isn’t required when working with the wireless handset, but still sent as back up if ever the wireless handset fails.
