Product model: EZ-30D

Output: 6.5 tons

Stroke: 35mm

Battery saturation capacity: 90 shear times

Maximum shear range:

Φ 28mm (240mm ²) Copper/aluminum wire

Φ 19mm (120mm ²) Steel core aluminum stranded wire

Battery: 18V2.0Ah lithium battery

Charging time: 30 minutes (fast charging)

Number of batteries: 2

Charger: 1 unit

Cylinder sealing ring: 1 set

Product model: EZ-50D

Output: 6 tons

Stroke: 38mm

Battery saturation capacity: 40 shear times

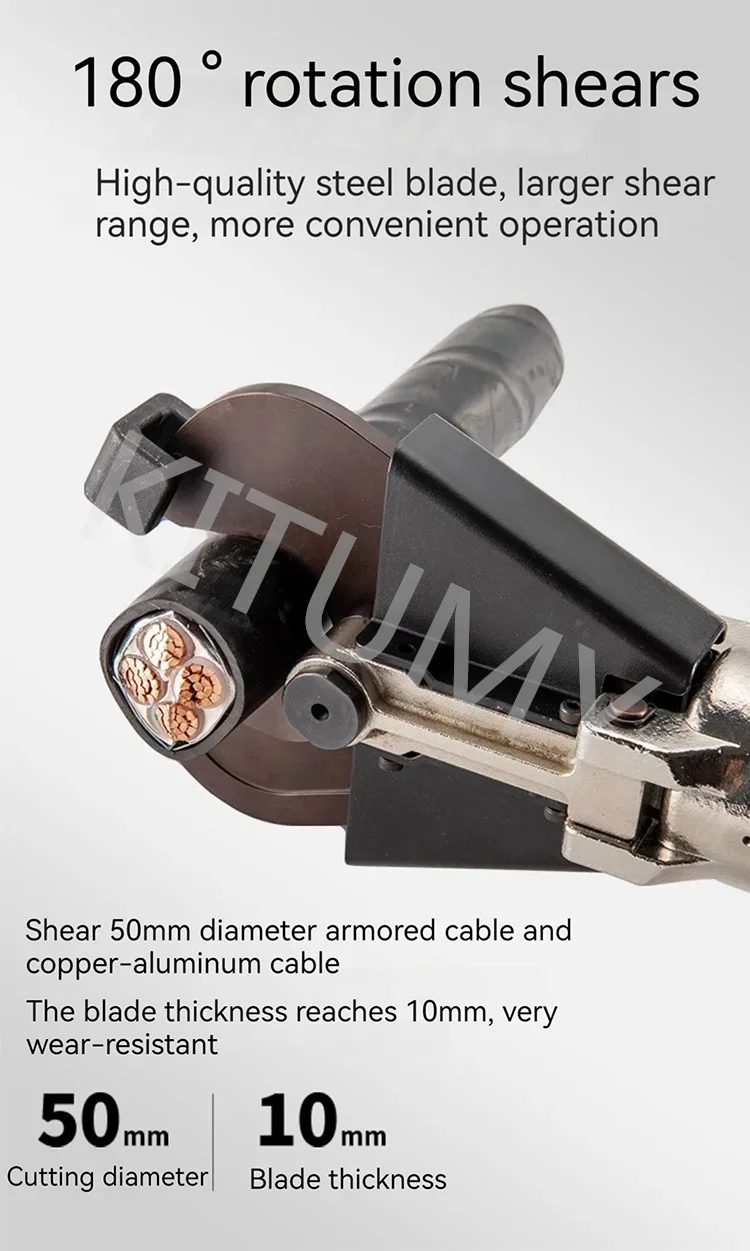

Maximum shear range: Φ 50mm (copper aluminum wire and armored cable)

Battery: 18V2.0Ah lithium battery

Charging time: 30 minutes (fast charging)

Number of batteries: 2

Charger: 1 unit

Cylinder sealing ring: 1 set

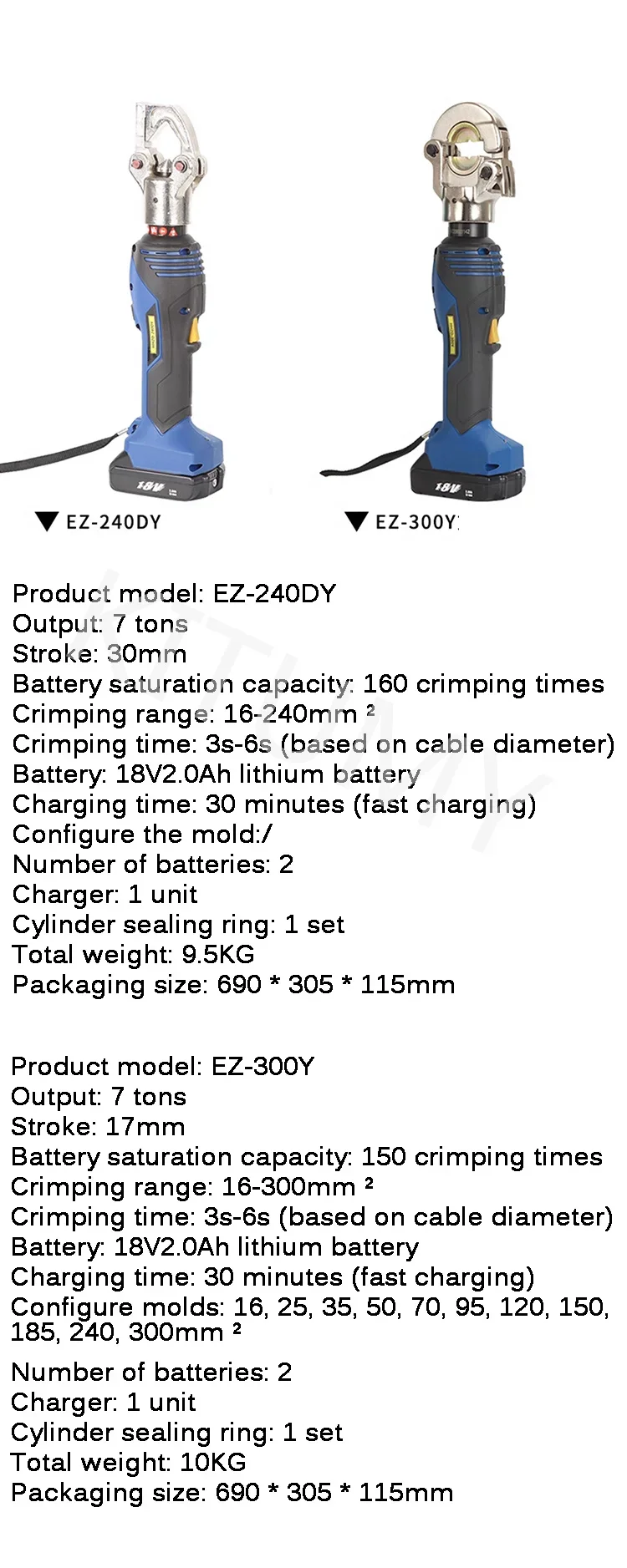

Product model: EZ-240DY

Output: 7 tons

Stroke: 30mm

Battery saturation capacity: 160 crimping times

Crimping range: 16-240mm ²

Crimping time: 3s-6s (based on cable diameter)

Battery: 18V2.0Ah lithium battery

Charging time: 30 minutes (fast charging)

Configure the mold:/

Number of batteries: 2

Charger: 1 unit

Cylinder sealing ring: 1 set

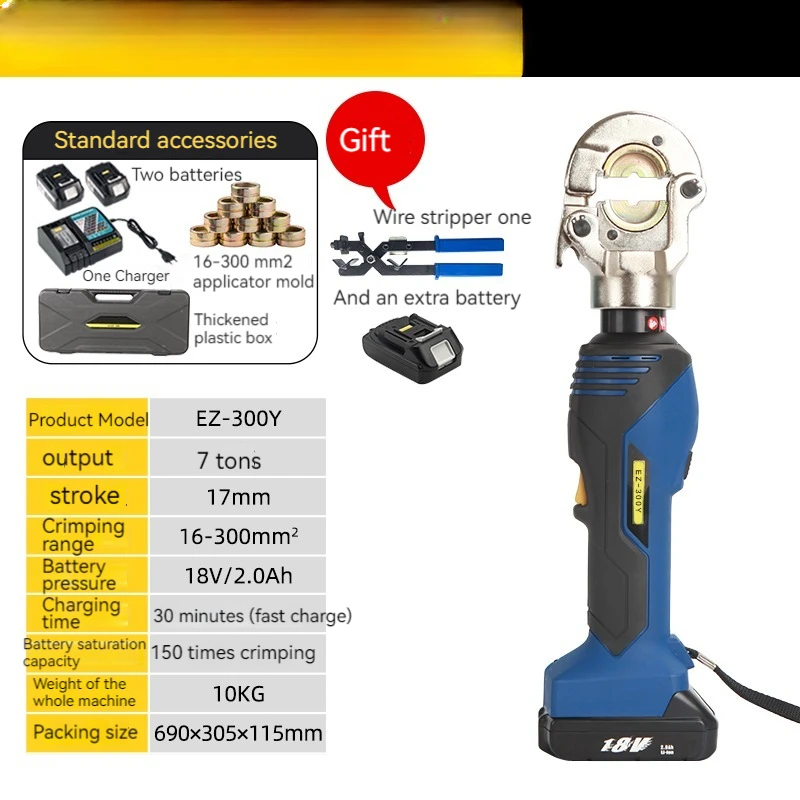

Product model: EZ-300Y

Output: 7 tons

Stroke: 17mm

Battery saturation capacity: 150 crimping times

Crimping range: 16-300mm ²

Crimping time: 3s-6s (based on cable diameter)

Battery: 18V2.0Ah lithium battery

Charging time: 30 minutes (fast charging)

Configure molds: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm ²

Number of batteries: 2

Charger: 1 unit

Cylinder sealing ring: 1 set
