Description

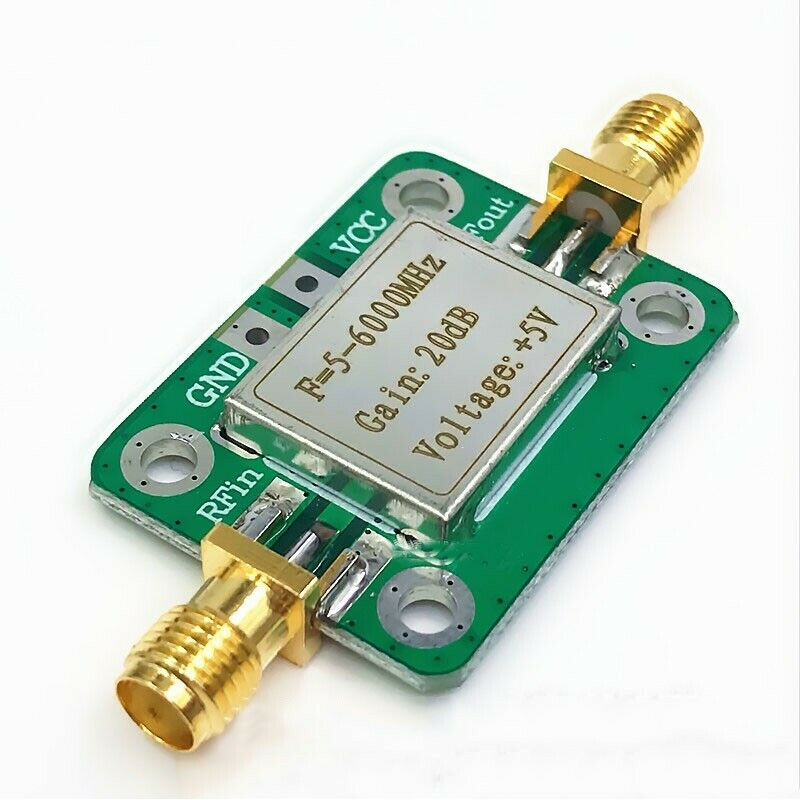

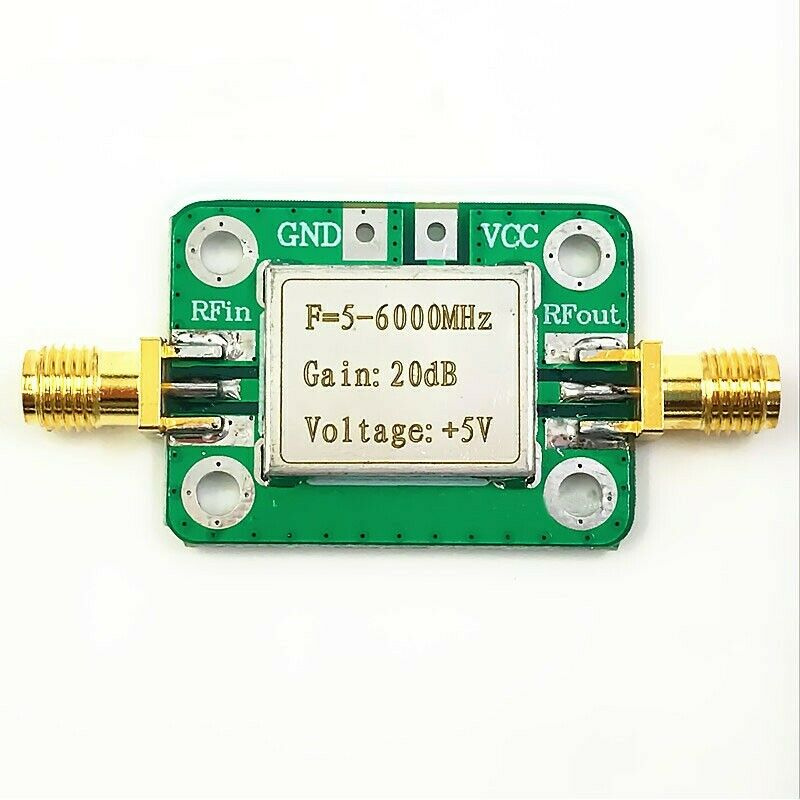

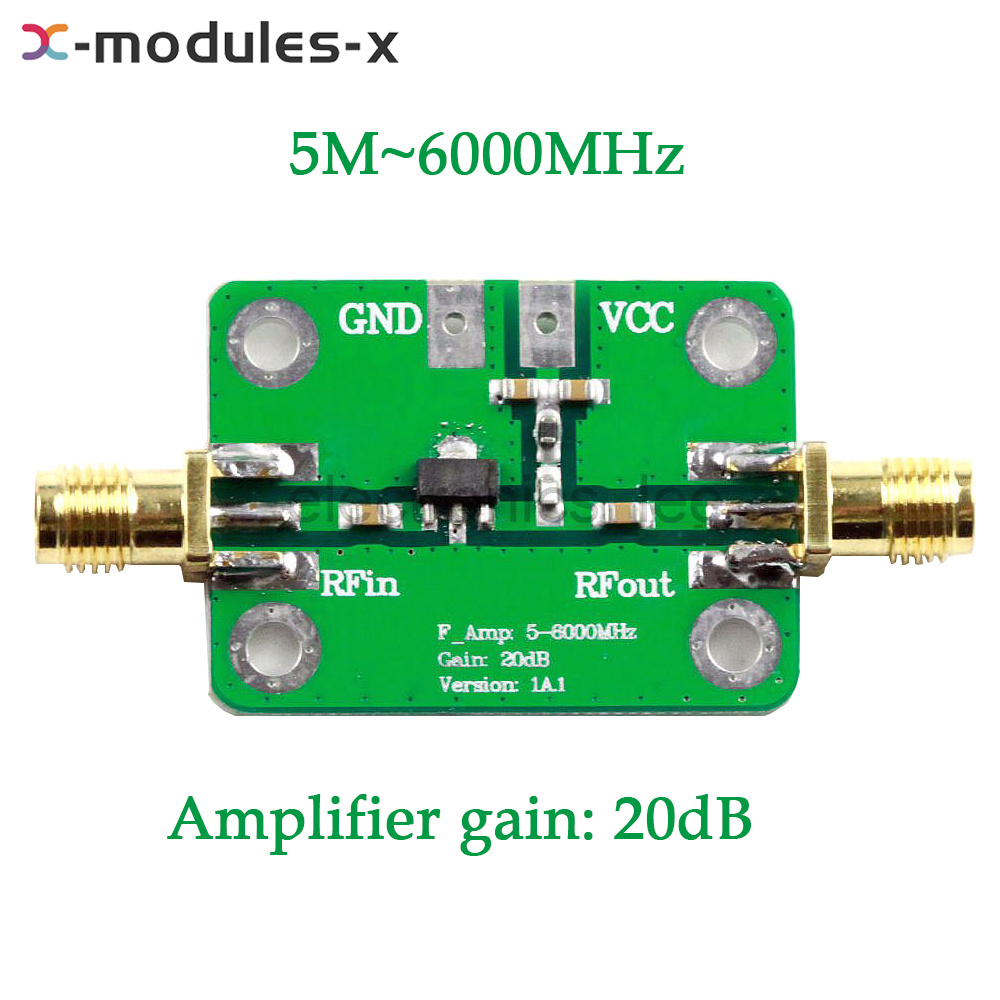

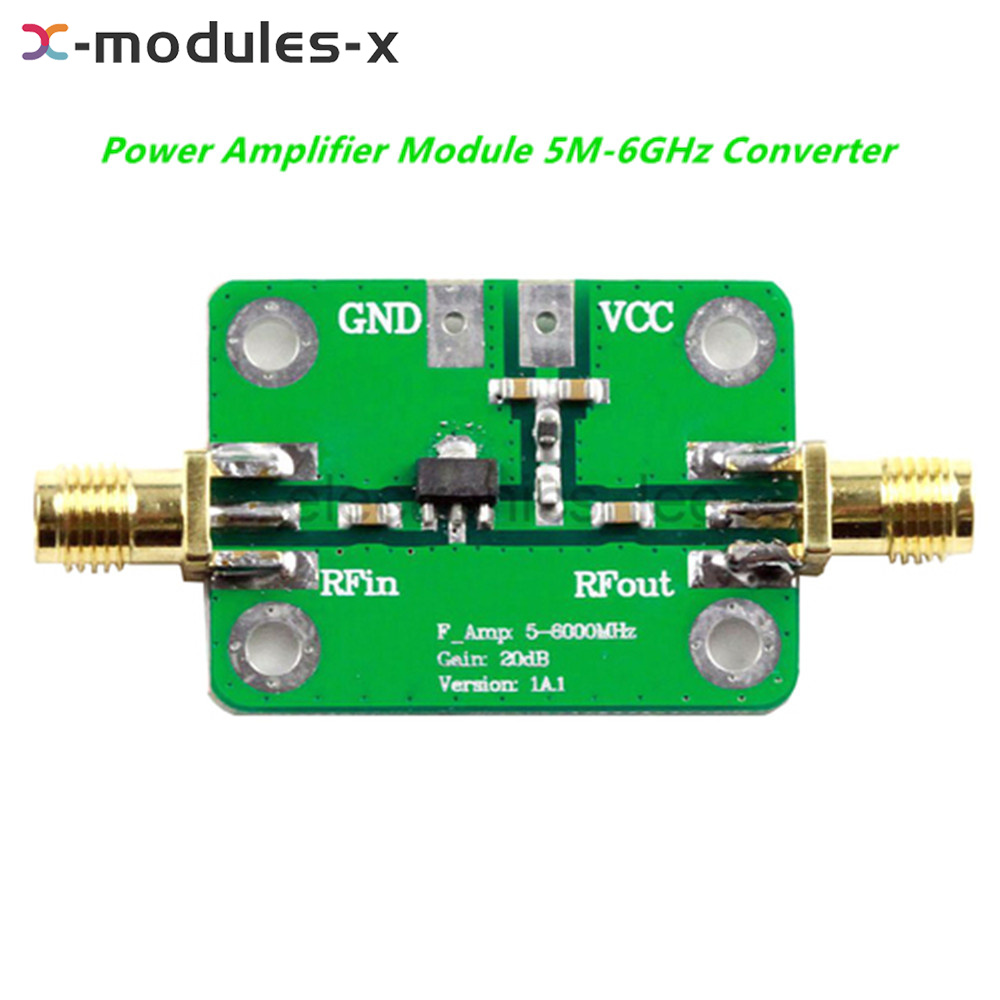

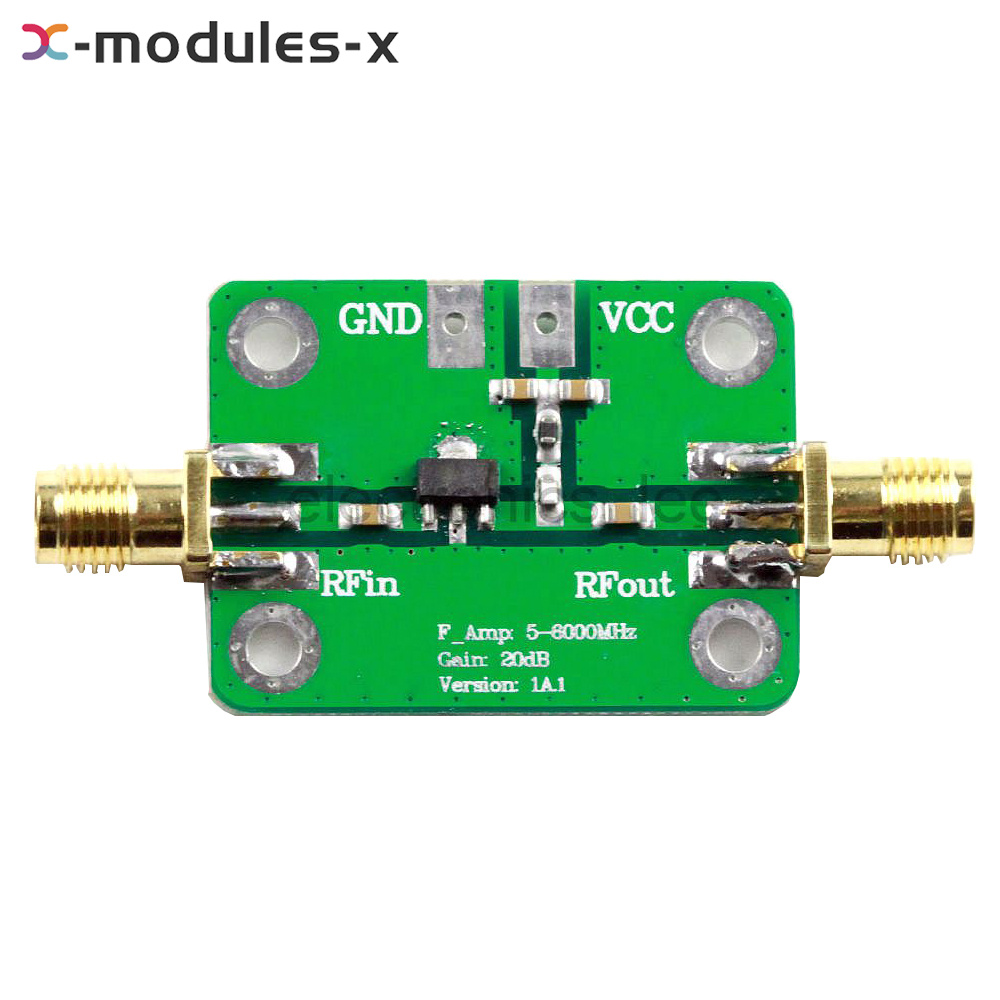

5M-6GHz Low Noise RF Amplifier Ultra Wideband Gain 20dB Medium Power Amplifier Board
Features:
- 5M-6GHz RF signal power amplifier with 20dB gain
- Large dynamic range and wide operating frequency range
- Suitable for all types of fixed gain amplification of RF signal
- Wide frequency range, stable gain, small noise figure and large dynamic range (+ 20dBm @ 1dBP)
- Suitable for all kinds of RF transmitting circuits to extend communications distance
- Perfect for short-wave, FM broadcast, remote control receivers, cable TV signal amplifiers, Beidou, GPS satellite navigation, 2.4G Bluetooth, WIFI receiver RF end and other RF amplification

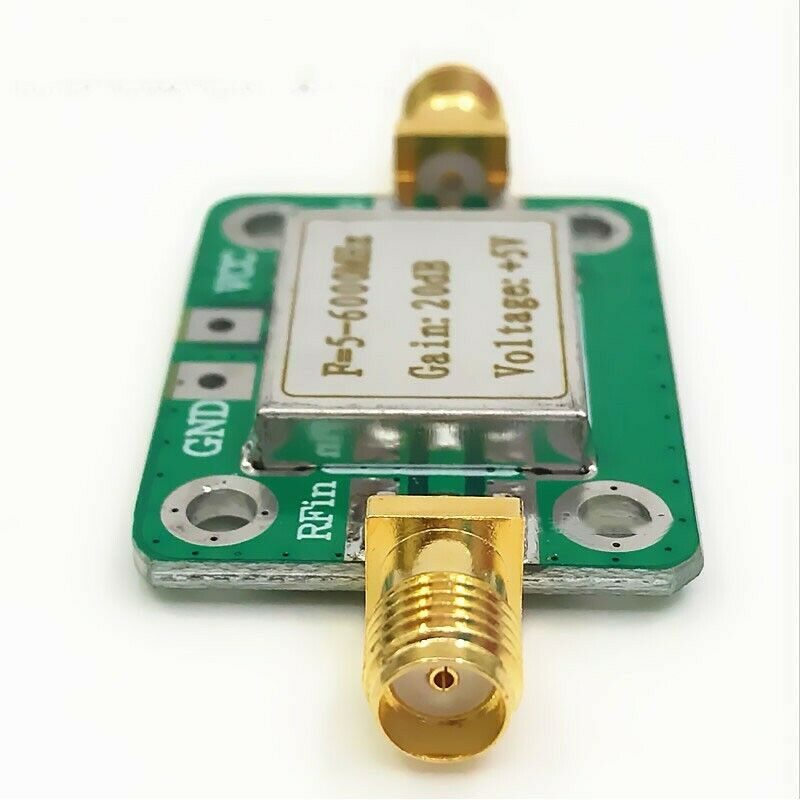

- A shielded enclosure with anti-reverse protection diodes
Technical Parameters:
- Operating Frequency: 5M-6GHz (5-6000MHz)
- Amplifier Gain: 20dB
- Max. Output Power: +21dBm(100mW)@1dB compression point
- Working Current: 85mA (5V)
- Power Supply Voltage: 5VDC
- System Impedance: 50Ω
- Weight: 5g
Package Included:

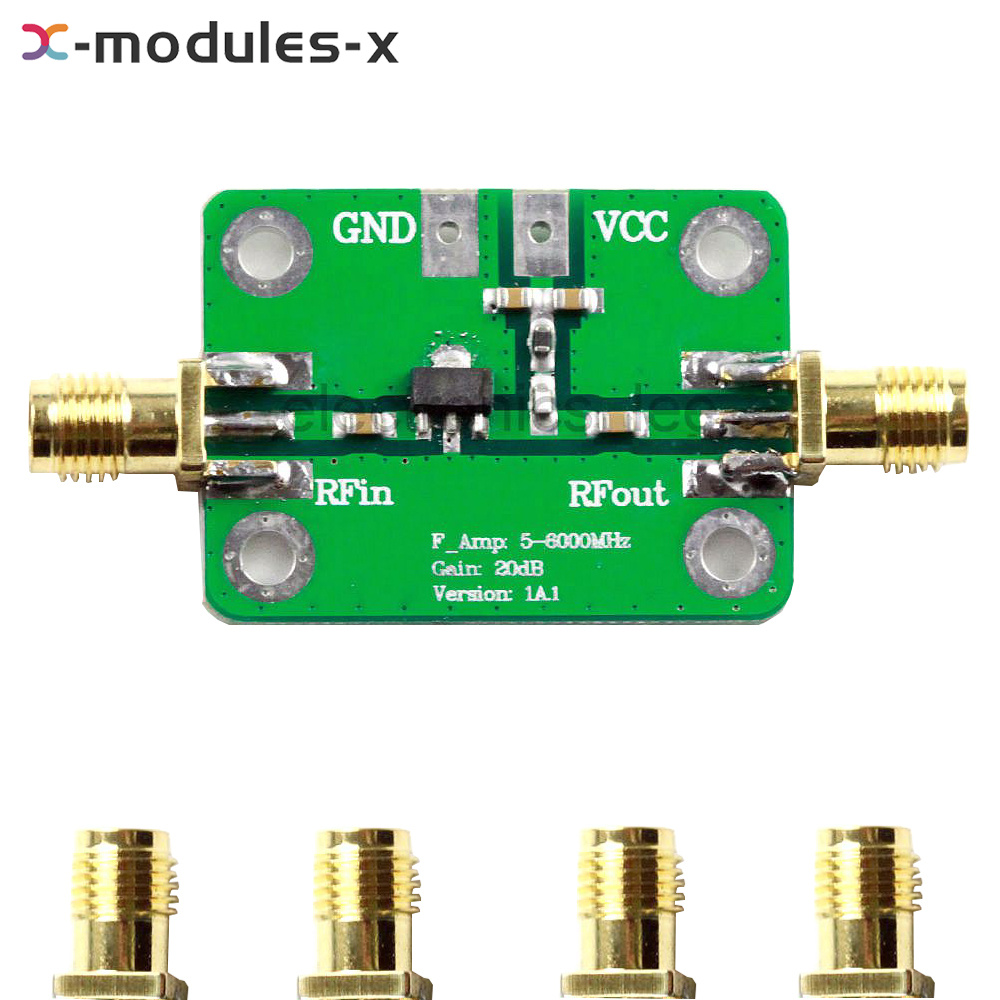

- 1 x RF Power Amplifier Board
Note: The relevant principles of RF microwave circuit layout should be followed while using the board.
