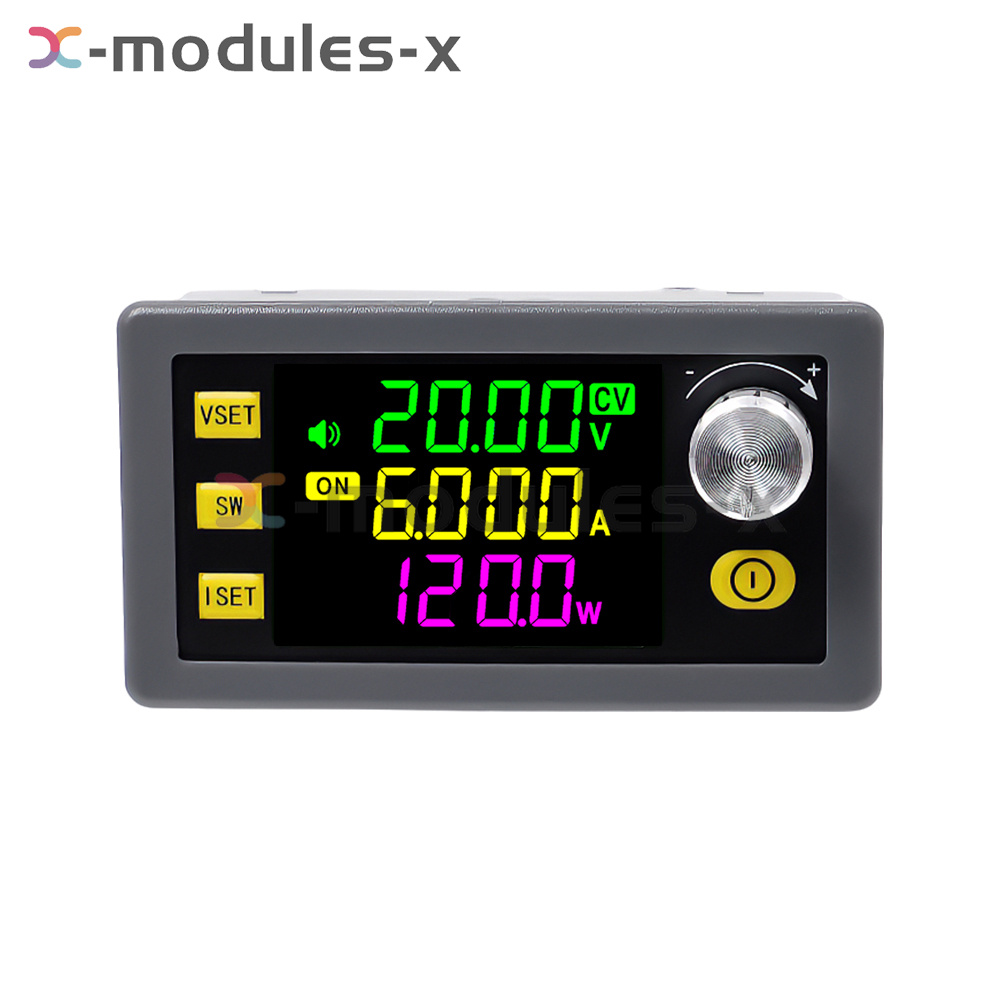

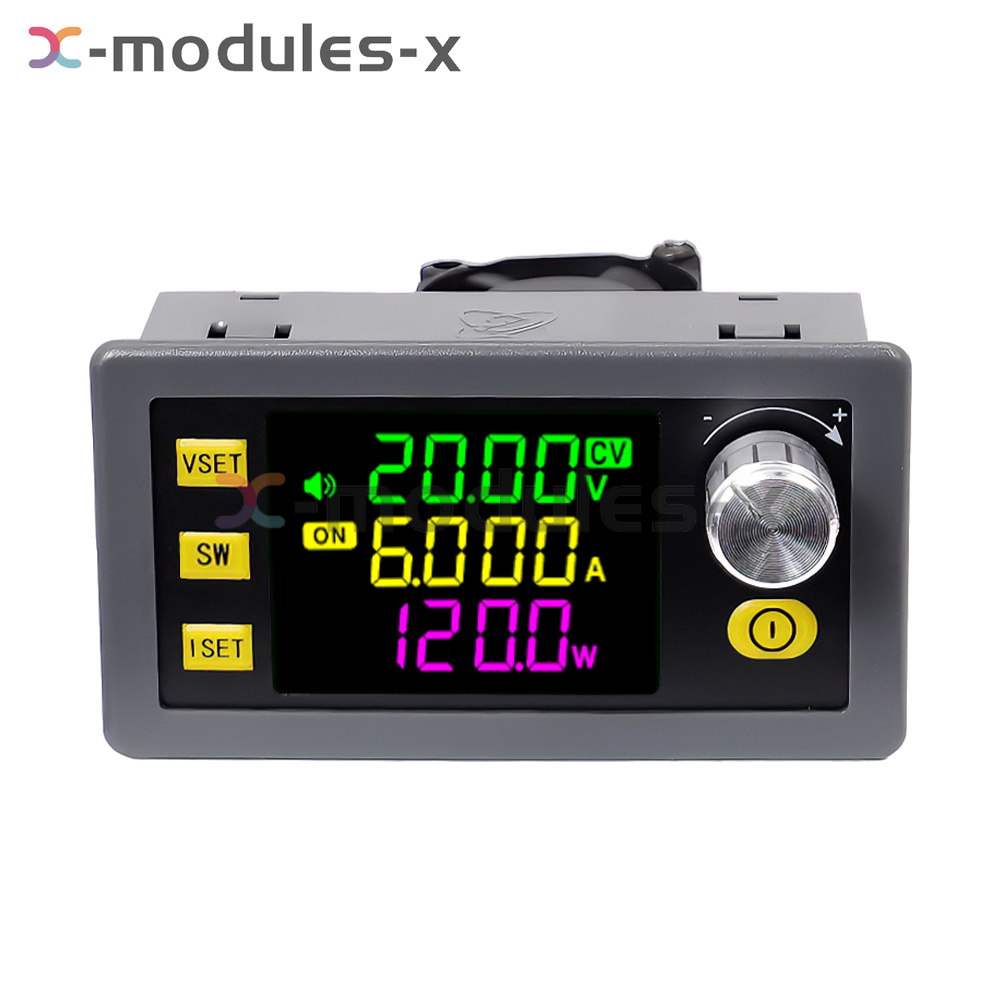

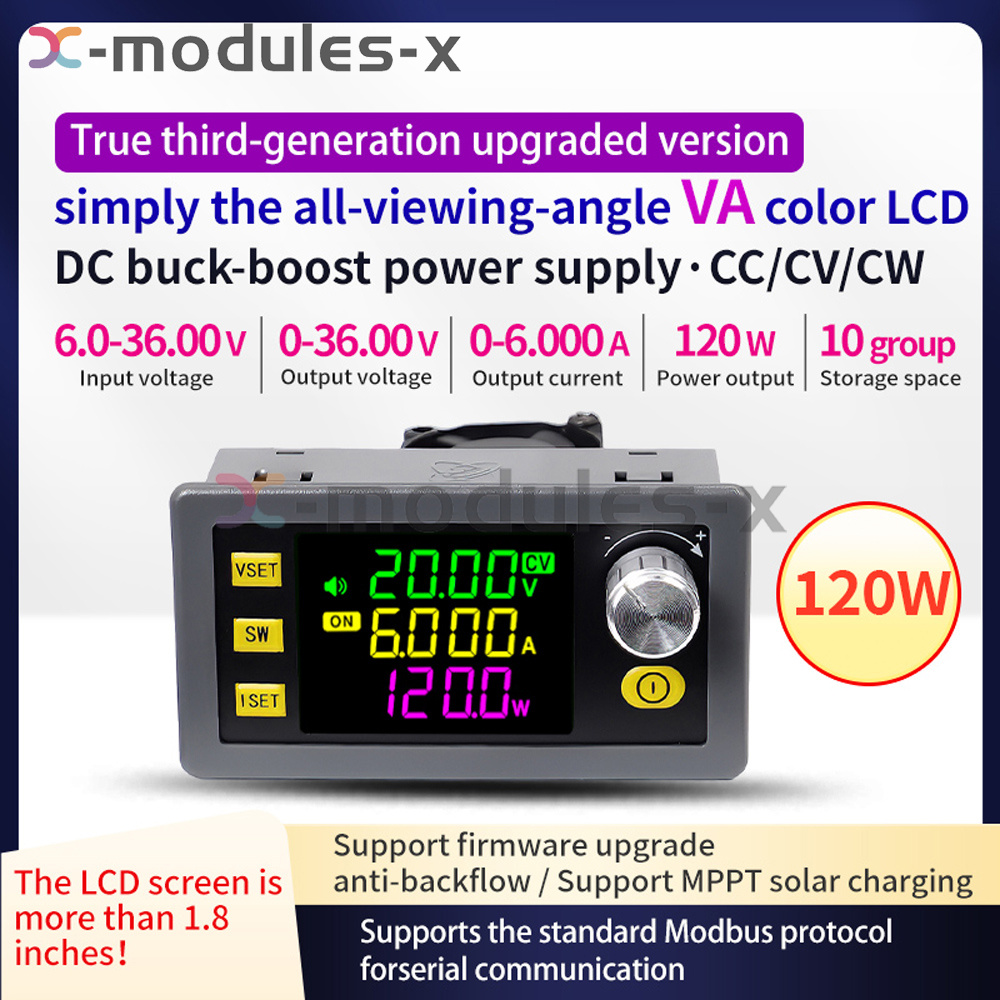

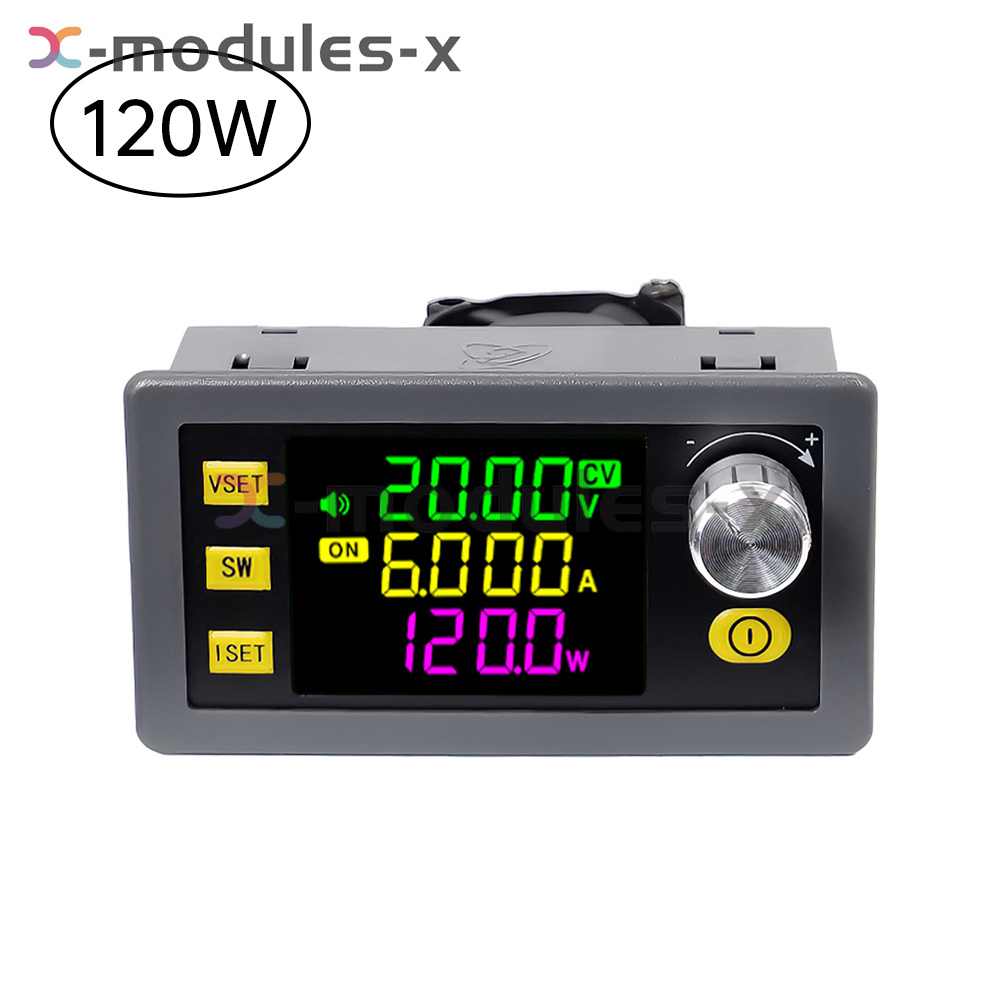

SK120 CNC Adjustable Buck-Boost Power Supply Module Voltage Regulator DC6-36V
Description
Product Feature:
1. Using high-quality PCB materials with guaranteed quality greatly improves the product's service life

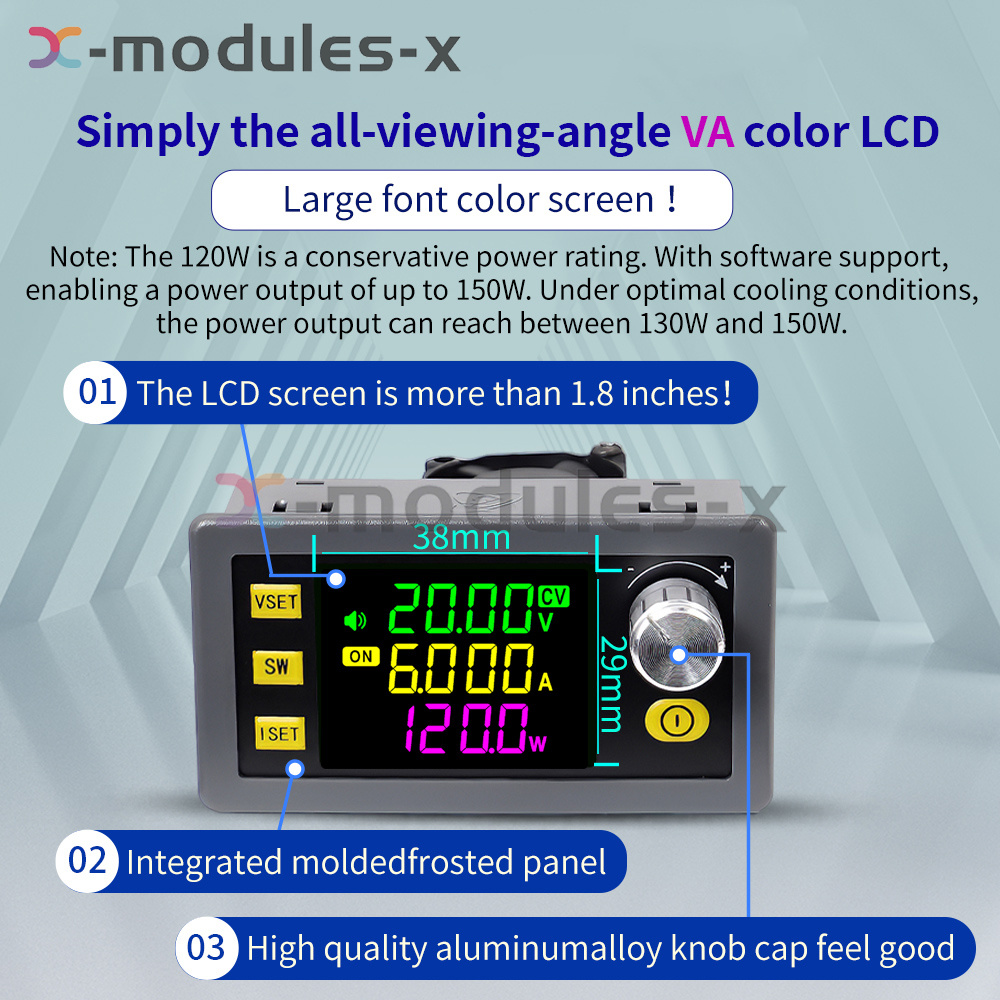

2. The LCD screen layout is reasonable, the font is large and full and round, and the professional power LCD screen has all the functions you want

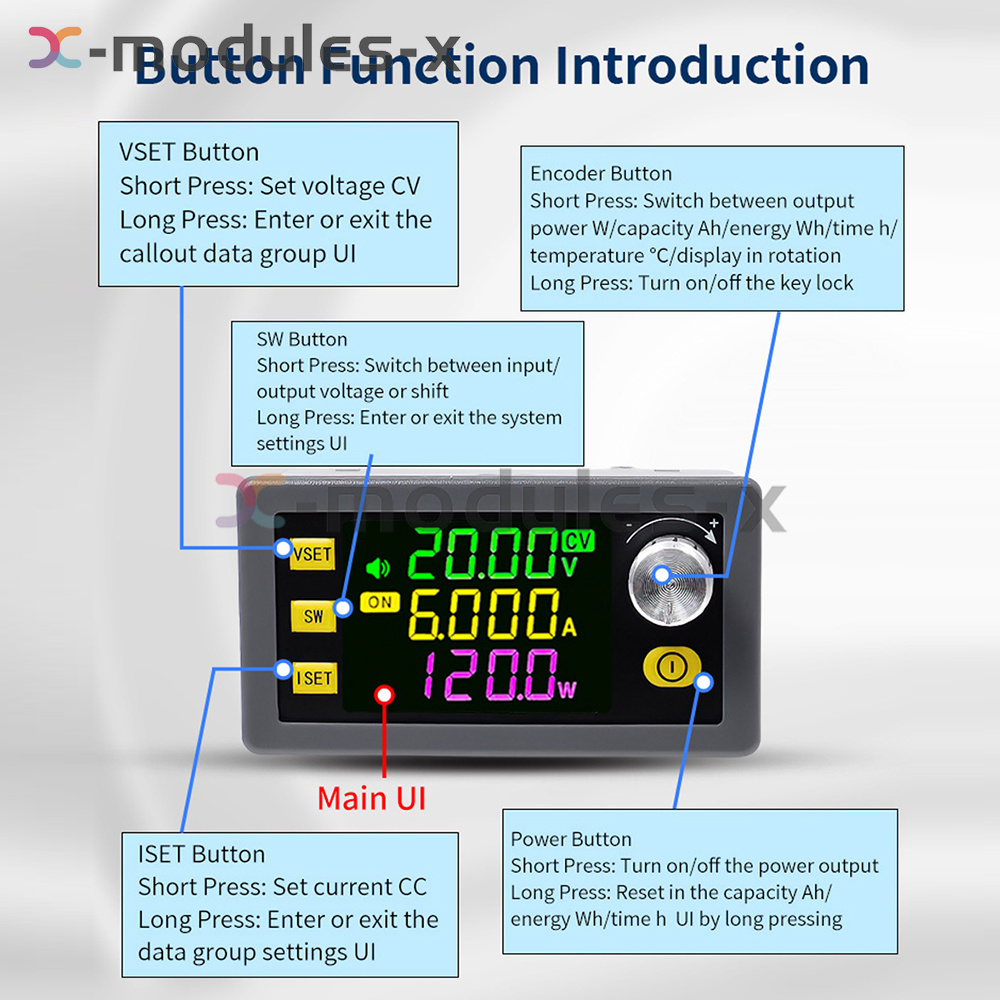

3. The product is equipped with a built-in buzzer, button prompts, and alarm prompts, making it safer and more reassuring to use

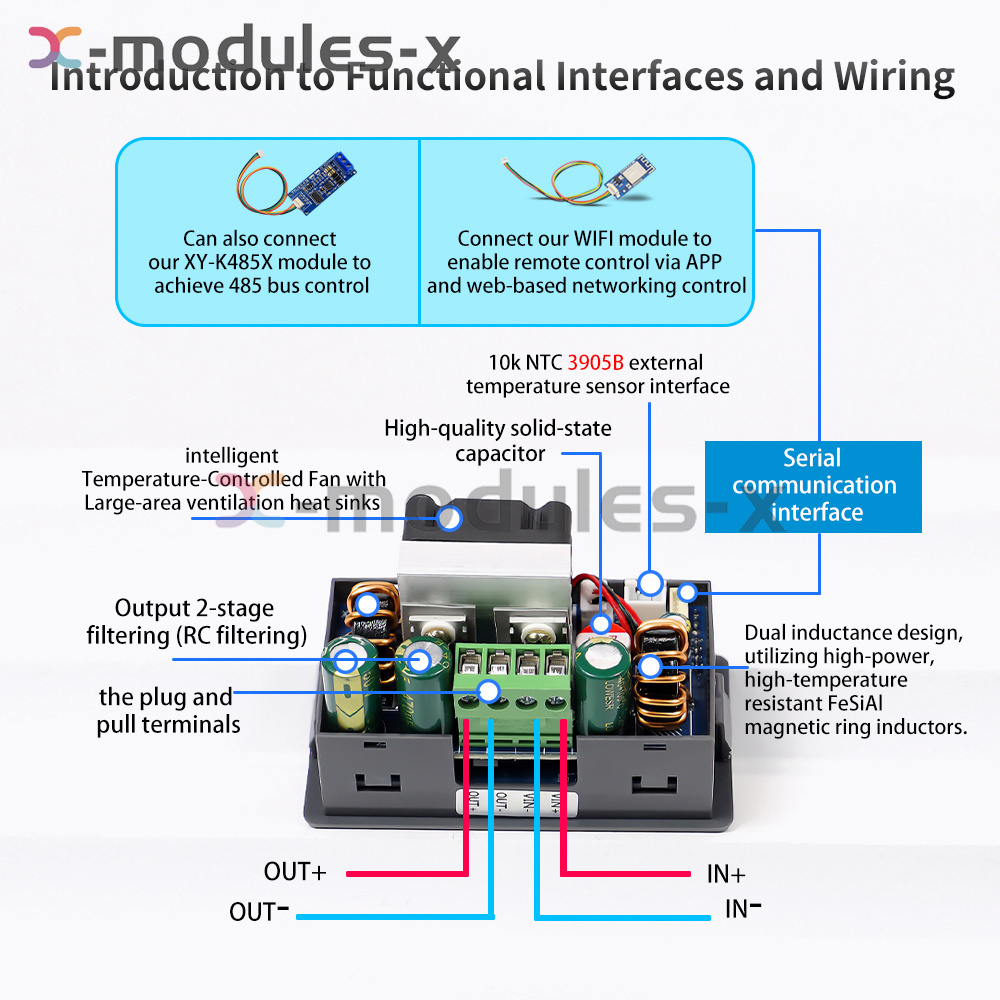

4. Product upgrade with plug-in terminals for easy disassembly and replacement

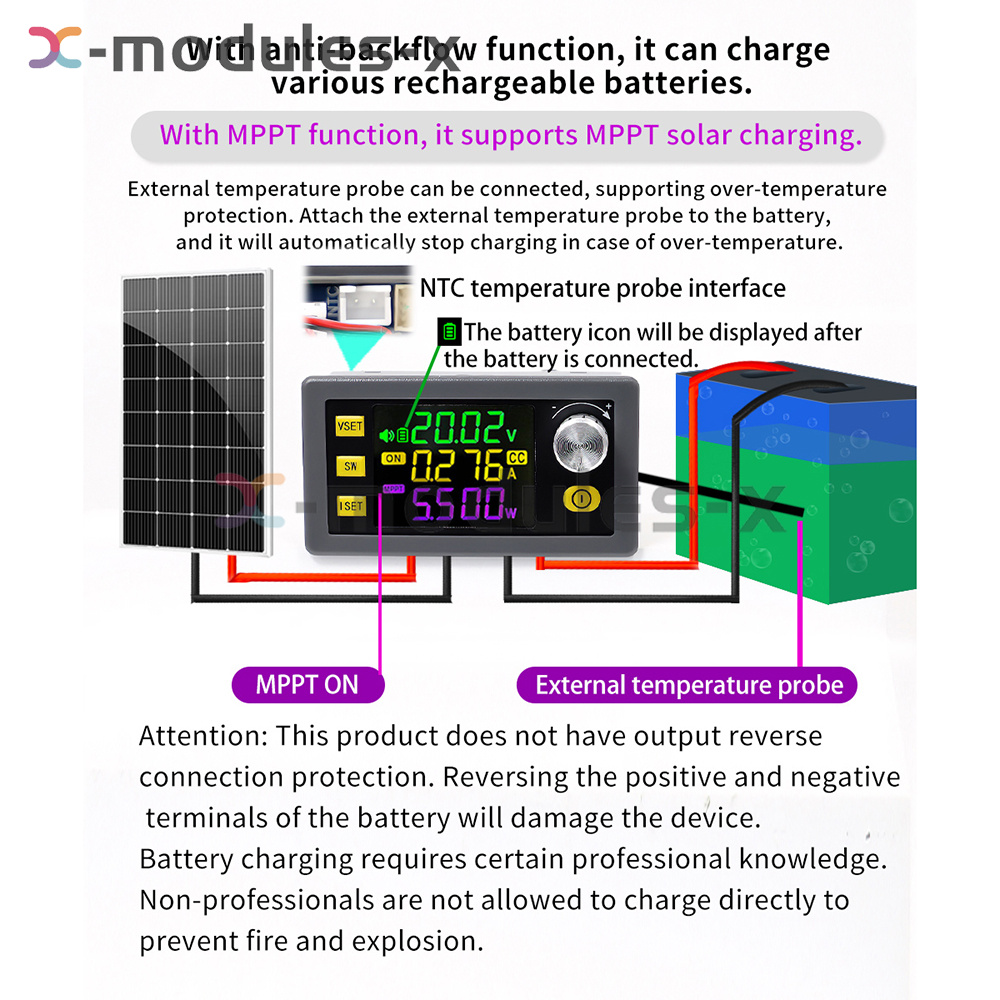

5. The product has a wide range of applications, with MPPT function, supports MPPT solar charging, and can be connected to external temperature probes for over temperature protection
1. Using high-quality PCB materials with guaranteed quality greatly improves the product's service life
2. The LCD screen layout is reasonable, the font is large and full and round, and the professional power LCD screen has all the functions you want
3. The product is equipped with a built-in buzzer, button prompts, and alarm prompts, making it safer and more reassuring to use
4. Product upgrade with plug-in terminals for easy disassembly and replacement
5. The product has a wide range of applications, with MPPT function, supports MPPT solar charging, and can be connected to external temperature probes for over temperature protection

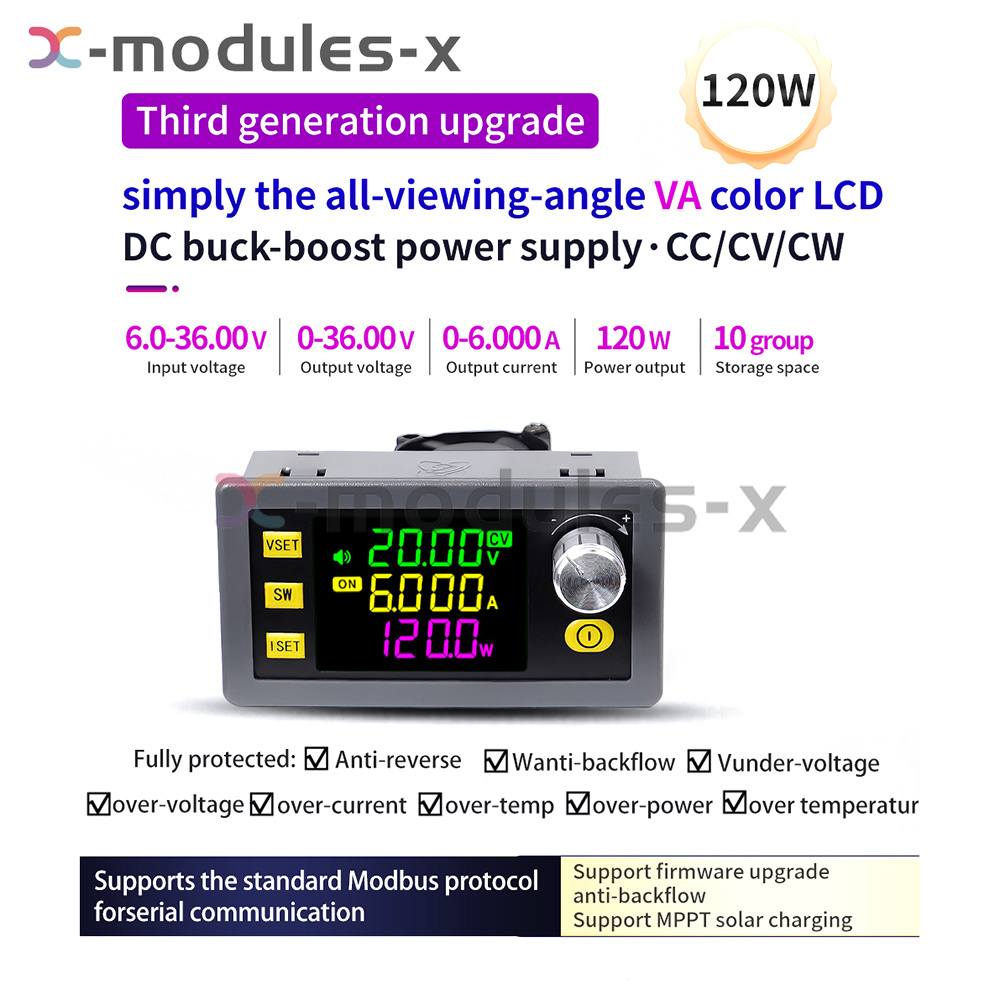

Product parameters:
Input voltage: 6.0-36V
Output current: 0-6.000A
Output power: 120W
Voltage resolution: 0.01V
Conversion efficiency: around 88%
Output voltage: 0-36V
Voltage accuracy: ± 0.5%+1 word
Current accuracy: ± 0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: supports MPPT solar charging
Buzzer: Yes
Soft start: Yes
Protection mechanism:
Input anti reverse connection: Yes
Output anti backflow: Yes
Input undervoltage protection: 5.5-36V adjustable, default 5.5V
Output overvoltage protection: 0-38V adjustable, default 38V
Output overcurrent protection: 0-6.2A adjustable, default 6.2A
Output Overpower Protection: 0-150W adjustable, default 125W
Over temperature protection: adjustable from 0 to 110 ℃, default to 95 ° C
Time out protection: 0-100H adjustable, default off
Overcapacity protection: 0~9999AH adjustable, default off
Superenergy protection: 0~9999KWH adjustable, default off
Input voltage: 6.0-36V
Output current: 0-6.000A
Output power: 120W
Voltage resolution: 0.01V
Conversion efficiency: around 88%
Output voltage: 0-36V
Voltage accuracy: ± 0.5%+1 word
Current accuracy: ± 0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: supports MPPT solar charging
Buzzer: Yes
Soft start: Yes
Protection mechanism:
Input anti reverse connection: Yes
Output anti backflow: Yes
Input undervoltage protection: 5.5-36V adjustable, default 5.5V
Output overvoltage protection: 0-38V adjustable, default 38V
Output overcurrent protection: 0-6.2A adjustable, default 6.2A
Output Overpower Protection: 0-150W adjustable, default 125W
Over temperature protection: adjustable from 0 to 110 ℃, default to 95 ° C
Time out protection: 0-100H adjustable, default off
Overcapacity protection: 0~9999AH adjustable, default off
Superenergy protection: 0~9999KWH adjustable, default off
Package List:
module * 1
module * 1
