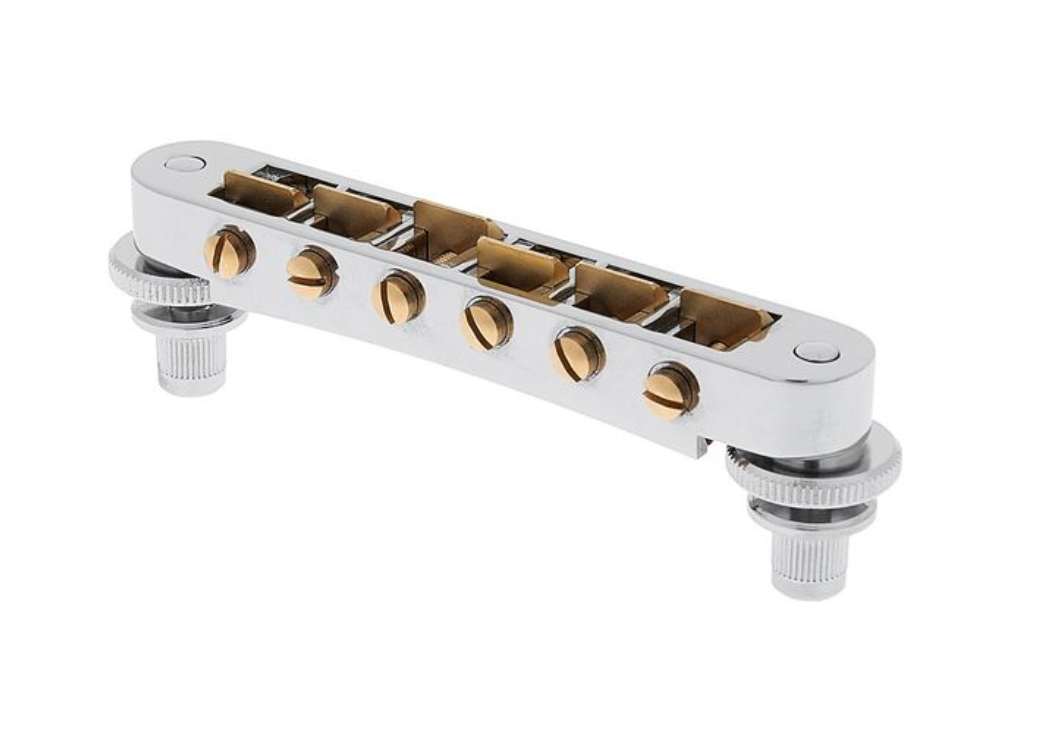

Schaller GTM – high-quality Tune-O-Matic bridge

• Compatible with post spacings from 74.0 - 74.5 mm
• non-reverse: intonations screws point to the pickups
• 1 pair of GTM studs and inserts M5 (metric)
• Features special retainer springs to prevent bridge rattle or string buzz
• Uncoated and unnotched string saddles milled from solid Pure Sound brass with excellent sound transmission.
• Unnotched string saddles allow individual string spacing (distance between two neighboring strings) and string action (strings distance to fretboard)
• The exact slant angle for installation of a Tune-O-Matic bridge should be determined by the luthier according to technical aspects of the scale lenght and the string gauge of the respective instrument.



Advantages of Pure Sound brass

• Due to its softness, brass is an ideal saddle material and offers sufficient resistance to the strings.
• Uncoated brass saddles (plain or notched) can be easily customized by the guitar maker with a saddle file for smooth transitions.
• Form-fit support of the components in conjunction with improved string contact thus supports playability, intonation and sustain.



Technical specifications

• Distance height adjustment screws: 74 - 74.5 mm
• String spacing (E-e): 52.5 mm
• String radius: 12″ - 14″, depending on the notching of the string saddles, more inside (12″) or outside (14″), in extreme cases still playable for fretboards from 10″ - 16″; minimal G/d string height above body 13.7 mm,
• Weight: 53 gram, 70 gram with accessories)
• Special feature: also suitable for lefthanded models
